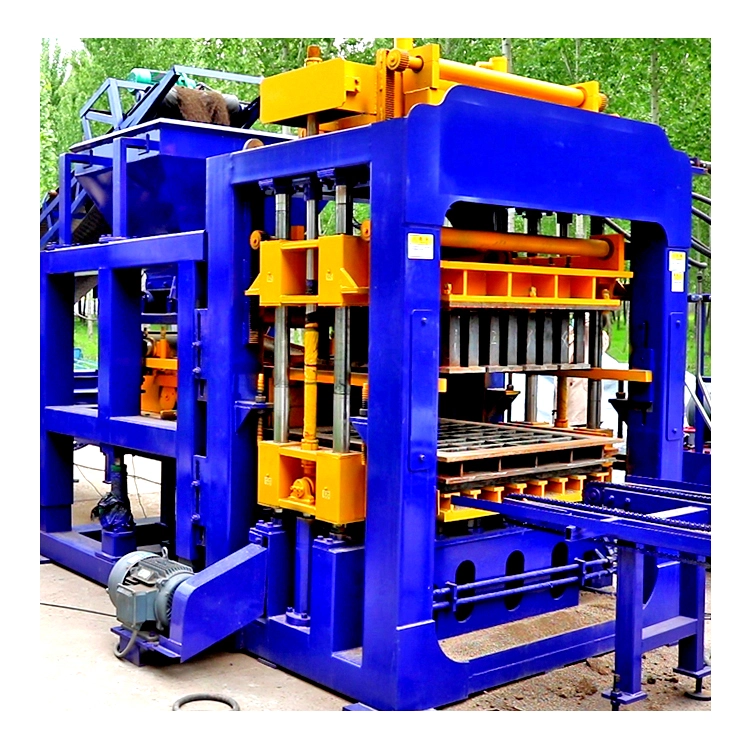

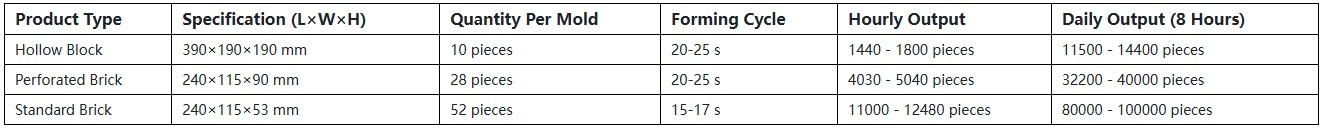

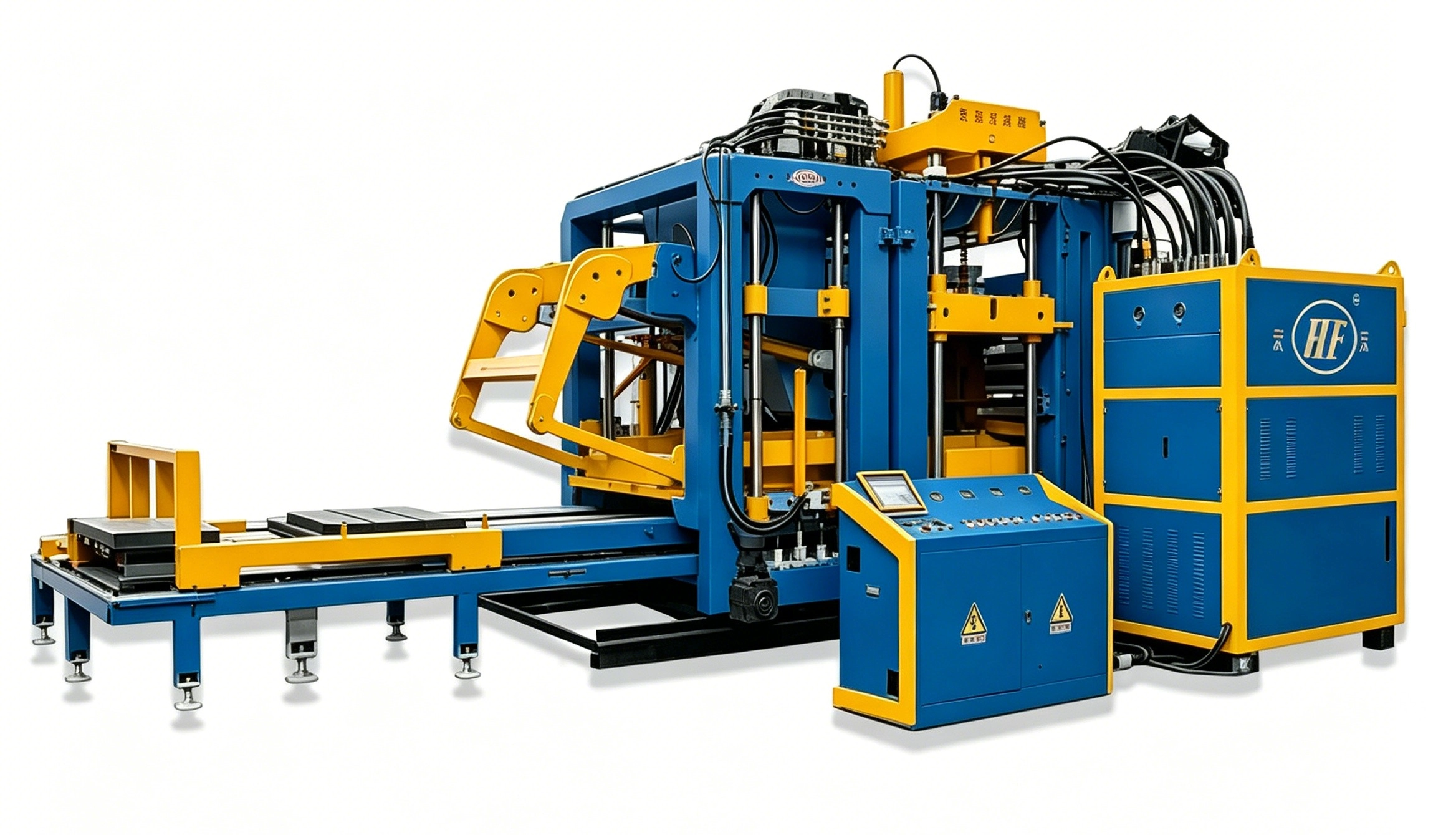

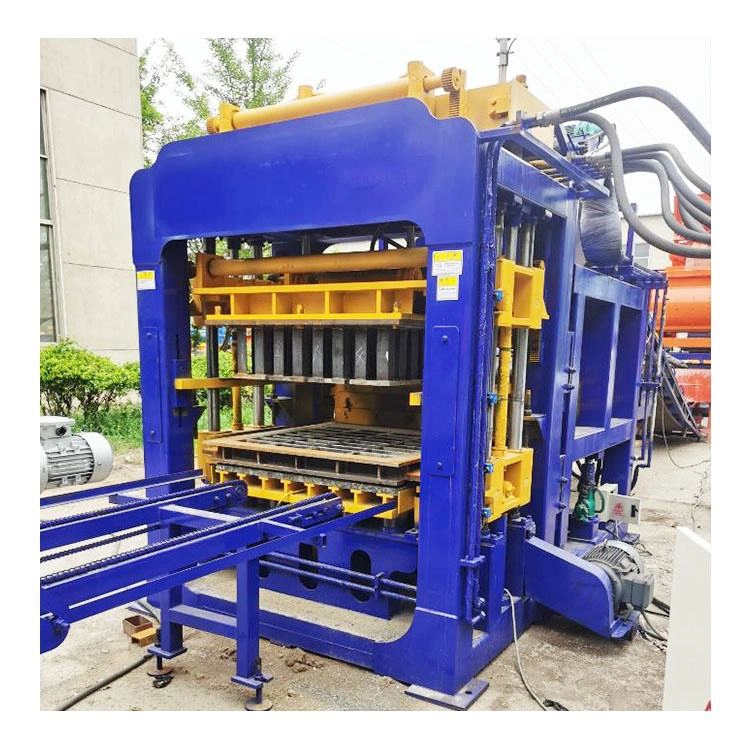

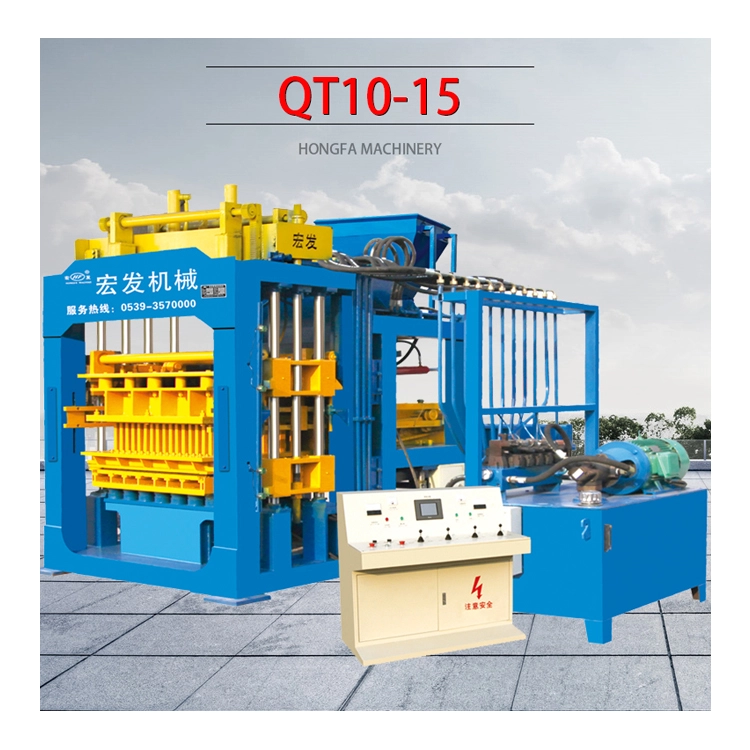

The QT10-15 fully automatic hollow brick making machine complies with industrial standard JC/T920-2003. It adopts hydraulic pressure + high-frequency table vibration as core molding principle. It can produce various cement products with solid waste raw materials such as fly ash, stone powder and construction waste. It matches automatic production lines of medium & large brick factories. The machine integrates feeding, pressing, vibrating, blank discharging and pallet conveying as a whole unit, with a standard output of 14,000 standard blocks per 8-hour shift.

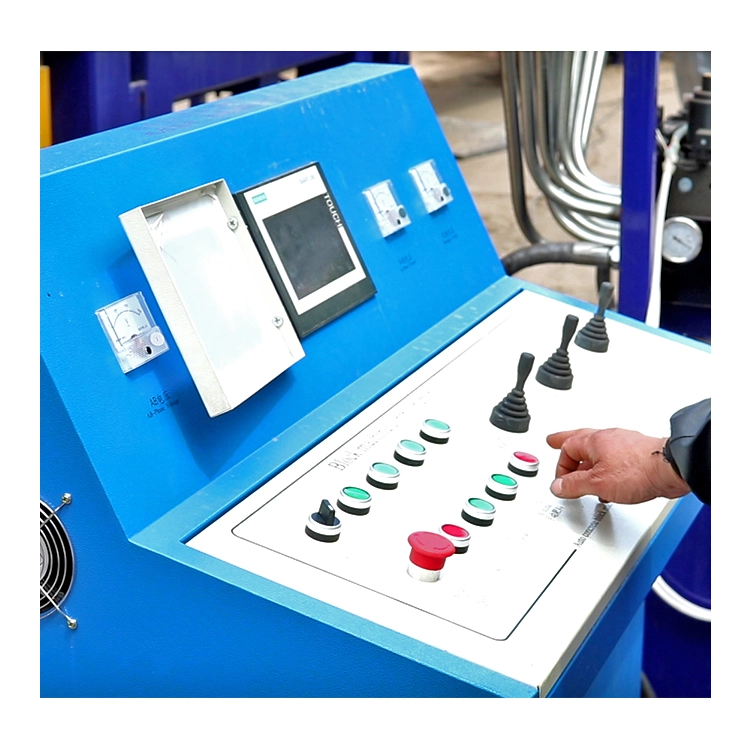

Equipped with imported Siemens PLC + color touch screen, Schneider low-voltage electrical components and photoelectric feeding sensors. The machine runs full-automatic circulation, only 1~2 attendants needed, which greatly cuts labor cost. It supports remote fault query, and users can freely set feeding, vibration and pressing time, easy to operate.
Adopt exclusive synchronous table vibration plus upper mold auxiliary vibration box dual vibration structure. Vibration force evenly spreads to the whole mold box without uneven density. Synchronous demolding mechanism prevents brick damage & corner loss, finished blocks have uniform size tolerance ≤1mm and higher compression strength. Vertical-only vibration reduces abrasion of mold and machine body.
Integrated welded heavy thick high-strength steel frame, equipped with 4 high-precision wear-resistant guide columns and extended guide sleeves. No deformation or offset during pressing & vibration under long heavy load. Stress-relieved frame features strong anti-fatigue & impact resistance, longer service life than competitors.

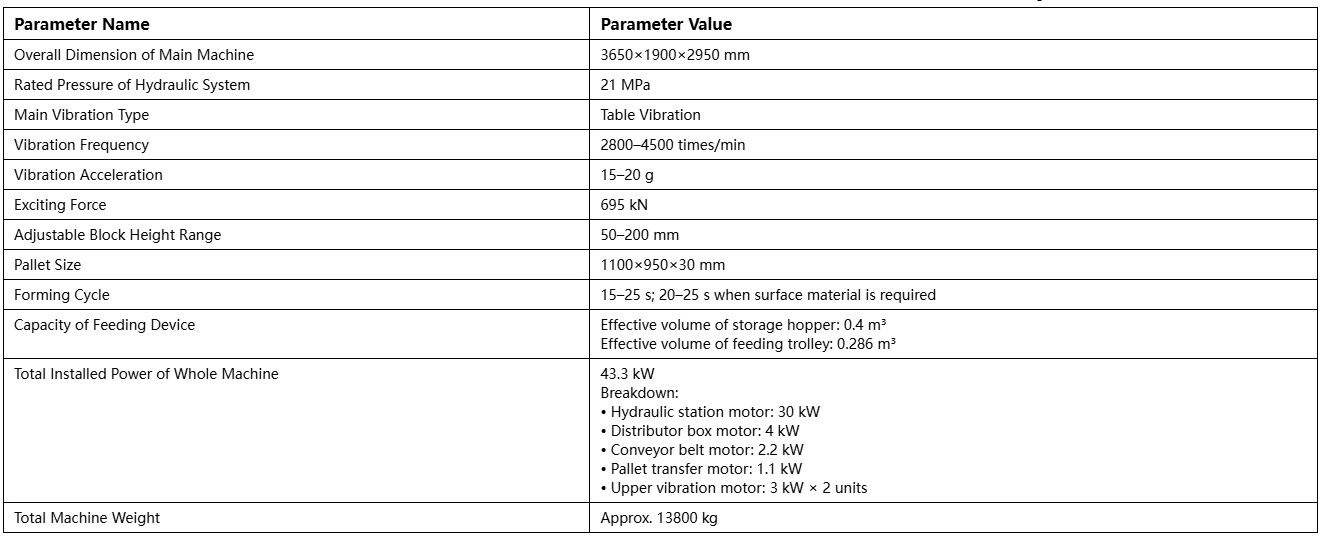

Hydraulic unit adopts original Taiwan YUKEN valve groups and large-flow oil pump, stable 20MPa rated pressure, low temperature rise and low running noise. Optimized oil circuit maintains stable pressure, saves 30% energy vs old models, simple daily maintenance with few oil leakage failures.

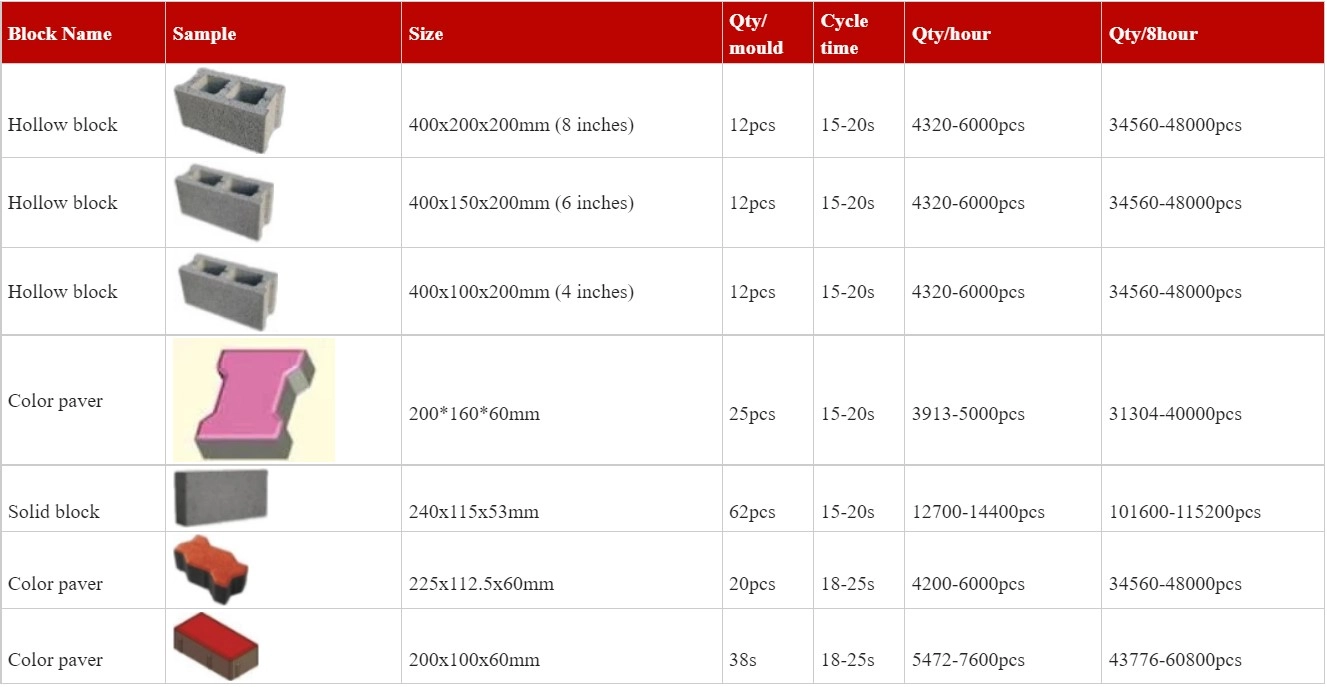

Mold forged by carburized 55# manganese steel with hardness HRC60, service life over 100,000 times. Quick mold change design. By replacing molds, it can produce hollow bricks, permeable pavers, lawn bricks, curbs, slope protection blocks, interlocking bricks and dozens of precast products, covering product height 40-400mm for municipal, landscape and infrastructure projects.
Combination of traveling bin & sealed belt conveyor with multi-row rakes to level aggregates. Continuous feeding controlled by photoelectric switch, flexible to adjust raw material ratio. It fully utilizes fly ash, tailings, sand, recycled construction waste, high solid waste utilization rate, compliant with green building material standards.

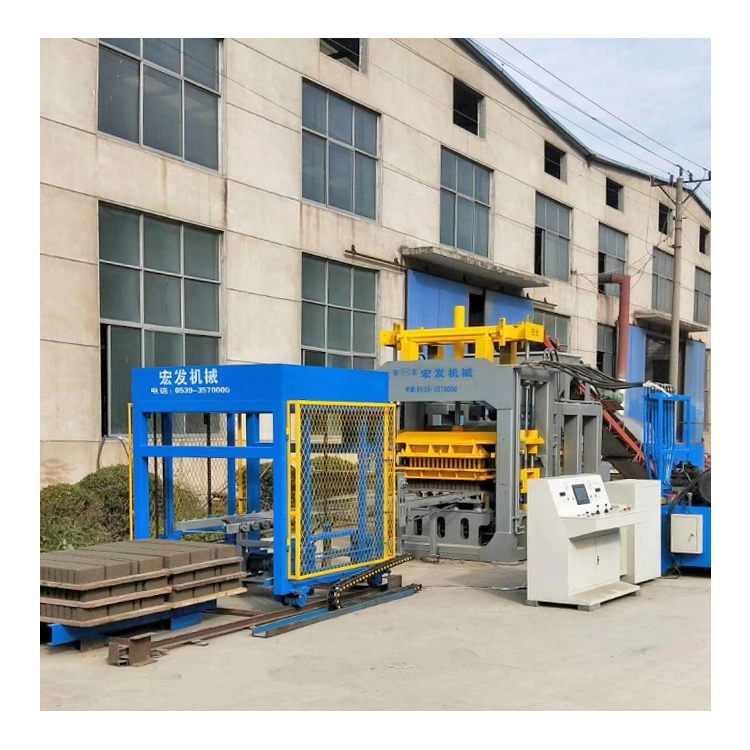

Perfectly matched with batching machine, JS mixer, automatic pallet feeder, stacker and elevator to form unmanned full-automatic line. Supports color surface layered feeding, producing plain and colored bricks at the same time, great room for capacity expansion.
Main drive motors are Siemens industrial motors, all transmission parts dust & waterproof. Standard seals and parts adopt top international brands, wear parts loss reduced by 40%. 12-month standard warranty, convenient after-sales maintenance.
1、Pre-start: Check hydraulic oil level, lubricant, mold tightness and intact pallets.
2、Startup: Switch on power → start hydraulic station → turn on feeding & conveying system.
3、Automatic production: Raw materials enter bin, machine automatically feeds → press & vibrate → pressure holding molding → synchronous demolding → pallet delivery.
4、Shutdown: Empty mold & material bin → close hydraulic system → cut off main power, clean residual concrete on machine.
The QT10-15 fully automatic hollow brick making machine complies with industrial standard JC/T920-2003. It adopts hydraulic pressure + high-frequency table vibration as core molding principle. It can produce various cement products with solid waste raw materials such as fly ash, stone powder and construction waste. It matches automatic production lines of medium & large brick factories. The machine integrates feeding, pressing, vibrating, blank discharging and pallet conveying as a whole unit, with a standard output of 14,000 standard blocks per 8-hour shift.
Equipped with imported Siemens PLC + color touch screen, Schneider low-voltage electrical components and photoelectric feeding sensors. The machine runs full-automatic circulation, only 1~2 attendants needed, which greatly cuts labor cost. It supports remote fault query, and users can freely set feeding, vibration and pressing time, easy to operate.
Adopt exclusive synchronous table vibration plus upper mold auxiliary vibration box dual vibration structure. Vibration force evenly spreads to the whole mold box without uneven density. Synchronous demolding mechanism prevents brick damage & corner loss, finished blocks have uniform size tolerance ≤1mm and higher compression strength. Vertical-only vibration reduces abrasion of mold and machine body.
Integrated welded heavy thick high-strength steel frame, equipped with 4 high-precision wear-resistant guide columns and extended guide sleeves. No deformation or offset during pressing & vibration under long heavy load. Stress-relieved frame features strong anti-fatigue & impact resistance, longer service life than competitors.
Hydraulic unit adopts original Taiwan YUKEN valve groups and large-flow oil pump, stable 20MPa rated pressure, low temperature rise and low running noise. Optimized oil circuit maintains stable pressure, saves 30% energy vs old models, simple daily maintenance with few oil leakage failures.
Mold forged by carburized 55# manganese steel with hardness HRC60, service life over 100,000 times. Quick mold change design. By replacing molds, it can produce hollow bricks, permeable pavers, lawn bricks, curbs, slope protection blocks, interlocking bricks and dozens of precast products, covering product height 40-400mm for municipal, landscape and infrastructure projects.
Combination of traveling bin & sealed belt conveyor with multi-row rakes to level aggregates. Continuous feeding controlled by photoelectric switch, flexible to adjust raw material ratio. It fully utilizes fly ash, tailings, sand, recycled construction waste, high solid waste utilization rate, compliant with green building material standards.
Perfectly matched with batching machine, JS mixer, automatic pallet feeder, stacker and elevator to form unmanned full-automatic line. Supports color surface layered feeding, producing plain and colored bricks at the same time, great room for capacity expansion.
Main drive motors are Siemens industrial motors, all transmission parts dust & waterproof. Standard seals and parts adopt top international brands, wear parts loss reduced by 40%. 12-month standard warranty, convenient after-sales maintenance.
1、Pre-start: Check hydraulic oil level, lubricant, mold tightness and intact pallets.
2、Startup: Switch on power → start hydraulic station → turn on feeding & conveying system.
3、Automatic production: Raw materials enter bin, machine automatically feeds → press & vibrate → pressure holding molding → synchronous demolding → pallet delivery.
4、Shutdown: Empty mold & material bin → close hydraulic system → cut off main power, clean residual concrete on machine.
