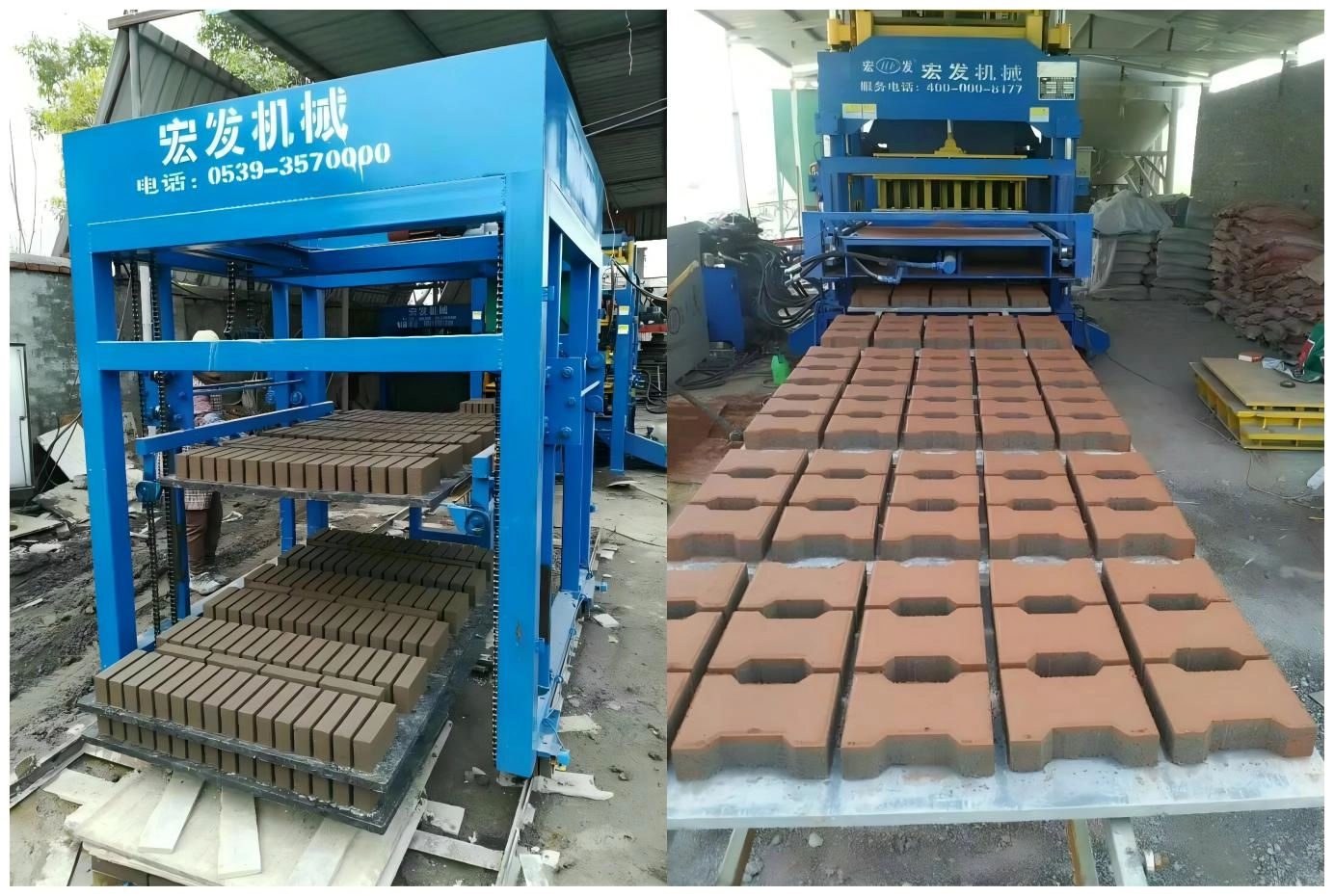

Production Case of QT5‑15 Full‑Automatic Hydraulic Block Making Machine

Equipment Model：QT5‑15 Full‑Automatic Hydraulic Block Making Machine

Project Location ：Domestic block‑making factory workshop

Main Block Types ：It can produce interlocking grass‑planting bricks and standard solid bricks. By changing molds, it can also manufacture hollow blocks, paving bricks, permeable bricks and other concrete products. 5 hollow blocks can be produced per molding cycle. The finished bricks feature high compactness and neat appearance. Grass‑planting bricks are widely used in parks and parking lots; solid bricks are for wall and fence construction.

Raw Materials ：Crushed stone, manufactured sand, stone powder and ordinary Portland cement, mixed with water in proper proportion. Raw materials are easy to source. Green bricks adopt natural curing. Steam curing equipment is optional to shorten curing time.

Project Description

The customer purchased a complete QT5‑15 automatic block production line, including QT5‑15 main forming machine, batching & mixing system, automatic pallet elevator‑stacker and pallet conveying system. Production started after installation and commissioning.

Production Process: Automatic batching & mixing of aggregates and cement → Automatic feeding and distributing → High‑frequency vibration and hydraulic pressing molding → Green bricks discharged with pallets → Automatic stacking by pallet elevator → Transfer to curing area for natural curing → Finished products for sales after curing.

The automatic stacking machine reduces manual brick handling. Only a small number of workers are needed for equipment inspection and finished‑goods transfer. As a medium‑size automatic block machine with reasonable investment, QT5‑15 is ideal for small‑and‑medium brick plants to fulfill municipal and construction orders.

Main Equipment Advantages

1. Moderate output & cost‑effective investment: 5 hollow blocks per cycle. Well‑suited for medium‑small brick factories with lower investment on equipment and plant, perfect for new brick‑plant projects.

2. Wide product range: Quick mold change for grass‑planting bricks, interlocking pavers, solid bricks, hollow blocks and permeable bricks, meeting both municipal and building demands.

3. Equipped with automatic pallet elevator: Automatically stacks green bricks, cuts down manual labor and improves workshop turnover efficiency.

4. PLC automatic control: Automatic batching, feeding, molding and brick discharging. Easy operation, workers can master operation after short training. Stable hydraulic system with low failure rate and simple maintenance.

5. Good raw‑material compatibility: Stone powder, tailings and recycled construction waste can be used as raw materials to lower production cost.

Customer Feedback

The customer is highly satisfied with QT5‑15 production line. The machine runs steadily. Grass‑planting bricks and solid bricks reach required strength and appearance standard, bringing abundant local municipal and landscape orders. The automatic stacking device greatly reduces labor work. The customer thinks this model has outstanding cost‑performance. Multiple brick types from one machine improve market competitiveness. The client plans to add permeable‑brick molds to expand product portfolio.
