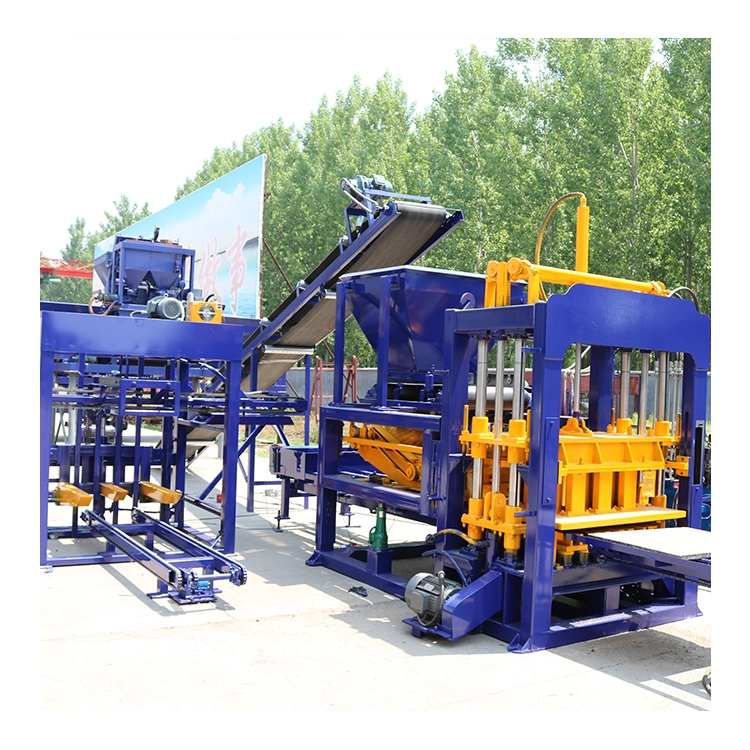

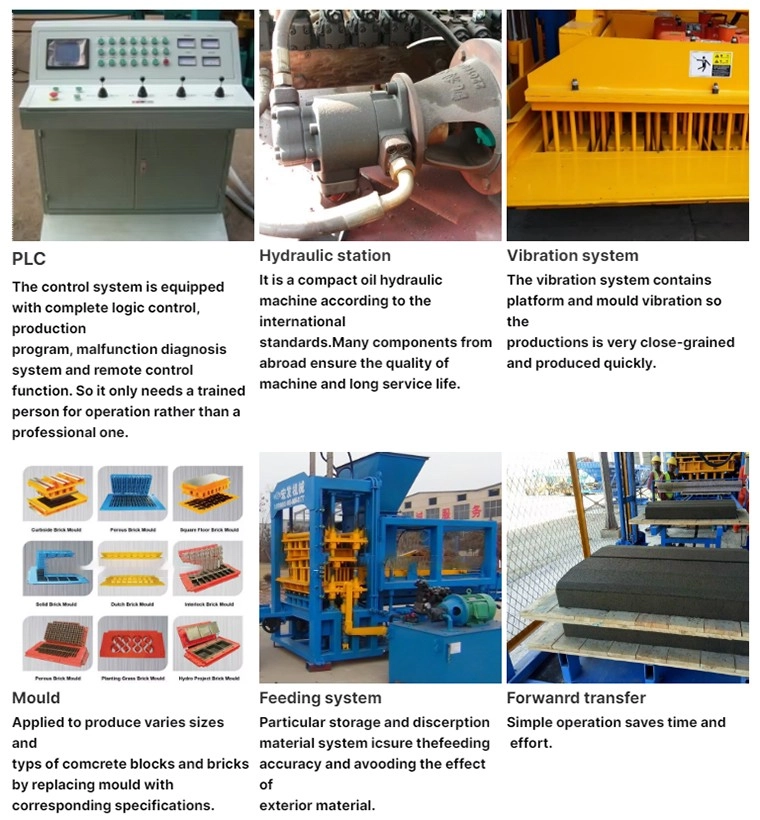

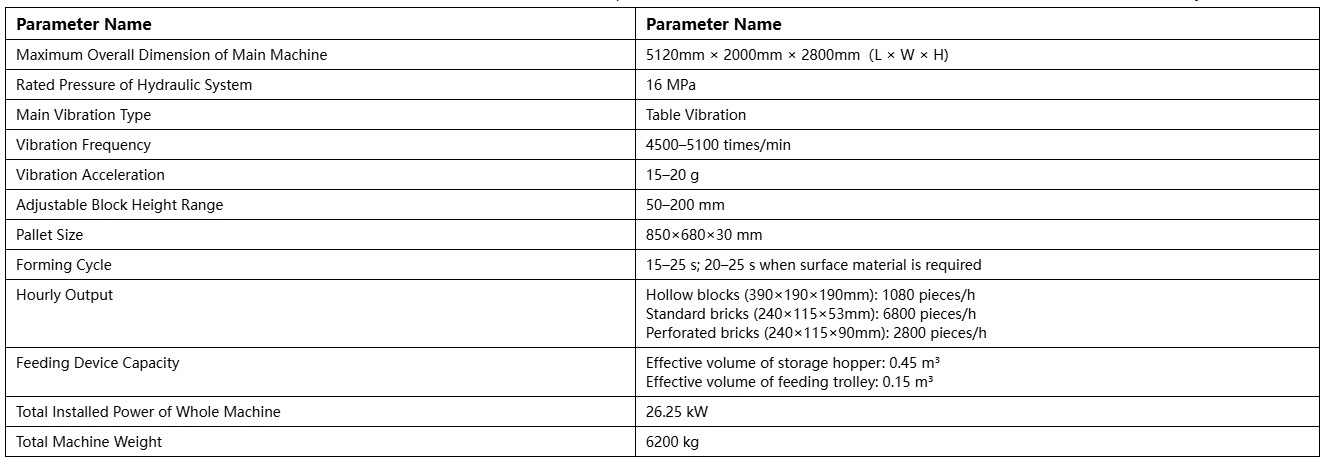

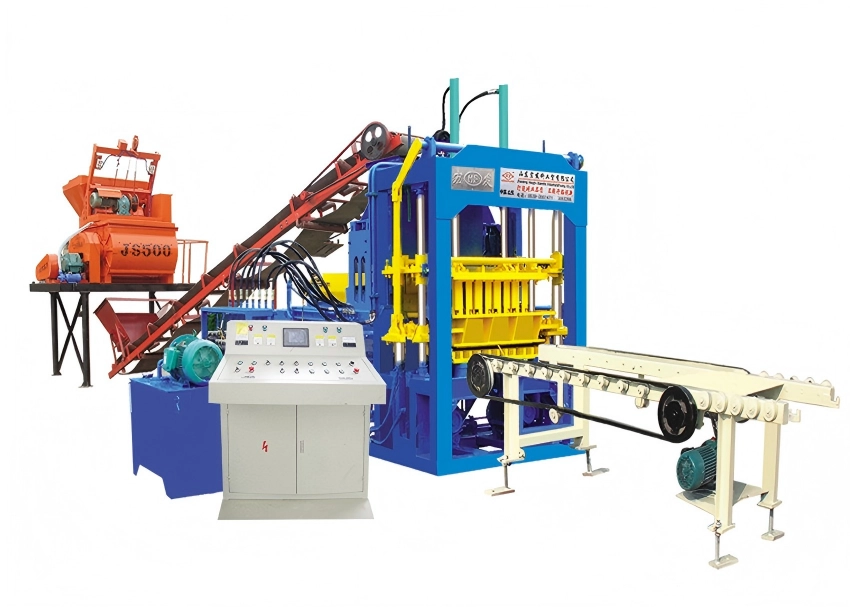

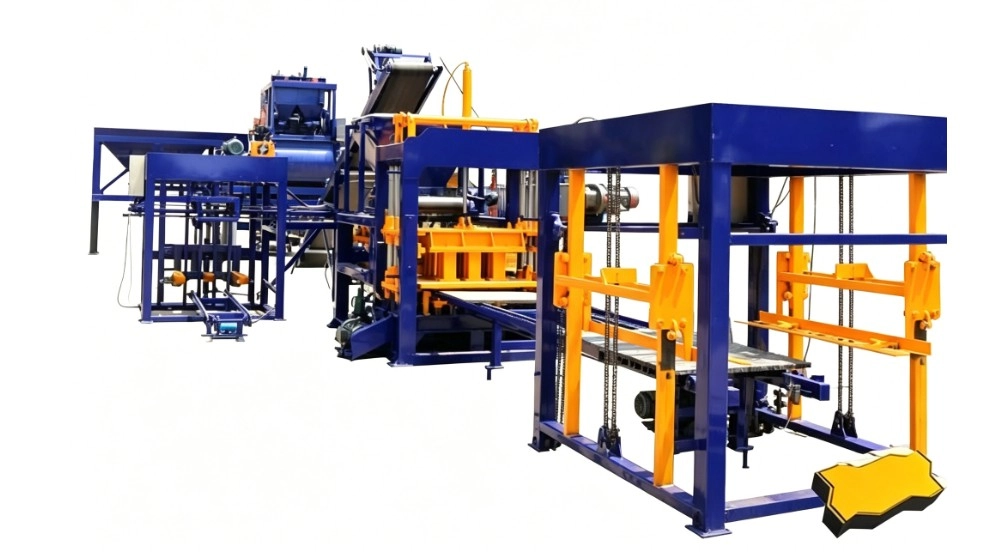

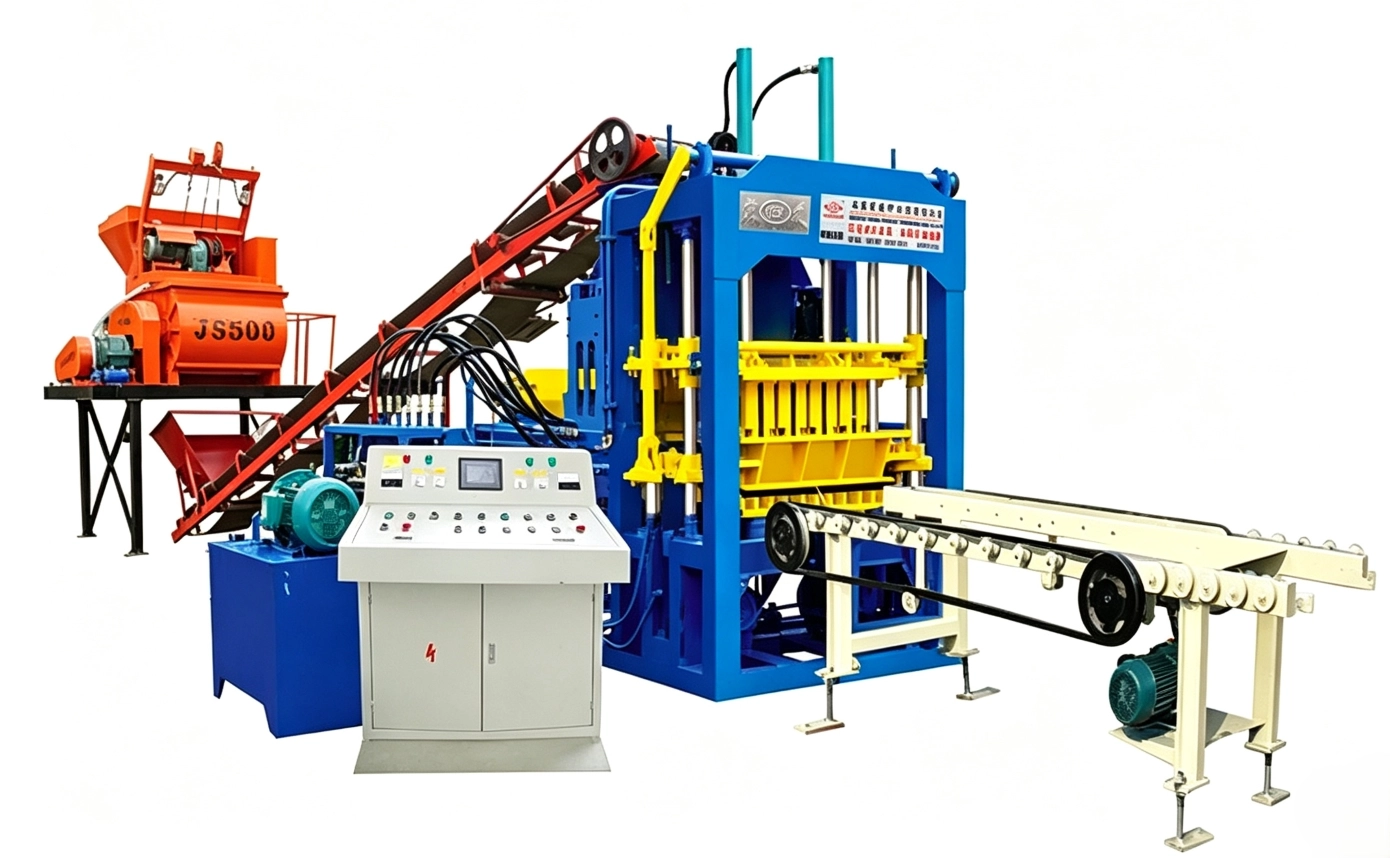

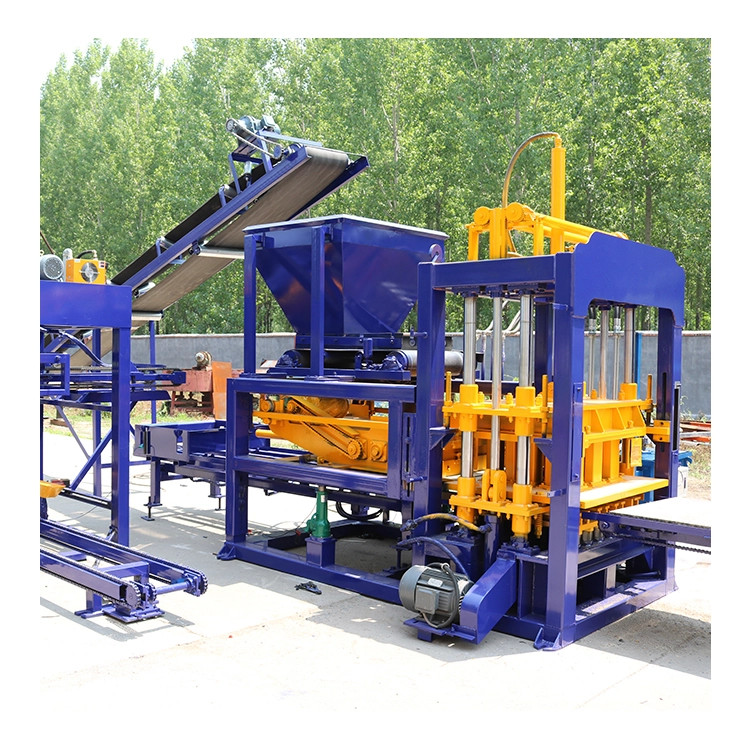

QT6-15 automatic concrete brick making machine is a medium-sized fully automatic brick manufacturing unit integrating machinery, hydraulic drive and PLC intelligent control. It accepts raw materials including fly ash, slag, stone dust and construction waste aggregate, and can produce hollow blocks, solid bricks, perforated bricks, curb stones, grass bricks and slope protection bricks by changing molds. A color feeding machine is optional for colored interlocking pavers. Ideal for small medium brick factories, municipal construction and overseas building material projects.Overall dimension: 5120×2000×2800mm, total weight: 6.2 tons, molding cycle: 15-25s, output: 6800 standard bricks per hour. The complete set consists of pallet feeder, main molding host, block conveyor, independent hydraulic station and PLC control cabinet, featuring stable technical indexes and low investment threshold.
All procedures including feeding, vibration pressing, demoulding and pallet delivery are interlocked by program. Built-in safety circuit and fault detection system will send alarm and display error codes once abnormal conditions occur. Operators can master operation after simple training. All production parameters can be stored and recalled with one click to guarantee consistent product quality and reduce manual errors.
Adopts high-frequency table vibration structure with 4500-5100 vibrations per minute and vibration acceleration of 15-20g. Combined low-frequency feeding and high-frequency compaction quickly exhausts concrete within 2-3s for dense finished blocks with compressive strength over 15MPa. Uniform size, excellent frost resistance, anti-seepage and thermal insulation performance. Finished blocks can be stacked directly after demoulding with extremely low reject rate. Three-layer rubber spring vibration isolation reduces wear of the host, pallets and molds for longer service life.

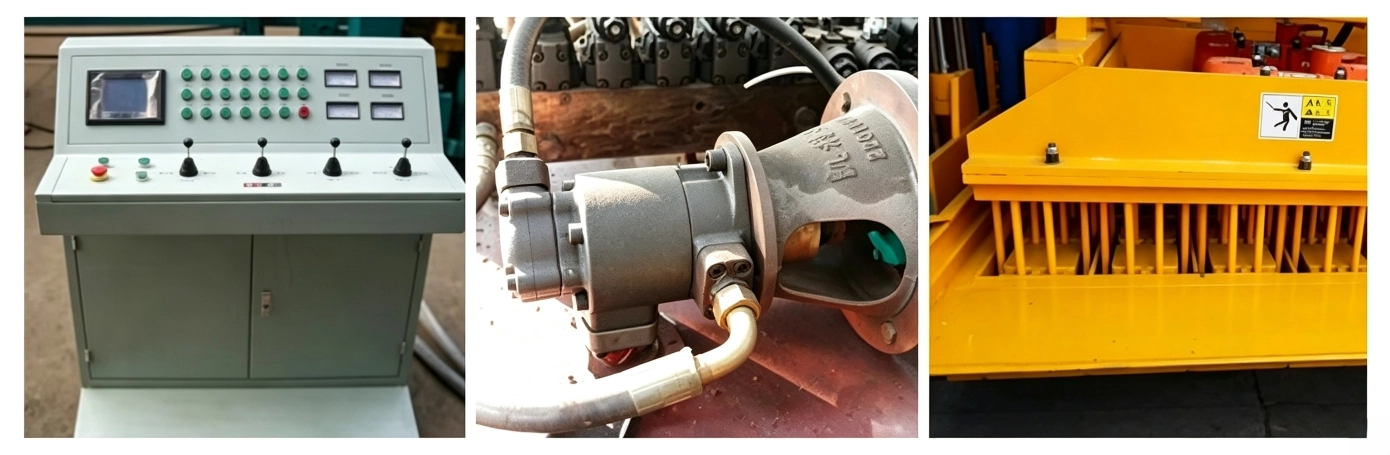

Separated integrated hydraulic pump station avoids dust and vibration interference on hydraulic components. Rated working pressure reaches 16MPa, compatible with 32# / 46# anti-wear hydraulic oil for various climates. Built-in cooling and multi-stage filter units keep oil temperature stable at 25-50℃. Cylinders and valves operate smoothly without stalling or pressure loss, ensuring stable long-term continuous production and easy daily maintenance.
Highly compatible with aggregates: local sand, gravel, stone powder, plus massive industrial waste like fly ash, coal gangue and construction recycled aggregate to reduce cement consumption and raw material cost. Aggregate maximum particle size within 10mm meets production requirements. Suitable for waste resource recycling projects at mines and construction sites, complying with international environmental production standards.

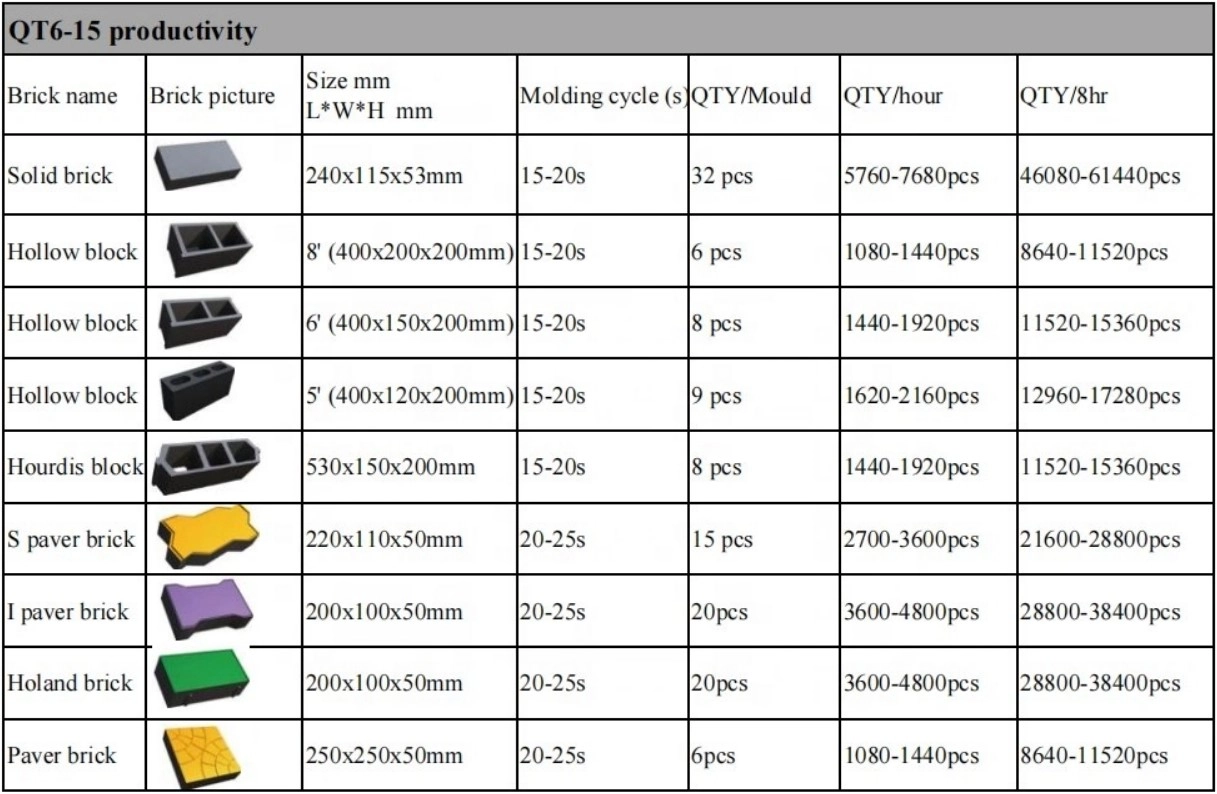

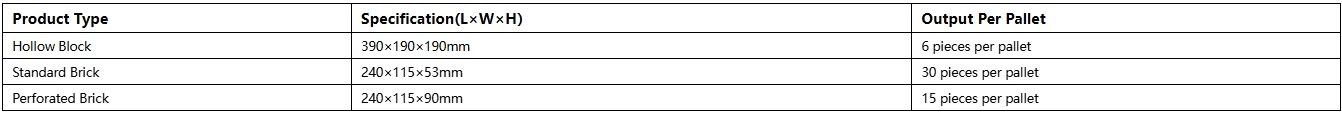

Quick mold switch supports multiple products: 6 pieces of 390mm hollow blocks, 30 standard bricks or 15 perforated bricks per mold. Optional color feeding unit manufactures colored permeable pavers, curbs, grass bricks and slope protection blocks. One single machine covers wall blocks for buildings and landscape pavers for municipal roads, maximizing equipment utilization and flexibly coping with diverse market orders.
Four-column precise guiding structure with uniform clearance between guide sleeves and columns ensures stable demoulding without scratch. Molds are made of heat-treated wear-resistant steel to prevent cracking and abrasion. Full linkage test is conducted before delivery. Free repair and replacement for manufacturing defects within half a year after shipment. We provide overseas on-site installation, commissioning and full operator training, plus lifetime low-cost supply of original spare parts and complete raw material proportion formulas to deliver turnkey production solutions.
QT6-15 brick making machine integrates PLC intelligent control, high-efficiency hydraulic vibration, waste recycling and multi-product production. Balancing production efficiency, finished product quality and investment cost, it is the preferred medium-sized production line for domestic and overseas brick manufacturing projects. Custom molds and color feeding machines are available. Direct supply from manufacturer with complete production technology and long-term after-sales guarantee.
QT6-15 automatic concrete brick making machine is a medium-sized fully automatic brick manufacturing unit integrating machinery, hydraulic drive and PLC intelligent control. It accepts raw materials including fly ash, slag, stone dust and construction waste aggregate, and can produce hollow blocks, solid bricks, perforated bricks, curb stones, grass bricks and slope protection bricks by changing molds. A color feeding machine is optional for colored interlocking pavers. Ideal for small medium brick factories, municipal construction and overseas building material projects.Overall dimension: 5120×2000×2800mm, total weight: 6.2 tons, molding cycle: 15-25s, output: 6800 standard bricks per hour. The complete set consists of pallet feeder, main molding host, block conveyor, independent hydraulic station and PLC control cabinet, featuring stable technical indexes and low investment threshold.
All procedures including feeding, vibration pressing, demoulding and pallet delivery are interlocked by program. Built-in safety circuit and fault detection system will send alarm and display error codes once abnormal conditions occur. Operators can master operation after simple training. All production parameters can be stored and recalled with one click to guarantee consistent product quality and reduce manual errors.
Adopts high-frequency table vibration structure with 4500-5100 vibrations per minute and vibration acceleration of 15-20g. Combined low-frequency feeding and high-frequency compaction quickly exhausts concrete within 2-3s for dense finished blocks with compressive strength over 15MPa. Uniform size, excellent frost resistance, anti-seepage and thermal insulation performance. Finished blocks can be stacked directly after demoulding with extremely low reject rate. Three-layer rubber spring vibration isolation reduces wear of the host, pallets and molds for longer service life.
Separated integrated hydraulic pump station avoids dust and vibration interference on hydraulic components. Rated working pressure reaches 16MPa, compatible with 32# / 46# anti-wear hydraulic oil for various climates. Built-in cooling and multi-stage filter units keep oil temperature stable at 25-50℃. Cylinders and valves operate smoothly without stalling or pressure loss, ensuring stable long-term continuous production and easy daily maintenance.
Highly compatible with aggregates: local sand, gravel, stone powder, plus massive industrial waste like fly ash, coal gangue and construction recycled aggregate to reduce cement consumption and raw material cost. Aggregate maximum particle size within 10mm meets production requirements. Suitable for waste resource recycling projects at mines and construction sites, complying with international environmental production standards.
Quick mold switch supports multiple products: 6 pieces of 390mm hollow blocks, 30 standard bricks or 15 perforated bricks per mold. Optional color feeding unit manufactures colored permeable pavers, curbs, grass bricks and slope protection blocks. One single machine covers wall blocks for buildings and landscape pavers for municipal roads, maximizing equipment utilization and flexibly coping with diverse market orders.
Four-column precise guiding structure with uniform clearance between guide sleeves and columns ensures stable demoulding without scratch. Molds are made of heat-treated wear-resistant steel to prevent cracking and abrasion. Full linkage test is conducted before delivery. Free repair and replacement for manufacturing defects within half a year after shipment. We provide overseas on-site installation, commissioning and full operator training, plus lifetime low-cost supply of original spare parts and complete raw material proportion formulas to deliver turnkey production solutions.
QT6-15 brick making machine integrates PLC intelligent control, high-efficiency hydraulic vibration, waste recycling and multi-product production. Balancing production efficiency, finished product quality and investment cost, it is the preferred medium-sized production line for domestic and overseas brick manufacturing projects. Custom molds and color feeding machines are available. Direct supply from manufacturer with complete production technology and long-term after-sales guarantee.
