QT12‑15 Automatic Block Making Machine — Changhong New Building Materials Plant, Northwest China

Project Location: Baiyin, Gansu, China

Commissioned: September, 2021

Machine Model: QT12‑15 Full‑automatic Hydraulic Block Production Line, with Kiln Car Curing System & Automatic Palletizing Robot

Products: Concrete paving bricks, permeable pavers, hollow blocks, curb stones, slope protection bricks

Project Introduction

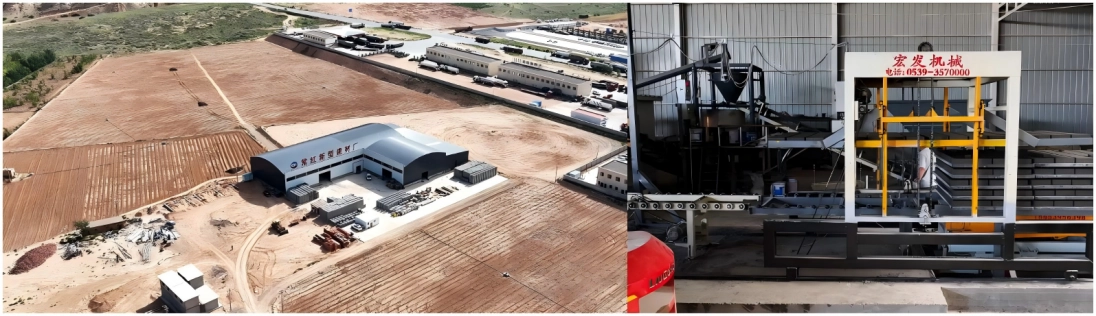

Located in northwest mining area, this local factory invested in complete QT12‑15 intelligent block‑making line. It is equipped with mother‑son kiln car curing warehouse and automatic palletizing system.

The plant makes full use of local mine tailings and desert gravel as raw materials for solid‑waste recycling. Finished products supply municipal road, housing construction and water conservancy projects.

The whole production covers batching, mixing, forming, curing and auto palletizing. Quick mould change supports paving bricks, hollow blocks and slope bricks flexible production.

Production Benefit

- High‑automation line, only 4‑6 workers for full plant operation.

- Solid waste utilization ratio over 65%, low raw‑material cost.

- Output: 13000㎡ paving bricks or 12000 pcs hollow blocks per shift.

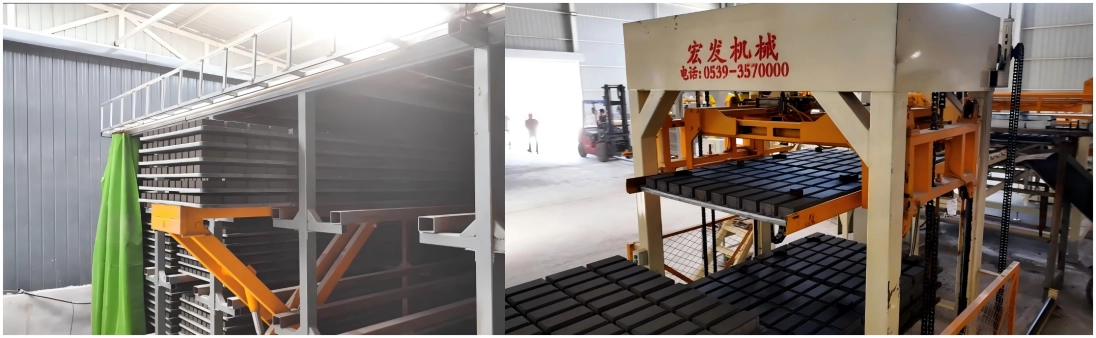

- Mother‑son kiln car curing system, realize year‑round production even in cold northwest weather.

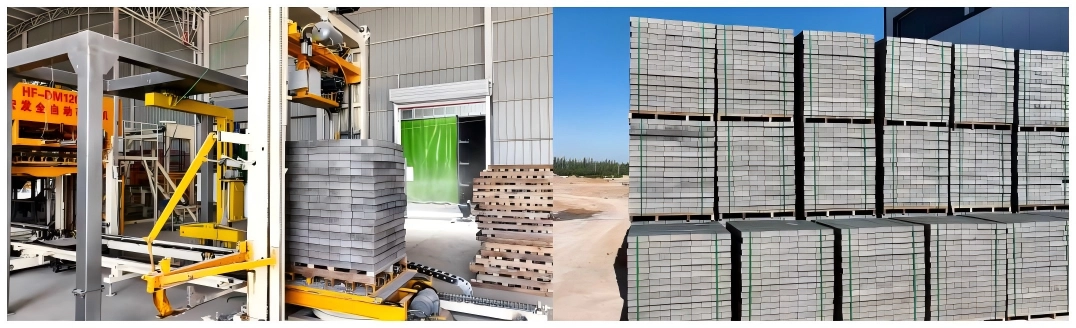

- Automatic palletizing robot, convenient for loading and large‑volume project delivery.

Conclusion

QT12‑15 complete production line is a proven large‑scale solid‑waste recycling solution in northwest China. Realize multi‑product mass production with less labor, suitable for investors who want to build modern large‑capacity block factory.
