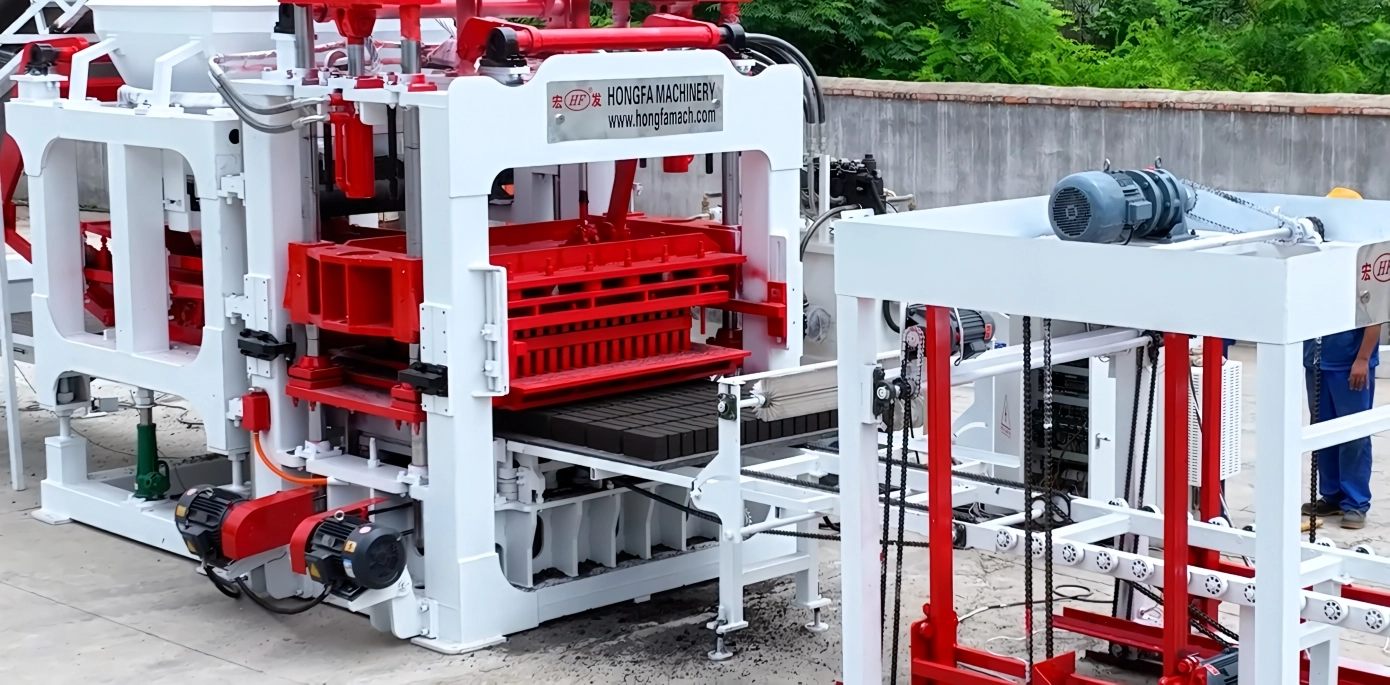

1. Frequency‑conversion synchronous vibration‑pressing technology for pavement blocks, optional face‑mix system, premium block quality to win high‑demand municipal & landscape orders

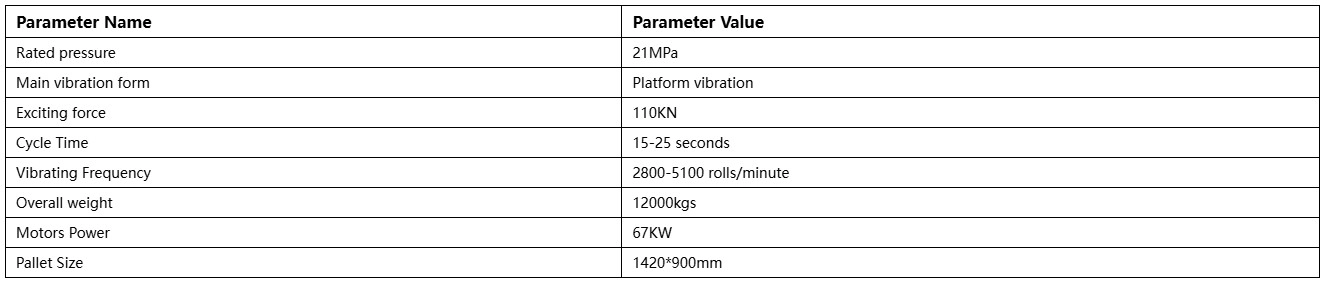

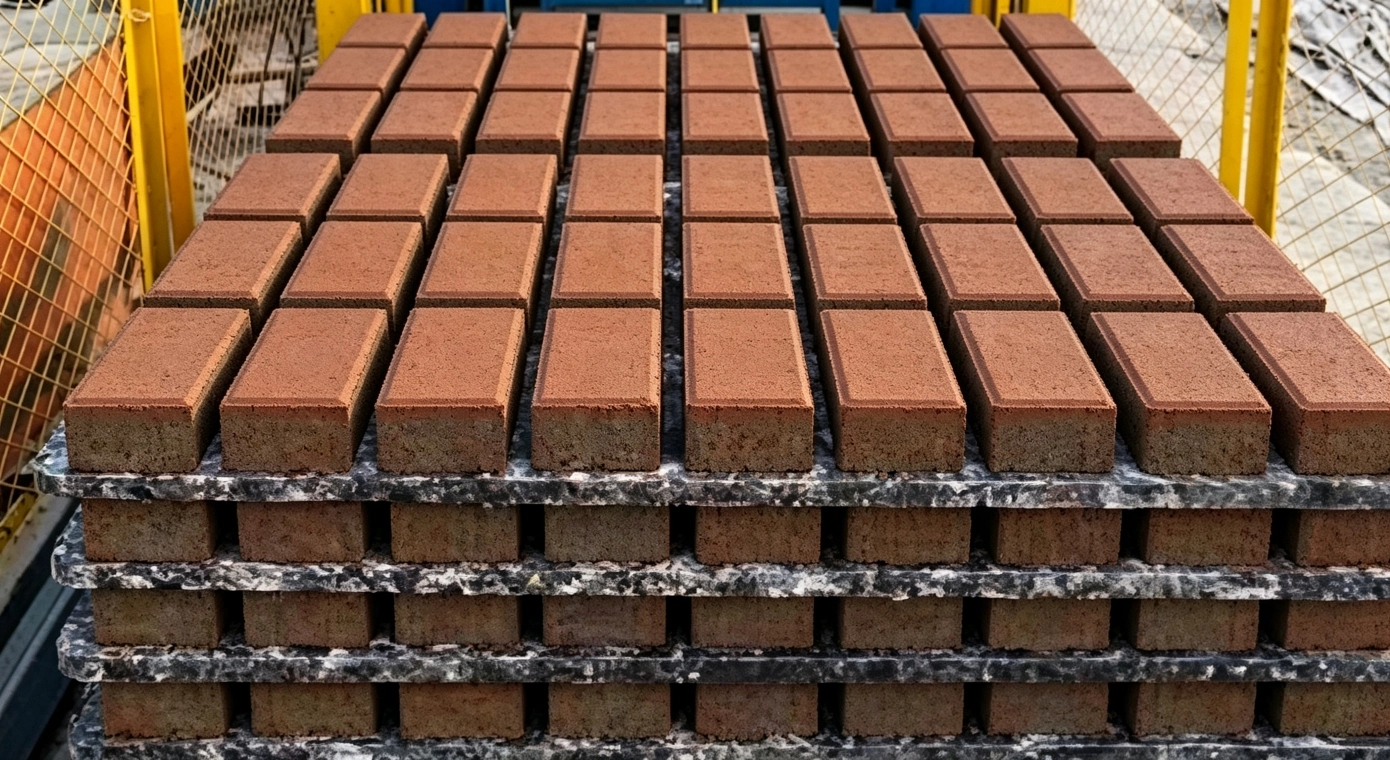

QT12‑15F adopts frequency‑conversion synchronous vibration system. Vibration frequency can be adjusted flexibly according to raw‑material formula and block thickness. It follows low‑frequency feeding plus high‑frequency pressing logic. Sufficient 110KN exciting force together with 21MPa high pressure effectively avoids common defects such as uneven pores for permeable bricks, surface peeling for color blocks and sanding for ordinary paving tiles. Optional traveling face‑mix feeder supports colored‑surface pavement block production with firm combination between color layer and base body against fading and peeling. Finished pavement blocks feature high density, good wear‑resistance and freeze‑thaw performance with tight dimensional tolerance for neat paving effect. Reliable block quality supports both bulk dealer supply and municipal‑landscape project bidding, helping you obtain high‑margin engineering orders and reduce losses caused by defective products.
2. Large 1420×900 mm pallet worktable, short cycle time & high output, fulfill large‑volume pavement‑block orders and guarantee on‑time delivery

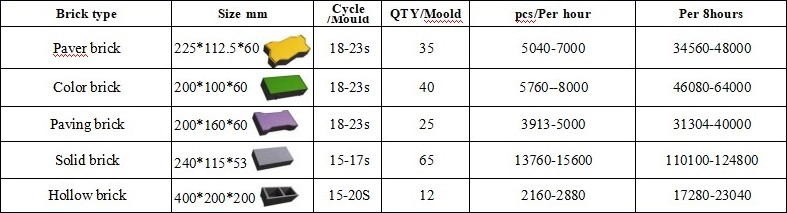

Equipped with large‑size 1420×900 mm pallet worktable for more blocks per molding cycle. The forming cycle only takes 15‑25 seconds. Full‑automatic closed‑loop workflow covers pallet feeding, main & face‑mix feeding, vibration‑pressing and block discharging. Continuous mass production is realized with only minimal workers for supervision and green‑block handling, cutting labor cost per block. When receiving huge pavement‑block orders from municipal reconstruction and park construction, stable hourly output shortens production cycle and ensures on‑time supply. You do not need to purchase extra main machines to handle peak‑season demands and maximize plant output revenue.
3. Heavy‑duty welded steel frame & imported core hydraulic‑electric components, stable long‑hour pavement‑block production, less downtime & lower business loss

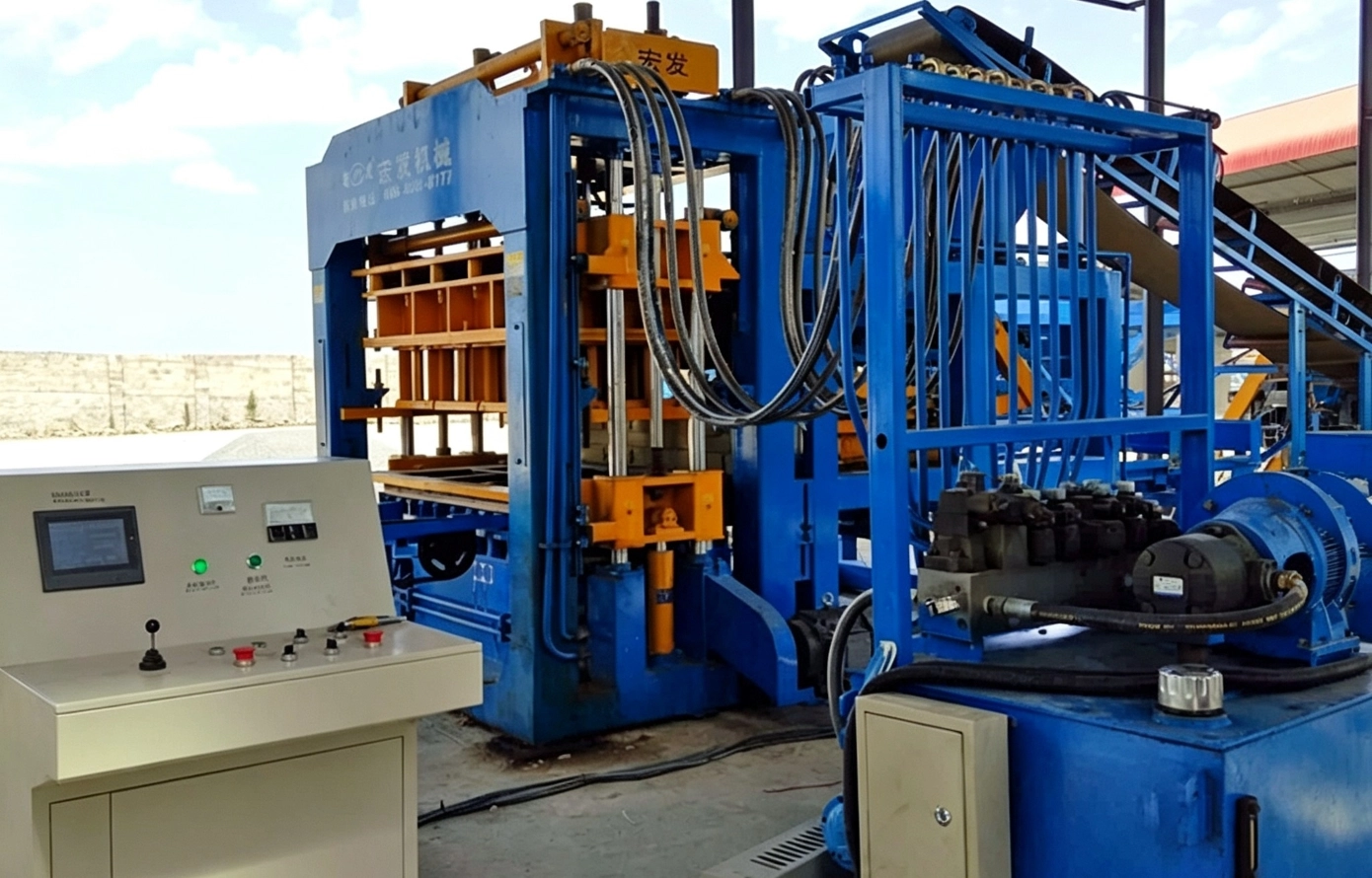

Continuous pavement‑block production brings frequent high‑frequency vibration and repeated pressure impact. QT12‑15F adopts heavy‑duty 20×20cm square steel frame sourced from Laigang & Jigang with total machine weight of 12000 kg for superior anti‑fatigue performance. European‑style universal drive shaft structure prevents motor burnout compared with ordinary direct‑vibration design. Core hydraulic parts are Germany Rexroth brand, and full electric & touch‑screen units are SIEMENS imported components. Premium hardware withstands long‑hour non‑stop pavement‑block production and greatly reduces unexpected shutdown risks. It avoids economic losses including green block scrap, raw‑material waste and order compensation. Slower component wear lowers long‑term spare‑part cost and extends machine service life.
4. SIEMENS PLC intelligent control with parameter storage & remote diagnosis, fast pavement‑block specification change‑over, reduce trial‑run waste

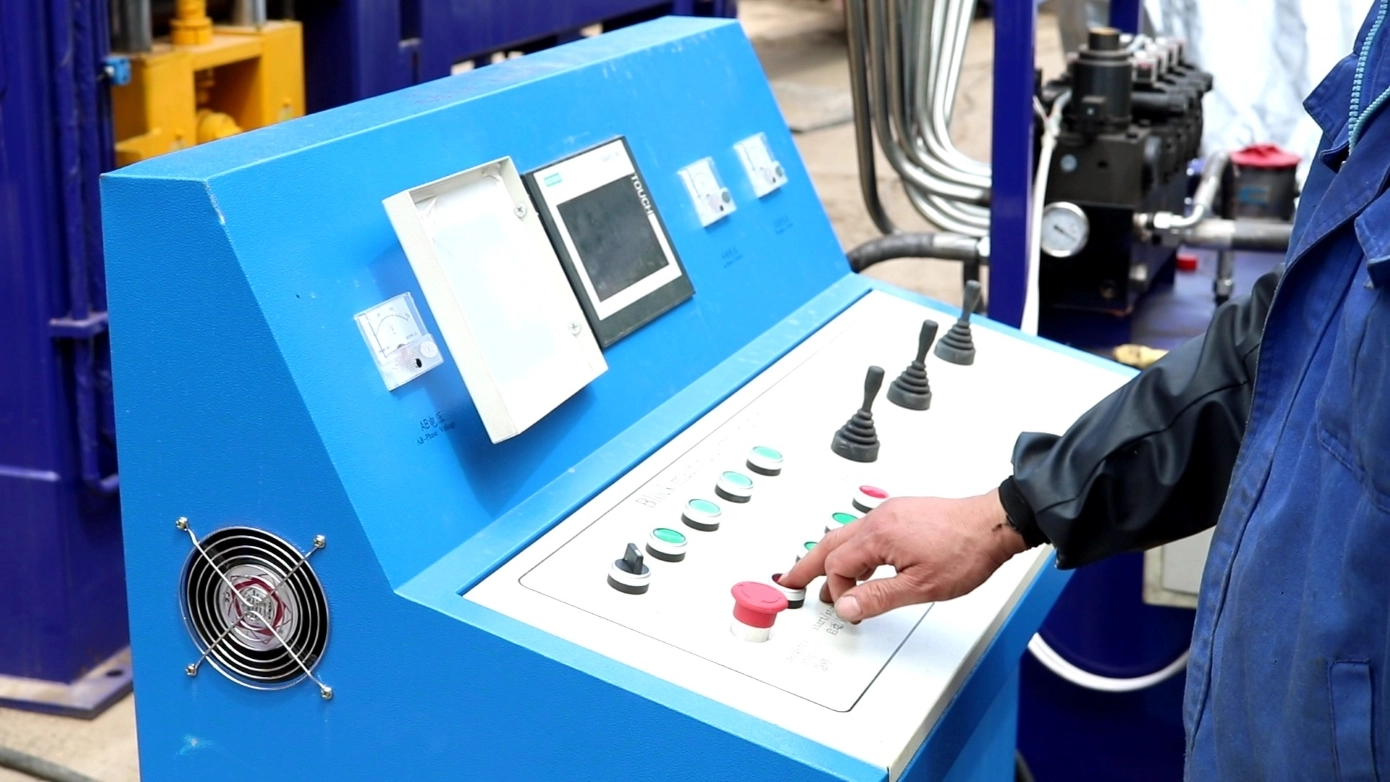

Equipped with SIEMENS PLC human‑machine interface with built‑in fault diagnosis and remote monitoring function. Process parameters including face‑mix feeding duration, pre‑vibration, main vibration and pressure‑holding for permeable bricks, color paving tiles and interlocking blocks can be saved as independent brick profiles. When switching among different pavement‑block specifications, recall saved parameters directly instead of repeated manual tuning. It shortens change‑over time and cuts defective blocks and raw‑material waste during mold change. Built‑in safety interlock logic allows operation by simply‑trained workers without high‑salary professional technicians. Mixed‑batch orders with multiple pavement‑block types can be processed efficiently to satisfy diversified customer procurement.
5. Wide raw‑material compatibility for local industrial waste, plus energy‑saving design, double‑way cost reduction for higher profit margin
QT12‑15F has strong adaptability for dry‑hard concrete mixes. Besides standard sand‑stone‑cement formula, it can make full use of locally available fly ash, slag, steel slag, recycled construction waste and other industrial by‑products. Sourcing cheap local materials eliminates expensive long‑distance transportation cost. Meanwhile the machine saves 25% power consumption versus peer models to further cut electricity expenditure. Cement ratio can be reasonably optimized while finished‑block wear‑resistance, compression and water permeability meet local building standards. Lower unit production cost strengthens your quotation competitiveness in overseas market and guarantees decent profit for both high‑volume general orders and high‑spec color engineering block projects.
6. Modular quick‑change mold, extendable full‑set auxiliary equipment for complete production line, multi‑product capability for better return on investment

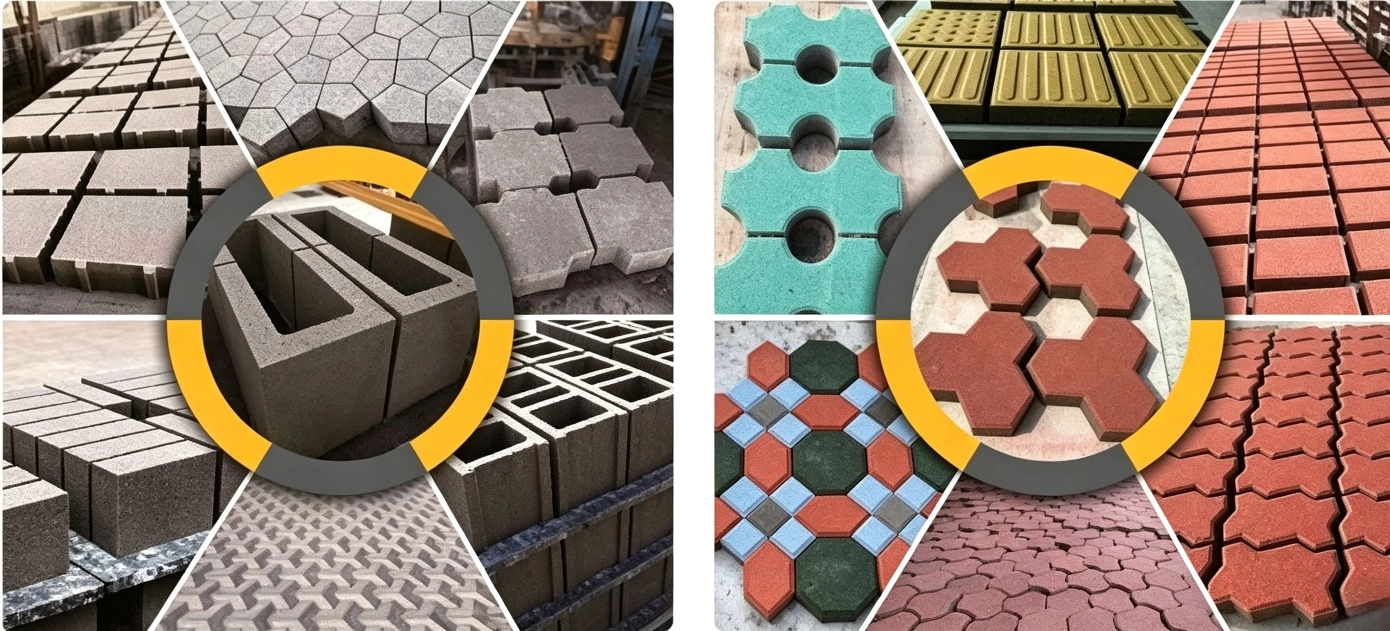

Modular quick‑release mold structure enables fast switch for pavement blocks, permeable bricks and interlocking tiles of various sizes. Without major modification, one single machine also produces hollow blocks, grass‑planting blocks, small curbs and other municipal building products. There is no need to invest in multiple forming hosts for different products, lowering initial capital expenditure. You can select PLD1200 batching machine, JS750 twin‑shaft mixer, 8‑meter double‑layer belt conveyor, automatic stacker, pallet elevator and other auxiliaries according to your workshop space, budget and target output to build semi‑automatic or fully‑automatic complete pavement‑block production line. One‑stop integrated solution avoids compatibility risks from scattered multi‑supplier purchasing. Mass production can be launched quickly after commissioning to accelerate investment payback period.
1. Frequency‑conversion synchronous vibration‑pressing technology for pavement blocks, optional face‑mix system, premium block quality to win high‑demand municipal & landscape orders
QT12‑15F adopts frequency‑conversion synchronous vibration system. Vibration frequency can be adjusted flexibly according to raw‑material formula and block thickness. It follows low‑frequency feeding plus high‑frequency pressing logic. Sufficient 110KN exciting force together with 21MPa high pressure effectively avoids common defects such as uneven pores for permeable bricks, surface peeling for color blocks and sanding for ordinary paving tiles. Optional traveling face‑mix feeder supports colored‑surface pavement block production with firm combination between color layer and base body against fading and peeling. Finished pavement blocks feature high density, good wear‑resistance and freeze‑thaw performance with tight dimensional tolerance for neat paving effect. Reliable block quality supports both bulk dealer supply and municipal‑landscape project bidding, helping you obtain high‑margin engineering orders and reduce losses caused by defective products.
2. Large 1420×900 mm pallet worktable, short cycle time & high output, fulfill large‑volume pavement‑block orders and guarantee on‑time delivery
Equipped with large‑size 1420×900 mm pallet worktable for more blocks per molding cycle. The forming cycle only takes 15‑25 seconds. Full‑automatic closed‑loop workflow covers pallet feeding, main & face‑mix feeding, vibration‑pressing and block discharging. Continuous mass production is realized with only minimal workers for supervision and green‑block handling, cutting labor cost per block. When receiving huge pavement‑block orders from municipal reconstruction and park construction, stable hourly output shortens production cycle and ensures on‑time supply. You do not need to purchase extra main machines to handle peak‑season demands and maximize plant output revenue.
3. Heavy‑duty welded steel frame & imported core hydraulic‑electric components, stable long‑hour pavement‑block production, less downtime & lower business loss
Continuous pavement‑block production brings frequent high‑frequency vibration and repeated pressure impact. QT12‑15F adopts heavy‑duty 20×20cm square steel frame sourced from Laigang & Jigang with total machine weight of 12000 kg for superior anti‑fatigue performance. European‑style universal drive shaft structure prevents motor burnout compared with ordinary direct‑vibration design. Core hydraulic parts are Germany Rexroth brand, and full electric & touch‑screen units are SIEMENS imported components. Premium hardware withstands long‑hour non‑stop pavement‑block production and greatly reduces unexpected shutdown risks. It avoids economic losses including green block scrap, raw‑material waste and order compensation. Slower component wear lowers long‑term spare‑part cost and extends machine service life.
4. SIEMENS PLC intelligent control with parameter storage & remote diagnosis, fast pavement‑block specification change‑over, reduce trial‑run waste
Equipped with SIEMENS PLC human‑machine interface with built‑in fault diagnosis and remote monitoring function. Process parameters including face‑mix feeding duration, pre‑vibration, main vibration and pressure‑holding for permeable bricks, color paving tiles and interlocking blocks can be saved as independent brick profiles. When switching among different pavement‑block specifications, recall saved parameters directly instead of repeated manual tuning. It shortens change‑over time and cuts defective blocks and raw‑material waste during mold change. Built‑in safety interlock logic allows operation by simply‑trained workers without high‑salary professional technicians. Mixed‑batch orders with multiple pavement‑block types can be processed efficiently to satisfy diversified customer procurement.
5. Wide raw‑material compatibility for local industrial waste, plus energy‑saving design, double‑way cost reduction for higher profit margin
QT12‑15F has strong adaptability for dry‑hard concrete mixes. Besides standard sand‑stone‑cement formula, it can make full use of locally available fly ash, slag, steel slag, recycled construction waste and other industrial by‑products. Sourcing cheap local materials eliminates expensive long‑distance transportation cost. Meanwhile the machine saves 25% power consumption versus peer models to further cut electricity expenditure. Cement ratio can be reasonably optimized while finished‑block wear‑resistance, compression and water permeability meet local building standards. Lower unit production cost strengthens your quotation competitiveness in overseas market and guarantees decent profit for both high‑volume general orders and high‑spec color engineering block projects.
6. Modular quick‑change mold, extendable full‑set auxiliary equipment for complete production line, multi‑product capability for better return on investment
Modular quick‑release mold structure enables fast switch for pavement blocks, permeable bricks and interlocking tiles of various sizes. Without major modification, one single machine also produces hollow blocks, grass‑planting blocks, small curbs and other municipal building products. There is no need to invest in multiple forming hosts for different products, lowering initial capital expenditure. You can select PLD1200 batching machine, JS750 twin‑shaft mixer, 8‑meter double‑layer belt conveyor, automatic stacker, pallet elevator and other auxiliaries according to your workshop space, budget and target output to build semi‑automatic or fully‑automatic complete pavement‑block production line. One‑stop integrated solution avoids compatibility risks from scattered multi‑supplier purchasing. Mass production can be launched quickly after commissioning to accelerate investment payback period.
