1. PLC Full‑automatic Host Operation, Save Labor & Reduce Man‑caused Solid Brick Defects
Conventional small brick‑making machines require multiple workers for feeding, demolding and green‑brick transfer. Manual handling easily damages fresh solid bricks and brings continuous high labor cost. QTF3‑30 forming host integrates PLC intelligent control and HMI interface with built‑in fault diagnosis. Internal material feeding, compression and demolding are fully automatic. Only few attendants are needed on site. Operators do not require senior technical skills and can be competent after simple training. It reduces chipping and breakage caused by manual brick handling and cuts material waste. For large‑scale brick factories, it helps control labor expenditure and mitigate production interruption risk from labor shortage.

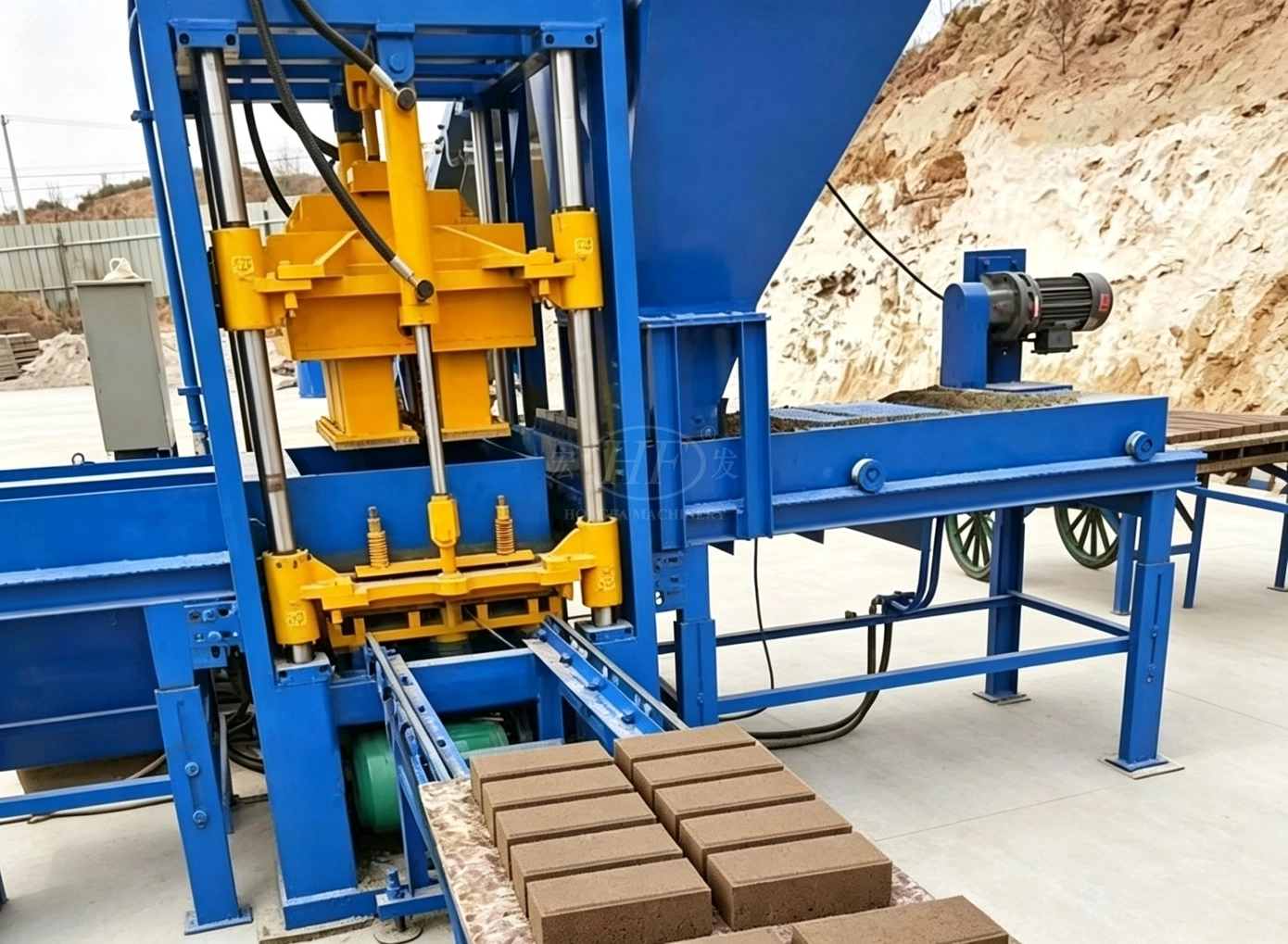

2. High‑pressure Platform Vibration Molding, Produce High‑density High‑strength Solid Bricks for Strict Project Acceptance

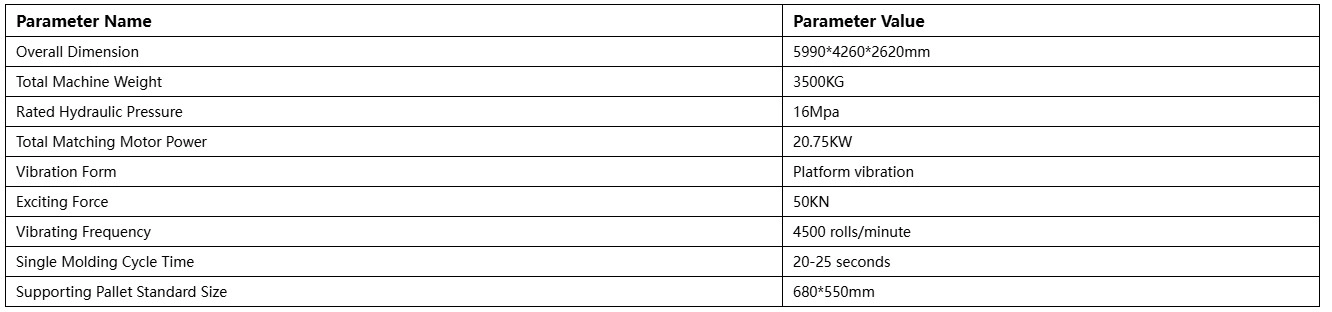

Large housing and infrastructure projects set strict requirements on compressive strength and dimension tolerance for solid bricks. Inner porosity or edge damage will lead to goods rejection and economic loss. QTF3‑30 adopts platform vibration combined with 16Mpa high‑pressure hydraulic system, with 50KN exciting force and vibration frequency of 4500 cycles per minute. Concrete inside mould cavity gets fully compacted. Finished solid bricks feature dense inner structure, smooth surface and intact edges with stable mechanical performance. Carburized manganese‑steel mould processed by wire‑cut ensures high dimensional accuracy. By replacing moulds, this single host produces solid bricks, pavers, curbstones and hollow blocks, diversifying order sources and improving equipment return of investment.
3. Compatible with Automatic Stacker, Stable Green‑brick Output & Lower Brick Breakage Rate
On older machines, newly‑demolded green solid bricks are moved manually. Green bricks with low early strength are easy to chip and crack during handling. QTF3‑30 forming host delivers bricks on pallets with stable cycle rhythm and is directly compatible with frequency‑conversion automatic stacker units. Green bricks are conveyed out along pallets without direct manual contact, greatly reducing collision‑caused rejects. The molding cycle keeps stable within 20‑25 seconds for continuous large‑volume solid‑brick output, supporting on‑time bulk‑order delivery and raising plant output capacity.
4. Heavy‑duty Steel Frame & Premium Taiwan Calyca Hydraulic Parts, Durable for Non‑stop Rush‑order Production
Brick factories often run machines continuously for urgent orders. Long‑time high‑frequency vibration and hydraulic load may cause oil leakage and frame deformation with inferior components, resulting in unexpected shutdown and delivery penalty. QTF3‑30 host frame is welded with heavy‑duty 12×12 cm square steel tube from Laiwu & Jinggang steel mill. Vibration‑box transmission replaces direct‑driven vibration motor to avoid motor burnout. Core hydraulic components adopt Taiwan Calyca brand with reliable pressure resistance and sealing performance. Optimized mechanical layout minimizes failure points. Key components are under warranty. The host supports heavy‑duty continuous solid‑brick production and reduces downtime and maintenance expenditure.
5. Broad Raw‑material Compatibility, Work with Local Materials to Cut Unit Solid‑brick Production Cost
Solid‑brick profit margin is highly influenced by raw‑material cost. QTF3‑30 forming host works well with crushed stone, sand, cement, fly ash, slag, coal gangue, expanded perlite and other local industrial solid waste. The feeding hopper accepts diverse dry‑hard concrete formulas. Minor water‑content fluctuation of raw materials will not cause molding failure. Buyers can source raw materials locally and save long‑distance transportation cost to lower per‑brick material expense. Lower production cost brings higher profit and stronger bidding competitiveness.
1. PLC Full‑automatic Host Operation, Save Labor & Reduce Man‑caused Solid Brick Defects
Conventional small brick‑making machines require multiple workers for feeding, demolding and green‑brick transfer. Manual handling easily damages fresh solid bricks and brings continuous high labor cost. QTF3‑30 forming host integrates PLC intelligent control and HMI interface with built‑in fault diagnosis. Internal material feeding, compression and demolding are fully automatic. Only few attendants are needed on site. Operators do not require senior technical skills and can be competent after simple training. It reduces chipping and breakage caused by manual brick handling and cuts material waste. For large‑scale brick factories, it helps control labor expenditure and mitigate production interruption risk from labor shortage.
2. High‑pressure Platform Vibration Molding, Produce High‑density High‑strength Solid Bricks for Strict Project Acceptance
Large housing and infrastructure projects set strict requirements on compressive strength and dimension tolerance for solid bricks. Inner porosity or edge damage will lead to goods rejection and economic loss. QTF3‑30 adopts platform vibration combined with 16Mpa high‑pressure hydraulic system, with 50KN exciting force and vibration frequency of 4500 cycles per minute. Concrete inside mould cavity gets fully compacted. Finished solid bricks feature dense inner structure, smooth surface and intact edges with stable mechanical performance. Carburized manganese‑steel mould processed by wire‑cut ensures high dimensional accuracy. By replacing moulds, this single host produces solid bricks, pavers, curbstones and hollow blocks, diversifying order sources and improving equipment return of investment.
3. Compatible with Automatic Stacker, Stable Green‑brick Output & Lower Brick Breakage Rate
On older machines, newly‑demolded green solid bricks are moved manually. Green bricks with low early strength are easy to chip and crack during handling. QTF3‑30 forming host delivers bricks on pallets with stable cycle rhythm and is directly compatible with frequency‑conversion automatic stacker units. Green bricks are conveyed out along pallets without direct manual contact, greatly reducing collision‑caused rejects. The molding cycle keeps stable within 20‑25 seconds for continuous large‑volume solid‑brick output, supporting on‑time bulk‑order delivery and raising plant output capacity.
4. Heavy‑duty Steel Frame & Premium Taiwan Calyca Hydraulic Parts, Durable for Non‑stop Rush‑order Production
Brick factories often run machines continuously for urgent orders. Long‑time high‑frequency vibration and hydraulic load may cause oil leakage and frame deformation with inferior components, resulting in unexpected shutdown and delivery penalty. QTF3‑30 host frame is welded with heavy‑duty 12×12 cm square steel tube from Laiwu & Jinggang steel mill. Vibration‑box transmission replaces direct‑driven vibration motor to avoid motor burnout. Core hydraulic components adopt Taiwan Calyca brand with reliable pressure resistance and sealing performance. Optimized mechanical layout minimizes failure points. Key components are under warranty. The host supports heavy‑duty continuous solid‑brick production and reduces downtime and maintenance expenditure.
5. Broad Raw‑material Compatibility, Work with Local Materials to Cut Unit Solid‑brick Production Cost
Solid‑brick profit margin is highly influenced by raw‑material cost. QTF3‑30 forming host works well with crushed stone, sand, cement, fly ash, slag, coal gangue, expanded perlite and other local industrial solid waste. The feeding hopper accepts diverse dry‑hard concrete formulas. Minor water‑content fluctuation of raw materials will not cause molding failure. Buyers can source raw materials locally and save long‑distance transportation cost to lower per‑brick material expense. Lower production cost brings higher profit and stronger bidding competitiveness.
QT4‑15B PLC Automatic Brick Making Machine | Hydraulic‑vibration Concrete Hollow Brick Production Equipment
QT4‑15B fully‑automatic brick making machine adopts PLC & touch‑screen intelligent control with proprietary high‑pow...
QT12‑15C Automatic Pavement Brick Making Machine | High‑Output Color Permeable Concrete Paving Tile Production Equipment
QT12‑15C automatic pavement brick forming machine is specialized for mass production of color face‑mix paving blocks, pe...

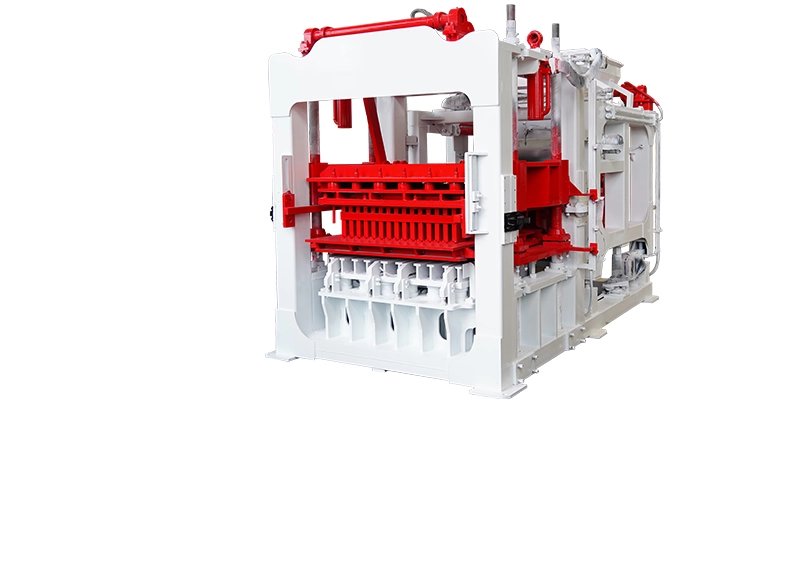

QT12‑15F Automatic Pavement Brick Making Machine | High‑Capacity Color Concrete Paving & Permeable Brick Production Equipment
