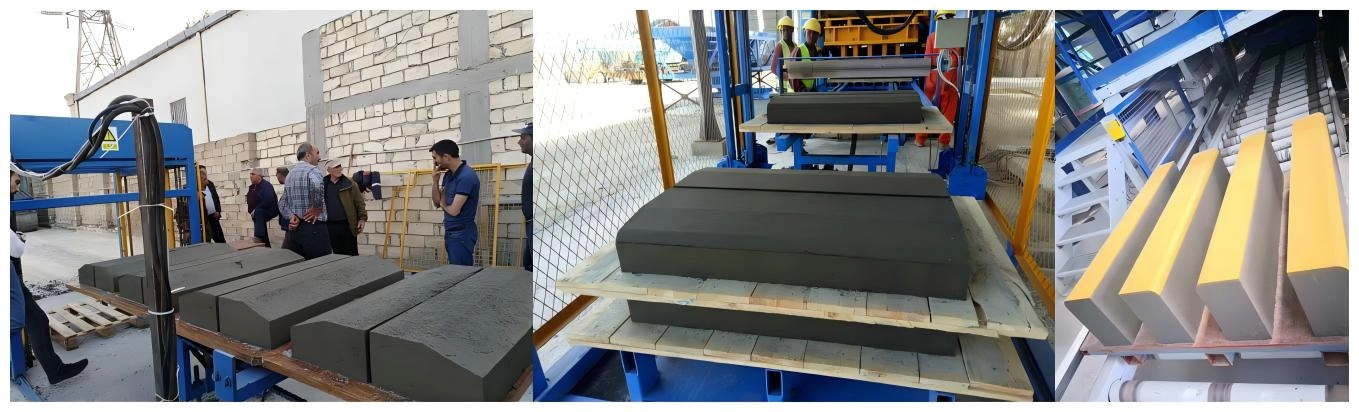

QT12‑15F Fully‑automatic Hydraulic Block Forming Machine Production Case

1. Project Overview

Equipment Model: QT12‑15F Fully‑automatic Hydraulic Block Forming Machine

Main Produced Bricks: Curb stones (other bricks can be produced by replacing molds)

Production Materials: Sand, crushed stone, stone powder, cement, fly ash, slag, construction waste recycled aggregate

Production Line Configuration: Automatic batching system, belt feeding conveyor, forming main unit, hydraulic power station, PLC automatic control system, automatic pallet feeding mechanism, brick output platform, palletizer

2. Project Profile

This production project focuses on mass‑producing concrete curb stones. After equipment installation, commissioning and on‑site trial run, the QT12‑15F full‑automated production line runs continuous and stable formal production.

Raw materials are automatically batched and mixed, then conveyed to the main machine. Adopting gantry frame structure and integrated hydraulic‑vibration forming technology, the machine automatically completes feeding, material distributing, compaction, demolding and brick discharging. Finished curb stones feature neat edges, high compactness, strong anti‑impact performance, meeting the requirements of municipal road, highway and square construction projects.

The production line supports flexible raw‑material proportioning and can consume large‑volume industrial solid waste to lower production cost. Operators can replace molds to produce hollow blocks, paving bricks and other concrete products to fulfill multi‑category order demands.

3. Equipment Advantages for Curb Stone Production

① Reliable forming quality for curb stones

Gantry heavy‑duty frame structure matches hydraulic‑vibration composite molding. Curb stone edges are sharp and complete, low breakage rate during mass production, stable product dimension consistency.

② Large‑volume continuous production capacity

Optimized working cycle for large‑size precast products. High single‑mold output, stable cyclic operation, well‑suited for large municipal engineering bulk orders.

③ Excellent raw‑material compatibility

Compatible with various local aggregates and industrial waste residues. Product strength remains qualified while effectively reducing raw‑material procurement cost.

④ Intelligent full‑process automatic control

PLC touch‑screen intelligent control supports process data storage and fault self‑diagnosis. Minimal manual intervention, reduces batch‑to‑batch quality deviation.

⑤ Robust structure & convenient maintenance

Heavy‑duty annealed frame, manganese‑steel carburized quenched molds for long service life. Key components are easy to inspect and replace, low daily maintenance workload.

4. Customer Feedback

The customer purchases QT12‑15F automatic block machine mainly for mass production of concrete curb stones. After trial‑run and formal operation, the equipment runs steadily with large output and qualified curb‑stone physical indicators.

Flexible raw‑material formula controls overall production expenditure. High‑level automation cuts labor costs. Mold replacement enables diversified production of other brick types to expand business scope. Operators can complete daily operation and basic maintenance independently. The customer recognizes QT12‑15F as a high‑capacity automatic production solution for municipal precast concrete products.
