1. Frequency‑conversion synchronous vibration‑pressing plus optional traveling face‑mix system, premium pavement block quality to win high‑demand municipal & landscape orders
QT12‑15C adopts frequency‑conversion synchronous vibration forming logic. Low‑frequency feeding is applied for material filling, then high‑frequency excitation of 110KN works in pressing phase with adjustable vibration frequency from 2800‑5100 times per minute. Parameters can be adjusted according to block thickness and permeable brick formula, effectively solving common defects such as uneven pores, surface sanding and peeling color layers. Optional hydraulic‑driven traveling face‑mix feeder realizes stable colored‑surface production without secondary painting. Finished pavement blocks feature high density, good wear‑resistance and freeze‑thaw performance meeting overseas municipal acceptance standards. Tight dimensional tolerance ensures neat paving effect. Superior block quality supports both bulk dealer supply and municipal‑landscape bidding, helping you gain high‑margin engineering orders and reduce losses from defective products.
2. Large 1300×900 mm pallet worktable, short cycle & high output, fulfill large‑volume pavement‑block orders and guarantee on‑time delivery
Equipped with large‑size 1300×900 mm pallet worktable, the forming cycle only takes 15‑25 seconds with multiple pavement blocks per mold cycle. Full‑automatic closed‑loop workflow covers pallet feeding, main & face‑mix feeding, vibration‑pressing and green block discharging. Total installed power reaches 67 kW for stable long‑hour continuous mass production. Only minimal workers are required for supervision and block handling to cut labor cost per unit. When facing huge pavement‑block demands from municipal reconstruction and park construction, stable hourly output shortens production cycle and ensures on‑time supply. You do not need extra main machines for peak‑season orders and maximize plant output revenue.

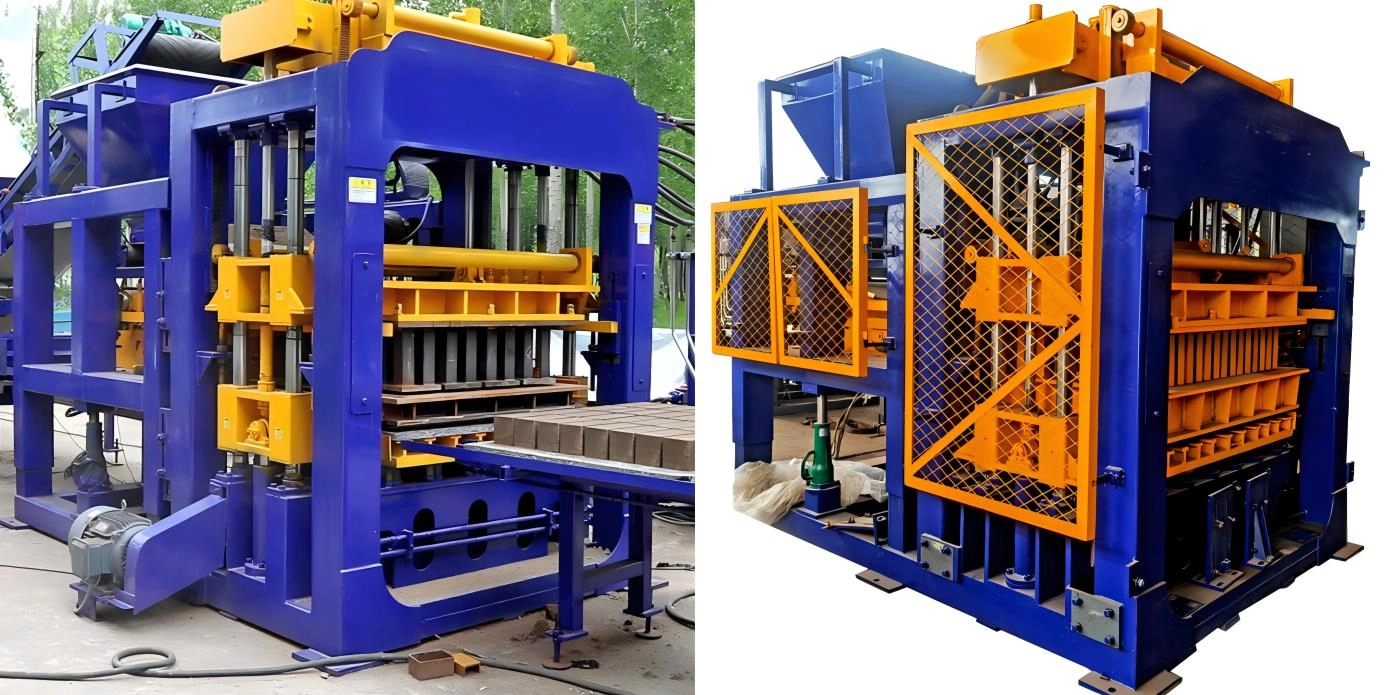

3. Heavy‑duty welded steel frame & premium core components with European universal drive shaft, stable high‑frequency pavement‑block production and lower downtime loss
Continuous pavement‑block production brings frequent high‑frequency vibration and repeated pressure impact. QT12‑15C adopts heavy‑duty 12×12cm square steel frame sourced from Laigang & Jigang with total machine weight of 12000 kg for excellent anti‑fatigue performance. European‑style universal drive shaft structure avoids motor burnout risks existing in ordinary direct‑vibration design. Core hydraulic parts are Taiwan Calyca brand, and full electric & touch‑screen units are SIEMENS imported components for heavy‑duty overseas working conditions. Reliable hardware supports long‑hour non‑stop production and greatly reduces unexpected shutdown risks. It prevents economic losses including green block scrap, raw‑material waste and order compensation. Slower component wear lowers long‑term spare‑part cost and extends machine service life.

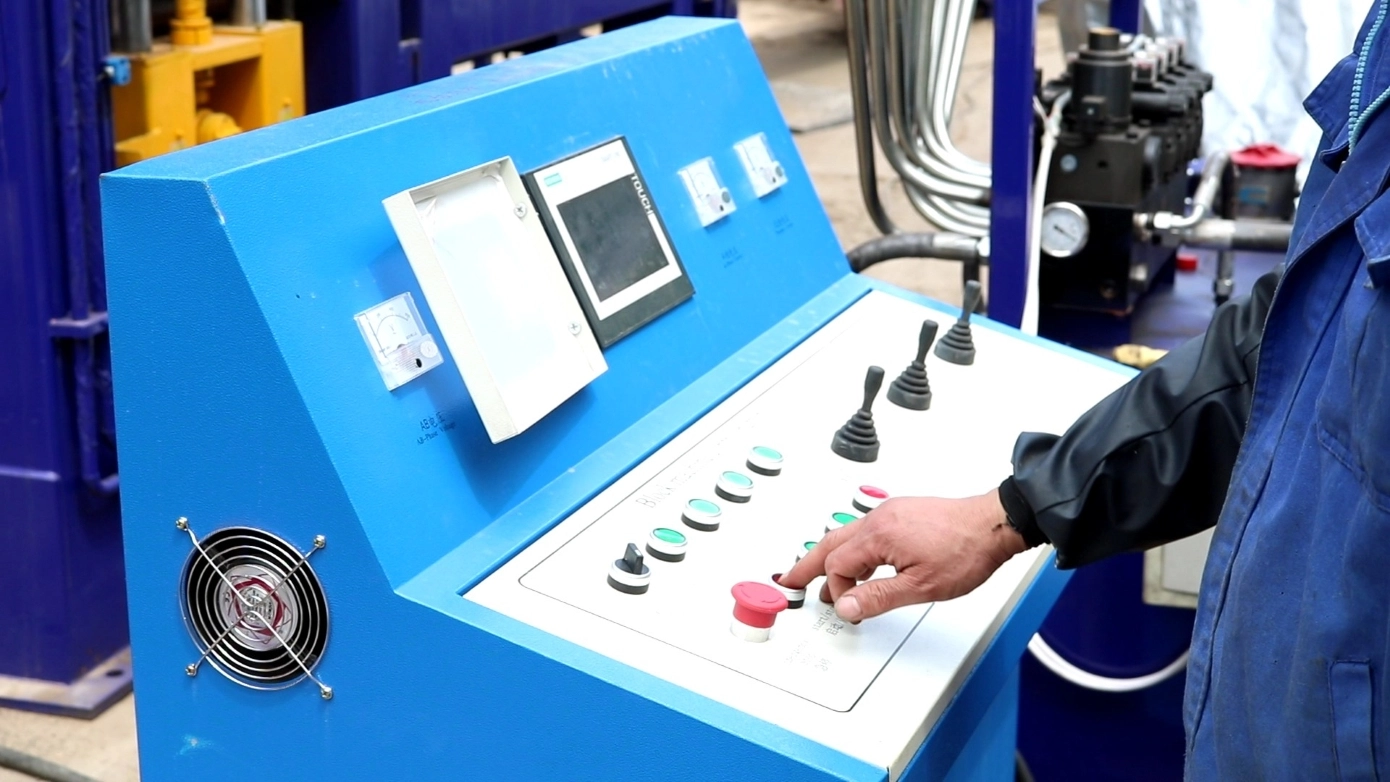

4. SIEMENS PLC intelligent control with remote diagnosis, fast pavement‑block specification change‑over, reduce trial‑run waste
Equipped with SIEMENS PLC HMI with built‑in fault warning and remote monitoring‑diagnosis function. Process parameters including face‑mix feeding duration, pre‑vibration, main vibration and pressure‑holding for permeable bricks, color paving tiles and interlocking blocks can be saved as independent brick profiles. When switching pavement‑block specifications, recall saved parameters directly instead of repeated manual tuning. It shortens change‑over time and cuts defective blocks and raw‑material waste during mold change. Built‑in safety interlock logic allows operation by simply‑trained workers without high‑salary professional technicians. Mixed‑batch orders with multiple pavement‑block types can be handled efficiently to satisfy diversified municipal procurement demands.
5. Wide raw‑material compatibility, utilize local industrial waste to cut raw‑material cost and improve profit margin
QT12‑15C shows great adaptability for dry‑hard concrete mixes. Besides standard sand‑stone‑cement formula, it can make full use of locally available fly ash, slag, gangue, cinder and recycled construction waste. Sourcing cheap local materials eliminates expensive long‑distance transportation fees. Cement ratio can be reasonably optimized while finished‑block wear‑resistance, compression, water permeability and freeze‑thaw performance meet local building standards. Lower unit production cost strengthens your quotation competitiveness in overseas market. Decent profit margin can be guaranteed for both high‑volume general‑grade orders and high‑spec color engineering block projects.
6. Wear‑resistant manganese‑steel moulds & modular quick‑change structure, extendable full‑set production line, multi‑product capability for better return on investment
Manganese‑steel moulds adopt carburizing heat treatment and wire‑cut finishing for high hardness and outstanding wear‑resistance. They resist deformation under repeated high‑pressure forming and extend mould service life to reduce replacement investment. Modular quick‑release mold design enables fast switch for pavement blocks, permeable bricks and interlocking tiles of various sizes. Without major modification, one single machine also produces hollow blocks, grass‑planting blocks, slope‑protection blocks and other municipal building products, lowering your initial capital expenditure. You can select PLD1200 batching machine, JS750 twin‑shaft mixer, 8‑meter double‑layer belt conveyor, automatic stacker, pallet elevator and other auxiliaries according to workshop space, budget and target output to build semi‑automatic or fully‑automatic complete pavement‑block production line. One‑stop integrated solution avoids compatibility risks caused by scattered multi‑supplier purchasing. Mass production can be launched quickly after commissioning to accelerate investment payback period.
1. Frequency‑conversion synchronous vibration‑pressing plus optional traveling face‑mix system, premium pavement block quality to win high‑demand municipal & landscape orders
QT12‑15C adopts frequency‑conversion synchronous vibration forming logic. Low‑frequency feeding is applied for material filling, then high‑frequency excitation of 110KN works in pressing phase with adjustable vibration frequency from 2800‑5100 times per minute. Parameters can be adjusted according to block thickness and permeable brick formula, effectively solving common defects such as uneven pores, surface sanding and peeling color layers. Optional hydraulic‑driven traveling face‑mix feeder realizes stable colored‑surface production without secondary painting. Finished pavement blocks feature high density, good wear‑resistance and freeze‑thaw performance meeting overseas municipal acceptance standards. Tight dimensional tolerance ensures neat paving effect. Superior block quality supports both bulk dealer supply and municipal‑landscape bidding, helping you gain high‑margin engineering orders and reduce losses from defective products.
2. Large 1300×900 mm pallet worktable, short cycle & high output, fulfill large‑volume pavement‑block orders and guarantee on‑time delivery
Equipped with large‑size 1300×900 mm pallet worktable, the forming cycle only takes 15‑25 seconds with multiple pavement blocks per mold cycle. Full‑automatic closed‑loop workflow covers pallet feeding, main & face‑mix feeding, vibration‑pressing and green block discharging. Total installed power reaches 67 kW for stable long‑hour continuous mass production. Only minimal workers are required for supervision and block handling to cut labor cost per unit. When facing huge pavement‑block demands from municipal reconstruction and park construction, stable hourly output shortens production cycle and ensures on‑time supply. You do not need extra main machines for peak‑season orders and maximize plant output revenue.
3. Heavy‑duty welded steel frame & premium core components with European universal drive shaft, stable high‑frequency pavement‑block production and lower downtime loss
Continuous pavement‑block production brings frequent high‑frequency vibration and repeated pressure impact. QT12‑15C adopts heavy‑duty 12×12cm square steel frame sourced from Laigang & Jigang with total machine weight of 12000 kg for excellent anti‑fatigue performance. European‑style universal drive shaft structure avoids motor burnout risks existing in ordinary direct‑vibration design. Core hydraulic parts are Taiwan Calyca brand, and full electric & touch‑screen units are SIEMENS imported components for heavy‑duty overseas working conditions. Reliable hardware supports long‑hour non‑stop production and greatly reduces unexpected shutdown risks. It prevents economic losses including green block scrap, raw‑material waste and order compensation. Slower component wear lowers long‑term spare‑part cost and extends machine service life.
4. SIEMENS PLC intelligent control with remote diagnosis, fast pavement‑block specification change‑over, reduce trial‑run waste
Equipped with SIEMENS PLC HMI with built‑in fault warning and remote monitoring‑diagnosis function. Process parameters including face‑mix feeding duration, pre‑vibration, main vibration and pressure‑holding for permeable bricks, color paving tiles and interlocking blocks can be saved as independent brick profiles. When switching pavement‑block specifications, recall saved parameters directly instead of repeated manual tuning. It shortens change‑over time and cuts defective blocks and raw‑material waste during mold change. Built‑in safety interlock logic allows operation by simply‑trained workers without high‑salary professional technicians. Mixed‑batch orders with multiple pavement‑block types can be handled efficiently to satisfy diversified municipal procurement demands.
5. Wide raw‑material compatibility, utilize local industrial waste to cut raw‑material cost and improve profit margin
QT12‑15C shows great adaptability for dry‑hard concrete mixes. Besides standard sand‑stone‑cement formula, it can make full use of locally available fly ash, slag, gangue, cinder and recycled construction waste. Sourcing cheap local materials eliminates expensive long‑distance transportation fees. Cement ratio can be reasonably optimized while finished‑block wear‑resistance, compression, water permeability and freeze‑thaw performance meet local building standards. Lower unit production cost strengthens your quotation competitiveness in overseas market. Decent profit margin can be guaranteed for both high‑volume general‑grade orders and high‑spec color engineering block projects.
6. Wear‑resistant manganese‑steel moulds & modular quick‑change structure, extendable full‑set production line, multi‑product capability for better return on investment
Manganese‑steel moulds adopt carburizing heat treatment and wire‑cut finishing for high hardness and outstanding wear‑resistance. They resist deformation under repeated high‑pressure forming and extend mould service life to reduce replacement investment. Modular quick‑release mold design enables fast switch for pavement blocks, permeable bricks and interlocking tiles of various sizes. Without major modification, one single machine also produces hollow blocks, grass‑planting blocks, slope‑protection blocks and other municipal building products, lowering your initial capital expenditure. You can select PLD1200 batching machine, JS750 twin‑shaft mixer, 8‑meter double‑layer belt conveyor, automatic stacker, pallet elevator and other auxiliaries according to workshop space, budget and target output to build semi‑automatic or fully‑automatic complete pavement‑block production line. One‑stop integrated solution avoids compatibility risks caused by scattered multi‑supplier purchasing. Mass production can be launched quickly after commissioning to accelerate investment payback period.
