1. Wide Solid‑waste Adaptability, Cut Down Comprehensive Production Cost

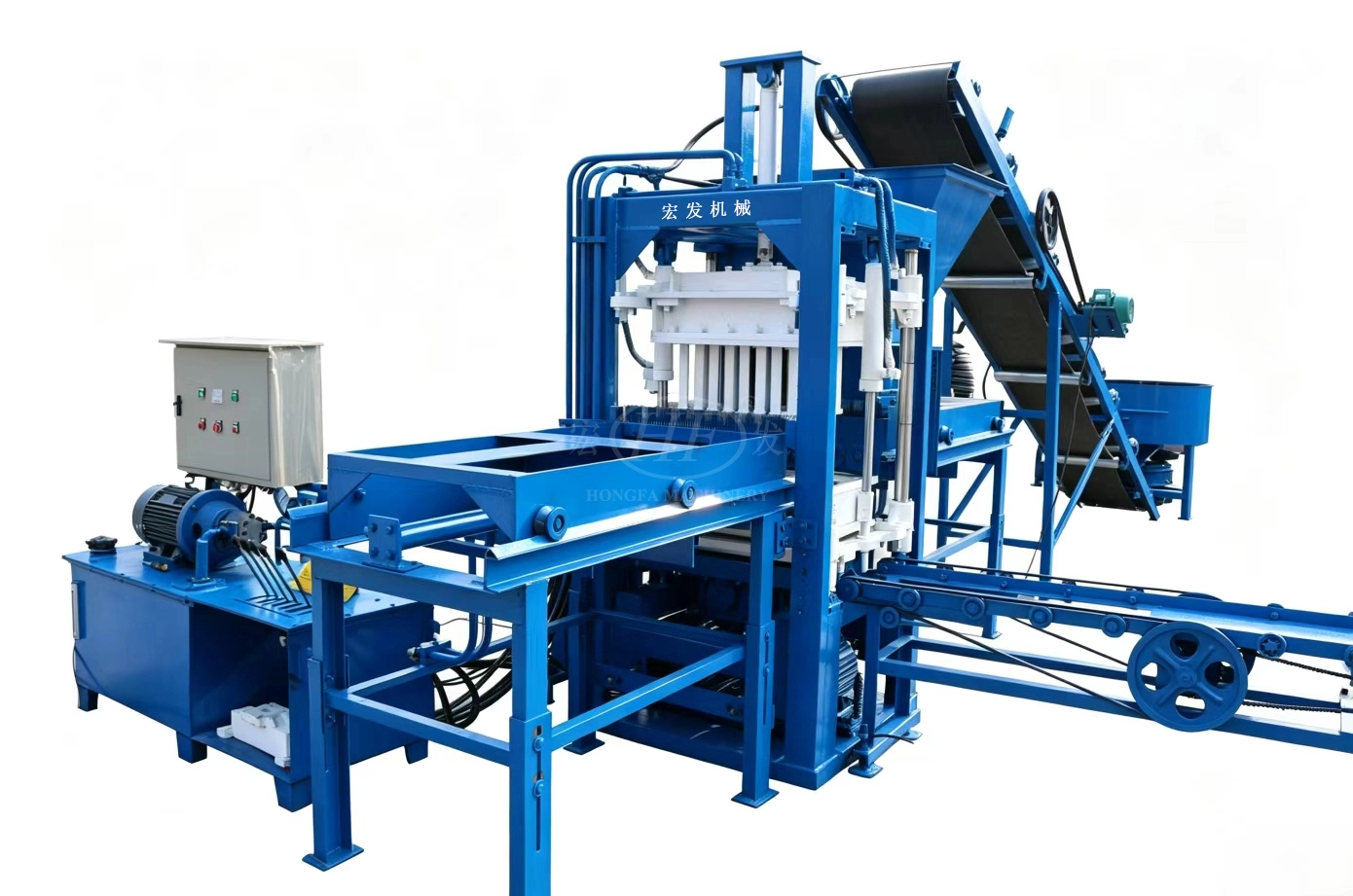

Benefiting from integrated platform‑vibration box structure, QTF3‑20 block main machine natively adapts for construction‑waste recycled aggregate, fly ash, mineral slag, steel slag, furnace slag, coal gangue and other construction & industrial solid waste. It supports brick forming with relatively high‑proportion waste‑mixed raw materials, while batching and mixing belong to external supporting accessories. For small‑medium‑size building‑material processors suffering from expensive natural aggregate, you can make full use of local demolition waste and factory residues as primary raw materials. It reduces high‑cost sand‑stone purchase and skips landfill & transportation fees for waste disposal. In real‑world production, incoming construction waste often has uneven particle size and unstable composition. The platform‑vibration forming mechanism tolerates material fluctuation well and maximizes waste mixing ratio. Disposal‑cost‑generating waste is converted into sellable qualified brick products. Production cost is reduced from both raw‑material purchase and waste‑disposal links, bringing prominent price‑competitiveness for small‑and‑medium‑scale solid‑waste recycling projects.
2. Platform Press‑vibration Forming, Stable Mass‑production under Solid‑waste Working Conditions

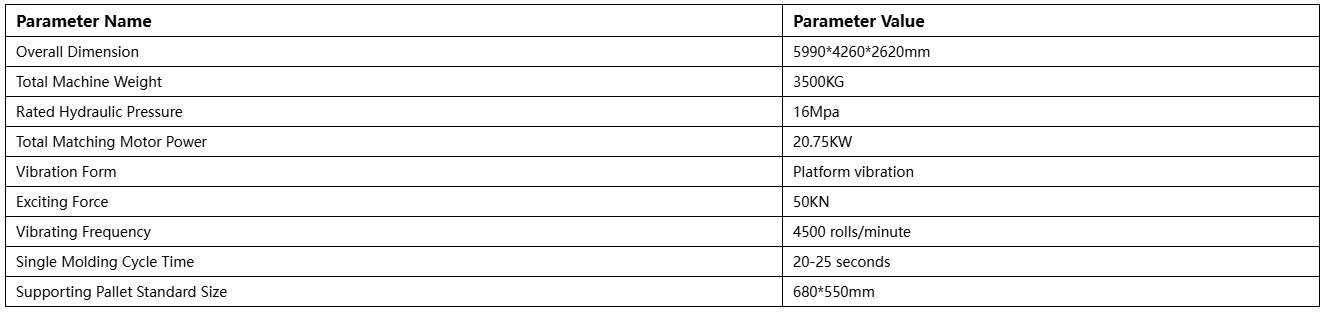

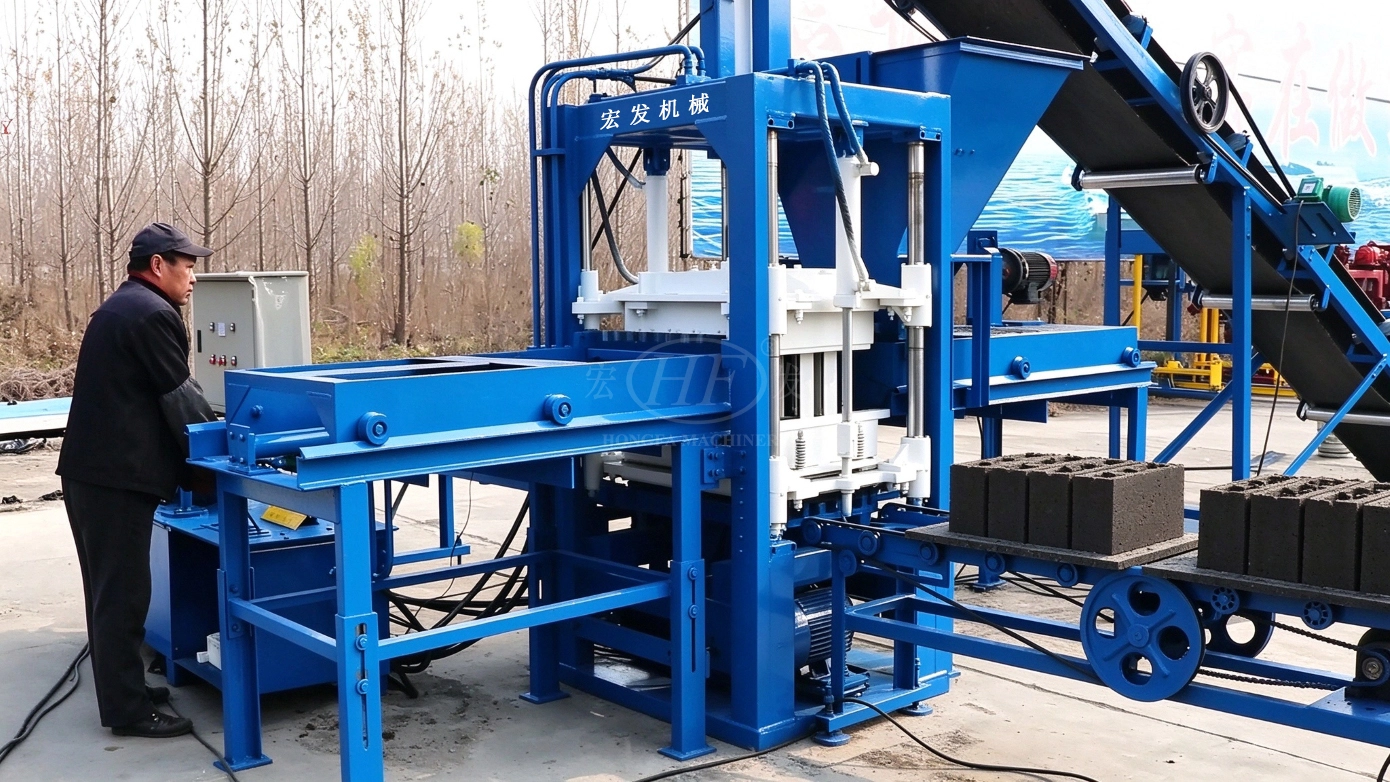

Equipped with 16 MPa rated pressure plus 50 KN platform exciting‑force forming system. It adopts integrated vibration‑box transmission instead of traditional direct‑driven vibration‑motor solution, structurally reinforced for impurity‑rich and irregular waste mixes. Even with hard crushed‑stone and slag particles mixed inside raw mixes, finished bricks achieve qualified density and compressive strength for civil and municipal supply requirements. Stable molding cycle reaches 20‑25 seconds per mould, compatible with 680*550 mm pallets for long‑term non‑stop continuous operation, well‑suited for small‑medium‑volume construction‑waste and industrial‑residue recycling projects. Ordinary block machines of similar specifications tend to produce loose or chipped defective bricks disturbed by hard impurities inside waste feedstock, causing raw‑material waste and order‑delivery losses. QTF3‑20 integrated vibration box delivers even vibration transmission and enhanced anti‑interference forming performance. It lowers defective‑product rate triggered by unstable waste input, minimizes raw‑material loss, guarantees on‑time bulk‑order delivery, safeguards your reputation among downstream buyers and sustains local small‑and‑medium‑scale waste‑processing contracts.
3. Heavy‑duty Core Hardware, Resist Solid‑waste Abrasion & Reduce Unplanned Downtime Loss
Hard granular impurities inside construction waste and mineral slag bring heavier abrasion to frame, hydraulic assemblies, mould boxes and electric components compared with conventional sand‑stone raw materials. QTF3‑20 main‑machine frame adopts heavy‑duty welded 12×12 mm square‑tube steel from Laigang and Jigang with high rigidity and anti‑deformation performance. It is fitted with Calyca hydraulic assembly from Taiwan, China for stable shock‑resistant pressure output for repeated compression of impurity‑mixed waste. PLC electric‑control system supports remote status monitoring, and industrial‑grade components stand up to heavy‑dust brick‑plant environment. Supplied mould boxes adopt 45Mn high‑manganese steel treated by high‑temperature carburizing heat‑treatment for outstanding hardness and wear‑resistance to slow down mould consumption when pressing impurity‑containing waste. All core assemblies are selected for heavy‑duty small‑medium‑size waste‑to‑brick scenarios, lowering unexpected shutdown frequency. Long‑time continuous full‑capacity operation releases full machine output without production interruption caused by main‑unit failures and secures steady revenue for your solid‑waste‑processing project.
4. Built‑in Face‑mix Feeder & Quick‑change Mold, Win Diversified High‑margin Solid‑waste Building‑material Orders

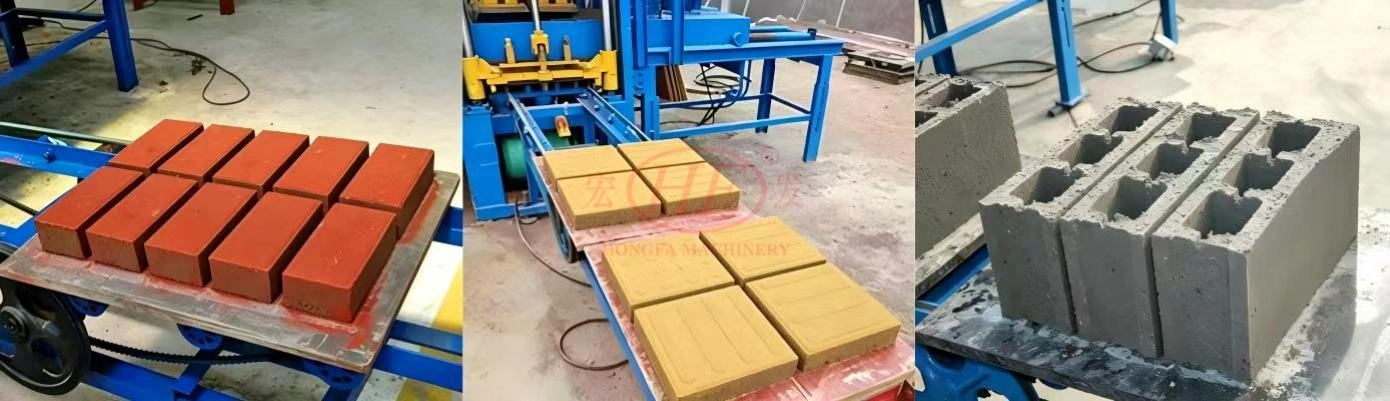

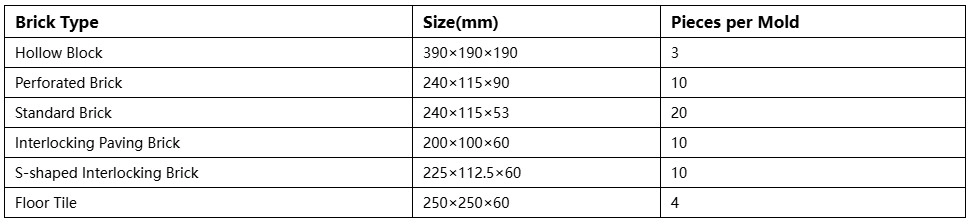

QTF3‑20 main machine integrates independent face‑mix feeding unit without extra external accessories. It supports convenient quick mold replacement without disassembly or modification of main steel‑frame. Simply swap molds to produce hollow blocks, permeable pavers, road curbstones, grass blocks, slope‑protection interlocking blocks, standard bricks and other municipal‑grade building‑materials. Colored face‑mixed landscape bricks can be manufactured directly. Many regions worldwide encourage small‑and‑medium‑enterprises to participate in construction‑waste recycling. Sponge‑city and village‑level infrastructure tenders give procurement priority to recycled solid‑waste bricks with decent profit premium. With this single QTF3‑20 main machine, you can undertake both civil orders and village‑level green‑municipal‑project tenders without extra equipment investment. It expands your customer groups and order sources, captures market dividends of small‑and‑medium‑size recycled‑building‑material sector and lifts overall factory revenue and profit.
5. Fully‑automatic Main‑machine Operation, Reduce Labor Input & Avoid Man‑made Quality Deviation

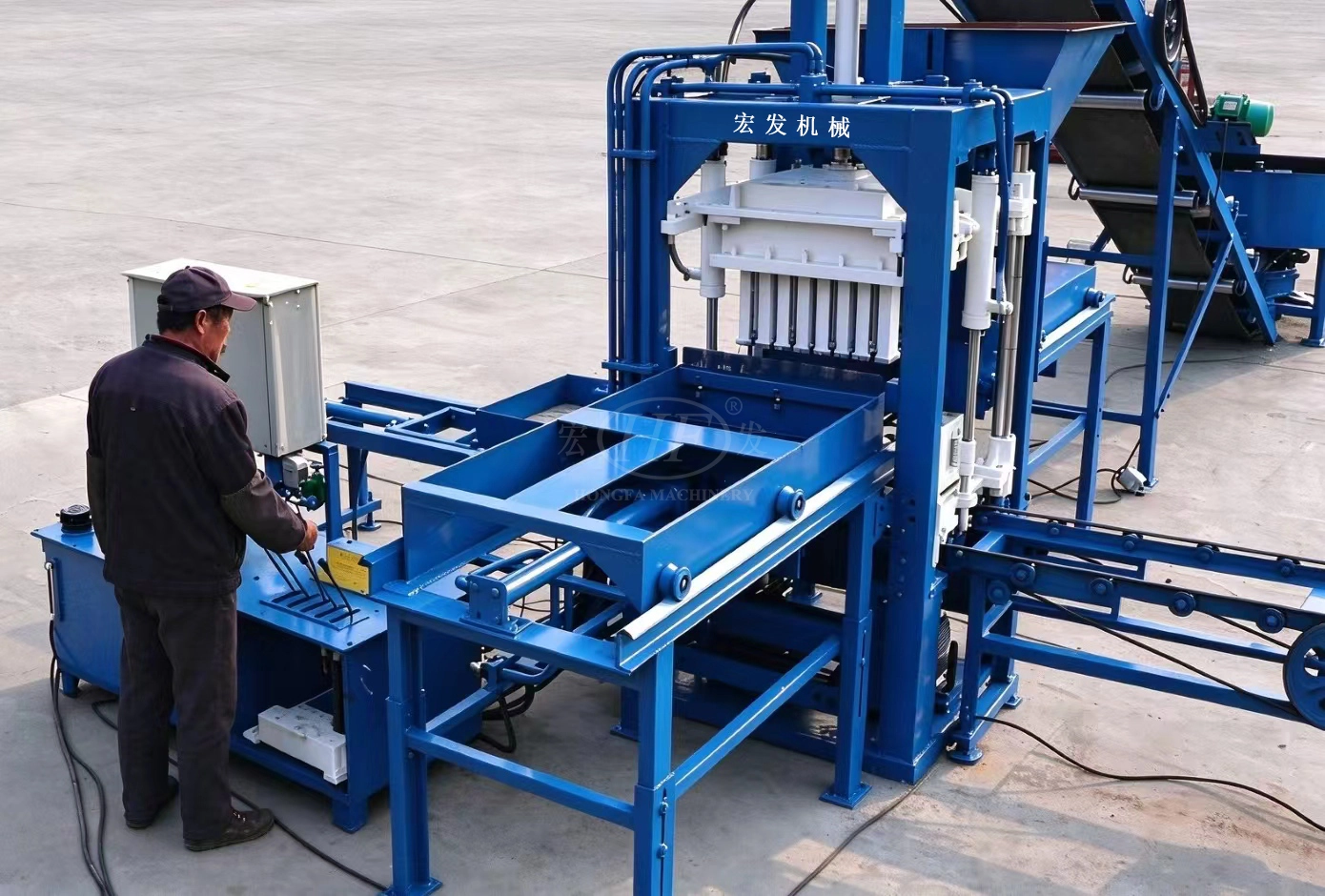

QTF3‑20 main machine completes pallet feeding, material distribution, press‑vibration forming and green‑brick demoulding & discharging in full‑automatic mode. Large numbers of experienced skilled brick‑making workers are not required; only few simply‑trained operators can finish machine monitoring and basic operation. Brick quality in solid‑waste brick‑making heavily relies on mixture proportion. Manual batching easily triggers proportion imbalance and mass defective‑product accidents. After connecting with external batching‑mixing accessories, this main machine steadily processes well‑proportioned waste‑based mixes and prevents mass‑quality accidents caused by human error. Labor‑payroll expenditure is directly cut down. Production capacity can be scaled‑up to consume large‑volume local construction and industrial waste and maximize profit potential of your small‑and‑medium‑size solid‑waste recycling project.
6. Compact Footprint, Lower Project‑entry Threshold & Accelerate Payback Period

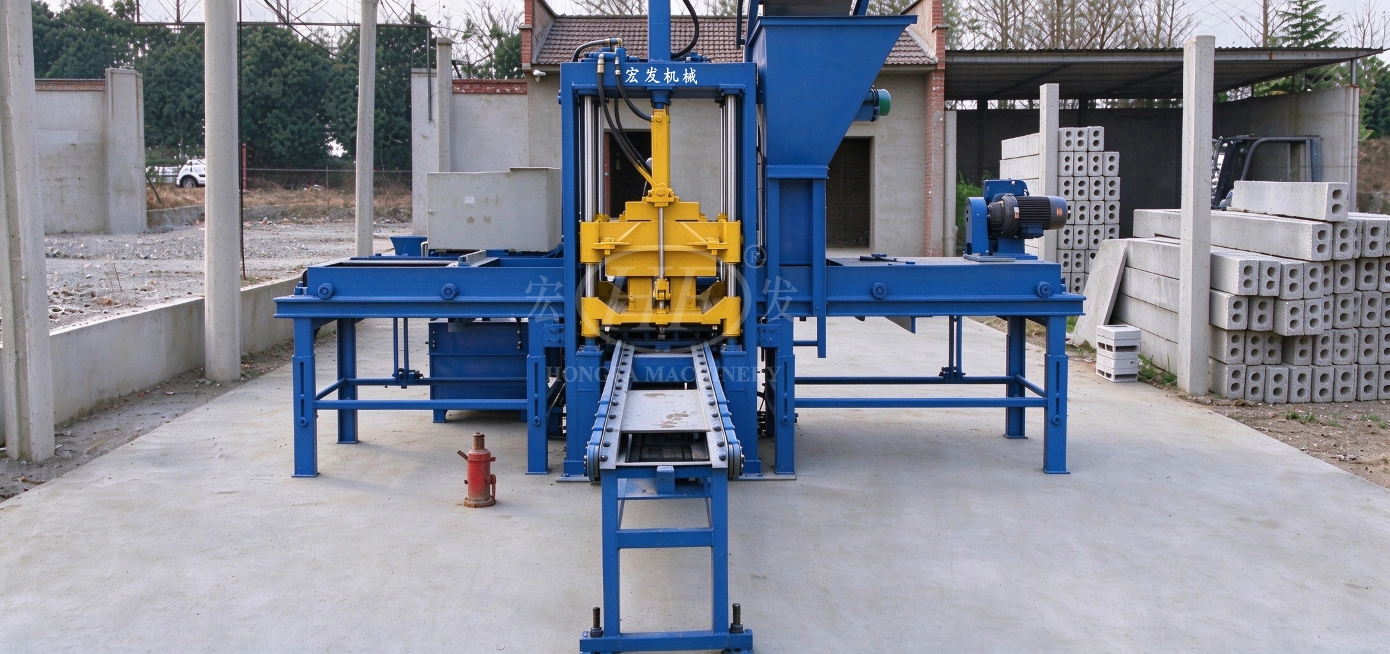

QTF3‑20 main‑machine features compact overall dimension with small floor‑space requirement. New large‑size workshops are not mandatory; existing old workshops or ordinary plant sites can host the machine after minor retrofits. Heavy civil‑construction expenditure for plant reconstruction is eliminated and upfront site investment for small‑medium‑size waste‑recycling projects is reduced. Delivered as a complete main‑machine assembly with one hollow‑block mould included. Solid‑waste brick‑making can be launched rapidly after connecting with external mixing and batching accessories. It is ideal for investors newly entering solid‑waste‑recycling building‑material industry without heavy infrastructure burden. Dual‑stream income is available: sales profit from recycled bricks plus service fees from third‑party incoming‑waste‑processing contracts. Multiple‑income streams shorten project payback cycle and lower overall entry threshold for small‑and‑medium‑scale solid‑waste resource‑recovery business.
1. Wide Solid‑waste Adaptability, Cut Down Comprehensive Production Cost
Benefiting from integrated platform‑vibration box structure, QTF3‑20 block main machine natively adapts for construction‑waste recycled aggregate, fly ash, mineral slag, steel slag, furnace slag, coal gangue and other construction & industrial solid waste. It supports brick forming with relatively high‑proportion waste‑mixed raw materials, while batching and mixing belong to external supporting accessories. For small‑medium‑size building‑material processors suffering from expensive natural aggregate, you can make full use of local demolition waste and factory residues as primary raw materials. It reduces high‑cost sand‑stone purchase and skips landfill & transportation fees for waste disposal. In real‑world production, incoming construction waste often has uneven particle size and unstable composition. The platform‑vibration forming mechanism tolerates material fluctuation well and maximizes waste mixing ratio. Disposal‑cost‑generating waste is converted into sellable qualified brick products. Production cost is reduced from both raw‑material purchase and waste‑disposal links, bringing prominent price‑competitiveness for small‑and‑medium‑scale solid‑waste recycling projects.
2. Platform Press‑vibration Forming, Stable Mass‑production under Solid‑waste Working Conditions
Equipped with 16 MPa rated pressure plus 50 KN platform exciting‑force forming system. It adopts integrated vibration‑box transmission instead of traditional direct‑driven vibration‑motor solution, structurally reinforced for impurity‑rich and irregular waste mixes. Even with hard crushed‑stone and slag particles mixed inside raw mixes, finished bricks achieve qualified density and compressive strength for civil and municipal supply requirements. Stable molding cycle reaches 20‑25 seconds per mould, compatible with 680*550 mm pallets for long‑term non‑stop continuous operation, well‑suited for small‑medium‑volume construction‑waste and industrial‑residue recycling projects. Ordinary block machines of similar specifications tend to produce loose or chipped defective bricks disturbed by hard impurities inside waste feedstock, causing raw‑material waste and order‑delivery losses. QTF3‑20 integrated vibration box delivers even vibration transmission and enhanced anti‑interference forming performance. It lowers defective‑product rate triggered by unstable waste input, minimizes raw‑material loss, guarantees on‑time bulk‑order delivery, safeguards your reputation among downstream buyers and sustains local small‑and‑medium‑scale waste‑processing contracts.
3. Heavy‑duty Core Hardware, Resist Solid‑waste Abrasion & Reduce Unplanned Downtime Loss
Hard granular impurities inside construction waste and mineral slag bring heavier abrasion to frame, hydraulic assemblies, mould boxes and electric components compared with conventional sand‑stone raw materials. QTF3‑20 main‑machine frame adopts heavy‑duty welded 12×12 mm square‑tube steel from Laigang and Jigang with high rigidity and anti‑deformation performance. It is fitted with Calyca hydraulic assembly from Taiwan, China for stable shock‑resistant pressure output for repeated compression of impurity‑mixed waste. PLC electric‑control system supports remote status monitoring, and industrial‑grade components stand up to heavy‑dust brick‑plant environment. Supplied mould boxes adopt 45Mn high‑manganese steel treated by high‑temperature carburizing heat‑treatment for outstanding hardness and wear‑resistance to slow down mould consumption when pressing impurity‑containing waste. All core assemblies are selected for heavy‑duty small‑medium‑size waste‑to‑brick scenarios, lowering unexpected shutdown frequency. Long‑time continuous full‑capacity operation releases full machine output without production interruption caused by main‑unit failures and secures steady revenue for your solid‑waste‑processing project.
4. Built‑in Face‑mix Feeder & Quick‑change Mold, Win Diversified High‑margin Solid‑waste Building‑material Orders
QTF3‑20 main machine integrates independent face‑mix feeding unit without extra external accessories. It supports convenient quick mold replacement without disassembly or modification of main steel‑frame. Simply swap molds to produce hollow blocks, permeable pavers, road curbstones, grass blocks, slope‑protection interlocking blocks, standard bricks and other municipal‑grade building‑materials. Colored face‑mixed landscape bricks can be manufactured directly. Many regions worldwide encourage small‑and‑medium‑enterprises to participate in construction‑waste recycling. Sponge‑city and village‑level infrastructure tenders give procurement priority to recycled solid‑waste bricks with decent profit premium. With this single QTF3‑20 main machine, you can undertake both civil orders and village‑level green‑municipal‑project tenders without extra equipment investment. It expands your customer groups and order sources, captures market dividends of small‑and‑medium‑size recycled‑building‑material sector and lifts overall factory revenue and profit.
5. Fully‑automatic Main‑machine Operation, Reduce Labor Input & Avoid Man‑made Quality Deviation
QTF3‑20 main machine completes pallet feeding, material distribution, press‑vibration forming and green‑brick demoulding & discharging in full‑automatic mode. Large numbers of experienced skilled brick‑making workers are not required; only few simply‑trained operators can finish machine monitoring and basic operation. Brick quality in solid‑waste brick‑making heavily relies on mixture proportion. Manual batching easily triggers proportion imbalance and mass defective‑product accidents. After connecting with external batching‑mixing accessories, this main machine steadily processes well‑proportioned waste‑based mixes and prevents mass‑quality accidents caused by human error. Labor‑payroll expenditure is directly cut down. Production capacity can be scaled‑up to consume large‑volume local construction and industrial waste and maximize profit potential of your small‑and‑medium‑size solid‑waste recycling project.
6. Compact Footprint, Lower Project‑entry Threshold & Accelerate Payback Period
QTF3‑20 main‑machine features compact overall dimension with small floor‑space requirement. New large‑size workshops are not mandatory; existing old workshops or ordinary plant sites can host the machine after minor retrofits. Heavy civil‑construction expenditure for plant reconstruction is eliminated and upfront site investment for small‑medium‑size waste‑recycling projects is reduced. Delivered as a complete main‑machine assembly with one hollow‑block mould included. Solid‑waste brick‑making can be launched rapidly after connecting with external mixing and batching accessories. It is ideal for investors newly entering solid‑waste‑recycling building‑material industry without heavy infrastructure burden. Dual‑stream income is available: sales profit from recycled bricks plus service fees from third‑party incoming‑waste‑processing contracts. Multiple‑income streams shorten project payback cycle and lower overall entry threshold for small‑and‑medium‑scale solid‑waste resource‑recovery business.
