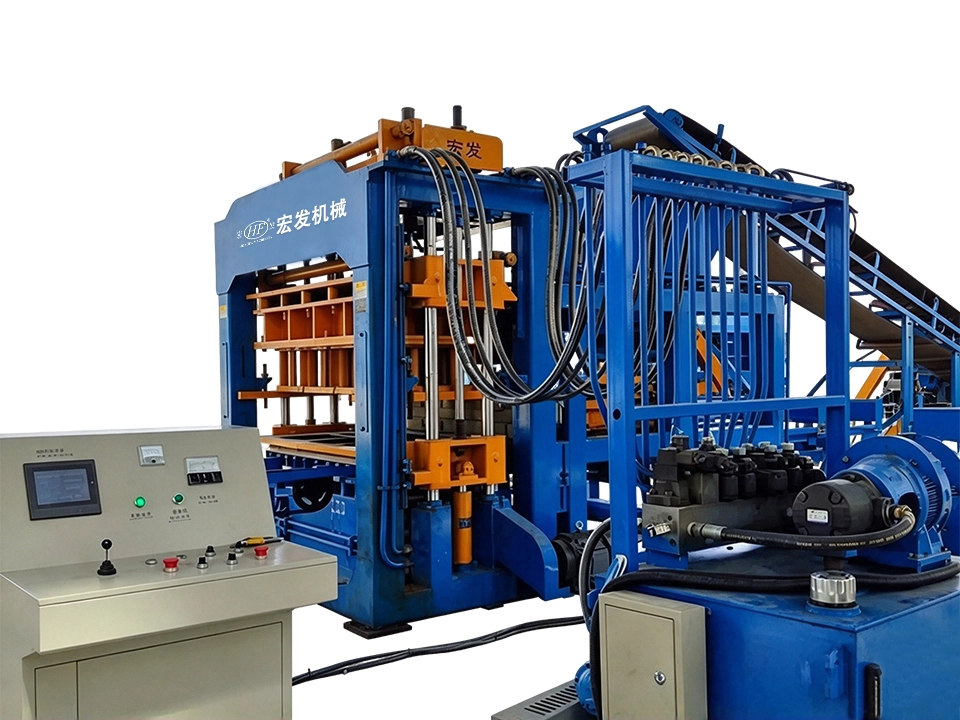

QT12‑15C Automatic Brick Forming Machine | High‑output Hydraulic Concrete Brick Making Main Equipment_Fully automatic brick making machine_Products

Product advantages

Advantage of QT12‑15C Automatic Brick Forming Machine

1. Synchronous Variable‑frequency Table‑vibration, High Forming Consistency & Less Reject Loss

QT12‑15C adopts synchronous variable‑frequency table‑vibration. Vibration frequency can be adjusted for different products: low‑frequency for material filling, high‑frequency for compaction. Cooperating with stable 21 MPa hydraulic pressure, materials fill mold cavity sufficiently and air bubbles are fully discharged. Finished hollow blocks, solid blocks and pavers feature uniform density and qualified strength. It reduces rejects such as looseness and corner chipping. Products meet acceptance standards for construction and municipal projects, cutting raw‑material waste and securing quality for bulk‑order delivery.

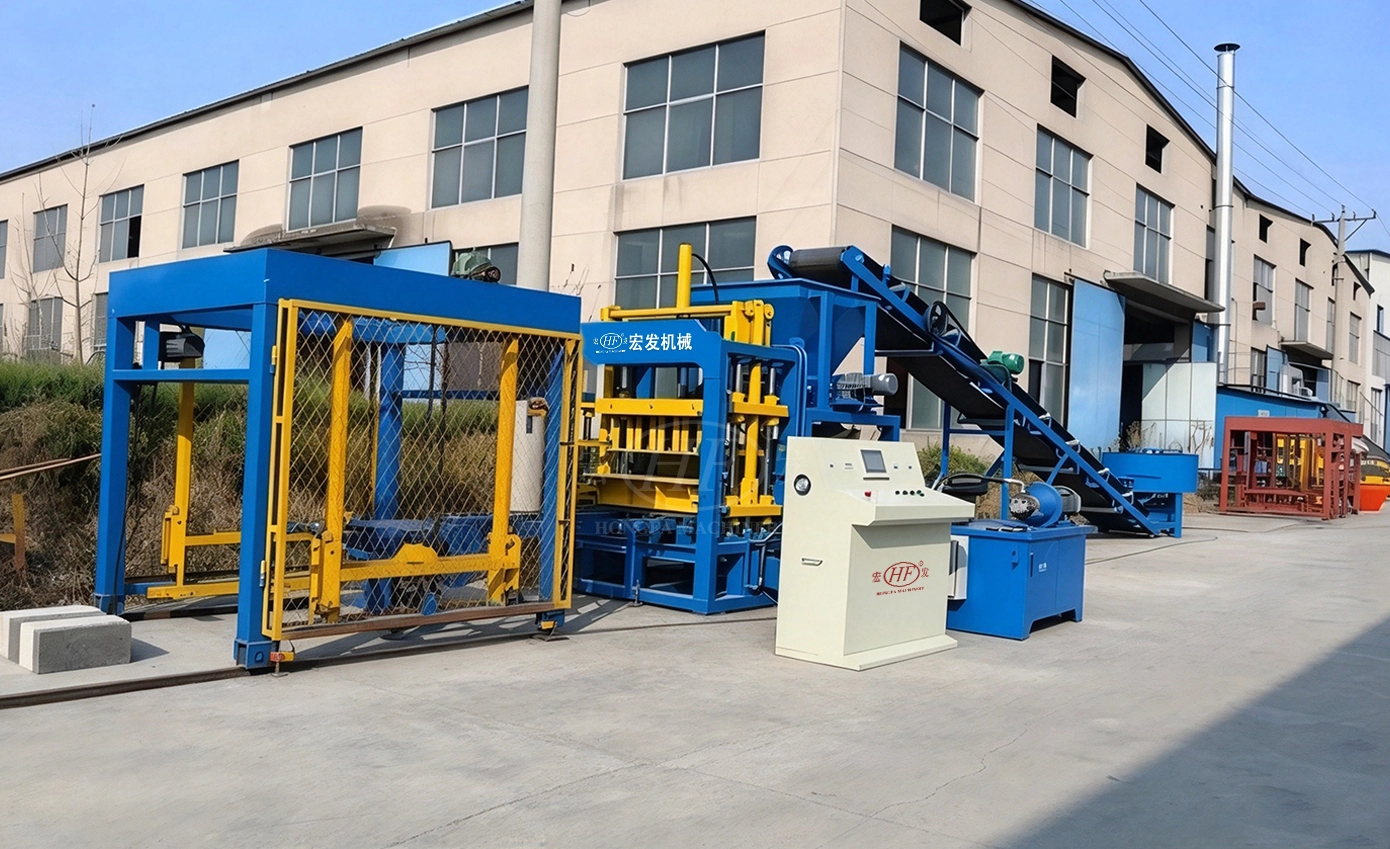

QT12‑15C

2. Heavy‑duty Welded Frame & European‑tech Universal Drive Shaft, Low Failure Rate For Multi‑shift Production

The main frame is fully welded by 12×12cm high‑quality square steel tubes from Laigang and Jigang steel mill, delivering high rigidity to resist long‑time high‑frequency vibration. Universal drive‑shaft with proven European technology transfers power evenly and avoids motor burnout caused by unbalanced load. Reinforced mechanical structure reduces key‑component damage risk. It minimizes unplanned downtime and prevents order‑delay losses caused by equipment failure.

3. Taiwan Calyca Full‑set Hydraulic Components, Stable Pressure Output & Longer Hydraulic‑system Service Life

Full hydraulic system applies original Taiwan Calyca hydraulic parts with excellent sealing property and anti‑fatigue performance. It maintains stable pressure output under long‑time high‑frequency pressing without pressure‑release or oil‑leakage. Stable hydraulic force guarantees consistent pressing effect for every mold and small dimension deviation for finished blocks. It cuts frequent maintenance and spare‑part replacement cost in later operation.

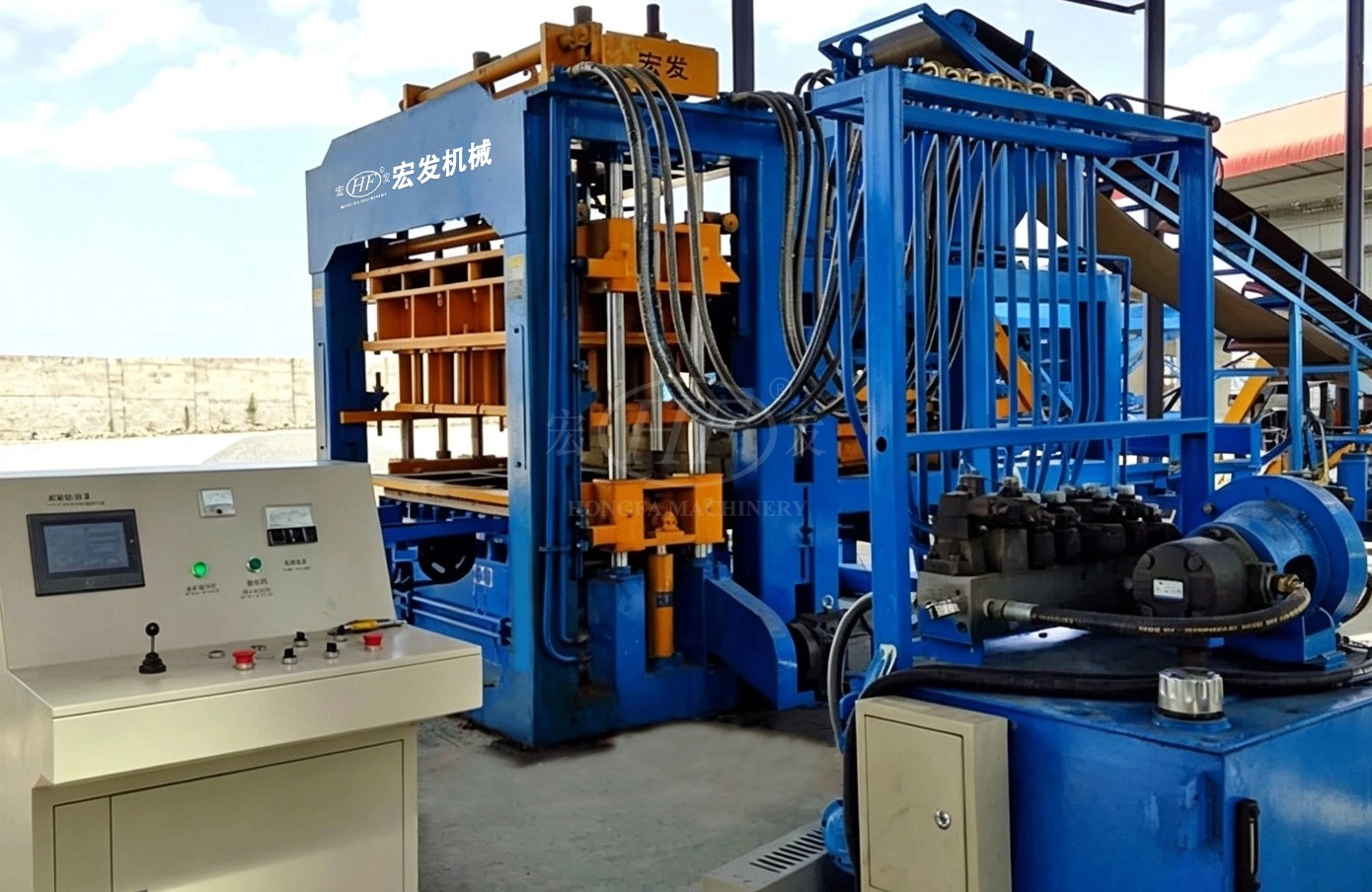

QT12‑15C(1)

4. Siemens PLC Touch‑screen Control With Remote Monitoring & Fault Diagnosis, Lower Reliance On Skilled Workers

Full imported Siemens electrical components and HMI touch‑screen realize fully‑automatic pallet feeding, material feeding, vibration‑press forming, demolding and block discharging. Process parameters for different block types can be stored and one‑click recalled for product change‑over. Built‑in fault warning and remote monitoring‑diagnosis function allow overseas users to check machine status remotely without waiting for on‑site technicians. Electrical interlock prevents mold collision from mis‑operation. Ordinary operators can handle mass‑production after simple training, saving labor‑management cost.

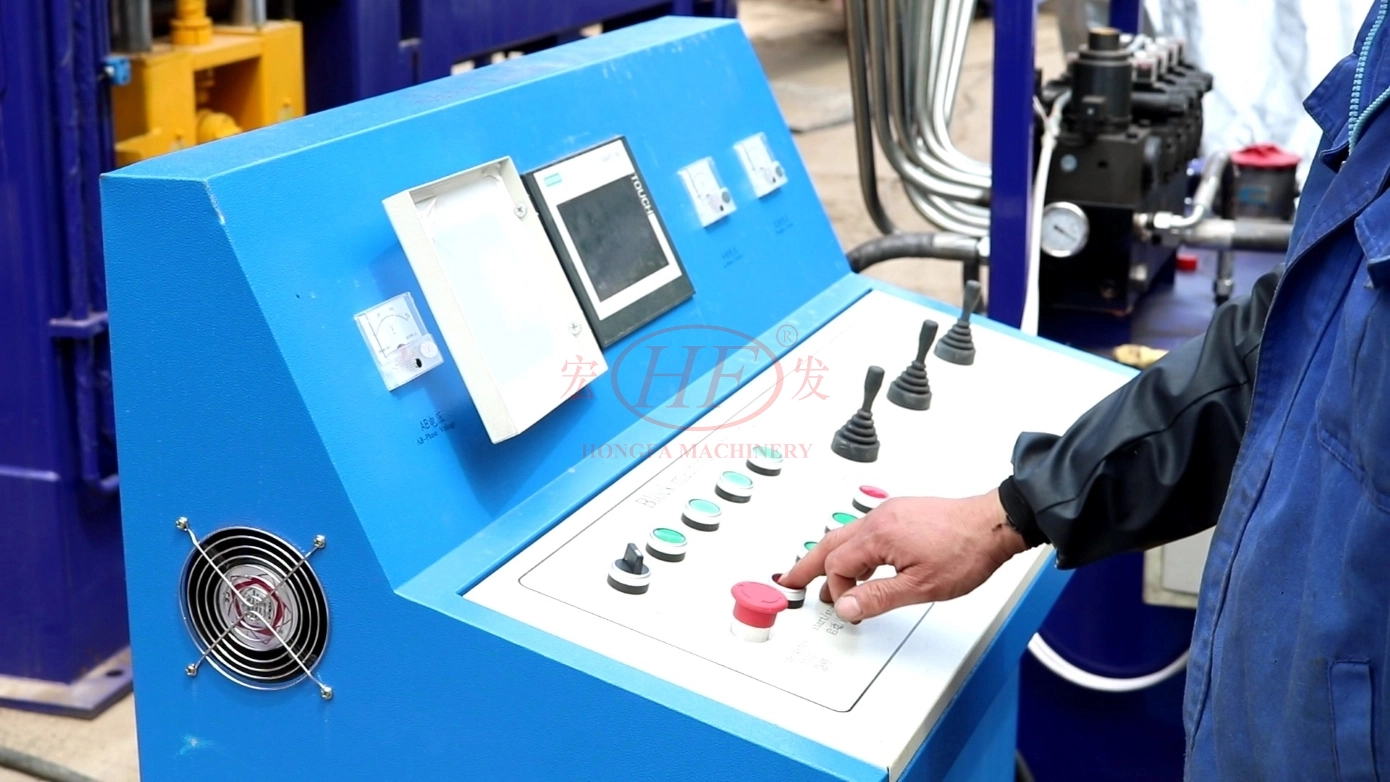

PLC of QT12‑15C Automatic Brick Forming Machine

5. Carburizing‑treated Manganese‑steel Molds & Large 1300×900 mm Pallet, Multi‑product Compatibility For Diversified Orders

Manganese‑steel molds with carburizing heat‑treatment and precise wire‑cutting feature high cavity accuracy and good wear‑resistance. Large‑size 1300×900 mm pallet brings higher output per cycle. By swapping molds, the machine produces hollow blocks, standard bricks, grass blocks and kerbstones. Optional face‑mix system expands production capacity for color pavers. Wearing mold parts can be replaced separately instead of whole‑set mold replacement to reduce consumable cost. One main machine handles diversified construction & municipal orders and improves return‑on‑investment.

6. Wide Raw‑material Compatibility, Utilize Local Industrial Residues To Cut Raw‑material Expense

Besides conventional sand, stone powder and cement, this machine can process fly ash, furnace slag, gangue, expanded perlite and other industrial residues. Customers can take full advantage of locally‑available waste materials and reduce cement dosage while guaranteeing block strength. Local‑resource utilization lowers long‑distance procurement cost and strengthens price competitiveness of finished blocks.

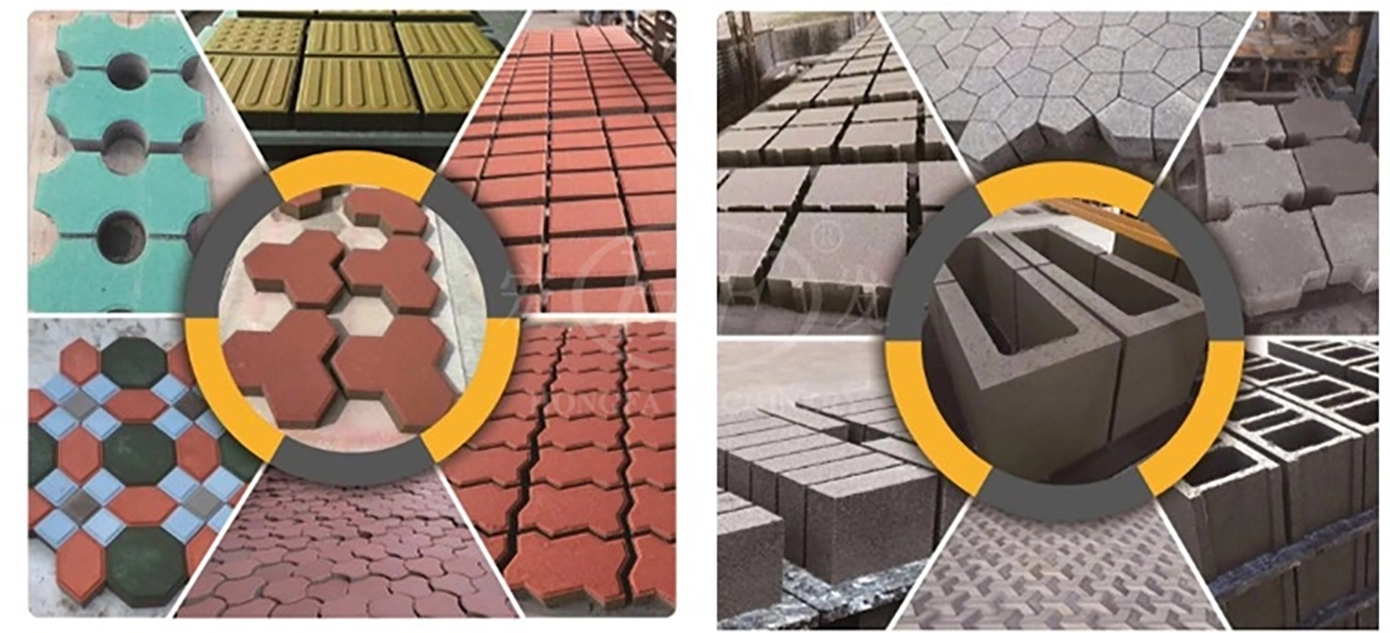

Brick Products of QT12‑15C Automatic Brick Forming Machine

7. Modular Split‑type Main‑machine, Container‑shipping Friendly, Pre‑delivery Full Test & Reliable Spare‑part Support

QT12‑15C forming main machine adopts split‑modular structure suitable for sea‑container transportation. Complete electro‑hydraulic joint test is finished before factory delivery. After on‑site positioning, leveling, power and pipe connection, mass‑production can be launched with simple commissioning. Original spare‑parts including universal drive shafts, Calyca hydraulic kits, vibration assemblies and mold core parts are continuously supplied to guarantee stable mass‑production and on‑time order fulfillment.
