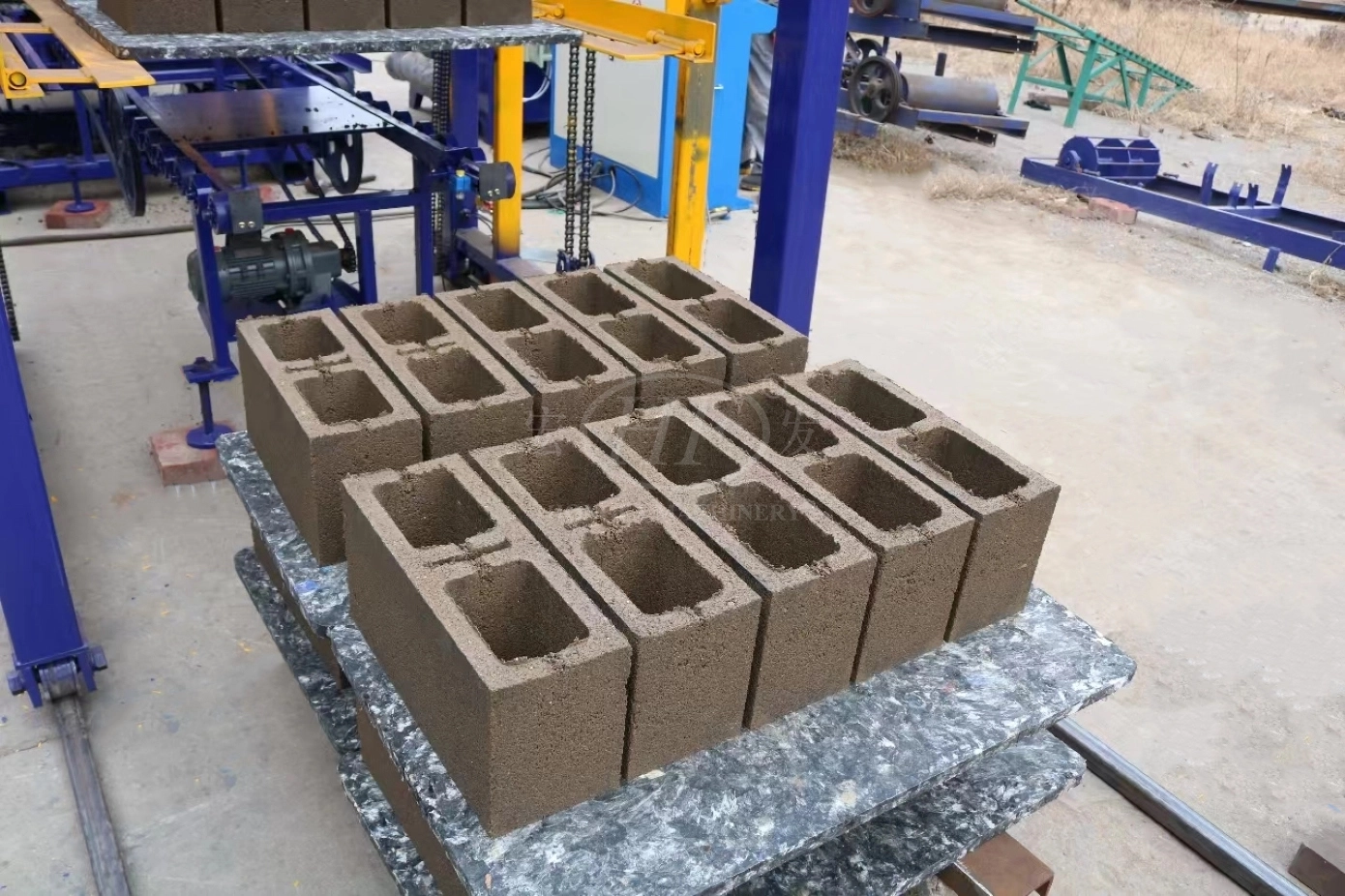

1. Optimized for hollow block forming, high‑strength blocks with regular cavities, easier qualification to win construction project orders

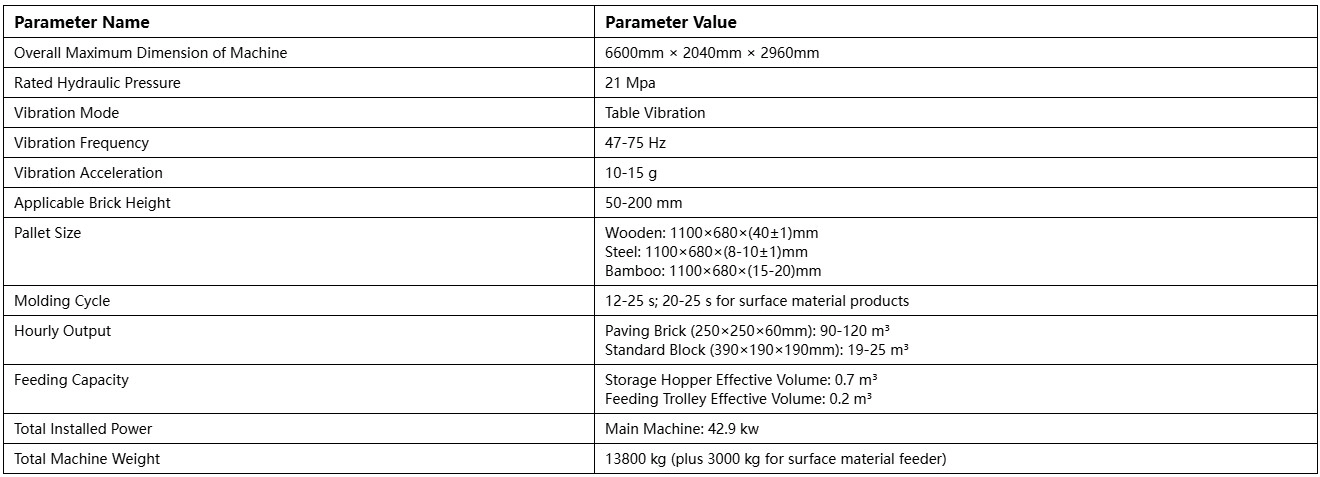

QT8‑15 adopts table‑vibration forming with vibration frequency of 47‑75Hz and 21Mpa rated hydraulic pressure. It is well‑adapted to hollow block production requirements for dense outer walls, ribs and complete cavity profiles. Produced hollow blocks reach compressive strength above 15MPa with excellent anti‑freezing and anti‑permeability performance. It effectively avoids common defects such as deformed cavities, insufficient filling on ribs and loose outer surfaces. High batch‑to‑batch dimensional consistency helps blocks easily pass local construction material acceptance standards. Superior block quality strengthens your competitiveness in project bidding and distributor supply business, supporting you to secure large‑volume long‑term hollow block orders and achieve better selling prices.
2. High‑capacity continuous cyclic production, more blocks per mold, shorter lead time and no lost large orders

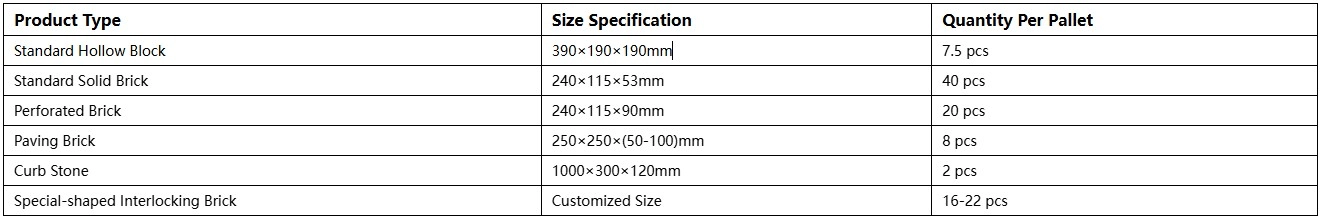

The machine features a short forming cycle of 12‑25 seconds, delivering 7.5 standard hollow blocks per pallet with stable hourly output of 19‑25m³. Higher output per mold enables intensive mass continuous production. Faced with large‑volume hollow block demands from construction projects, sufficient production capacity shortens overall production cycles and guarantees on‑time delivery. Fully‑automatic pallet feeding, forming and block discharging require only a small number of on‑site operators to cut labor cost. Your factory can fully release equipment potential and maximize plant output revenue.
3. Heavy‑duty frame plus independent integrated hydraulic station, reliable for long‑time high‑pressure hollow block production, less downtime & lower economic loss
Weighing 13800kg, this machine adopts heavy thickened steel welded frame and three‑layer vibration‑damping structure to withstand continuous impact from long‑time high‑pressure pressing and high‑frequency vibration in hollow block manufacturing. The external independent integrated hydraulic power station separates hydraulic components from the vibrating mainframe, protecting cylinders and valve groups from site dust and strong vibration to extend component service life and improve overall hydraulic reliability. It supports long‑hour non‑stop hollow‑block production and greatly reduces unexpected shutdown risks. You can avoid economic losses caused by delayed orders, wasted raw materials and rejected green blocks, cutting long‑term maintenance and spare‑part expenditure for better return on investment.

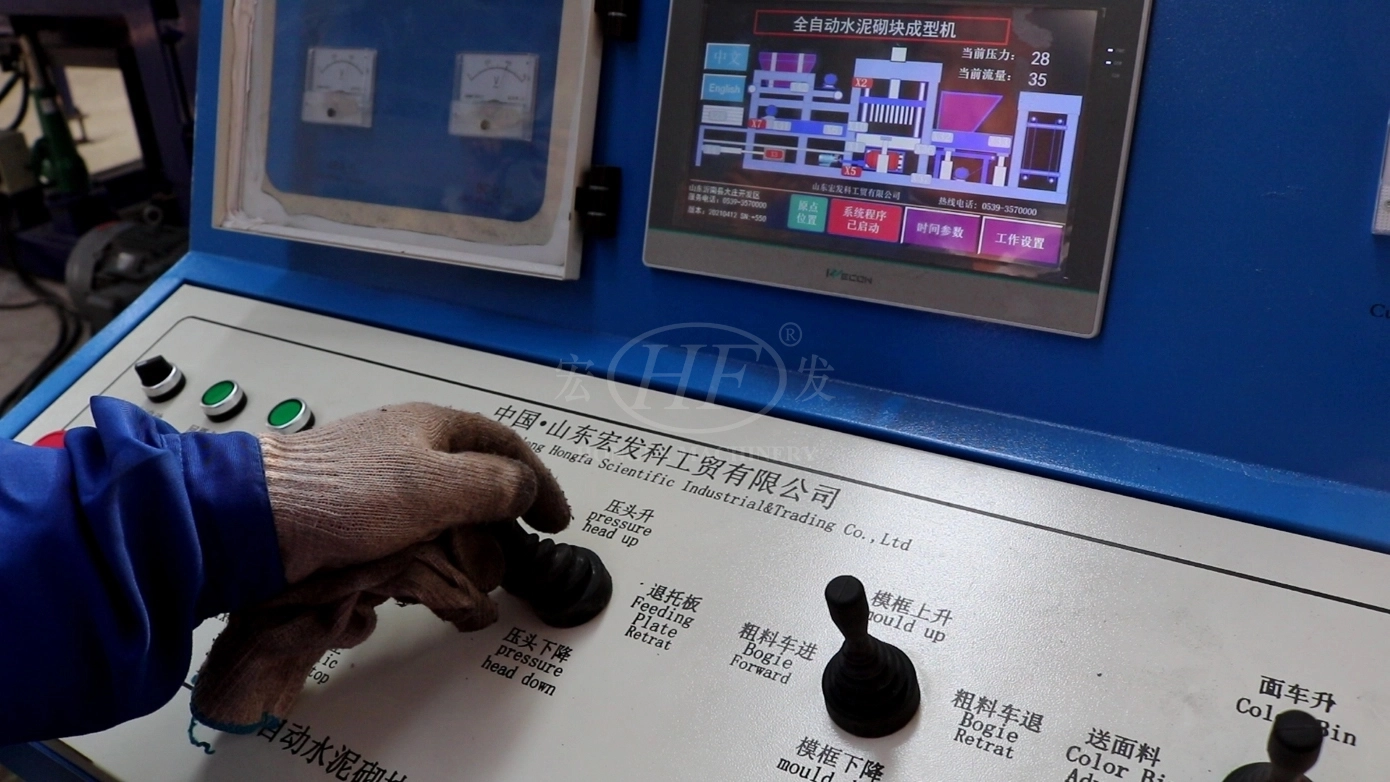

4. PLC touch‑screen with storable process parameters, fast specification change‑over for hollow blocks, less trial‑run waste for mixed‑spec orders
Equipped with PLC controller and touch‑screen HMI, the machine supports saving and recalling dedicated process profiles for load‑bearing and non‑load‑bearing hollow blocks of different wall thickness and cavity ratios. You can directly call saved parameters when switching hollow‑block specifications instead of repeated manual tuning. It greatly shortens change‑over time and reduces waste from trial‑run defective blocks. Built‑in complete safety interlock logic prevents mis‑operation failures and lowers operator skill requirements. The machine efficiently handles mixed‑batch orders with multiple hollow‑block specifications to satisfy diversified customer procurement demands.
5. Wide raw‑material compatibility, make hollow blocks with local industrial waste, cut material cost locally and improve profit margin
Benefiting from progressive vibration forming technology, QT8‑15 accepts various raw materials for hollow block production. Besides standard sand, stone and cement, it can make full use of locally available industrial waste such as fly ash, slag, furnace slag and recycled construction waste for load‑bearing and non‑load‑bearing hollow blocks. Sourcing cheap waste materials nearby saves high long‑distance logistics cost. Cement proportion can be reasonably optimized while finished block strength and construction indexes remain qualified. Lower unit production cost gives you advantages in market quotation and guarantees sufficient profit for each batch of orders.

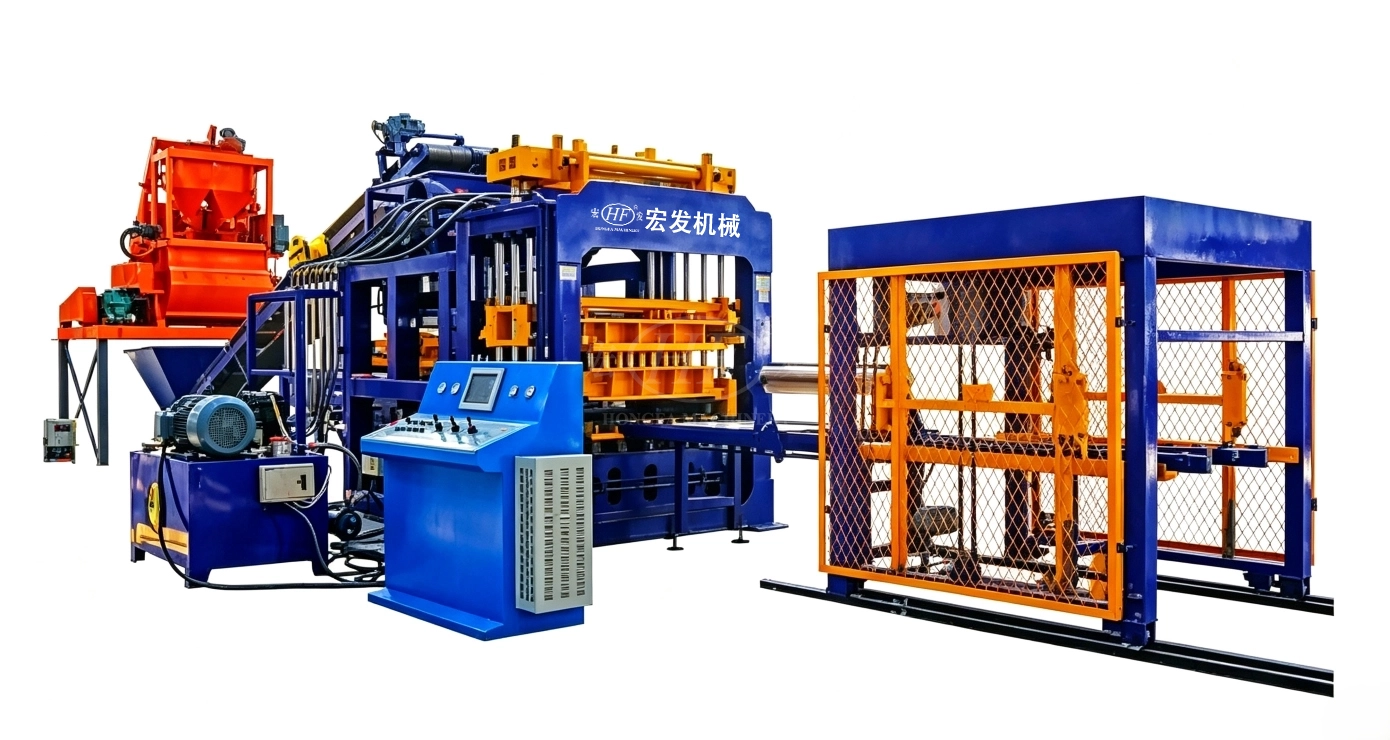

6. Modular quick‑change mold design, extendable full‑set production line, multi‑product capability for higher return on investment
Modular mold mounting allows fast switch among hollow blocks and perforated bricks with different dimensions and cavity ratios. One single machine also produces curbstones, grass‑planting blocks, slope‑protection blocks and other concrete products, removing the need for multiple main machines and lowering initial capital investment. According to your workshop size, budget and target capacity, you can select batching system, forced mixer, conveyor and automatic stacker to build semi‑automatic or fully‑automatic complete hollow‑block production line. The integrated solution avoids compatibility risks from separate component sourcing. Mass production can be launched quickly after equipment delivery to accelerate investment payback.
1. Optimized for hollow block forming, high‑strength blocks with regular cavities, easier qualification to win construction project orders
QT8‑15 adopts table‑vibration forming with vibration frequency of 47‑75Hz and 21Mpa rated hydraulic pressure. It is well‑adapted to hollow block production requirements for dense outer walls, ribs and complete cavity profiles. Produced hollow blocks reach compressive strength above 15MPa with excellent anti‑freezing and anti‑permeability performance. It effectively avoids common defects such as deformed cavities, insufficient filling on ribs and loose outer surfaces. High batch‑to‑batch dimensional consistency helps blocks easily pass local construction material acceptance standards. Superior block quality strengthens your competitiveness in project bidding and distributor supply business, supporting you to secure large‑volume long‑term hollow block orders and achieve better selling prices.
2. High‑capacity continuous cyclic production, more blocks per mold, shorter lead time and no lost large orders
The machine features a short forming cycle of 12‑25 seconds, delivering 7.5 standard hollow blocks per pallet with stable hourly output of 19‑25m³. Higher output per mold enables intensive mass continuous production. Faced with large‑volume hollow block demands from construction projects, sufficient production capacity shortens overall production cycles and guarantees on‑time delivery. Fully‑automatic pallet feeding, forming and block discharging require only a small number of on‑site operators to cut labor cost. Your factory can fully release equipment potential and maximize plant output revenue.
3. Heavy‑duty frame plus independent integrated hydraulic station, reliable for long‑time high‑pressure hollow block production, less downtime & lower economic loss
Weighing 13800kg, this machine adopts heavy thickened steel welded frame and three‑layer vibration‑damping structure to withstand continuous impact from long‑time high‑pressure pressing and high‑frequency vibration in hollow block manufacturing. The external independent integrated hydraulic power station separates hydraulic components from the vibrating mainframe, protecting cylinders and valve groups from site dust and strong vibration to extend component service life and improve overall hydraulic reliability. It supports long‑hour non‑stop hollow‑block production and greatly reduces unexpected shutdown risks. You can avoid economic losses caused by delayed orders, wasted raw materials and rejected green blocks, cutting long‑term maintenance and spare‑part expenditure for better return on investment.
4. PLC touch‑screen with storable process parameters, fast specification change‑over for hollow blocks, less trial‑run waste for mixed‑spec orders
Equipped with PLC controller and touch‑screen HMI, the machine supports saving and recalling dedicated process profiles for load‑bearing and non‑load‑bearing hollow blocks of different wall thickness and cavity ratios. You can directly call saved parameters when switching hollow‑block specifications instead of repeated manual tuning. It greatly shortens change‑over time and reduces waste from trial‑run defective blocks. Built‑in complete safety interlock logic prevents mis‑operation failures and lowers operator skill requirements. The machine efficiently handles mixed‑batch orders with multiple hollow‑block specifications to satisfy diversified customer procurement demands.
5. Wide raw‑material compatibility, make hollow blocks with local industrial waste, cut material cost locally and improve profit margin
Benefiting from progressive vibration forming technology, QT8‑15 accepts various raw materials for hollow block production. Besides standard sand, stone and cement, it can make full use of locally available industrial waste such as fly ash, slag, furnace slag and recycled construction waste for load‑bearing and non‑load‑bearing hollow blocks. Sourcing cheap waste materials nearby saves high long‑distance logistics cost. Cement proportion can be reasonably optimized while finished block strength and construction indexes remain qualified. Lower unit production cost gives you advantages in market quotation and guarantees sufficient profit for each batch of orders.
6. Modular quick‑change mold design, extendable full‑set production line, multi‑product capability for higher return on investment
Modular mold mounting allows fast switch among hollow blocks and perforated bricks with different dimensions and cavity ratios. One single machine also produces curbstones, grass‑planting blocks, slope‑protection blocks and other concrete products, removing the need for multiple main machines and lowering initial capital investment. According to your workshop size, budget and target capacity, you can select batching system, forced mixer, conveyor and automatic stacker to build semi‑automatic or fully‑automatic complete hollow‑block production line. The integrated solution avoids compatibility risks from separate component sourcing. Mass production can be launched quickly after equipment delivery to accelerate investment payback.
