1. Ultra-high capacity of 39 solid bricks per cycle, quickly fulfill bulk orders for standard solid bricks

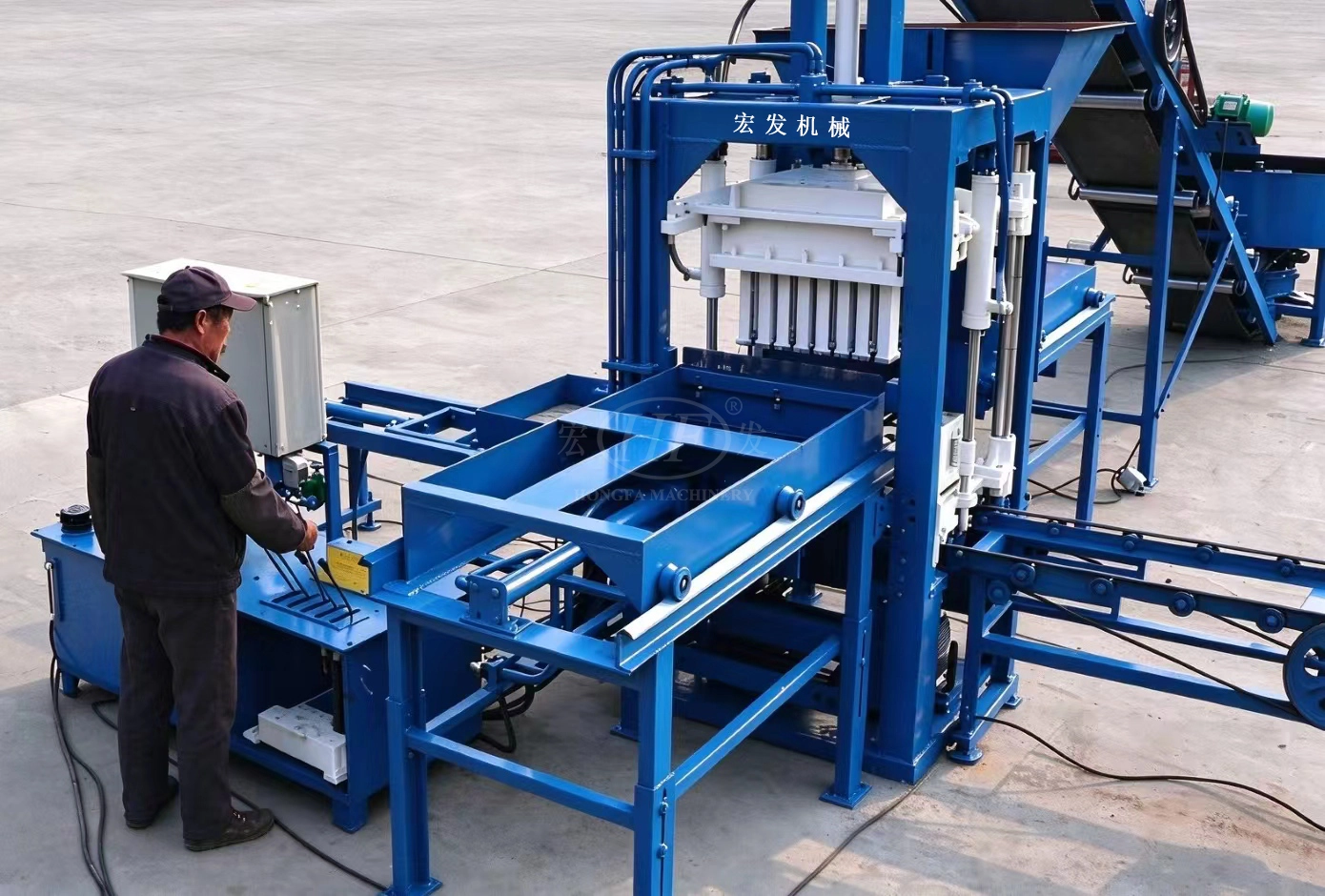

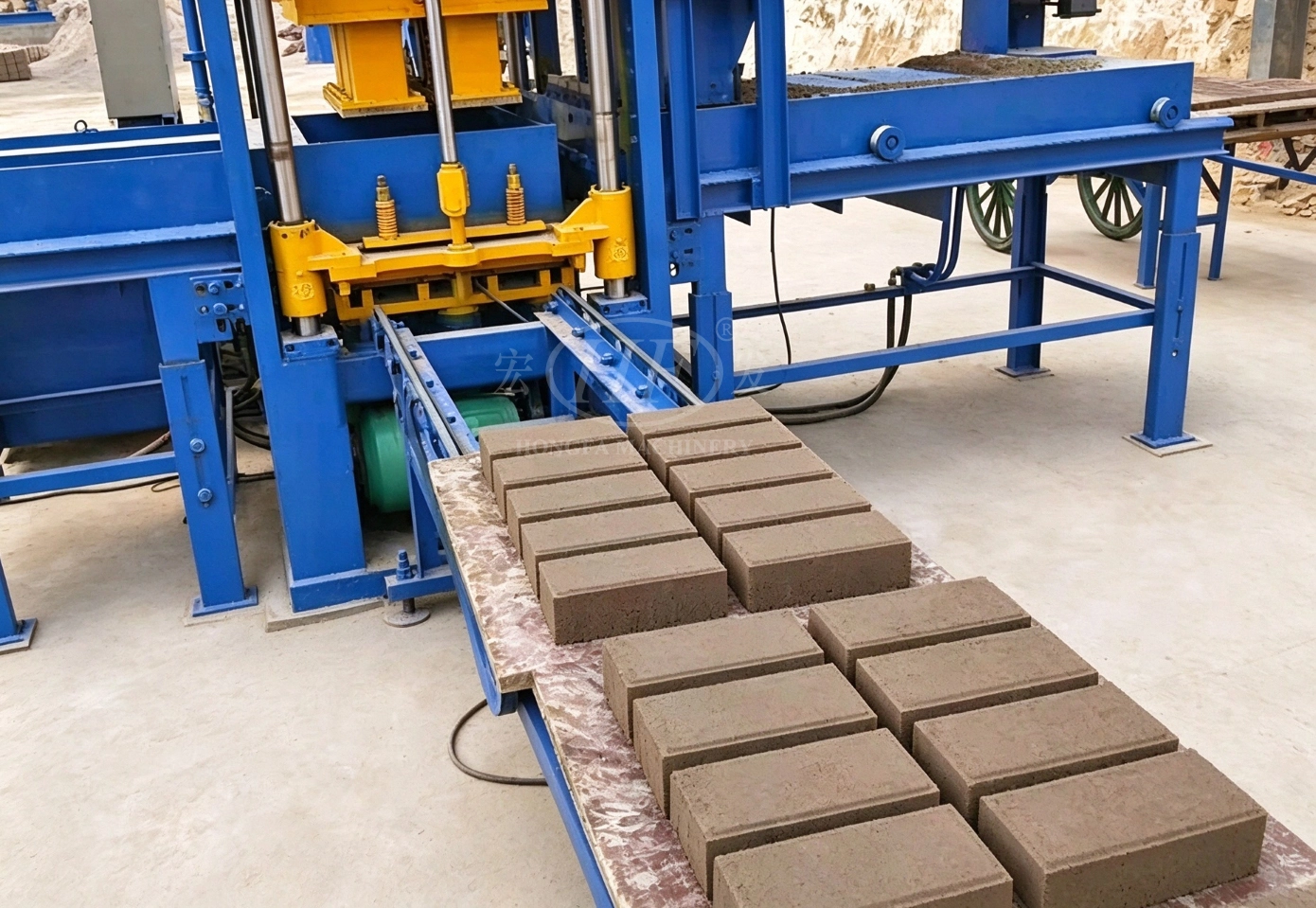

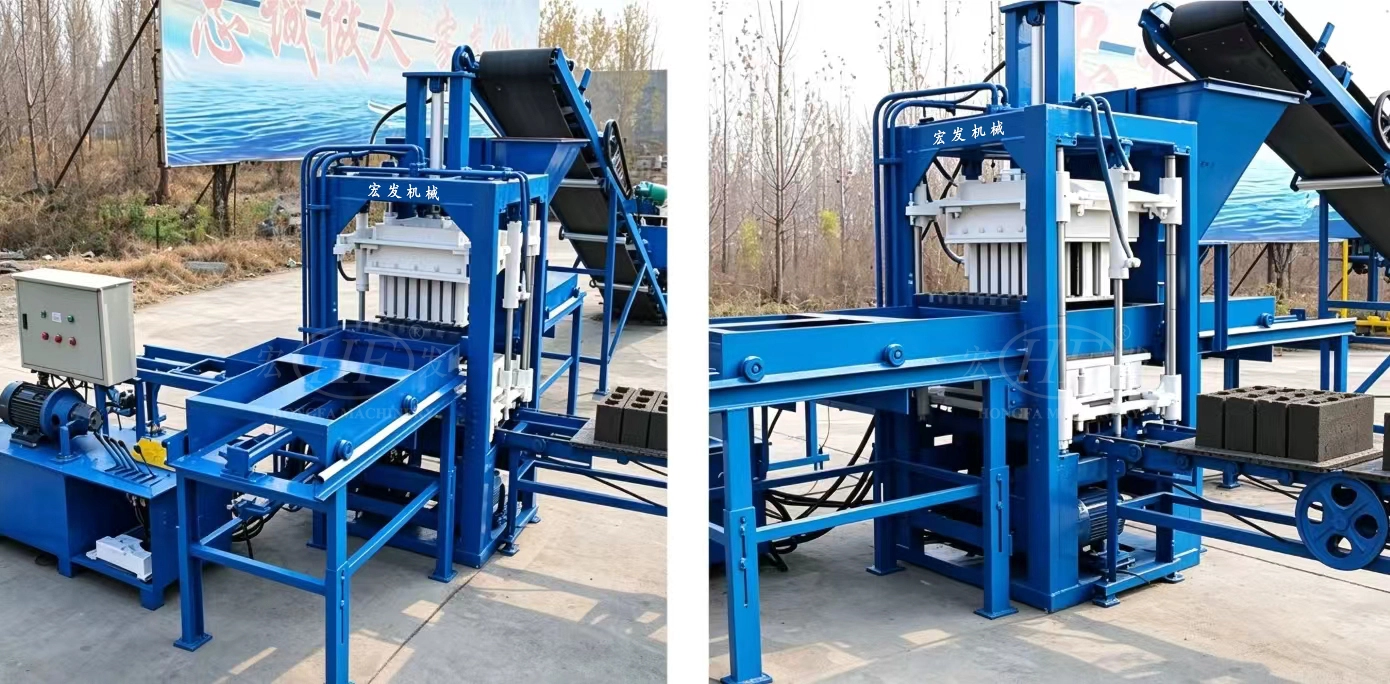

Ordinary small brick machines produce limited solid bricks in one cycle. When receiving large procurement orders for standard solid bricks from infrastructure and housing projects, insufficient capacity will extend delivery time and cost you long‑term construction contracts. QT3‑15 is specially designed for mass production of standard solid bricks. One single stroke forms 39 pcs of 240×115×53mm standard solid bricks within 15‑17 seconds. It can steadily deliver 66,000–74,700 solid bricks for each 8‑hour shift. With unchanged workshop space and supporting mixer, your hourly and daily solid brick output is maximized. For orders requiring concentrated delivery, the machine supports continuous shift operation to shorten lead‑time. You can boost production without purchasing extra main hosts, reduce equipment amortization and accelerate ROI.
2. Table vibration plus integrated compression, solid bricks with uniform density and high strength, less material waste from defective products
Solid brick production often suffers problems such as loose interior, sanding surface and chipped corners. Defective bricks waste cement and aggregates, and may get rejected by buyers, damaging your factory reputation. QT3‑15 combines table vibration and compression simultaneously. Powerful exciting force fully compacts raw materials inside mould cavity. The finished solid green bricks have uniform density without inner voids and stable compressive strength. Fresh bricks have high hardness after molding, resisting chipping and breaking during stacking and transportation, keeping reject ratio low. Reliable solid brick quality meets acceptance standards of construction projects worldwide, helping you secure long‑term supply contracts and reduce material loss caused by waste bricks.
3. Full-process PLC automatic production, simplify operation of solid brick line and continuously cut labor expenditure
Traditional semi‑auto solid brick production lines need many skilled workers for pallet feeding, material distributing, brick ejection and stacking. Labor cost keeps rising, and staff turnover may interrupt your solid brick production schedule. QT3‑15 is equipped with PLC color touch‑screen intelligent control system, completing full‑cycle automatic pallet feeding, proportioned feeding, vibration‑compression molding, automatic demoulding and stacking. Auto, semi‑auto and manual modes are optional. Operators can run the whole line after simple training without rich brick‑making experience. Only a small number of workers are required for the solid brick line, greatly reducing monthly labor cost. Production will not be interrupted by staff turnover and your solid brick orders stay on schedule.
4. Quick‑change wear‑resistant moulds, expand product portfolio beyond solid bricks to diversify order sources

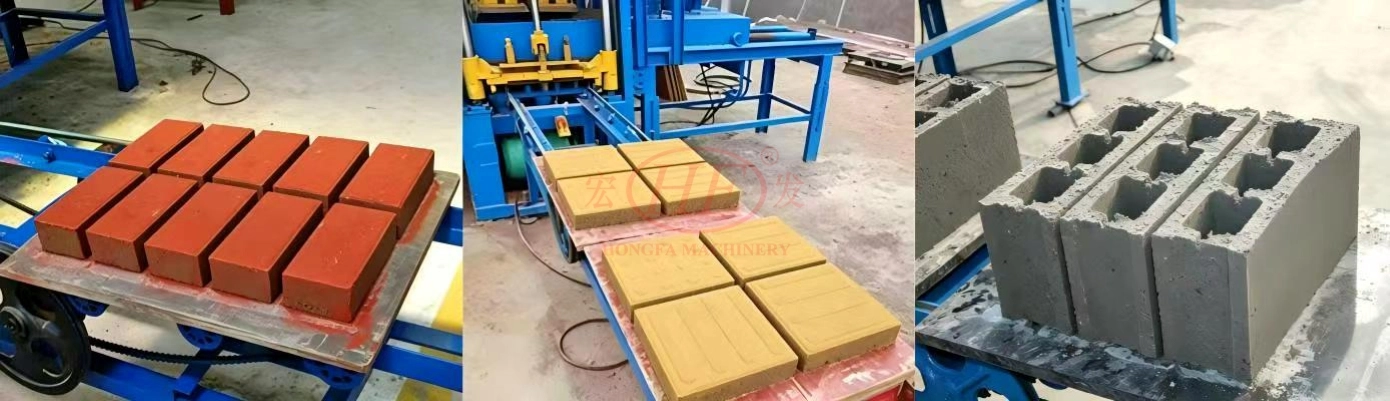

If your machine only makes solid bricks, your factory will face sharp order decline once local solid brick market demand drops, bringing heavy business pressure. QT3‑15 allows fast mould replacement without major host modification. Centered on standard solid brick production, it can switch to produce perforated bricks, hollow blocks, paving bricks and other concrete building products. You can undertake orders for building solid bricks, wall perforated bricks and municipal paving bricks, maximizing machine utilization rate. No need to buy multiple brick‑making main machines. One single machine captures more business opportunities and mitigate risks from solid brick market fluctuation. Moulds are made of quenched wear‑resistant steel, resisting heavy impact and abrasion during high‑volume solid brick mass production, extending mould service life and lowering mould replacement cost.
5. Wide raw‑material compatibility, utilize local solid waste to produce solid bricks and reduce per-brick cost
Many brick machines have strict requirements for aggregates and only accept high‑priced quality sand and stone. Long‑distance transportation further raises unit cost of each solid brick and squeezes profit margin. QT3‑15 solid brick production line features broad raw‑material adaptability. Besides normal cement and aggregates, high proportion of fly ash, steel slag, tailings sand, crushed construction waste, gangue and other industrial residues can be used for solid brick production. You can source cheap or even free local industrial waste nearby, reduce consumption of high‑cost cement and aggregates and save long‑haul logistics cost, directly improving profit margin of solid bricks. Solid‑waste brick‑making meets environmental regulations in many countries, facilitating approval for new solid brick plants and adapting to plant‑building conditions in various regions.
6. Reinforced heavy frame & premium core components, minimize unexpected downtime loss for long-hour continuous solid brick production
Mass solid brick production requires long‑time continuous heavy vibration. Thin frame and poor‑quality hydraulic or electric parts easily result in frame deformation, oil leakage and electric faults. Unplanned shutdown delays solid brick orders and brings high spare‑part losses. QT3‑15 main frame is integrally welded with thick steel plate for high rigidity, resisting deformation and cracking under continuous heavy vibration of solid brick production. Key hydraulic, motor and electric parts adopt well‑known mature brands. Hydraulic system is equipped with heat dissipation and filtration units, suitable for two‑shift continuous mass‑production in solid brick factories. Unplanned downtime is largely reduced. Bulk solid brick orders can be delivered on‑time, safeguarding your overseas‑client reputation and cutting later‑stage repair time & money cost.
1. Ultra-high capacity of 39 solid bricks per cycle, quickly fulfill bulk orders for standard solid bricks
Ordinary small brick machines produce limited solid bricks in one cycle. When receiving large procurement orders for standard solid bricks from infrastructure and housing projects, insufficient capacity will extend delivery time and cost you long‑term construction contracts. QT3‑15 is specially designed for mass production of standard solid bricks. One single stroke forms 39 pcs of 240×115×53mm standard solid bricks within 15‑17 seconds. It can steadily deliver 66,000–74,700 solid bricks for each 8‑hour shift. With unchanged workshop space and supporting mixer, your hourly and daily solid brick output is maximized. For orders requiring concentrated delivery, the machine supports continuous shift operation to shorten lead‑time. You can boost production without purchasing extra main hosts, reduce equipment amortization and accelerate ROI.
2. Table vibration plus integrated compression, solid bricks with uniform density and high strength, less material waste from defective products
Solid brick production often suffers problems such as loose interior, sanding surface and chipped corners. Defective bricks waste cement and aggregates, and may get rejected by buyers, damaging your factory reputation. QT3‑15 combines table vibration and compression simultaneously. Powerful exciting force fully compacts raw materials inside mould cavity. The finished solid green bricks have uniform density without inner voids and stable compressive strength. Fresh bricks have high hardness after molding, resisting chipping and breaking during stacking and transportation, keeping reject ratio low. Reliable solid brick quality meets acceptance standards of construction projects worldwide, helping you secure long‑term supply contracts and reduce material loss caused by waste bricks.
3. Full-process PLC automatic production, simplify operation of solid brick line and continuously cut labor expenditure
Traditional semi‑auto solid brick production lines need many skilled workers for pallet feeding, material distributing, brick ejection and stacking. Labor cost keeps rising, and staff turnover may interrupt your solid brick production schedule. QT3‑15 is equipped with PLC color touch‑screen intelligent control system, completing full‑cycle automatic pallet feeding, proportioned feeding, vibration‑compression molding, automatic demoulding and stacking. Auto, semi‑auto and manual modes are optional. Operators can run the whole line after simple training without rich brick‑making experience. Only a small number of workers are required for the solid brick line, greatly reducing monthly labor cost. Production will not be interrupted by staff turnover and your solid brick orders stay on schedule.
4. Quick‑change wear‑resistant moulds, expand product portfolio beyond solid bricks to diversify order sources
If your machine only makes solid bricks, your factory will face sharp order decline once local solid brick market demand drops, bringing heavy business pressure. QT3‑15 allows fast mould replacement without major host modification. Centered on standard solid brick production, it can switch to produce perforated bricks, hollow blocks, paving bricks and other concrete building products. You can undertake orders for building solid bricks, wall perforated bricks and municipal paving bricks, maximizing machine utilization rate. No need to buy multiple brick‑making main machines. One single machine captures more business opportunities and mitigate risks from solid brick market fluctuation. Moulds are made of quenched wear‑resistant steel, resisting heavy impact and abrasion during high‑volume solid brick mass production, extending mould service life and lowering mould replacement cost.
5. Wide raw‑material compatibility, utilize local solid waste to produce solid bricks and reduce per-brick cost
Many brick machines have strict requirements for aggregates and only accept high‑priced quality sand and stone. Long‑distance transportation further raises unit cost of each solid brick and squeezes profit margin. QT3‑15 solid brick production line features broad raw‑material adaptability. Besides normal cement and aggregates, high proportion of fly ash, steel slag, tailings sand, crushed construction waste, gangue and other industrial residues can be used for solid brick production. You can source cheap or even free local industrial waste nearby, reduce consumption of high‑cost cement and aggregates and save long‑haul logistics cost, directly improving profit margin of solid bricks. Solid‑waste brick‑making meets environmental regulations in many countries, facilitating approval for new solid brick plants and adapting to plant‑building conditions in various regions.
6. Reinforced heavy frame & premium core components, minimize unexpected downtime loss for long-hour continuous solid brick production
Mass solid brick production requires long‑time continuous heavy vibration. Thin frame and poor‑quality hydraulic or electric parts easily result in frame deformation, oil leakage and electric faults. Unplanned shutdown delays solid brick orders and brings high spare‑part losses. QT3‑15 main frame is integrally welded with thick steel plate for high rigidity, resisting deformation and cracking under continuous heavy vibration of solid brick production. Key hydraulic, motor and electric parts adopt well‑known mature brands. Hydraulic system is equipped with heat dissipation and filtration units, suitable for two‑shift continuous mass‑production in solid brick factories. Unplanned downtime is largely reduced. Bulk solid brick orders can be delivered on‑time, safeguarding your overseas‑client reputation and cutting later‑stage repair time & money cost.
