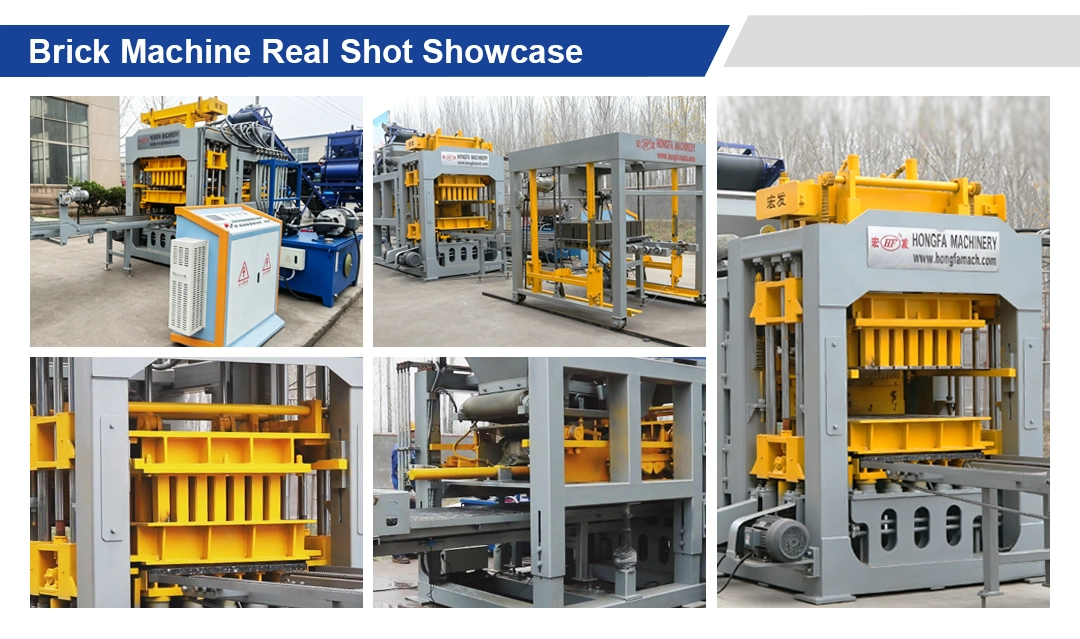

1. High‑efficiency Forming Hardware & Robust Machine Frame for Stable High‑volume Production

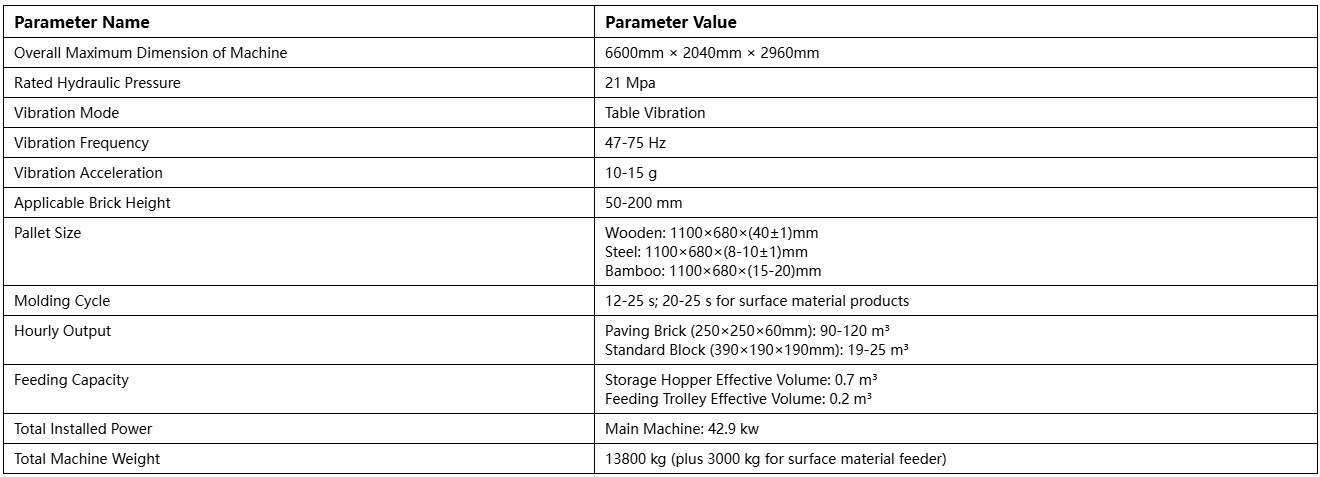

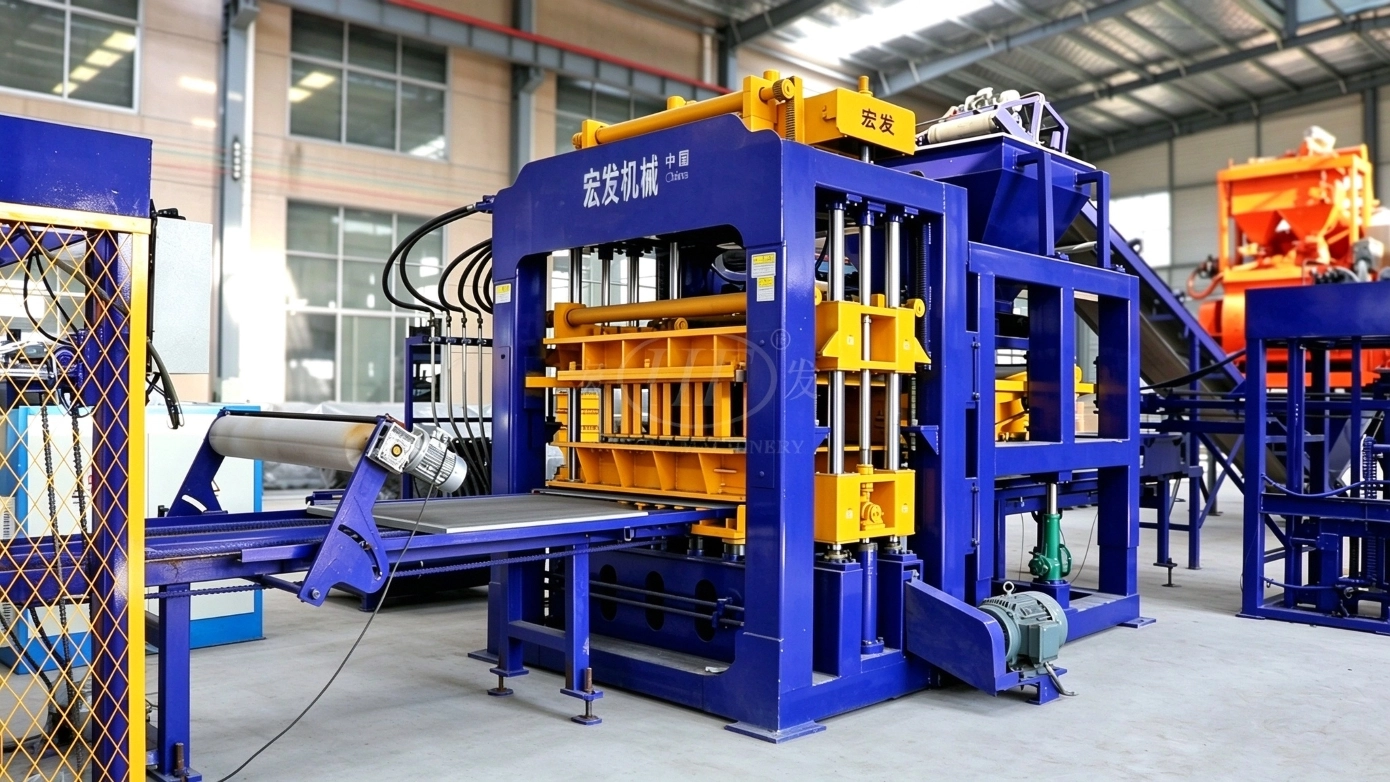

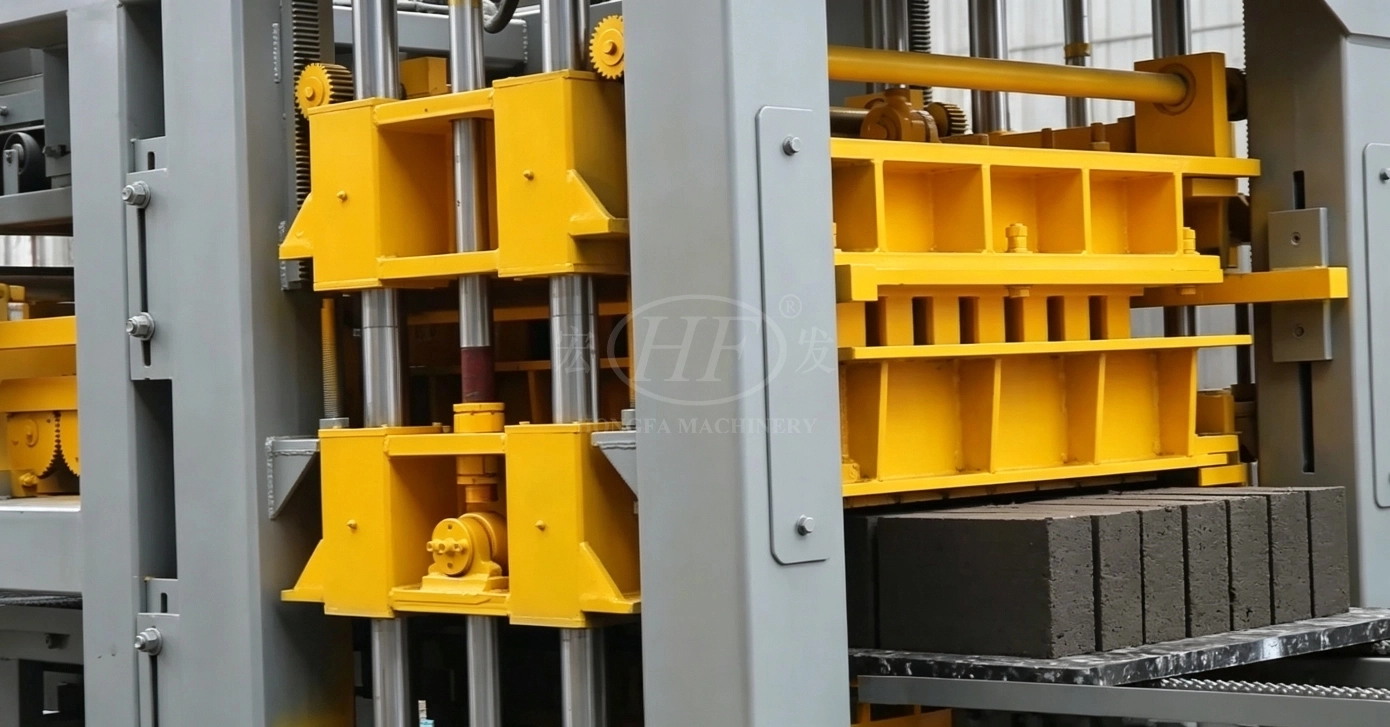

Different from small semi‑automatic block machines, this full‑hydraulic automatic brick machine adopts high‑pressure hydraulic system plus heavy‑duty table‑vibration forming unit as core molding assembly, which guarantees stable high output and premium finished brick quality. It runs at stable rated pressure of 21 MPa, equipped with adjustable vibration frequency ranging from 47 Hz to 75 Hz and powerful exciting force. Synchronized pressing and vibration fully compact various concrete raw materials within 12‑25 seconds forming cycle.
Total installed power is 42.9 kW and total machine weight reaches 13 800 kg. The thickened one‑piece steel frame resists deformation under long‑term intensive vibration and greatly extends overall equipment service life. Effective forming height ranges 50 mm‑200 mm, covering most standard building‑brick sizes for municipal and residential construction projects worldwide.
2. Multi‑product Molding & Feeding System for Flexible Order Response

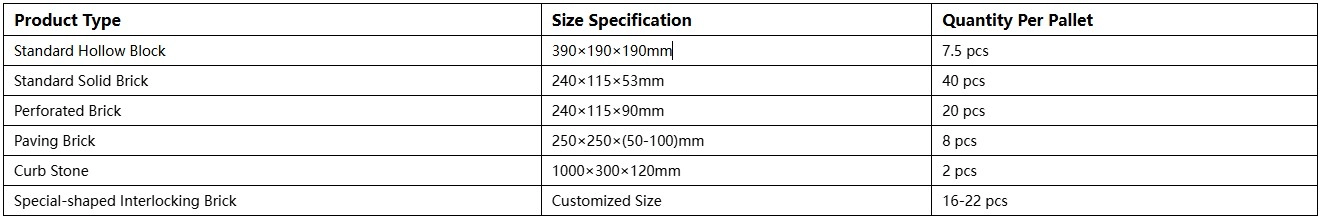

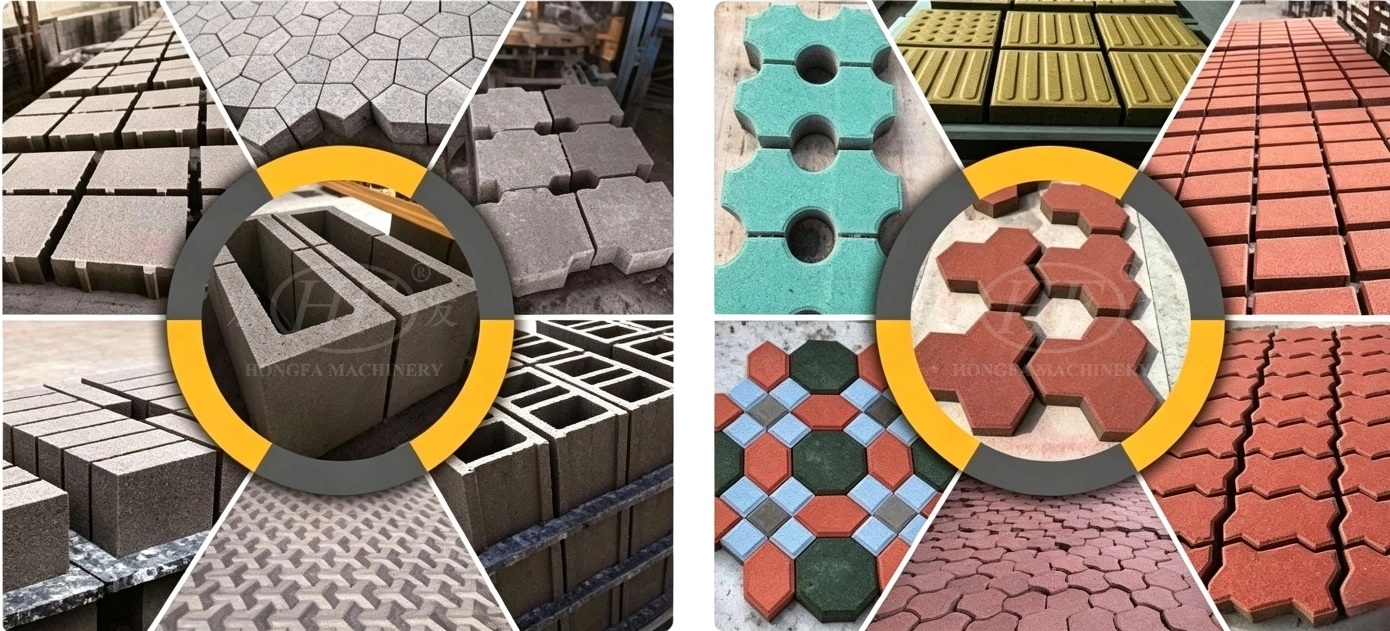

One major competitive strength of QT8‑15 lies in excellent multi‑mold and multi‑product compatibility, making it versatile cement‑block production equipment for global brick manufacturers. With matched molds, it produces standard hollow blocks, eight‑hole perforated bricks, solid standard bricks, interlocking pavers, curb stones, grass‑planting bricks and slope‑protection blocks to satisfy diverse infrastructure project orders.
It uses standard‑size pallet 1100×680×30 mm. Each forming stroke outputs 7 standard hollow blocks or 40 pieces of 240×115×53 mm solid standard bricks, achieving far higher single‑cycle yield than small‑size block machines. Customers can select optional independent colored‑surface feeding unit to make decorative colored paving bricks, expanding product portfolio and lifting profit margin without purchasing extra brick‑making host. The feeding system is fitted with 0.7 m³ large‑volume storage hopper and reciprocating equalizing spreader to avoid uneven material accumulation, reduce downtime from frequent refilling and support stable round‑the‑clock continuous production.
3. Wide‑range Raw‑material Compatibility, Eco‑friendly Non‑firing Production & Superior Finished‑brick Quality

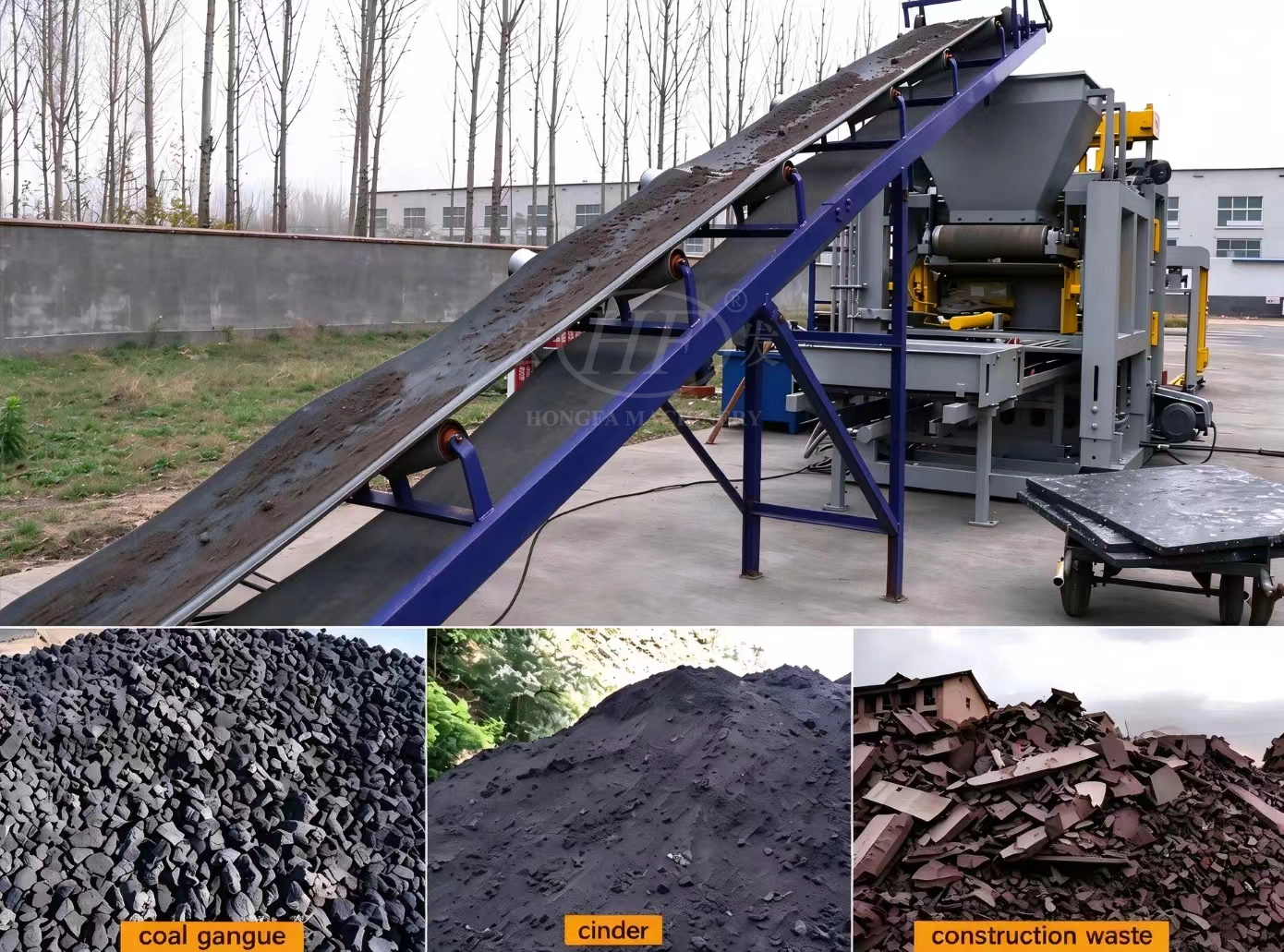

This medium‑capacity paver brick machine features outstanding raw‑material adaptability, cutting raw‑material expenditure for plant operators while complying with international environmental standards as eco‑friendly cement‑block production equipment. Instead of relying on expensive pure cement, QT8‑15 allows users to mix cement with locally‑sourced river sand, crushed stone, fly ash, industrial slag and recycled construction‑waste aggregates. Industrial solid‑waste mixing ratio can reach up to 70 %, sharply lowering cement purchase cost and long‑distance raw‑material logistics expense.
The whole manufacturing flow applies non‑firing process without coal burning or high‑temperature kilns and releases zero harmful gas emissions. Brick factories using this machine can pass local environmental assessment and obtain qualification for green‑oriented municipal engineering bidding. Bricks molded by this full‑hydraulic machine own dense internal texture with compressive strength over 15 MPa, together with good frost resistance, water impermeability and thermal insulation performance. Finished products can be delivered directly to high‑standard construction projects with no secondary processing required.
4. PLC Intelligent Unmanned Control System to Reduce Manpower & Operational Risk

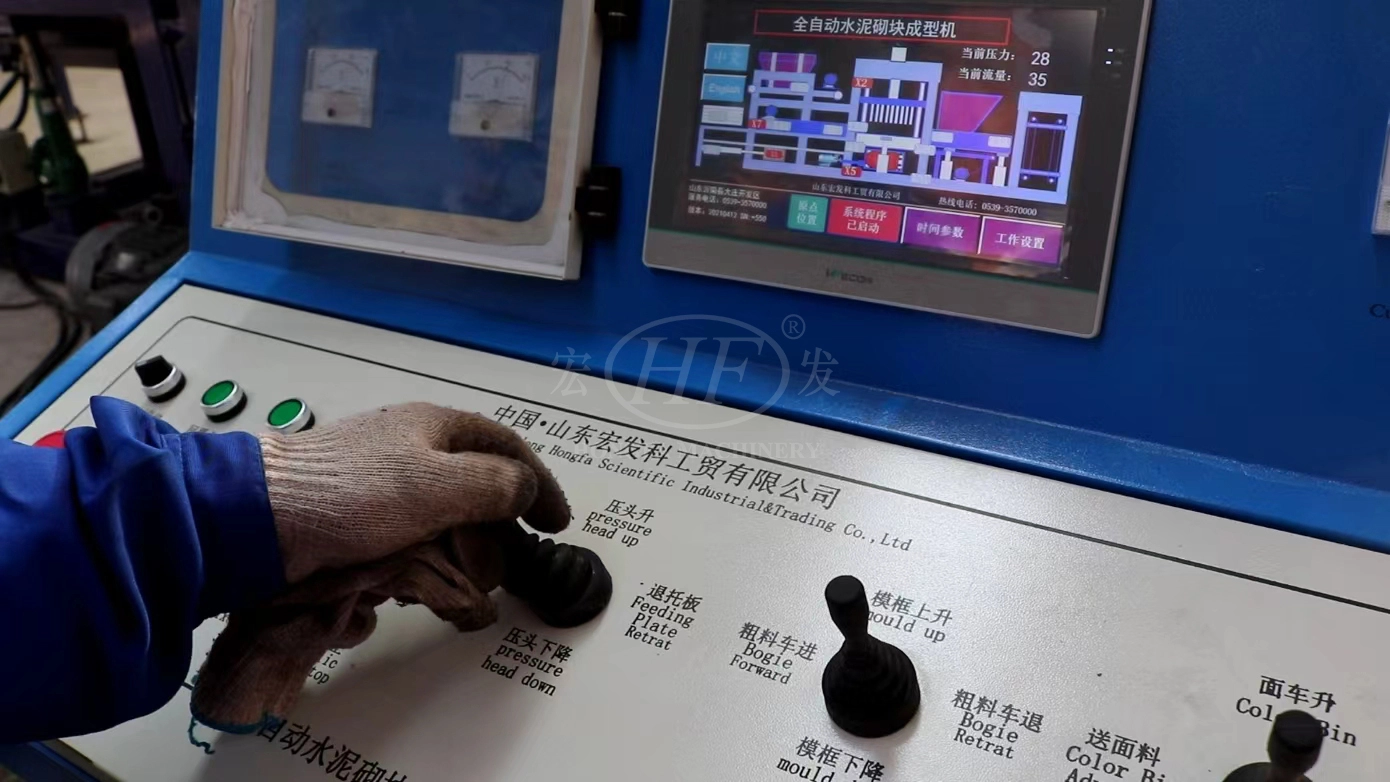

Intelligent unmanned operation is another core highlight of QT8‑15 full‑automatic hydraulic concrete brick making machine, effectively easing high‑labor‑cost pressure for overseas brick plants. Equipped with industrial PLC controller and intuitive touch‑screen HMI, it provides three switchable operation modes: manual single‑action mode, single‑cycle automatic mode and continuous full‑automatic production mode, suitable for small‑batch trial production as well as large‑scale mass‑production tasks.

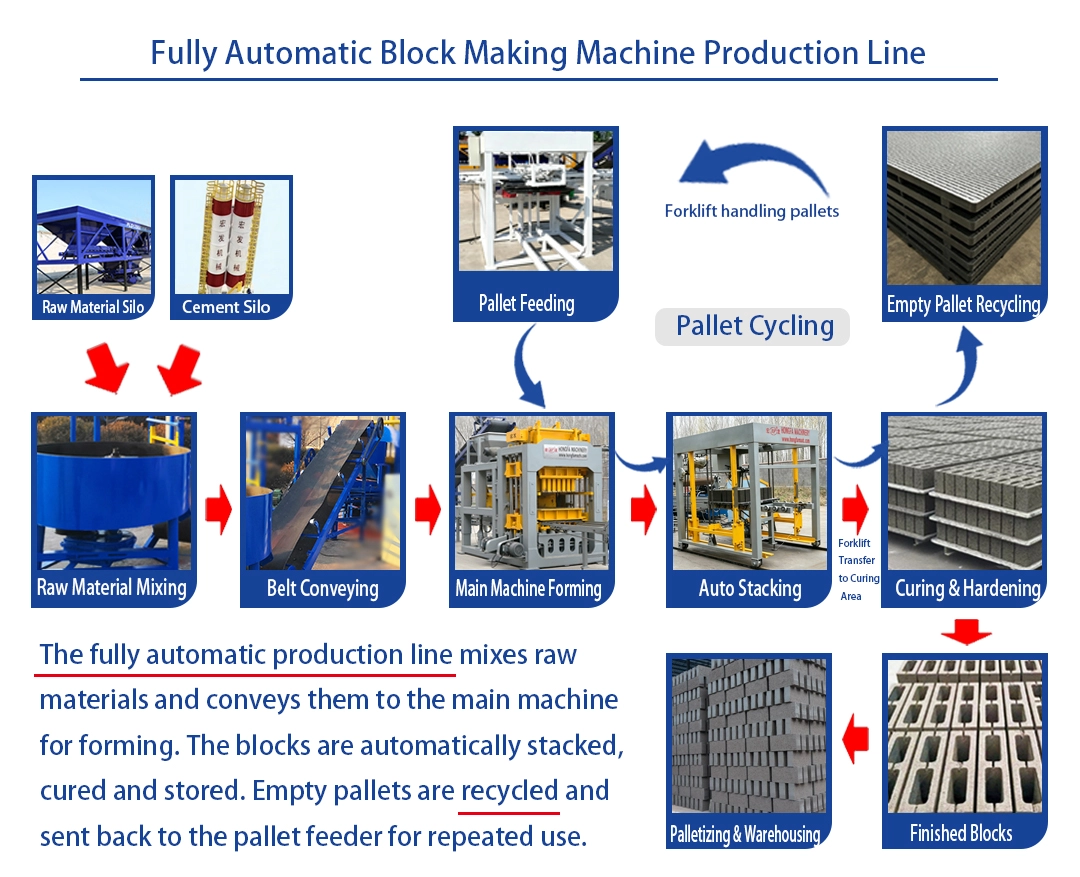

Complete closed automatic circulation covers pallet feeding, forced material distribution, hydraulic vibration pressing, synchronous demoulding and finished‑block conveying. Only one or two auxiliary workers are needed for pallet stacking and finished‑brick collection, greatly reducing long‑term labor cost. Built‑in intelligent fault self‑diagnosis module and safety interlock circuits automatically detect abnormal pressure, vibration failure and pallet offset. The system cuts off power and hydraulic supply in real‑time to prevent equipment collision damage and mitigate unplanned‑downtime losses. Operating parameters including vibration duration, hydraulic pressure and feeding speed can be saved and recalled by one tap on touch screen, making frequent switching between different brick specifications very convenient.
5. Optimized Mechanical‑hydraulic Structure, Modular Design for Easy Overseas Shipment & Installation
Key wearing parts and functional components adopt well‑known domestic and imported brand accessories to lower daily failure rate and user maintenance expenditure. The hydraulic station is independently separated from vibrating main host to stop dust and vibration corroding hydraulic valves and oil cylinders, sustaining stable pressure output for long service cycles. Four‑column vertical guide frame plus three‑layer composite damping buffer ensures smooth and balanced mold lifting in every forming cycle, delivering bricks of uniform thickness and dimension without uneven compression defects.
Complete categorized operation‑maintenance manuals including daily lubrication, regular fastening, periodic inspection and annual overhaul together with fault‑troubleshooting tables are supplied. Local on‑site staff can resolve common faults without waiting for overseas professional engineers, minimizing production halt time. Adopting modular split assembly design, each functional unit can be disassembled separately and fit into standard shipping containers, lowering ocean freight cost and simplifying on‑site installation & commissioning for overseas customers.
6. Balanced Cost‑performance, Complete After‑sales Service for Global Multi‑region Investment Projects
As a cost‑effective medium‑sized hollow block molding machine, QT8‑15 full‑automatic hydraulic brick machine achieves good balance between high output and accessible purchase cost. It is ideal cement‑block production equipment for investors building medium‑to‑large brick production lines across Africa, Middle East, Southeast Asia and South America. Compared with expensive large‑sized full‑automatic brick machines, QT8‑15 has lower initial investment threshold. Under stable running condition, paver‑brick hourly output reaches 90‑120 cubic meters, which notably shortens project payback period.
We supply full‑range after‑sales support including free operational training, one‑year full‑machine warranty and lifelong spare‑parts supply, removing global buyers’ worries about post‑sale maintenance. Whether you are a new investor constructing a brick plant from zero or an existing manufacturer upgrading old semi‑automatic equipment, this mature full‑automatic hydraulic brick machine can deliver stable high output, low comprehensive operating cost and sustained long‑term profit for your building‑material business.
