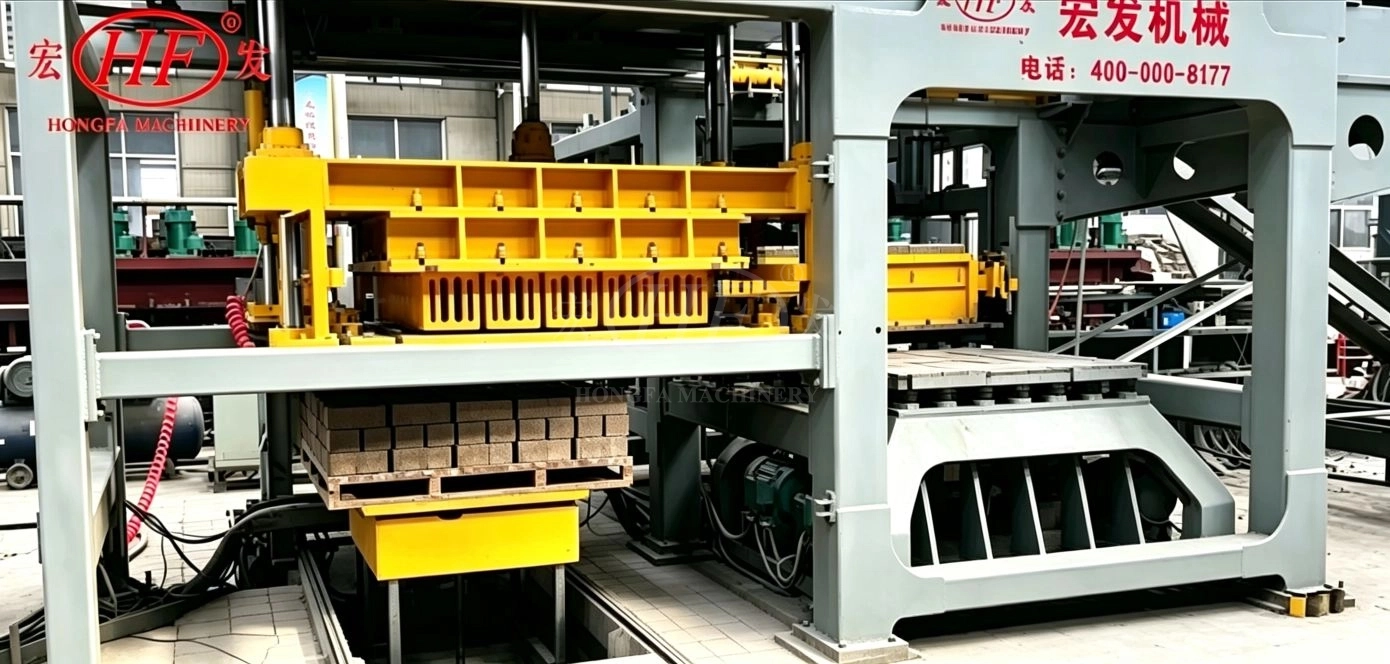

1. Integrated Pallet‑free Demoulding & Stacking Function, Cut Huge Pallet Investment And Auxiliary‑equipment Cost

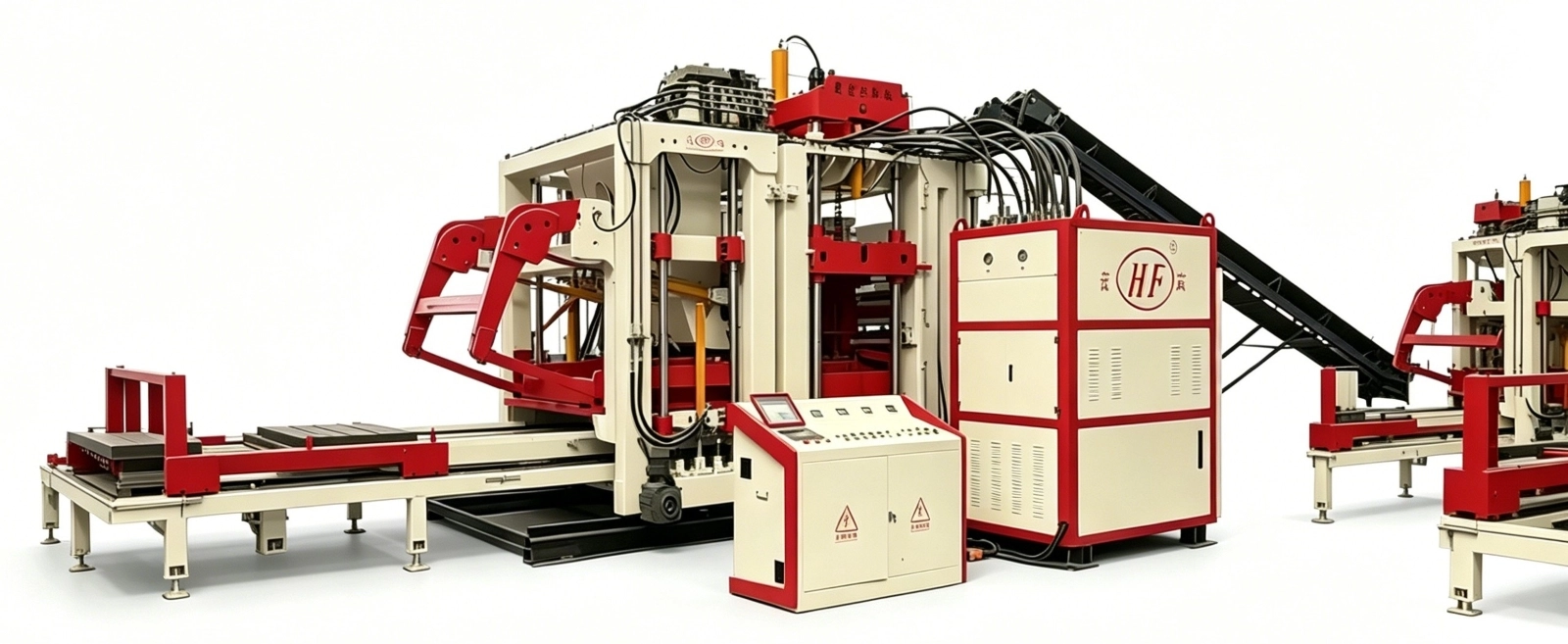

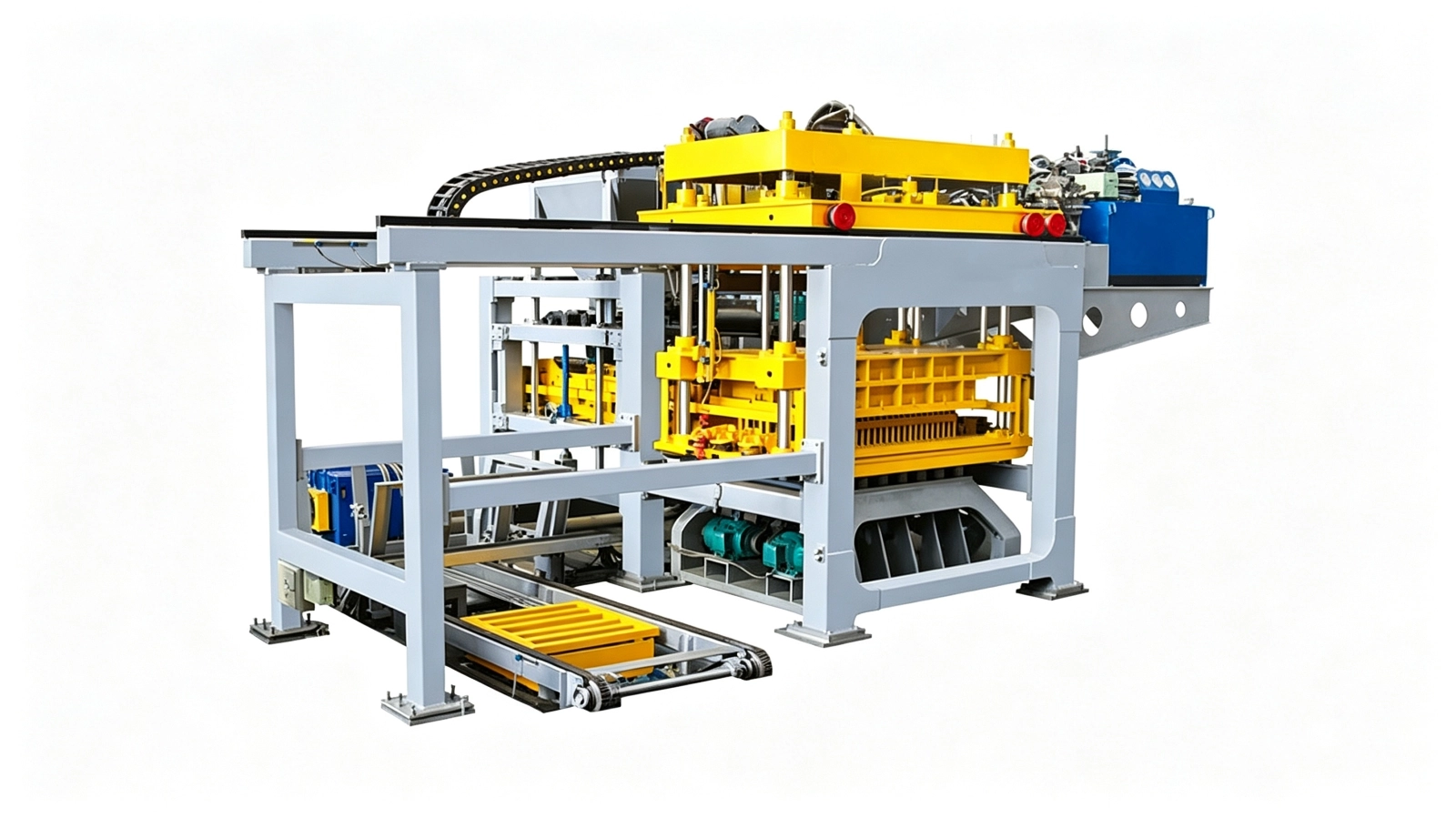

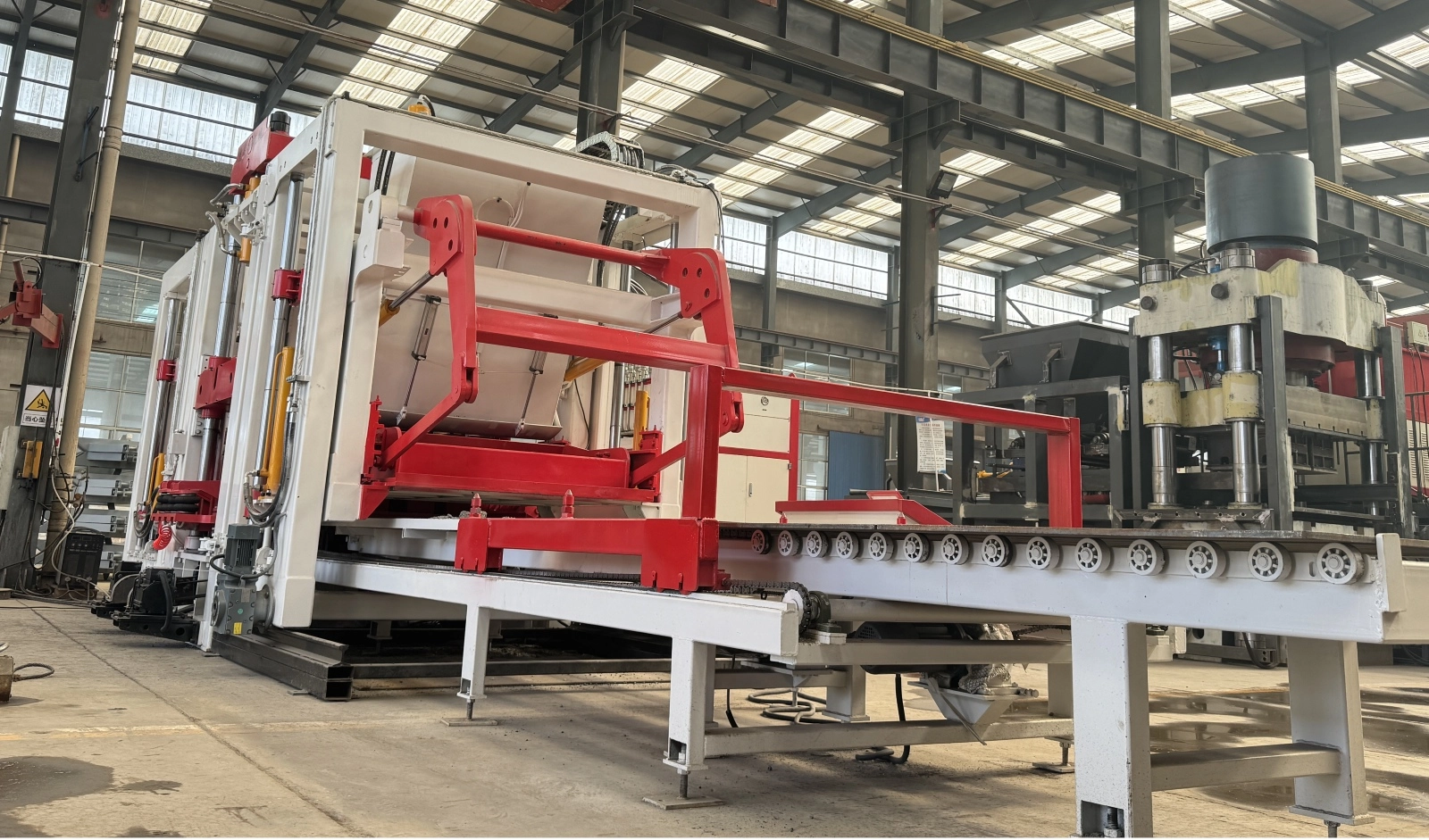

Traditional automatic block lines require massive pallets as well as elevators, transfer carts and other supporting devices, leading to high initial investment and recurring pallet‑replacement cost from wear. HF18 integrates demoulding and stacking on main machine. Fresh blocks can be stacked directly after forming without pallets for curing. It removes large‑sum pallet budget and simplifies workflow, saving purchase cost for extra auxiliary machines and lowering overall capital expenditure for new plant construction.
2. Large Molding Area & Variable‑frequency Multi‑exciter Table‑vibration, High‑precision Blocks & Less Waste Loss

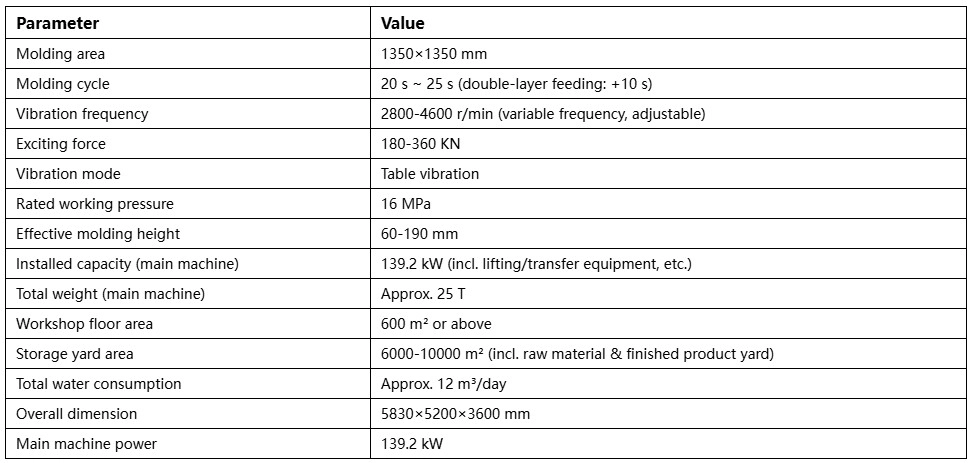

It adopts large 1350×1350 mm molding area and adjustable multi‑exciter table‑vibration system. Air‑floating isolation ensures full vibration force applied to raw materials. The reciprocating feeding cart distributes material evenly inside molds, keeping block‑weight tolerance within ±2%. Hollow blocks, solid bricks and pavers feature consistent density, qualified strength and small dimension deviation. It reduces rejects caused by uneven feeding or insufficient vibration, improves raw‑material utilization and secures product quality for large‑volume orders.
3. Imported Hydraulic & Electric Components Plus Air‑bag Vibration‑reduction System, Stable Continuous Production & Less Unplanned Downtime

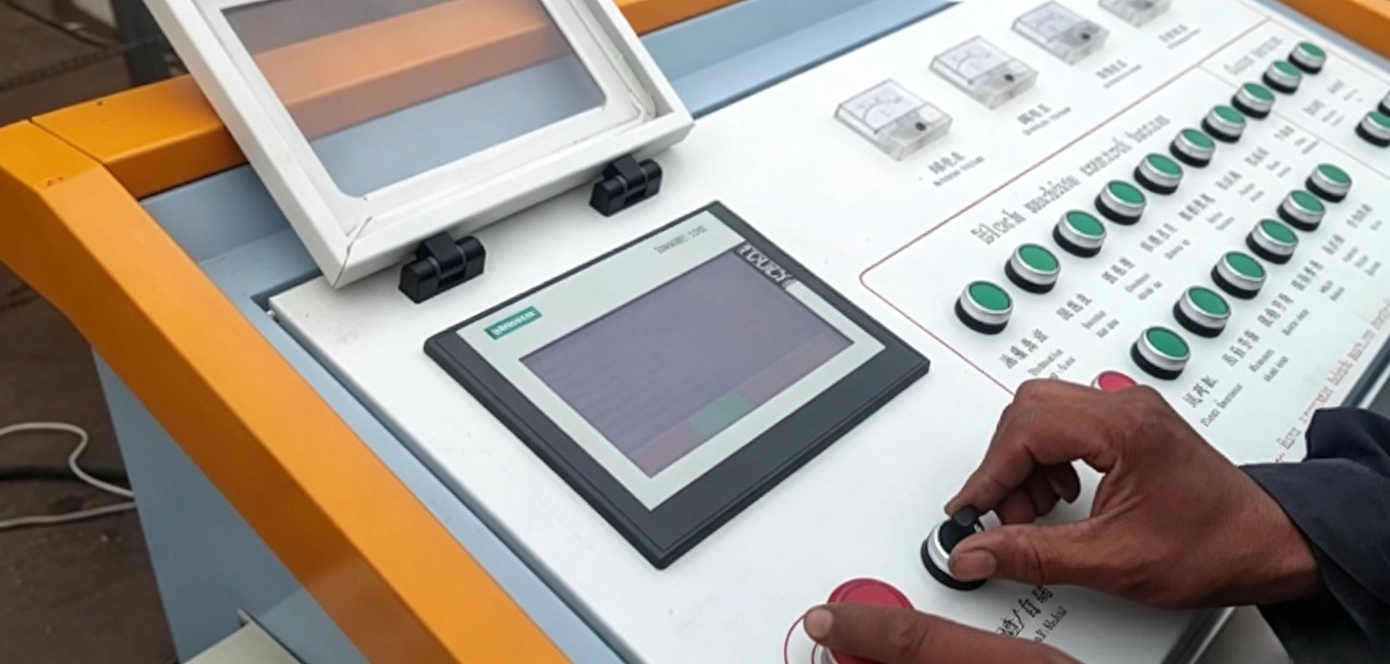

Solenoid valves, electro‑hydraulic valves and coolers of hydraulic system are original imported parts with water‑cooling circulation and washable oil tank. Core electric components are imported, with second‑level sealed cabinet and complete interlock protection, supporting manual / semi‑auto / full‑auto operation modes. Air‑bag damping absorbs high‑frequency shock, lowers noise and mitigates wear on molds and frame, extending service life of key wearing parts. Optimized for multi‑shift mass‑production, it lowers key‑part failure risk and prevents order delays caused by breakdown.
4. Highly‑automated Workflow Sharply Cuts Labor Demand, Mitigate Skilled‑worker Shortage
Conventional block lines need plenty of workers for feeding, stacking and handling. HF18 realizes full‑auto closed‑loop of forming‑demoulding‑stacking. Only 4‑5 on‑site staff are sufficient for whole‑line operation: 1 equipment monitor, 1‑2 loader / forklift operators, 1‑2 auxiliary packing workers. Ordinary staff can run production after simple training without large groups of experienced brick‑making technicians. It keeps long‑term labor cost under good control, especially valuable for overseas regions with high labor expense and worker shortage.
5. Multi‑product Compatibility With Built‑in Face‑mix Unit, Cover Both Civil And High‑margin Municipal Orders

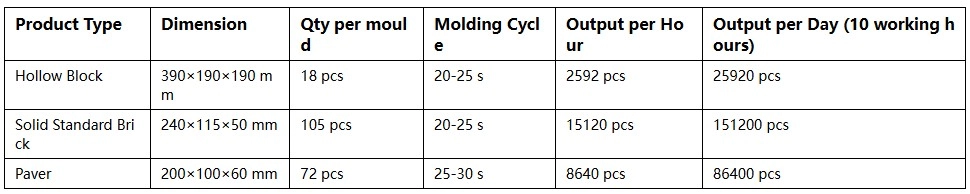

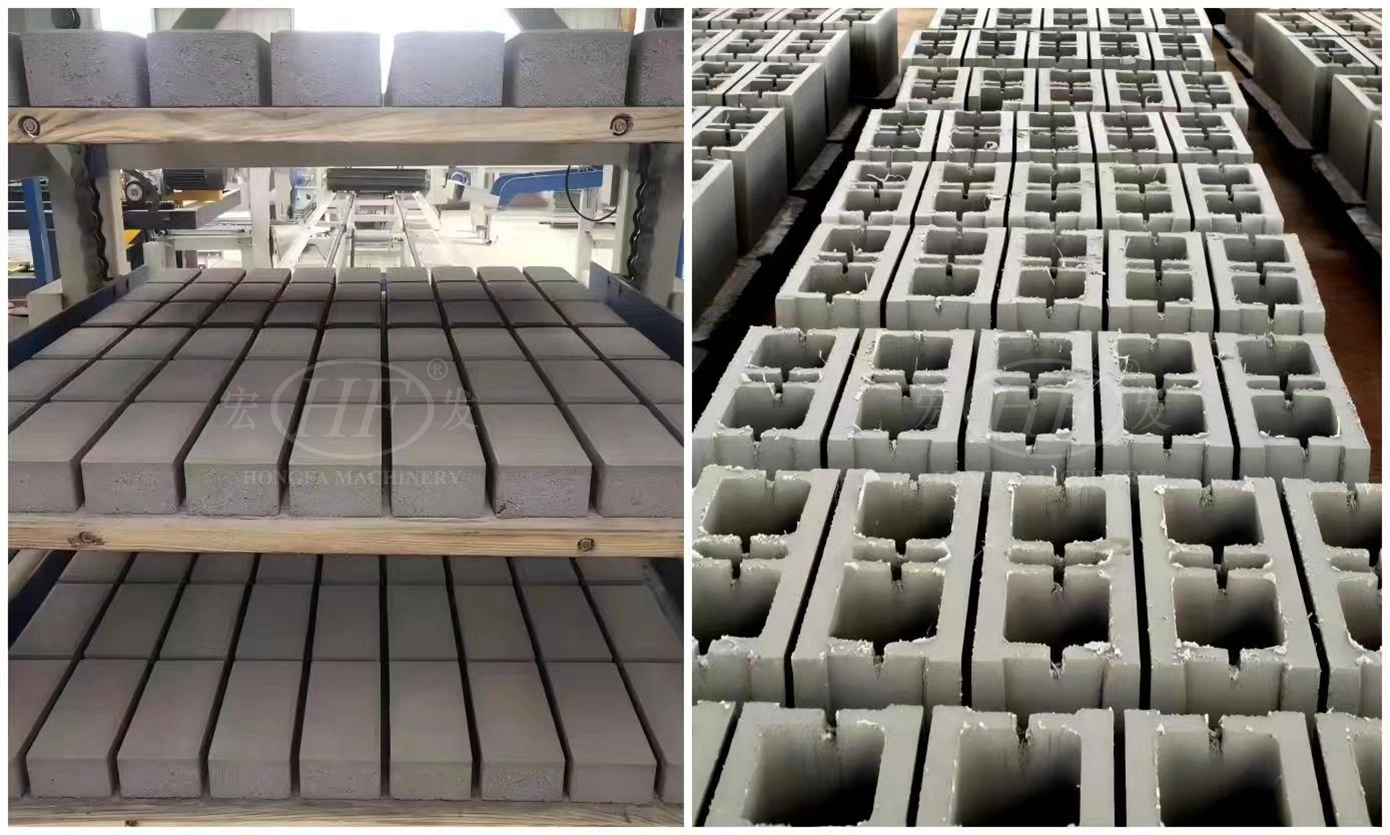

Effective molding height ranges 60‑190 mm. By changing molds, the line produces hollow blocks, solid bricks, slope‑protection blocks, grass blocks, plaza bricks, dock blocks and other concrete goods. Built‑in automatic face‑mix device enables colored paver production. Plant operators can adjust product portfolio following market change: volume‑driven wall blocks guarantee capacity, while colored pavers and slope‑protection blocks bring high‑margin municipal contracts. One complete line covers civil‑construction and municipal‑engineering demands, maintaining high equipment utilization amid market fluctuation and improving return‑on‑investment.
6. Full‑set Remote‑control System With Remote Monitoring & Diagnosis, Reduce Reliance On On‑site Overseas Technicians
Remote communication system supports real‑time status monitoring, fault diagnosis, formula storage and remote system upgrade. It can link with batching system for full‑line automatic running. For overseas factories, technicians can check operating data and locate abnormalities remotely, instead of travelling long distances for on‑site service. It shortens trouble‑shooting time and secures continuous mass‑production for overseas projects.
7. Suitable For Low‑moisture Raw‑material, Direct‑stack After Forming, Shorten Production Turnover Cycle
This production line works well with low‑moisture dry‑hard concrete formula. Fresh demoulded blocks own high density and can be stacked immediately without extra pre‑curing waiting period. It skips intermediate static‑aging procedures. Finished blocks can be transported to stock‑yard right after stacking, shortening whole production turnover and boosting daily output capacity for fast fulfillment of big‑volume orders.
1. Integrated Pallet‑free Demoulding & Stacking Function, Cut Huge Pallet Investment And Auxiliary‑equipment Cost
Traditional automatic block lines require massive pallets as well as elevators, transfer carts and other supporting devices, leading to high initial investment and recurring pallet‑replacement cost from wear. HF18 integrates demoulding and stacking on main machine. Fresh blocks can be stacked directly after forming without pallets for curing. It removes large‑sum pallet budget and simplifies workflow, saving purchase cost for extra auxiliary machines and lowering overall capital expenditure for new plant construction.
2. Large Molding Area & Variable‑frequency Multi‑exciter Table‑vibration, High‑precision Blocks & Less Waste Loss
It adopts large 1350×1350 mm molding area and adjustable multi‑exciter table‑vibration system. Air‑floating isolation ensures full vibration force applied to raw materials. The reciprocating feeding cart distributes material evenly inside molds, keeping block‑weight tolerance within ±2%. Hollow blocks, solid bricks and pavers feature consistent density, qualified strength and small dimension deviation. It reduces rejects caused by uneven feeding or insufficient vibration, improves raw‑material utilization and secures product quality for large‑volume orders.
3. Imported Hydraulic & Electric Components Plus Air‑bag Vibration‑reduction System, Stable Continuous Production & Less Unplanned Downtime
Solenoid valves, electro‑hydraulic valves and coolers of hydraulic system are original imported parts with water‑cooling circulation and washable oil tank. Core electric components are imported, with second‑level sealed cabinet and complete interlock protection, supporting manual / semi‑auto / full‑auto operation modes. Air‑bag damping absorbs high‑frequency shock, lowers noise and mitigates wear on molds and frame, extending service life of key wearing parts. Optimized for multi‑shift mass‑production, it lowers key‑part failure risk and prevents order delays caused by breakdown.
4. Highly‑automated Workflow Sharply Cuts Labor Demand, Mitigate Skilled‑worker Shortage
Conventional block lines need plenty of workers for feeding, stacking and handling. HF18 realizes full‑auto closed‑loop of forming‑demoulding‑stacking. Only 4‑5 on‑site staff are sufficient for whole‑line operation: 1 equipment monitor, 1‑2 loader / forklift operators, 1‑2 auxiliary packing workers. Ordinary staff can run production after simple training without large groups of experienced brick‑making technicians. It keeps long‑term labor cost under good control, especially valuable for overseas regions with high labor expense and worker shortage.
5. Multi‑product Compatibility With Built‑in Face‑mix Unit, Cover Both Civil And High‑margin Municipal Orders
Effective molding height ranges 60‑190 mm. By changing molds, the line produces hollow blocks, solid bricks, slope‑protection blocks, grass blocks, plaza bricks, dock blocks and other concrete goods. Built‑in automatic face‑mix device enables colored paver production. Plant operators can adjust product portfolio following market change: volume‑driven wall blocks guarantee capacity, while colored pavers and slope‑protection blocks bring high‑margin municipal contracts. One complete line covers civil‑construction and municipal‑engineering demands, maintaining high equipment utilization amid market fluctuation and improving return‑on‑investment.
6. Full‑set Remote‑control System With Remote Monitoring & Diagnosis, Reduce Reliance On On‑site Overseas Technicians
Remote communication system supports real‑time status monitoring, fault diagnosis, formula storage and remote system upgrade. It can link with batching system for full‑line automatic running. For overseas factories, technicians can check operating data and locate abnormalities remotely, instead of travelling long distances for on‑site service. It shortens trouble‑shooting time and secures continuous mass‑production for overseas projects.
7. Suitable For Low‑moisture Raw‑material, Direct‑stack After Forming, Shorten Production Turnover Cycle
This production line works well with low‑moisture dry‑hard concrete formula. Fresh demoulded blocks own high density and can be stacked immediately without extra pre‑curing waiting period. It skips intermediate static‑aging procedures. Finished blocks can be transported to stock‑yard right after stacking, shortening whole production turnover and boosting daily output capacity for fast fulfillment of big‑volume orders.
HF18 Pallet‑free Automatic Brick Making Machine | High‑output Complete Production Line For Concrete Solid Standard Bricks
HF18 pallet‑free fully‑automatic brick making machine is optimized for mass‑volume solid standard brick manufacturing. I...

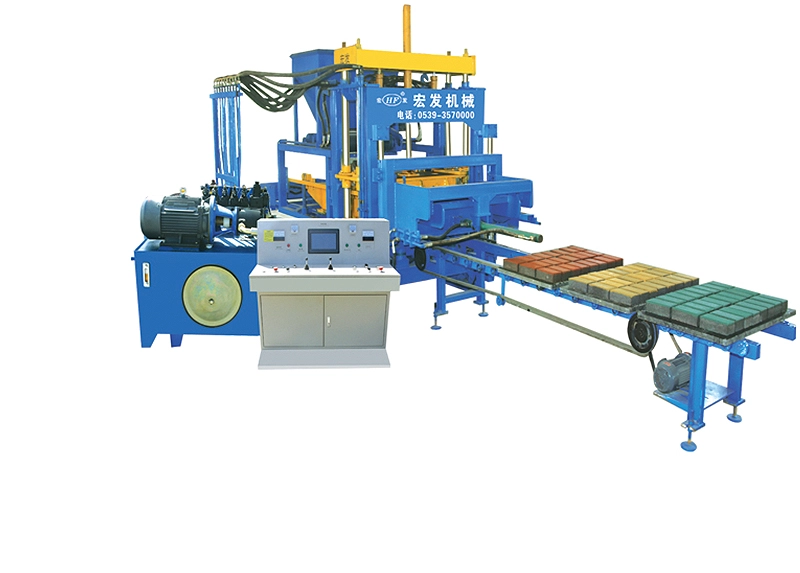

QT6‑12 Automatic Brick Making Machine | Concrete Non‑fired Hollow Solid & Color Paver Production Host
QT6‑12 fully‑automatic brick making machine adopts platform‑plus‑mold composite vibration with 12‑20‑second molding cycl...

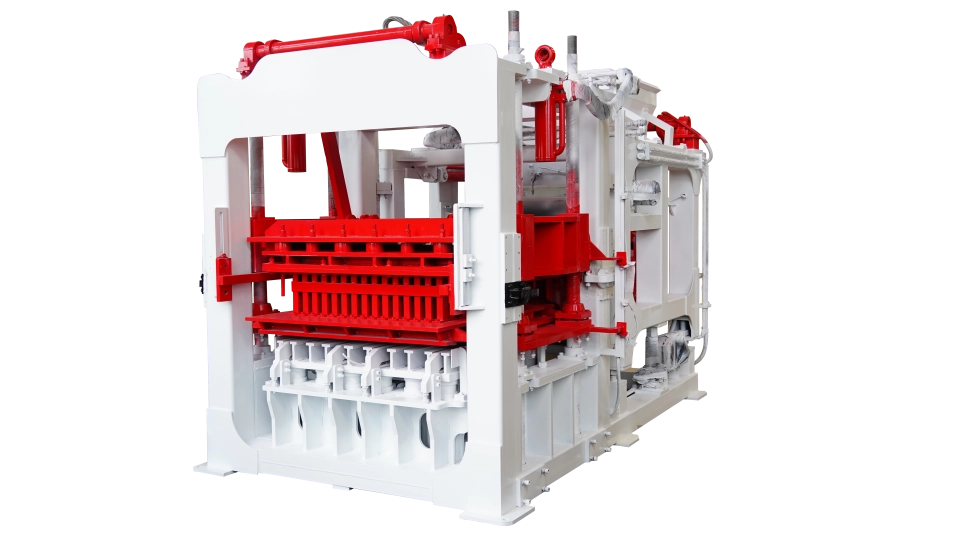

QT12‑15F Fully‑automatic Brick Making Machine | Heavy‑duty High‑capacity Concrete Block Production Host
