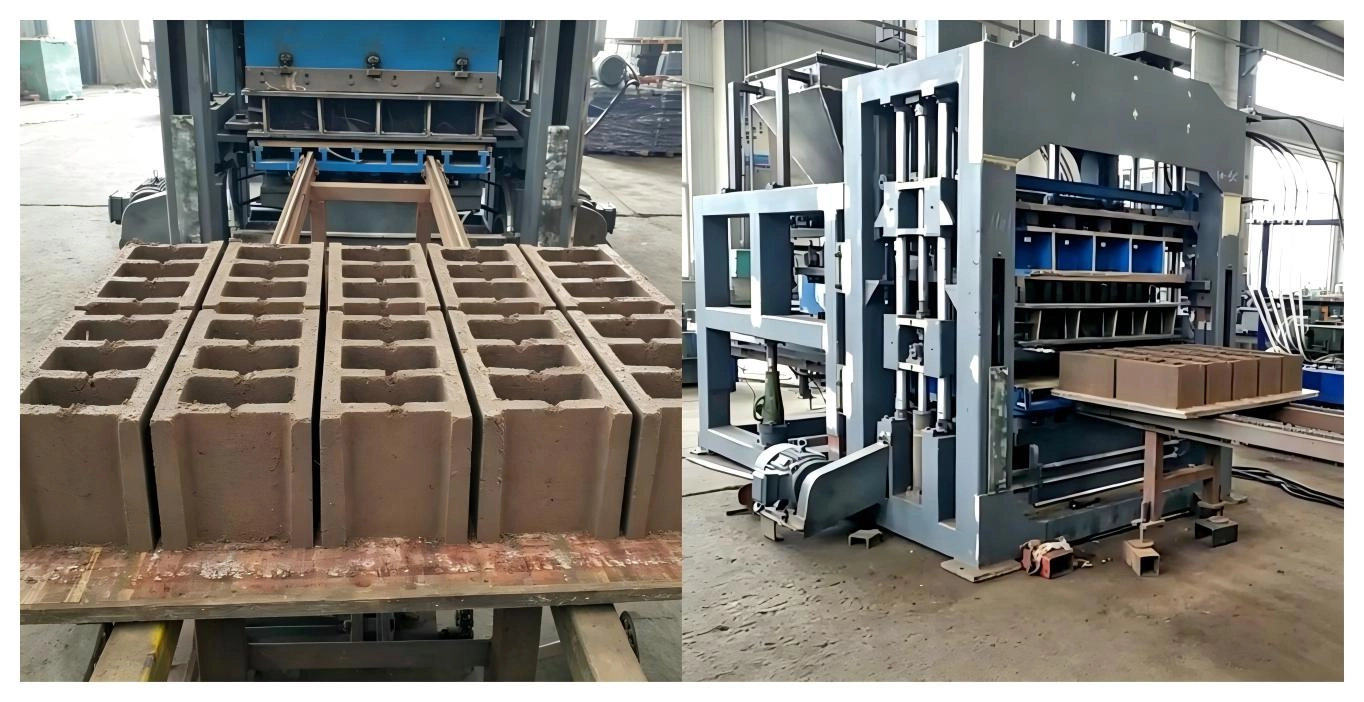

Large Output Concrete Hollow Block Production Case QT10‑15 Fully Automatic Brick Machine

Project Overview

Equipment Model: QT10‑15 Fully Automatic Brick Forming Machine

Main Produced Bricks: Standard concrete hollow blocks, replace molds to produce solid bricks, interlocking paving bricks, curb stones

Raw Materials: Sand, stone powder, crushed stone, cement, fly ash, slag, construction recycled aggregate

Line Configuration: Automatic batching system, forced concrete mixer, belt conveyor, QT10‑15 main forming unit, hydraulic power station, PLC control cabinet, automatic pallet feeding and brick‑outlet system

On‑site Production Status

This project focuses on mass production of standard hollow blocks for construction. After equipment installation, commissioning and process tuning, the QT10‑15 production line runs continuous round‑the‑clock production, supplying hollow blocks for real‑estate projects, industrial workshops and municipal building works.

QT10‑15 adopts upgraded platform vibration plus hydraulic synchronous compaction. Strong exciting force ensures full material filling inside mould cavities. The molding cycle keeps stable at 14‑18 seconds, more hollow blocks are produced per pallet compared with medium‑size models. Finished hollow blocks own sharp hole contours, even wall thickness, stable compression strength. No deformation, collapse or internal loose defects appear during mass production.

The production line accepts multiple local raw materials and industrial solid waste. By mixing fly ash, slag and recycled aggregate properly, clients cut down raw‑material cost without sacrificing brick quality. Full‑automatic workflow reduces manual workload, batch‑to‑batch product consistency remains good, defective rate stays low for long‑time running.

Main Equipment Advantages for Hollow Block Production

1. High single‑cycle output, suitable for large‑volume orders

Optimized mould layout and vibration system bring higher output in each working cycle. Stable cyclic operation supports non‑stop mass production, meets large‑quantity delivery demand from construction contractors.

2. Enhanced vibration compaction, good hollow block forming effect

High‑power platform vibration realizes uniform compaction for hollow block blanks. Hollow cavities keep complete and neat; side walls are dense and solid. Effectively avoids common problems such as hole distortion and insufficient wall strength.

3. Broad raw‑material compatibility for cost saving

Works well with stone powder, fly ash, slag and recycled building aggregate. Industrial residues can partially replace cement and natural sand‑stone, helping brick factories realize low‑cost and eco‑friendly production.

4. PLC full automatic control, stable batch quality

All production parameters are set and stored on PLC touch panel. Pallet feeding, material distributing, pressing, demoulding and brick discharging finish automatically. Human‑caused quality fluctuation is greatly reduced.

5. Heavy‑duty frame structure for long service life

Thickened welded main frame and heavy‑load guide posts adapt to high‑frequency continuous production of hollow blocks. Core hydraulic and vibration components are reliable, low failure rate and easy daily maintenance.

Customer Feedback

The customer purchased QT10‑15 full‑automatic block machine mainly for mass‑producing building hollow blocks. After long‑term field operation, the customer gives positive evaluation on overall performance.

The equipment runs smoothly with large and stable output, which satisfies the requirement of big construction orders. Produced hollow blocks have regular shape and reliable strength, pass project acceptance smoothly. Flexible raw‑material formula lowers production expenditure; high‑automation design cuts labor cost. The customer considers QT10‑15 a trustworthy high‑capacity block making equipment for hollow‑block specialized brick plants.
