Product advantages

Advantage of HF18 Pallet‑free Automatic Brick Making Machine

1. Integrated Pallet‑free Automatic Stacking, Eliminate Huge Pallet‑related Cost For Large‑scale Solid‑brick Production

Solid bricks are heavy‑weight products. Conventional production lines require large quantities of heavy‑duty pallets, which suffer fast wear and bring high recurring purchase‑and‑replacement cost, plus extra supporting machines such as elevator and transfer carts. HF18 realizes forming‑demoulding‑direct stacking without pallets for solid brick manufacturing. It removes large‑sum pallet investment and cuts capital expenditure for auxiliary machines. It greatly lowers initial project cost and eliminates continuous pallet‑renewal expense for solid‑brick mass‑production projects.

2. Large‑size Molding Area & Variable‑frequency Multi‑exciter Vibration, Uniform Filling, Stable Solid‑brick Quality & Less Waste Loss

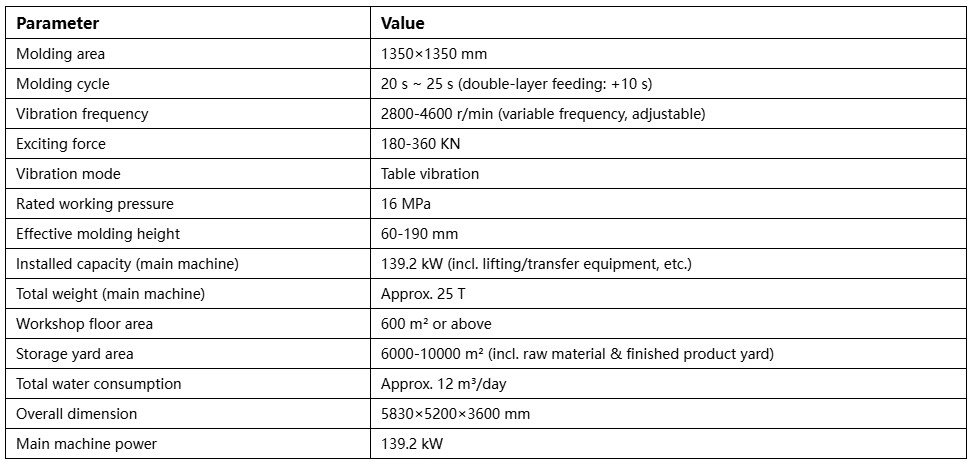

Solid bricks require sufficient material filling inside every mould cavity. This machine adopts 1350×1350 mm large molding area, adjustable multi‑exciter table‑vibration and air‑floating isolation design to deliver full vibration force into each cavity. The reciprocating feeding cart distributes raw material evenly, keeping block‑weight tolerance within ±2%. Finished solid bricks feature high density, sharp edges and consistent dimension with stable compressive strength. It reduces rejects caused by insufficient filling, looseness or deformation, improves raw‑material utilization and meets construction acceptance requirements for bulk wall‑brick orders.

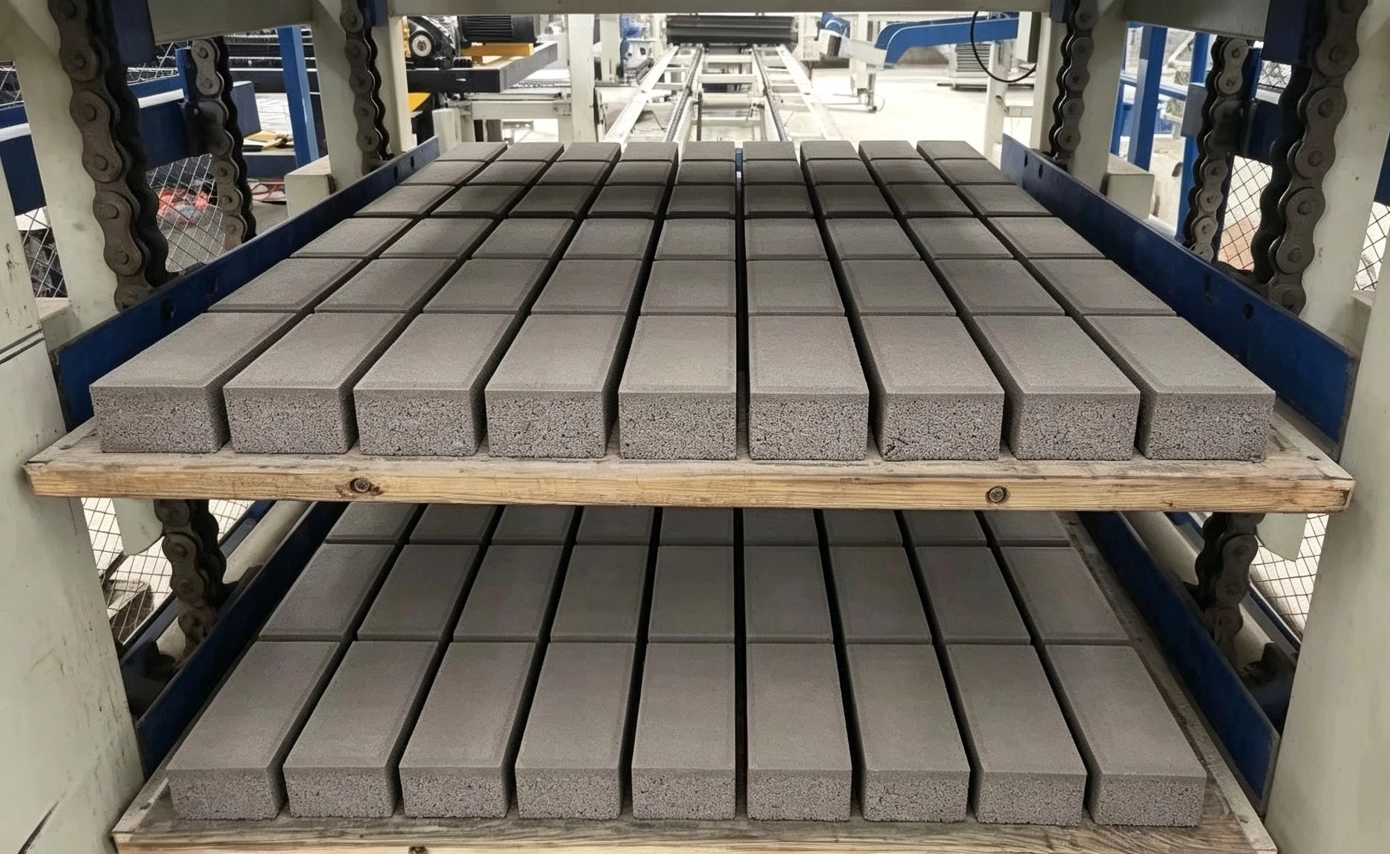

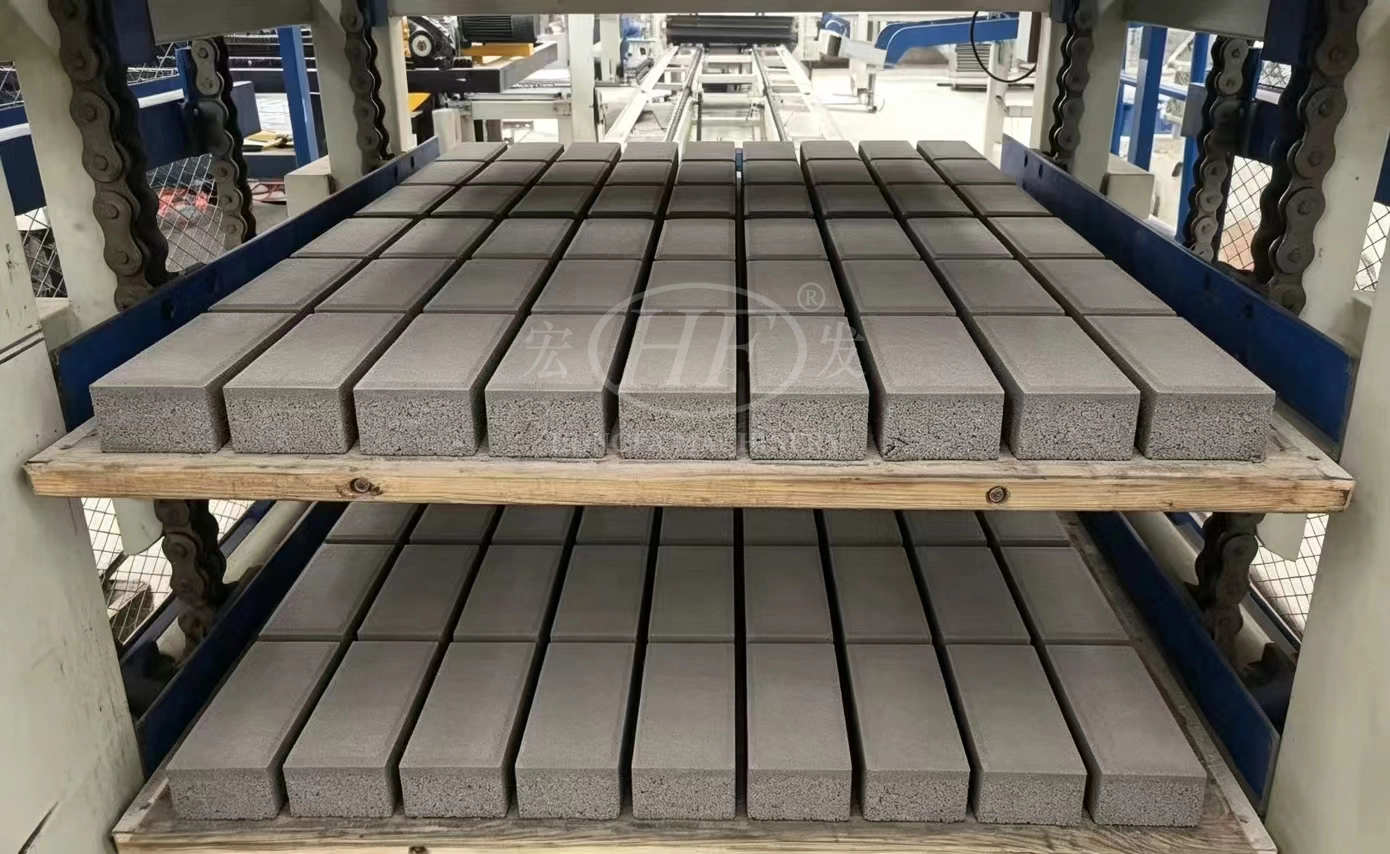

Solid Brick from HF18 Pallet-free Automatic Brick Making Machine

3. Imported Hydraulic & Electric Components Plus Air‑bag Damping System, Endure Heavy‑load Continuous Solid‑brick Pressing & Less Downtime

Solid‑brick production brings higher cavity filling weight and bigger pressing impact than hollow blocks, causing heavier fatigue load on hydraulics, vibration unit and molds. HF18 equips original imported solenoid valves, electro‑hydraulic valves and water‑cooling circulation system. Core electric parts are imported with full interlock protection for manual / semi‑auto / full‑auto modes. Air‑bag damping absorbs heavy‑impact shock during solid‑brick pressing, lowers noise and mitigates wear on molds and frame. It fits two‑shift or three‑shift non‑stop solid‑brick mass‑production, cuts failure risk, prevents order‑delay losses and reduces spare‑part replacement frequency.

4. Outstanding Solid‑brick Output Capacity, Highly‑automated Workflow To Cut Labor Cost

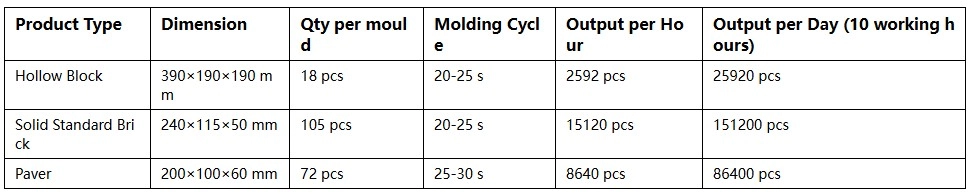

For 240×115×50 mm solid standard bricks, the machine produces up to 105 pcs per mould within 20‑25 seconds, reaching 151200 pcs within 10 working hours to satisfy huge supply demand from large‑scale construction projects. Full‑automatic closed‑loop covers batching, mixing, forming, demoulding and stacking. Heavy manual stacking and brick‑handling work are removed. Only 4‑5 operators are required for whole‑line running. Ordinary staff can operate after simple training without large groups of senior technicians. It is especially valuable for overseas regions with high labor expense and relieves long‑term payroll pressure.

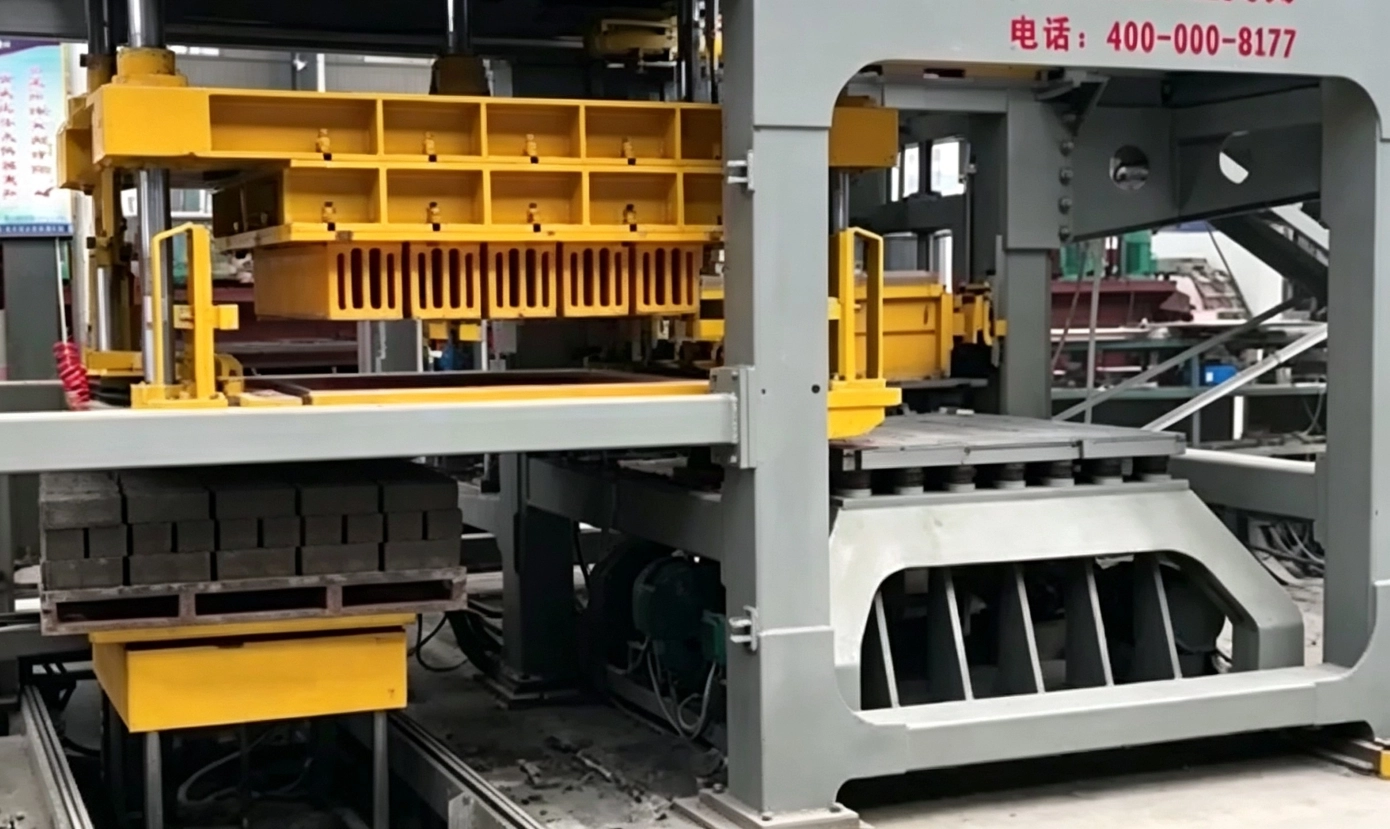

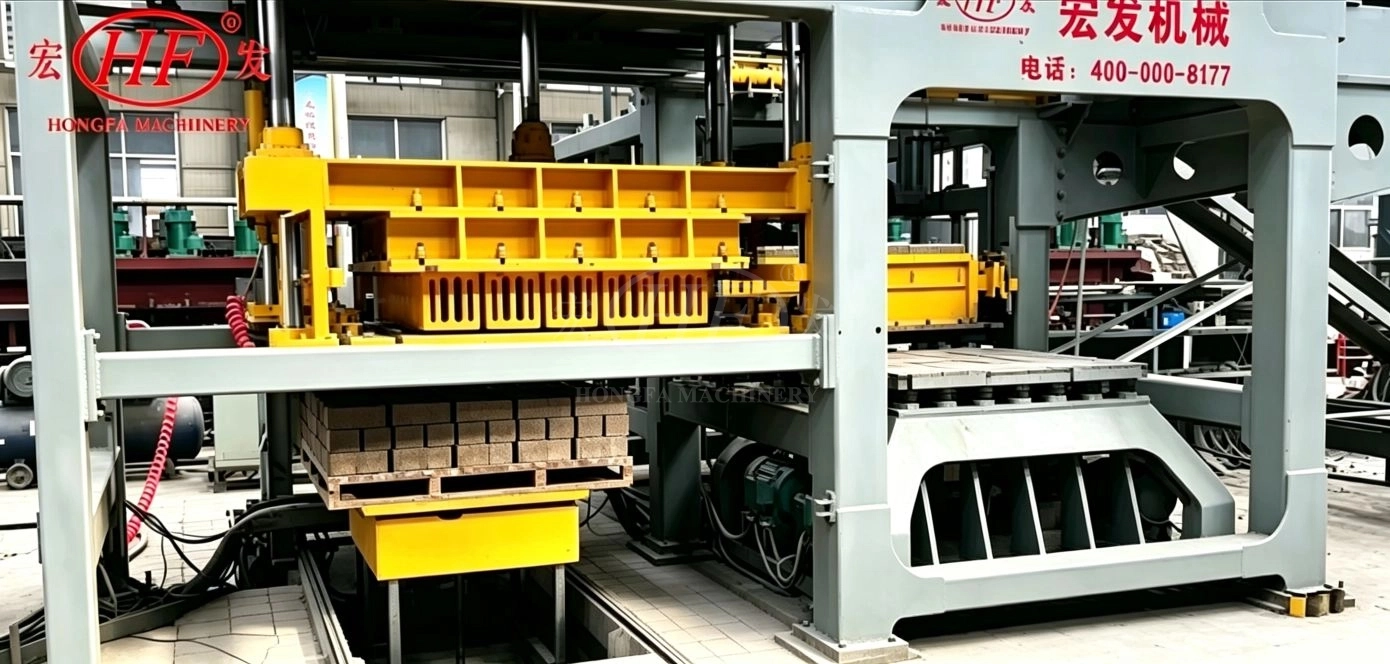

HF18 Pallet‑free Automatic Brick Making Machine

5. Flexible Mold‑change Design, Solid‑brick‑oriented While Supporting Diversified Products To Maintain Equipment Utilization

Focused on mass‑producing solid standard bricks, the line can quickly switch to hollow blocks, pavers, slope‑protection blocks by mold replacement, with effective molding height 60‑190 mm. Optional automatic face‑mix unit enables colored paver production. When solid‑brick market demand goes down, plant operators can shift to other building‑material products to keep high workshop capacity. One single complete line covers civil wall‑brick and municipal‑engineering orders, improves equipment utilization and accelerates investment pay‑back.

6. Low‑moisture Raw‑material Adaptability, Direct‑stack After Solid‑brick Forming, Shorten Production Turnover Cycle

The production line accepts raw‑material mixture with 30‑40% lower moisture content than conventional dry‑hard concrete. Fresh demoulded solid bricks own high density and can be stacked directly without extra pre‑curing waiting period. Intermediate static‑aging procedures are skipped, shortening whole production turnover cycle. More solid bricks can be finished within given time for fast delivery of large construction orders.

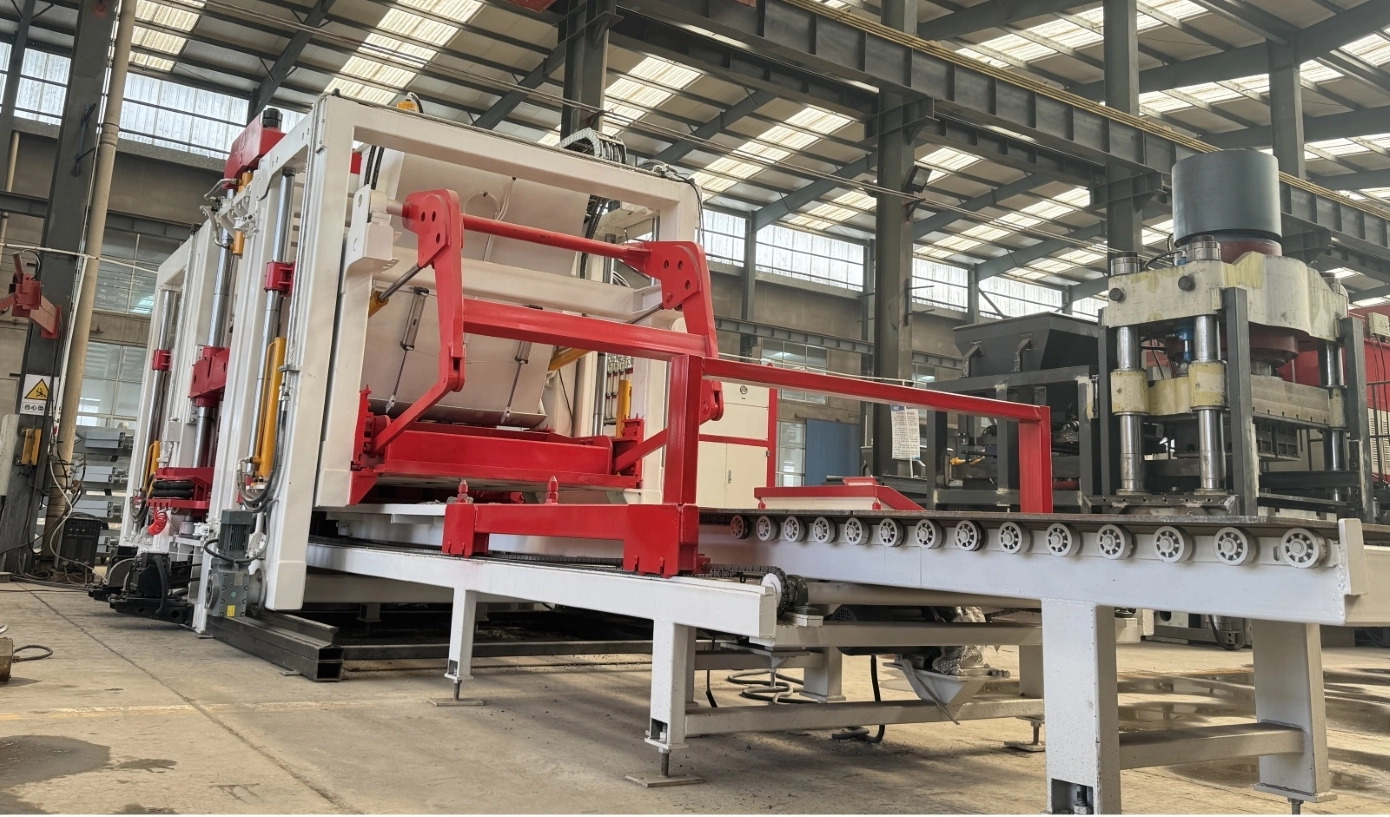

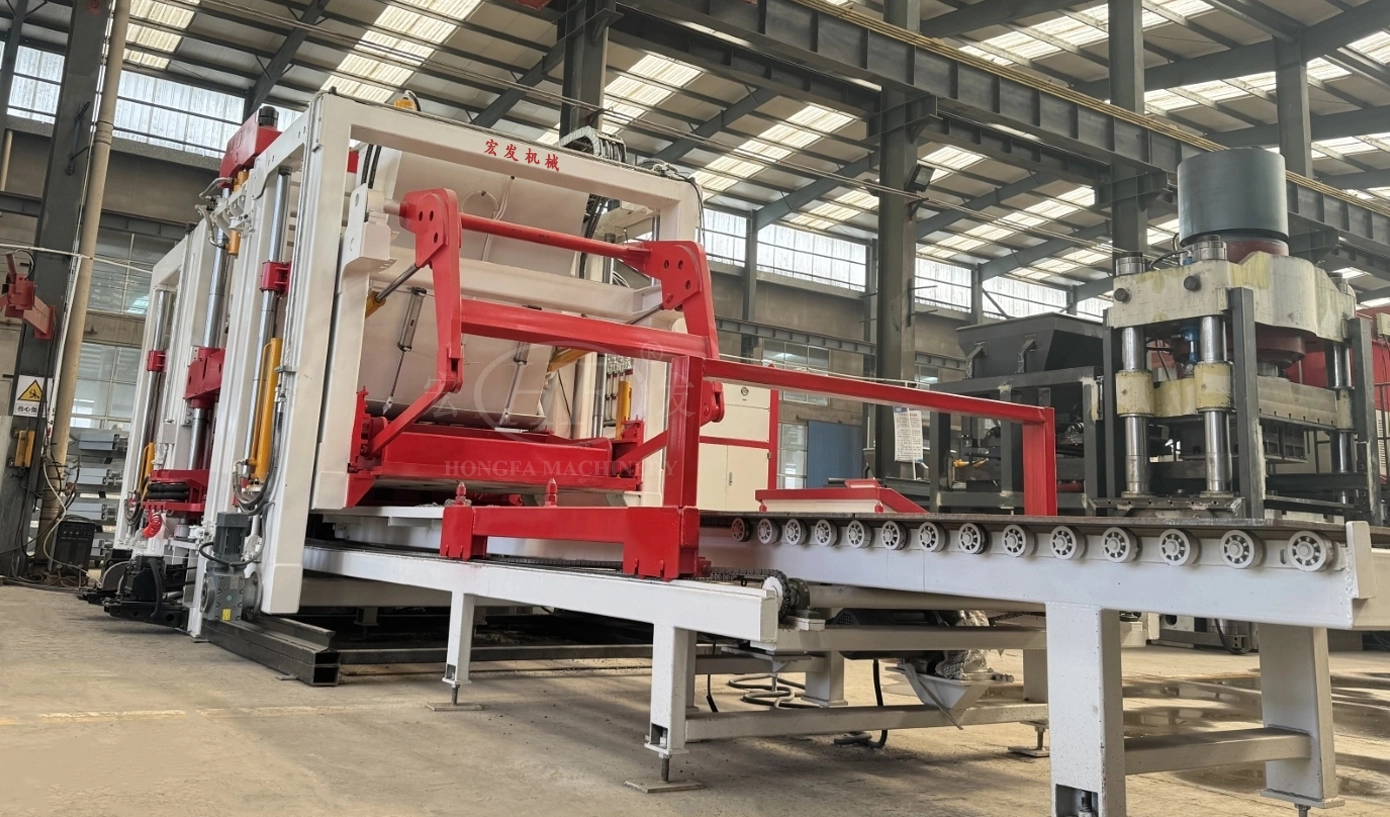

HF18 Pallet‑free Automatic Brick Making Machine

7. Full‑set Remote Intelligent Operation System, Convenient Mass‑solid‑brick Production Management & Reduce Overseas On‑site Service Reliance

Remote communication system supports real‑time status monitoring, fault diagnosis, solid‑brick formula storage and remote system upgrade. It can link with front‑end batching system for full‑line automatic control. During non‑stop large‑volume solid‑brick manufacturing, operators can remotely check running data and recall dedicated solid‑brick production recipes. Abnormalities can be located remotely without long‑distance technician travel, shortening downtime risk and securing stable continuous solid‑brick output for overseas large‑size block plants.
