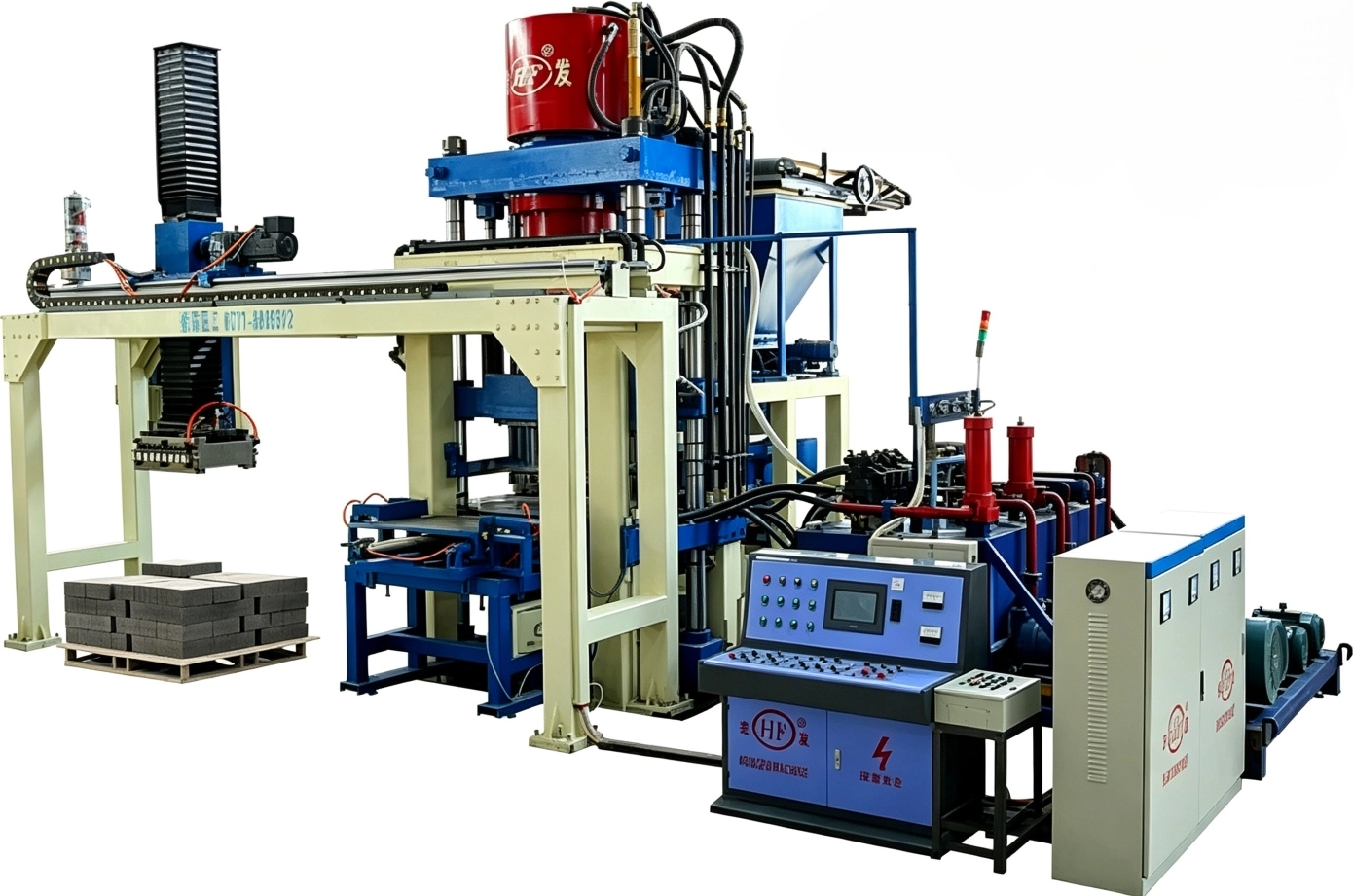

Hongfa 1000T static press is Hongfa’s top‑tier ultra‑heavy‑duty flagship model with a maximum pressing force of 10000KN and extra‑enlarged working platen for higher output per mould compared with 650T and 800T models. Featuring mature professional dual‑direction static compaction technology, it delivers perfectly uniform density and thorough internal compaction for extra‑thick and heavy concrete products, making it perfectly suited for mass production of heavy‑duty large curbstones, oversized interlocking slope‑protection blocks, high‑grade stone‑look PC pavers and high‑density solid‑waste building blocks. Equipped with authentic Siemens PLC system and premium international heavy‑duty hydraulic components, the machine maintains a stable molding cycle within 18‑22 seconds. Differentiated from medium‑tonnage static presses, the HF‑1000T comes with built‑in heavy‑load integrated material distribution trolley and heavy‑duty robotic brick stacking mechanism, realizing one‑piece fully automatic operation from feeding, distributing, pressing, brick discharging to palletizing. It can perfectly connect with complete batching and feeding systems to form a fully intelligent turnkey production line, which is the ideal core equipment for super‑large‑scale solid waste recycling bases and high‑output heavy‑duty concrete product factories.
1.This 1000T ultra‑heavy static press is pre‑equipped with an upgraded heavy‑load integrated automatic material distribution trolley and dedicated heavy‑duty robotic brick stacking system as standard configuration. It realizes unmanned automatic operation of the whole process: precise large‑volume material distribution, bidirectional high‑tonnage hydraulic pressing, automatic brick discharge and intelligent heavy‑load palletizing. No additional auxiliary equipment is required for basic production, achieving streamlined production flow, greatly saving manual labor costs and improving overall production consistency and high‑volume output efficiency.
2.Completely cancels the traditional vibration forming structure and adopts advanced bidirectional high‑pressure hydraulic molding technology. The whole production process runs stably with ultra‑low noise, fully complying with strict urban factory environmental protection and noise control standards, and effectively optimizing the workshop working environment for large‑scale plants.

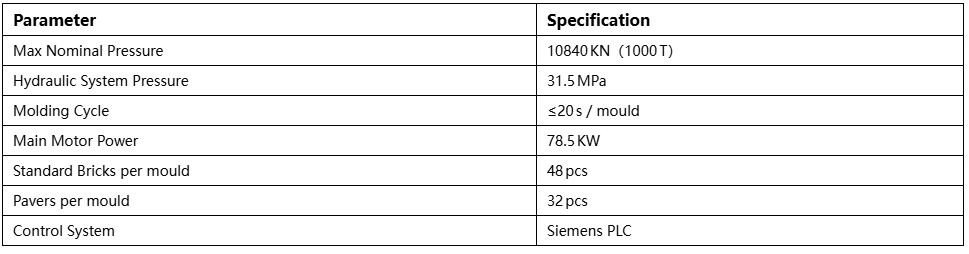

3.With a rated working pressure of 31.5MPa and peak pressing force up to 10000KN, the equipment delivers ultra‑high compaction density for thick and heavy brick blanks. The finished products feature extra‑high compressive strength, precise dimensional tolerance, flat and smooth surface, stable quality and extremely low defective rate, meeting strict production standards of heavy‑duty municipal, water conservancy and landscape building materials.
4.Adopts original Siemens intelligent mechatronic‑hydraulic integrated control system, with built‑in fault diagnosis and early warning functions optimized for heavy‑load cycles. The whole process of feeding, molding and brick discharging is fully automated. Featuring simple operation, low manual dependence and stable performance, the standard molding cycle is steadily controlled within 18‑22 seconds, supporting long‑term high‑intensity heavy‑load operation.
5.Supports fast mold replacement. By switching customized molds, the machine can produce various specifications of heavy‑duty pavement bricks, extra‑large permeable bricks, oversized curbstones, massive slope‑protection blocks and super‑size special‑shaped landscape bricks. It realizes flexible production of multiple heavy‑spec products with one single device and greatly improves equipment utilization and factory production flexibility.
5.It is highly compatible with various industrial solid waste raw materials, including fly ash, steel slag, mine tailings, construction waste recycled aggregate and stone powder, supporting higher solid‑waste mixing ratio for heavy‑duty blocks. It effectively reduces raw material procurement costs, realizes resource recycling of industrial waste, and fully meets global environmental protection and green production policies for large‑volume waste‑to‑brick projects.
6.Adopts optimized thickened heavy‑duty gantry frame structure with stress‑relief treatment, high overall rigidity and strong anti‑fatigue performance specially designed for 1000‑ton long‑term pressure. It can withstand long‑term high‑pressure and heavy‑load operation, support stable 24‑hour uninterrupted mass production, and adapt to extreme high‑intensity production demands of super‑large brick factories.
7.Matched with the factory’s supporting automatic feeding and receiving systems, the integrated heavy‑load robotic palletizing function realizes pallet‑free brick molding and output. It completely saves long‑term pallet purchase, replacement and loss costs, and can be integrated with full‑set automatic batching systems to build a fully intelligent unmanned large‑scale production line.
Solid‑color heavy‑duty pavement bricks, high‑strength permeable bricks, square plaza bricks, heavy‑traffic sidewalk paving bricks, solid concrete standard blocks, heavy‑load interlocking paving blocks, grass‑planting bricks, extra‑large interlocking slope‑protection bricks, massive river revetment blocks, oversized heavy‑duty curb stones, high‑grade stone‑look PC pavers, large‑size landscape special‑shaped concrete units, fly‑ash bricks, high‑density steel‑slag solid‑waste bricks, fair‑faced concrete bricks, heavy‑spec solid‑waste building blocks
Large‑scale Heavy‑Duty Municipal Engineering, Garden & Large‑scale Water Conservancy Project, Super‑large‑capacity Solid Waste Resource Utilization Project, High‑output Premium Environmental‑protection Building‑Material Factory, Overseas Large‑scale Infrastructure & Water‑conservancy Turnkey Projects
Founded in 1990, Hongfa owns modern manufacturing base. All core structures of 1000T press are self-machined, every machine passes pre-shipment pressure inspection. Supplied as standalone unit or integrated batching-feeding-stacking turnkey line. Overseas on-site commissioning & training, 24-h online technical support and long-term genuine spare-parts service are available.
Q: Can this 1000T press work with my existing batching system?
A: Yes, our engineers can evaluate your current equipment and offer adaptation advice. Matching feeding and stacking accessories are also available from our factory.
Q: What raw materials can be used for production?
A: It is applicable to cement, sand and stone, stone powder, fly ash, steel slag, tailings and recycled construction waste aggregates. Raw material ratio debugging is required according to actual materials. It is not applicable for clay sintered bricks.
Get capacity calculation, plant-layout suggestion and formal quotation for 1000T static press. Share your raw-material type, target daily output and workshop dimension, our engineer prepares full customized project solution.
Hongfa 1000T static press is Hongfa’s top‑tier ultra‑heavy‑duty flagship model with a maximum pressing force of 10000KN and extra‑enlarged working platen for higher output per mould compared with 650T and 800T models. Featuring mature professional dual‑direction static compaction technology, it delivers perfectly uniform density and thorough internal compaction for extra‑thick and heavy concrete products, making it perfectly suited for mass production of heavy‑duty large curbstones, oversized interlocking slope‑protection blocks, high‑grade stone‑look PC pavers and high‑density solid‑waste building blocks. Equipped with authentic Siemens PLC system and premium international heavy‑duty hydraulic components, the machine maintains a stable molding cycle within 18‑22 seconds. Differentiated from medium‑tonnage static presses, the HF‑1000T comes with built‑in heavy‑load integrated material distribution trolley and heavy‑duty robotic brick stacking mechanism, realizing one‑piece fully automatic operation from feeding, distributing, pressing, brick discharging to palletizing. It can perfectly connect with complete batching and feeding systems to form a fully intelligent turnkey production line, which is the ideal core equipment for super‑large‑scale solid waste recycling bases and high‑output heavy‑duty concrete product factories.
1.This 1000T ultra‑heavy static press is pre‑equipped with an upgraded heavy‑load integrated automatic material distribution trolley and dedicated heavy‑duty robotic brick stacking system as standard configuration. It realizes unmanned automatic operation of the whole process: precise large‑volume material distribution, bidirectional high‑tonnage hydraulic pressing, automatic brick discharge and intelligent heavy‑load palletizing. No additional auxiliary equipment is required for basic production, achieving streamlined production flow, greatly saving manual labor costs and improving overall production consistency and high‑volume output efficiency.
2.Completely cancels the traditional vibration forming structure and adopts advanced bidirectional high‑pressure hydraulic molding technology. The whole production process runs stably with ultra‑low noise, fully complying with strict urban factory environmental protection and noise control standards, and effectively optimizing the workshop working environment for large‑scale plants.
3.With a rated working pressure of 31.5MPa and peak pressing force up to 10000KN, the equipment delivers ultra‑high compaction density for thick and heavy brick blanks. The finished products feature extra‑high compressive strength, precise dimensional tolerance, flat and smooth surface, stable quality and extremely low defective rate, meeting strict production standards of heavy‑duty municipal, water conservancy and landscape building materials.
4.Adopts original Siemens intelligent mechatronic‑hydraulic integrated control system, with built‑in fault diagnosis and early warning functions optimized for heavy‑load cycles. The whole process of feeding, molding and brick discharging is fully automated. Featuring simple operation, low manual dependence and stable performance, the standard molding cycle is steadily controlled within 18‑22 seconds, supporting long‑term high‑intensity heavy‑load operation.
5.Supports fast mold replacement. By switching customized molds, the machine can produce various specifications of heavy‑duty pavement bricks, extra‑large permeable bricks, oversized curbstones, massive slope‑protection blocks and super‑size special‑shaped landscape bricks. It realizes flexible production of multiple heavy‑spec products with one single device and greatly improves equipment utilization and factory production flexibility.
5.It is highly compatible with various industrial solid waste raw materials, including fly ash, steel slag, mine tailings, construction waste recycled aggregate and stone powder, supporting higher solid‑waste mixing ratio for heavy‑duty blocks. It effectively reduces raw material procurement costs, realizes resource recycling of industrial waste, and fully meets global environmental protection and green production policies for large‑volume waste‑to‑brick projects.
6.Adopts optimized thickened heavy‑duty gantry frame structure with stress‑relief treatment, high overall rigidity and strong anti‑fatigue performance specially designed for 1000‑ton long‑term pressure. It can withstand long‑term high‑pressure and heavy‑load operation, support stable 24‑hour uninterrupted mass production, and adapt to extreme high‑intensity production demands of super‑large brick factories.
7.Matched with the factory’s supporting automatic feeding and receiving systems, the integrated heavy‑load robotic palletizing function realizes pallet‑free brick molding and output. It completely saves long‑term pallet purchase, replacement and loss costs, and can be integrated with full‑set automatic batching systems to build a fully intelligent unmanned large‑scale production line.
Solid‑color heavy‑duty pavement bricks, high‑strength permeable bricks, square plaza bricks, heavy‑traffic sidewalk paving bricks, solid concrete standard blocks, heavy‑load interlocking paving blocks, grass‑planting bricks, extra‑large interlocking slope‑protection bricks, massive river revetment blocks, oversized heavy‑duty curb stones, high‑grade stone‑look PC pavers, large‑size landscape special‑shaped concrete units, fly‑ash bricks, high‑density steel‑slag solid‑waste bricks, fair‑faced concrete bricks, heavy‑spec solid‑waste building blocks
Large‑scale Heavy‑Duty Municipal Engineering, Garden & Large‑scale Water Conservancy Project, Super‑large‑capacity Solid Waste Resource Utilization Project, High‑output Premium Environmental‑protection Building‑Material Factory, Overseas Large‑scale Infrastructure & Water‑conservancy Turnkey Projects
Founded in 1990, Hongfa owns modern manufacturing base. All core structures of 1000T press are self-machined, every machine passes pre-shipment pressure inspection. Supplied as standalone unit or integrated batching-feeding-stacking turnkey line. Overseas on-site commissioning & training, 24-h online technical support and long-term genuine spare-parts service are available.
Q: Can this 1000T press work with my existing batching system?
A: Yes, our engineers can evaluate your current equipment and offer adaptation advice. Matching feeding and stacking accessories are also available from our factory.
Q: What raw materials can be used for production?
A: It is applicable to cement, sand and stone, stone powder, fly ash, steel slag, tailings and recycled construction waste aggregates. Raw material ratio debugging is required according to actual materials. It is not applicable for clay sintered bricks.
Get capacity calculation, plant-layout suggestion and formal quotation for 1000T static press. Share your raw-material type, target daily output and workshop dimension, our engineer prepares full customized project solution.
