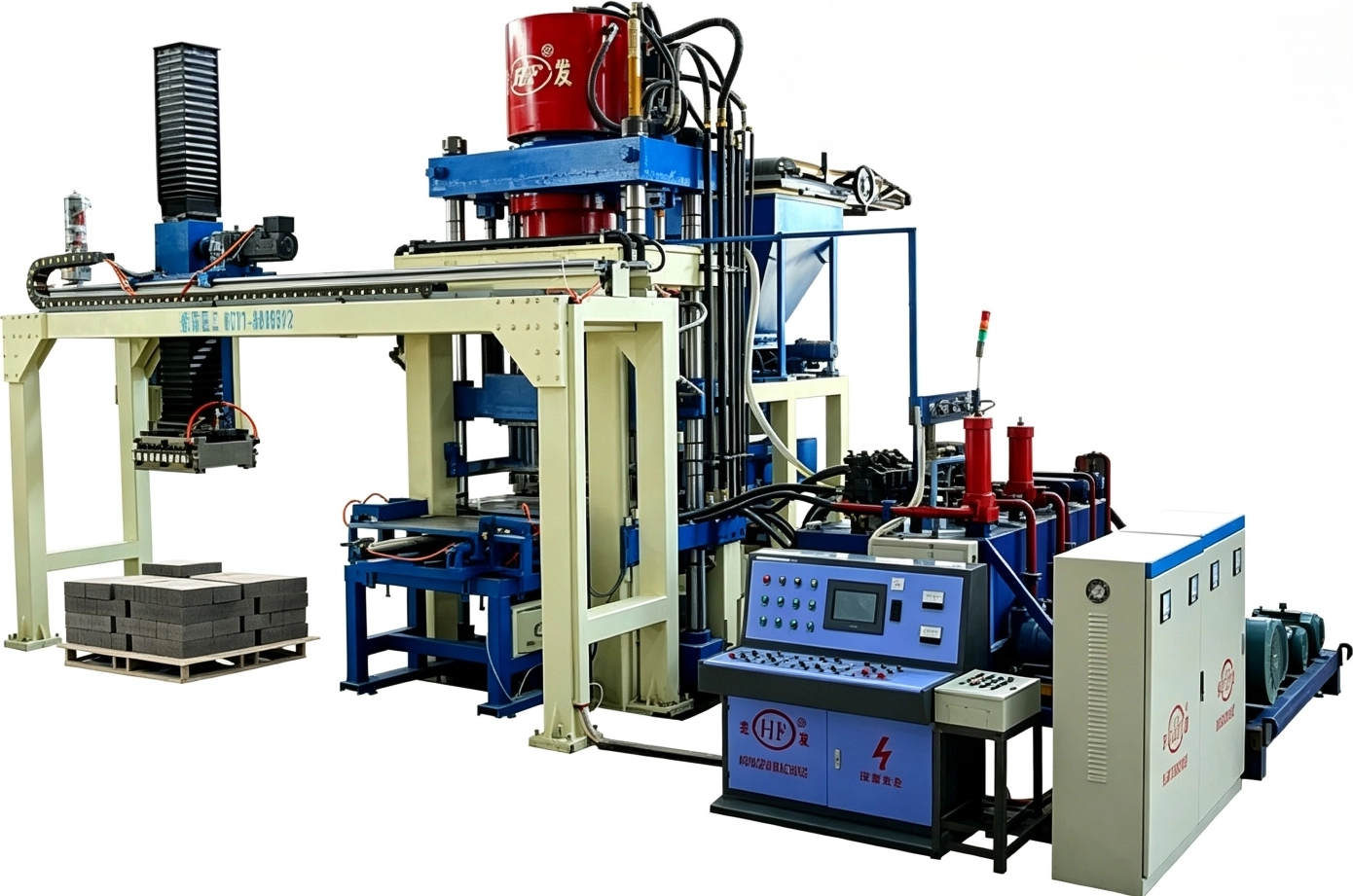

Hongfa 600T static press is a heavy-duty flagship model with max pressing force 6850KN and enlarged working platen for multi-piece output per mould. Dual-direction static compaction guarantees uniform density and full compaction inside every block, ideal for mass-producing high-grade PC stone-look pavers, large curbstones and slope-protection units. Equipped with Siemens PLC and premium hydraulic parts, stable cycle ≤20 seconds. Can connect with full set of batching, feeding and stacking systems to deliver turnkey production lines for large solid-waste recycling brick plants.
1.Eliminates the vibration forming structure and adopts bidirectional high-pressure hydraulic forming. It operates with low noise, meeting the strict noise control standards of urban factories and greatly improving the workshop working environment.
2. With a rated pressure of 31.5MPa, it ensures high compaction density, high finished product strength, accurate dimensional tolerance and smooth brick surface, effectively reducing defective rates.
3.Realizes automatic feeding, forming and brick discharging. Equipped with a built-in fault diagnosis system, it features simple operation, low labor dependence, with a standard molding cycle of 15-20 seconds.
4.Different brick types can be produced by replacing molds, realizing multi-purpose of one machine and improving equipment utilization efficiency.
5.It can process various industrial solid wastes including fly ash, steel slag, tailings, construction waste and stone powder with high solid waste mixing ratio, cutting raw material costs and complying with national environmental protection policies.
6.The optimized gantry frame features high rigidity and fatigue resistance, supporting 24-hour continuous mass production stably.
7.It can be matched with automatic feeding, brick receiving and palletizing manipulators to build a fully automatic production line. No pallet is required, saving long-term pallet purchase and loss costs.
Solid color pavement bricks, permeable bricks, square bricks, sidewalk paving bricks,solid concrete bricks, standard building bricks,grass-planting bricks, interlocking slope protection bricks, landscape special-shaped bricks,fly ash bricks, steel slag solid waste bricks, fair-faced concrete bricks
Municipal Engineering,Garden & Water Conservancy Project,Solid Waste Resource Utilization Project,Environmental Protection Building Material Factory,Overseas Engineering Projects
Founded in 1990, Hongfa owns modern manufacturing base. All core structures of 600T press are self-machined, every machine passes pre-shipment pressure inspection. Supplied as standalone unit or integrated batching-feeding-stacking turnkey line. Overseas on-site commissioning & training, 24-h online technical support and long-term genuine spare-parts service are available.
Q: Can this 600T press work with my existing batching system?
A: Yes, our engineers can evaluate your current equipment and offer adaptation advice. Matching feeding and stacking accessories are also available from our factory.
Q: What raw materials can be used for production?
A: It is applicable to cement, sand and stone, stone powder, fly ash, steel slag, tailings and recycled construction waste aggregates. Raw material ratio debugging is required according to actual materials. It is not applicable for clay sintered bricks.
Get capacity calculation, plant-layout suggestion and formal quotation for 600T static press. Share your raw-material type, target daily output and workshop dimension, our engineer prepares full customized project solution.
Hongfa 600T static press is a heavy-duty flagship model with max pressing force 6850KN and enlarged working platen for multi-piece output per mould. Dual-direction static compaction guarantees uniform density and full compaction inside every block, ideal for mass-producing high-grade PC stone-look pavers, large curbstones and slope-protection units. Equipped with Siemens PLC and premium hydraulic parts, stable cycle ≤20 seconds. Can connect with full set of batching, feeding and stacking systems to deliver turnkey production lines for large solid-waste recycling brick plants.
1.Eliminates the vibration forming structure and adopts bidirectional high-pressure hydraulic forming. It operates with low noise, meeting the strict noise control standards of urban factories and greatly improving the workshop working environment.
2. With a rated pressure of 31.5MPa, it ensures high compaction density, high finished product strength, accurate dimensional tolerance and smooth brick surface, effectively reducing defective rates.
3.Realizes automatic feeding, forming and brick discharging. Equipped with a built-in fault diagnosis system, it features simple operation, low labor dependence, with a standard molding cycle of 15-20 seconds.
4.Different brick types can be produced by replacing molds, realizing multi-purpose of one machine and improving equipment utilization efficiency.
5.It can process various industrial solid wastes including fly ash, steel slag, tailings, construction waste and stone powder with high solid waste mixing ratio, cutting raw material costs and complying with national environmental protection policies.
6.The optimized gantry frame features high rigidity and fatigue resistance, supporting 24-hour continuous mass production stably.
7.It can be matched with automatic feeding, brick receiving and palletizing manipulators to build a fully automatic production line. No pallet is required, saving long-term pallet purchase and loss costs.
Solid color pavement bricks, permeable bricks, square bricks, sidewalk paving bricks,solid concrete bricks, standard building bricks,grass-planting bricks, interlocking slope protection bricks, landscape special-shaped bricks,fly ash bricks, steel slag solid waste bricks, fair-faced concrete bricks
Municipal Engineering,Garden & Water Conservancy Project,Solid Waste Resource Utilization Project,Environmental Protection Building Material Factory,Overseas Engineering Projects
Founded in 1990, Hongfa owns modern manufacturing base. All core structures of 600T press are self-machined, every machine passes pre-shipment pressure inspection. Supplied as standalone unit or integrated batching-feeding-stacking turnkey line. Overseas on-site commissioning & training, 24-h online technical support and long-term genuine spare-parts service are available.
Q: Can this 600T press work with my existing batching system?
A: Yes, our engineers can evaluate your current equipment and offer adaptation advice. Matching feeding and stacking accessories are also available from our factory.
Q: What raw materials can be used for production?
A: It is applicable to cement, sand and stone, stone powder, fly ash, steel slag, tailings and recycled construction waste aggregates. Raw material ratio debugging is required according to actual materials. It is not applicable for clay sintered bricks.
Get capacity calculation, plant-layout suggestion and formal quotation for 600T static press. Share your raw-material type, target daily output and workshop dimension, our engineer prepares full customized project solution.
