Higher nominal pressing force for mass-production of large-size & thick-wall premium blocks

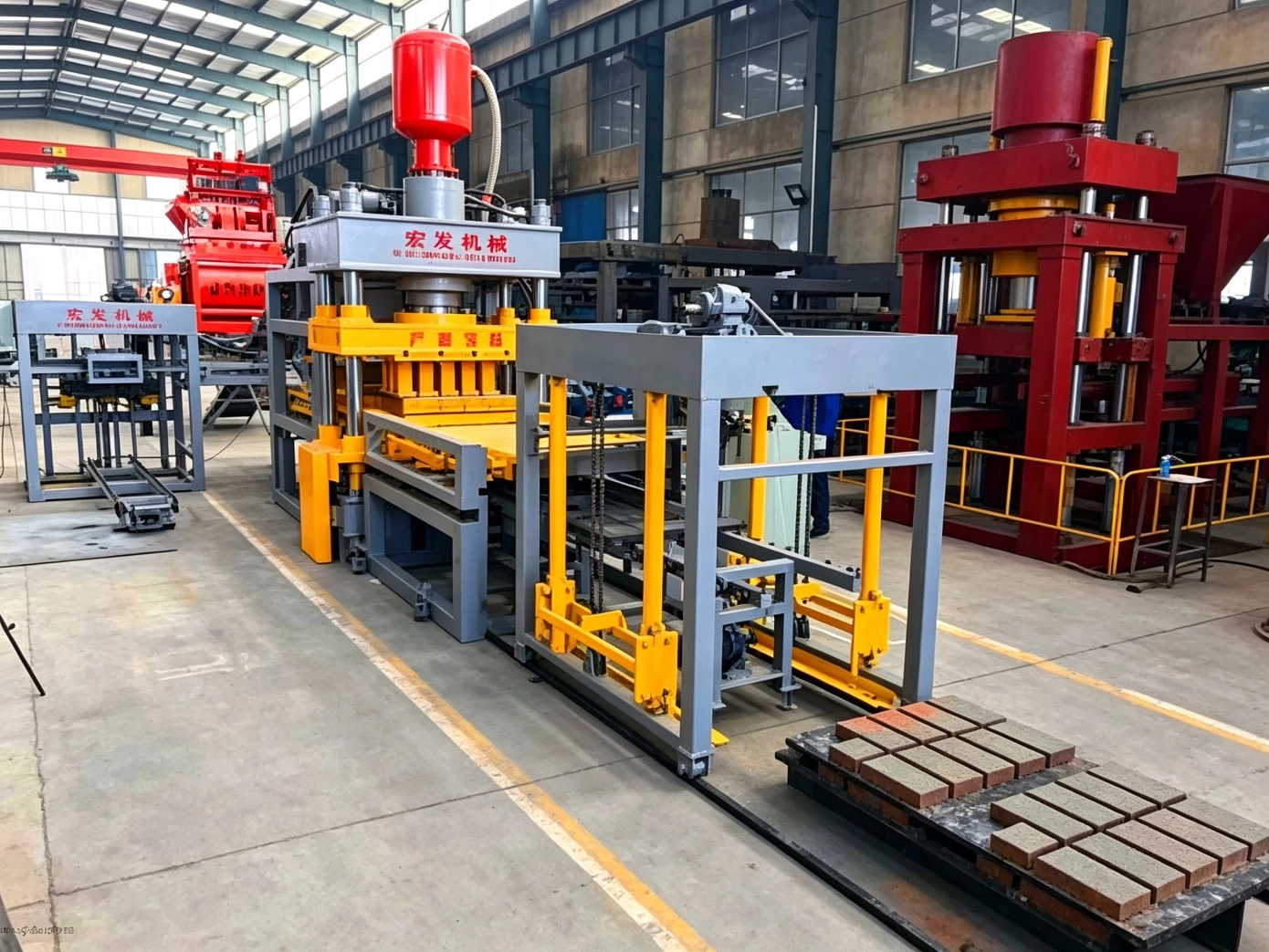

Hongfa 400T static press targets upgraded medium-large brick plants producing thick large-format blocks. Max pressing force reaches 4500KN with dual-direction compression, solving insufficient compaction and uneven-density pain-points for thick products. Finished blocks own smooth surface and tight dimensional tolerance without secondary grinding. Equipped with Siemens HMI and premium hydraulic assemblies, stable cycle ≤20 seconds. Seamlessly integrate with batching, feeding, conveying and stacking machines to build complete turnkey static-press brick-making lines for high-value PC pavers and heavy curbstones.
Core Features
1.Max nominal pressure 4500KN (400T) dual-floating-frame compression, ideal for compacting thick and large-format components.
2.Heavy-duty three-beam four-column welded frame with stress-relief treatment, anti-eccentric-load performance for long-time full-load continuous work.
3.Siemens PLC touch-screen intelligent control, saved-recipe recall and multi-channel safety interlock protection.
4.High-grade hydraulic valve sets with closed-loop pressure feedback for stable pressure output and energy saving.
5.Molding cycle ≤20 s, main motor power 44 KW, high output quantity per mould.
6.High solid-waste mixing compatibility for tailings, construction waste and slag raw materials.

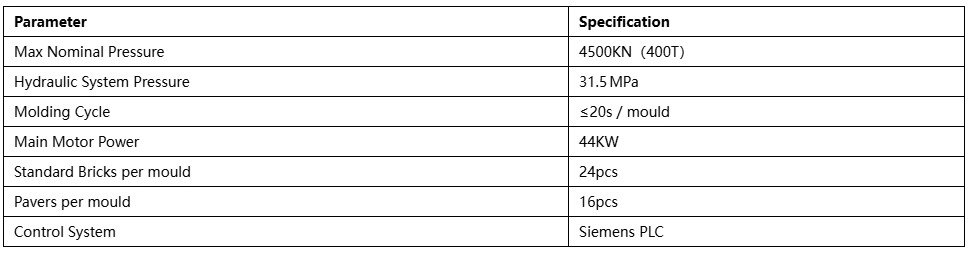

Technical Data
Products You Can Make
Large-format PC stone-look pavers, heavy thick curbstones, interlocking ecological slope-protection blocks, high-strength permeable bricks, small hydraulic concrete components.
Application Scenarios
Large-scale premium building-material factories, key sponge-city projects, highway auxiliary facilities, hydraulic ecological slope-protection works.
Why Choose Hongfa
Founded in 1990, Hongfa owns modern manufacturing base. All core structures of 400T press are self-machined, every machine passes pre-shipment pressure inspection. Supplied as standalone unit or integrated batching-feeding-stacking turnkey line. Overseas on-site commissioning & training, 24-h online technical support and long-term genuine spare-parts service are available.
FAQ
Q: Can 400T press produce extra-large curbstone?
A: Yes, it is specially optimized for thick heavy-duty curbstones. Please provide your target block dimension for mould feasibility evaluation.
CTA
Request capacity calculation, full-line layout proposal and quotation for 400T static-press. Please offer raw-material info, target daily output and plant dimensions.
