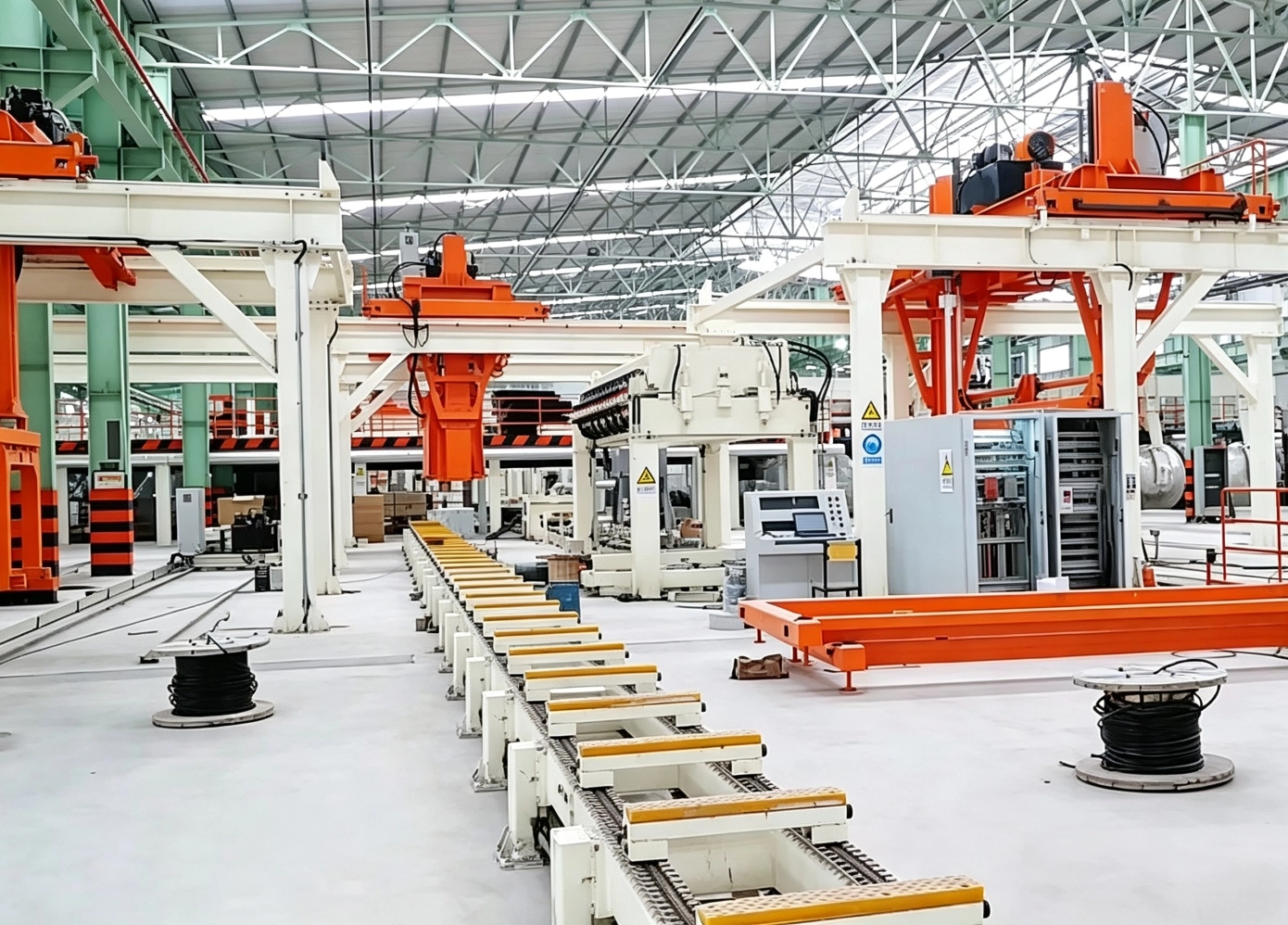

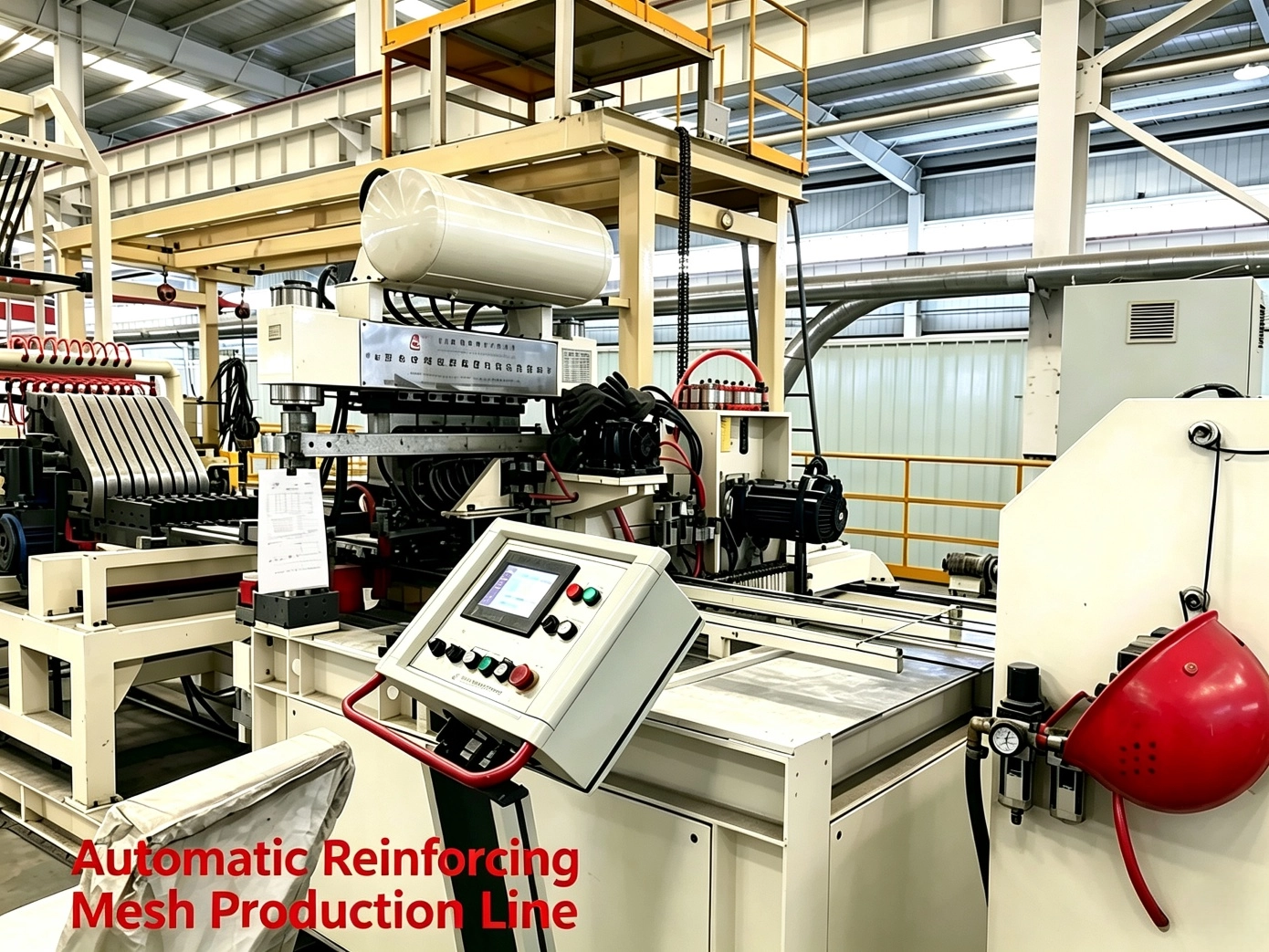

Firstly, the disc steel bars are put onto the welding bracket of the warp and weft bar full coil mesh welding machine for automatic welding of the mesh. After the welding is completed, the finished mesh is placed in storage and needs to be welded into a mesh cage with a suspension welder when producing exterior wall panels.
The mesh or cage is assembled with the assembly frame and steel fiber, and after the assembly is completed, it is transported to the anticorrosive vehicle for overall anticorrosion to ensure that all surfaces of the cage are soaked with anticorrosive agent. Then the cage is lifted and sent to the cage drying box for drying, and after drying, the cage is sent to the brazing truck for use.

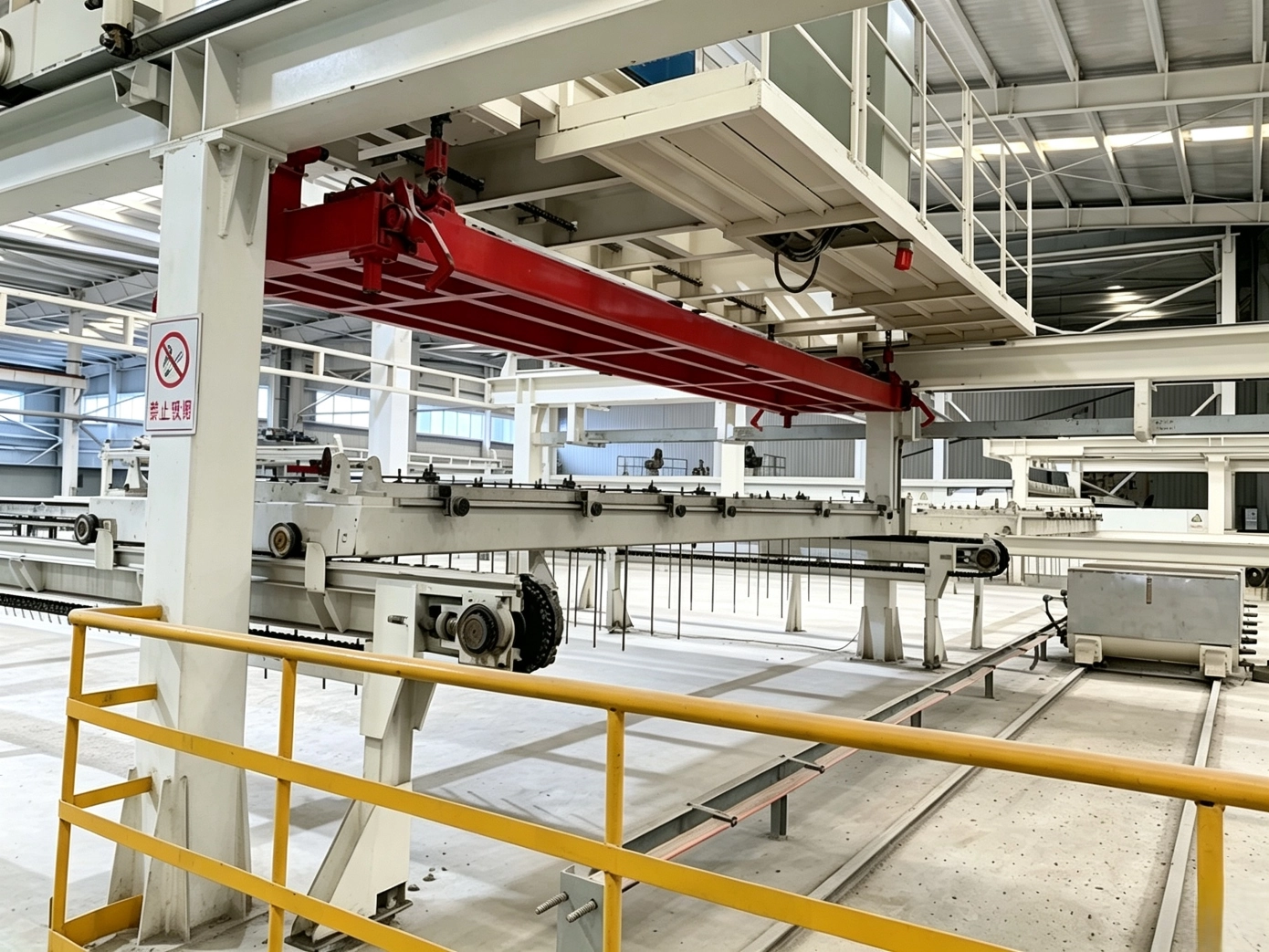

The pin pulling & inserting crane adopts a diamond frame for lifting guide of spreader, delivering high positioning accuracy. Travelling motion is guided by guide wheels to ensure precise travelling position. The machine is mainly used for inserting and pulling pins of reinforcement cage frames matching 6×1.2×0.6m mould boxes. It also supports integral wax dipping of steel pins, overall anti-corrosion treatment of reinforcement cages, and other handling tasks of cage frames along the production line.
The plate chain conveyor is a general-purpose equipment widely applied for finished product handling on various slab production lines. Adopting plate chain conveying mode, the machine can realize strap threading and bundling operations during material transportation. The equipment mainly consists of a frame, a conveying chain system and a reduction gearbox. In operation, the sprocket on the reduction gearbox drives the driving shaft and two running chains. Slab products are placed on chain brackets and conveyed stably, enabling continuous material transportation and convenient online bundling processing.
Firstly, the disc steel bars are put onto the welding bracket of the warp and weft bar full coil mesh welding machine for automatic welding of the mesh. After the welding is completed, the finished mesh is placed in storage and needs to be welded into a mesh cage with a suspension welder when producing exterior wall panels.
The mesh or cage is assembled with the assembly frame and steel fiber, and after the assembly is completed, it is transported to the anticorrosive vehicle for overall anticorrosion to ensure that all surfaces of the cage are soaked with anticorrosive agent. Then the cage is lifted and sent to the cage drying box for drying, and after drying, the cage is sent to the brazing truck for use.
The pin pulling & inserting crane adopts a diamond frame for lifting guide of spreader, delivering high positioning accuracy. Travelling motion is guided by guide wheels to ensure precise travelling position. The machine is mainly used for inserting and pulling pins of reinforcement cage frames matching 6×1.2×0.6m mould boxes. It also supports integral wax dipping of steel pins, overall anti-corrosion treatment of reinforcement cages, and other handling tasks of cage frames along the production line.
The plate chain conveyor is a general-purpose equipment widely applied for finished product handling on various slab production lines. Adopting plate chain conveying mode, the machine can realize strap threading and bundling operations during material transportation. The equipment mainly consists of a frame, a conveying chain system and a reduction gearbox. In operation, the sprocket on the reduction gearbox drives the driving shaft and two running chains. Slab products are placed on chain brackets and conveyed stably, enabling continuous material transportation and convenient online bundling processing.
High-Pressure Steam Curing Section
After semi-finished products are fed into the autoclave, the door is steam-sealed to start curing, which includes vacuum...
Package With Pallets Section
Cured blocks are delivered to the autoclave outlet line by ferry cart, then moved to depalletizing cranes. The cranes se...
Grouping Section
The steaming trolley is delivered to the grouping spreader for loading semi-finished green bodies. Cutting waste is conv...
