Demonstration of Production Line Sections

COMPLETE PROCESS FLOW

Package With Pallets Section

Finger Cart (pull out from autoclave)

Finished-Product Clamp

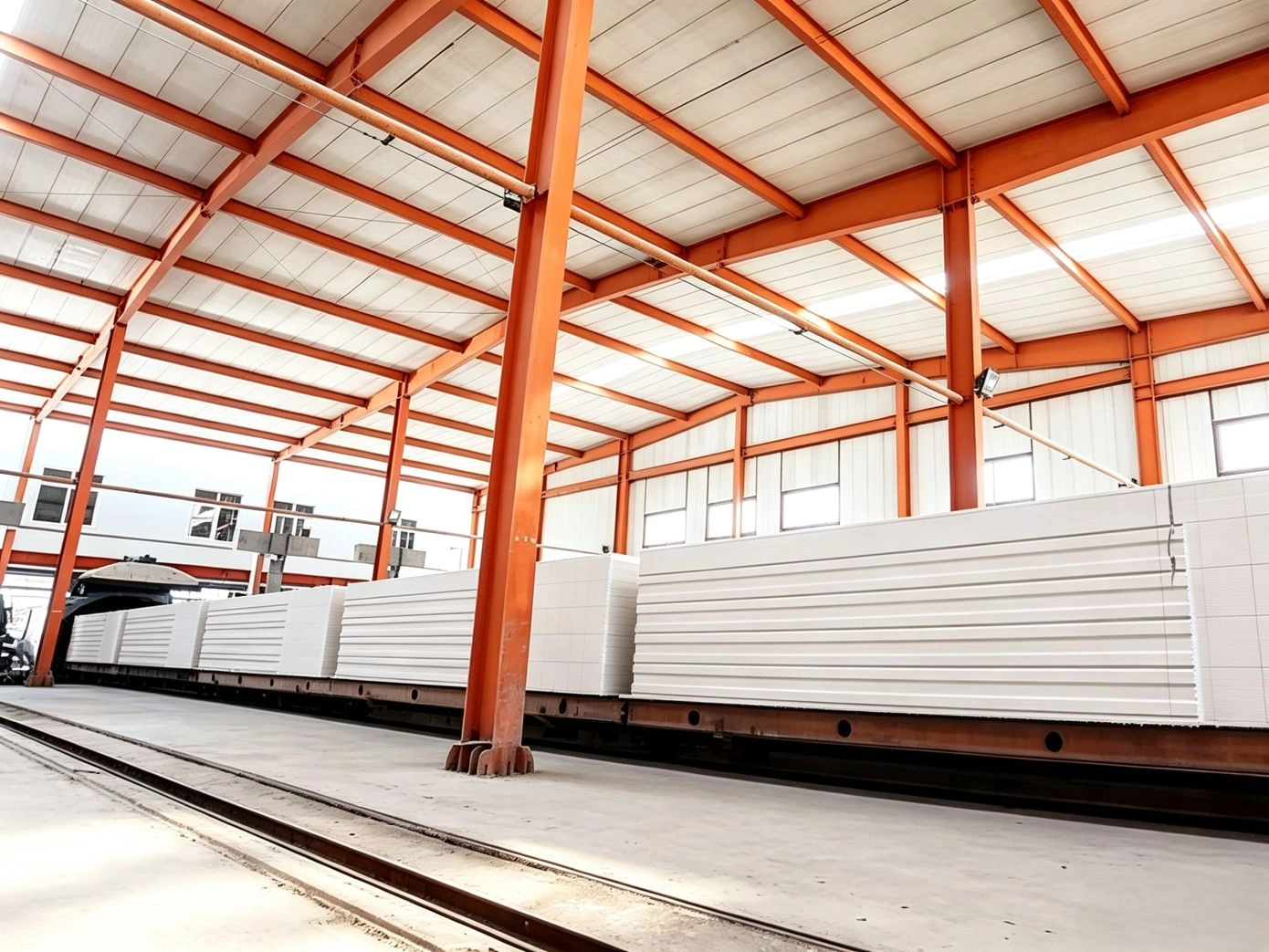

Finished Products Unloading from Autoclave

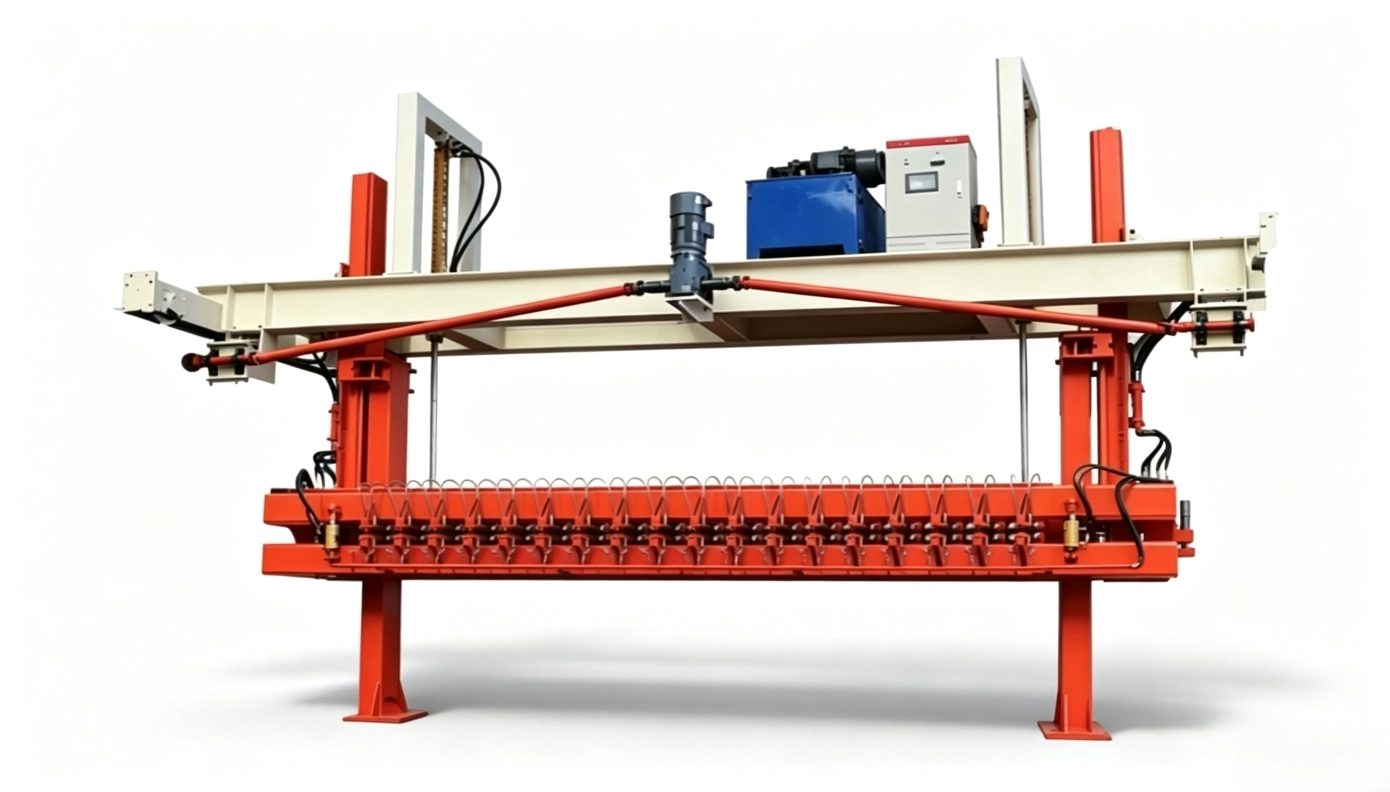

Panel Separator

Equipment advantages

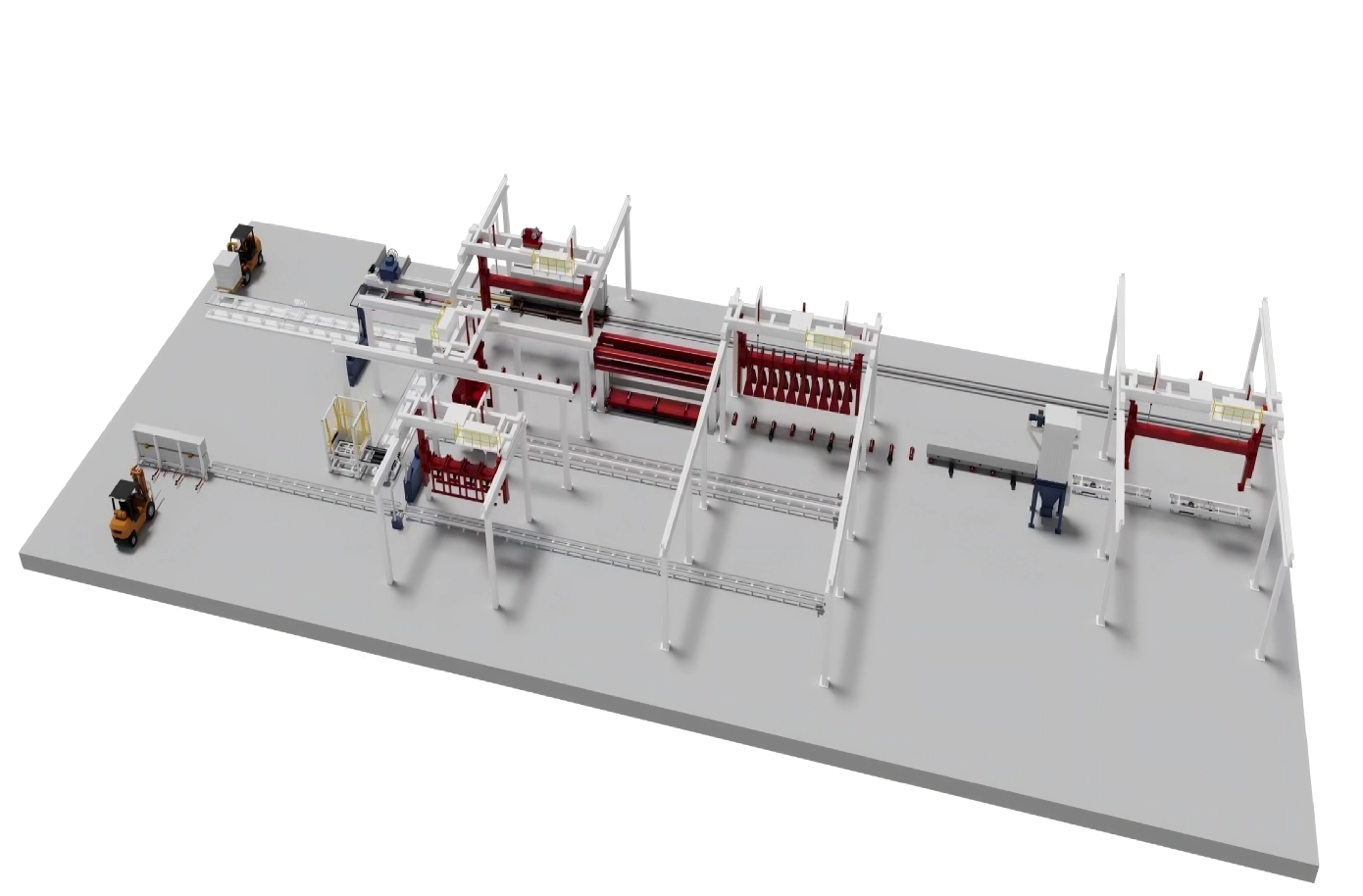

Package with pallets section

The green blocks after curing are conveyed to autoclave discharge line by ferry cart.and then transport to depalletizing cranes by outautoclave tractor and friction wheel.The depalletizing cranes convey the blocks and pallets to the pallet return track, the blocks send to separating machine through the pallet return track to separate from top to bottom.the separated blocks are conveyed to products clamping machine through pallet return track,The products clamping machine classify and carry the blocks and plates.classified blocks are transferred to the rotating crane by the double row chain for packing. The packaged product is transported to the finished product yard by forklift truck.At the same time, the plate are transported to the plate conveying line,classified and stacked by sorting crane.and then pack the classified and stacked products, packaged products are transported to plate online turning machine to turn 90 degrees and transported by forklift truck to the finished product warehouse for vertical storage.The steaminfg cart returns to grouing position in the front of autoclave by traction device.

Package With Pallets Section

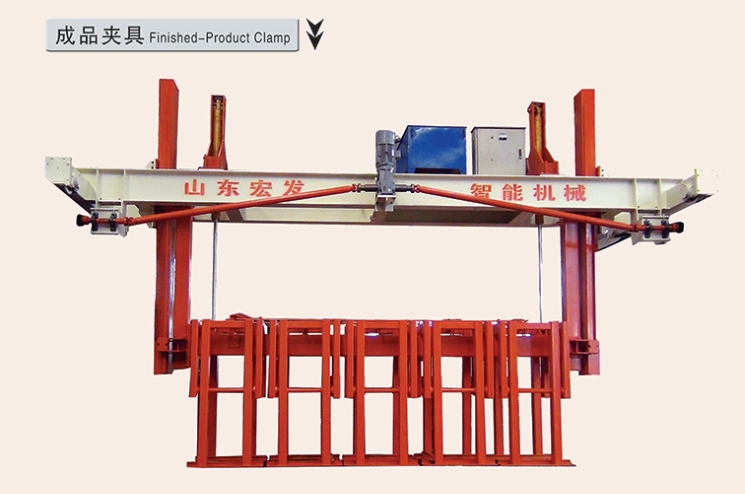

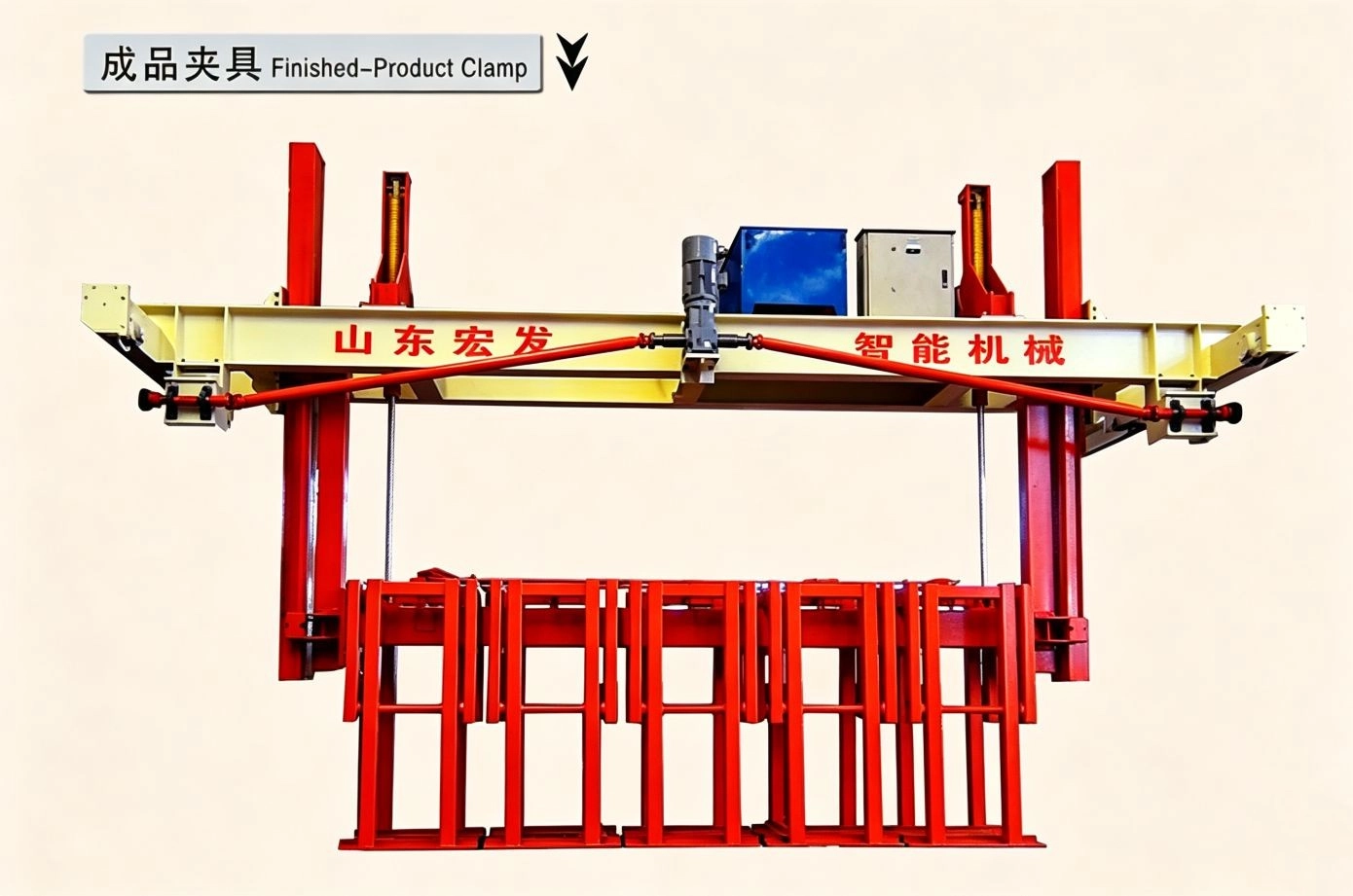

Functions of Finished-Product Clamp

The finished-product clamp is used to grab aerated concrete finished products after autoclave curing. It integrally clamps blocks or panels on the steaming trolley, lifts and separates finished products from the trolley, and transports them to sorting and stacking areas. Featuring stable clamping performance to prevent product damage, it enables empty steaming trolleys to circulate back. It realizes automatic unloading of finished products and improves the automation degree of the production line.

Finished-Product Clamp

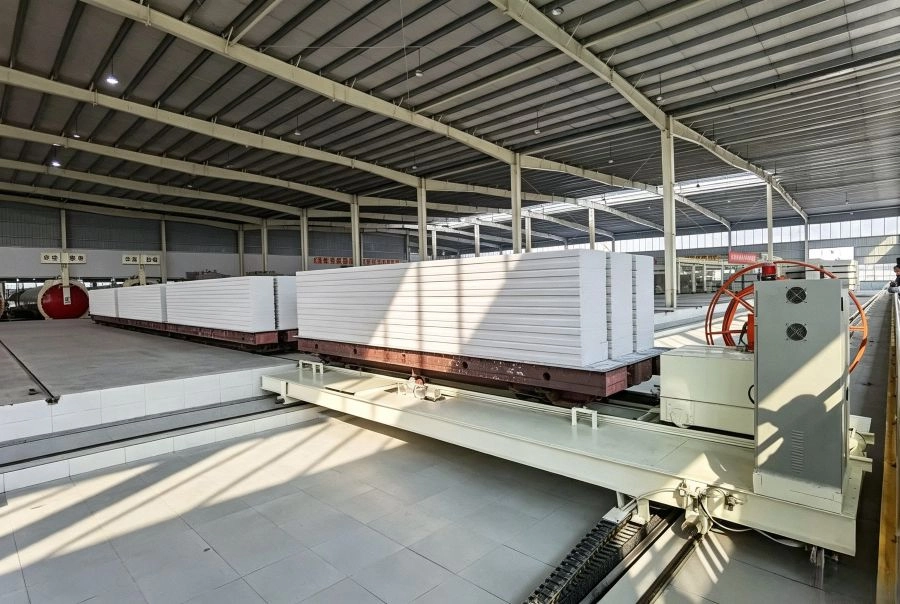

Functions of Finger Cart (pull out from autoclave)

After finishing steaming of aac blocks, the finished aac blocks with steaming cart will be automaticlly dragged out from autoclave, and ferry to the return rail, it can realize multi-rail automatic positioning.

Finger Cart (pull out from autoclave)
