Demonstration of Production Line Sections

COMPLETE PROCESS FLOW

Cutting Section

Plate Cutting Machine

Turnover Demoulding Spreader

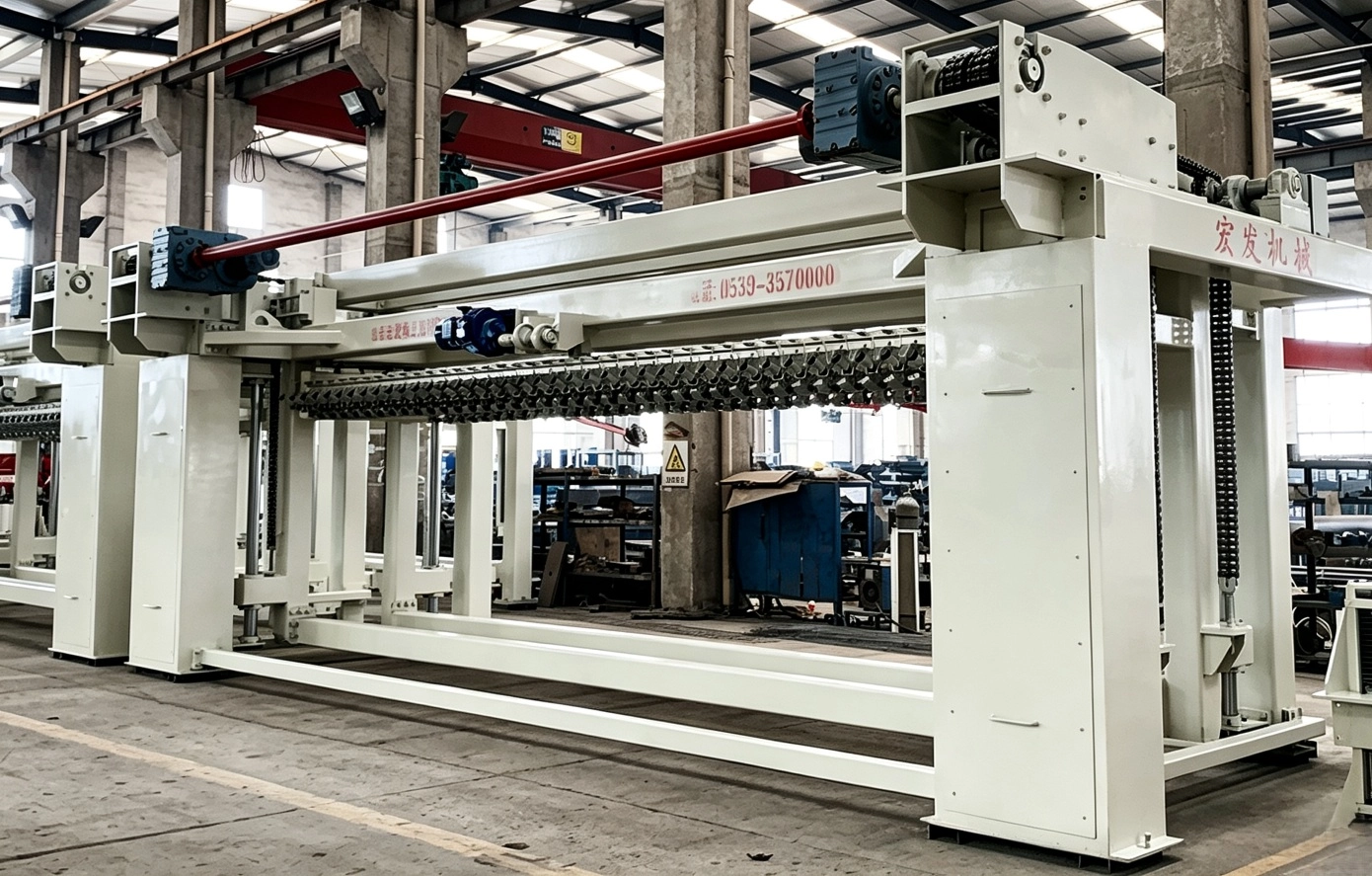

Horizontal Cutter

Equipment advantages

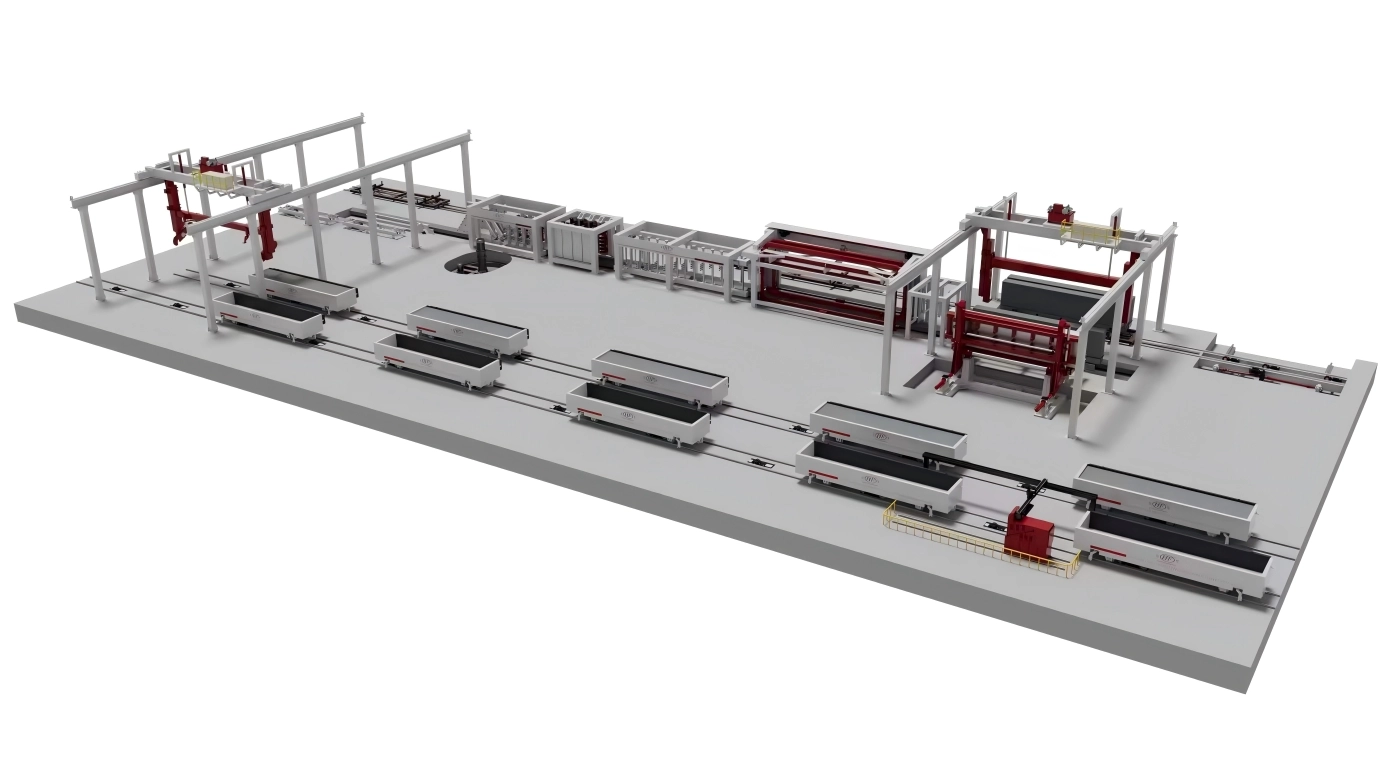

Cutting section

The tilting spreader turns the mold box 90 degrees and puts it on the first cutting trolley. The overturning spreader reassembles the demolded box with the side panels and then lifts it to the return track of the box to be oiled for the next round of pouring.

The first cutting trolley of the cutting machine carries the embryo and then cuts it horizontally according to the set thickness. Then the first cutting trolley continues to travel to the vertical cutting device, the chain lifting device lifts the embryo body together with the side plate at the same time, and the vertical cutting machine makes a round trip movement for cutting. The first trolley returns to the starting position to carry new blanks, and the second trolley takes the place of the first trolley to transport the blanks to the bottom of the grouping spreader. The grouping spreader lifts and transports the blanks to the de-skinning turning table, which turns the blanks 90 degrees and clears the bottom and top of the scrap.

Cutting Section

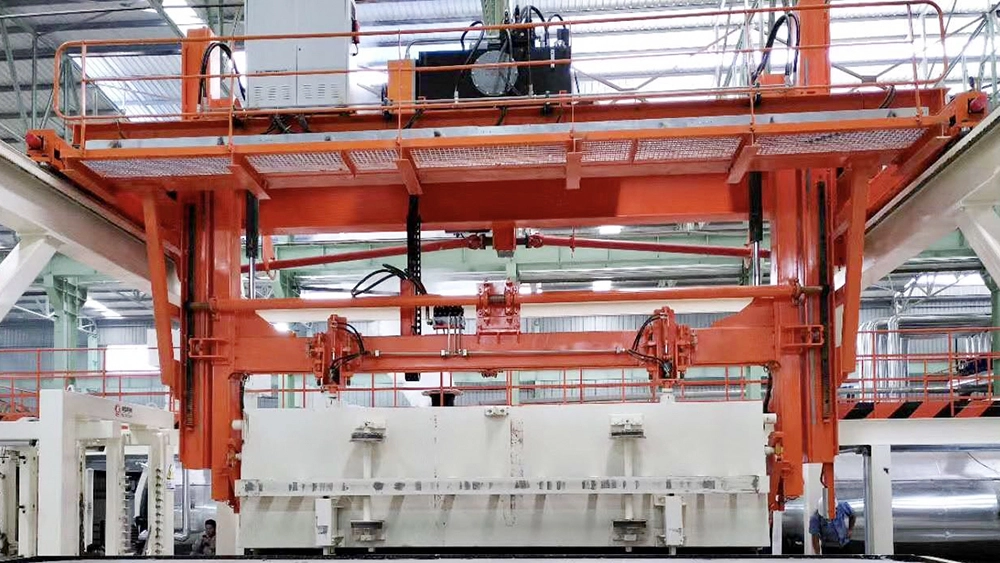

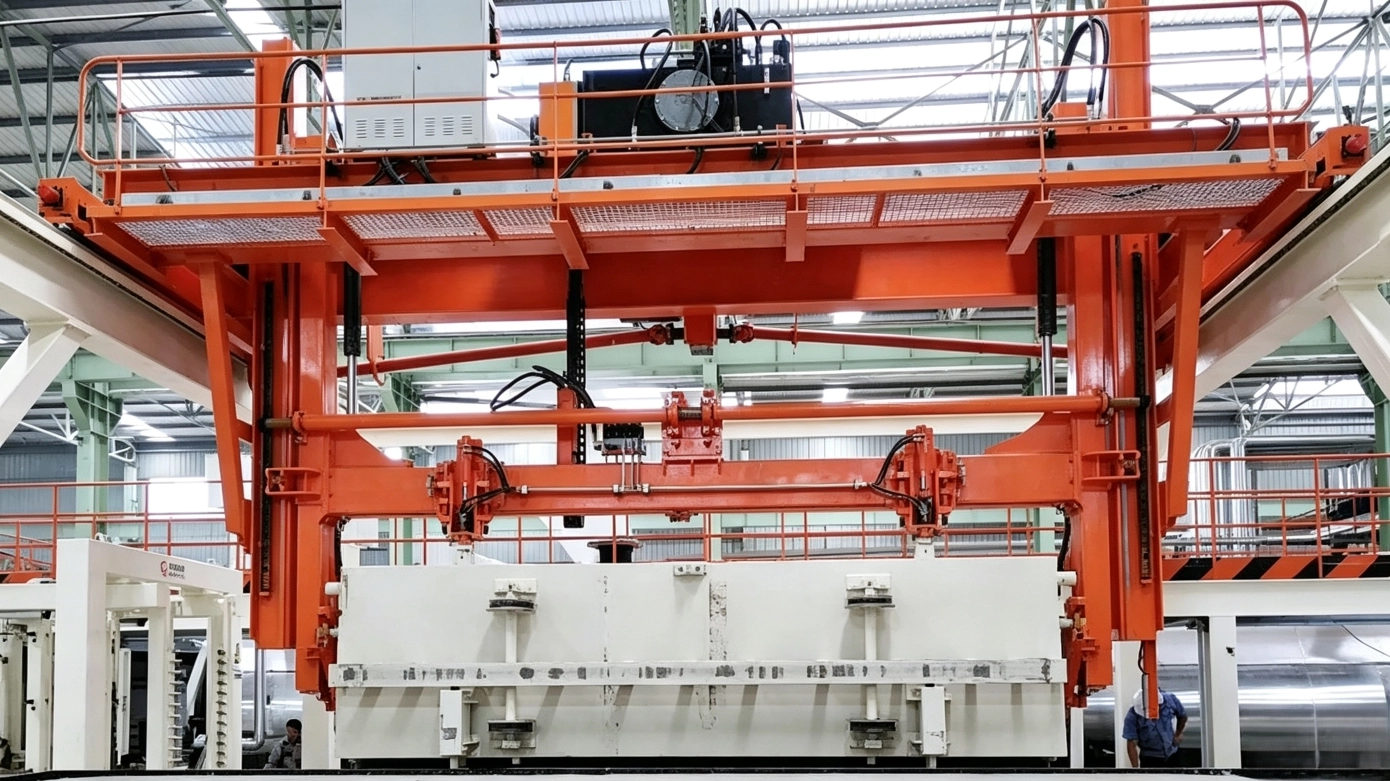

Functions of Turnover Demoulding Spreader

The turnover demoulding spreader is used for demoulding in aerated concrete production. It clamps the mould box with green body and realizes integral turnover to separate the green body from the mould. The green body is then conveyed to the cutting section, while the empty mould circulates back to the pouring station. It operates smoothly during turnover to avoid collision and damage to green bodies and ensures continuous production.

Turnover Demoulding Spreader

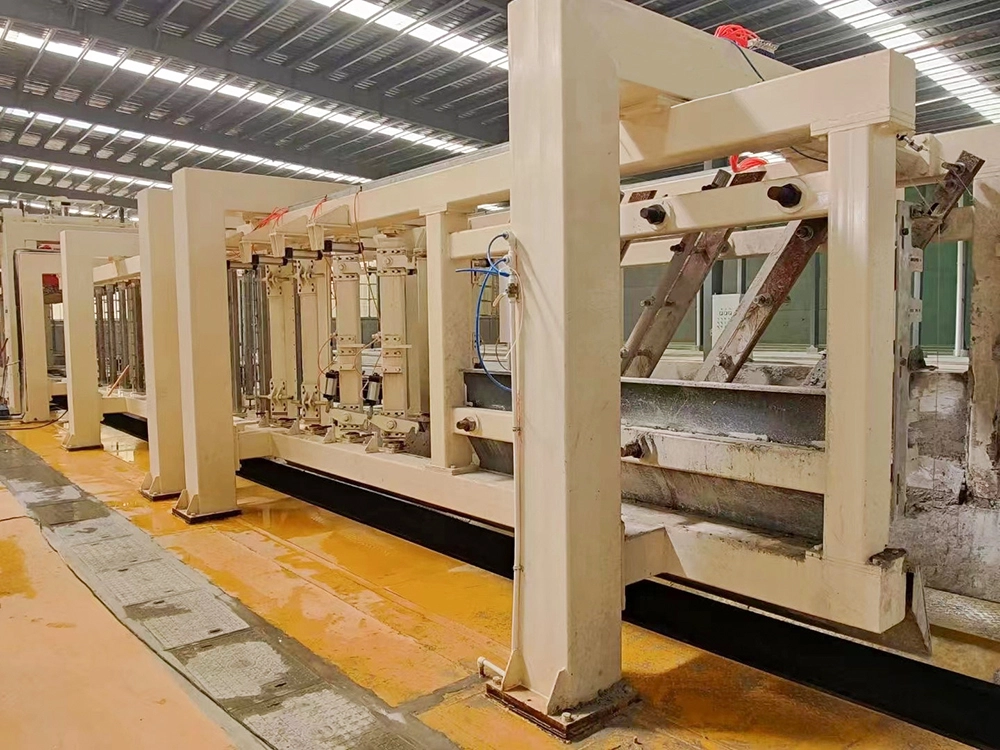

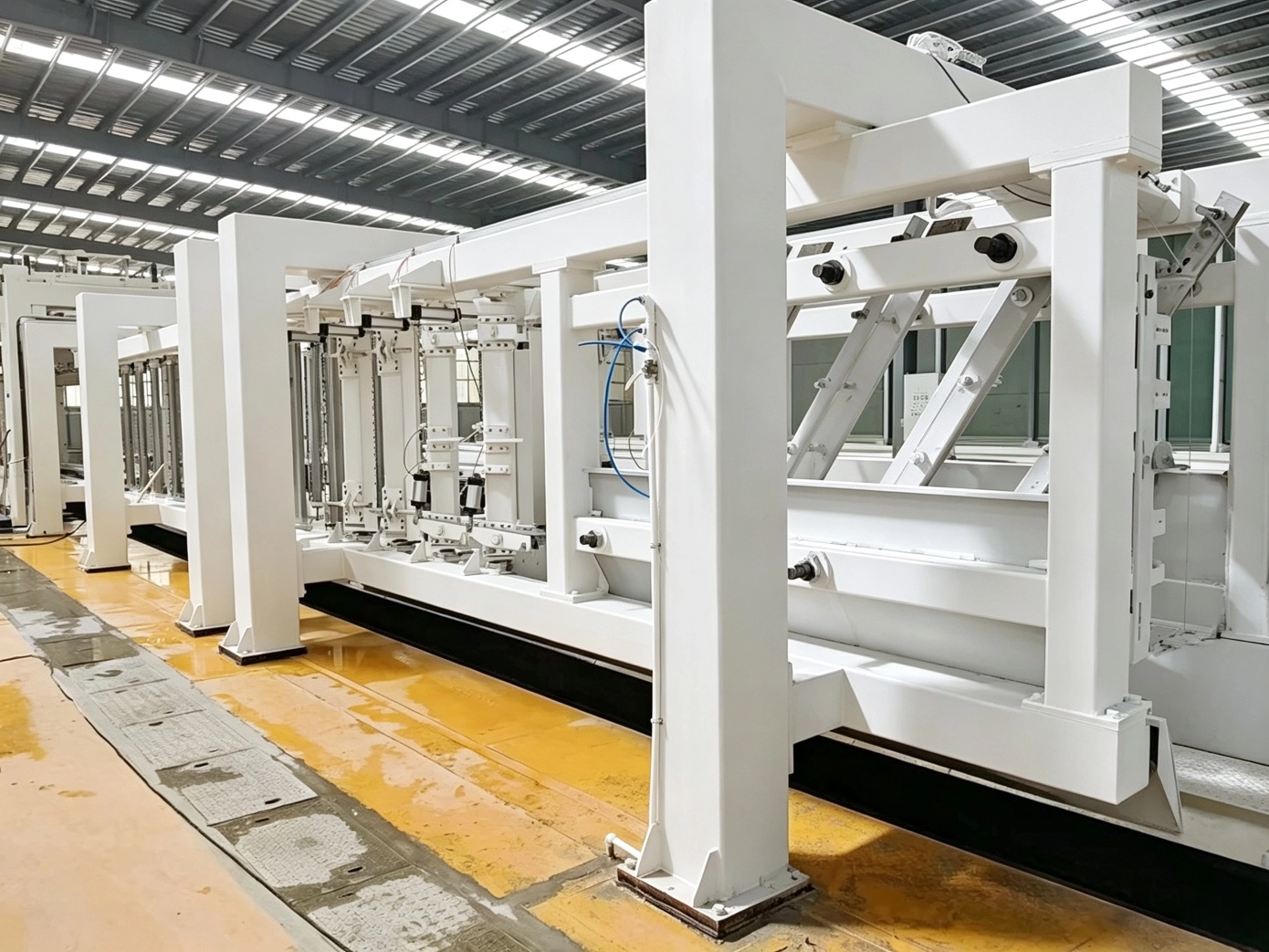

Working Principle of Plate Cutting Machine

The tilting hanger turns the mould 90 degrees in the air, demoulds the blank and puts it on the cutting table together with the side plate. The blank on the cutting table is cut by the longitudinal cutting device through the motor and its own running. After completion and running at the pause position, the blank is cut horizontally by the cross cutting device when it is driven by the motor to the center of the blank. The cross cutting holder drops and cuts vertically from up to down until it is reset upward.

Plate Cutting Machine
