1. Mechatronic‑hydraulic Integrated System for Stable Operation in Harsh High‑dust Workshop Conditions

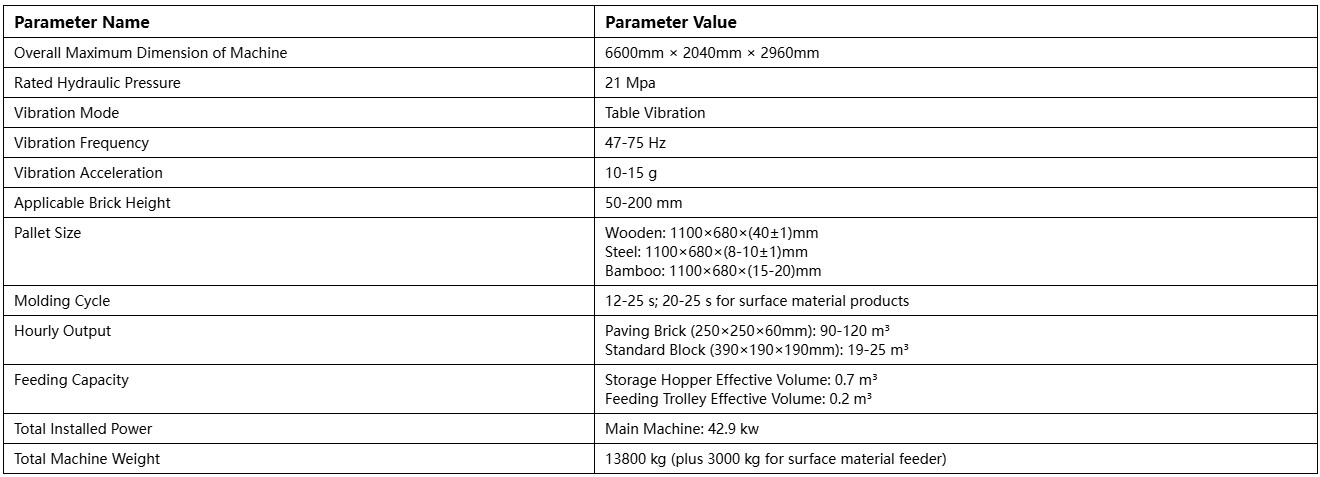

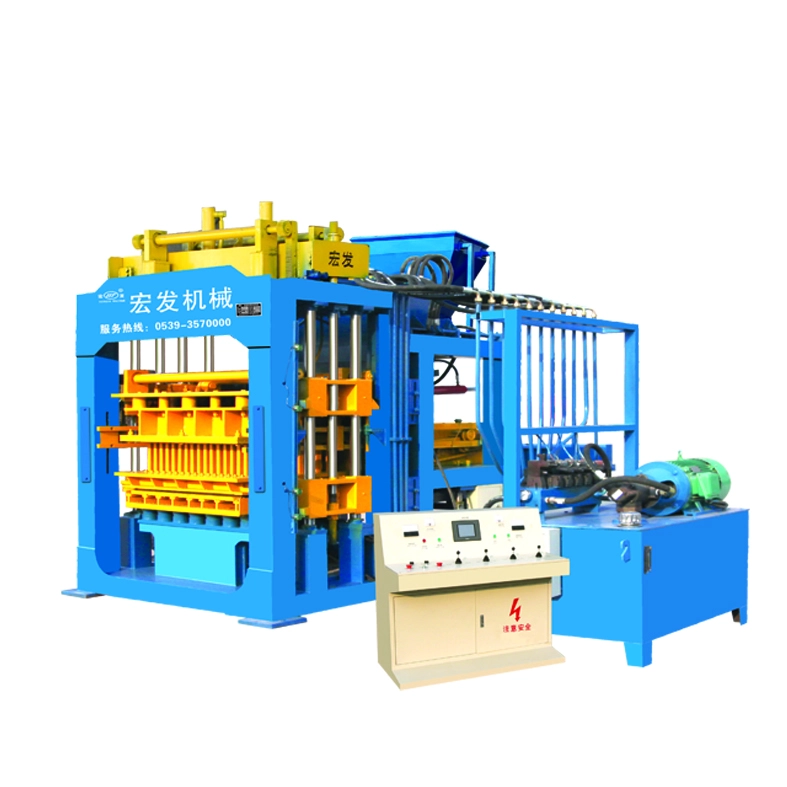

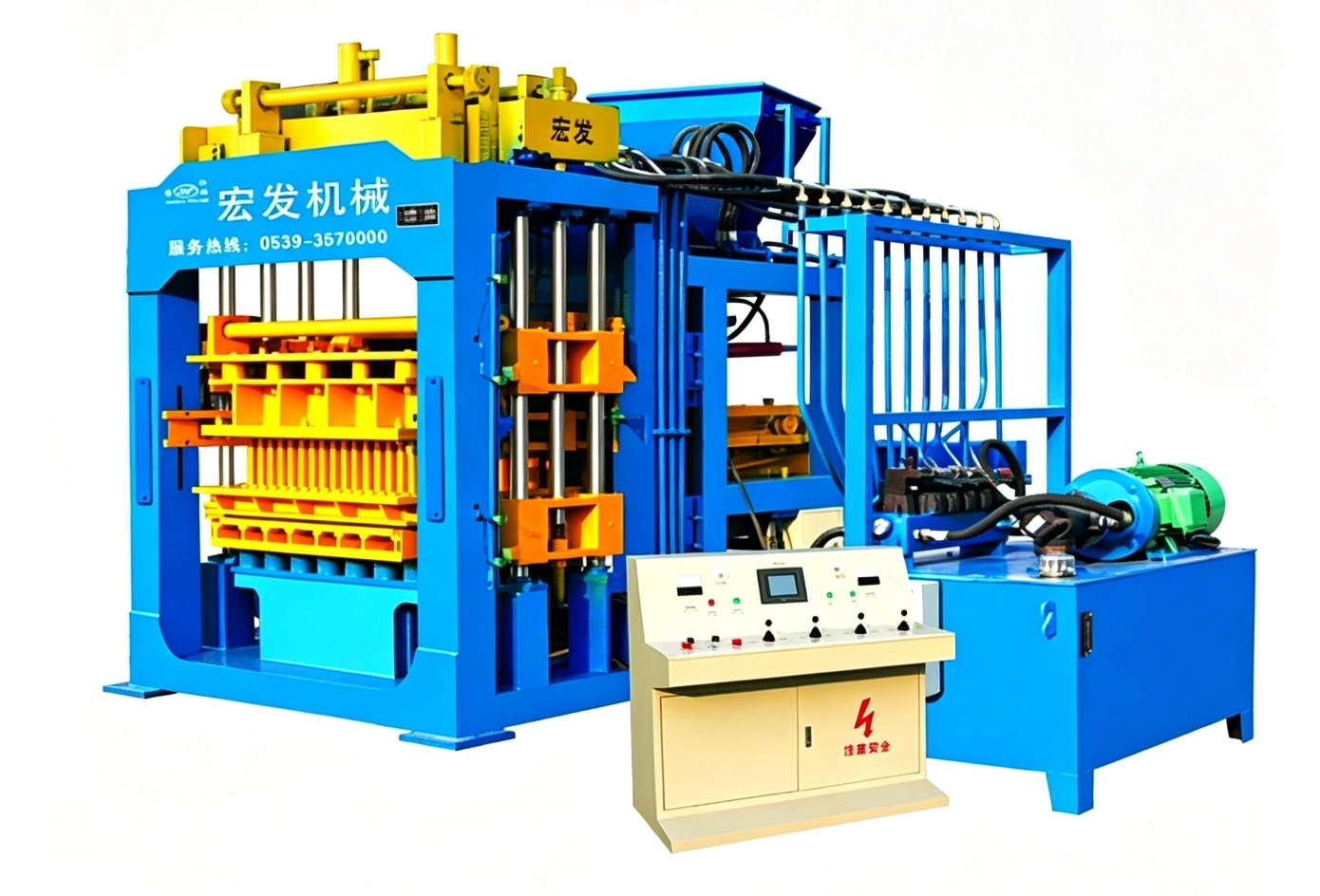

Equipped with a 21 MPa independent integrated hydraulic station and table‑vibration system with adjustable vibration frequency of 47‑75 Hz, the unit generates powerful compaction force to manufacture high‑density blocks with compressive strength above 15 MPa. The hydraulic station is physically separated from the vibrating main host, which effectively prevents corrosion and component damage caused by long‑term dust exposure and vibration interference, ensuring reliable continuous operation under harsh, dusty African factory environments.

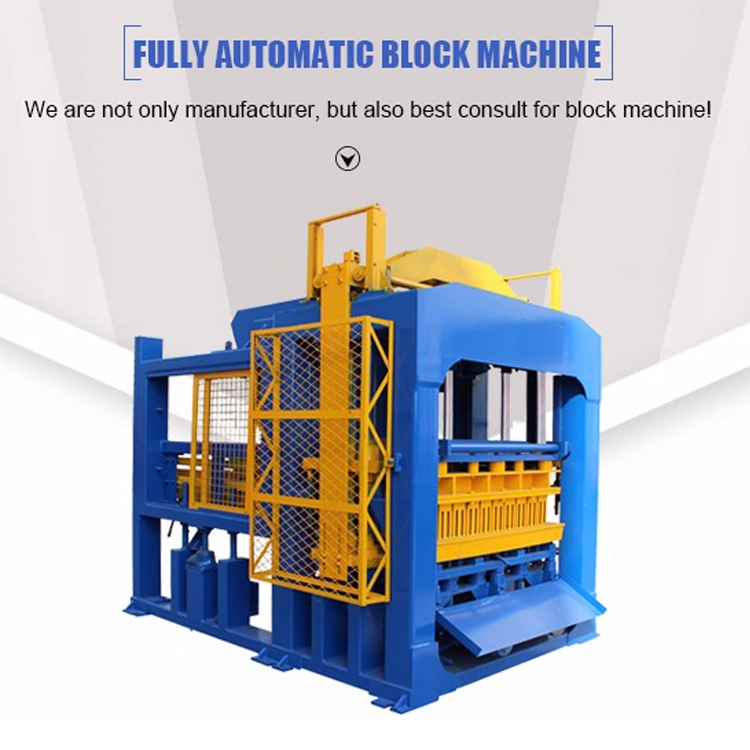

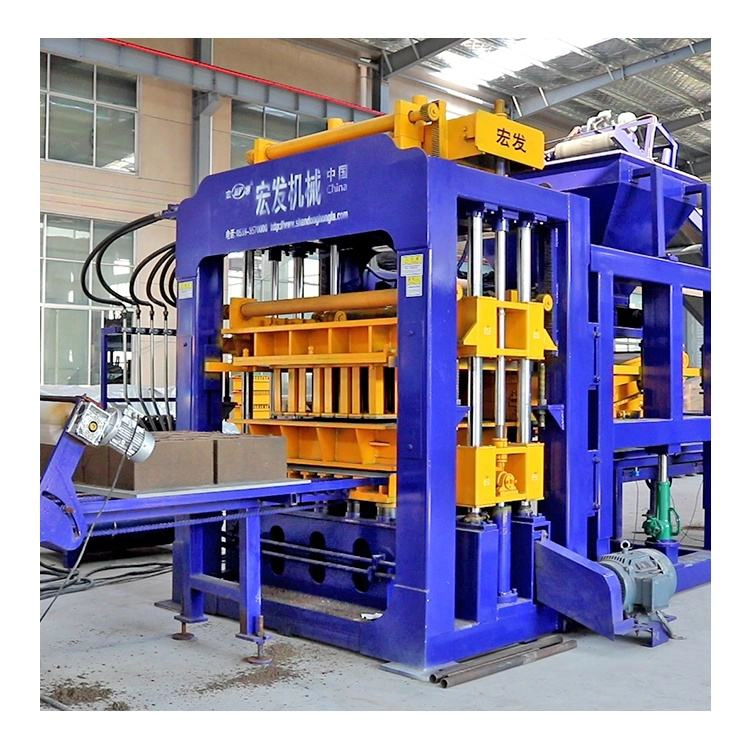

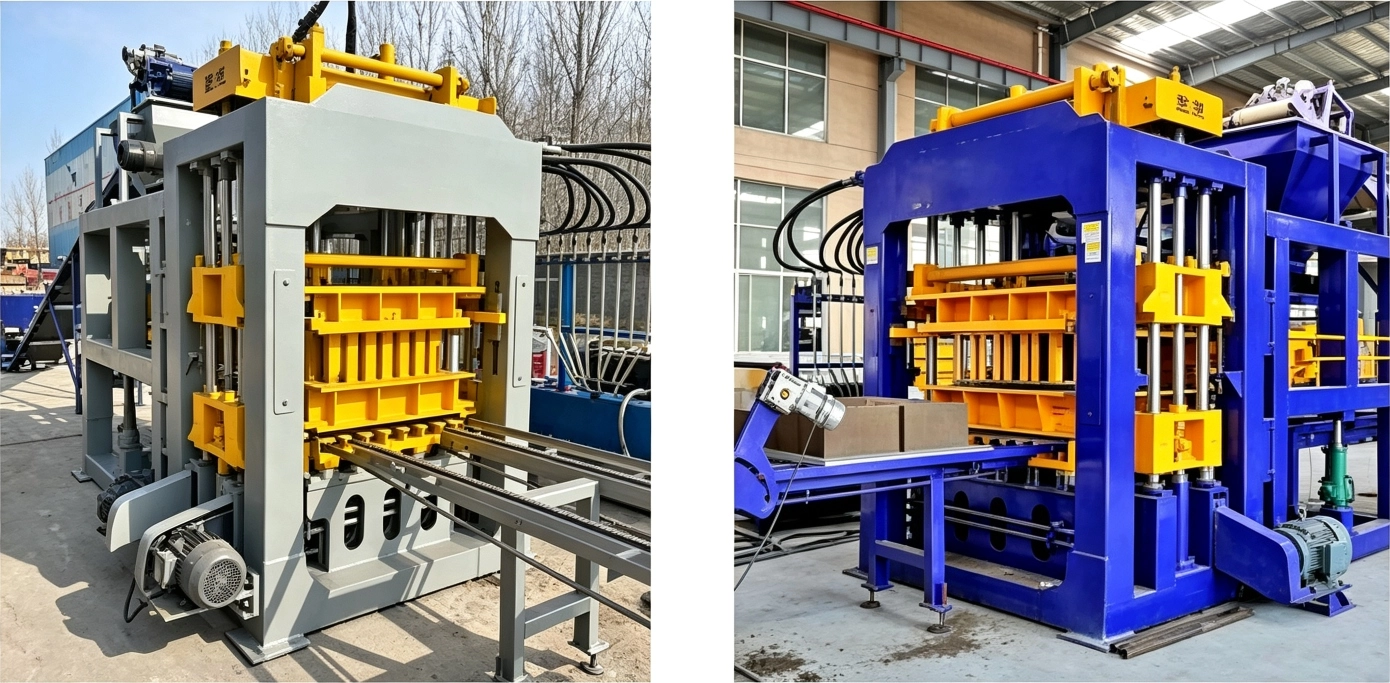

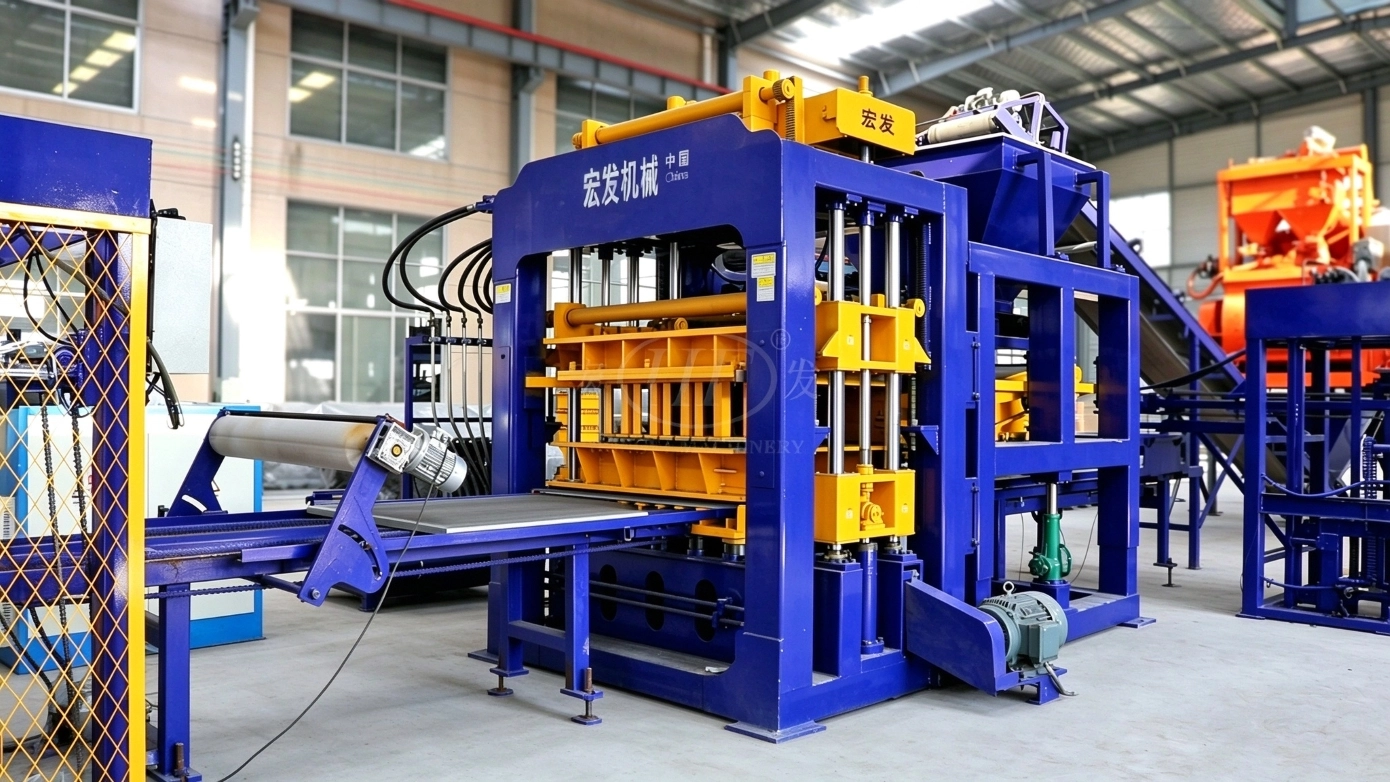

It features a four‑column vertical guide framework plus three‑layer composite rubber shock‑absorbing buffers. This design guarantees balanced mold lifting and uniform brick thickness without uneven‑compression defects. Core hydraulic assemblies, wearing parts and electrical fittings adopt reputable domestic and imported brand components, helping lower daily failure rates and subsequent maintenance expenses for brick‑plant operators.
2. Broad Raw‑material Compatibility & Eco‑friendly Non‑firing Production

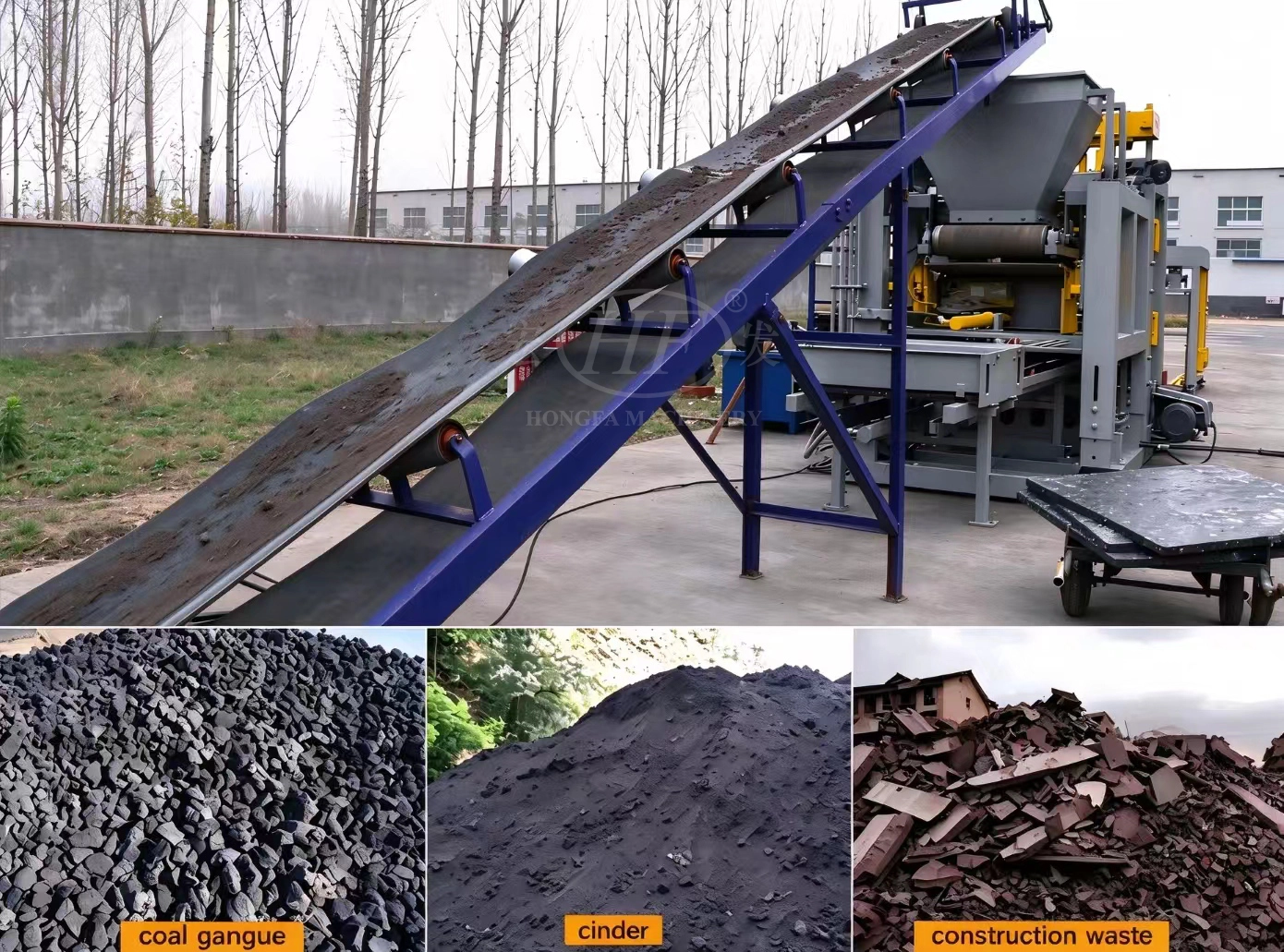

Production does not rely on expensive high‑grade pure cement. Locally available river sand, crushed stone, fly ash, industrial slag and construction‑waste aggregates can be blended as main feedstock, with industrial solid‑waste proportion reaching as high as 70 %. This greatly cuts cement procurement expenditure and long‑distance raw‑material transportation costs for African brick‑plant investors.
The whole process applies non‑firing technology; no coal combustion or high‑temperature kilns are required, producing zero harmful flue‑gas emissions. Factories using this machine can easily pass local environmental compliance assessments and gain bidding eligibility for green municipal‑engineering contracts. Complete raw‑material proportion formulas for hollow blocks, standard bricks and colored paving bricks are supplied free‑of‑charge to help customers quickly put their production lines into commercial operation.
3. Dependable Molding Performance to Deliver High‑quality Finished Bricks with Good Output Efficiency

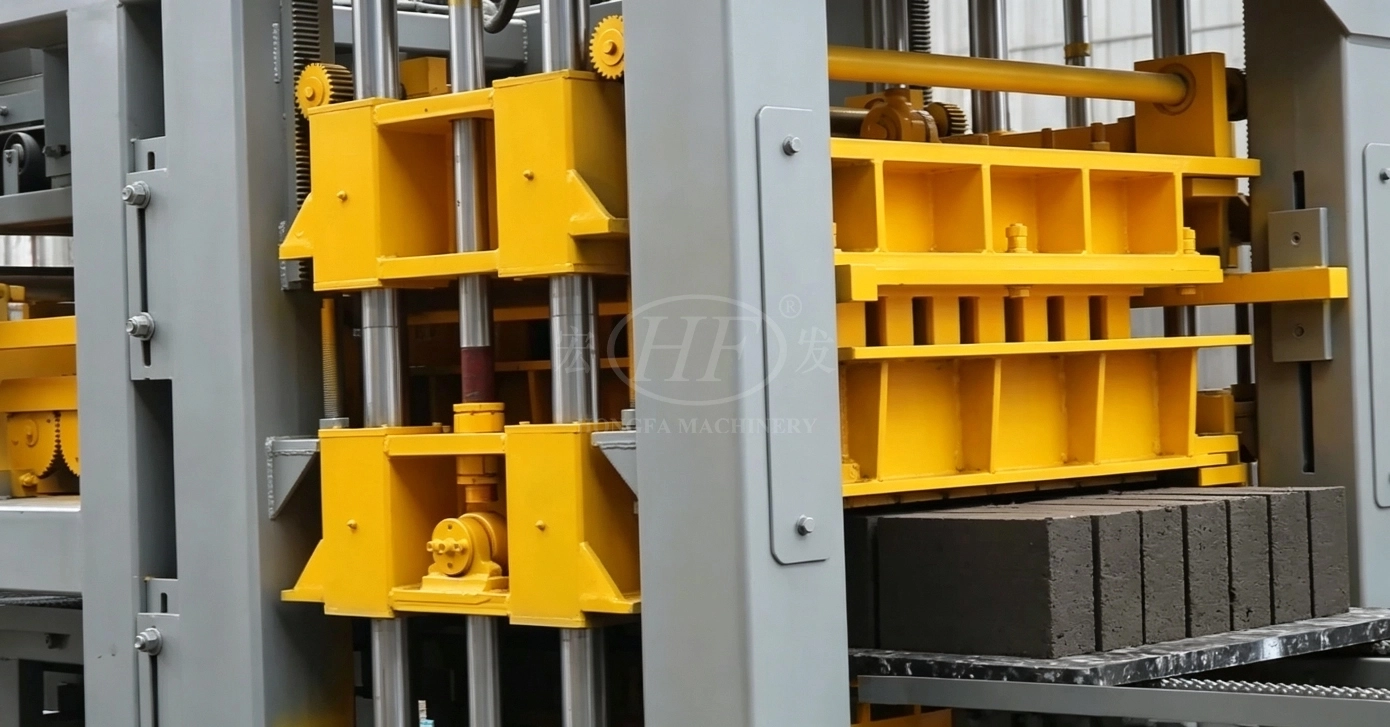

Synchronized pressing‑and‑vibration molding compacts concrete feedstock thoroughly within short forming cycles. Outputs including hollow blocks, solid standard bricks, interlocking pavers, curbstones and slope‑protection bricks feature clean dimensions, dense internal structure, outstanding frost resistance, water impermeability as well as thermal‑insulation properties. Finished goods can be directly supplied to various high‑standard construction projects with no secondary processing needed.

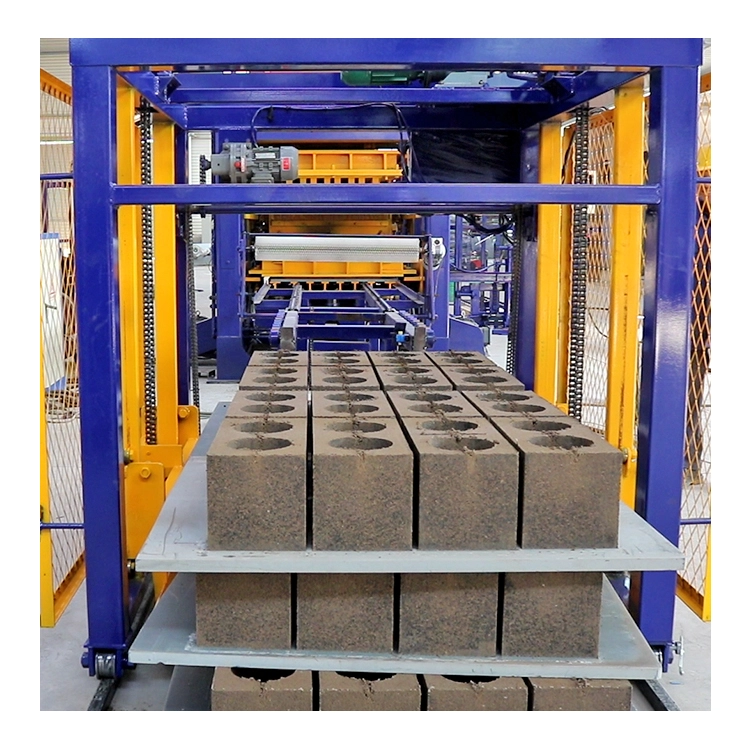

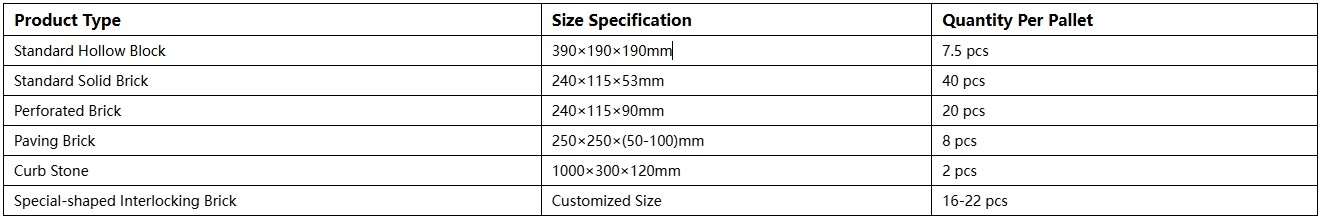

One single forming stroke yields 7 standard hollow blocks or 40 pieces of 240×115×53 mm solid standard bricks. Pavement‑brick hourly output hits 90‑120 cubic meters, which effectively shortens return‑on‑investment cycles for African investors.
4. PLC‑based Intelligent Automatic Workflow to Minimize Manpower Input

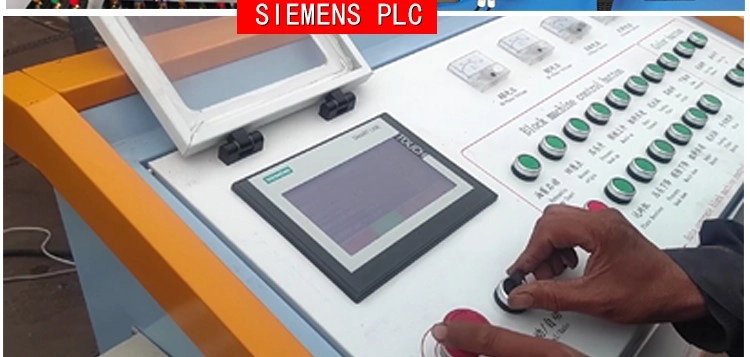

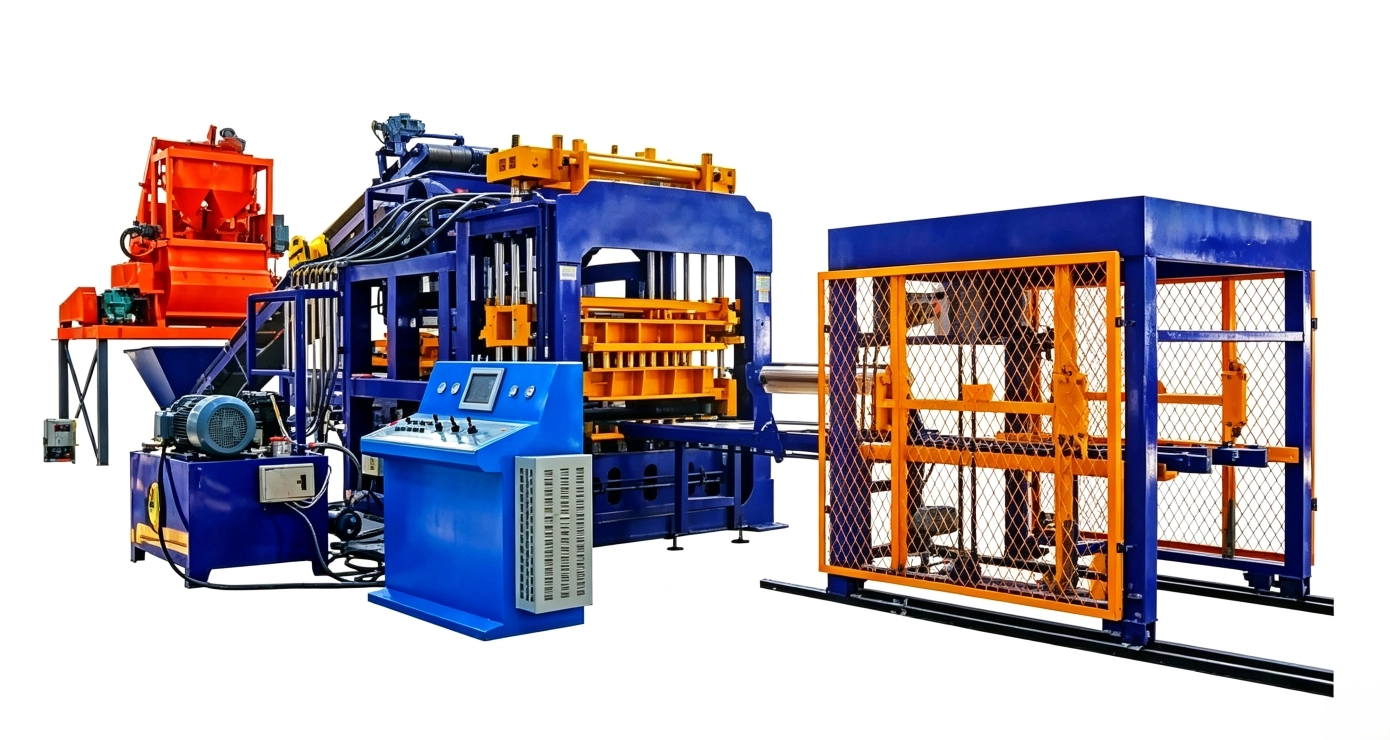

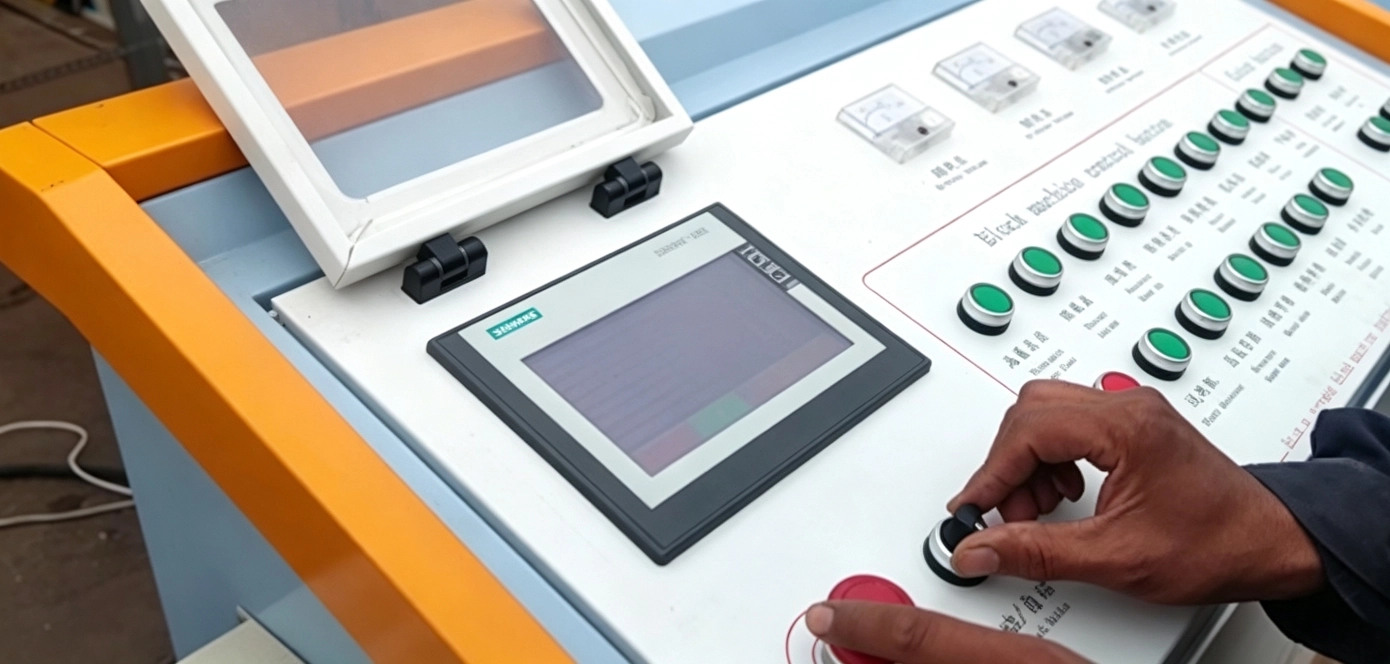

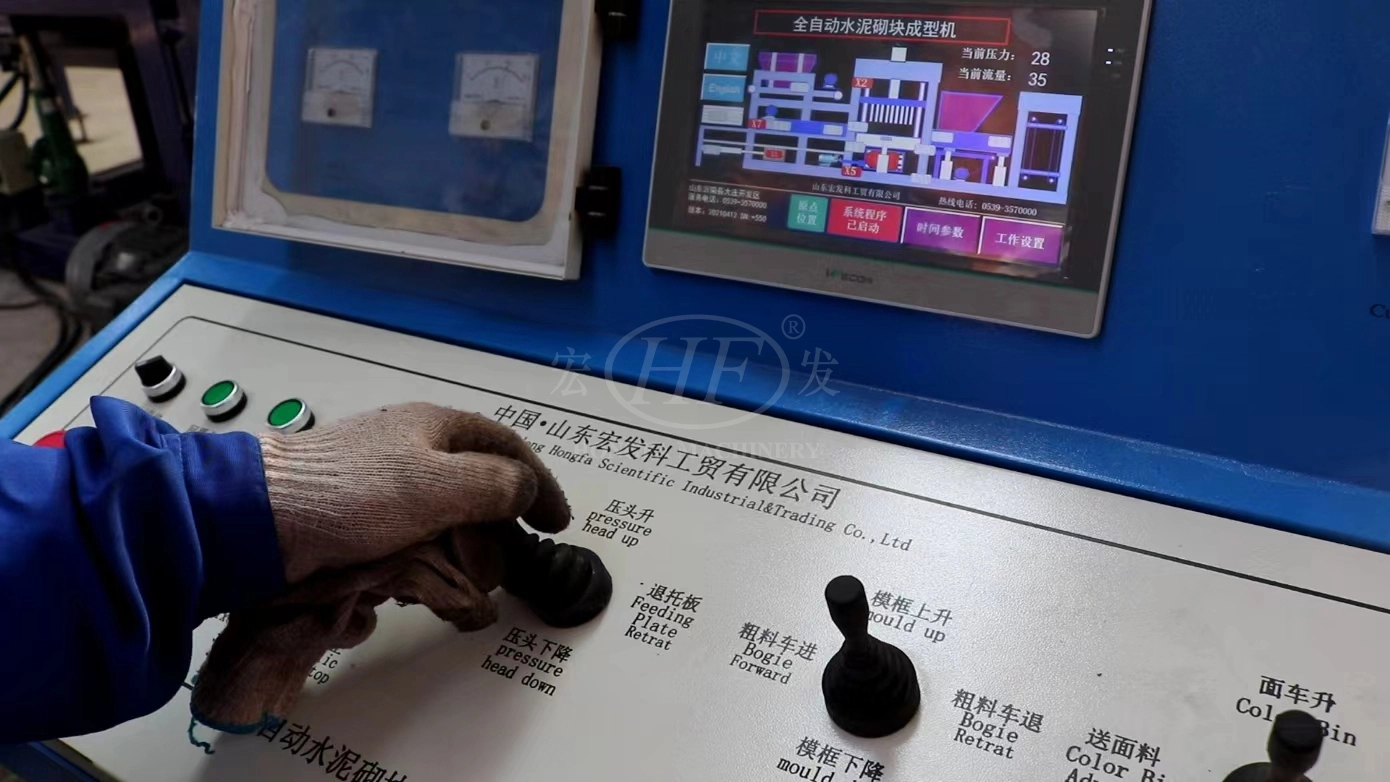

Built‑in industrial PLC controller and intuitive touch‑screen HMI create a user‑friendly human‑machine interface, supporting manual single‑action mode, single‑cycle auto mode and continuous full‑automatic production mode. The complete closed‑loop workflow — pallet feeding, forced material distribution, hydraulic vibration pressing, synchronous demoulding and finished‑brick conveying — runs fully automatically.
Built‑in safety interlock circuits plus intelligent fault self‑diagnosis modules detect anomalies such as pressure deviation, vibration malfunction and pallet misalignment. The system cuts power and hydraulic output in real time to avoid machine‑collision damage. Only 1‑2 auxiliary workers are required for pallet handling and brick collection, significantly lowering labour costs for African plants short of skilled operators. All process parameters including vibration duration and hydraulic pressure can be saved and recalled via one‑tap touch‑screen operation.
5. Quick‑swap Molds for Diversified Orders, Optional Color‑surface Feeding Unit

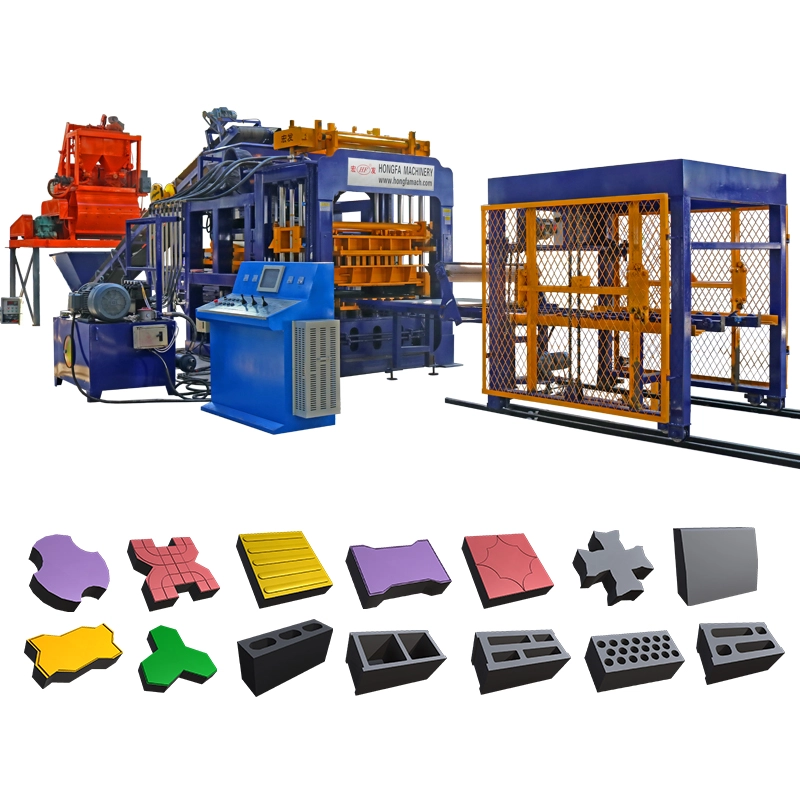

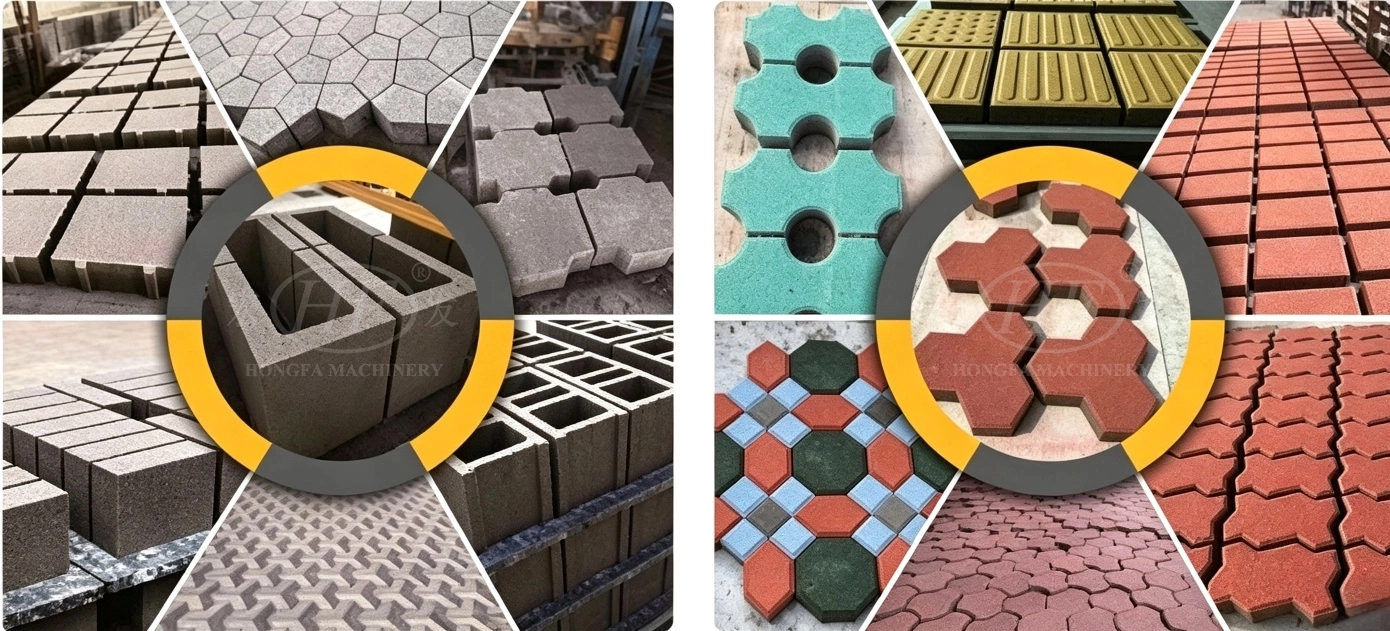

Quick‑change mold structure supports easy switching among different brick types to meet varied market order demands in Kenya, Zambia and surrounding regions. It manufactures standard hollow blocks, eight‑hole perforated bricks, solid standard bricks, interlocking pavers, curbstones, grass‑planting bricks and slope‑protection blocks.
An independent color surface‑feeding unit is available as an option for producing decorative colored paving bricks. Customers expand their product portfolio and lift profit margins without purchasing an extra brick‑making host. The feeding system is fitted with a large 0.7 m³ storage hopper and reciprocating homogenizing spreader to prevent uneven material accumulation and enable stable round‑the‑clock continuous production.
6. Flexible Power Options & Complete After‑sales Technical Support for African Market
An optional diesel power unit is offered for remote rural locations lacking stable industrial grid power, solving widespread frequent‑power‑outage issues in many African villages. Compared with large high‑cost fully‑automatic brick machines, QT8‑15 features a moderate entry‑investment threshold. It strikes an optimal balance between production capacity and affordable purchase cost, suiting both new brick‑plant entrepreneurs and existing‑factory equipment‑upgrade projects.

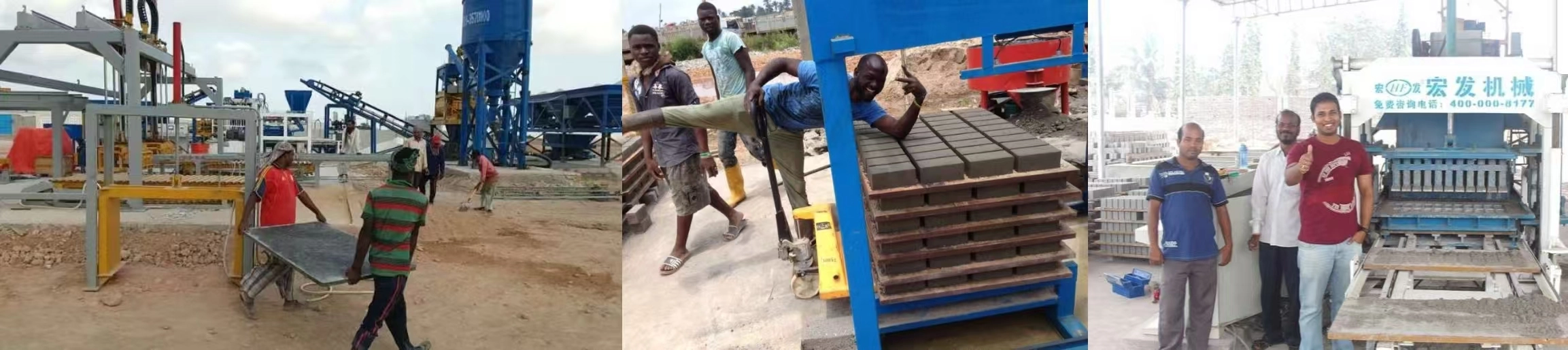

We deliver full‑scope after‑sales services targeted at African buyers: free on‑site worker operational training, one‑year full‑machine warranty covering core components, lifetime cost‑effective spare‑parts supply, plus overseas professional engineer on‑site installation and commissioning. Matching molds, hydraulic seals and wearing consumables can be supplied long‑term at factory prices, removing customers’ concerns over long‑term equipment maintenance.
1. Mechatronic‑hydraulic Integrated System for Stable Operation in Harsh High‑dust Workshop Conditions
Equipped with a 21 MPa independent integrated hydraulic station and table‑vibration system with adjustable vibration frequency of 47‑75 Hz, the unit generates powerful compaction force to manufacture high‑density blocks with compressive strength above 15 MPa. The hydraulic station is physically separated from the vibrating main host, which effectively prevents corrosion and component damage caused by long‑term dust exposure and vibration interference, ensuring reliable continuous operation under harsh, dusty African factory environments.
It features a four‑column vertical guide framework plus three‑layer composite rubber shock‑absorbing buffers. This design guarantees balanced mold lifting and uniform brick thickness without uneven‑compression defects. Core hydraulic assemblies, wearing parts and electrical fittings adopt reputable domestic and imported brand components, helping lower daily failure rates and subsequent maintenance expenses for brick‑plant operators.
2. Broad Raw‑material Compatibility & Eco‑friendly Non‑firing Production
Production does not rely on expensive high‑grade pure cement. Locally available river sand, crushed stone, fly ash, industrial slag and construction‑waste aggregates can be blended as main feedstock, with industrial solid‑waste proportion reaching as high as 70 %. This greatly cuts cement procurement expenditure and long‑distance raw‑material transportation costs for African brick‑plant investors.
The whole process applies non‑firing technology; no coal combustion or high‑temperature kilns are required, producing zero harmful flue‑gas emissions. Factories using this machine can easily pass local environmental compliance assessments and gain bidding eligibility for green municipal‑engineering contracts. Complete raw‑material proportion formulas for hollow blocks, standard bricks and colored paving bricks are supplied free‑of‑charge to help customers quickly put their production lines into commercial operation.
3. Dependable Molding Performance to Deliver High‑quality Finished Bricks with Good Output Efficiency
Synchronized pressing‑and‑vibration molding compacts concrete feedstock thoroughly within short forming cycles. Outputs including hollow blocks, solid standard bricks, interlocking pavers, curbstones and slope‑protection bricks feature clean dimensions, dense internal structure, outstanding frost resistance, water impermeability as well as thermal‑insulation properties. Finished goods can be directly supplied to various high‑standard construction projects with no secondary processing needed.
One single forming stroke yields 7 standard hollow blocks or 40 pieces of 240×115×53 mm solid standard bricks. Pavement‑brick hourly output hits 90‑120 cubic meters, which effectively shortens return‑on‑investment cycles for African investors.
4. PLC‑based Intelligent Automatic Workflow to Minimize Manpower Input
Built‑in industrial PLC controller and intuitive touch‑screen HMI create a user‑friendly human‑machine interface, supporting manual single‑action mode, single‑cycle auto mode and continuous full‑automatic production mode. The complete closed‑loop workflow — pallet feeding, forced material distribution, hydraulic vibration pressing, synchronous demoulding and finished‑brick conveying — runs fully automatically.
Built‑in safety interlock circuits plus intelligent fault self‑diagnosis modules detect anomalies such as pressure deviation, vibration malfunction and pallet misalignment. The system cuts power and hydraulic output in real time to avoid machine‑collision damage. Only 1‑2 auxiliary workers are required for pallet handling and brick collection, significantly lowering labour costs for African plants short of skilled operators. All process parameters including vibration duration and hydraulic pressure can be saved and recalled via one‑tap touch‑screen operation.
5. Quick‑swap Molds for Diversified Orders, Optional Color‑surface Feeding Unit
Quick‑change mold structure supports easy switching among different brick types to meet varied market order demands in Kenya, Zambia and surrounding regions. It manufactures standard hollow blocks, eight‑hole perforated bricks, solid standard bricks, interlocking pavers, curbstones, grass‑planting bricks and slope‑protection blocks.
An independent color surface‑feeding unit is available as an option for producing decorative colored paving bricks. Customers expand their product portfolio and lift profit margins without purchasing an extra brick‑making host. The feeding system is fitted with a large 0.7 m³ storage hopper and reciprocating homogenizing spreader to prevent uneven material accumulation and enable stable round‑the‑clock continuous production.
6. Flexible Power Options & Complete After‑sales Technical Support for African Market
An optional diesel power unit is offered for remote rural locations lacking stable industrial grid power, solving widespread frequent‑power‑outage issues in many African villages. Compared with large high‑cost fully‑automatic brick machines, QT8‑15 features a moderate entry‑investment threshold. It strikes an optimal balance between production capacity and affordable purchase cost, suiting both new brick‑plant entrepreneurs and existing‑factory equipment‑upgrade projects.
We deliver full‑scope after‑sales services targeted at African buyers: free on‑site worker operational training, one‑year full‑machine warranty covering core components, lifetime cost‑effective spare‑parts supply, plus overseas professional engineer on‑site installation and commissioning. Matching molds, hydraulic seals and wearing consumables can be supplied long‑term at factory prices, removing customers’ concerns over long‑term equipment maintenance.
