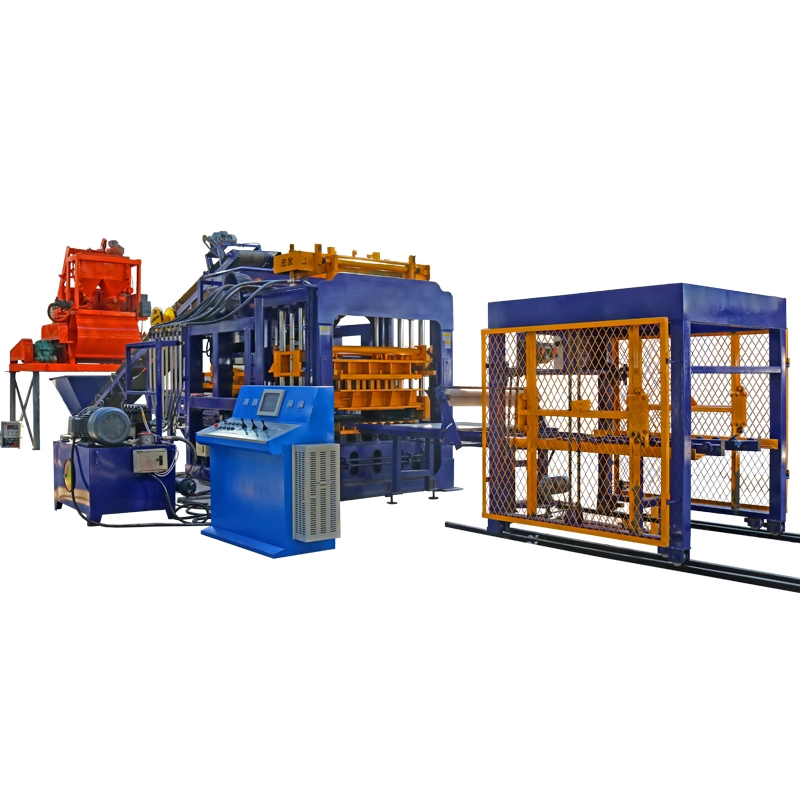

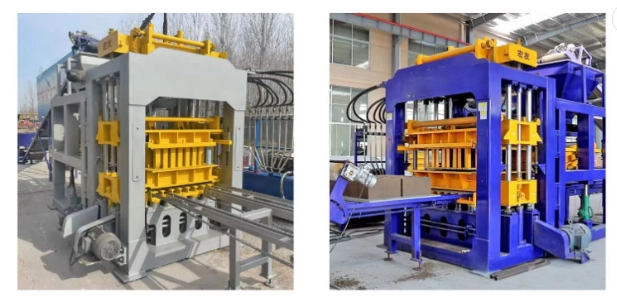

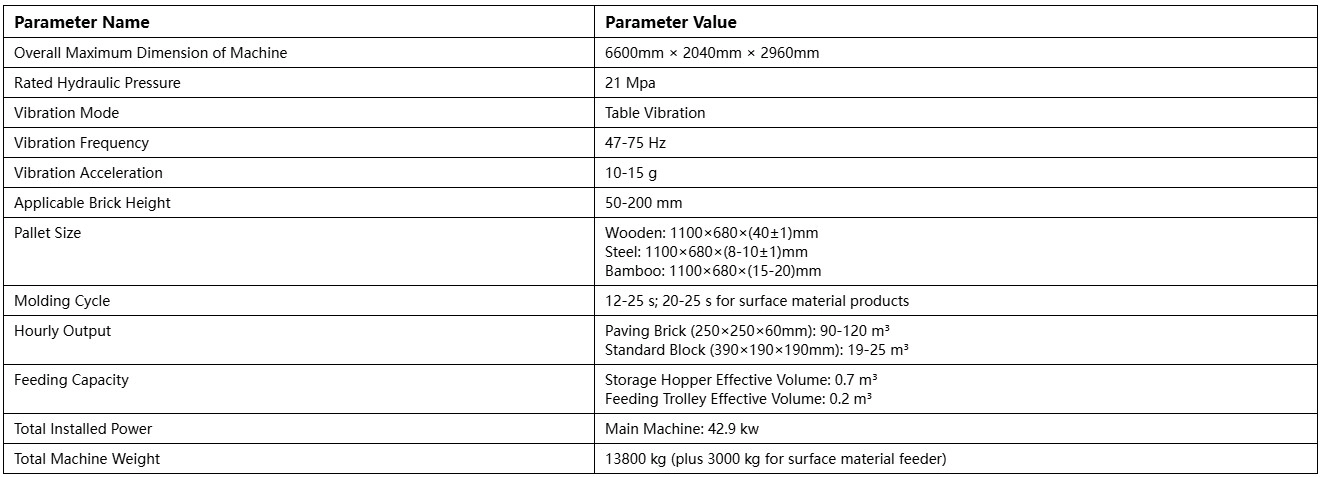

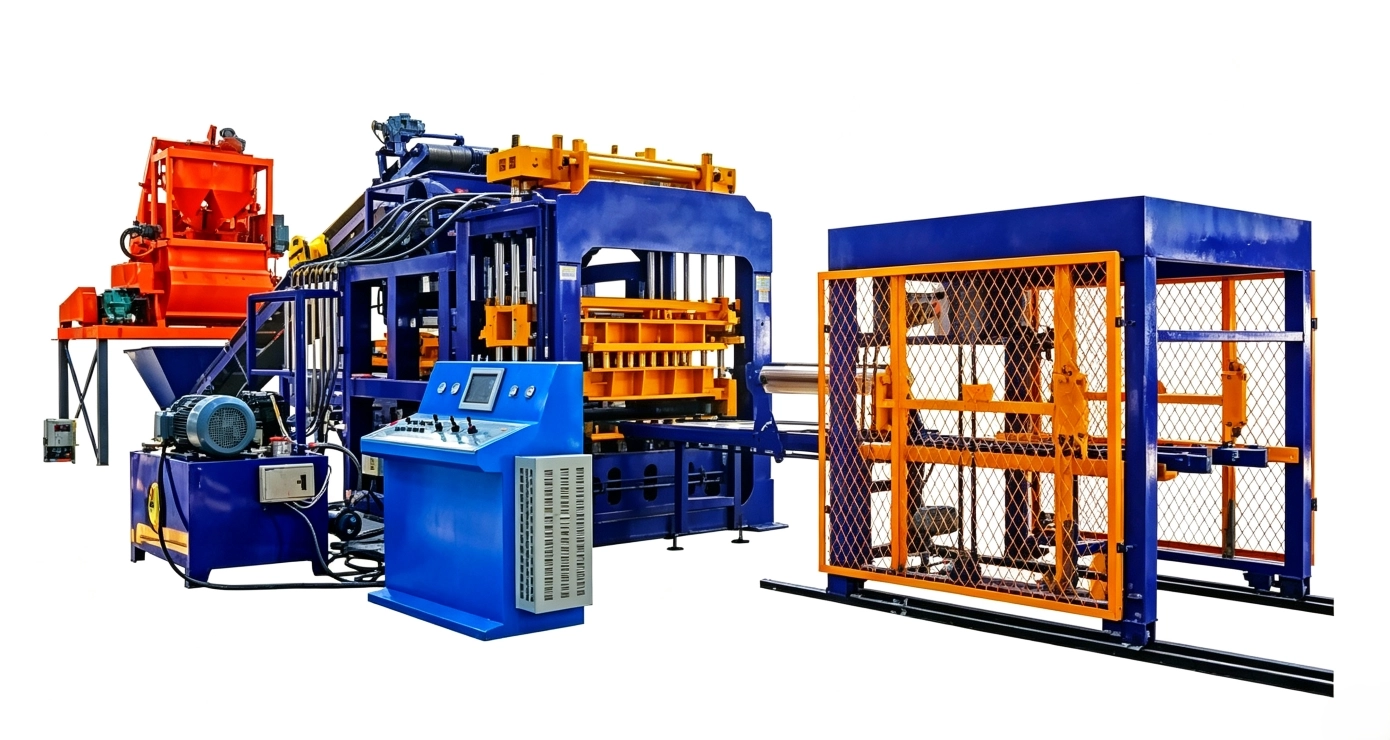

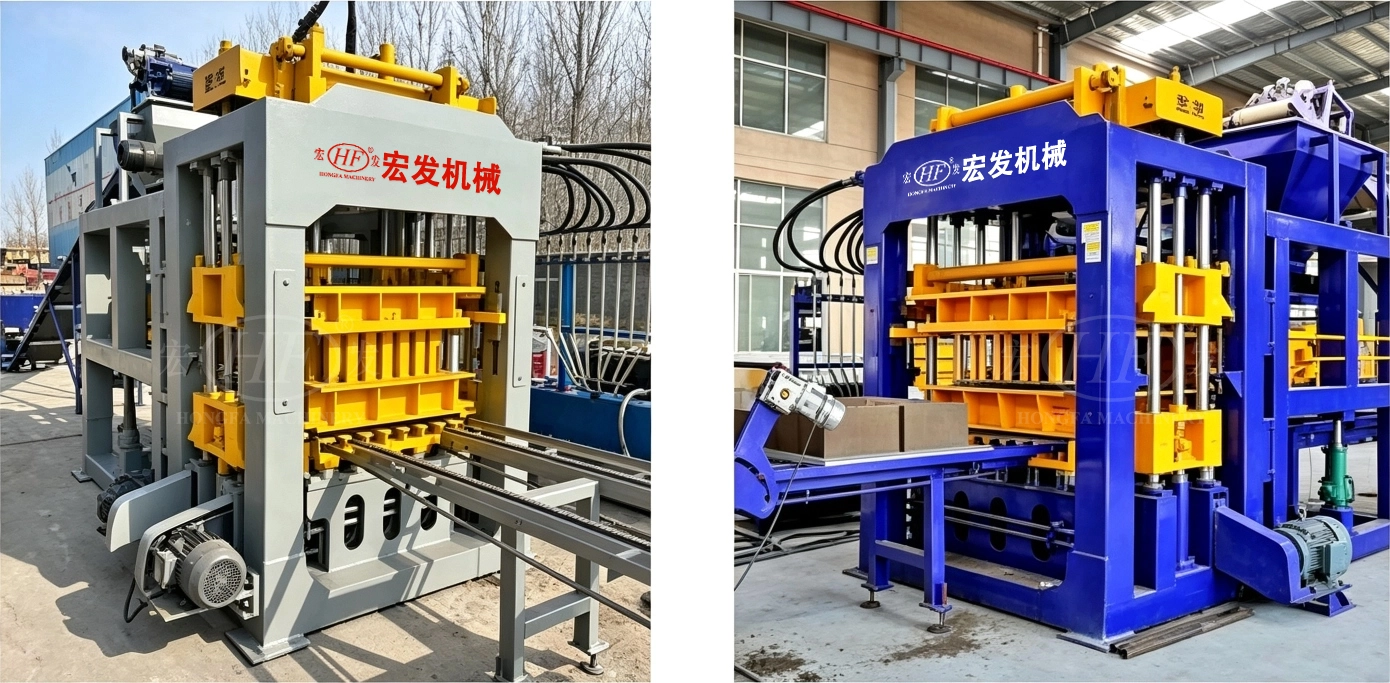

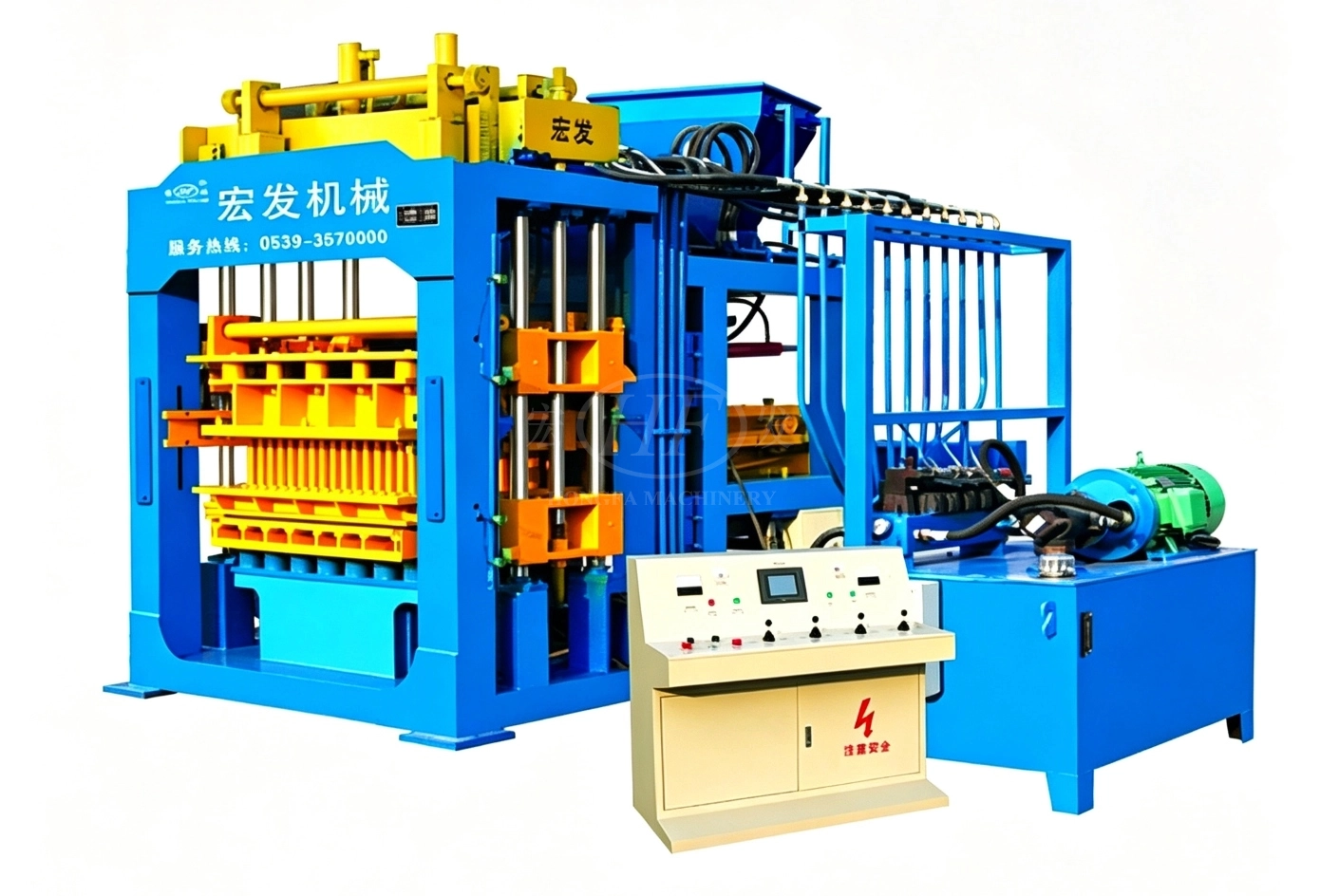

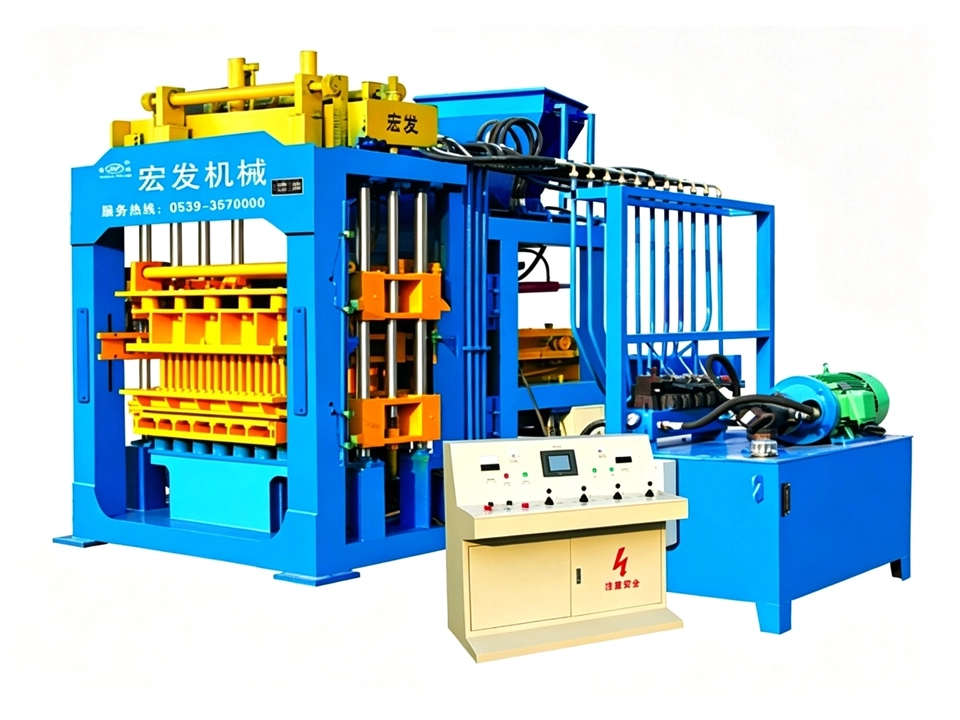

The QT8-15 fully automatic hydraulic brick making machine adopts an integrated platform vibration and hydraulic forming structure with compact overall dimension. The main unit power is 42.9kW and the total machine weight reaches 13800kg, equipped with a 0.7m³ storage hopper and a 0.2m³ feeding trolley. With rigid welded structure, the equipment maintains stable operation under long-term continuous production without structural deformation or severe wear. It is fitted with an industrial PLC touchscreen intelligent control system, allowing one-click adjustment of all production parameters including distributing duration, vibration frequency and hydraulic pressure. Built-in self-diagnosis and fault alarm modules enable real-time malfunction reminder, and only 1 to 2 operators are required to supervise the whole production line. The operation threshold is relatively low, and new workers can operate independently after short training, which greatly cuts long-term labor expenditure for brick plants.
QT8-15 fully automatic hydraulic brick making machine is equipped with a hydraulic system with 21MPa rated pressure and a variable-frequency platform vibration unit ranging from 47Hz to 75Hz, delivering vibration acceleration of 10-15g. Synchronized high-pressure compression and high-frequency vibration fully compact raw material particles to eliminate internal voids and loose structures inside green bricks. The molding cycle lasts 12 to 25 seconds, and it only takes 20 to 25 seconds for pavers with surface mix. Finished bricks feature standardized dimensions and qualified compressive strength with an extremely low reject rate. Reliable forming technology consistently guarantees finished product quality and reduces waste of raw materials.

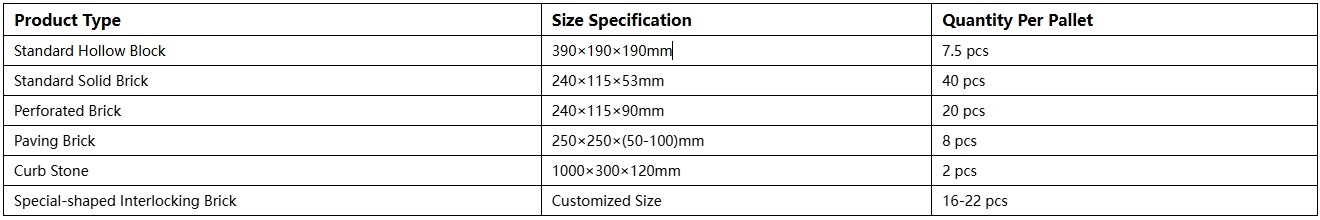

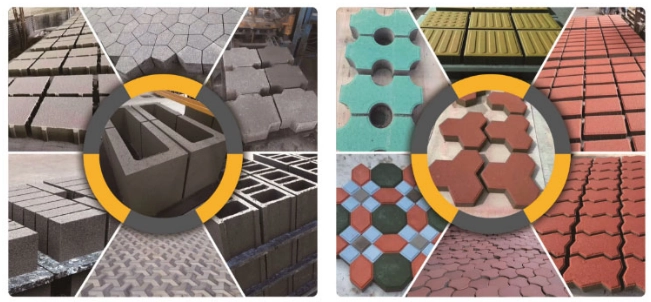

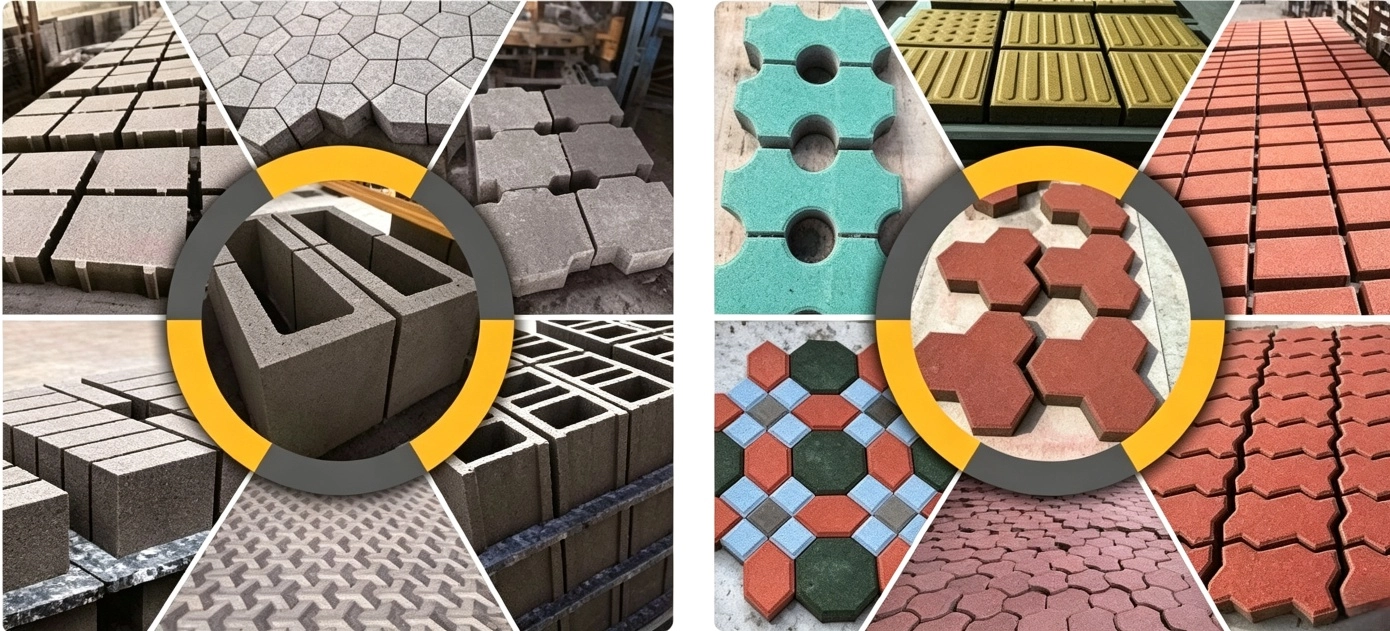

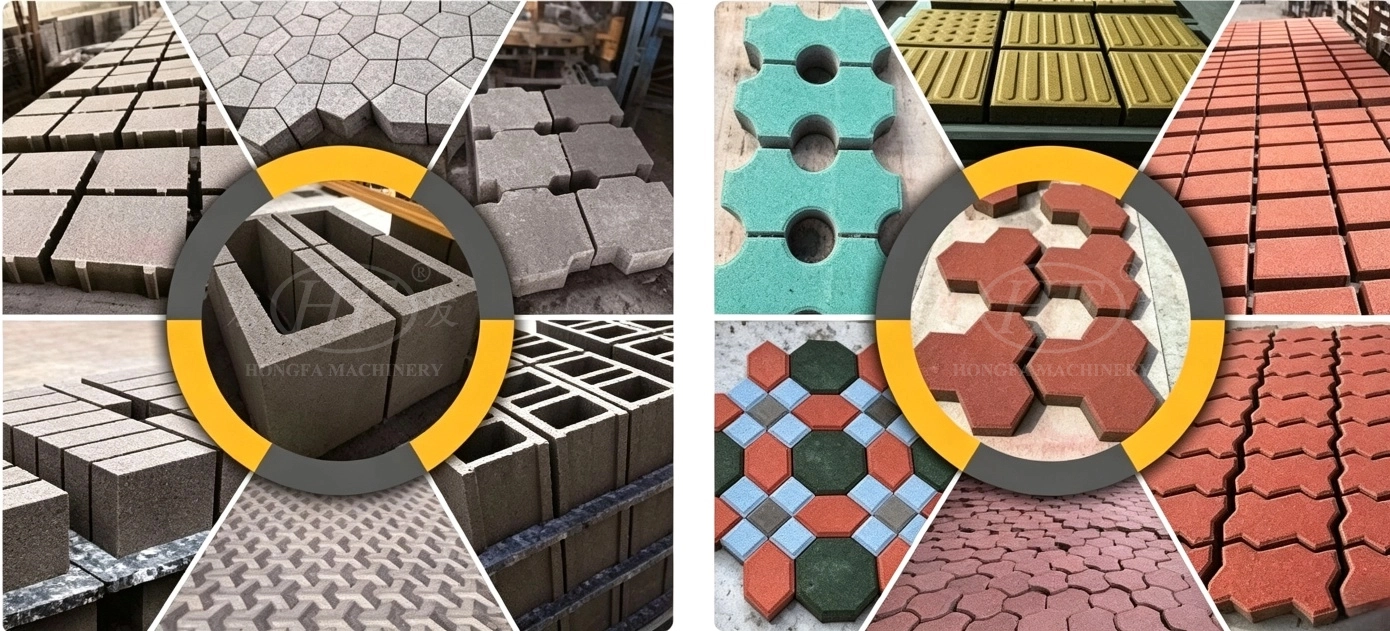

QT8-15 fully automatic hydraulic brick making machine model supports brick height ranging from 50mm to 200mm. By replacing customized molds, it can produce various construction materials including concrete blocks, standard solid bricks, perforated bricks, permeable pavers, kerb stones and special-shaped interlocking slope protection bricks, with fixed output quantity per pallet for each brick type. It meets diverse demands of building wall construction, municipal pavement, river slope stabilization and landscape engineering, and the multi-functional design maximizes equipment utilization and avoids extra investment on multiple machines. The machine is compatible with wooden, steel and bamboo pallets in unified size of 1100×680mm, offering flexible spare part procurement options for factories in different regions.
QT8-15 fully automatic hydraulic brick making machine boasts wide compatibility of raw materials and abandons traditional clay mining and high-temperature kiln firing procedures. A variety of industrial solid wastes such as crushed stone, sand, cement, fly ash, steel slag, gangue, construction demolition waste and mine tailings can be adopted as production materials to realize resource recycling of waste. The whole production process generates no smoke or waste gas, fully complying with environmental protection standards and passing environmental assessment smoothly. Solid waste raw materials greatly reduce procurement costs, and related renewable resource projects are eligible for policy subsidies, lowering overall production costs and improving project profit margins.

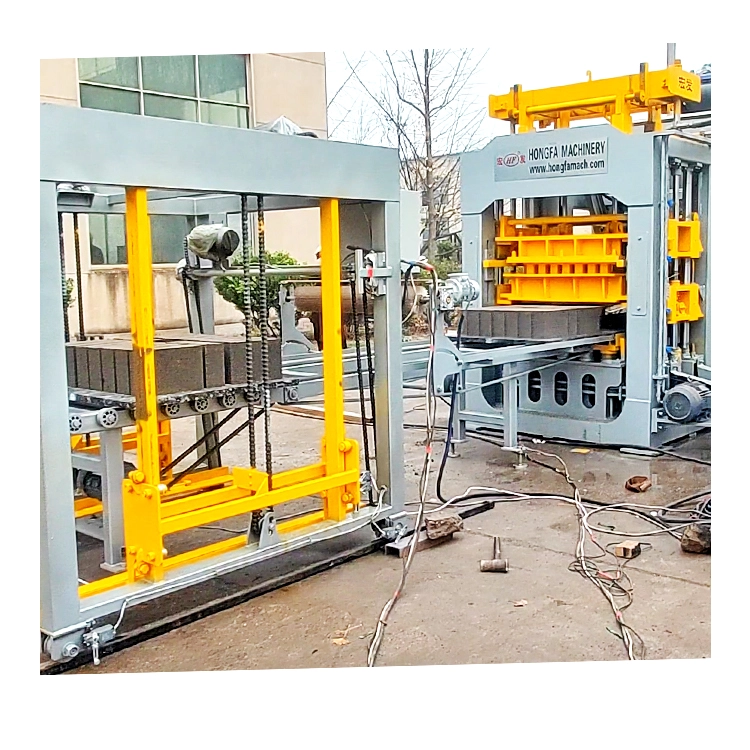

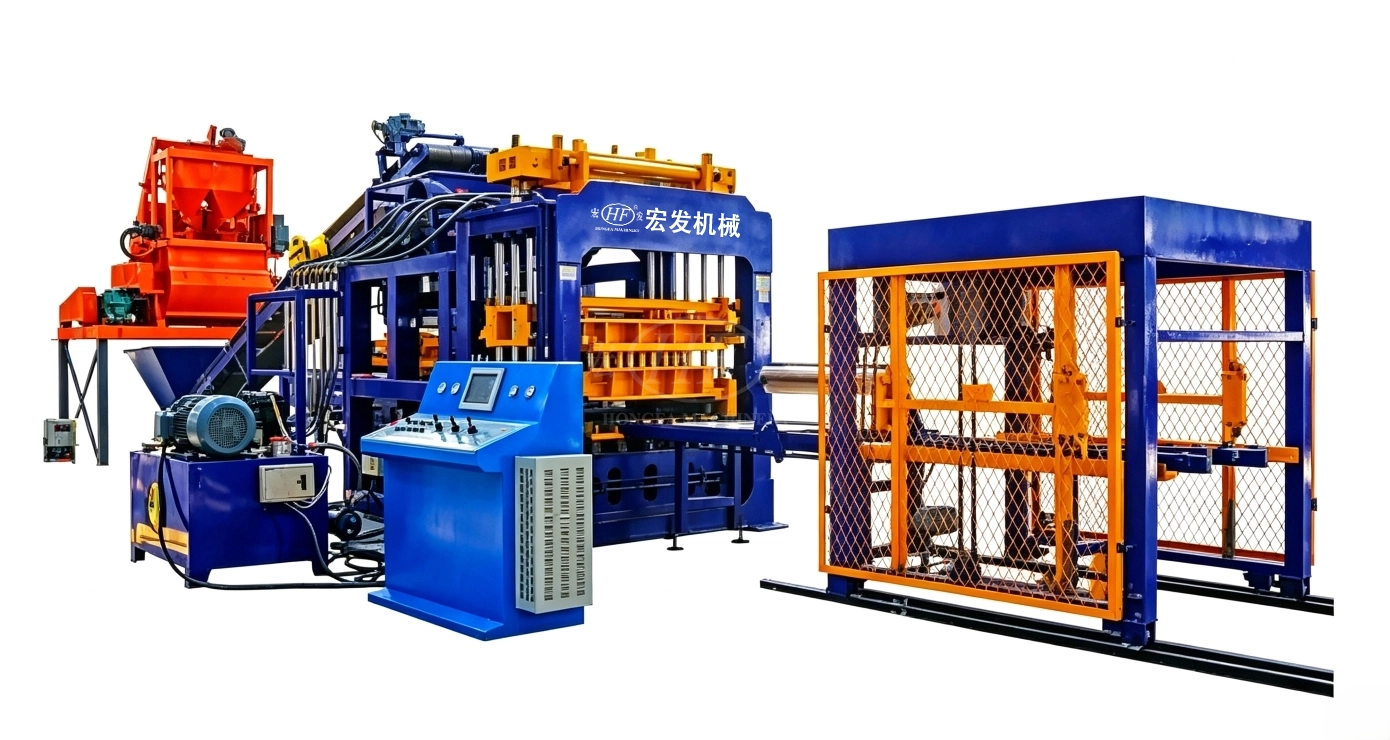

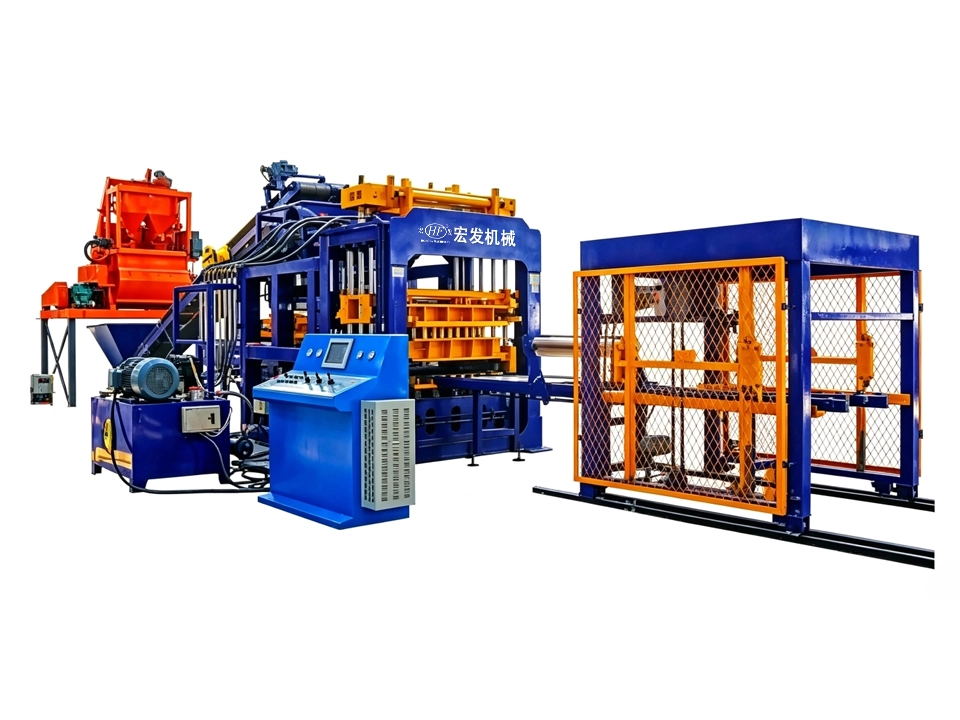

The equipment delivers stable productivity, with hourly output of 19-25 cubic meters for standard concrete blocks and maximum 120 cubic meters for pavement pavers, perfectly matching mass production requirements of medium-sized building material factories. The matched separate surface mix feeder only weighs 3000kg for easy disassembly and transportation. The whole production line covers a moderate area and can be installed, commissioned and put into operation within a short period after delivery. All core components are made of wear-resistant and anti-corrosion materials with low failure rate and simple routine maintenance, extending service life significantly. It serves as the top investment choice for small and medium-sized solid waste recycling plants and municipal supporting brick factories.
The QT8-15 fully automatic hydraulic brick making machine adopts an integrated platform vibration and hydraulic forming structure with compact overall dimension. The main unit power is 42.9kW and the total machine weight reaches 13800kg, equipped with a 0.7m³ storage hopper and a 0.2m³ feeding trolley. With rigid welded structure, the equipment maintains stable operation under long-term continuous production without structural deformation or severe wear. It is fitted with an industrial PLC touchscreen intelligent control system, allowing one-click adjustment of all production parameters including distributing duration, vibration frequency and hydraulic pressure. Built-in self-diagnosis and fault alarm modules enable real-time malfunction reminder, and only 1 to 2 operators are required to supervise the whole production line. The operation threshold is relatively low, and new workers can operate independently after short training, which greatly cuts long-term labor expenditure for brick plants.
QT8-15 fully automatic hydraulic brick making machine is equipped with a hydraulic system with 21MPa rated pressure and a variable-frequency platform vibration unit ranging from 47Hz to 75Hz, delivering vibration acceleration of 10-15g. Synchronized high-pressure compression and high-frequency vibration fully compact raw material particles to eliminate internal voids and loose structures inside green bricks. The molding cycle lasts 12 to 25 seconds, and it only takes 20 to 25 seconds for pavers with surface mix. Finished bricks feature standardized dimensions and qualified compressive strength with an extremely low reject rate. Reliable forming technology consistently guarantees finished product quality and reduces waste of raw materials.
QT8-15 fully automatic hydraulic brick making machine model supports brick height ranging from 50mm to 200mm. By replacing customized molds, it can produce various construction materials including concrete blocks, standard solid bricks, perforated bricks, permeable pavers, kerb stones and special-shaped interlocking slope protection bricks, with fixed output quantity per pallet for each brick type. It meets diverse demands of building wall construction, municipal pavement, river slope stabilization and landscape engineering, and the multi-functional design maximizes equipment utilization and avoids extra investment on multiple machines. The machine is compatible with wooden, steel and bamboo pallets in unified size of 1100×680mm, offering flexible spare part procurement options for factories in different regions.
QT8-15 fully automatic hydraulic brick making machine boasts wide compatibility of raw materials and abandons traditional clay mining and high-temperature kiln firing procedures. A variety of industrial solid wastes such as crushed stone, sand, cement, fly ash, steel slag, gangue, construction demolition waste and mine tailings can be adopted as production materials to realize resource recycling of waste. The whole production process generates no smoke or waste gas, fully complying with environmental protection standards and passing environmental assessment smoothly. Solid waste raw materials greatly reduce procurement costs, and related renewable resource projects are eligible for policy subsidies, lowering overall production costs and improving project profit margins.
The equipment delivers stable productivity, with hourly output of 19-25 cubic meters for standard concrete blocks and maximum 120 cubic meters for pavement pavers, perfectly matching mass production requirements of medium-sized building material factories. The matched separate surface mix feeder only weighs 3000kg for easy disassembly and transportation. The whole production line covers a moderate area and can be installed, commissioned and put into operation within a short period after delivery. All core components are made of wear-resistant and anti-corrosion materials with low failure rate and simple routine maintenance, extending service life significantly. It serves as the top investment choice for small and medium-sized solid waste recycling plants and municipal supporting brick factories.
