1. Dense & High‑strength Solid Bricks, High Qualified Rate & Less Raw‑material Waste
QT10‑15C works on table‑vibration forming principle, delivering 110KN exciting force together with 21MPa rated hydraulic pressure. Vibration parameters are optimized for full‑filled solid brick production. It adopts vibration box driving instead of direct vibration‑motor drive to prevent motor burnout. Concrete raw materials are fully compacted. Output solid bricks feature solid inner structure, sharp complete edges and no cracking or loose interlayers. Height deviation among bricks on single pallet is extremely small with excellent product consistency. It greatly reduces reject ratio caused by loose or cracked bricks and saves cement & aggregate waste. Finished solid bricks directly meet local construction standards and help you win long‑term project supply contracts.

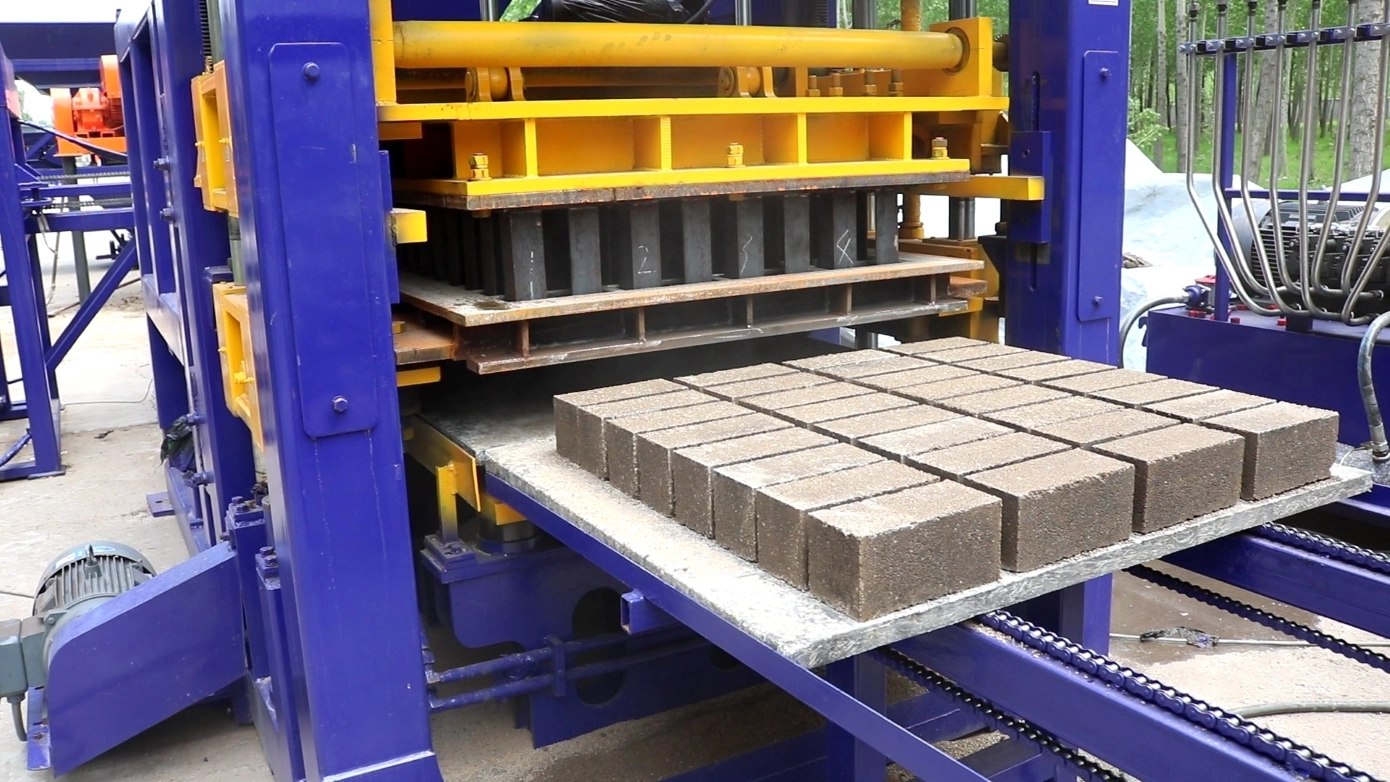

2. Powerful Solid‑brick Output, Lower Unit Cost & Handle Large‑volume Construction Orders

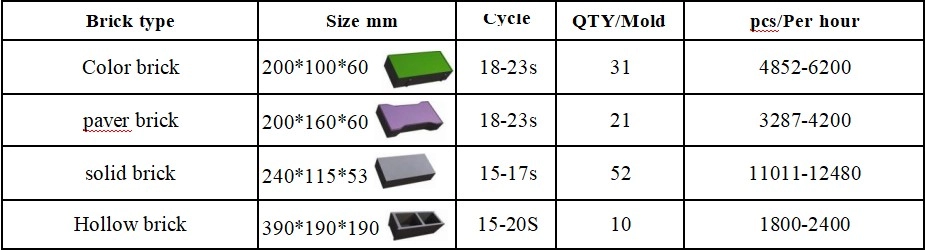

For standard 240×115×53 mm solid bricks, forming cycle only takes 15‑17 seconds with 52 pieces per mould. Output reaches 69120‑86400 pieces within an 8‑hour shift. Built‑in pallet feeder and green‑brick conveyor realize automatic pallet feeding and brick discharging, cutting manual‑handling labour cost. Without extra workshop space and massive workers, this single host can satisfy huge solid‑brick demands from large construction projects. It reduces comprehensive cost per solid brick, strengthens your local market price advantage and speeds up your investment pay‑off.
3. Heavy‑duty Durable Core Components for Continuous Solid‑brick Production, Less Downtime Risk
Solid‑brick production brings heavy‑load high‑frequency impact to frame and hydraulic system. QT10‑15C main frame is welded with heavy‑gauge premium steel, resisting deformation and weld crack under long‑time 110KN exciting impact. Hydraulic unit is equipped with well‑known Taiwan Calyca hydraulic parts plus proportional electro‑hydraulic control valves. All electrical components and touch screen adopt Siemens brand. The whole hardware set is reinforced for non‑stop solid‑brick forming to extend service life and lower unexpected breakdown risk. You can avoid delivery delay caused by mechanical repair during peak‑order period and save extra spare‑part expenditure. One spare‑parts kit is supplied as standard for daily production.

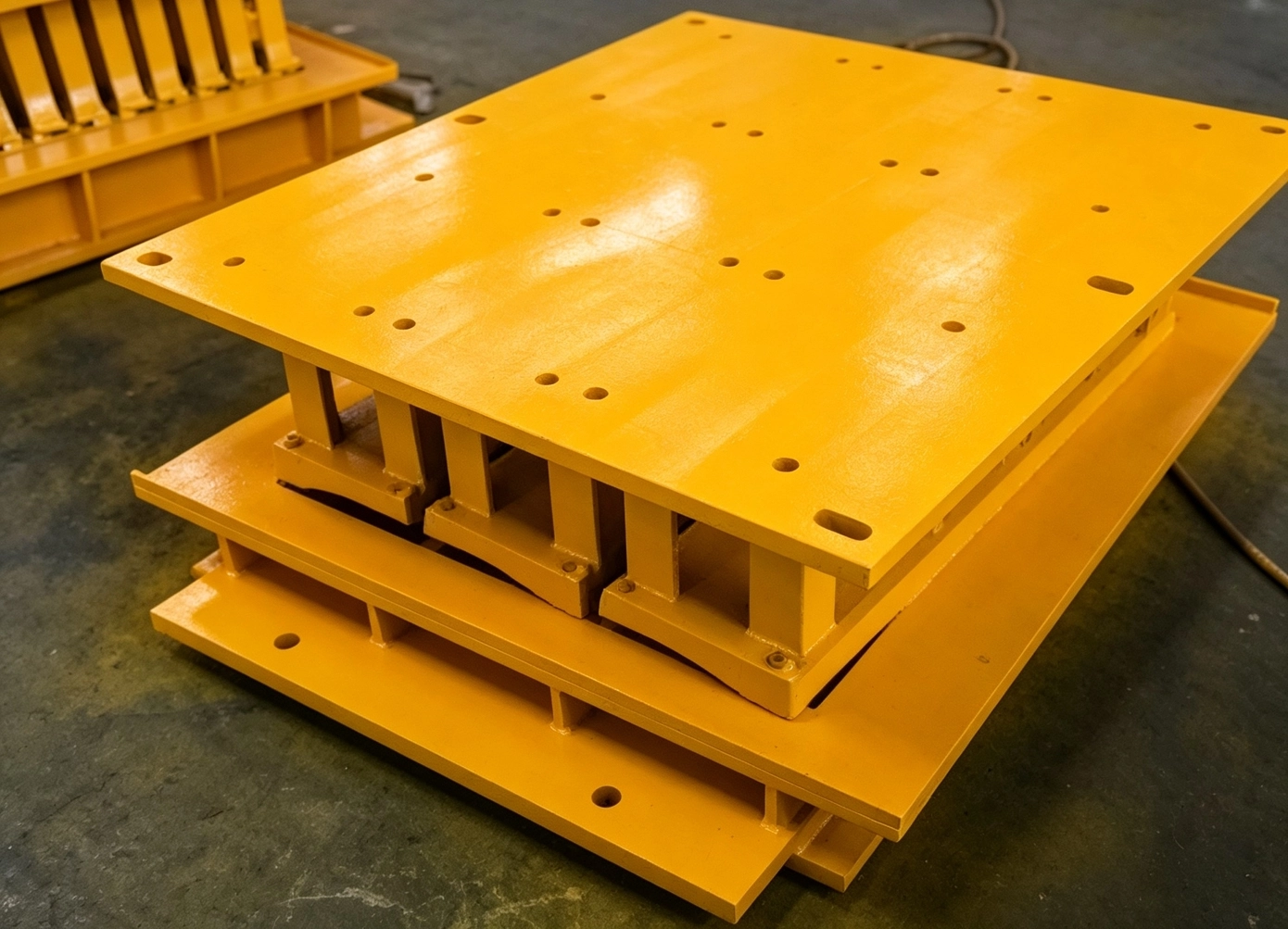

4. Wear‑resistant Manganese‑steel Mould, Fast Mould‑change for Diversified Solid‑brick Orders
One 45Mn high‑manganese‑steel solid‑brick mould is supplied as standard. It goes through carburizing heat‑treatment and precise wire‑cutting processing for outstanding hardness, wear resistance and dimensional accuracy to guarantee neat brick appearance. Mould disassembly and replacement is simple. You can rapidly switch among solid bricks of different dimensions and thicknesses. Only one host covers production of standard solid bricks, thickened solid bricks and engineering solid blocks. There is no need to purchase multiple block‑making machines, which saves your capital investment and enables fast response to varied customer specifications.
5. Siemens PLC Human‑machine Control, Lower Labour‑skill Requirement
The host is equipped with complete Siemens PLC control system and touch‑screen HMI, pre‑installed with dedicated solid‑brick production program. Operation workflow is straightforward. Ordinary workers can run solid‑brick production after simple training, no high‑salary senior technicians required, helping you control factory labour cost. Integrated logic control reduces defective products caused by human error. It is well‑suited for stable large‑scale production in overseas medium‑and‑large block factories.
1. Dense & High‑strength Solid Bricks, High Qualified Rate & Less Raw‑material Waste
QT10‑15C works on table‑vibration forming principle, delivering 110KN exciting force together with 21MPa rated hydraulic pressure. Vibration parameters are optimized for full‑filled solid brick production. It adopts vibration box driving instead of direct vibration‑motor drive to prevent motor burnout. Concrete raw materials are fully compacted. Output solid bricks feature solid inner structure, sharp complete edges and no cracking or loose interlayers. Height deviation among bricks on single pallet is extremely small with excellent product consistency. It greatly reduces reject ratio caused by loose or cracked bricks and saves cement & aggregate waste. Finished solid bricks directly meet local construction standards and help you win long‑term project supply contracts.
2. Powerful Solid‑brick Output, Lower Unit Cost & Handle Large‑volume Construction Orders
For standard 240×115×53 mm solid bricks, forming cycle only takes 15‑17 seconds with 52 pieces per mould. Output reaches 69120‑86400 pieces within an 8‑hour shift. Built‑in pallet feeder and green‑brick conveyor realize automatic pallet feeding and brick discharging, cutting manual‑handling labour cost. Without extra workshop space and massive workers, this single host can satisfy huge solid‑brick demands from large construction projects. It reduces comprehensive cost per solid brick, strengthens your local market price advantage and speeds up your investment pay‑off.
3. Heavy‑duty Durable Core Components for Continuous Solid‑brick Production, Less Downtime Risk
Solid‑brick production brings heavy‑load high‑frequency impact to frame and hydraulic system. QT10‑15C main frame is welded with heavy‑gauge premium steel, resisting deformation and weld crack under long‑time 110KN exciting impact. Hydraulic unit is equipped with well‑known Taiwan Calyca hydraulic parts plus proportional electro‑hydraulic control valves. All electrical components and touch screen adopt Siemens brand. The whole hardware set is reinforced for non‑stop solid‑brick forming to extend service life and lower unexpected breakdown risk. You can avoid delivery delay caused by mechanical repair during peak‑order period and save extra spare‑part expenditure. One spare‑parts kit is supplied as standard for daily production.
4. Wear‑resistant Manganese‑steel Mould, Fast Mould‑change for Diversified Solid‑brick Orders
One 45Mn high‑manganese‑steel solid‑brick mould is supplied as standard. It goes through carburizing heat‑treatment and precise wire‑cutting processing for outstanding hardness, wear resistance and dimensional accuracy to guarantee neat brick appearance. Mould disassembly and replacement is simple. You can rapidly switch among solid bricks of different dimensions and thicknesses. Only one host covers production of standard solid bricks, thickened solid bricks and engineering solid blocks. There is no need to purchase multiple block‑making machines, which saves your capital investment and enables fast response to varied customer specifications.
5. Siemens PLC Human‑machine Control, Lower Labour‑skill Requirement
The host is equipped with complete Siemens PLC control system and touch‑screen HMI, pre‑installed with dedicated solid‑brick production program. Operation workflow is straightforward. Ordinary workers can run solid‑brick production after simple training, no high‑salary senior technicians required, helping you control factory labour cost. Integrated logic control reduces defective products caused by human error. It is well‑suited for stable large‑scale production in overseas medium‑and‑large block factories.
