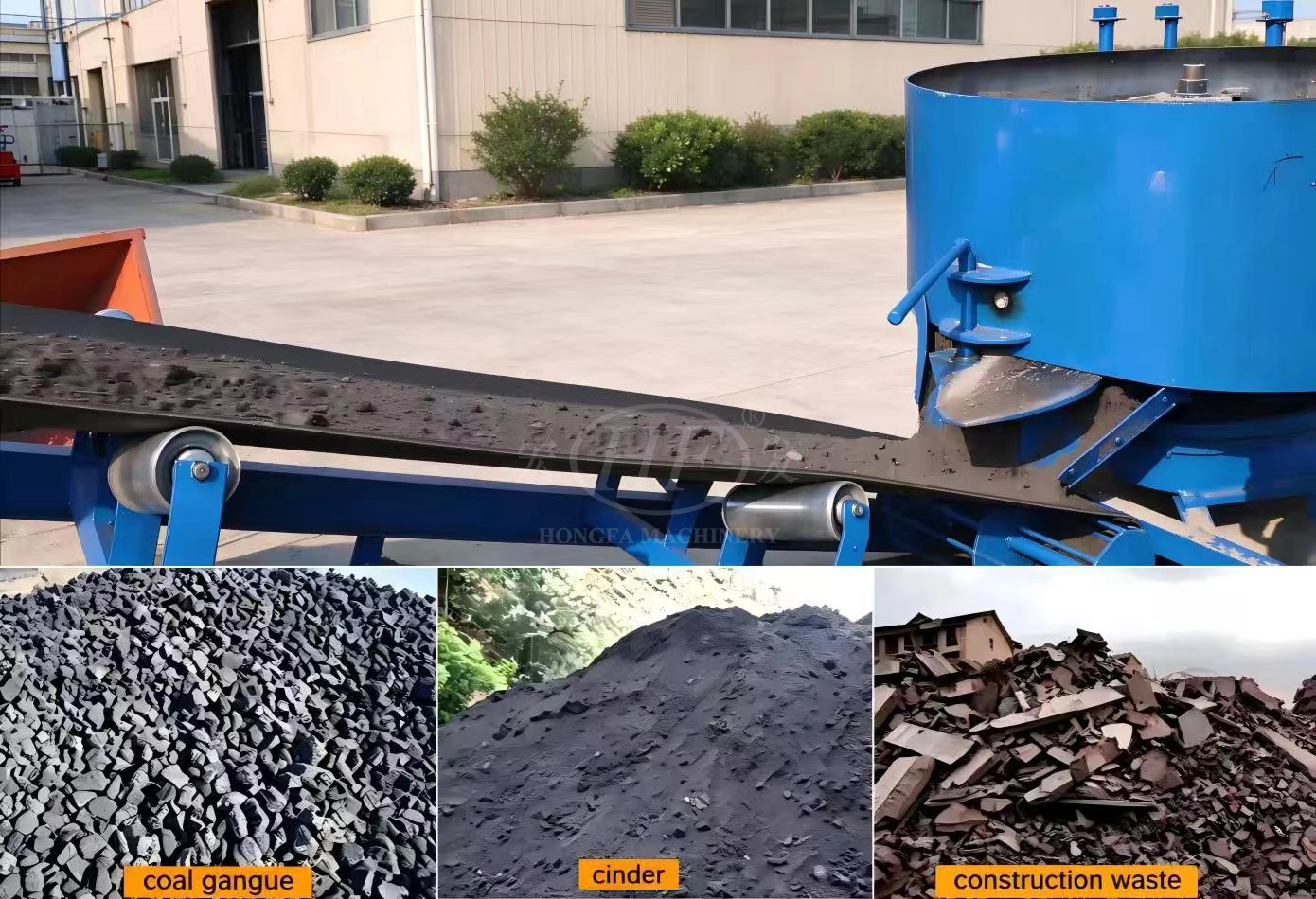

1. Strong Solid‑waste Raw‑material Compatibility, High Mix‑ratio of Construction & Industrial Residues to Cut Raw‑material Cost for Mass Production

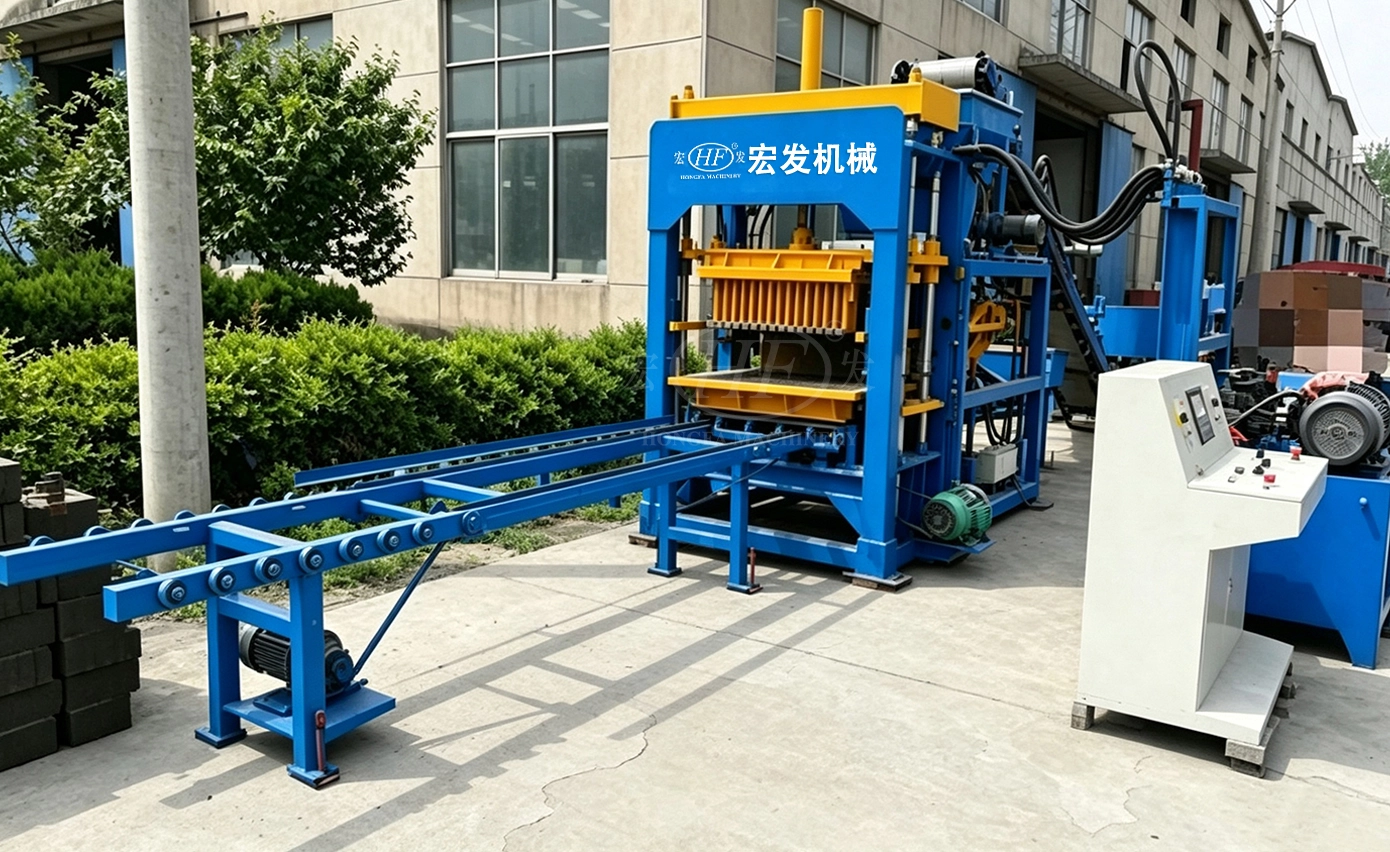

QT6‑12 complete production line is developed for medium‑scale solid‑waste recycling projects. It shows outstanding adaptability for demolition construction waste, mine slag, fly ash and coal gangue with uneven particle size and high impurity content. Fly‑ash mixing ratio can reach up to 70%. Plant operators can directly adopt locally crushed construction debris and stockpiled mine residues as main feedstock without expensive fine grinding or multi‑stage screening pre‑treatment. Waste materials which originally require paid transportation and landfill are converted into saleable engineering building materials. It greatly reduces purchasing expenditure for expensive natural aggregate and cement, meanwhile saves solid‑waste landfill fees. The raw‑material cost advantage becomes more prominent under mass‑production conditions and lifts unit profit. Factories can also undertake local waste‑disposal contracts to achieve dual‑stream revenue.

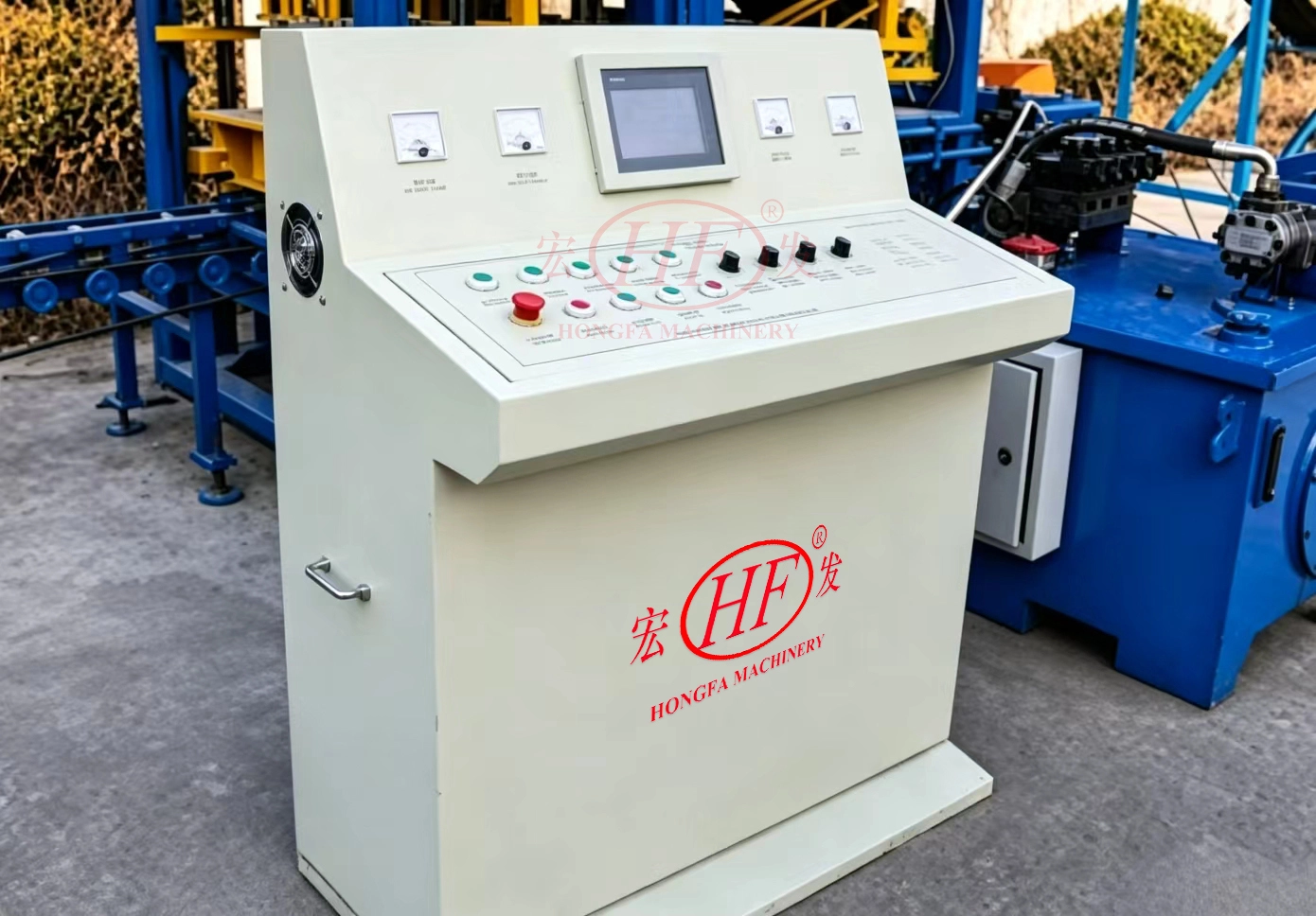

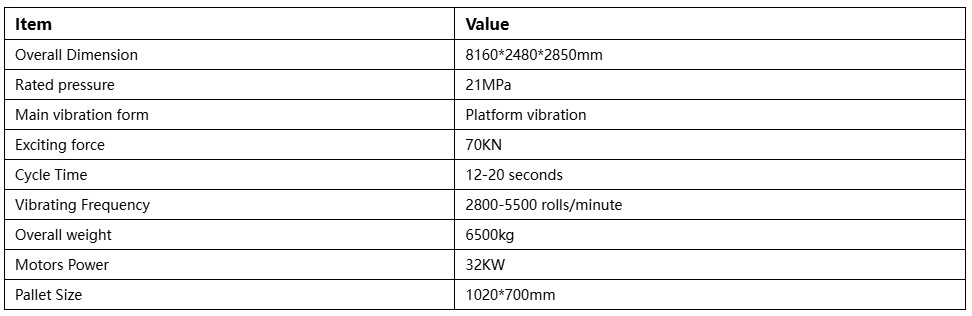

2. 70KN High‑power Table‑vibration plus Full‑line PLC Co‑control, Stable High‑volume Output with Short Cycle even under Variable Solid‑waste Feedstock
The main machine is equipped with 70KN high‑power table‑vibration excitation system with adjustable vibration frequency from 2800‑5500 r/min. Cooperated with JS500 twin‑shaft mixing unit and full‑process intelligent PLC control system, it achieves short forming cycle of only 12‑20 seconds. Pallet feeding, material distributing, pressing‑vibrating, demoulding and conveying run fully automatically. Even when processing solid‑waste feedstock such as construction waste and mine slag with unstable physical properties, powerful excitation force guarantees sufficient compaction inside mould cavity. Finished recycled blocks feature uniform density, precise dimension and good frost‑resistance & impermeability, satisfying procurement requirements of large municipal and infrastructure projects. The whole line supports long‑hour non‑stop mass production to fulfill large engineering orders on‑time, avoid commercial losses caused by delivery delay and consolidate long‑term client cooperation.

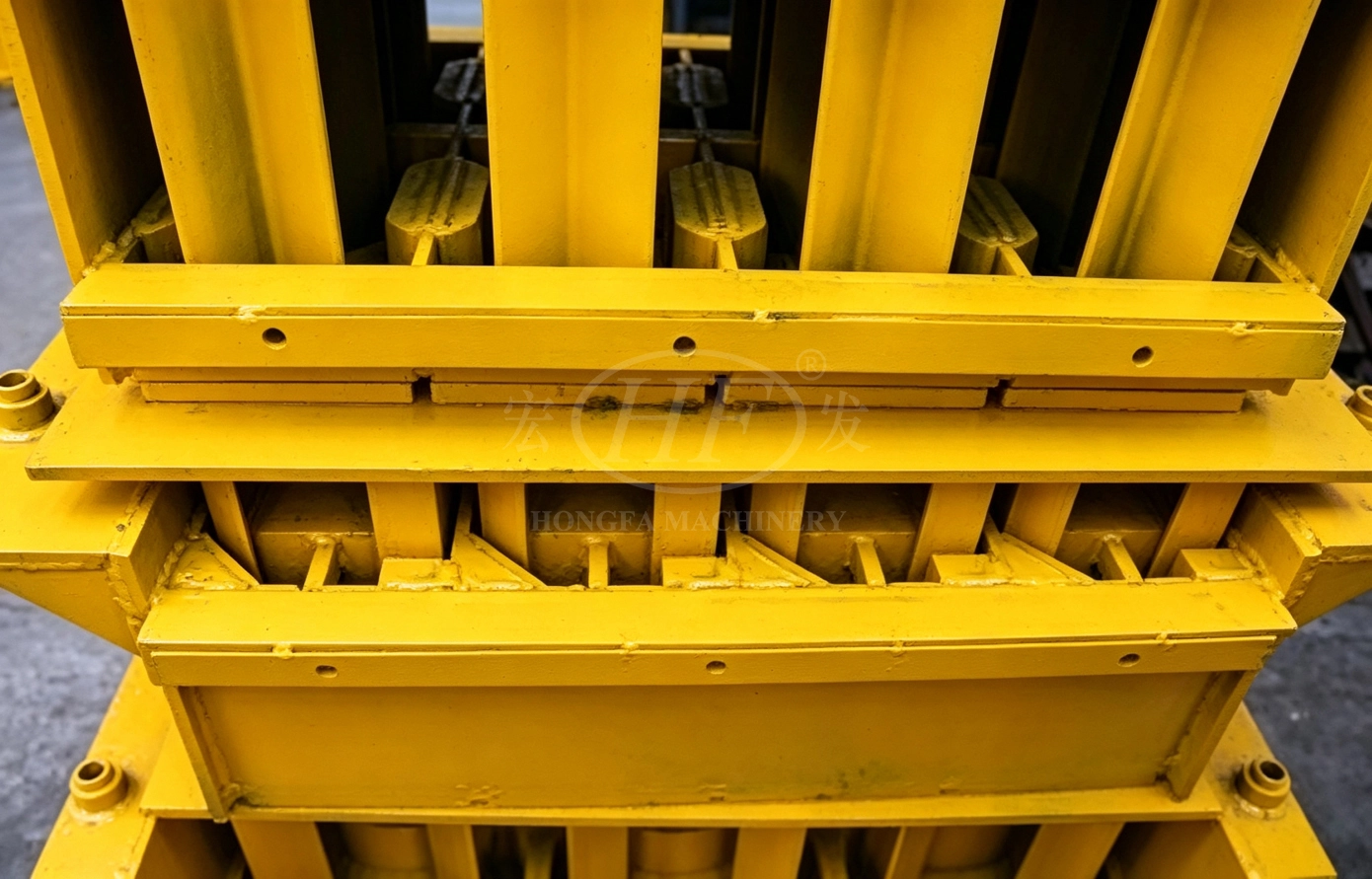

3. Quick Mold‑change for Multi‑category Production, Integrated Automatic Stacker to Expand Sourcing of Engineering Orders
QT6‑12 production line supports fast mold disassembly and replacement without modifying main‑machine body. Using construction waste and mine slag as raw materials, it can mass‑produce solid standard bricks, hollow blocks, colored paving bricks, permeable bricks, grass‑planting bricks, river slope‑protection bricks and curbstones. Integrated automatic stacking unit finishes brick stacking after forming and saves manual stacking workload. Only one complete set of production line meets project demands from civil construction, municipal roads, landscape, water‑conservancy slope protection and rural infrastructure. No heavy extra investment for additional machines is needed. Diversified recycled‑building‑material portfolio helps medium‑size factories break single‑product limitation, participate in more large‑project tenders, strengthen anti‑risk capability against market fluctuation and expand order channels.
4. High‑precision Synchronous Lifting Mechanism, High Qualified‑product Rate for Large‑batch Solid‑waste Production and Less Raw‑material Loss
Adopting high‑precision mould and forced synchronous lifting structure for mould and pressure head. During long‑time large‑volume continuous solid‑waste brick‑making, demoulding movement keeps smooth and balanced. It effectively reduces common defects including chipped edges, broken corners, uneven thickness and deformation. Every batch of recycled blocks has regular shape and uniform thickness and can go to curing procedure directly after forming. Raw‑material and working‑hour losses brought by defective goods are minimized. Construction waste, mine slag and fly ash invested in production can be maximally converted into market‑qualified saleable goods, improving overall returns of solid‑waste recycling projects.
5. Thickened High‑strength Frame & Premium Core Components for All‑day Continuous Solid‑waste Production of Medium‑size Plants
The main host adopts thickened 12×12cm square‑tube steel frame with high rigidity and resists deformation under long‑term high‑frequency vibration. Key hydraulic and electric components adopt well‑known brand accessories. JS500 twin‑shaft mixer is fitted with high‑wear‑resistant Cr‑Mn mixing arms and thickened liner plates to handle abrasive feedstock such as mine slag and construction debris. Complete electromechanical‑hydraulic linkage test is finished before delivery. The whole production line runs reliably under heavy‑duty solid‑waste processing conditions. It supports round‑the‑clock production for medium‑size brick plants, maximizes effective operating hours, accelerates local solid‑waste disposal, amortizes upfront investment and shortens project payback period.
6. Highly‑automated Full‑line Workflow Reduces Manpower Requirement and Simplifies Daily Operation for Medium‑size Solid‑waste Brick Plants
From batching‑mixing, feeding, forming‑conveying to finished‑brick automatic stacking, QT6‑12 realizes full‑process automatic circulation. Only a small number of staff are required for site inspection and raw‑material replenishment, which greatly cuts labor‑salary expenditure. The intuitive touch‑screen HMI is easy to operate. Operators can get familiar with operation after simple training and no high‑salary high‑skill specialists are required. Production rhythm can be flexibly adjusted according to order volume. It accelerates commissioning for medium‑size solid‑waste brick‑making projects and helps investors reach stable profitable revenue faster.
1. Strong Solid‑waste Raw‑material Compatibility, High Mix‑ratio of Construction & Industrial Residues to Cut Raw‑material Cost for Mass Production
QT6‑12 complete production line is developed for medium‑scale solid‑waste recycling projects. It shows outstanding adaptability for demolition construction waste, mine slag, fly ash and coal gangue with uneven particle size and high impurity content. Fly‑ash mixing ratio can reach up to 70%. Plant operators can directly adopt locally crushed construction debris and stockpiled mine residues as main feedstock without expensive fine grinding or multi‑stage screening pre‑treatment. Waste materials which originally require paid transportation and landfill are converted into saleable engineering building materials. It greatly reduces purchasing expenditure for expensive natural aggregate and cement, meanwhile saves solid‑waste landfill fees. The raw‑material cost advantage becomes more prominent under mass‑production conditions and lifts unit profit. Factories can also undertake local waste‑disposal contracts to achieve dual‑stream revenue.
2. 70KN High‑power Table‑vibration plus Full‑line PLC Co‑control, Stable High‑volume Output with Short Cycle even under Variable Solid‑waste Feedstock
The main machine is equipped with 70KN high‑power table‑vibration excitation system with adjustable vibration frequency from 2800‑5500 r/min. Cooperated with JS500 twin‑shaft mixing unit and full‑process intelligent PLC control system, it achieves short forming cycle of only 12‑20 seconds. Pallet feeding, material distributing, pressing‑vibrating, demoulding and conveying run fully automatically. Even when processing solid‑waste feedstock such as construction waste and mine slag with unstable physical properties, powerful excitation force guarantees sufficient compaction inside mould cavity. Finished recycled blocks feature uniform density, precise dimension and good frost‑resistance & impermeability, satisfying procurement requirements of large municipal and infrastructure projects. The whole line supports long‑hour non‑stop mass production to fulfill large engineering orders on‑time, avoid commercial losses caused by delivery delay and consolidate long‑term client cooperation.
3. Quick Mold‑change for Multi‑category Production, Integrated Automatic Stacker to Expand Sourcing of Engineering Orders
QT6‑12 production line supports fast mold disassembly and replacement without modifying main‑machine body. Using construction waste and mine slag as raw materials, it can mass‑produce solid standard bricks, hollow blocks, colored paving bricks, permeable bricks, grass‑planting bricks, river slope‑protection bricks and curbstones. Integrated automatic stacking unit finishes brick stacking after forming and saves manual stacking workload. Only one complete set of production line meets project demands from civil construction, municipal roads, landscape, water‑conservancy slope protection and rural infrastructure. No heavy extra investment for additional machines is needed. Diversified recycled‑building‑material portfolio helps medium‑size factories break single‑product limitation, participate in more large‑project tenders, strengthen anti‑risk capability against market fluctuation and expand order channels.
4. High‑precision Synchronous Lifting Mechanism, High Qualified‑product Rate for Large‑batch Solid‑waste Production and Less Raw‑material Loss
Adopting high‑precision mould and forced synchronous lifting structure for mould and pressure head. During long‑time large‑volume continuous solid‑waste brick‑making, demoulding movement keeps smooth and balanced. It effectively reduces common defects including chipped edges, broken corners, uneven thickness and deformation. Every batch of recycled blocks has regular shape and uniform thickness and can go to curing procedure directly after forming. Raw‑material and working‑hour losses brought by defective goods are minimized. Construction waste, mine slag and fly ash invested in production can be maximally converted into market‑qualified saleable goods, improving overall returns of solid‑waste recycling projects.
5. Thickened High‑strength Frame & Premium Core Components for All‑day Continuous Solid‑waste Production of Medium‑size Plants
The main host adopts thickened 12×12cm square‑tube steel frame with high rigidity and resists deformation under long‑term high‑frequency vibration. Key hydraulic and electric components adopt well‑known brand accessories. JS500 twin‑shaft mixer is fitted with high‑wear‑resistant Cr‑Mn mixing arms and thickened liner plates to handle abrasive feedstock such as mine slag and construction debris. Complete electromechanical‑hydraulic linkage test is finished before delivery. The whole production line runs reliably under heavy‑duty solid‑waste processing conditions. It supports round‑the‑clock production for medium‑size brick plants, maximizes effective operating hours, accelerates local solid‑waste disposal, amortizes upfront investment and shortens project payback period.
6. Highly‑automated Full‑line Workflow Reduces Manpower Requirement and Simplifies Daily Operation for Medium‑size Solid‑waste Brick Plants
From batching‑mixing, feeding, forming‑conveying to finished‑brick automatic stacking, QT6‑12 realizes full‑process automatic circulation. Only a small number of staff are required for site inspection and raw‑material replenishment, which greatly cuts labor‑salary expenditure. The intuitive touch‑screen HMI is easy to operate. Operators can get familiar with operation after simple training and no high‑salary high‑skill specialists are required. Production rhythm can be flexibly adjusted according to order volume. It accelerates commissioning for medium‑size solid‑waste brick‑making projects and helps investors reach stable profitable revenue faster.
