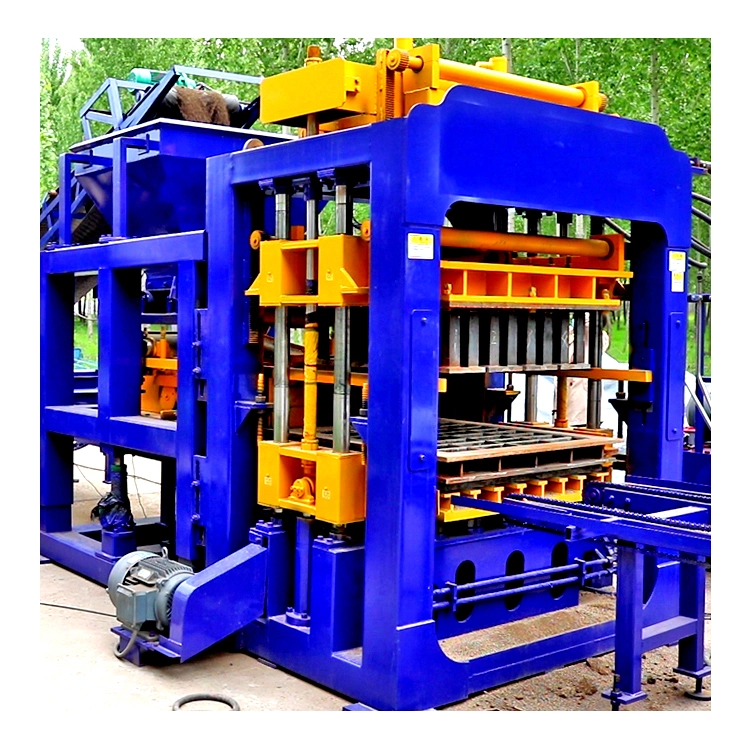

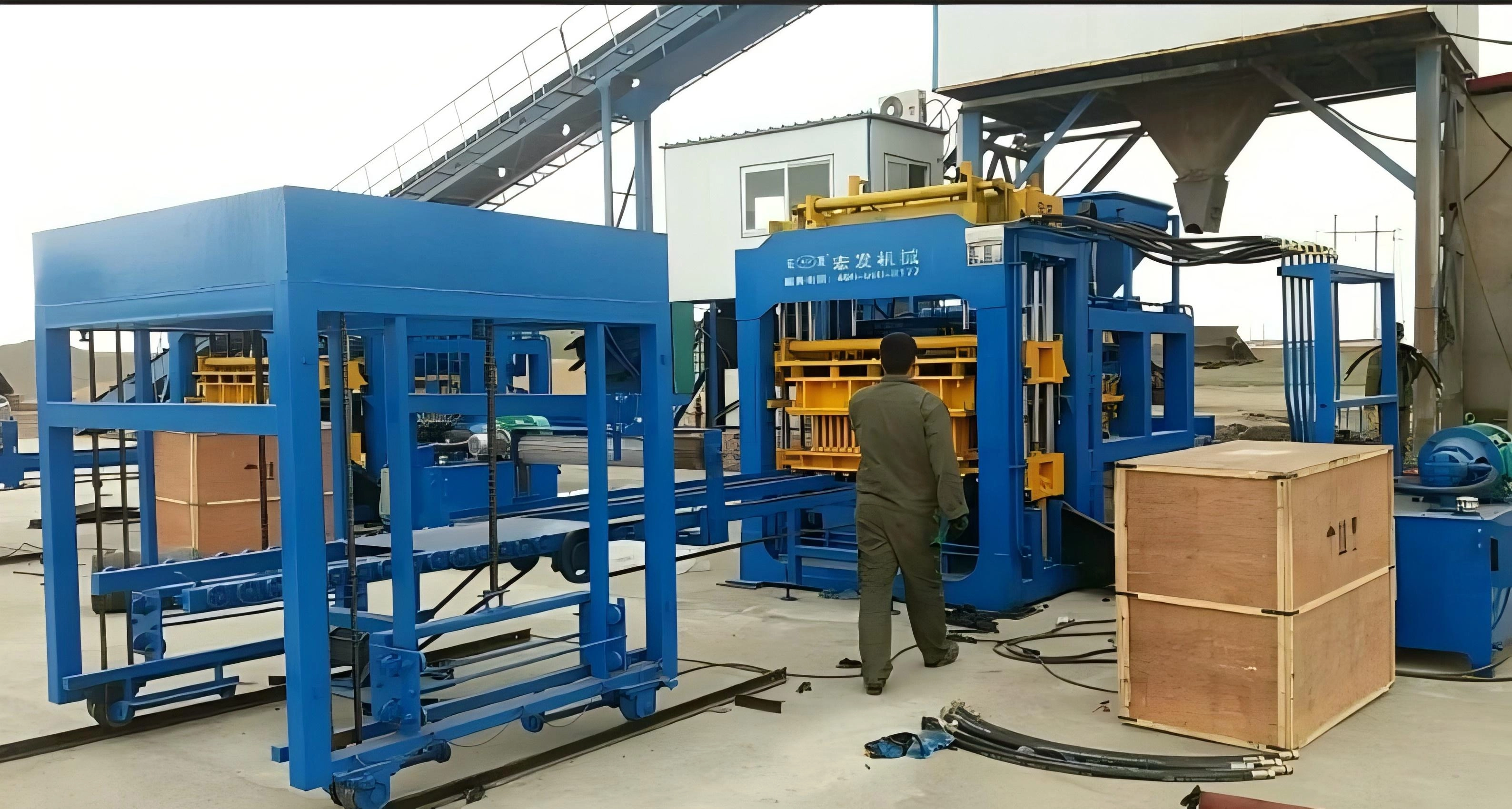

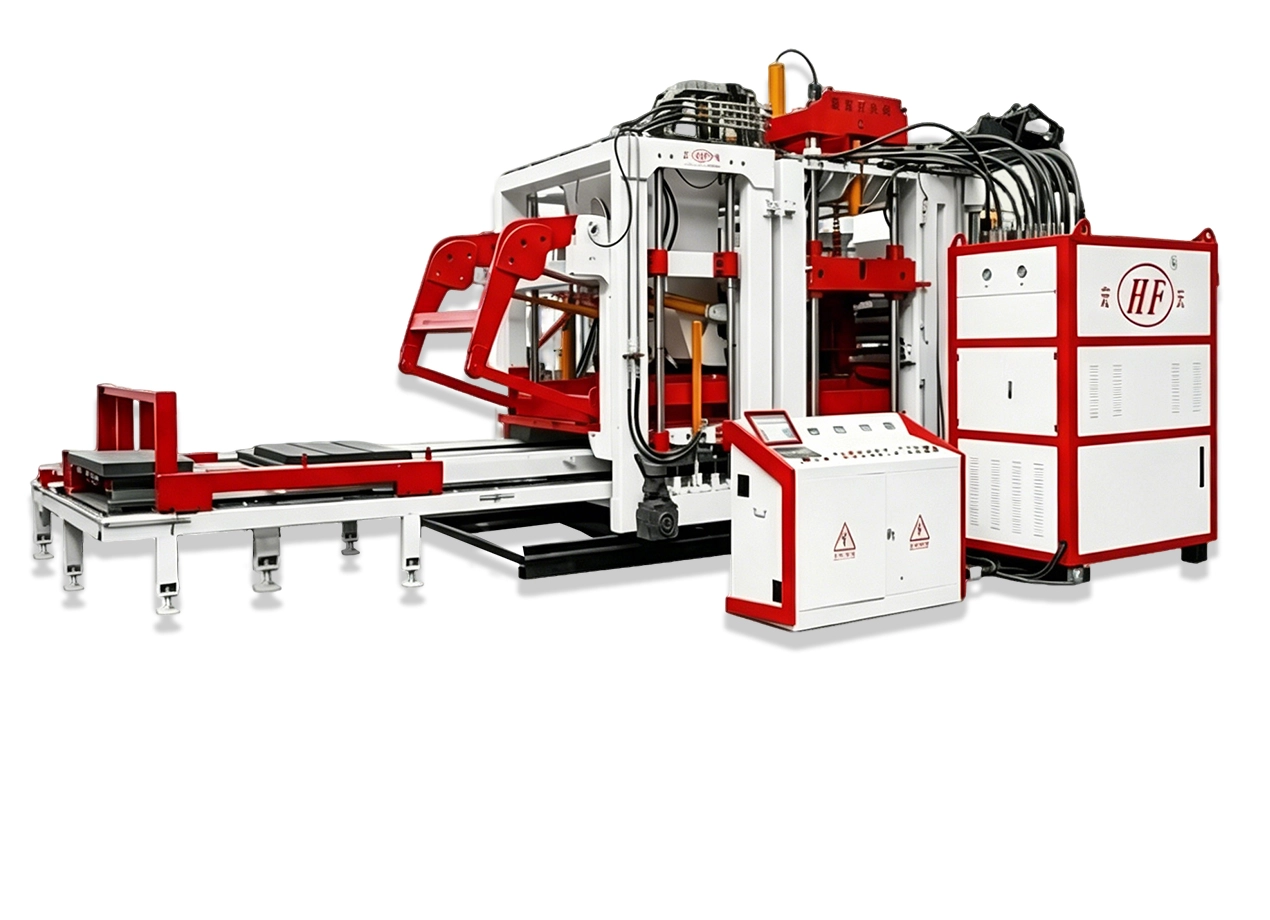

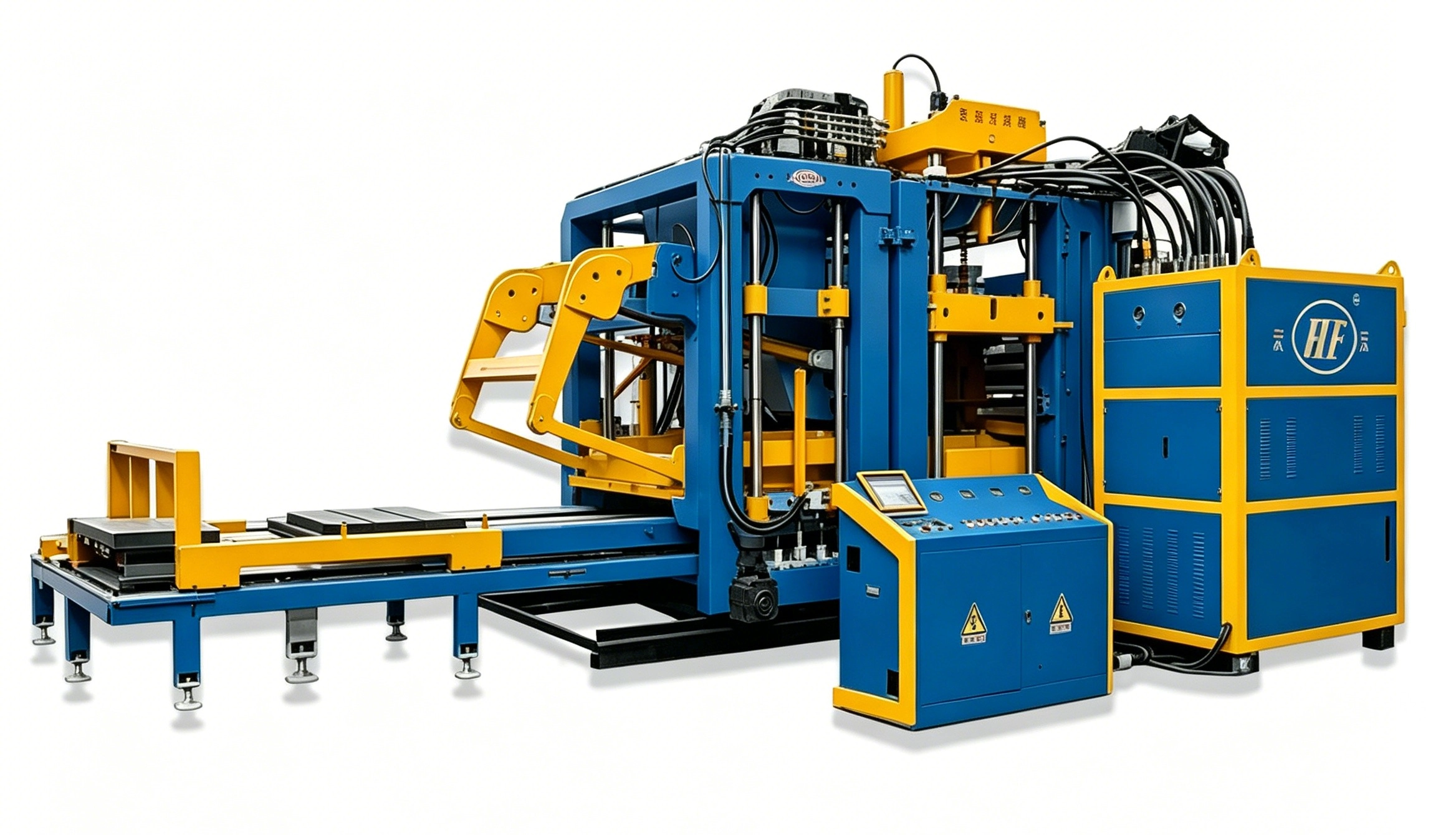

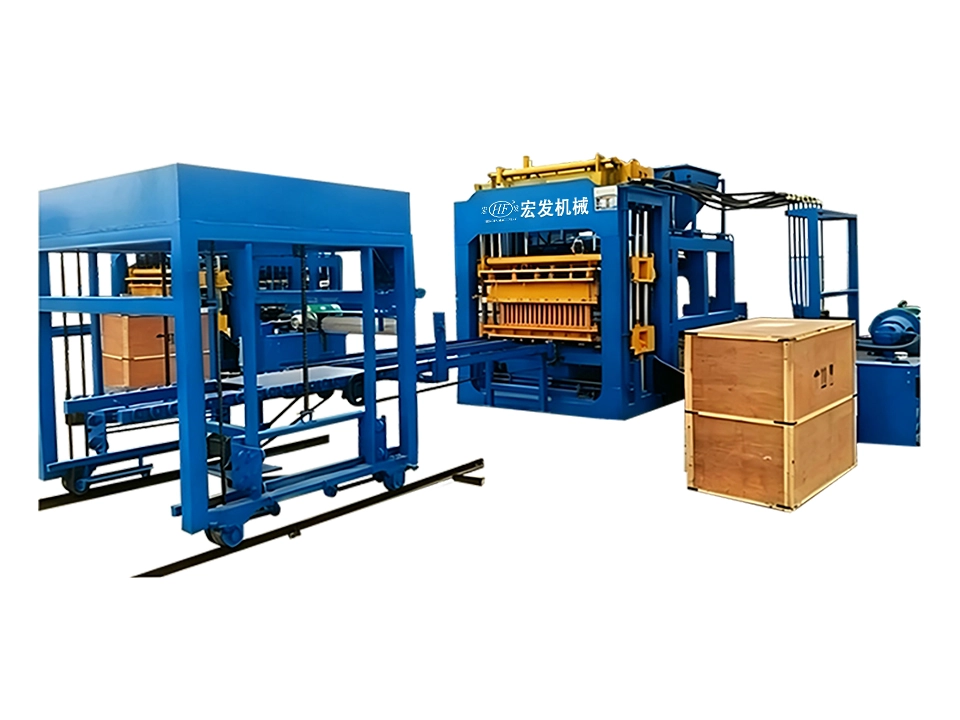

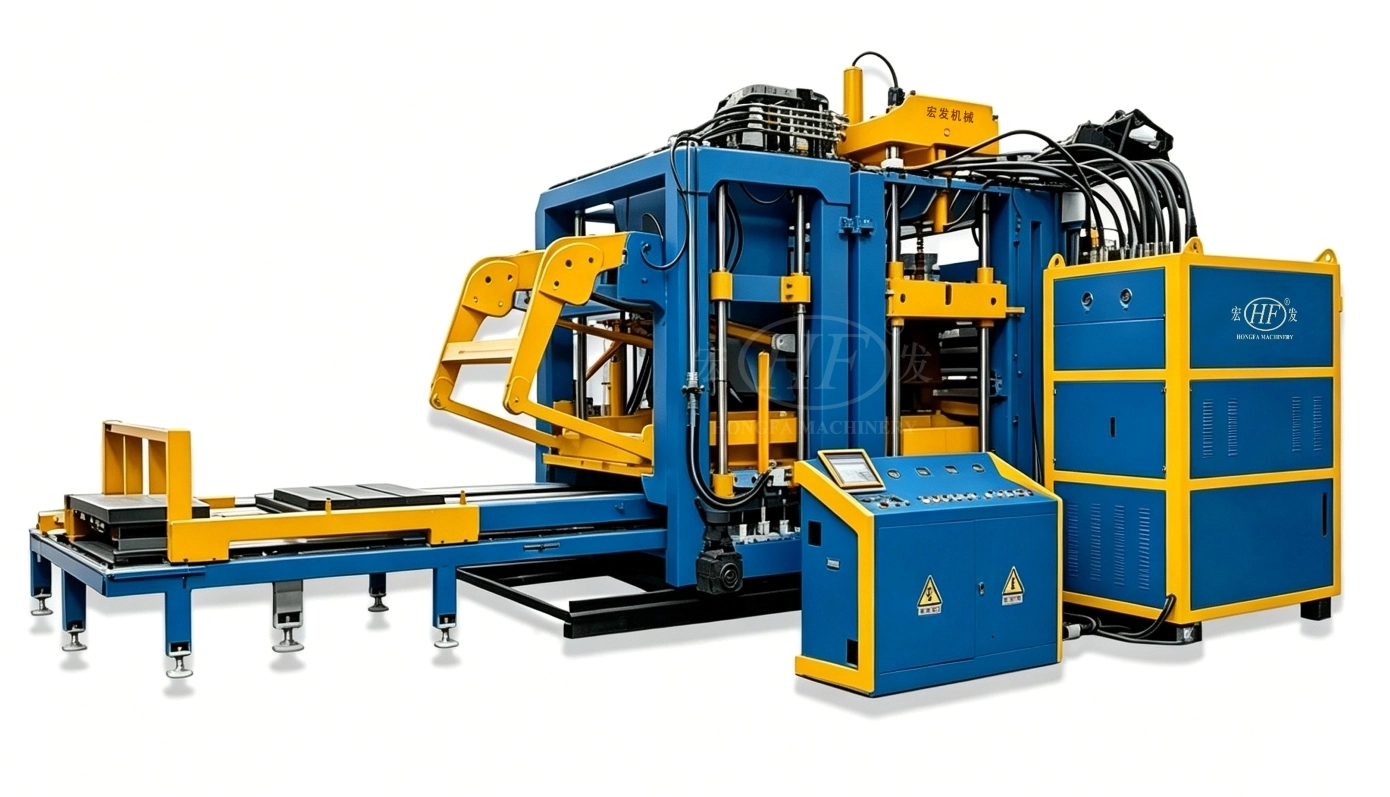

The QT10-15 Automatic Concrete Brick Making Machine integrates mechanical transmission, high-pressure hydraulic drive and PLC intelligent electronic control technology. It boasts a high level of automation, and only a small number of workers are required to operate the whole production line. The equipment runs stably and is suitable for scaled production of small and medium-sized brick factories, with prominent advantages in production and operation costs. The highlights of the machine are introduced in eight aspects as follows, with key performance parameters listed separately.

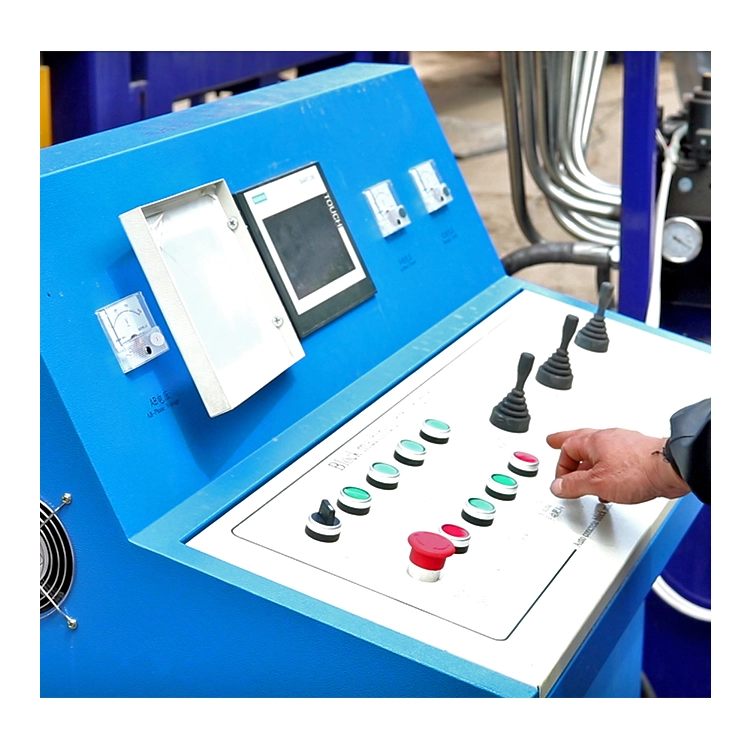

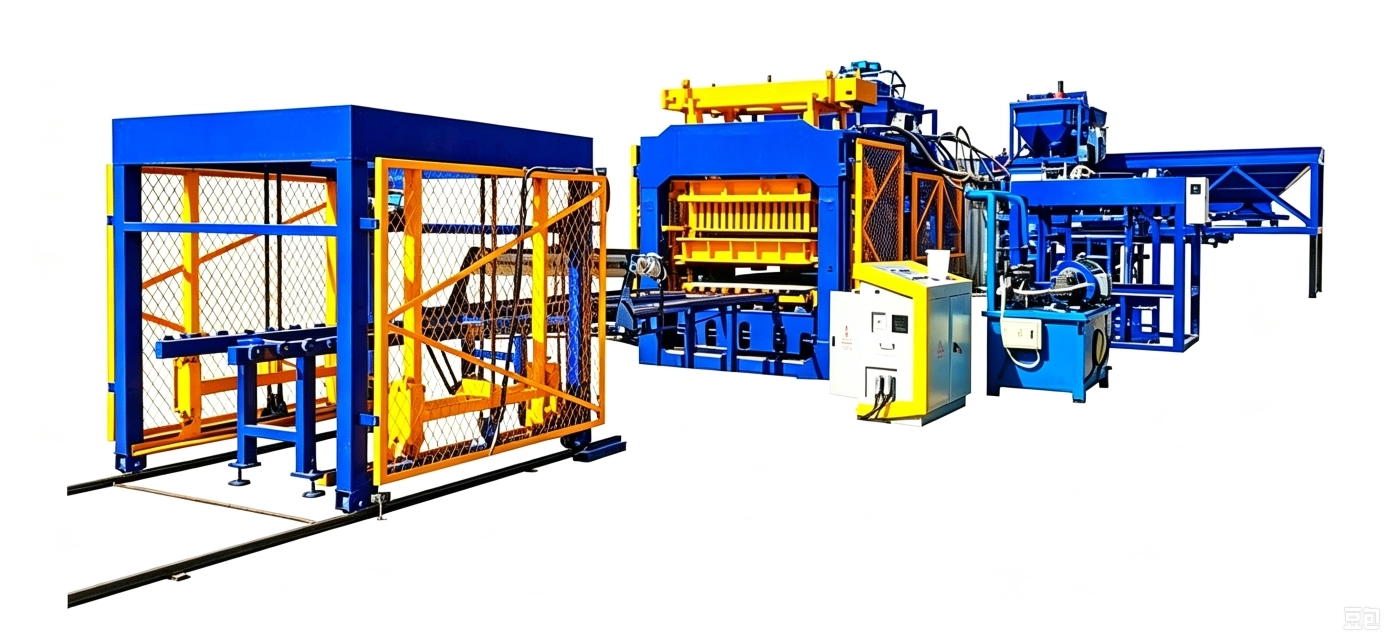

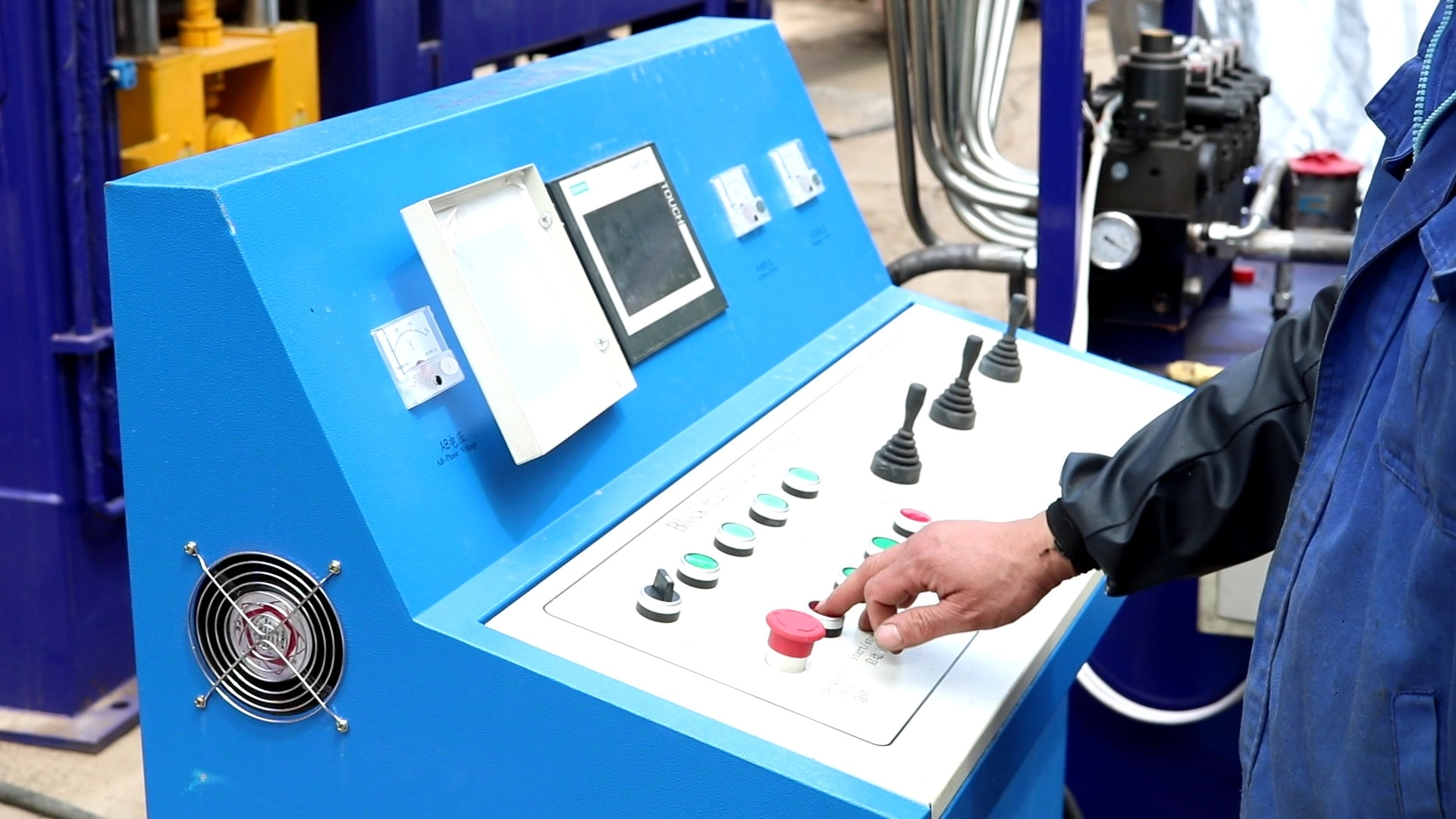

The QT10-15 automatic concrete brick machine is equipped with a standardized PLC touch screen intelligent control system, integrating automatic feeding, even material distribution, high-frequency vibration pressing and hydraulic demoulding, as well as automatic plate conveying. It is built-in with an automatic fault diagnosis and sound-light alarm function, which directly displays fault points on the touch screen to greatly shorten maintenance time. The operation interface is intuitive; core parameters such as vibration frequency, hydraulic pressure and forming time can be adjusted with one click. Operators can get started after simple training, and only 5 to 6 workers are needed for the whole production line, which effectively cuts long-term labor costs.Core electrical control parameters:

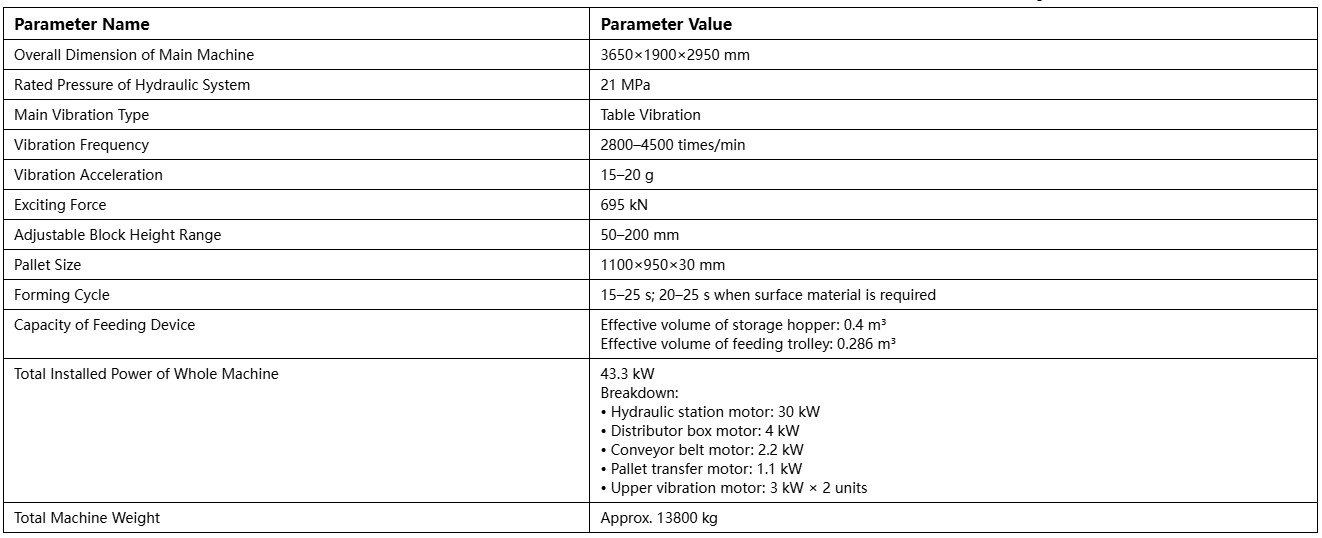

Control unit: Siemens / Mitsubishi PLC touch screen system
Total installed power of the whole machine: 43.3kW
Breakdown of motor power: Hydraulic station motor 30kW, Distributor box motor 4kW, Conveyor belt motor 2.2kW, Pallet transfer motor 1.1kW, Upper vibration motors 3kW × 2 units

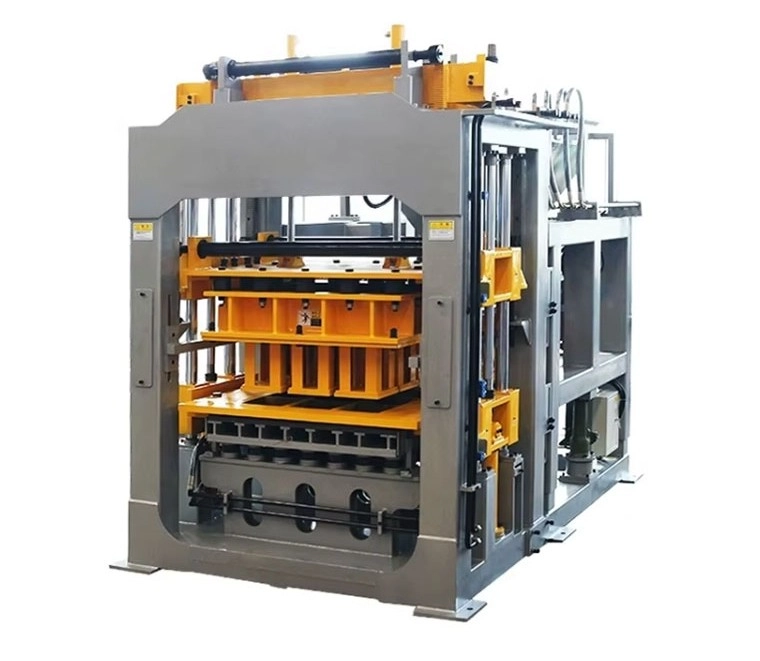

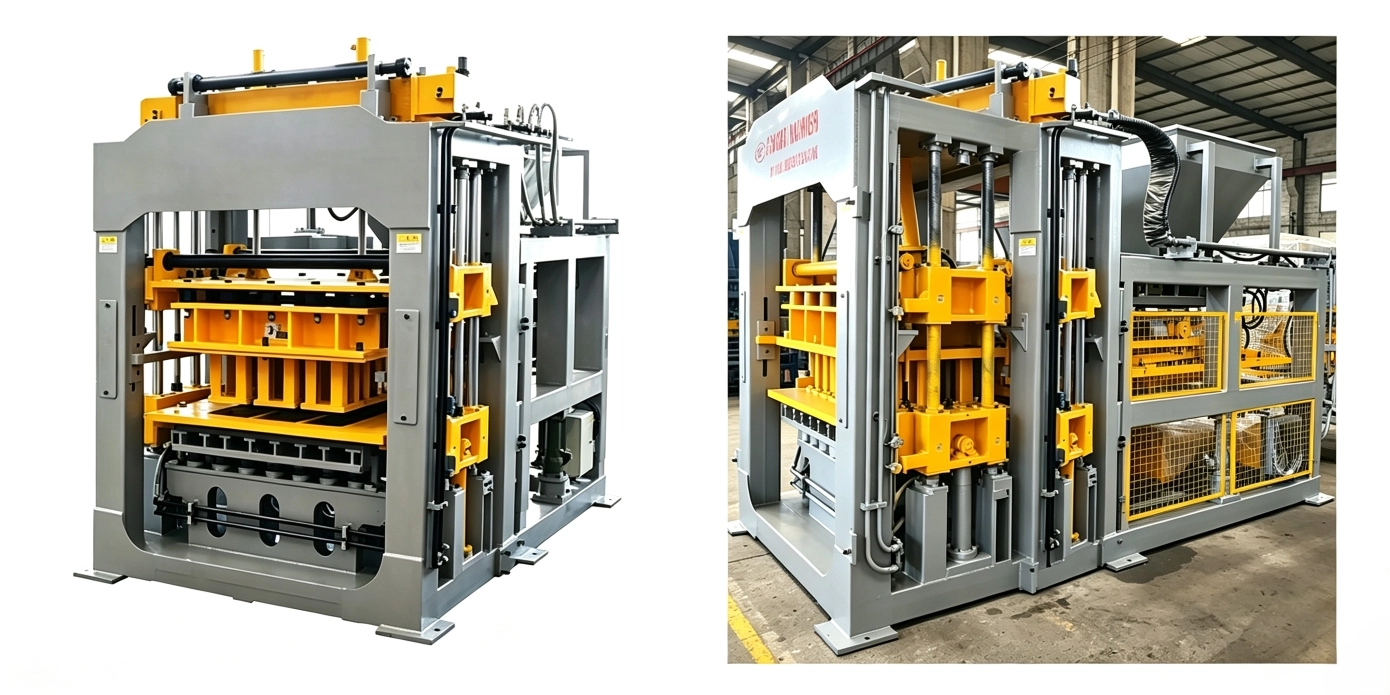

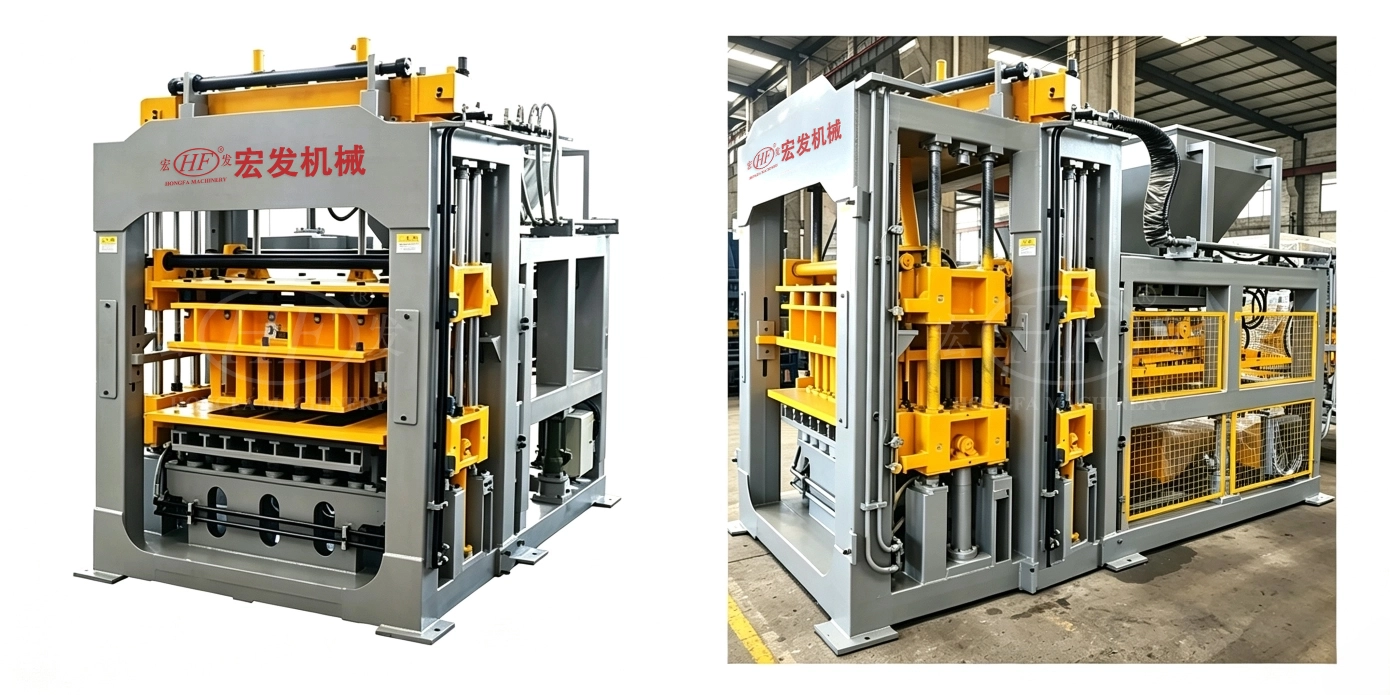

Adopting table vibration forming design, the QT10-15 fully automatic concrete brick machine relies mainly on high-pressure hydraulic compression supplemented by mechanical positioning, and completes one-step green body forming through composite high-frequency vertical synchronous vibration. The separate vibration base fitted with thickened rubber springs reduces noise and machine wear during operation. Sufficient exciting force fully compacts raw materials, resulting in dense bricks without internal voids or layering. The finished blocks stably reach a compressive strength of over 15MPa, with outstanding freeze-thaw resistance and impermeability, as well as excellent sound insulation and thermal insulation performance. All blocks feature precise dimensions and neat appearance.Core forming performance parameters:
Main vibration type: Table vibration
Vibration frequency: 2800–4500 times per minute
Vibration acceleration: 15–20g
Exciting force: 695kN
Rated hydraulic pressure: 21MPa
Forming cycle: 15–25 seconds; 20–25 seconds if surface color material is required
Adjustable block height range: 50–200mm

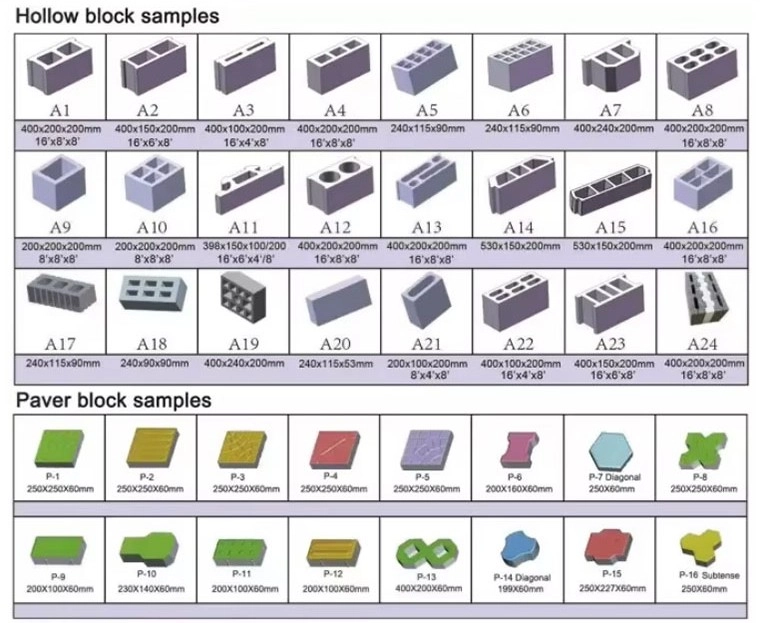

Molds can be replaced rapidly on this machine to produce mainstream building materials including hollow blocks, standard bricks, colored paving pavers, grass planting bricks, curb stones and slope protection bricks as well as tuff tiles. One single host covers construction, municipal road and landscape project orders, eliminating the need to purchase multiple machines and slashing upfront equipment investment. The single-mold output remains stable, allowing flexible production switching according to market demand to support diversified business operations.Forming matching specifications:
Standard pallet size: 1100×950×30mm

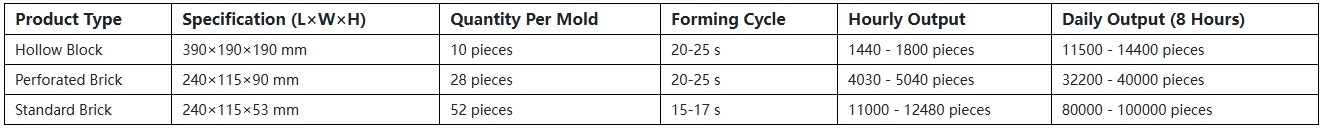

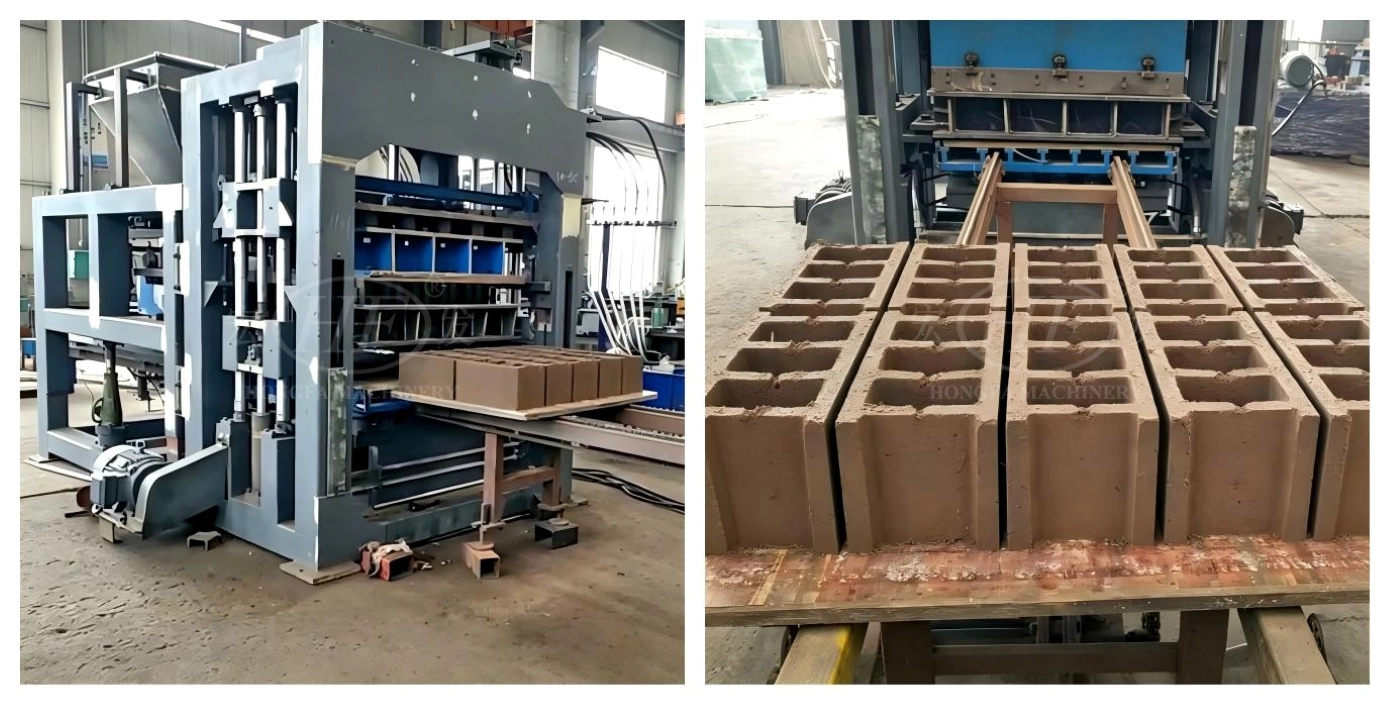

Output per mold: 10 pcs of 390 hollow blocks, 51 pcs of standard bricks, 31–36 pcs of colored pavers
The QT10-15 automatic concrete brick machine is fitted with a dedicated hydraulic station composed of high-precision valve groups and double vane pumps. Oil pressure and travel speed can be steplessly adjusted via touch screen, and multiple procedures including distribution, pressing and demoulding operate simultaneously without waiting, shortening single-mold cycle time. The full set of hydraulic parts adopts wear-resistant imported seals to prevent oil leakage, maintaining stable hydraulic output during long-hour continuous operation. All hydraulic components are standard universal parts easy to source, lowering later maintenance and replacement costs.Feeding device volume parameters:
Effective volume of storage hopper: 0.4m³
Effective volume of feeding trolley: 0.286m³
The main frame is integrally welded with thick steel plates and undergoes stress relief annealing after production. It resists deformation and weld cracking under long-term heavy vibration. All main transmission shafts and load-bearing bearings are national standard wear-resistant accessories. The forming molds are made of 55# high manganese steel with carburizing heat treatment, featuring high hardness and low abrasion; a single mold can complete tens of thousands of molding cycles. The total machine weight hits 13,800kg with sufficient base counterweight, so no shaking occurs at high vibration speeds for enhanced overall stability.Machine dimension & weight parameters:
Overall dimension (L×W×H): 3650×1900×2950mm
Total machine weight: approx. 13,800kg
This machine boasts extremely broad adaptability to raw materials. Apart from conventional sand, stone and cement, industrial solid wastes such as fly ash, mineral slag, stone powder and construction waste as well as tuff can be proportioned and used directly for production. Finished blocks require no kiln sintering, generating zero flue gas and dust emissions, which complies with environmental regulations worldwide and simplifies factory environmental assessment approval. Substituting natural aggregates with industrial waste greatly cuts raw material procurement expenses, reduces single-block manufacturing cost and lifts profit margins.

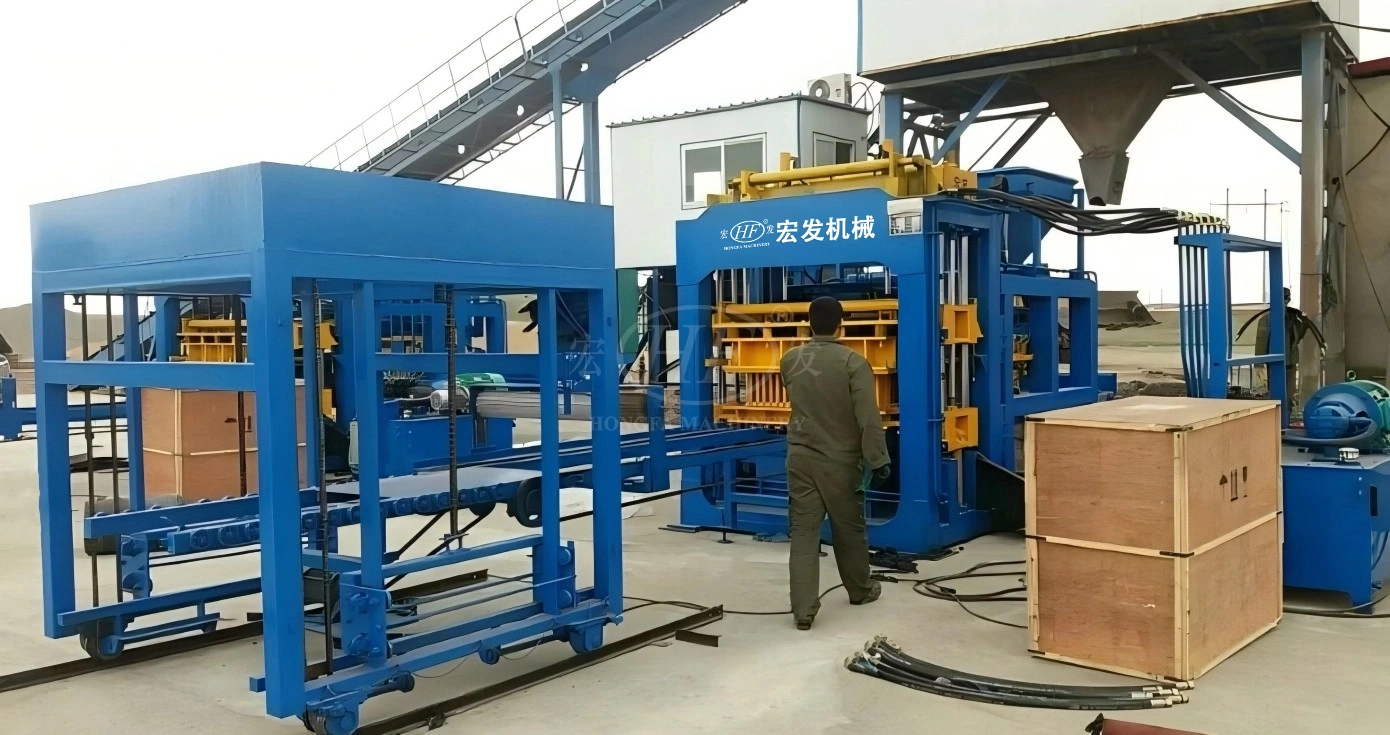

The host can be seamlessly matched with PL1200 automatic batching machine and JS500/JS750 twin-shaft forced mixer to build a complete automatic production line for batching, mixing and block forming. The machine features a compact layout requiring moderate plant space; a plant of around 1000㎡ is enough to install the whole line. It fits both small family brick plants and medium-sized scaled manufacturers. The 8-hour shift delivers considerable output: 144,000 hollow blocks or 100,000–150,000 paving pavers per shift for steady mass production returns.
The hopper, mold box and feeding trolley are all detachable for convenient daily residue cleaning and mold replacement. Hydraulic, electrical and vibration systems are independently partitioned; failure of one single component will not shut down the whole machine to avoid production delay. All spare parts are universal standard goods widely available on the market without custom-made exclusive accessories. The manufacturer supplies complete operation manuals, installation drawings as well as on-site installation, commissioning and staff training services, resulting in low daily maintenance difficulty and minimal consumable expenditure.
The QT10-15 Automatic Concrete Brick Making Machine integrates mechanical transmission, high-pressure hydraulic drive and PLC intelligent electronic control technology. It boasts a high level of automation, and only a small number of workers are required to operate the whole production line. The equipment runs stably and is suitable for scaled production of small and medium-sized brick factories, with prominent advantages in production and operation costs. The highlights of the machine are introduced in eight aspects as follows, with key performance parameters listed separately.
The QT10-15 automatic concrete brick machine is equipped with a standardized PLC touch screen intelligent control system, integrating automatic feeding, even material distribution, high-frequency vibration pressing and hydraulic demoulding, as well as automatic plate conveying. It is built-in with an automatic fault diagnosis and sound-light alarm function, which directly displays fault points on the touch screen to greatly shorten maintenance time. The operation interface is intuitive; core parameters such as vibration frequency, hydraulic pressure and forming time can be adjusted with one click. Operators can get started after simple training, and only 5 to 6 workers are needed for the whole production line, which effectively cuts long-term labor costs.Core electrical control parameters:
Control unit: Siemens / Mitsubishi PLC touch screen system
Total installed power of the whole machine: 43.3kW
Breakdown of motor power: Hydraulic station motor 30kW, Distributor box motor 4kW, Conveyor belt motor 2.2kW, Pallet transfer motor 1.1kW, Upper vibration motors 3kW × 2 units
Adopting table vibration forming design, the QT10-15 fully automatic concrete brick machine relies mainly on high-pressure hydraulic compression supplemented by mechanical positioning, and completes one-step green body forming through composite high-frequency vertical synchronous vibration. The separate vibration base fitted with thickened rubber springs reduces noise and machine wear during operation. Sufficient exciting force fully compacts raw materials, resulting in dense bricks without internal voids or layering. The finished blocks stably reach a compressive strength of over 15MPa, with outstanding freeze-thaw resistance and impermeability, as well as excellent sound insulation and thermal insulation performance. All blocks feature precise dimensions and neat appearance.Core forming performance parameters:
Main vibration type: Table vibration
Vibration frequency: 2800–4500 times per minute
Vibration acceleration: 15–20g
Exciting force: 695kN
Rated hydraulic pressure: 21MPa
Forming cycle: 15–25 seconds; 20–25 seconds if surface color material is required
Adjustable block height range: 50–200mm
Molds can be replaced rapidly on this machine to produce mainstream building materials including hollow blocks, standard bricks, colored paving pavers, grass planting bricks, curb stones and slope protection bricks as well as tuff tiles. One single host covers construction, municipal road and landscape project orders, eliminating the need to purchase multiple machines and slashing upfront equipment investment. The single-mold output remains stable, allowing flexible production switching according to market demand to support diversified business operations.Forming matching specifications:
Standard pallet size: 1100×950×30mm
Output per mold: 10 pcs of 390 hollow blocks, 51 pcs of standard bricks, 31–36 pcs of colored pavers
The QT10-15 automatic concrete brick machine is fitted with a dedicated hydraulic station composed of high-precision valve groups and double vane pumps. Oil pressure and travel speed can be steplessly adjusted via touch screen, and multiple procedures including distribution, pressing and demoulding operate simultaneously without waiting, shortening single-mold cycle time. The full set of hydraulic parts adopts wear-resistant imported seals to prevent oil leakage, maintaining stable hydraulic output during long-hour continuous operation. All hydraulic components are standard universal parts easy to source, lowering later maintenance and replacement costs.Feeding device volume parameters:
Effective volume of storage hopper: 0.4m³
Effective volume of feeding trolley: 0.286m³
The main frame is integrally welded with thick steel plates and undergoes stress relief annealing after production. It resists deformation and weld cracking under long-term heavy vibration. All main transmission shafts and load-bearing bearings are national standard wear-resistant accessories. The forming molds are made of 55# high manganese steel with carburizing heat treatment, featuring high hardness and low abrasion; a single mold can complete tens of thousands of molding cycles. The total machine weight hits 13,800kg with sufficient base counterweight, so no shaking occurs at high vibration speeds for enhanced overall stability.Machine dimension & weight parameters:
Overall dimension (L×W×H): 3650×1900×2950mm
Total machine weight: approx. 13,800kg
This machine boasts extremely broad adaptability to raw materials. Apart from conventional sand, stone and cement, industrial solid wastes such as fly ash, mineral slag, stone powder and construction waste as well as tuff can be proportioned and used directly for production. Finished blocks require no kiln sintering, generating zero flue gas and dust emissions, which complies with environmental regulations worldwide and simplifies factory environmental assessment approval. Substituting natural aggregates with industrial waste greatly cuts raw material procurement expenses, reduces single-block manufacturing cost and lifts profit margins.
The host can be seamlessly matched with PL1200 automatic batching machine and JS500/JS750 twin-shaft forced mixer to build a complete automatic production line for batching, mixing and block forming. The machine features a compact layout requiring moderate plant space; a plant of around 1000㎡ is enough to install the whole line. It fits both small family brick plants and medium-sized scaled manufacturers. The 8-hour shift delivers considerable output: 144,000 hollow blocks or 100,000–150,000 paving pavers per shift for steady mass production returns.
The hopper, mold box and feeding trolley are all detachable for convenient daily residue cleaning and mold replacement. Hydraulic, electrical and vibration systems are independently partitioned; failure of one single component will not shut down the whole machine to avoid production delay. All spare parts are universal standard goods widely available on the market without custom-made exclusive accessories. The manufacturer supplies complete operation manuals, installation drawings as well as on-site installation, commissioning and staff training services, resulting in low daily maintenance difficulty and minimal consumable expenditure.
