1. Wide Solid‑waste Compatibility, Eliminate Pallet Cost & Cut Overall Production Expense from Two Sides
Benefiting from multi‑source variable‑frequency table‑vibration structure, HF18 pallet‑free block forming main machine is natively optimized for construction‑waste recycled aggregate, fly ash, mineral slag, steel slag, furnace slag, coal gangue and other construction & industrial solid waste. It supports high‑proportion waste mixing for qualified block production, while batching and mixing belong to external supporting accessories. Conventional brick plants suffer continuous consumption and heavy recurring expenditure on plastic or GMT pallets. Adopting pallet‑free forming & direct stacking process, HF18 produces finished blocks for direct stacking without any circulating pallets, removing persistent pallet procurement, replacement and maintenance cost. Meanwhile you can utilize local demolition construction waste and factory residues as primary raw materials, reduce expensive natural aggregate purchase and skip landfill disposal fees for waste. Even if incoming waste varies in particle size and composition, material feeding and vibration system adapt well and maximize waste mixing ratio. Waste materials that used to cost money for disposal are turned into marketable brick products. Operating expenditure is lowered both in raw‑material consumption and waste‑disposal links, bringing you prominent profit advantages in building‑material market competition.

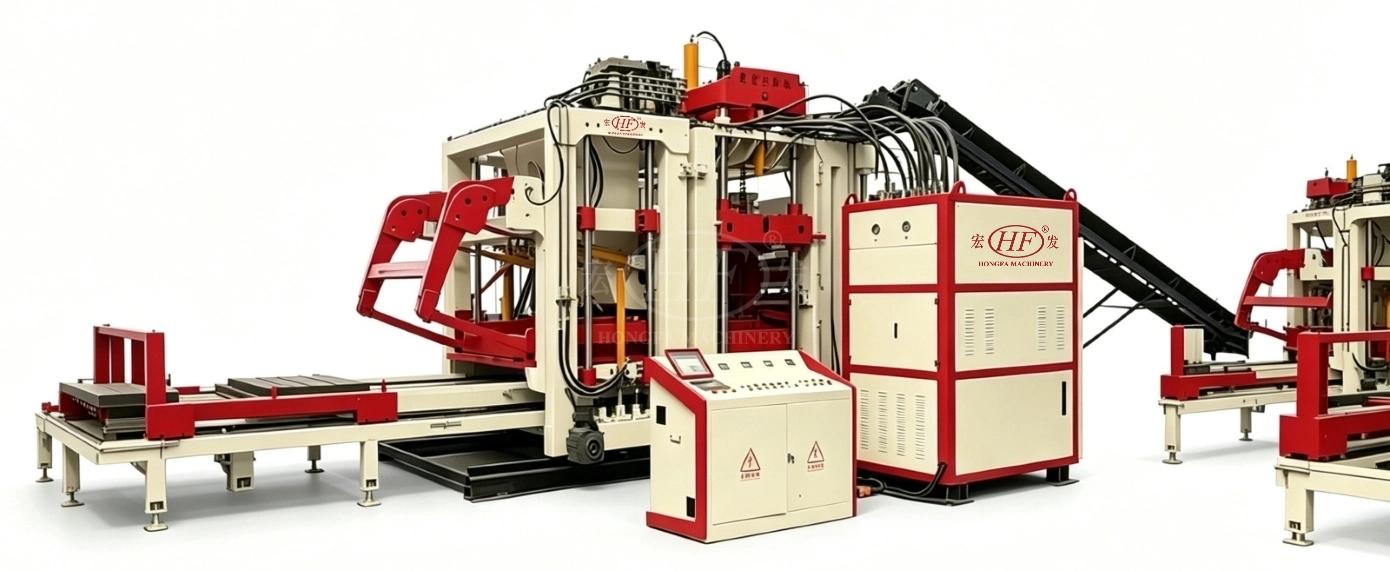

2. Large‑table Variable‑frequency Press‑vibration Forming, Stable Mass‑production under Complex Solid‑waste Feedstock

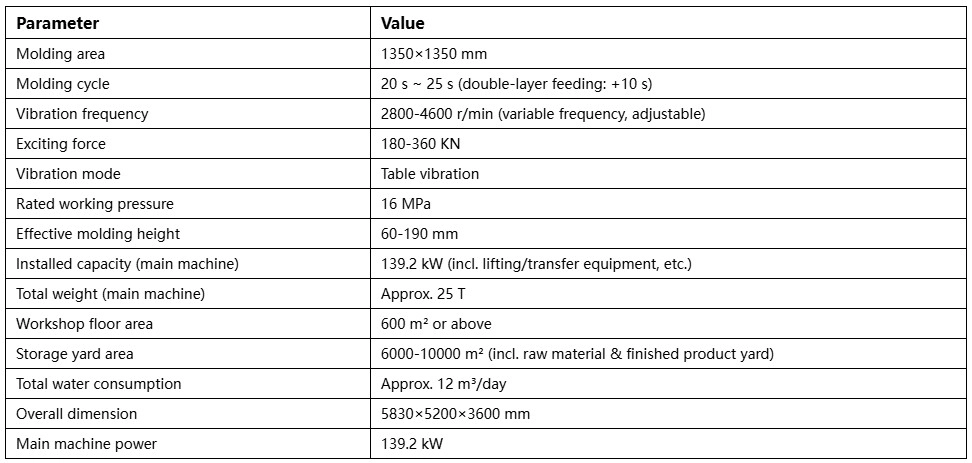

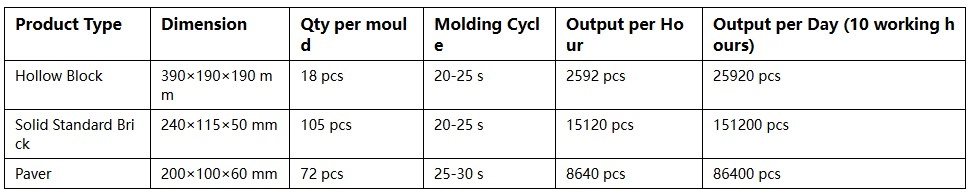

Equipped with 16 MPa rated pressure plus 180‑360 KN multi‑source adjustable variable‑frequency exciting‑force table‑vibration system, structurally reinforced for impurity‑rich, irregular solid‑waste mixtures. Air‑suspension vibration‑isolation design delivers full vibration energy into mould cavity. Even with hard crushed‑stone and slag particles mixed inside raw mixes, finished blocks achieve qualified density and compressive strength for civil and municipal‑project acceptance. Stable molding cycle reaches 20‑25 seconds per mould. The extra‑large 1350*1350 mm forming table brings higher output per mould, well‑suited for large‑volume construction‑waste and industrial‑residue recycling projects. Conventional pallet‑based block machines not only tend to produce loose or chipped defective bricks when processing solid waste, but also suffer fast pallet scratching and abrasion caused by hard waste particles. HF18 pallet‑free forming mode avoids secondary cost from pallet damage. It reduces defective‑product rate triggered by unstable waste feedstock, minimizes raw‑material waste, guarantees on‑time bulk‑order delivery, safeguards your reputation among downstream buyers and sustains local waste‑processing contracts.
3. Heavy‑duty Import‑grade Core Components, Air‑bag Vibration‑damping, Adapt to High‑abrasion Solid‑waste Working Conditions
Hard granular impurities inside construction waste and mineral slag impose heavier abrasion on hydraulic units, mould boxes and electric parts compared with ordinary sand‑stone raw materials. Hydraulic solenoid valves, electro‑hydraulic valves and cooling assemblies of HF18 main machine adopt original imported parts with water‑cooled circulating heat dissipation and washable oil‑tank design. Full‑set electric components and HMI are imported brands, with second‑level sealed cabinet resisting heavy brick‑plant dust environment. Air‑bag vibration‑absorbing & noise‑reduction system buffers high‑frequency vibration impact, mitigates structural wear from continuous waste‑material production and extends service life of mould boxes and whole machine. All core assemblies are selected for heavy‑duty waste‑to‑brick scenarios to lower unexpected shutdown frequency. Long‑time full‑load continuous operation releases full large‑table capacity without production interruption caused by main‑unit failures, securing steady revenue for your solid‑waste‑processing business.

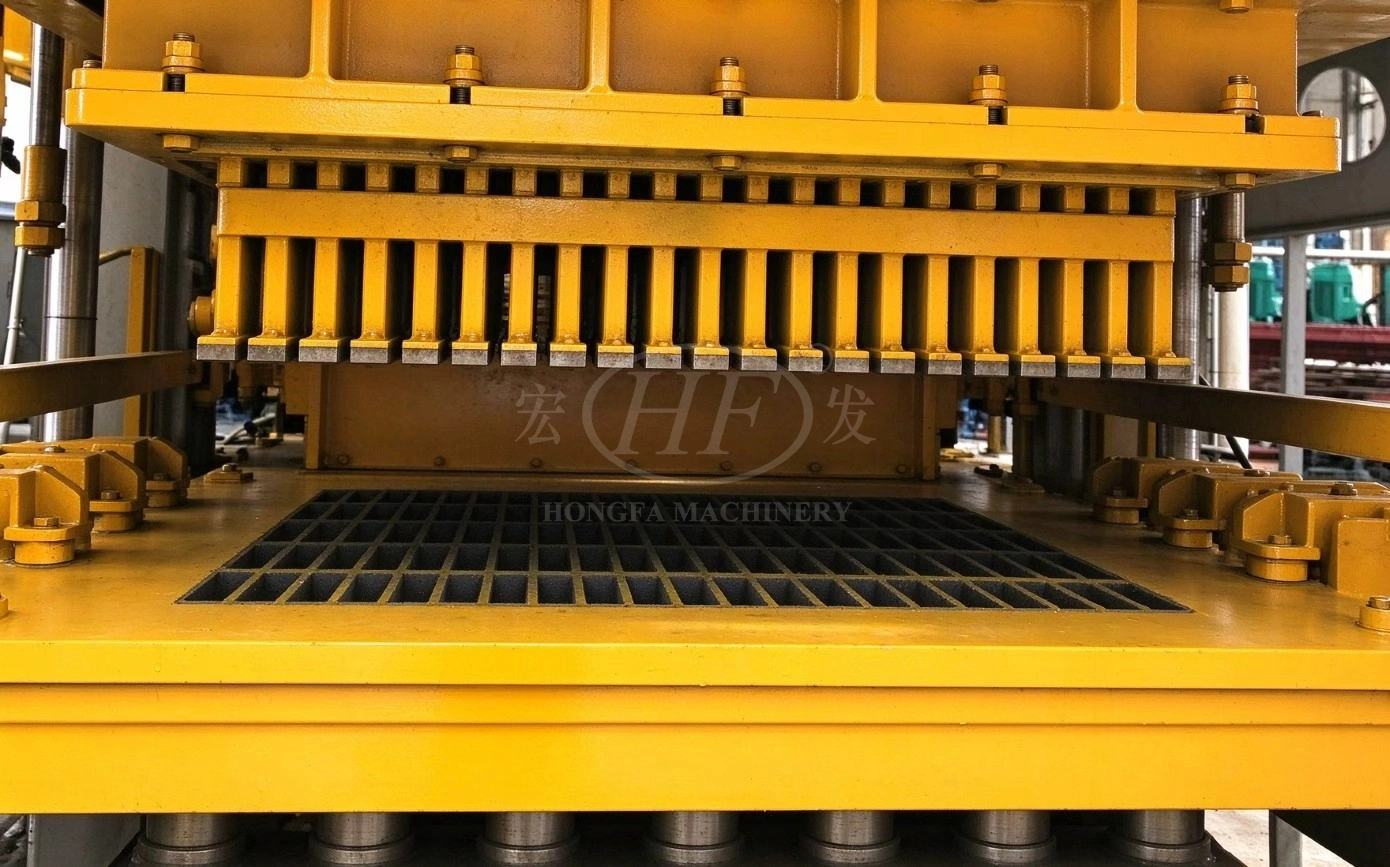

4. Quick‑change Mold under Pallet‑free Structure, Win Diversified High‑margin Solid‑waste Building‑material Orders
HF18 pallet‑free forming main machine supports convenient quick mold replacement without disassembly or modification of main steel frame. By swapping molds, it mass‑produces hollow blocks, paving pavers, road curbstones, grass blocks, slope‑protection interlocking blocks, thermal‑insulation blocks, standard bricks and other municipal‑grade building‑materials. Optional external color‑feeding unit enables colored landscape brick production. Many regions worldwide carry out supportive policies for construction‑waste recycling. Sponge‑city and municipal‑infrastructure tenders give procurement priority to recycled solid‑waste building‑materials with higher product premium. With this single HF18 main machine, you do not need extra forming machines to fulfill both civil‑building orders and high‑value green municipal tenders. It expands your customer groups and order sources, helps you capture market dividends of recycled‑building‑material sector and lifts overall factory revenue and profit.
5. Full‑automatic Workflow, Greatly Reduce Manpower & Prevent Man‑made Quality Deviation

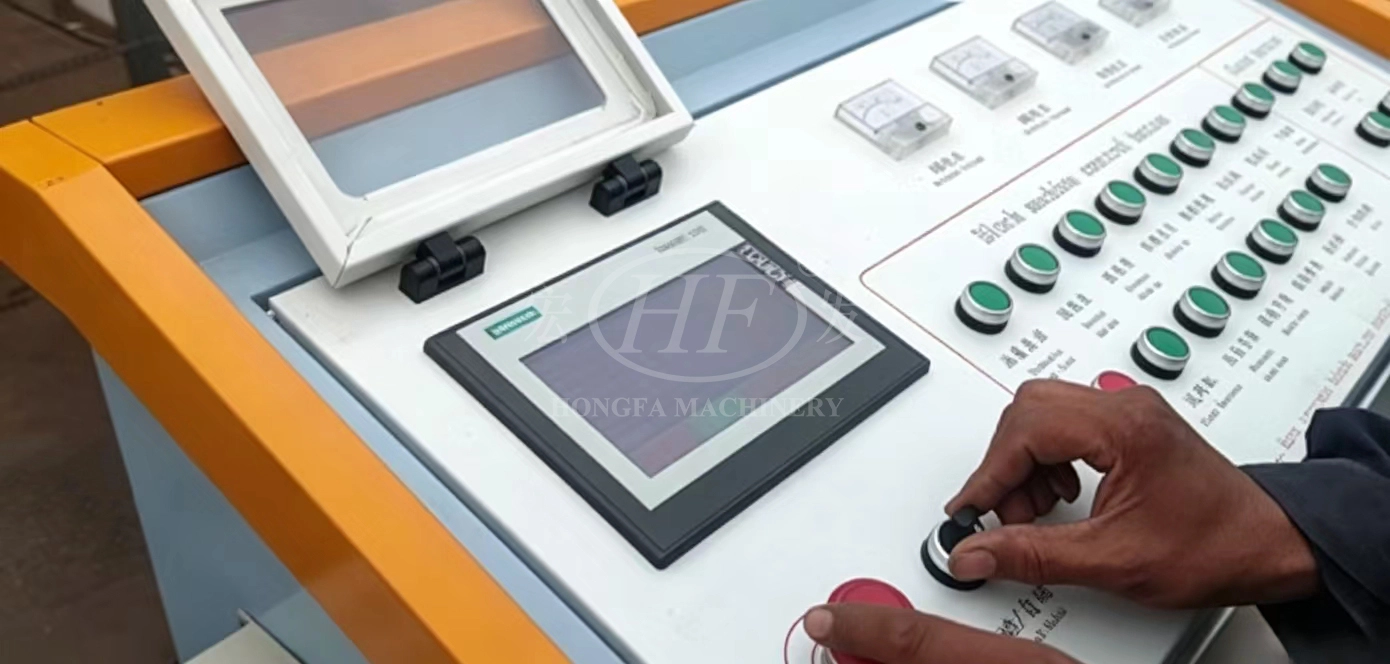

HF18 main machine realizes full‑automated workflow including material feeding, press‑vibration forming, demoulding and direct finished‑block stacking. Intermediate procedures such as pallet lifting, lowering and pallet circulation are eliminated. Only a small number of simply‑trained operators are required for on‑site supervision. Labor demand can be cut by over 90 % compared with traditional pallet‑based production lines. Finished‑block quality of solid‑waste brick‑making heavily relies on mixture proportion. Connected with external batching‑mixing accessories, the machine steadily processes well‑proportioned waste‑based mixes. Complete electrical interlock logic supports manual / semi‑auto / full‑auto multi‑mode operation. Equipped with remote communication control system for formula storage and off‑site production monitoring. Mass‑quality accidents caused by manual batching and manual handling are avoided. Labor‑payroll cost is sharply reduced while waste‑processing capacity can be scaled‑up to consume large‑volume local construction and industrial residues and maximize profit potential of your solid‑waste recycling project.
6. Simplified Auxiliary Process, Lower Plant‑construction Investment & Accelerate Project Payback Period
HF18 pallet‑free main machine removes the need for pallet lifters, pallet lowering machines and full pallet‑circulation auxiliary sets required for conventional lines, cutting the quantity of supporting equipment you need to purchase. Despite its large‑table dimension, the main machine demands fewer peripheral facilities and no large‑volume circulating‑pallet stock, lowering upfront equipment investment. Delivered as a complete main‑machine assembly with one hollow‑block mould included. Solid‑waste brick‑making production can start rapidly after connecting with external mixing and batching accessories. Investors do not have to build complex pallet‑circulation systems; existing workshops can be adopted after moderate modification for project launch. Dual‑stream income is available: sales profit from recycled blocks plus service fees from third‑party incoming‑waste disposal contracts. Multiple‑income streams shorten project payback cycle and lower entry threshold for large‑scale solid‑waste recycled‑building‑material business.
1. Wide Solid‑waste Compatibility, Eliminate Pallet Cost & Cut Overall Production Expense from Two Sides
Benefiting from multi‑source variable‑frequency table‑vibration structure, HF18 pallet‑free block forming main machine is natively optimized for construction‑waste recycled aggregate, fly ash, mineral slag, steel slag, furnace slag, coal gangue and other construction & industrial solid waste. It supports high‑proportion waste mixing for qualified block production, while batching and mixing belong to external supporting accessories. Conventional brick plants suffer continuous consumption and heavy recurring expenditure on plastic or GMT pallets. Adopting pallet‑free forming & direct stacking process, HF18 produces finished blocks for direct stacking without any circulating pallets, removing persistent pallet procurement, replacement and maintenance cost. Meanwhile you can utilize local demolition construction waste and factory residues as primary raw materials, reduce expensive natural aggregate purchase and skip landfill disposal fees for waste. Even if incoming waste varies in particle size and composition, material feeding and vibration system adapt well and maximize waste mixing ratio. Waste materials that used to cost money for disposal are turned into marketable brick products. Operating expenditure is lowered both in raw‑material consumption and waste‑disposal links, bringing you prominent profit advantages in building‑material market competition.
2. Large‑table Variable‑frequency Press‑vibration Forming, Stable Mass‑production under Complex Solid‑waste Feedstock
Equipped with 16 MPa rated pressure plus 180‑360 KN multi‑source adjustable variable‑frequency exciting‑force table‑vibration system, structurally reinforced for impurity‑rich, irregular solid‑waste mixtures. Air‑suspension vibration‑isolation design delivers full vibration energy into mould cavity. Even with hard crushed‑stone and slag particles mixed inside raw mixes, finished blocks achieve qualified density and compressive strength for civil and municipal‑project acceptance. Stable molding cycle reaches 20‑25 seconds per mould. The extra‑large 1350*1350 mm forming table brings higher output per mould, well‑suited for large‑volume construction‑waste and industrial‑residue recycling projects. Conventional pallet‑based block machines not only tend to produce loose or chipped defective bricks when processing solid waste, but also suffer fast pallet scratching and abrasion caused by hard waste particles. HF18 pallet‑free forming mode avoids secondary cost from pallet damage. It reduces defective‑product rate triggered by unstable waste feedstock, minimizes raw‑material waste, guarantees on‑time bulk‑order delivery, safeguards your reputation among downstream buyers and sustains local waste‑processing contracts.
3. Heavy‑duty Import‑grade Core Components, Air‑bag Vibration‑damping, Adapt to High‑abrasion Solid‑waste Working Conditions
Hard granular impurities inside construction waste and mineral slag impose heavier abrasion on hydraulic units, mould boxes and electric parts compared with ordinary sand‑stone raw materials. Hydraulic solenoid valves, electro‑hydraulic valves and cooling assemblies of HF18 main machine adopt original imported parts with water‑cooled circulating heat dissipation and washable oil‑tank design. Full‑set electric components and HMI are imported brands, with second‑level sealed cabinet resisting heavy brick‑plant dust environment. Air‑bag vibration‑absorbing & noise‑reduction system buffers high‑frequency vibration impact, mitigates structural wear from continuous waste‑material production and extends service life of mould boxes and whole machine. All core assemblies are selected for heavy‑duty waste‑to‑brick scenarios to lower unexpected shutdown frequency. Long‑time full‑load continuous operation releases full large‑table capacity without production interruption caused by main‑unit failures, securing steady revenue for your solid‑waste‑processing business.
4. Quick‑change Mold under Pallet‑free Structure, Win Diversified High‑margin Solid‑waste Building‑material Orders
HF18 pallet‑free forming main machine supports convenient quick mold replacement without disassembly or modification of main steel frame. By swapping molds, it mass‑produces hollow blocks, paving pavers, road curbstones, grass blocks, slope‑protection interlocking blocks, thermal‑insulation blocks, standard bricks and other municipal‑grade building‑materials. Optional external color‑feeding unit enables colored landscape brick production. Many regions worldwide carry out supportive policies for construction‑waste recycling. Sponge‑city and municipal‑infrastructure tenders give procurement priority to recycled solid‑waste building‑materials with higher product premium. With this single HF18 main machine, you do not need extra forming machines to fulfill both civil‑building orders and high‑value green municipal tenders. It expands your customer groups and order sources, helps you capture market dividends of recycled‑building‑material sector and lifts overall factory revenue and profit.
5. Full‑automatic Workflow, Greatly Reduce Manpower & Prevent Man‑made Quality Deviation
HF18 main machine realizes full‑automated workflow including material feeding, press‑vibration forming, demoulding and direct finished‑block stacking. Intermediate procedures such as pallet lifting, lowering and pallet circulation are eliminated. Only a small number of simply‑trained operators are required for on‑site supervision. Labor demand can be cut by over 90 % compared with traditional pallet‑based production lines. Finished‑block quality of solid‑waste brick‑making heavily relies on mixture proportion. Connected with external batching‑mixing accessories, the machine steadily processes well‑proportioned waste‑based mixes. Complete electrical interlock logic supports manual / semi‑auto / full‑auto multi‑mode operation. Equipped with remote communication control system for formula storage and off‑site production monitoring. Mass‑quality accidents caused by manual batching and manual handling are avoided. Labor‑payroll cost is sharply reduced while waste‑processing capacity can be scaled‑up to consume large‑volume local construction and industrial residues and maximize profit potential of your solid‑waste recycling project.
6. Simplified Auxiliary Process, Lower Plant‑construction Investment & Accelerate Project Payback Period
HF18 pallet‑free main machine removes the need for pallet lifters, pallet lowering machines and full pallet‑circulation auxiliary sets required for conventional lines, cutting the quantity of supporting equipment you need to purchase. Despite its large‑table dimension, the main machine demands fewer peripheral facilities and no large‑volume circulating‑pallet stock, lowering upfront equipment investment. Delivered as a complete main‑machine assembly with one hollow‑block mould included. Solid‑waste brick‑making production can start rapidly after connecting with external mixing and batching accessories. Investors do not have to build complex pallet‑circulation systems; existing workshops can be adopted after moderate modification for project launch. Dual‑stream income is available: sales profit from recycled blocks plus service fees from third‑party incoming‑waste disposal contracts. Multiple‑income streams shorten project payback cycle and lower entry threshold for large‑scale solid‑waste recycled‑building‑material business.
