1. Full‑process PLC automatic operation, lower skill requirement and cut long‑term labor expenditure

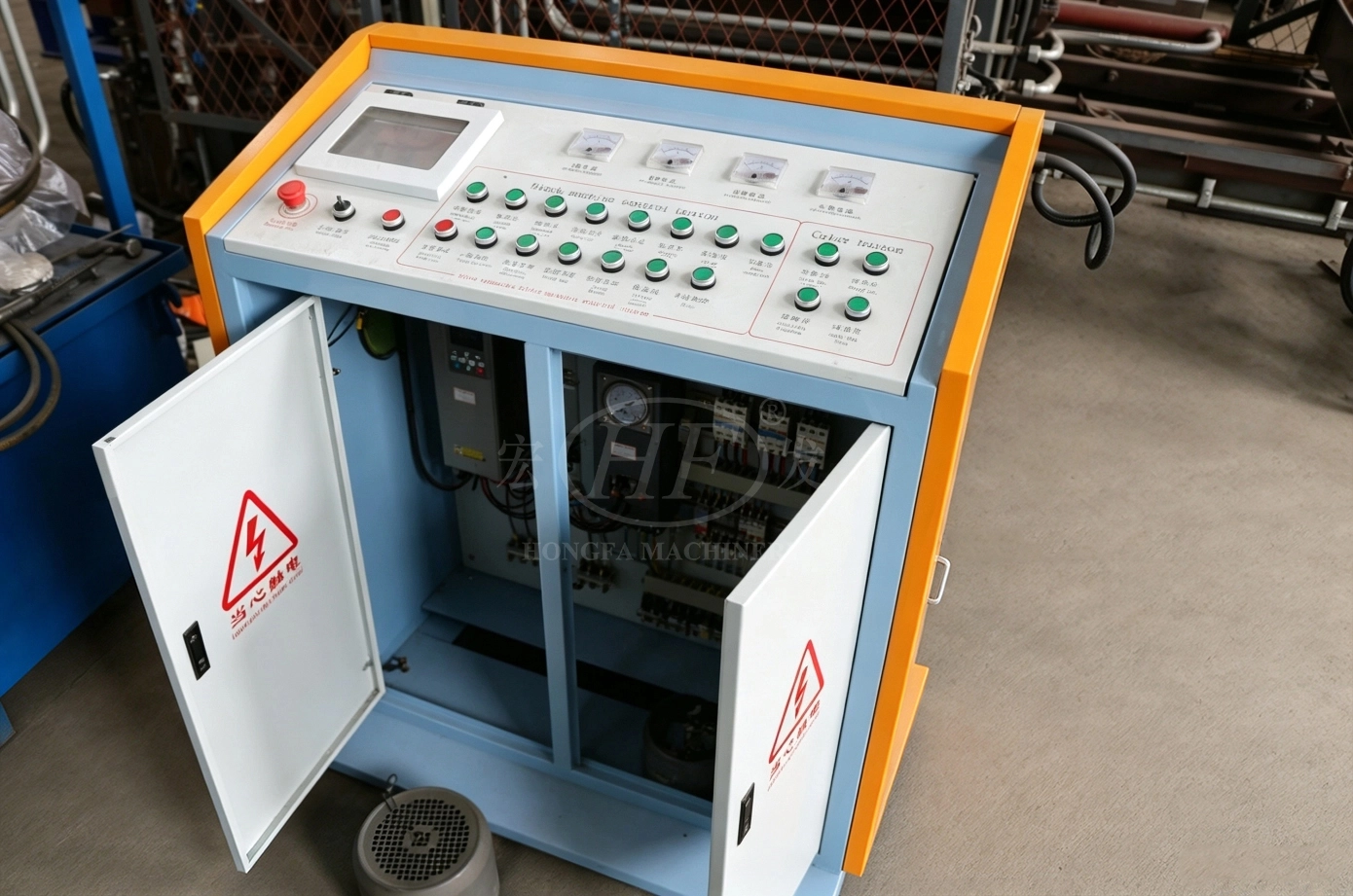

Traditional semi‑auto block lines need many skilled workers for repeated pallet feeding, material distributing, brick collecting and stacking. Rising labor wages eat up profit, and staff turnover may interrupt production. QT4‑25 is equipped with 10‑inch touch‑screen PLC control system. It finishes full‑cycle automatic pallet feeding, feeding, molding, brick discharging and stacking. Auto, semi‑auto and manual modes are optional. Ordinary workers can operate after simple training. Only 3‑4 workers are required for the whole production line, cutting labor input by over 60% versus semi‑auto machines. You will not heavily rely on experienced operators. Production schedule stays stable even with staff rotation and your monthly labor cost remains well‑controlled.
2. Table‑mold resonance plus dual‑side compression molding, high‑quality finished blocks and less raw‑material waste
Loose blocks, chipped corners and dimension errors cause heavy waste of cement and aggregates, lead to customer returns and lost orders. QT4‑25 applies table‑mold resonance together with upper‑lower compression vibration. Exciting force is adjustable for different raw materials, paired with 16‑MPa hydraulic pressure for thorough compaction inside mould cavity. Moulds are made of quenched Cr12MoV wear‑resistant steel. Dimensional tolerance is controlled within ±0.5 mm. Green blocks gain high density and compression strength. Fresh blocks can be directly stacked for 4‑5 layers without long curing waiting. Reject rate is well‑controlled to reduce material loss. Output blocks meet construction and municipal project standards and help you win bulk long‑term supply contracts.
3. Quick‑change mould for diversified products, expand order sources and reduce single‑product market risk

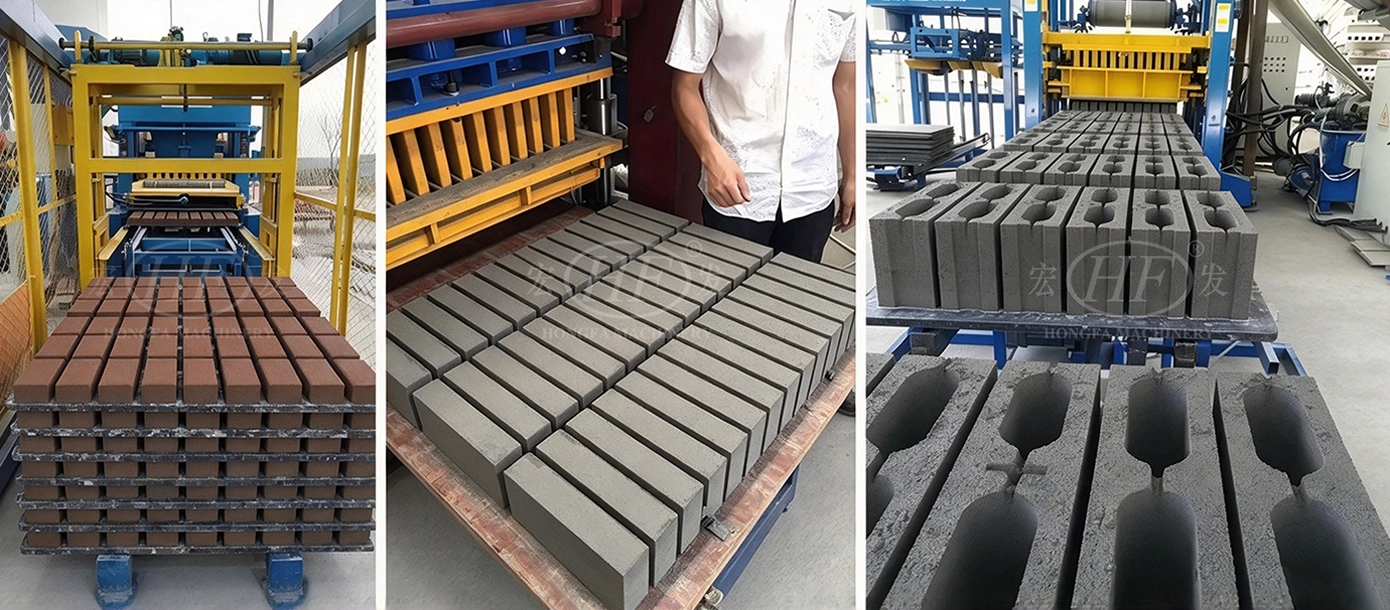

Machines limited to one block type face high business risk once local market demand drops. QT4‑25 enables mould replacement within 30 min without major host modification. One single machine produces standard bricks, hollow blocks, permeable pavers, grass‑planting slope bricks, interlocking blocks, curb stones and other concrete products for construction, municipal works, water conservancy and landscaping sectors. You can switch products flexibly according to incoming orders, undertaking building, road and slope‑protection projects. Equipment utilization rate gets maximized. There is no need to purchase multiple separate main machines. You capture more business opportunities and mitigate market fluctuation risk.
4. Wide compatibility with industrial & municipal solid waste, local material usage reduces raw‑material expense
Conventional sand‑cement raw materials cost high, and long‑distance transportation further raises per‑unit brick cost. QT4‑25 achieves 30‑70 % solid‑waste utilization rate. Fly ash, gangue, steel slag, tailings sand, construction debris, crushed waste concrete and other residues can serve as feedstock. Many solid‑waste materials can be sourced locally at low cost or even free of charge. You save large cost on raw‑material purchase and long‑haul logistics, cutting material expense by 30‑50 % compared with 100‑percent fresh aggregates. It complies with local environmental regulations and improves profit margin for solid‑waste‑recycling investment projects.
5. Heavy‑duty steel structure plus premium core components, low failure rate for continuous mass‑order production
Block machines suffer continuous heavy vibration. Thin frames and low‑grade spare parts easily cause frame distortion, hydraulic oil leakage and electric breakdown. Unexpected shutdown delays engineering orders and brings high repair cost. QT4‑25 main frame adopts Q355B high‑strength steel with submerged‑arc welding for strong rigidity against long‑time vibration. Key hydraulic and electric parts are sourced from well‑known brands. Mean time between failures reaches over 8000 working hours. Optimized hydraulic sealing and heat dissipation support non‑stop shift‑based production. Wear parts adopt unified specifications with sufficient spare‑part supply. Unplanned downtime is largely reduced. Bulk customer orders can be delivered on‑time to safeguard your business reputation and cut later maintenance expense.
6. Cost‑effective full‑set medium‑capacity solution, small footprint and fast commissioning for quick payback

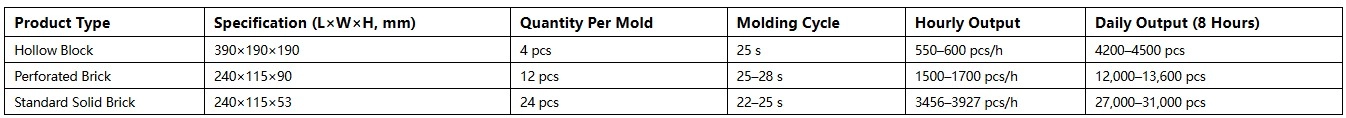

Large fully‑automatic brick lines demand huge capital investment and strict workshop & civil‑construction requirements, which are heavy burdens for new investors. QT4‑25 targets medium‑small‑scale automatic block production. The complete line only occupies 50‑80 m² floor space and needs no complicated foundation work. Production can start within 7‑10 days after equipment arrival. With 15‑20‑second forming cycle, it steadily delivers 25000‑30000 standard bricks for each 8‑hour shift, satisfying most medium‑small‑size block orders. The full package includes electronic batching machine, twin‑shaft mixer, belt conveyor and automatic brick stacker alongside main host. Moderate total investment and reasonable power consumption support fast project launch for new block plants or factory upgrading, accelerating your return‑on‑investment cycle.
1. Full‑process PLC automatic operation, lower skill requirement and cut long‑term labor expenditure
Traditional semi‑auto block lines need many skilled workers for repeated pallet feeding, material distributing, brick collecting and stacking. Rising labor wages eat up profit, and staff turnover may interrupt production. QT4‑25 is equipped with 10‑inch touch‑screen PLC control system. It finishes full‑cycle automatic pallet feeding, feeding, molding, brick discharging and stacking. Auto, semi‑auto and manual modes are optional. Ordinary workers can operate after simple training. Only 3‑4 workers are required for the whole production line, cutting labor input by over 60% versus semi‑auto machines. You will not heavily rely on experienced operators. Production schedule stays stable even with staff rotation and your monthly labor cost remains well‑controlled.
2. Table‑mold resonance plus dual‑side compression molding, high‑quality finished blocks and less raw‑material waste
Loose blocks, chipped corners and dimension errors cause heavy waste of cement and aggregates, lead to customer returns and lost orders. QT4‑25 applies table‑mold resonance together with upper‑lower compression vibration. Exciting force is adjustable for different raw materials, paired with 16‑MPa hydraulic pressure for thorough compaction inside mould cavity. Moulds are made of quenched Cr12MoV wear‑resistant steel. Dimensional tolerance is controlled within ±0.5 mm. Green blocks gain high density and compression strength. Fresh blocks can be directly stacked for 4‑5 layers without long curing waiting. Reject rate is well‑controlled to reduce material loss. Output blocks meet construction and municipal project standards and help you win bulk long‑term supply contracts.
3. Quick‑change mould for diversified products, expand order sources and reduce single‑product market risk
Machines limited to one block type face high business risk once local market demand drops. QT4‑25 enables mould replacement within 30 min without major host modification. One single machine produces standard bricks, hollow blocks, permeable pavers, grass‑planting slope bricks, interlocking blocks, curb stones and other concrete products for construction, municipal works, water conservancy and landscaping sectors. You can switch products flexibly according to incoming orders, undertaking building, road and slope‑protection projects. Equipment utilization rate gets maximized. There is no need to purchase multiple separate main machines. You capture more business opportunities and mitigate market fluctuation risk.
4. Wide compatibility with industrial & municipal solid waste, local material usage reduces raw‑material expense
Conventional sand‑cement raw materials cost high, and long‑distance transportation further raises per‑unit brick cost. QT4‑25 achieves 30‑70 % solid‑waste utilization rate. Fly ash, gangue, steel slag, tailings sand, construction debris, crushed waste concrete and other residues can serve as feedstock. Many solid‑waste materials can be sourced locally at low cost or even free of charge. You save large cost on raw‑material purchase and long‑haul logistics, cutting material expense by 30‑50 % compared with 100‑percent fresh aggregates. It complies with local environmental regulations and improves profit margin for solid‑waste‑recycling investment projects.
5. Heavy‑duty steel structure plus premium core components, low failure rate for continuous mass‑order production
Block machines suffer continuous heavy vibration. Thin frames and low‑grade spare parts easily cause frame distortion, hydraulic oil leakage and electric breakdown. Unexpected shutdown delays engineering orders and brings high repair cost. QT4‑25 main frame adopts Q355B high‑strength steel with submerged‑arc welding for strong rigidity against long‑time vibration. Key hydraulic and electric parts are sourced from well‑known brands. Mean time between failures reaches over 8000 working hours. Optimized hydraulic sealing and heat dissipation support non‑stop shift‑based production. Wear parts adopt unified specifications with sufficient spare‑part supply. Unplanned downtime is largely reduced. Bulk customer orders can be delivered on‑time to safeguard your business reputation and cut later maintenance expense.
6. Cost‑effective full‑set medium‑capacity solution, small footprint and fast commissioning for quick payback
Large fully‑automatic brick lines demand huge capital investment and strict workshop & civil‑construction requirements, which are heavy burdens for new investors. QT4‑25 targets medium‑small‑scale automatic block production. The complete line only occupies 50‑80 m² floor space and needs no complicated foundation work. Production can start within 7‑10 days after equipment arrival. With 15‑20‑second forming cycle, it steadily delivers 25000‑30000 standard bricks for each 8‑hour shift, satisfying most medium‑small‑size block orders. The full package includes electronic batching machine, twin‑shaft mixer, belt conveyor and automatic brick stacker alongside main host. Moderate total investment and reasonable power consumption support fast project launch for new block plants or factory upgrading, accelerating your return‑on‑investment cycle.
