1. Combined Vibration & Spiral Feeding, Dense Material Around Hollow Cavities And Less Reject Loss

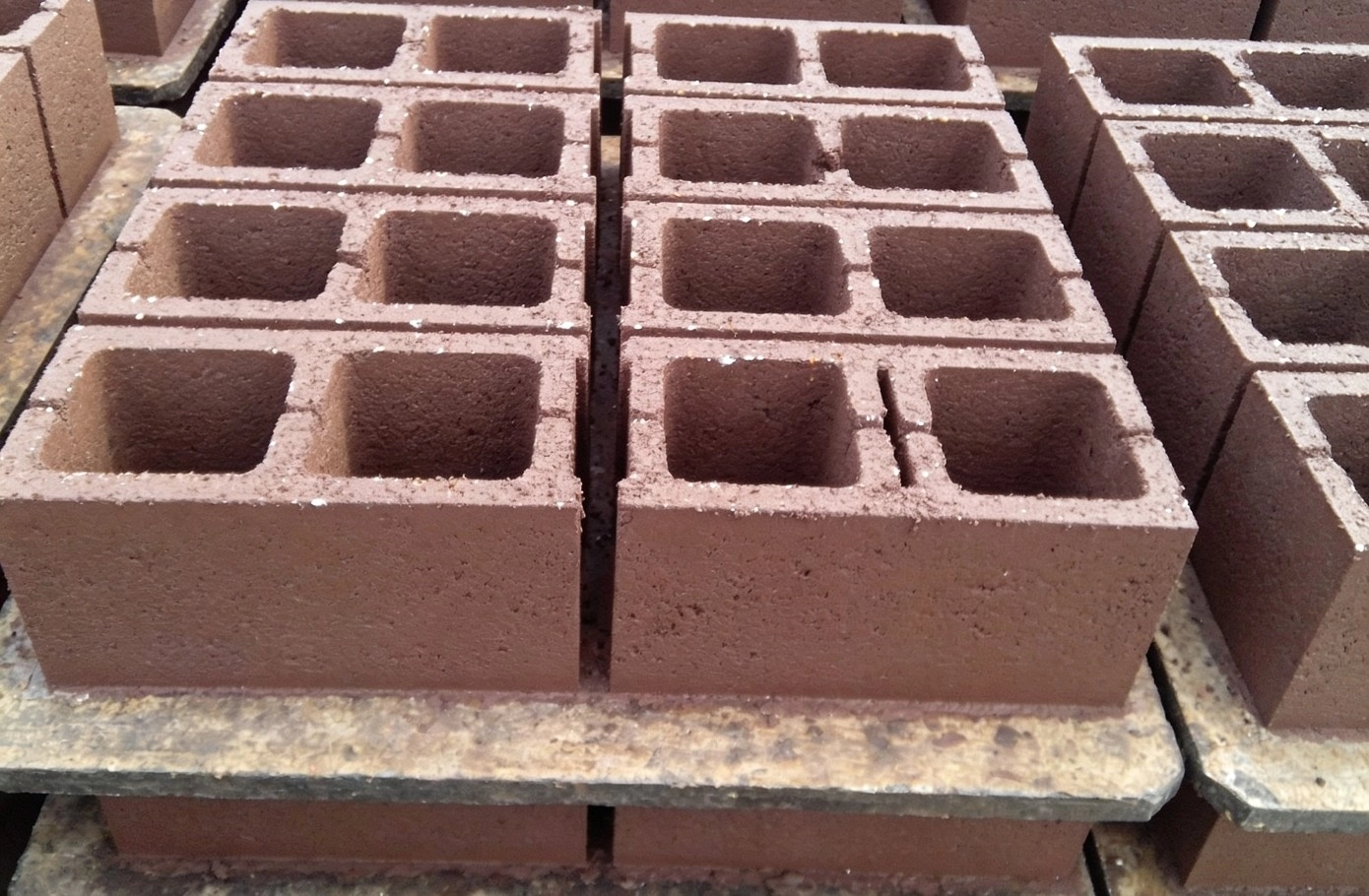

Hollow blocks contain multiple hollow cavities, which easily cause defects such as insufficient filling at cavity walls, loose corners and uneven wall thickness. QT4‑25C adopts combined table‑and‑mold vibration plus PLC‑controlled spiral feeding. Raw material fills evenly around mold cavities to avoid partial material shortage. Finished hollow blocks own complete cavity walls and sharp corners with tiny height deviation on one pallet and stable compressive strength. It reduces waste from looseness, chipped corners and sub‑standard wall thickness, improves raw‑material utilization and meets acceptance standard for bulk wall‑block construction orders.
2. High Hollow‑block Output With Economical Power Consumption, Improve Profit For High‑volume Production

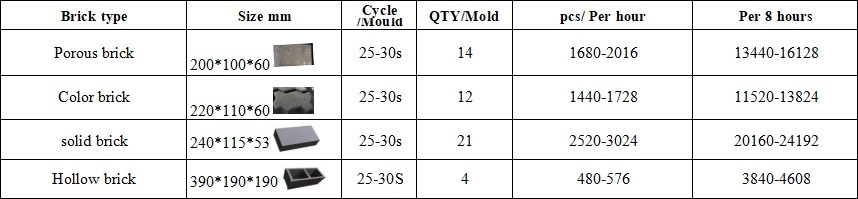

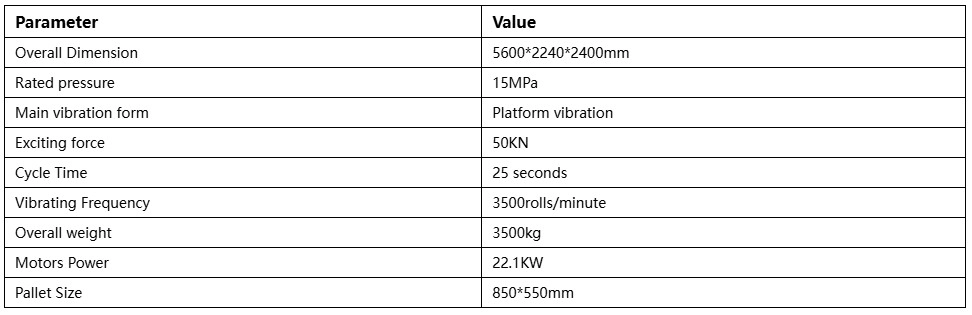

For standard 390×190×190 mm hollow blocks, it produces 4 pcs per mould within 25‑30 seconds, delivering 3840‑4608 pcs in 8 working hours to satisfy wall‑block supply demands for medium‑small plants. It generates strong exciting force with only 22.1 kW total installed power. Per‑block power cost stays low compared with peer full‑auto machines. Since hollow‑block business relies on large‑volume thin‑margin sales, saved electricity directly increases your profit margin during continuous production.
3. Heavy‑duty Steel Frame & Size‑350 Reducer, Durable For High‑frequency Continuous Hollow‑block Production
Hollow‑block manufacturing features frequent mold lifting‑lowering cycles, putting high fatigue load on frame and transmission parts. The main frame is welded with heavy‑duty 12×12 cm square steel from Laigang & Jinggang to resist repeated vibration impact. Size‑350 heavy‑duty reducer extends service life of lifting transmission. Taiwan Calyca hydraulic components provide reliable sealing and anti‑fatigue performance. The machine fits two‑shift non‑stop hollow‑block mass‑production, lowers unexpected breakdown risk, prevents order delays and cuts spare‑part expenditure.
4. Heat‑treated Manganese‑steel Hollow‑block Molds, High Cavity‑forming Precision And Controllable Consumable Cost
Special hollow‑block molds are made of manganese steel via carburizing heat‑treatment and wire‑cutting. Inner core pins for hollow cavities deliver high precision and good wear resistance. Produced hollow blocks obtain neat holes without position offset or heavy burrs. Worn core pins and inserts can be replaced separately instead of scrapping the whole mold. During hollow‑block peak‑order seasons, molds keep stable output and help you avoid huge full‑mold replacement cost.
5. Wide Raw‑material Compatibility, Utilize Local Residues To Lower Per‑block Production Cost
This machine works well with crushed stone, stone dust, fly ash, furnace slag, coal gangue, construction waste, expanded perlite and other industrial residues for hollow‑block production. Plant owners can source low‑cost local waste materials and optimize formula under guaranteed block strength to reduce expensive cement and aggregate purchase. For price‑sensitive hollow‑block market, local‑waste application effectively cuts unit‑cost and strengthens your local quotation competitiveness.
6. Standardized Interfaces, Hollow‑block‑oriented With Multi‑product Flexibility Against Market Fluctuation

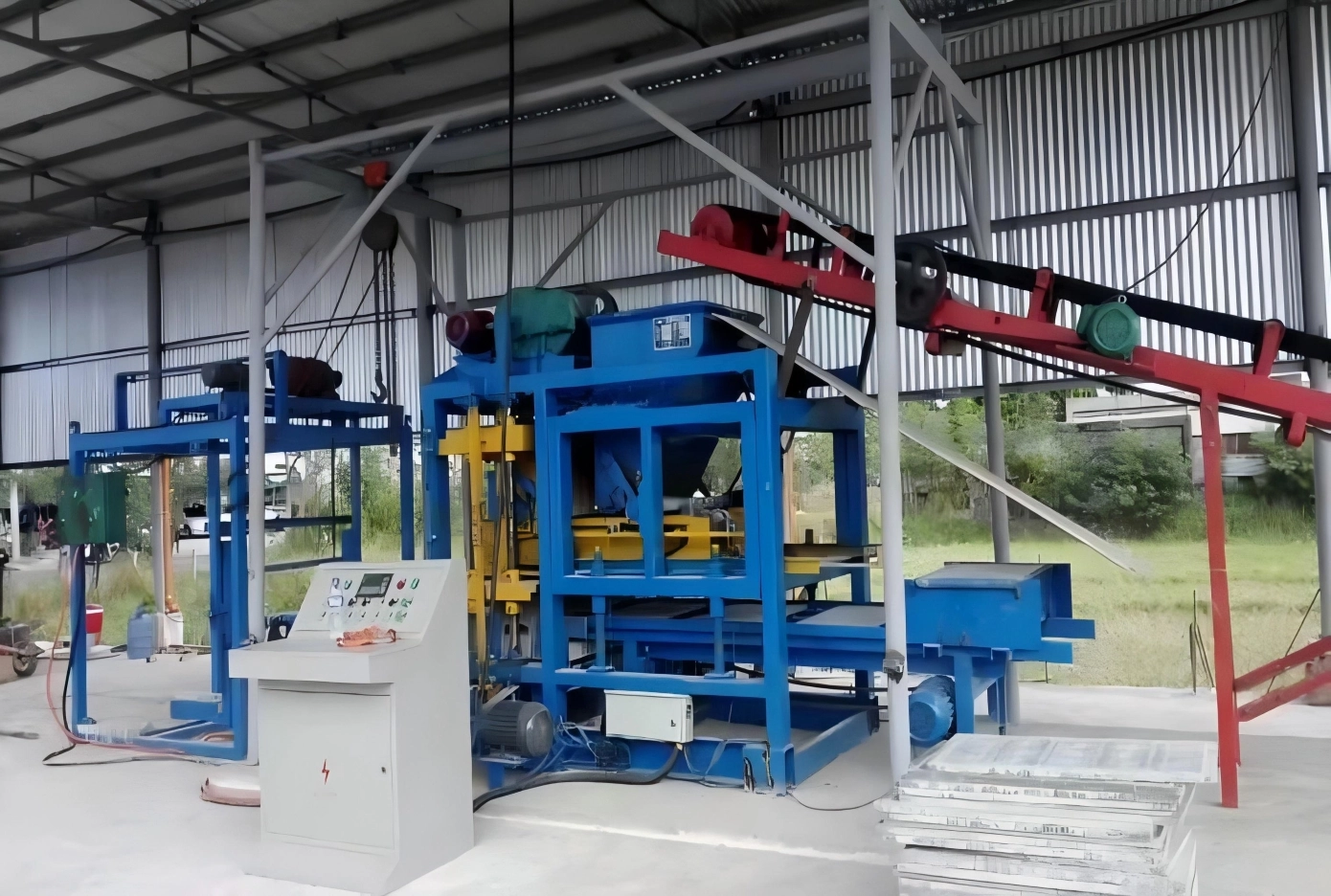

Centered on standard hollow‑block output, the main machine can quickly switch to solid bricks, pavers and more products by mold replacement. You can avoid equipment idling by producing alternative building materials during hollow‑block off‑seasons. With standardized external interfaces, it can run independently on limited‑budget projects. When hollow‑block orders expand later, you can connect batcher, mixer and stacker peripherals step‑by‑step for capacity upgrade without heavy one‑time initial investment.
1. Combined Vibration & Spiral Feeding, Dense Material Around Hollow Cavities And Less Reject Loss
Hollow blocks contain multiple hollow cavities, which easily cause defects such as insufficient filling at cavity walls, loose corners and uneven wall thickness. QT4‑25C adopts combined table‑and‑mold vibration plus PLC‑controlled spiral feeding. Raw material fills evenly around mold cavities to avoid partial material shortage. Finished hollow blocks own complete cavity walls and sharp corners with tiny height deviation on one pallet and stable compressive strength. It reduces waste from looseness, chipped corners and sub‑standard wall thickness, improves raw‑material utilization and meets acceptance standard for bulk wall‑block construction orders.
2. High Hollow‑block Output With Economical Power Consumption, Improve Profit For High‑volume Production
For standard 390×190×190 mm hollow blocks, it produces 4 pcs per mould within 25‑30 seconds, delivering 3840‑4608 pcs in 8 working hours to satisfy wall‑block supply demands for medium‑small plants. It generates strong exciting force with only 22.1 kW total installed power. Per‑block power cost stays low compared with peer full‑auto machines. Since hollow‑block business relies on large‑volume thin‑margin sales, saved electricity directly increases your profit margin during continuous production.
3. Heavy‑duty Steel Frame & Size‑350 Reducer, Durable For High‑frequency Continuous Hollow‑block Production
Hollow‑block manufacturing features frequent mold lifting‑lowering cycles, putting high fatigue load on frame and transmission parts. The main frame is welded with heavy‑duty 12×12 cm square steel from Laigang & Jinggang to resist repeated vibration impact. Size‑350 heavy‑duty reducer extends service life of lifting transmission. Taiwan Calyca hydraulic components provide reliable sealing and anti‑fatigue performance. The machine fits two‑shift non‑stop hollow‑block mass‑production, lowers unexpected breakdown risk, prevents order delays and cuts spare‑part expenditure.
4. Heat‑treated Manganese‑steel Hollow‑block Molds, High Cavity‑forming Precision And Controllable Consumable Cost
Special hollow‑block molds are made of manganese steel via carburizing heat‑treatment and wire‑cutting. Inner core pins for hollow cavities deliver high precision and good wear resistance. Produced hollow blocks obtain neat holes without position offset or heavy burrs. Worn core pins and inserts can be replaced separately instead of scrapping the whole mold. During hollow‑block peak‑order seasons, molds keep stable output and help you avoid huge full‑mold replacement cost.
5. Wide Raw‑material Compatibility, Utilize Local Residues To Lower Per‑block Production Cost
This machine works well with crushed stone, stone dust, fly ash, furnace slag, coal gangue, construction waste, expanded perlite and other industrial residues for hollow‑block production. Plant owners can source low‑cost local waste materials and optimize formula under guaranteed block strength to reduce expensive cement and aggregate purchase. For price‑sensitive hollow‑block market, local‑waste application effectively cuts unit‑cost and strengthens your local quotation competitiveness.
6. Standardized Interfaces, Hollow‑block‑oriented With Multi‑product Flexibility Against Market Fluctuation
Centered on standard hollow‑block output, the main machine can quickly switch to solid bricks, pavers and more products by mold replacement. You can avoid equipment idling by producing alternative building materials during hollow‑block off‑seasons. With standardized external interfaces, it can run independently on limited‑budget projects. When hollow‑block orders expand later, you can connect batcher, mixer and stacker peripherals step‑by‑step for capacity upgrade without heavy one‑time initial investment.

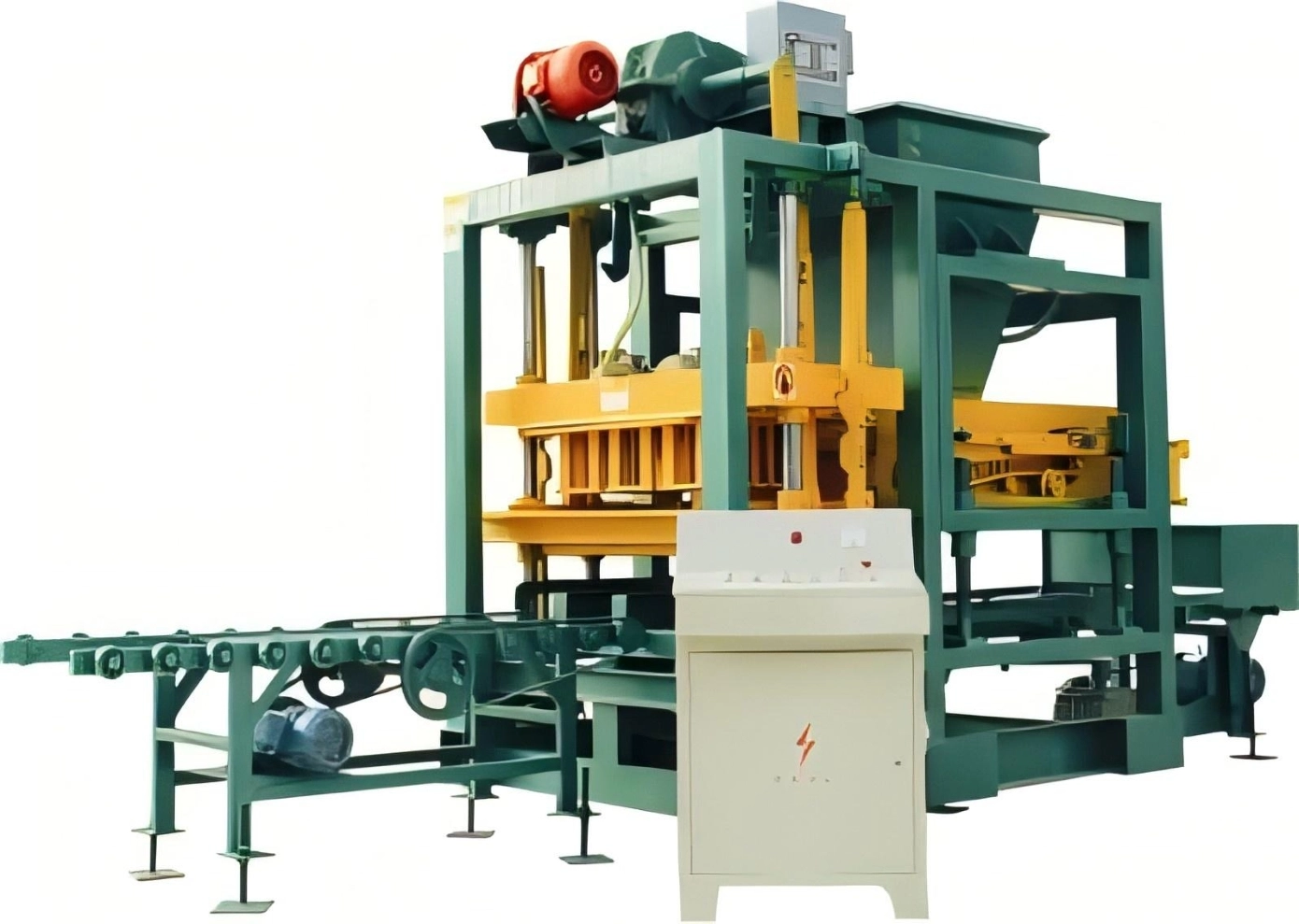

QT4‑25C Automatic Concrete Brick Making Machine
