1. High Compatibility for Diversified Solid‑waste Raw Materials, Large‑volume Consumption of Construction & Industrial Waste to Cut Comprehensive Raw‑material Costs

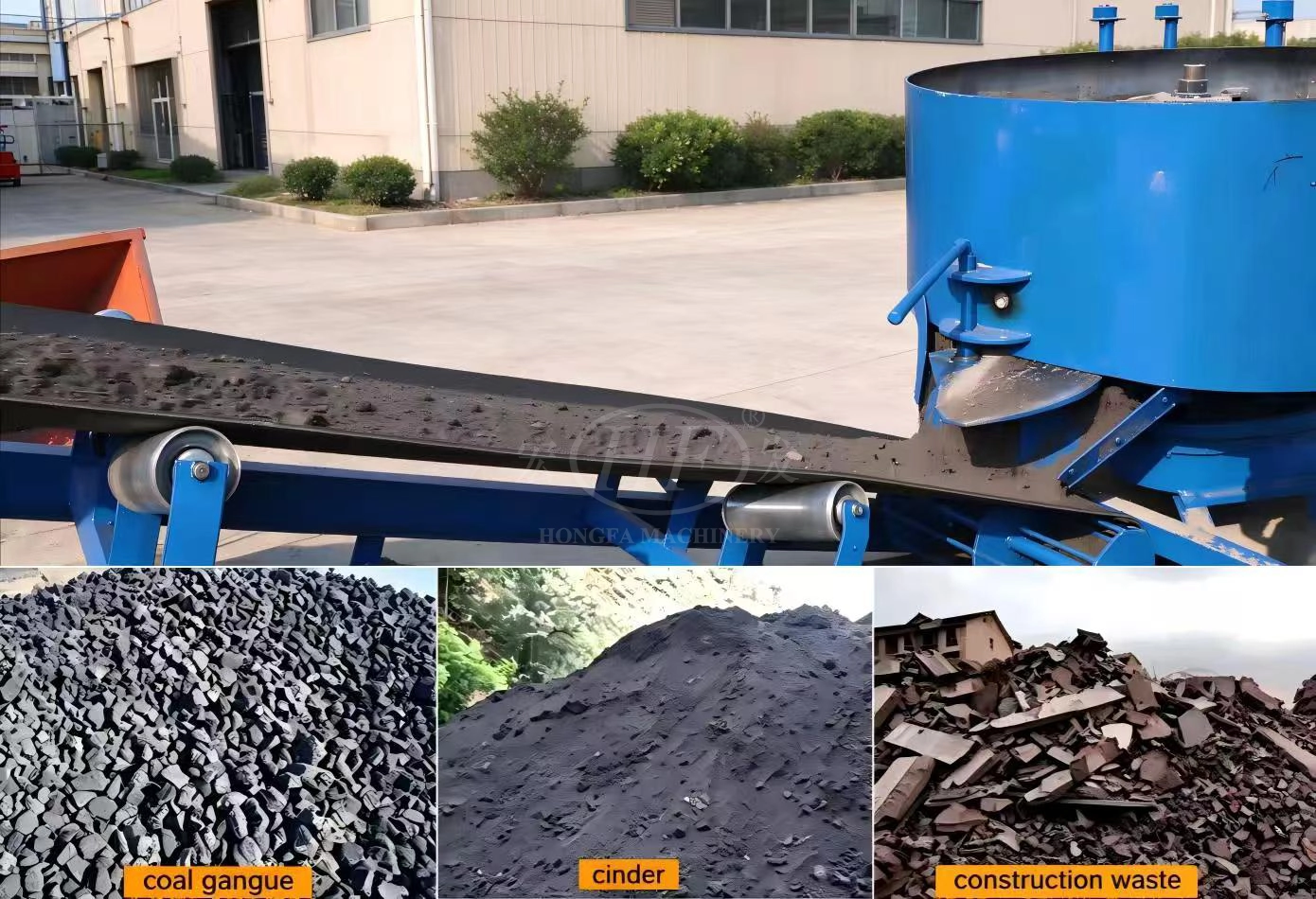

QT4‑15C is fully adapted to construction waste and industrial residues with uneven particle size and high impurity content. The proportion of fly ash can reach as high as 70%. Crushed demolition waste, furnace slag, coal gangue and tailing residues can be directly adopted as main feedstock without expensive fine grinding or multi‑stage screening pre‑treatment. Plant operators can locally consume construction debris from demolition sites and waste residues stockpiled in factories. Waste materials which used to cost money for transportation and landfill are directly converted into saleable engineering building materials. It reduces high‑cost natural aggregate purchase expenditure and saves waste disposal fees. Production cost per recycled brick is lowered fundamentally and unit profit improved. It is ideal for dual‑profit business combining municipal solid waste disposal and recycled building‑material sales, and perfectly fits investment and operation requirements of small‑and‑medium‑size solid‑waste recycling plants.
2. Patented High‑frequency Vibration Box plus Integrated PLC Control, Stable Mass Production under Solid‑waste Conditions with Excellent Finished‑product Quality
Fitted with original patented vibration box delivering 50‑70Hz high‑frequency vibration. Integrated PLC control system combining machinery, electric, optical and hydraulic technology works together with non‑contact proximity‑switch monitoring. Full‑process automation covers pallet feeding, material distributing, pressing‑vibrating, demoulding and block discharging. Even fed with construction waste, fly ash and furnace slag featuring variable physical properties and impurities, the machine ensures sufficient compaction inside mould cavity and uniform density of green bricks. The tensile strength of finished products exceeds 15Mpa, with good frost‑resistance, impermeability, sound and heat insulation performance and high dimensional accuracy, fully meeting procurement standards for municipal and infrastructure projects. The complete line supports long‑hour non‑stop continuous production without interruption caused by incoming‑material fluctuation of solid waste. Qualified recycled blocks, standard bricks and paving bricks are output steadily for large‑volume engineering orders. It avoids commercial losses from delivery delay and strengthens long‑term cooperation with engineering clients.
3. Multi‑function Design with Quick‑change Mould, Diversified Building‑material Production from Solid‑waste Feedstock, Optimized for Mass Standard‑brick Manufacturing to Expand Order Sources

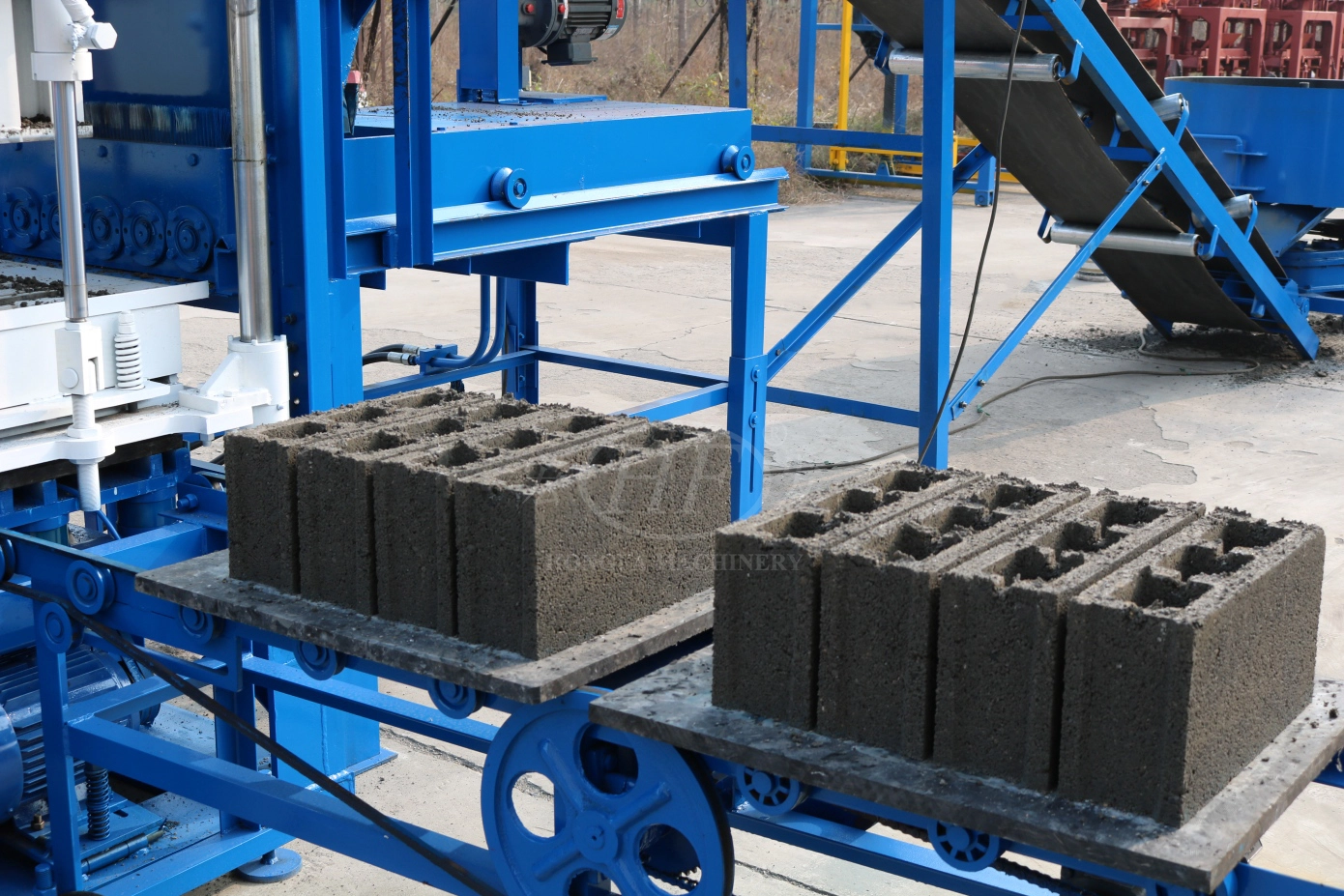

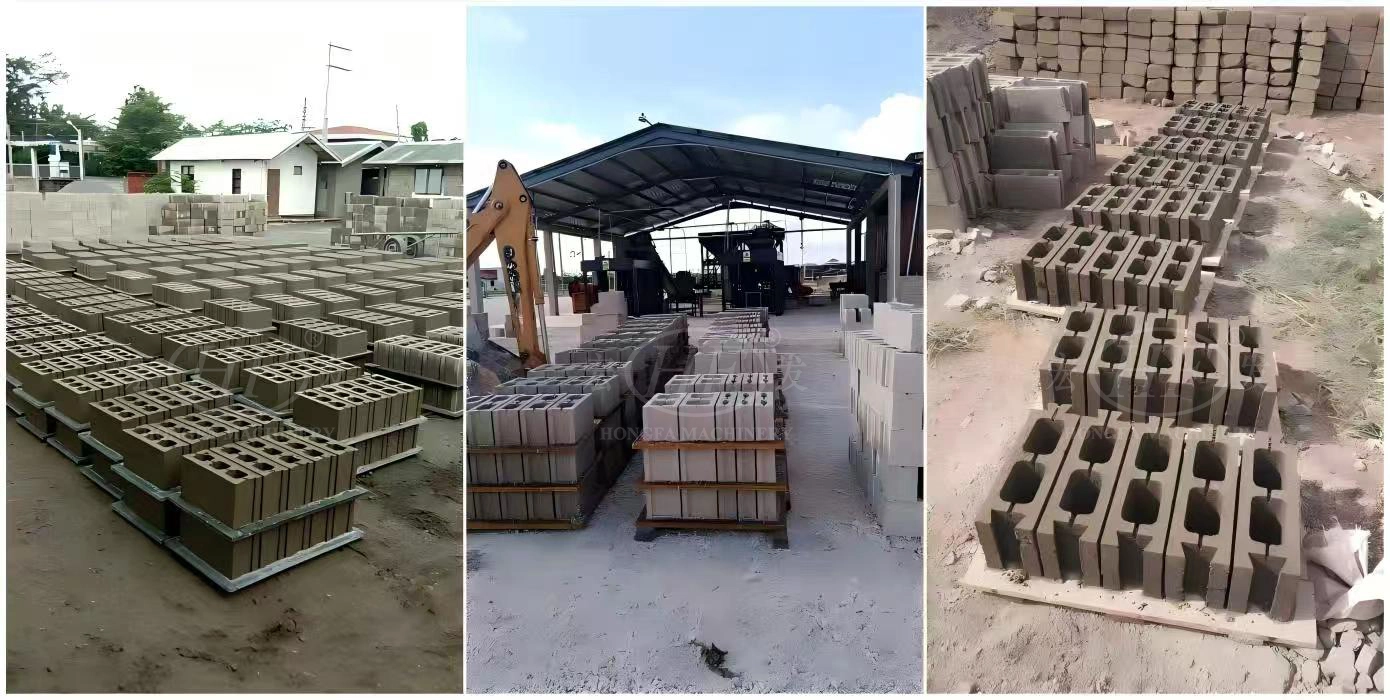

Thanks to multi‑functional design, QT4‑15C can mass‑produce standard bricks, eight‑hole bricks, hollow blocks, paving pavers, grass‑planting bricks and curbstones from construction waste and industrial residues simply by replacing moulds. The machine is specially optimized for large‑scale standard‑brick production. Only one main‑machine investment enables you to satisfy project demands of civil housing construction, municipal roads, landscape greening and slope protection. No heavy extra investment for additional machines is required. Diversified recycled‑product portfolio helps you break the limitation of single‑product business, participate in more project tenders, increase order‑winning chances and strengthen market‑risk resistance for small‑and‑medium‑size manufacturers.
4. Forced Synchronous Lifting Mould Structure, Uniform Product Dimension and Higher Qualified‑product Rate in Large‑scale Solid‑waste Production
QT4‑15C adopts forced synchronous lifting mould structure. During large‑batch solid‑waste brick‑making with construction waste and industrial residues, uniform thickness is guaranteed for every finished product with smooth demoulding movement. It effectively reduces defects such as chipped edges and corners and maintains high qualified‑product rate. Recycled blocks and standard bricks feature smooth appearance and minor dimensional error. Finished products can go directly to curing area for sales after forming. Raw‑material and time losses caused by defective products are minimized. For large‑scale production lines fed by solid waste, stable product quality maximizes conversion rate of construction waste and industrial residues into saleable qualified goods and further improves overall return of solid‑waste brick‑making projects.
5. Premium Imported / Domestic Well‑known Brand Core Hydraulic & Electric Components, Reliable Performance for Heavy‑duty Continuous Solid‑waste Production
Key hydraulic and electric components adopt imported original parts or high‑quality domestic brand accessories. The overall mechanical‑hydraulic‑electric system is coordinated stably and the mechanical structure is designed for heavy‑duty continuous solid‑waste brick‑making. When processing abrasive feedstock such as construction waste, mine slag and furnace slag over long periods, the machine runs reliably to maintain all‑day production rhythm for small‑and‑medium‑size solid‑waste recycling plants and secure high effective operating hours. Higher effective working time allows full digestion of local solid‑waste supply, raises annual total output, amortizes upfront equipment investment and shortens project payback period.
6. Highly‑automated Production Line to Lower Labor Threshold and Simplify Operation for Small‑and‑medium‑size Solid‑waste Brick Plants
High‑level automation covers pallet feeding, material distribution, forming, demoulding and block discharging. Two operation modes including continuous automatic production and single‑cycle trial production are available respectively for mass manufacturing and mould‑testing. The whole solid‑waste brick‑making line does not require numerous operators; only a small team can manage full‑line production and cut labor‑salary expenses. The intuitive human‑machine‑interface enables operators to run production after basic familiarization. No high‑salary high‑skill specialists are required. Daily operating cost of small‑and‑medium‑size recycled‑brick plants is reduced. Projects can be put into operation quickly and reach profitable revenue‑generating status faster.
1. High Compatibility for Diversified Solid‑waste Raw Materials, Large‑volume Consumption of Construction & Industrial Waste to Cut Comprehensive Raw‑material Costs
QT4‑15C is fully adapted to construction waste and industrial residues with uneven particle size and high impurity content. The proportion of fly ash can reach as high as 70%. Crushed demolition waste, furnace slag, coal gangue and tailing residues can be directly adopted as main feedstock without expensive fine grinding or multi‑stage screening pre‑treatment. Plant operators can locally consume construction debris from demolition sites and waste residues stockpiled in factories. Waste materials which used to cost money for transportation and landfill are directly converted into saleable engineering building materials. It reduces high‑cost natural aggregate purchase expenditure and saves waste disposal fees. Production cost per recycled brick is lowered fundamentally and unit profit improved. It is ideal for dual‑profit business combining municipal solid waste disposal and recycled building‑material sales, and perfectly fits investment and operation requirements of small‑and‑medium‑size solid‑waste recycling plants.
2. Patented High‑frequency Vibration Box plus Integrated PLC Control, Stable Mass Production under Solid‑waste Conditions with Excellent Finished‑product Quality
Fitted with original patented vibration box delivering 50‑70Hz high‑frequency vibration. Integrated PLC control system combining machinery, electric, optical and hydraulic technology works together with non‑contact proximity‑switch monitoring. Full‑process automation covers pallet feeding, material distributing, pressing‑vibrating, demoulding and block discharging. Even fed with construction waste, fly ash and furnace slag featuring variable physical properties and impurities, the machine ensures sufficient compaction inside mould cavity and uniform density of green bricks. The tensile strength of finished products exceeds 15Mpa, with good frost‑resistance, impermeability, sound and heat insulation performance and high dimensional accuracy, fully meeting procurement standards for municipal and infrastructure projects. The complete line supports long‑hour non‑stop continuous production without interruption caused by incoming‑material fluctuation of solid waste. Qualified recycled blocks, standard bricks and paving bricks are output steadily for large‑volume engineering orders. It avoids commercial losses from delivery delay and strengthens long‑term cooperation with engineering clients.
3. Multi‑function Design with Quick‑change Mould, Diversified Building‑material Production from Solid‑waste Feedstock, Optimized for Mass Standard‑brick Manufacturing to Expand Order Sources
Thanks to multi‑functional design, QT4‑15C can mass‑produce standard bricks, eight‑hole bricks, hollow blocks, paving pavers, grass‑planting bricks and curbstones from construction waste and industrial residues simply by replacing moulds. The machine is specially optimized for large‑scale standard‑brick production. Only one main‑machine investment enables you to satisfy project demands of civil housing construction, municipal roads, landscape greening and slope protection. No heavy extra investment for additional machines is required. Diversified recycled‑product portfolio helps you break the limitation of single‑product business, participate in more project tenders, increase order‑winning chances and strengthen market‑risk resistance for small‑and‑medium‑size manufacturers.
4. Forced Synchronous Lifting Mould Structure, Uniform Product Dimension and Higher Qualified‑product Rate in Large‑scale Solid‑waste Production
QT4‑15C adopts forced synchronous lifting mould structure. During large‑batch solid‑waste brick‑making with construction waste and industrial residues, uniform thickness is guaranteed for every finished product with smooth demoulding movement. It effectively reduces defects such as chipped edges and corners and maintains high qualified‑product rate. Recycled blocks and standard bricks feature smooth appearance and minor dimensional error. Finished products can go directly to curing area for sales after forming. Raw‑material and time losses caused by defective products are minimized. For large‑scale production lines fed by solid waste, stable product quality maximizes conversion rate of construction waste and industrial residues into saleable qualified goods and further improves overall return of solid‑waste brick‑making projects.
5. Premium Imported / Domestic Well‑known Brand Core Hydraulic & Electric Components, Reliable Performance for Heavy‑duty Continuous Solid‑waste Production
Key hydraulic and electric components adopt imported original parts or high‑quality domestic brand accessories. The overall mechanical‑hydraulic‑electric system is coordinated stably and the mechanical structure is designed for heavy‑duty continuous solid‑waste brick‑making. When processing abrasive feedstock such as construction waste, mine slag and furnace slag over long periods, the machine runs reliably to maintain all‑day production rhythm for small‑and‑medium‑size solid‑waste recycling plants and secure high effective operating hours. Higher effective working time allows full digestion of local solid‑waste supply, raises annual total output, amortizes upfront equipment investment and shortens project payback period.
6. Highly‑automated Production Line to Lower Labor Threshold and Simplify Operation for Small‑and‑medium‑size Solid‑waste Brick Plants
High‑level automation covers pallet feeding, material distribution, forming, demoulding and block discharging. Two operation modes including continuous automatic production and single‑cycle trial production are available respectively for mass manufacturing and mould‑testing. The whole solid‑waste brick‑making line does not require numerous operators; only a small team can manage full‑line production and cut labor‑salary expenses. The intuitive human‑machine‑interface enables operators to run production after basic familiarization. No high‑salary high‑skill specialists are required. Daily operating cost of small‑and‑medium‑size recycled‑brick plants is reduced. Projects can be put into operation quickly and reach profitable revenue‑generating status faster.
