1. High‑Volume Cyclic Molding For Solid Bricks, Stable Output Guarantees Engineering Order Delivery

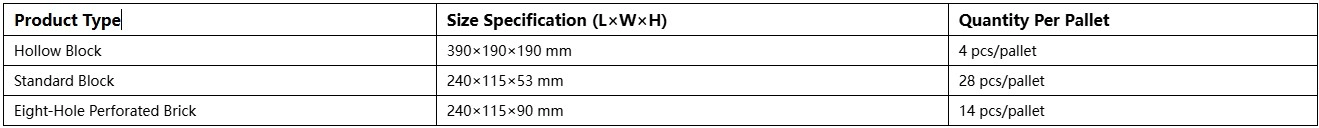

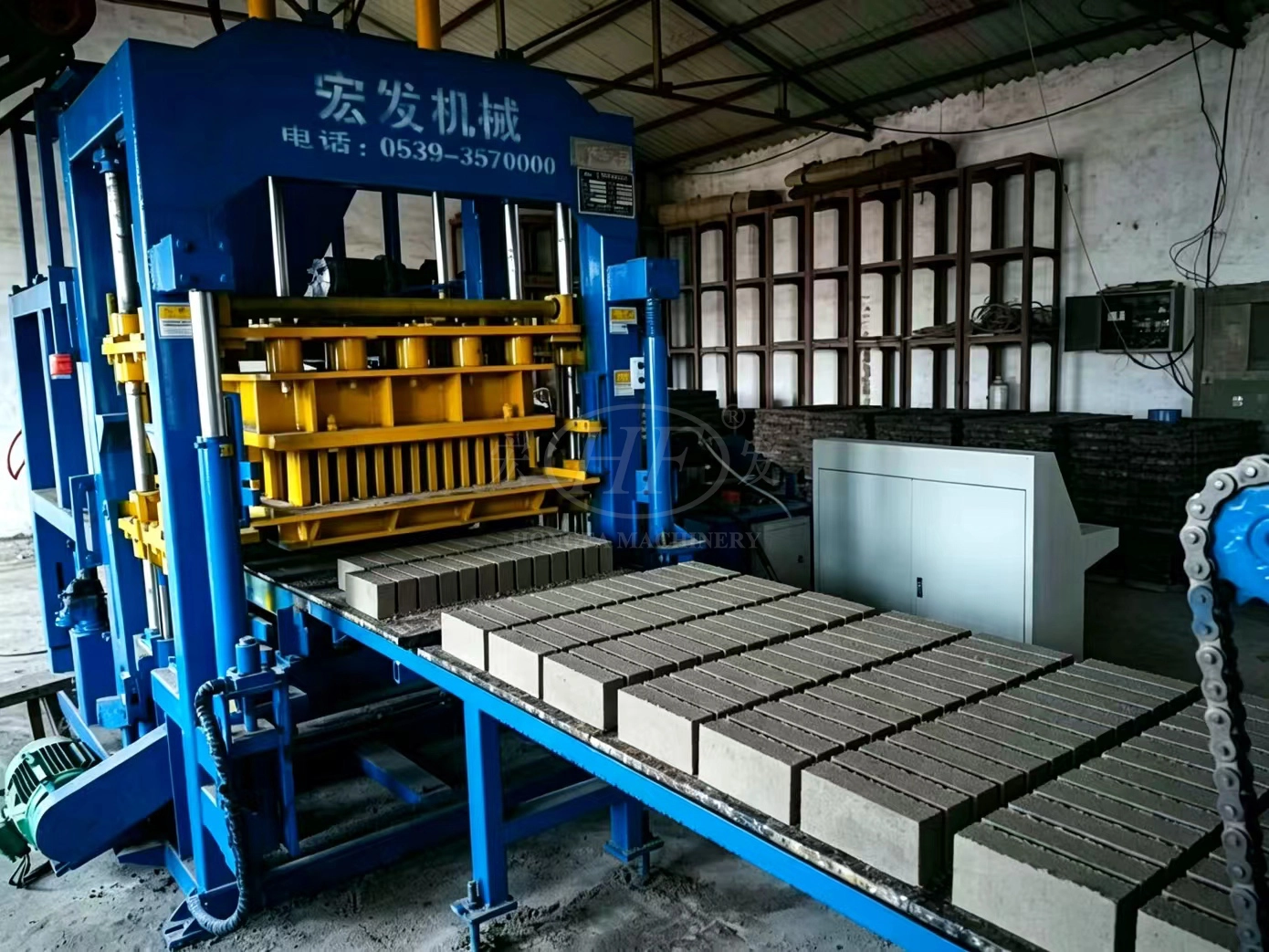

QT4‑15C mold cavity is well‑adapted for 240×115×53 mm standard solid bricks. The molding cycle stays stable at 15‑20 seconds, producing 28 pcs standard solid bricks per pallet. Continuous automatic cyclic operation delivers high output per shift without intermittent production or capacity fluctuation. It handles large‑volume solid brick orders for housing, boundary walls and infrastructure projects and ensures on‑time delivery. You can win more large‑scale building‑material supply contracts, speed up goods turnover and capital recovery, and avoid losing big orders due to insufficient capacity.
2. Hydraulic Compression Plus Patented Table‑Vibration System Produce Dense Solid Bricks For Stronger Competitiveness & Higher Margin

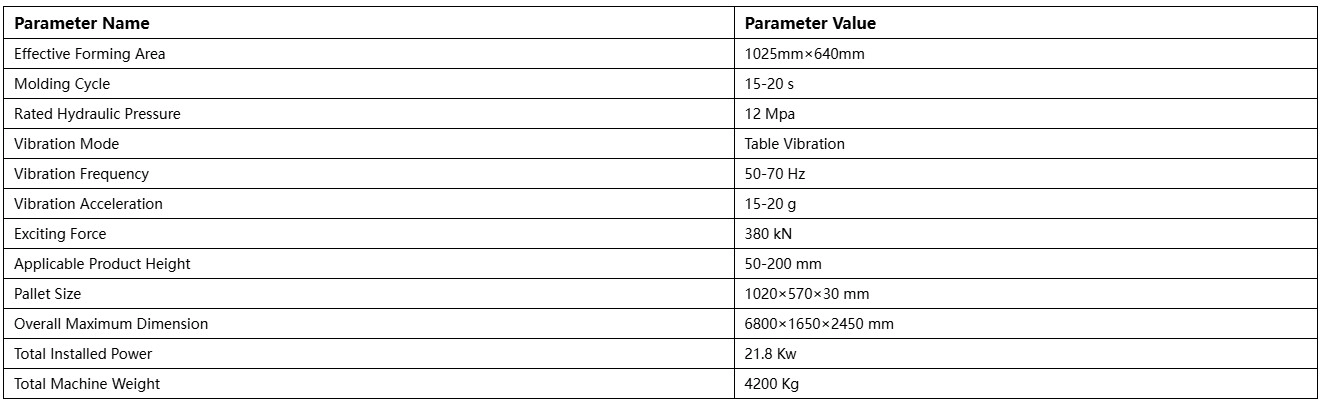

With hydraulic pressure as primary force assisted by powerful table vibration, the patented vibration box provides max excitation force up to 380 kN within 50‑70 Hz frequency range. Strong vibration compacts raw materials fully inside mold cavity. Output solid bricks are evenly dense without loose sections, honeycomb voids or surface peeling. Bricks keep intact edges and tight dimensional tolerance, achieve qualified strength and good frost‑proof & impermeable performance to pass local building‑material inspection easily. Superior solid bricks stand out from low‑grade loose counterparts in market, support better selling prices and higher repurchase rates to raise batch profit. Forced synchronous mold lifting keeps uniform brick thickness and smooth demolding, greatly lowering brick‑breakage rate and material waste.
3. Full PLC‑Automated Workflow Reduces Labor And Unit Cost Of Solid Bricks

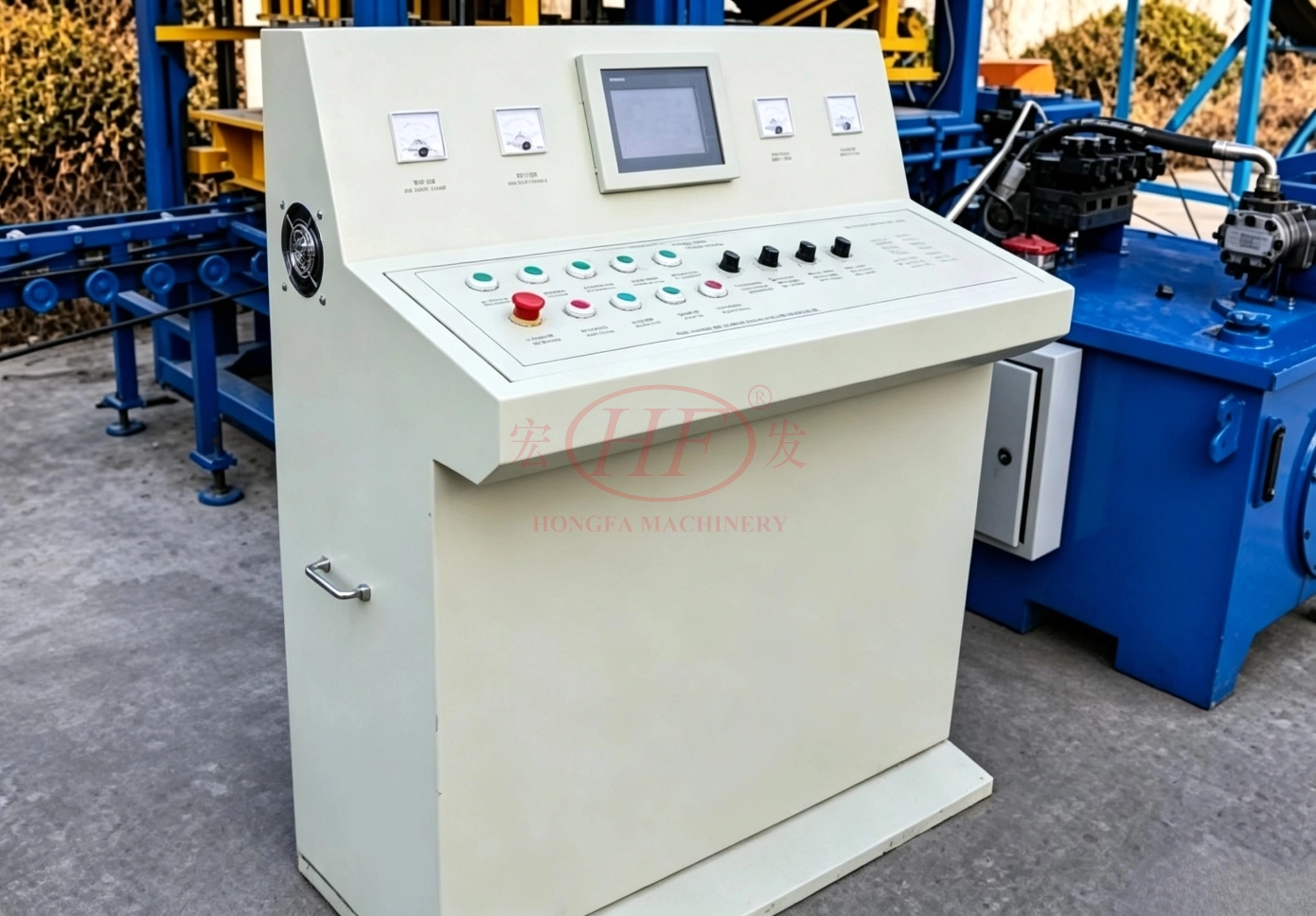

Equipped with PLC and proximity‑switch monitoring, the machine completes pallet feeding, material distribution, pressing‑vibration, demolding and brick output automatically. Few on‑site attendants are sufficient instead of many workers for heavy‑duty material filling and brick handling. Labor cost is cut significantly in long‑term operation, lowering unit production cost of solid bricks. Even facing market price decline and fierce peer competition, your solid brick products maintain reasonable profit margin for stable plant revenue.
4. Wide Raw‑Material Compatibility, Reuse Industrial Waste To Cut Raw‑Material Expense For Solid Bricks
Besides conventional sand, stone and cement, the machine works well with local industrial waste such as fly ash, slag and cinder. Fly ash content can reach up to 70%, removing the need for costly special aggregates. You can source low‑cost local materials and save money on purchasing and long‑distance transportation, further reducing overall solid‑brick production cost. Re‑utilizing industrial waste meets environmental‑protection standards in many regions and helps you explore more green building‑material business opportunities.
5. Heavy‑Duty Construction Supports Multi‑Spec Production, Lower Downtime Risk & Equipment Investment Pressure
Thickened steel frame is reinforced for frequent heavy‑load pressing cycles of solid bricks. Key hydraulic and electric components adopt imported or well‑known domestic brands to keep low failure rate during long‑hour continuous production. It avoids production halt, order delay and compensation risks for stable supply. Quick mold change enables manufacturing different sizes of solid bricks without purchasing extra main machines. You can fulfill customized solid‑brick demands only by swapping molds, save redundant equipment investment and expand your product coverage and order sources.
1. High‑Volume Cyclic Molding For Solid Bricks, Stable Output Guarantees Engineering Order Delivery
QT4‑15C mold cavity is well‑adapted for 240×115×53 mm standard solid bricks. The molding cycle stays stable at 15‑20 seconds, producing 28 pcs standard solid bricks per pallet. Continuous automatic cyclic operation delivers high output per shift without intermittent production or capacity fluctuation. It handles large‑volume solid brick orders for housing, boundary walls and infrastructure projects and ensures on‑time delivery. You can win more large‑scale building‑material supply contracts, speed up goods turnover and capital recovery, and avoid losing big orders due to insufficient capacity.
2. Hydraulic Compression Plus Patented Table‑Vibration System Produce Dense Solid Bricks For Stronger Competitiveness & Higher Margin
With hydraulic pressure as primary force assisted by powerful table vibration, the patented vibration box provides max excitation force up to 380 kN within 50‑70 Hz frequency range. Strong vibration compacts raw materials fully inside mold cavity. Output solid bricks are evenly dense without loose sections, honeycomb voids or surface peeling. Bricks keep intact edges and tight dimensional tolerance, achieve qualified strength and good frost‑proof & impermeable performance to pass local building‑material inspection easily. Superior solid bricks stand out from low‑grade loose counterparts in market, support better selling prices and higher repurchase rates to raise batch profit. Forced synchronous mold lifting keeps uniform brick thickness and smooth demolding, greatly lowering brick‑breakage rate and material waste.
3. Full PLC‑Automated Workflow Reduces Labor And Unit Cost Of Solid Bricks
Equipped with PLC and proximity‑switch monitoring, the machine completes pallet feeding, material distribution, pressing‑vibration, demolding and brick output automatically. Few on‑site attendants are sufficient instead of many workers for heavy‑duty material filling and brick handling. Labor cost is cut significantly in long‑term operation, lowering unit production cost of solid bricks. Even facing market price decline and fierce peer competition, your solid brick products maintain reasonable profit margin for stable plant revenue.
4. Wide Raw‑Material Compatibility, Reuse Industrial Waste To Cut Raw‑Material Expense For Solid Bricks
Besides conventional sand, stone and cement, the machine works well with local industrial waste such as fly ash, slag and cinder. Fly ash content can reach up to 70%, removing the need for costly special aggregates. You can source low‑cost local materials and save money on purchasing and long‑distance transportation, further reducing overall solid‑brick production cost. Re‑utilizing industrial waste meets environmental‑protection standards in many regions and helps you explore more green building‑material business opportunities.
5. Heavy‑Duty Construction Supports Multi‑Spec Production, Lower Downtime Risk & Equipment Investment Pressure
Thickened steel frame is reinforced for frequent heavy‑load pressing cycles of solid bricks. Key hydraulic and electric components adopt imported or well‑known domestic brands to keep low failure rate during long‑hour continuous production. It avoids production halt, order delay and compensation risks for stable supply. Quick mold change enables manufacturing different sizes of solid bricks without purchasing extra main machines. You can fulfill customized solid‑brick demands only by swapping molds, save redundant equipment investment and expand your product coverage and order sources.
