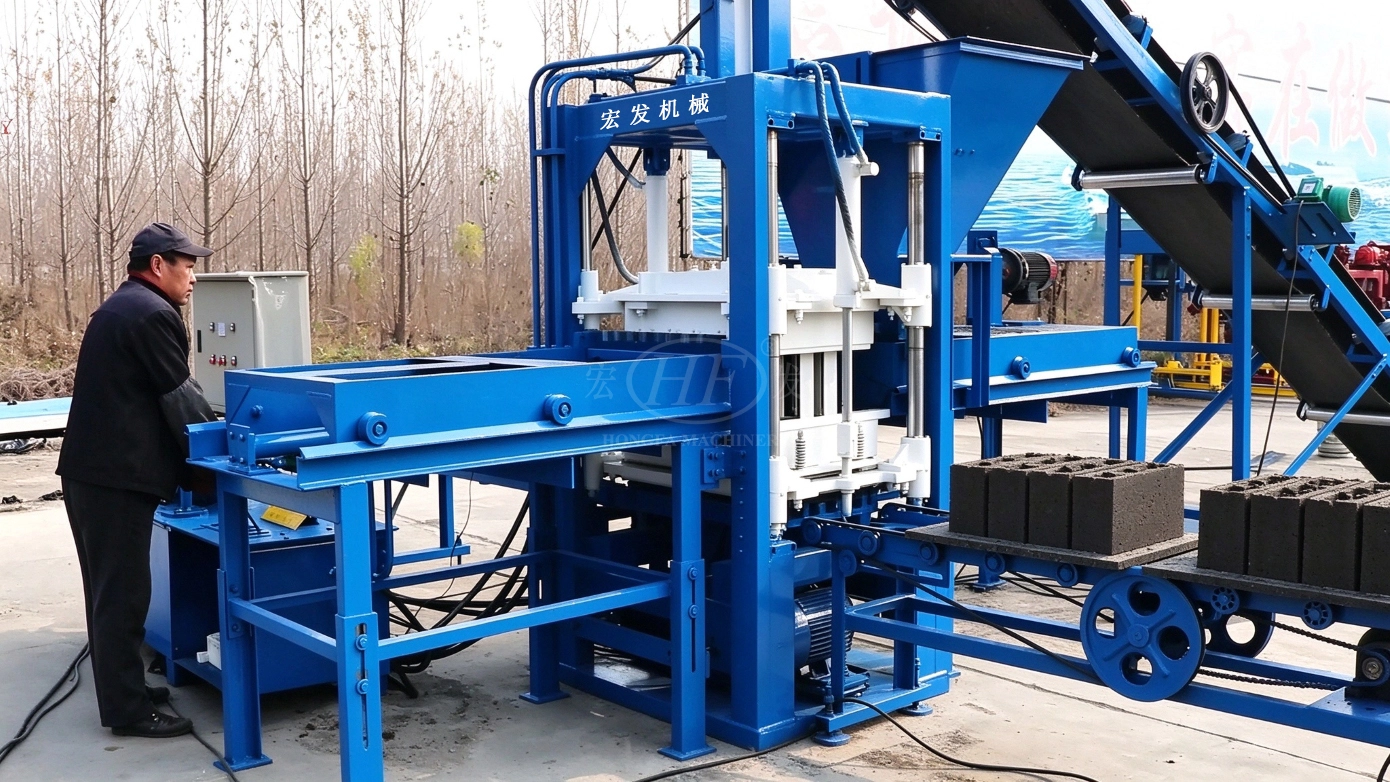

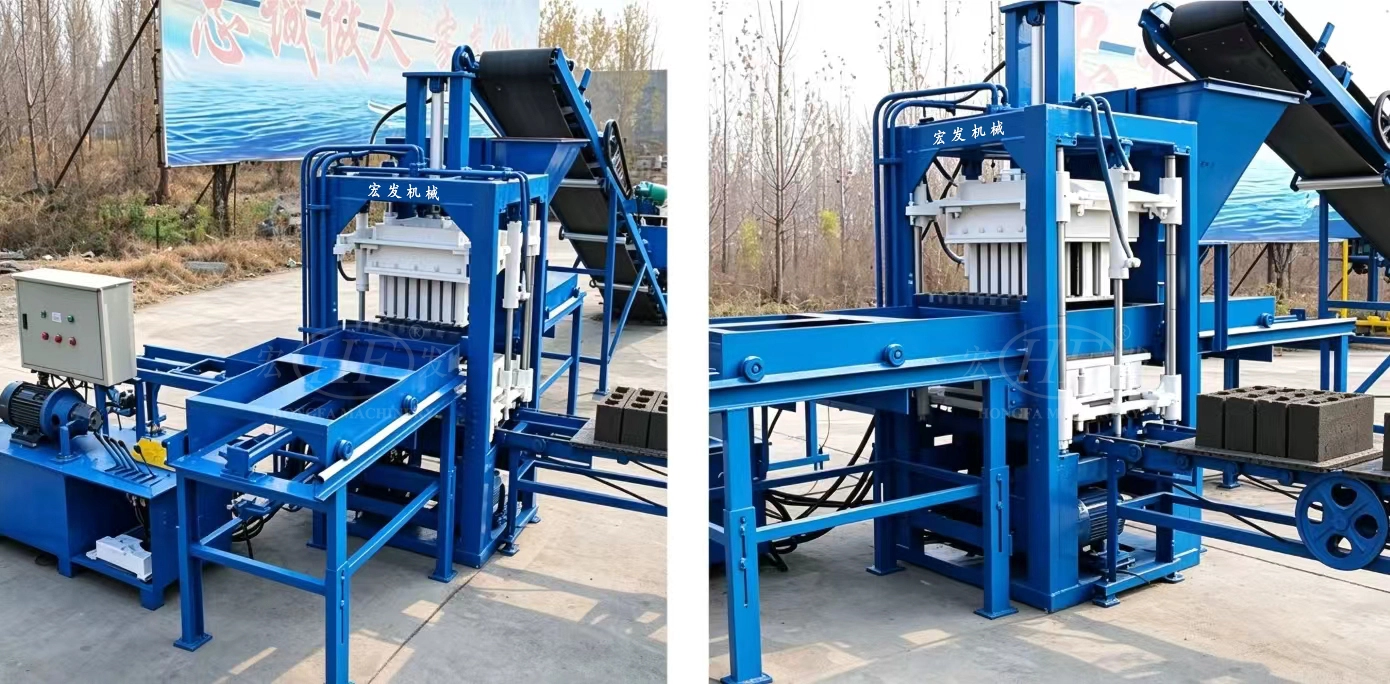

1. Professional Molding System for High‑quality Hollow Block Mass Production

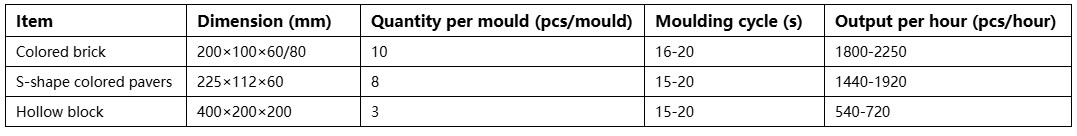

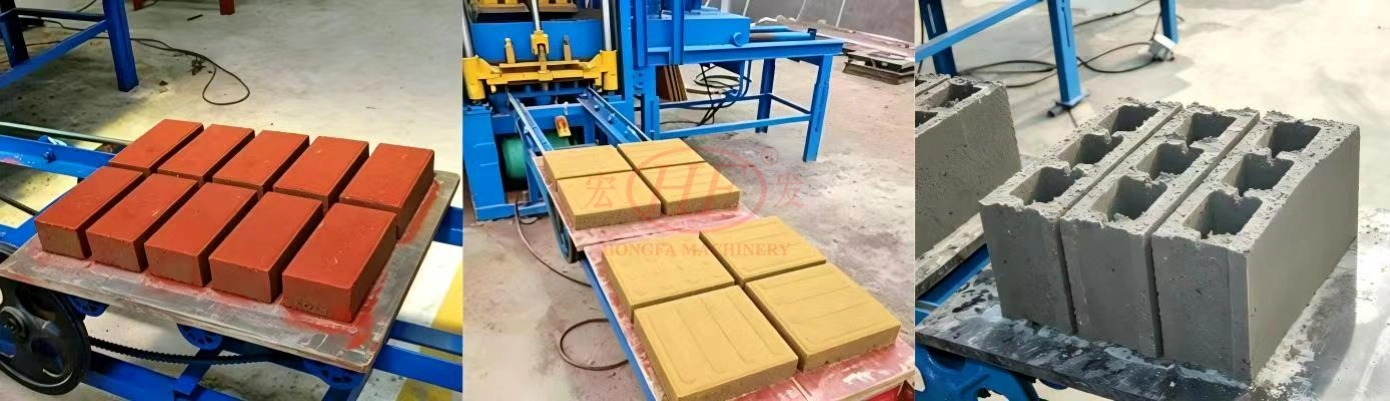

QT3‑15 is purpose‑built for hollow‑block focused manufacturing, ideal for small‑medium brick producers. It adopts integrated hydraulic high‑frequency vibration and matched mould assembly. Each 15‑20‑second cycle steadily outputs 3 standard hollow blocks. Uniform vibration eliminates internal pores and delamination, delivering finished blocks with even density, precise dimension and high compressive strength, and effectively reducing defective rates.Standard hollow mould is included, and quick mould swap supports multiple hollow sizes to satisfy various construction orders. Besides hollow blocks, you can change moulds to produce solid bricks, interlocking pavers and slope‑protection bricks. This multi‑function feature expands your product portfolio, enabling you to bid for more local construction projects and gain extra revenue without buying extra machines.
2. PLC Automatic Control Optimized for Small Hollow‑brick Workshops

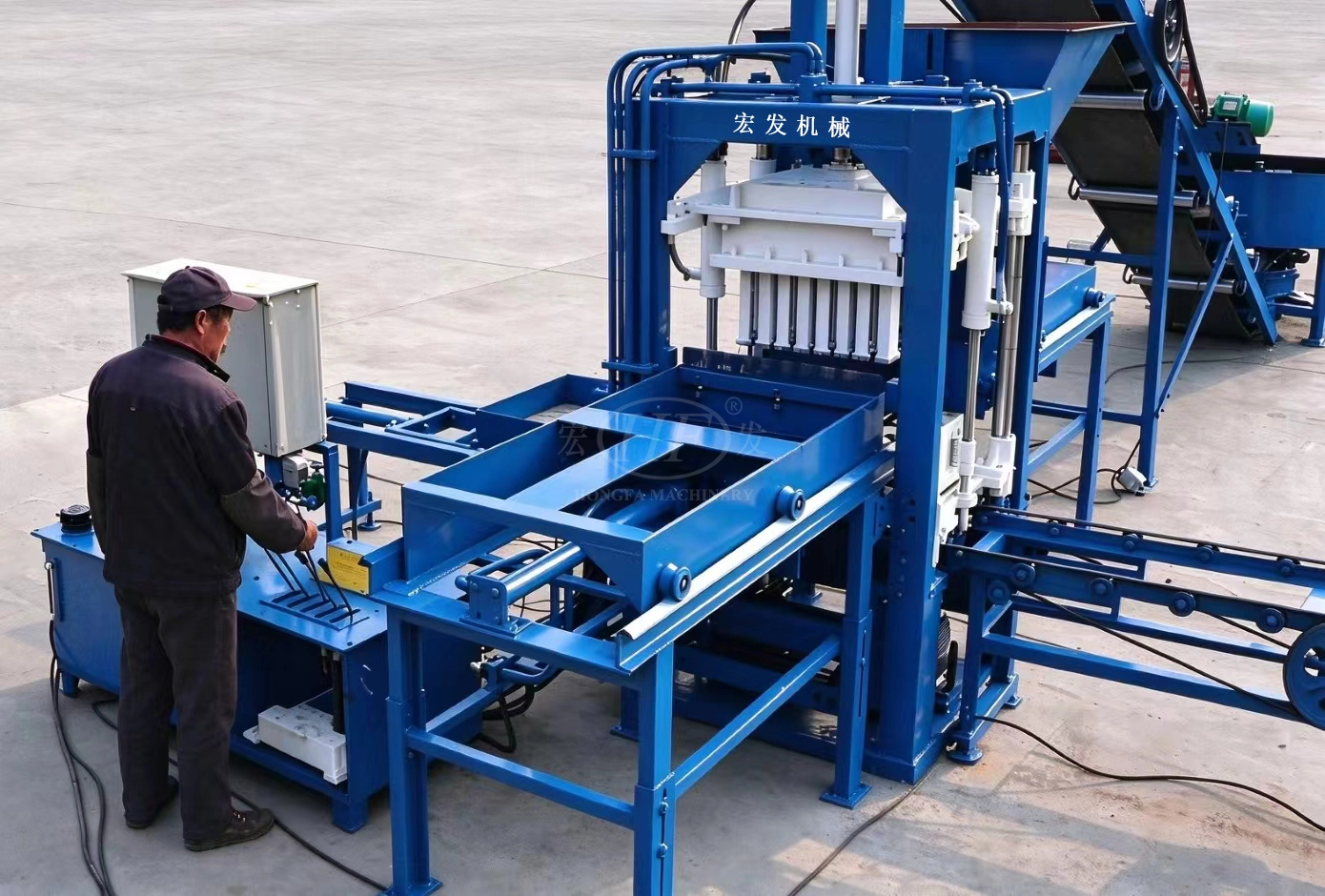

Equipped with touch‑screen PLC automatic control system, feeding, mould lifting, forming, demoulding and pallet conveying run automatically. New workers can master operation quickly without lengthy professional training. Compared with large full‑auto production lines, QT3‑15 maintains stable continuous output while controlling your upfront investment perfectly for capital‑limited startup brick plants.It uses standard 680×535mm pallets to carry green blocks for stacking and natural curing. The pallet‑circulation design gives reliable support to thin‑wall hollow blanks, avoiding warping and deformation during transfer. It greatly improves finished‑product yield and cuts raw‑material waste compared with pallet‑free mobile brick machines.
3. Compact Structure, Lower Startup Investment for New Factories
QT3‑15 has a compact four‑column welded steel frame with total weight around 4 tons. Its space‑saving layout requires less workshop area, lowering costs for plant construction or site renovation for newly‑built small brick factories. You do not need a huge production site to start brick‑making business.Designed for energy saving, total installed power is 16‑19KW. It works well with sand, fly ash, coal gangue and construction waste. These low‑cost local materials can replace part of cement, reducing your long‑term raw‑material expenditure. Reasonable selection of wearing parts also eases daily workload for workshops short of service staff.
4. Reliable Hardware for Long‑hour Continuous Production
The integrated hydraulic‑vibration forming structure combines hydraulic pressing and high‑frequency vibration, ensuring sufficient compaction even for raw materials mixed with industrial residues. Trusted‑brand hydraulic and electric components reduce unexpected breakdown risks and support long‑time non‑stop mass production.Heavy‑duty integral‑welded main frame stays rigid against deformation under continuous high‑frequency vibration. It keeps consistent block dimensions batch after batch, helping you supply stable‑quality products, build market reputation and secure repeat bulk orders from local contractors.
5. Pre‑shipment Test & Custom Mould Solution
Every QT3‑15 undergoes full‑load running inspection before delivery. Core actions like feeding, pressing, vibrating, demoulding and pallet circulation are tested under real‑production simulation, to fix potential hardware problems at factory side. Custom hollow moulds are offered according to local construction standards and project requirements, so you can get well‑matched tooling together with the machine.
6. Complete Overseas One‑stop After‑sales Support
We provide multi‑level technical support for overseas investors. Remote online operation training is supplied for your workshop team. Overseas on‑site installation guidance is available on request. For small brick plants without in‑house professional technicians, our service covers machine operation, mould replacement and daily technical guidance. It removes technical obstacles and helps your factory reach stable profitable production faster.
