1. Compact Mini Structure, Lower Initial Investment for New Brick Factories

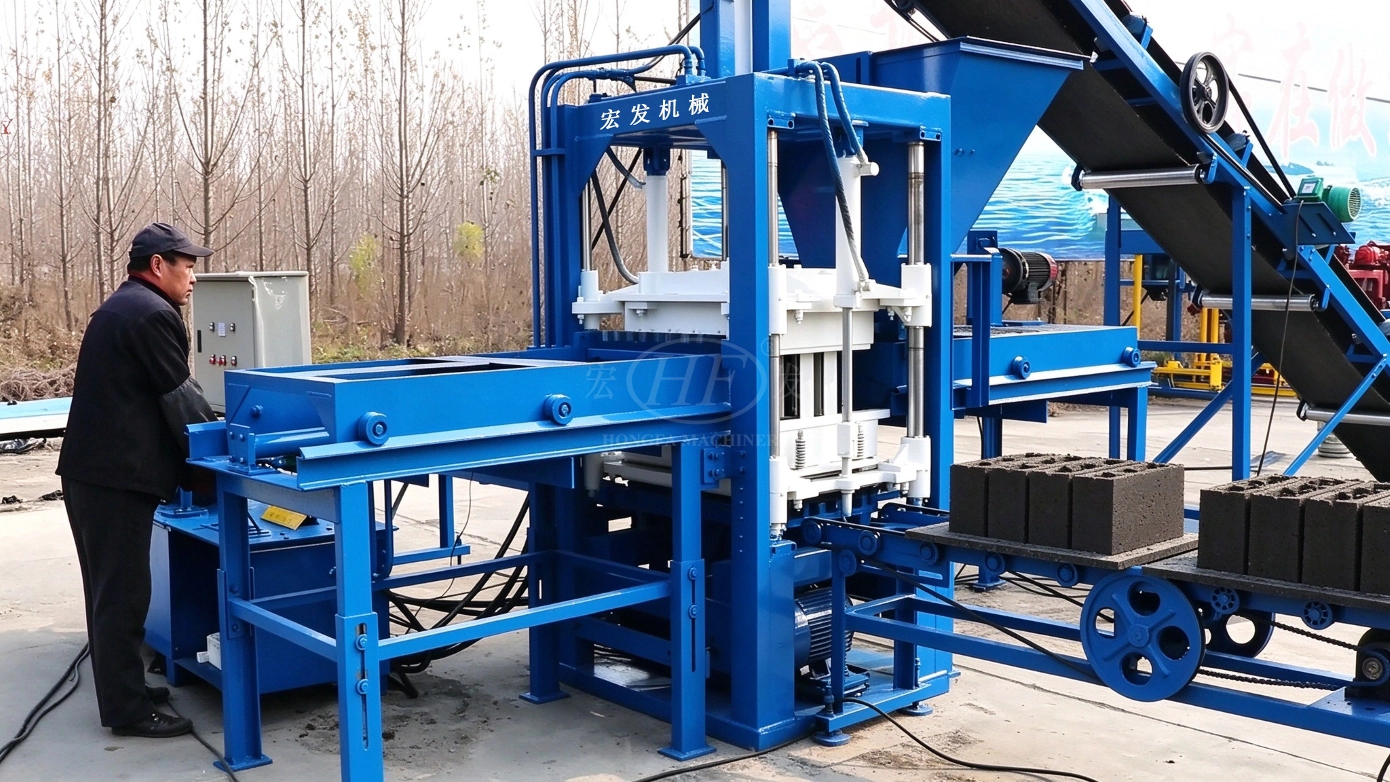

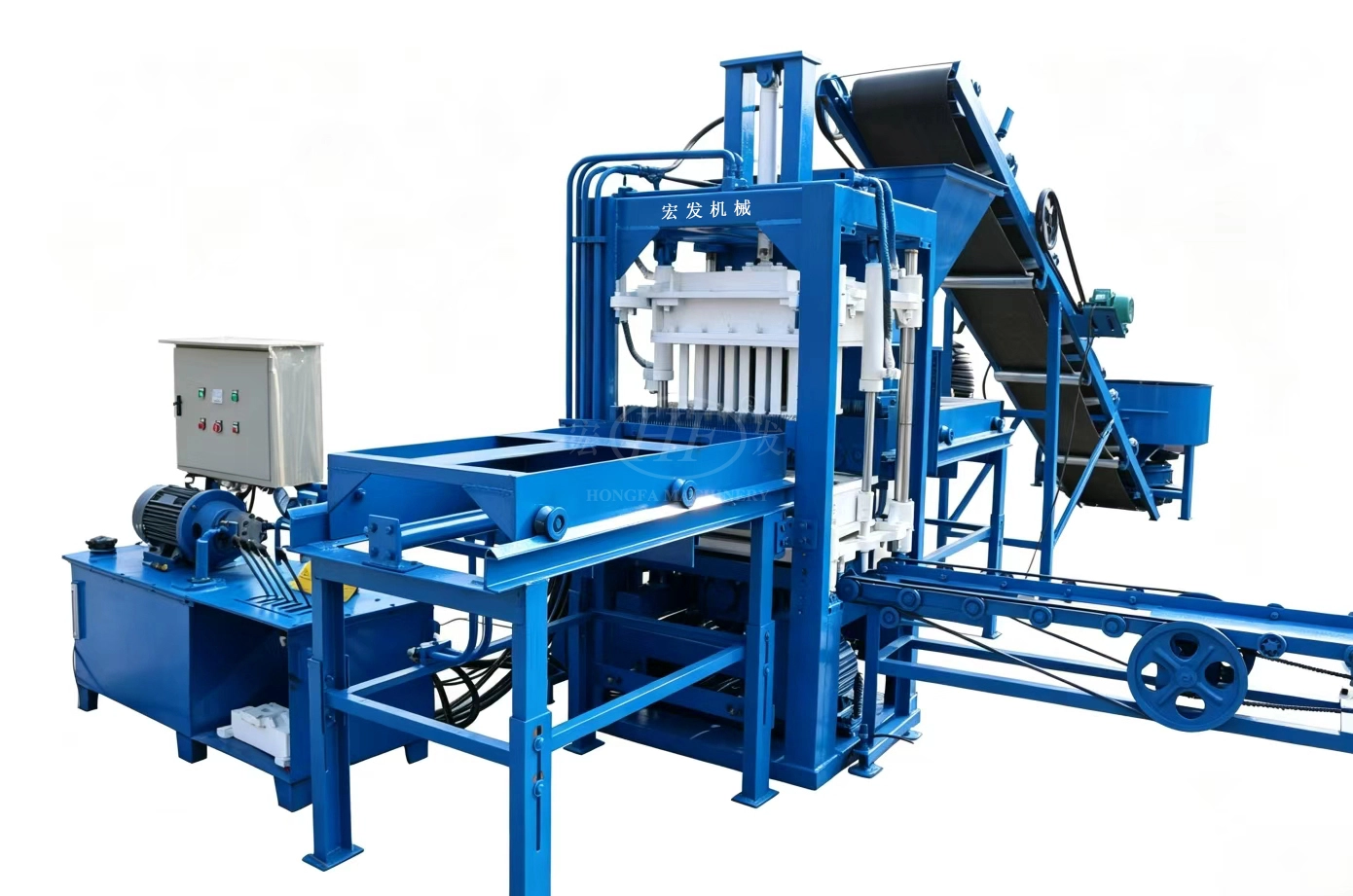

QT3‑15 fully-automatic cement brick making machine is positioned as small-sized cement brick forming equipment, built with compact four-column welded frame and total weight of about 4 tons. It occupies very limited workshop area and has loose requirements for factory space, perfectly suitable for newly-established small brick plants, individual workshops and construction site brick production. Compared with large full-automatic brick production lines, it saves much on workshop rent and site renovation expenditure, greatly cutting the upfront capital pressure for brick project entrepreneurs. Even investors with limited land resources can launch their brick manufacturing business smoothly with this machine.
2. PLC Automatic Operation System, Simple Operation & Labor Saving
This QT3‑15 brick machine is equipped with mature PLC touch screen full-automatic control system. The complete production workflow including pallet transmission, material feeding, hydraulic pressing, demoulding and finished brick discharging runs automatically without constant manual intervention. It achieves intelligent continuous brick production while keeping excellent cost performance against large-scale production lines. The operation logic is straightforward and easy for workers to learn. Only a small number of staff are required to monitor production, which effectively cuts regular labor expenses and lifts overall production efficiency for your brick plant.

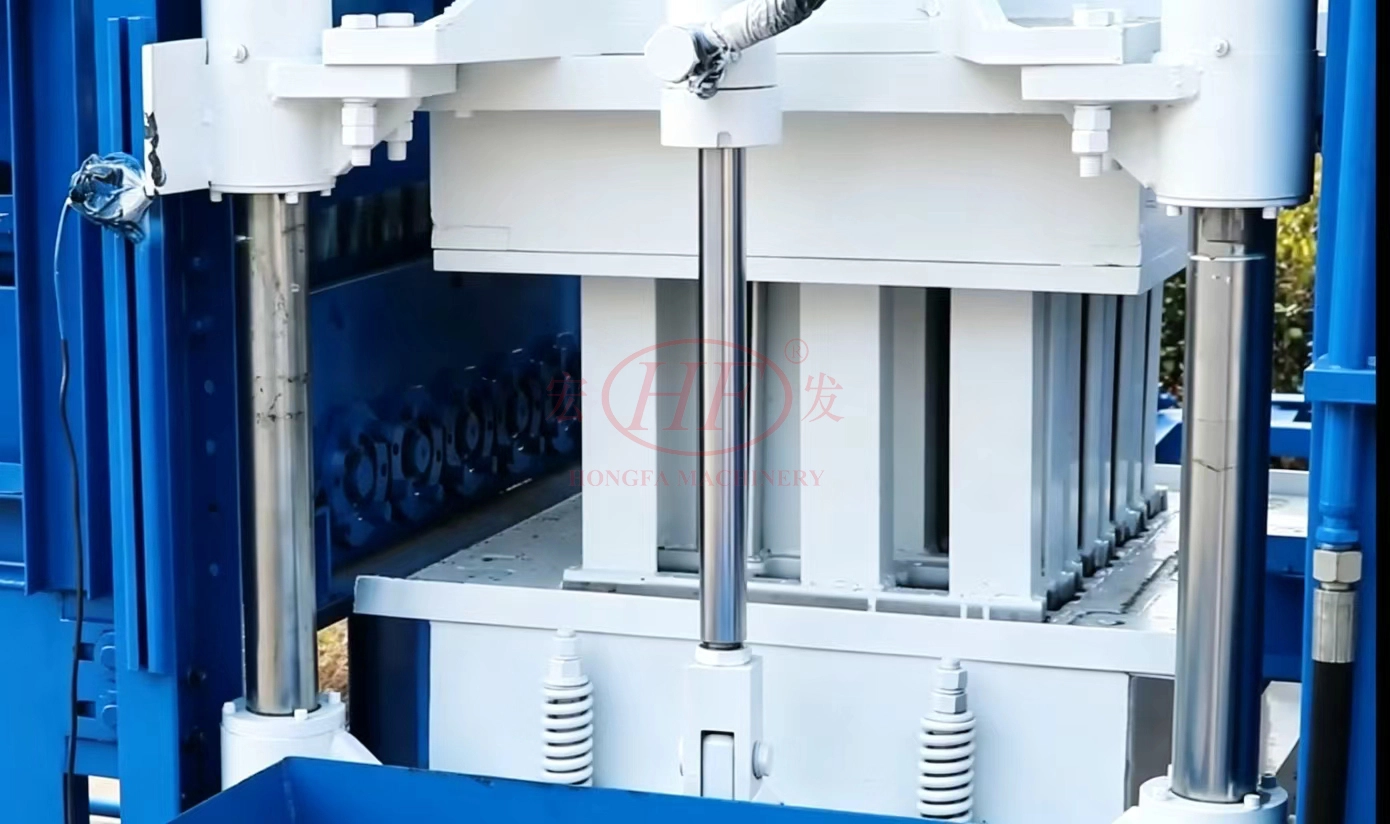

3. Hydraulic & High-frequency Vibration Molding, Stable High-quality Brick Output

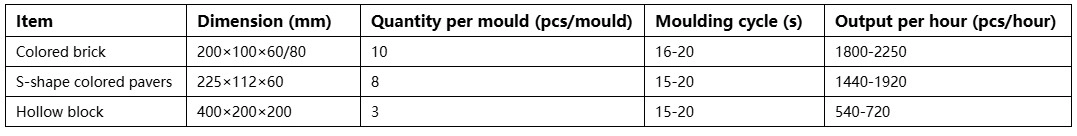

The machine adopts hydraulic compression combined with uniform high-frequency vibration composite molding technology. Raw mixtures like cement, sand and fly ash can be fully compacted during forming process, removing internal pores and material delamination inside green bricks. The finished bricks deliver uniform density, smooth surface and precise dimension, minimizing reject rate during mass production. Key electric and hydraulic components are sourced from famous standard brands to reduce equipment failure risk. The thick integrated welded frame can withstand long-time continuous high-frequency vibration without deformation, sustaining stable forming accuracy for long-term brick manufacturing. The molding cycle is 15–20 seconds, producing 3 hollow blocks per forming stroke to steadily fulfill local construction orders.

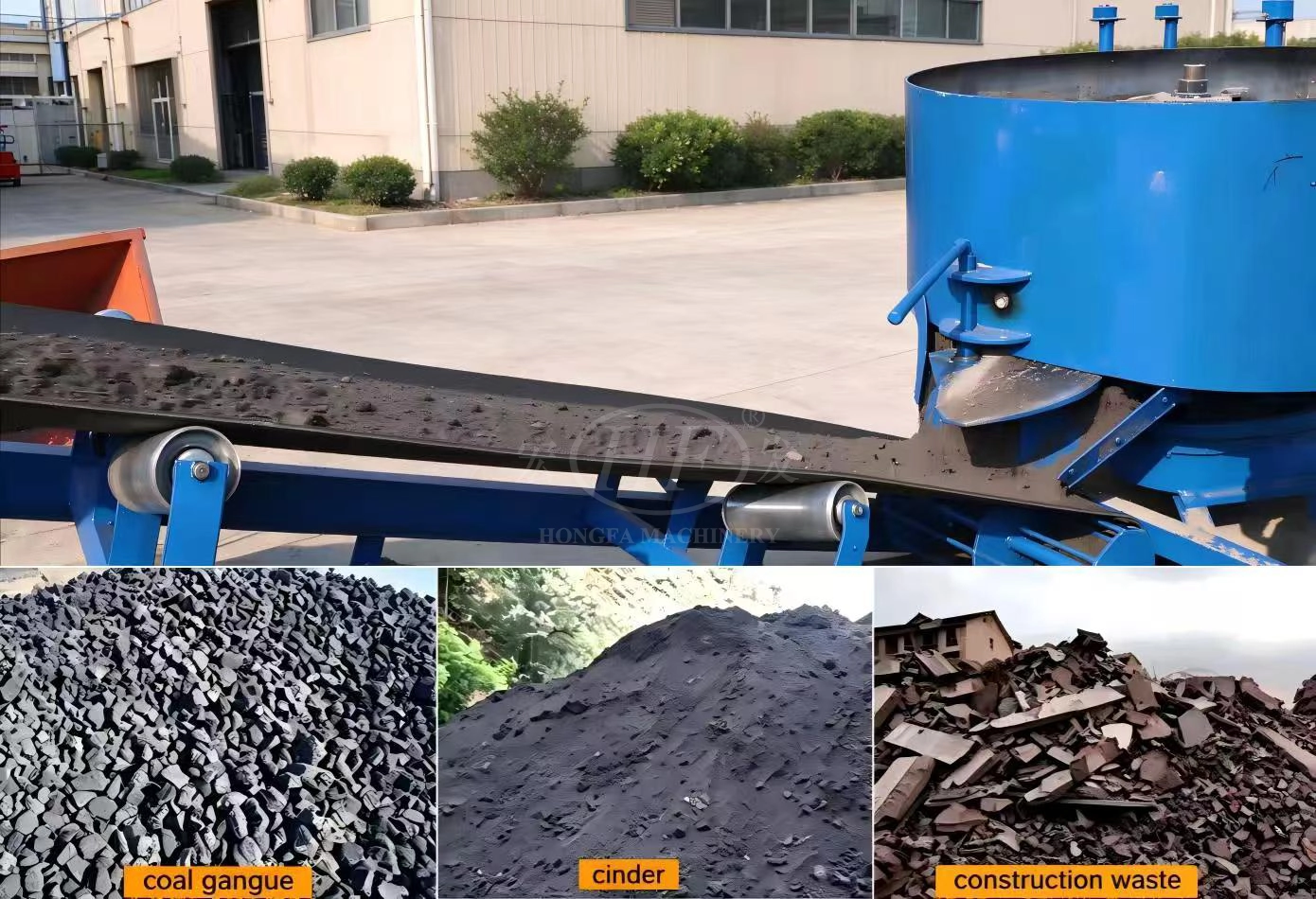

4. Strong Raw Material Compatibility, Solid Waste Recycling to Reduce Material Cost
QT3‑15 brick machine supports flexible raw material formulation. Besides cement and stone aggregates, it can process fly ash, coal gangue, gravel and construction waste as auxiliary raw materials. Brick producers can partially replace cement with locally available waste residues, significantly lowering raw material purchasing cost while complying with environmental regulations and solid waste recycling policies. Quick replacement of manganese steel molds is available to meet shifting market demands. A single set of this small automatic equipment can manufacture multiple types of cement products, including standard hollow blocks, solid bricks, interlocking pavers and slope protection blocks. You do not need to buy multiple separate machines to expand product range, improving capital utilization for small brick factories.
5. Energy-saving Design & Complete Overseas Technical Support
The whole machine has total installed power of 16–19KW with optimized energy-saving structure. It consumes less electric power during continuous brick production. The quantity of wearing parts is small, which reduces later operational spending. Every QT3‑15 brick machine goes through full running inspection before delivery to ensure stable performance. We supply customized mold service, remote operation training and overseas installation guidance. Reliable one-stop technical support helps small brick investors solve operational issues, even if they do not hire professional technical personnel locally.
1. Compact Mini Structure, Lower Initial Investment for New Brick Factories
QT3‑15 fully-automatic cement brick making machine is positioned as small-sized cement brick forming equipment, built with compact four-column welded frame and total weight of about 4 tons. It occupies very limited workshop area and has loose requirements for factory space, perfectly suitable for newly-established small brick plants, individual workshops and construction site brick production. Compared with large full-automatic brick production lines, it saves much on workshop rent and site renovation expenditure, greatly cutting the upfront capital pressure for brick project entrepreneurs. Even investors with limited land resources can launch their brick manufacturing business smoothly with this machine.
2. PLC Automatic Operation System, Simple Operation & Labor Saving
This QT3‑15 brick machine is equipped with mature PLC touch screen full-automatic control system. The complete production workflow including pallet transmission, material feeding, hydraulic pressing, demoulding and finished brick discharging runs automatically without constant manual intervention. It achieves intelligent continuous brick production while keeping excellent cost performance against large-scale production lines. The operation logic is straightforward and easy for workers to learn. Only a small number of staff are required to monitor production, which effectively cuts regular labor expenses and lifts overall production efficiency for your brick plant.
3. Hydraulic & High-frequency Vibration Molding, Stable High-quality Brick Output
The machine adopts hydraulic compression combined with uniform high-frequency vibration composite molding technology. Raw mixtures like cement, sand and fly ash can be fully compacted during forming process, removing internal pores and material delamination inside green bricks. The finished bricks deliver uniform density, smooth surface and precise dimension, minimizing reject rate during mass production. Key electric and hydraulic components are sourced from famous standard brands to reduce equipment failure risk. The thick integrated welded frame can withstand long-time continuous high-frequency vibration without deformation, sustaining stable forming accuracy for long-term brick manufacturing. The molding cycle is 15–20 seconds, producing 3 hollow blocks per forming stroke to steadily fulfill local construction orders.
4. Strong Raw Material Compatibility, Solid Waste Recycling to Reduce Material Cost
QT3‑15 brick machine supports flexible raw material formulation. Besides cement and stone aggregates, it can process fly ash, coal gangue, gravel and construction waste as auxiliary raw materials. Brick producers can partially replace cement with locally available waste residues, significantly lowering raw material purchasing cost while complying with environmental regulations and solid waste recycling policies. Quick replacement of manganese steel molds is available to meet shifting market demands. A single set of this small automatic equipment can manufacture multiple types of cement products, including standard hollow blocks, solid bricks, interlocking pavers and slope protection blocks. You do not need to buy multiple separate machines to expand product range, improving capital utilization for small brick factories.
5. Energy-saving Design & Complete Overseas Technical Support
The whole machine has total installed power of 16–19KW with optimized energy-saving structure. It consumes less electric power during continuous brick production. The quantity of wearing parts is small, which reduces later operational spending. Every QT3‑15 brick machine goes through full running inspection before delivery to ensure stable performance. We supply customized mold service, remote operation training and overseas installation guidance. Reliable one-stop technical support helps small brick investors solve operational issues, even if they do not hire professional technical personnel locally.
