1. Dense Solid Bricks with Stable Strength, Less Scrap Loss & Meet Engineering Acceptance Standards

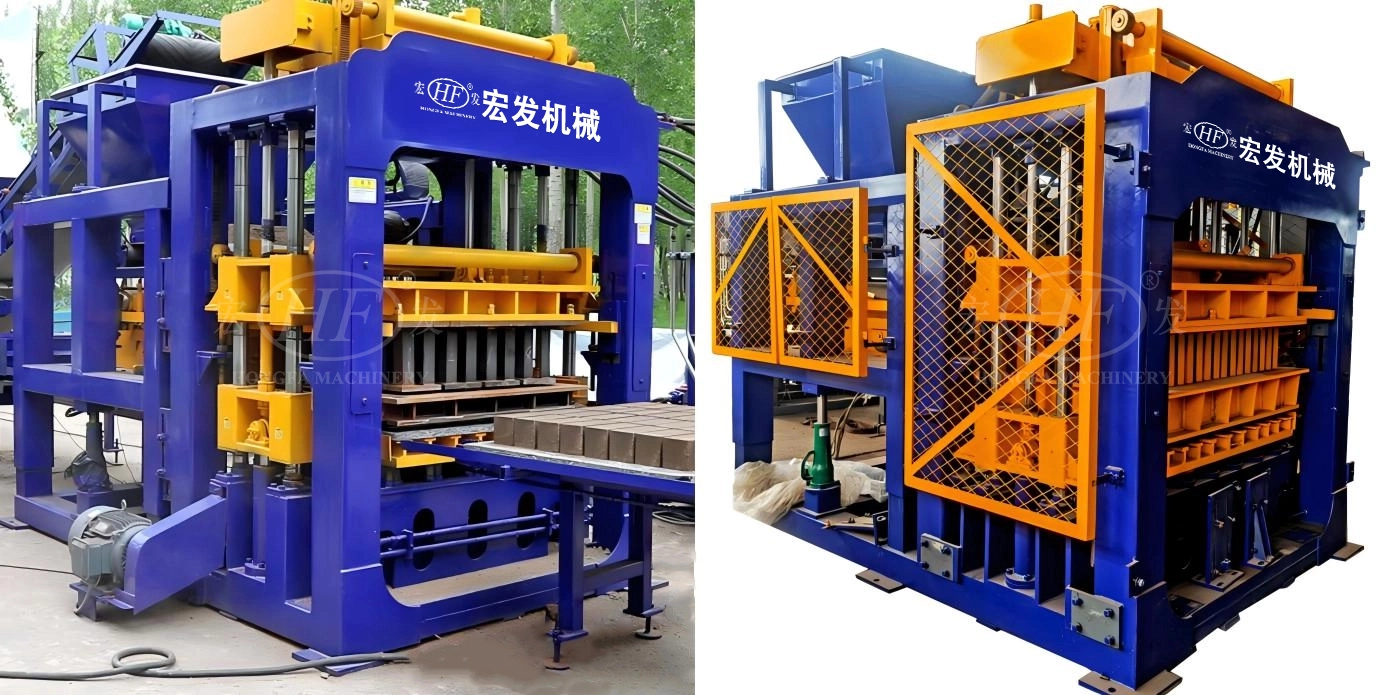

QT12‑15C adopts table‑mounted synchronous frequency‑conversion vibration with max 110KN exciting force. Process parameters of low‑frequency feeding and high‑frequency compaction are optimized for full‑filled solid brick production. Combined with 21MPa rated hydraulic pressure, concrete mix is fully compacted without loose inner interlayers. Finished solid bricks feature flat surface and intact edges with low cracking or chipping rate. Bricks on single pallet keep small dimensional deviation with good consistency. It greatly cuts waste of cement and aggregates as well as reject loss. Output solid bricks satisfy local construction acceptance requirements and help you win long‑term project supply contracts.
2. Super High Single‑machine Output, Lower Unit Cost & Handle Large‑volume Solid Brick Engineering Orders

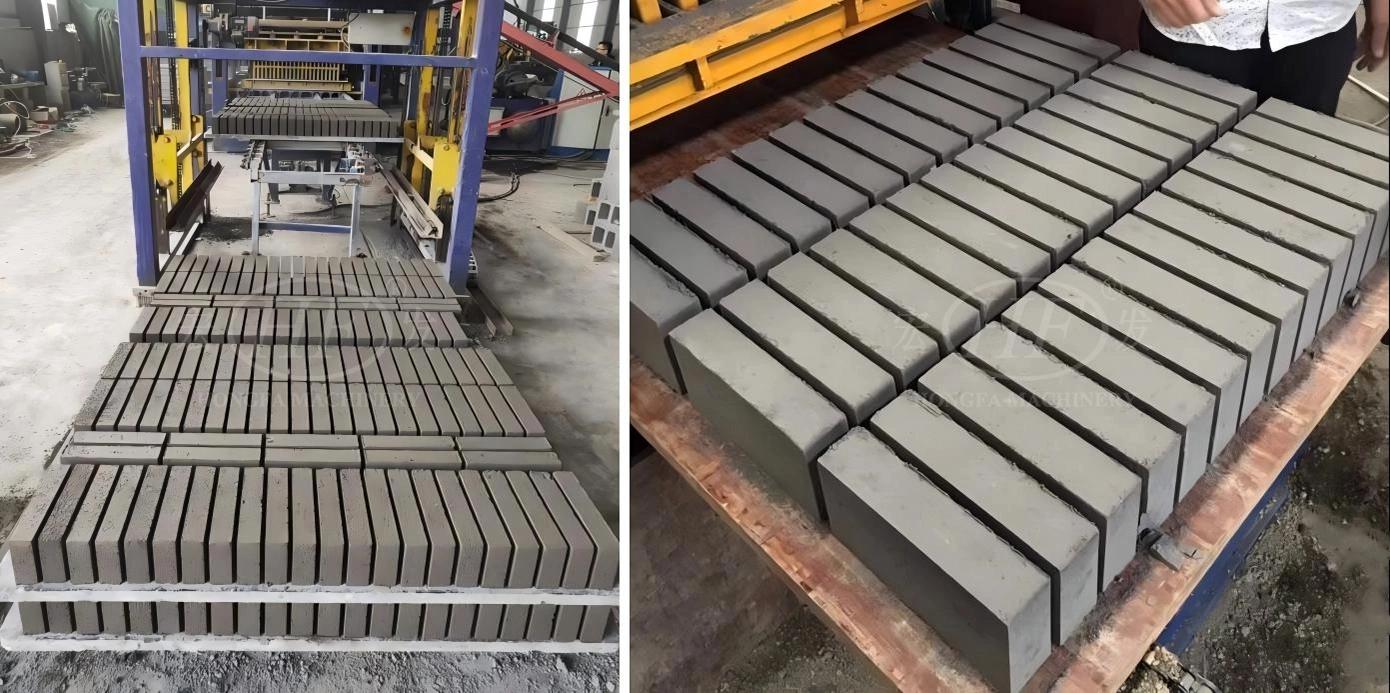

For standard 240×115×53 mm solid bricks, forming cycle only takes 15‑17 seconds with 62 pieces per mould. Output reaches 101600‑115200 pieces within an 8‑hour working shift. Built‑in automatic pallet feeder and green‑brick discharging mechanism reduce manual labour for brick handling. Without expanding workshop space or hiring more workers, the host fulfills huge solid‑brick demands from construction projects. It lowers comprehensive cost per solid brick, improves your price competitiveness in local building‑material market and accelerates investment pay‑off.
3. Heavy‑duty Steel Frame & Premium Core Components for Heavy‑load Continuous Solid‑brick Production, Less Downtime Risk
Solid‑brick full‑filling high‑frequency pressing places high requirements on anti‑fatigue and anti‑impact performance. QT12‑15C main frame is integrally welded with 12×12cm high‑quality square steel from reputable Laigang & Jigang steel mills, total machine weight reaches 12000kgs. It resists frame deformation and weld crack under long‑time heavy‑load vibration and pressing. Hydraulic system uses Taiwan Calyca hydraulic components; electrical and touch‑screen parts are imported Siemens brand. European‑technology universal drive‑shaft replaces traditional direct motor drive to effectively avoid frequent motor burnout. All hardware is reinforced for non‑stop heavy‑duty solid‑brick production to extend key‑component service life and lower unexpected breakdown risk. You can avoid delivery delay during order peak period, save extra spare‑part expenditure and protect your business reputation. One spare‑parts kit is supplied as standard for daily production.
4. Wear‑resistant Carburized Manganese‑steel Mould, Easy Mould‑change for Diversified Solid‑brick Orders
One manganese‑steel solid‑brick mould is supplied as standard. It goes through carburizing heat‑treatment and precise wire‑cutting processing for high hardness and outstanding wear resistance. Stable forming precision guarantees neat and uniform appearance of every solid brick. Mould disassembly and replacement is convenient. You can rapidly produce solid bricks of different thicknesses and dimensions just by swapping moulds. Only one single host covers production of standard solid bricks, thickened engineering solid bricks and other products. There is no need to purchase multiple block‑making machines, saving your capital investment and enabling fast response to customers' varied specifications.

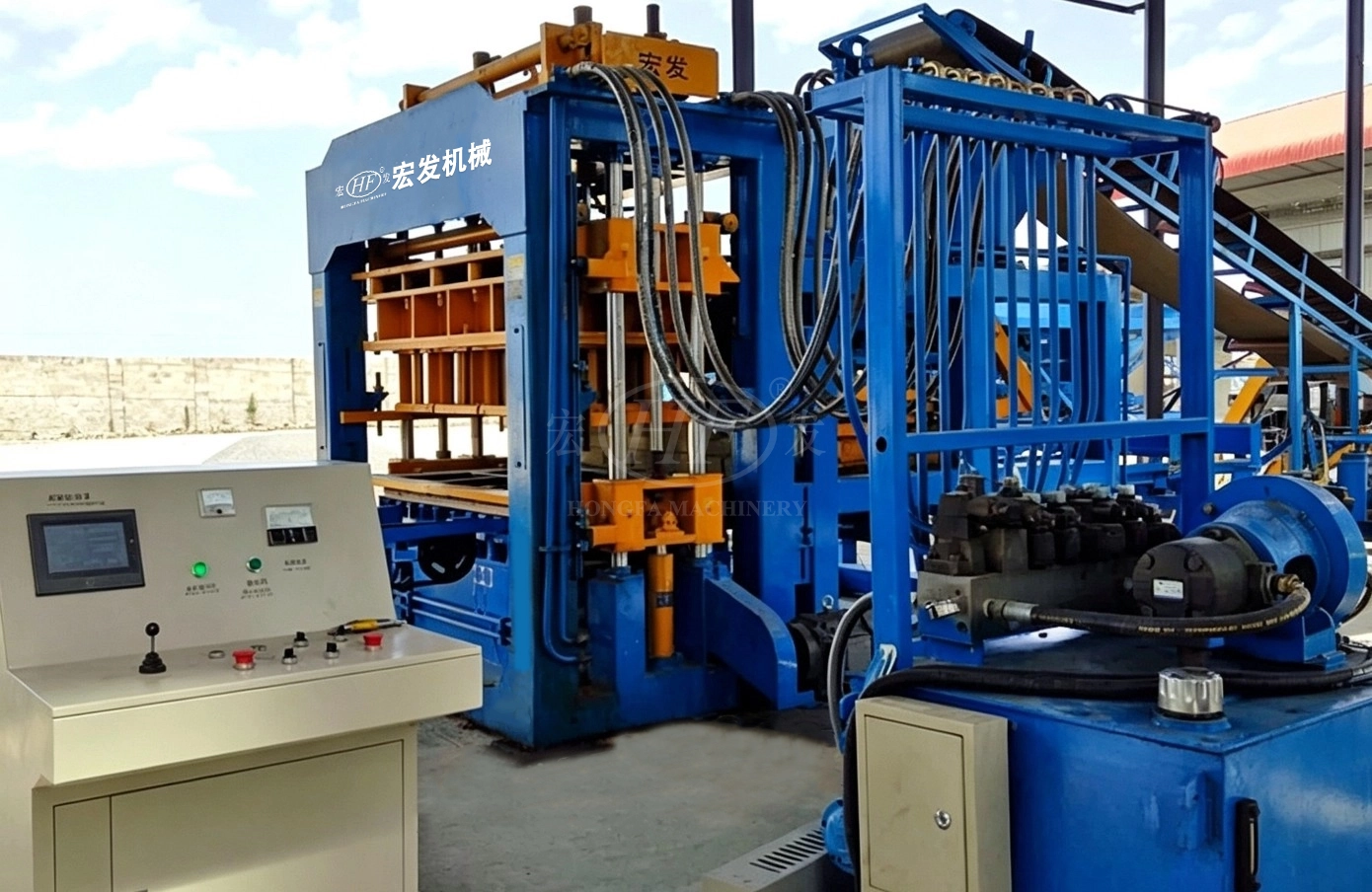

5. Siemens PLC Intelligent HMI System with Remote Monitoring, Lower Labour‑skill Requirement
The host is equipped with complete Siemens PLC intelligent control system and touch‑screen HMI, pre‑installed with dedicated solid‑brick forming program and supporting remote monitoring & diagnosis functions. Operation workflow is straightforward. Ordinary workers can run solid‑brick production after simple training, no high‑salary senior technicians required, helping you control factory labour cost. Production parameters including feeding, vibration and pressing are automatically managed by program to reduce defective bricks caused by manual mis‑operation. It fits stable large‑scale continuous production for overseas medium‑and‑large block factories.
1. Dense Solid Bricks with Stable Strength, Less Scrap Loss & Meet Engineering Acceptance Standards
QT12‑15C adopts table‑mounted synchronous frequency‑conversion vibration with max 110KN exciting force. Process parameters of low‑frequency feeding and high‑frequency compaction are optimized for full‑filled solid brick production. Combined with 21MPa rated hydraulic pressure, concrete mix is fully compacted without loose inner interlayers. Finished solid bricks feature flat surface and intact edges with low cracking or chipping rate. Bricks on single pallet keep small dimensional deviation with good consistency. It greatly cuts waste of cement and aggregates as well as reject loss. Output solid bricks satisfy local construction acceptance requirements and help you win long‑term project supply contracts.
2. Super High Single‑machine Output, Lower Unit Cost & Handle Large‑volume Solid Brick Engineering Orders
For standard 240×115×53 mm solid bricks, forming cycle only takes 15‑17 seconds with 62 pieces per mould. Output reaches 101600‑115200 pieces within an 8‑hour working shift. Built‑in automatic pallet feeder and green‑brick discharging mechanism reduce manual labour for brick handling. Without expanding workshop space or hiring more workers, the host fulfills huge solid‑brick demands from construction projects. It lowers comprehensive cost per solid brick, improves your price competitiveness in local building‑material market and accelerates investment pay‑off.
3. Heavy‑duty Steel Frame & Premium Core Components for Heavy‑load Continuous Solid‑brick Production, Less Downtime Risk
Solid‑brick full‑filling high‑frequency pressing places high requirements on anti‑fatigue and anti‑impact performance. QT12‑15C main frame is integrally welded with 12×12cm high‑quality square steel from reputable Laigang & Jigang steel mills, total machine weight reaches 12000kgs. It resists frame deformation and weld crack under long‑time heavy‑load vibration and pressing. Hydraulic system uses Taiwan Calyca hydraulic components; electrical and touch‑screen parts are imported Siemens brand. European‑technology universal drive‑shaft replaces traditional direct motor drive to effectively avoid frequent motor burnout. All hardware is reinforced for non‑stop heavy‑duty solid‑brick production to extend key‑component service life and lower unexpected breakdown risk. You can avoid delivery delay during order peak period, save extra spare‑part expenditure and protect your business reputation. One spare‑parts kit is supplied as standard for daily production.
4. Wear‑resistant Carburized Manganese‑steel Mould, Easy Mould‑change for Diversified Solid‑brick Orders
One manganese‑steel solid‑brick mould is supplied as standard. It goes through carburizing heat‑treatment and precise wire‑cutting processing for high hardness and outstanding wear resistance. Stable forming precision guarantees neat and uniform appearance of every solid brick. Mould disassembly and replacement is convenient. You can rapidly produce solid bricks of different thicknesses and dimensions just by swapping moulds. Only one single host covers production of standard solid bricks, thickened engineering solid bricks and other products. There is no need to purchase multiple block‑making machines, saving your capital investment and enabling fast response to customers' varied specifications.
5. Siemens PLC Intelligent HMI System with Remote Monitoring, Lower Labour‑skill Requirement
The host is equipped with complete Siemens PLC intelligent control system and touch‑screen HMI, pre‑installed with dedicated solid‑brick forming program and supporting remote monitoring & diagnosis functions. Operation workflow is straightforward. Ordinary workers can run solid‑brick production after simple training, no high‑salary senior technicians required, helping you control factory labour cost. Production parameters including feeding, vibration and pressing are automatically managed by program to reduce defective bricks caused by manual mis‑operation. It fits stable large‑scale continuous production for overseas medium‑and‑large block factories.
