QT12‑15 Automatic Hydraulic Solid Brick Making Machine | Large‑capacity High‑strength Concrete Solid Brick Forming Host

QT12‑15 Automatic Hydraulic Solid Brick Making Machine | Large‑capacity High‑strength Concrete Solid Brick Forming Host
  • QT12‑15 Automatic Hydraulic Solid Brick Making Machine | Large‑capacity High‑strength Concrete Solid Brick Forming Host
  • QT12‑15 Automatic Hydraulic Solid Brick Making Machine | Large‑capacity High‑strength Concrete Solid Brick Forming Host
  • QT12‑15 Automatic Hydraulic Solid Brick Making Machine | Large‑capacity High‑strength Concrete Solid Brick Forming Host

Product advantages

Advantage of QT12‑15 Automatic Hydraulic Solid Brick Making Machine

1. High & Stable Density of Solid Bricks, Less Waste, Meet Engineering Purchase Standards

QT12‑15 adopts table vibration and hydraulic composite forming. Vibration and pressure parameters are optimized for full compaction of solid brick raw materials. Sufficient exciting force together with hydraulic pressure fully compacts concrete mix. Finished solid bricks feature dense internal structure without loose layers, intact edges and low cracking or chipping rate. Height deviation of bricks on one pallet is minimal with great product consistency. Stable brick quality reduces raw material waste and defective product loss. Produced solid bricks directly meet local construction acceptance standards and help you win long‑term supply contracts from large engineering projects.

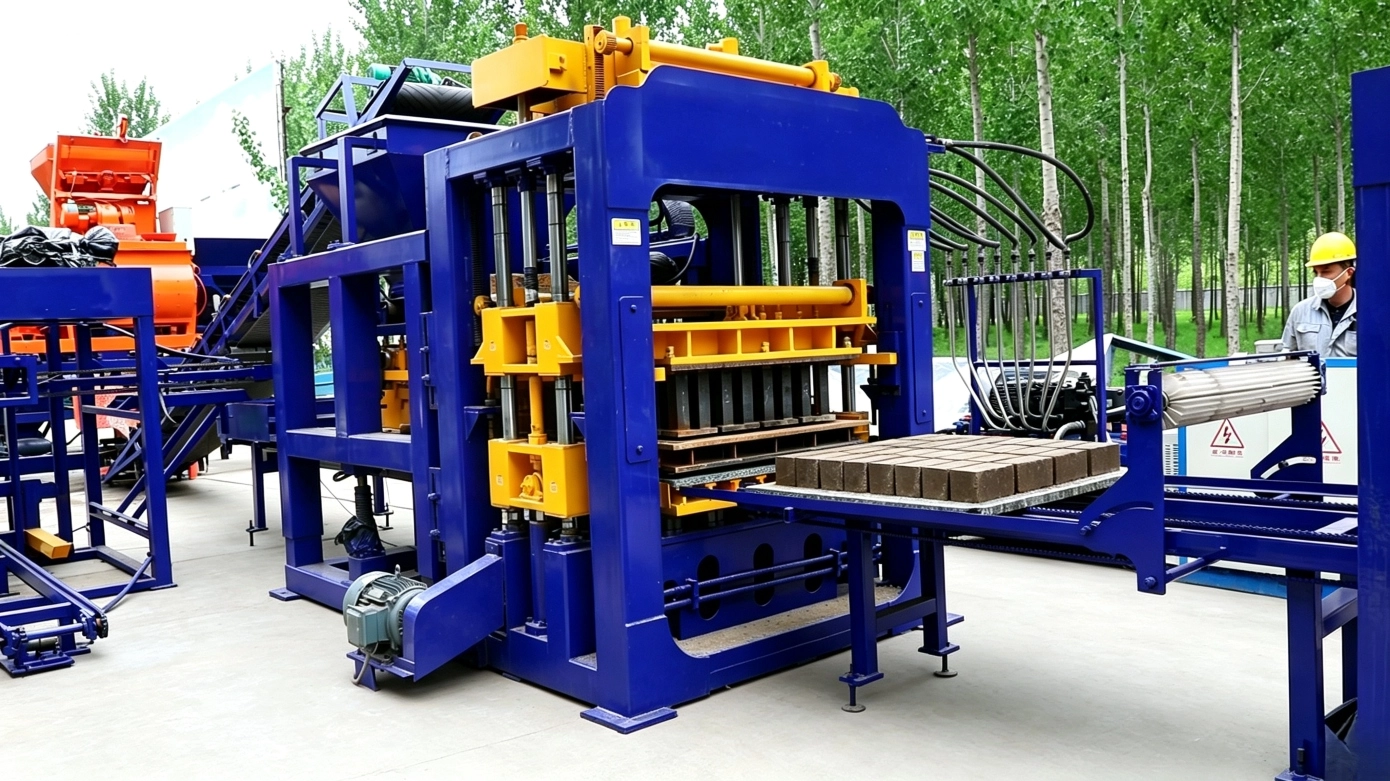

QT12‑15 Automatic Hydraulic Solid Brick Making Machine

2. Powerful Single‑machine Output, Lower Unit Cost & Handle Massive Solid Brick Orders

For standard 240×115×53 mm solid bricks, forming cycle only takes 13‑16 seconds with 60 pieces per mould. The output reaches 108000‑132900 pieces within an 8‑hour working shift. Built‑in automatic pallet feeder and green‑brick discharging mechanism greatly cut manual labour for brick handling. With strong single‑machine capacity, you can fulfill large‑volume solid brick demands from big construction projects without expanding workshop space and hiring more workers. It reduces comprehensive cost per solid brick, strengthens your price competitiveness in local building material market and accelerates investment payback.

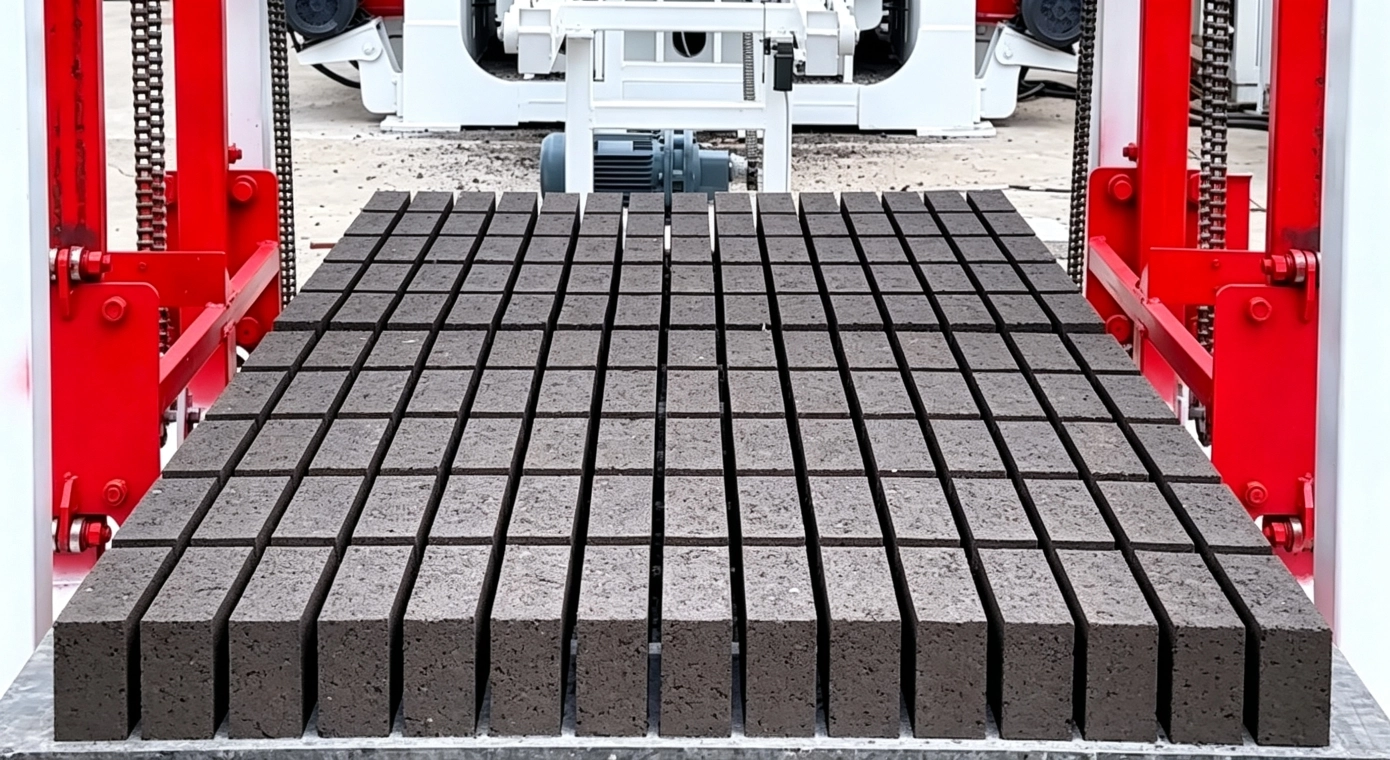

QT12‑15 Automatic Hydraulic Solid Brick Making Machine

3. Heavy‑duty Thickened Frame & Premium Core Components for Continuous High‑pressure Solid Brick Production, Less Downtime Risk

Solid brick production requires continuous high pressure and high‑frequency vibration, which places higher demand on structural strength. QT12‑15 main frame is integrally welded with thickened premium section steel, featuring strong deformation resistance. It resists frame distortion and weld crack under long‑time vibration and pressing impact. The hydraulic system uses well‑known brand hydraulic components, and the electric control system is equipped with high‑quality electrical parts. The whole hardware is reinforced for non‑stop solid brick production. Key components enjoy longer service life, lowering unexpected breakdown risk. You can avoid delivery delay and compensation caused by machine failure during order peak period, save extra spare‑part expenditure and protect your business reputation.

QT12‑15 Automatic Hydraulic Solid Brick Making Machine

4. Wear‑resistant Manganese‑steel Mould, Fast Mould‑change for Diversified Solid Brick Orders

One high‑manganese‑steel solid brick mould is supplied as standard. It goes through carburizing heat‑treatment and precise wire‑cutting processing for outstanding hardness and wear resistance. Stable mould precision guarantees neat shape of every solid brick. Mould disassembly and replacement is convenient. You can rapidly switch solid bricks of different dimensions and thicknesses just by swapping moulds. One single host can produce standard solid bricks, thickened engineering solid bricks and other products. There is no need to purchase multiple block machines, saving your capital investment and enabling fast response to varied customer specifications.

5. Intelligent PLC HMI Control, Lower Labour‑skill Requirement & Reduce Human‑error Defects

The host is equipped with complete PLC intelligent control system and touch‑screen HMI, pre‑installed with dedicated solid brick forming program. Operation workflow is straightforward. Ordinary workers can run solid brick production after simple training, no high‑salary senior technicians required, helping you control factory labour cost. Production parameters are controlled by standardized program to reduce defective bricks caused by manual operation deviation. It is well‑suited for stable large‑scale production in overseas medium and large block factories.

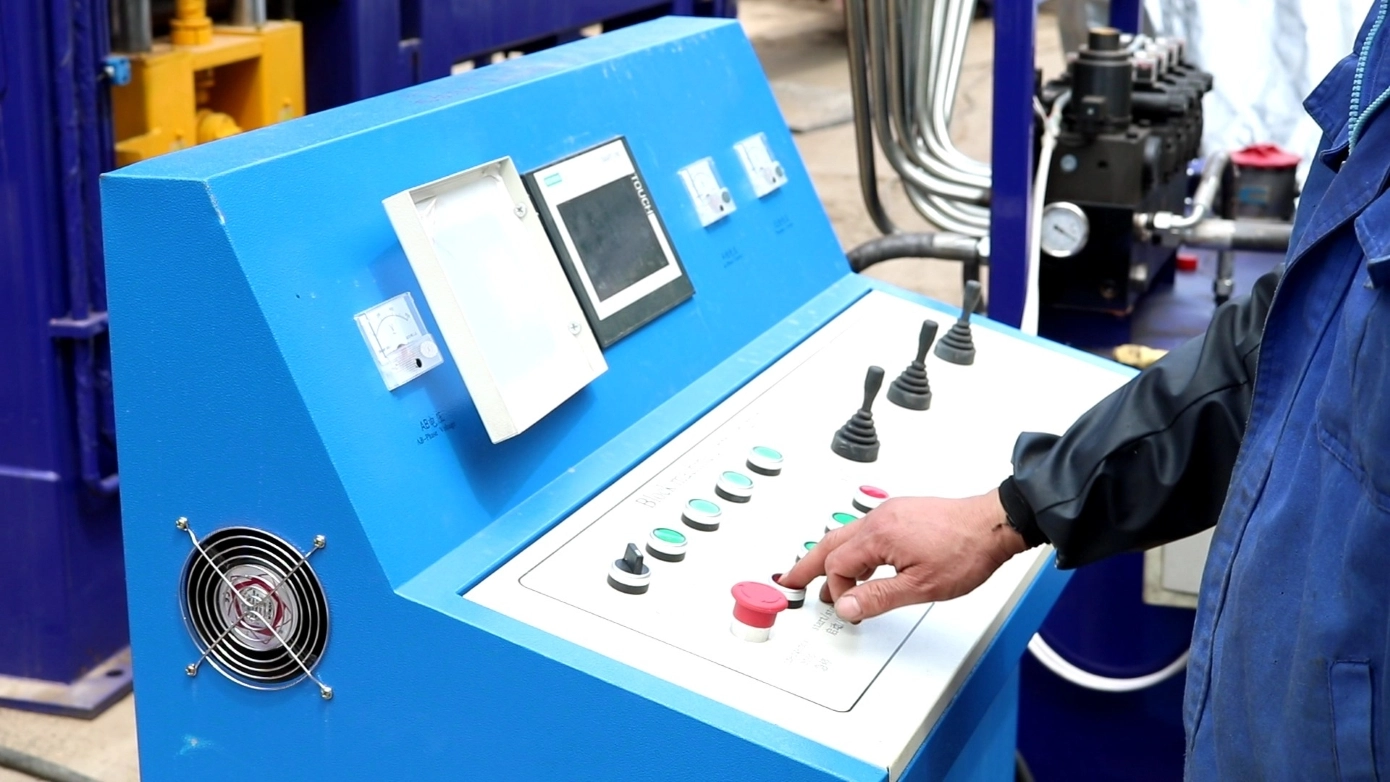

PLC of QT12‑15 Automatic Hydraulic Solid Brick Making Machine


Contact Us

Equipment advantages

Advantage of QT12‑15 Automatic Hydraulic Solid Brick Making Machine

1. High & Stable Density of Solid Bricks, Less Waste, Meet Engineering Purchase Standards

QT12‑15 adopts table vibration and hydraulic composite forming. Vibration and pressure parameters are optimized for full compaction of solid brick raw materials. Sufficient exciting force together with hydraulic pressure fully compacts concrete mix. Finished solid bricks feature dense internal structure without loose layers, intact edges and low cracking or chipping rate. Height deviation of bricks on one pallet is minimal with great product consistency. Stable brick quality reduces raw material waste and defective product loss. Produced solid bricks directly meet local construction acceptance standards and help you win long‑term supply contracts from large engineering projects.

QT12‑15 Automatic Hydraulic Solid Brick Making Machine

2. Powerful Single‑machine Output, Lower Unit Cost & Handle Massive Solid Brick Orders

For standard 240×115×53 mm solid bricks, forming cycle only takes 13‑16 seconds with 60 pieces per mould. The output reaches 108000‑132900 pieces within an 8‑hour working shift. Built‑in automatic pallet feeder and green‑brick discharging mechanism greatly cut manual labour for brick handling. With strong single‑machine capacity, you can fulfill large‑volume solid brick demands from big construction projects without expanding workshop space and hiring more workers. It reduces comprehensive cost per solid brick, strengthens your price competitiveness in local building material market and accelerates investment payback.

QT12‑15 Automatic Hydraulic Solid Brick Making Machine

3. Heavy‑duty Thickened Frame & Premium Core Components for Continuous High‑pressure Solid Brick Production, Less Downtime Risk

Solid brick production requires continuous high pressure and high‑frequency vibration, which places higher demand on structural strength. QT12‑15 main frame is integrally welded with thickened premium section steel, featuring strong deformation resistance. It resists frame distortion and weld crack under long‑time vibration and pressing impact. The hydraulic system uses well‑known brand hydraulic components, and the electric control system is equipped with high‑quality electrical parts. The whole hardware is reinforced for non‑stop solid brick production. Key components enjoy longer service life, lowering unexpected breakdown risk. You can avoid delivery delay and compensation caused by machine failure during order peak period, save extra spare‑part expenditure and protect your business reputation.

QT12‑15 Automatic Hydraulic Solid Brick Making Machine

4. Wear‑resistant Manganese‑steel Mould, Fast Mould‑change for Diversified Solid Brick Orders

One high‑manganese‑steel solid brick mould is supplied as standard. It goes through carburizing heat‑treatment and precise wire‑cutting processing for outstanding hardness and wear resistance. Stable mould precision guarantees neat shape of every solid brick. Mould disassembly and replacement is convenient. You can rapidly switch solid bricks of different dimensions and thicknesses just by swapping moulds. One single host can produce standard solid bricks, thickened engineering solid bricks and other products. There is no need to purchase multiple block machines, saving your capital investment and enabling fast response to varied customer specifications.

5. Intelligent PLC HMI Control, Lower Labour‑skill Requirement & Reduce Human‑error Defects

The host is equipped with complete PLC intelligent control system and touch‑screen HMI, pre‑installed with dedicated solid brick forming program. Operation workflow is straightforward. Ordinary workers can run solid brick production after simple training, no high‑salary senior technicians required, helping you control factory labour cost. Production parameters are controlled by standardized program to reduce defective bricks caused by manual operation deviation. It is well‑suited for stable large‑scale production in overseas medium and large block factories.

PLC of QT12‑15 Automatic Hydraulic Solid Brick Making Machine


Product parameters

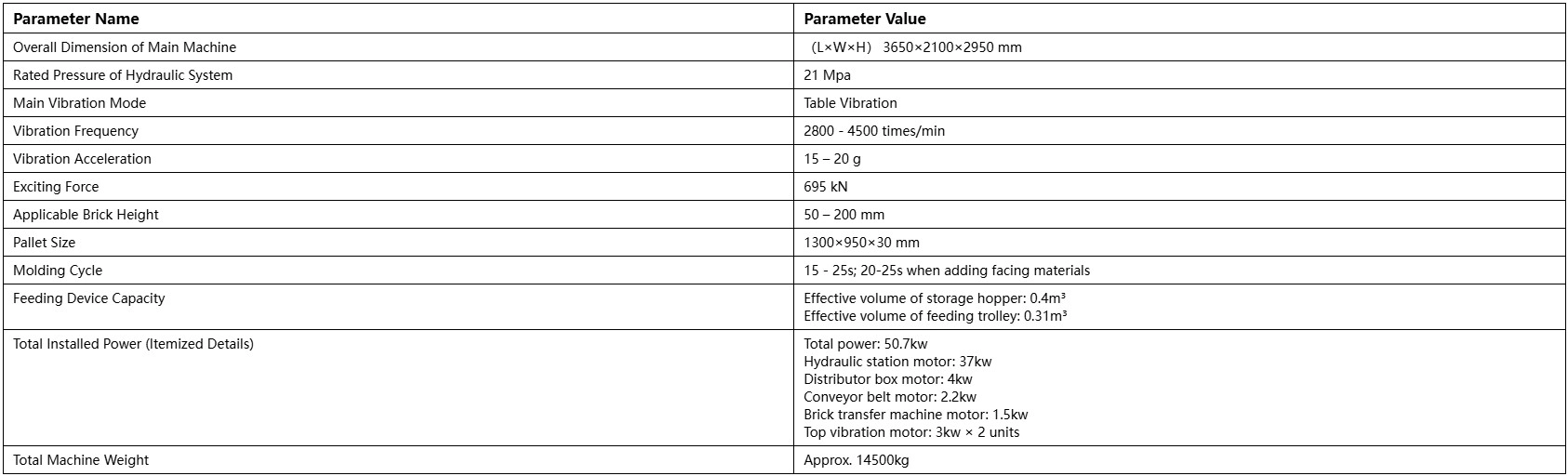

Main Technical Parameters of QT12‑15 Automatic Hydraulic Solid Brick Making Machine

Main Technical Parameters of QT12‑15 Automatic Hydraulic Solid Brick Making Machine


Main Production Specification and Theoretical Productivity

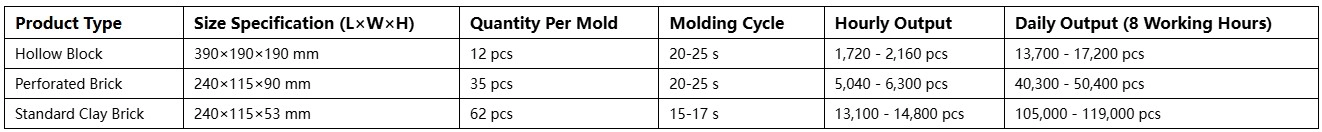

Productivity of QT12‑15 Automatic Hydraulic Solid Brick Making Machine

Productivity of QT12‑15 Automatic Hydraulic Solid Brick Making Machine
