1. Neat & Dense Hollow Blocks, Lower Reject Loss & Meet Engineering Supply Standards

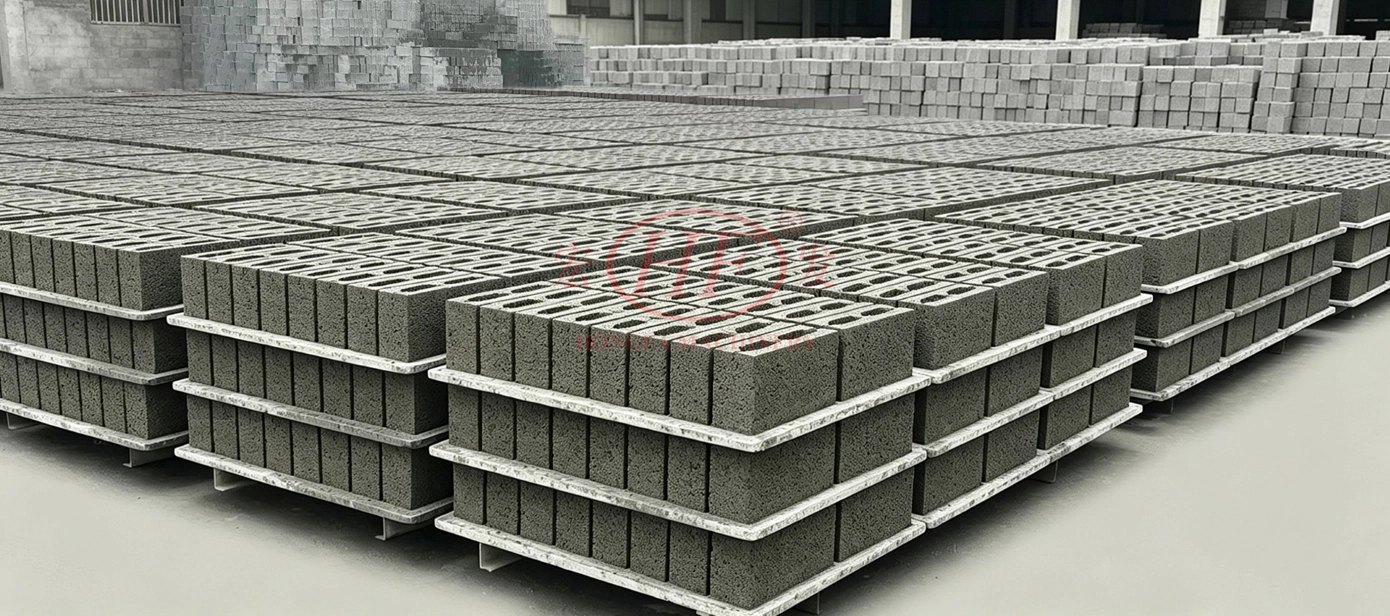

HF18 adopts multi‑source frequency‑conversion table‑vibration system with 180‑360KN exciting force, equipped with air‑floating isolation structure to transfer full vibration energy into mould box. Material feeding logic is optimized for hollow‑cavity block production. The advanced feeding trolley distributes concrete evenly inside mould cavity, keeping block weight tolerance within ±2%. Manufactured hollow blocks feature solid wall and complete cavity outline, with low risk of cavity collapse, chipping or honeycomb defects and high product consistency. It greatly reduces raw‑material waste and reject loss. Fresh blocks own low moisture content and high density and can be stacked directly after demoulding. Finished hollow blocks satisfy overseas construction acceptance requirements and help you obtain long‑term project supply contracts.
2. No Heavy Pallet Investment, Integrated Stacking Function to Cut Consumable & Auxiliary‑equipment Cost
Traditional block machines require continuous purchase and replacement of large quantities of pallets, bringing recurring consumable expense, plus extra investment on lifting machine, pallet transporting cars and other auxiliary devices. HF18 host integrates demoulding, block receiving and automatic stacking. Green blocks can be stacked in layers right after forming without mass circulating pallets. You can save continuous cost for pallet purchase, repair and renewal. Auxiliary machines such as elevator and pallet shuttle cars are no longer required, cutting plant facility investment and simplifying workflow. After one‑time machine purchase, you get rid of high pallet‑related recurring expenditure and lower comprehensive hollow‑block production cost.
3. Extra‑large Forming Area, High Hollow‑block Output, Labour‑saving Operation To Cut Manpower Cost

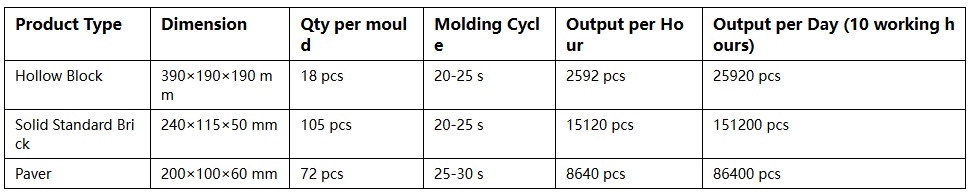

The forming table reaches 1350×1350 mm. For 390×190×190 mm standard hollow blocks, 18 pieces can be produced per mould within 20‑25 seconds cycle time, achieving 25920 pieces in a 10‑hour shift. The extra‑large effective forming area delivers remarkable single‑machine capacity to fulfill large‑volume hollow‑block orders from big construction projects. Highly‑automated workflow only needs few on‑site operators for monitoring. Heavy manual handling and transferring of green blocks are eliminated. Labour demand drops greatly compared with conventional machines. You do not need numerous skilled workers, so labour expenditure is well controlled, and stable mass hollow‑block production can be maintained even with limited manpower.
4. Imported Hydraulic & Electrical Components plus Air‑bag Damping System, Longer Service Life & Less Downtime Risk
High‑frequency vibration during hollow‑block production brings heavy wear to whole machine. HF18 adopts original imported solenoid valves, electro‑hydraulic valves and coolers for hydraulic system. Water‑circulation cooling guarantees stable non‑stop operation. Key switches, contactors and other electric components are imported. Electric cabinet applies secondary sealing protection and safety interlock for every movement. Air‑bag vibration‑absorbing system buffers strong vibration impact, reducing damage to mould, frame and other spare parts and extending component service life. All hardware is reinforced for intensive hollow‑block production to lower unexpected breakdown probability. You can avoid delivery delay during order peak period and save frequent spare‑part purchasing cost to protect your business reputation. One spare‑parts kit is provided for daily production.
5. Quick Mould Change & Intelligent Remote Control, Handle Diversified Hollow‑block Orders and Lower Labour‑skill Requirement

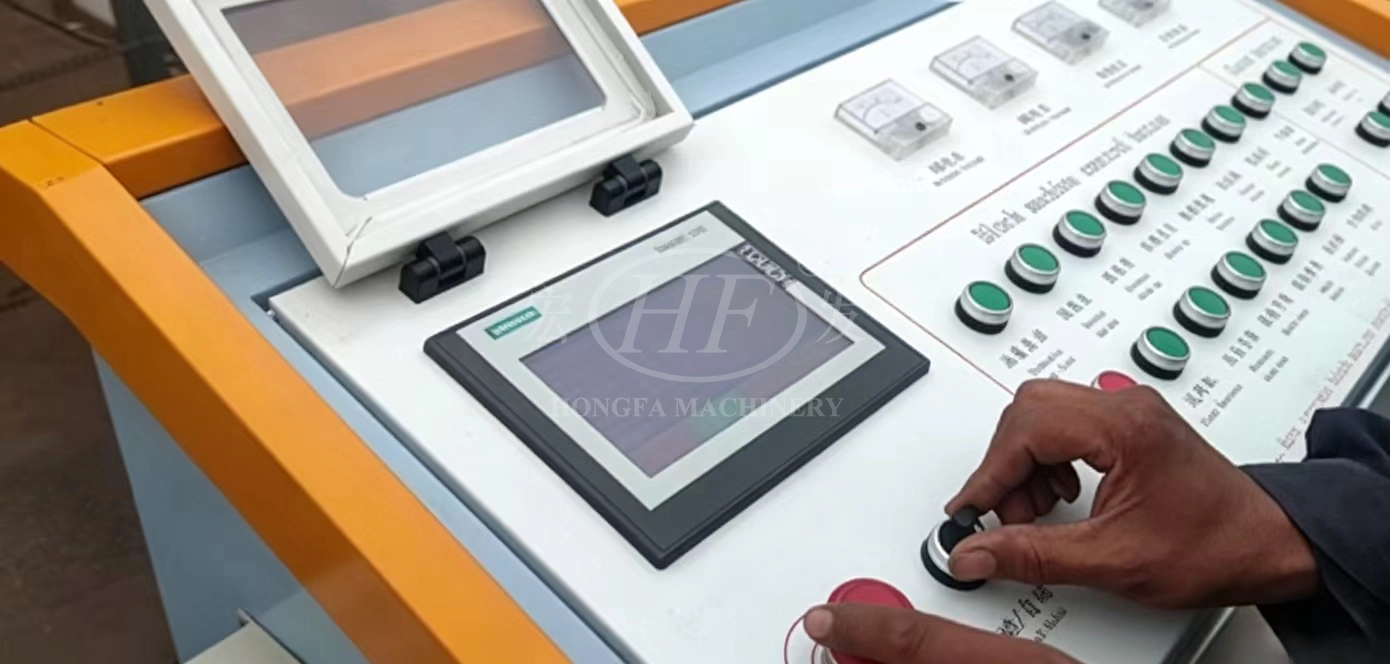

You can switch among different hollow‑block specifications simply by swapping moulds. One single host produces load‑bearing hollow blocks, non‑load‑bearing hollow blocks, perforated blocks and more. There is no need to buy multiple block‑making machines, which saves your capital investment. Complete remote communication system supports remote monitoring, fault diagnosis and formula storage. It can link with batching system for full‑line automatic running. HMI human‑machine interface is user‑friendly. Ordinary workers can supervise hollow‑block production after short‑period training without senior professional technicians. It perfectly fits long‑term large‑scale stable production of overseas large block factories.
1. Neat & Dense Hollow Blocks, Lower Reject Loss & Meet Engineering Supply Standards
HF18 adopts multi‑source frequency‑conversion table‑vibration system with 180‑360KN exciting force, equipped with air‑floating isolation structure to transfer full vibration energy into mould box. Material feeding logic is optimized for hollow‑cavity block production. The advanced feeding trolley distributes concrete evenly inside mould cavity, keeping block weight tolerance within ±2%. Manufactured hollow blocks feature solid wall and complete cavity outline, with low risk of cavity collapse, chipping or honeycomb defects and high product consistency. It greatly reduces raw‑material waste and reject loss. Fresh blocks own low moisture content and high density and can be stacked directly after demoulding. Finished hollow blocks satisfy overseas construction acceptance requirements and help you obtain long‑term project supply contracts.
2. No Heavy Pallet Investment, Integrated Stacking Function to Cut Consumable & Auxiliary‑equipment Cost
Traditional block machines require continuous purchase and replacement of large quantities of pallets, bringing recurring consumable expense, plus extra investment on lifting machine, pallet transporting cars and other auxiliary devices. HF18 host integrates demoulding, block receiving and automatic stacking. Green blocks can be stacked in layers right after forming without mass circulating pallets. You can save continuous cost for pallet purchase, repair and renewal. Auxiliary machines such as elevator and pallet shuttle cars are no longer required, cutting plant facility investment and simplifying workflow. After one‑time machine purchase, you get rid of high pallet‑related recurring expenditure and lower comprehensive hollow‑block production cost.
3. Extra‑large Forming Area, High Hollow‑block Output, Labour‑saving Operation To Cut Manpower Cost
The forming table reaches 1350×1350 mm. For 390×190×190 mm standard hollow blocks, 18 pieces can be produced per mould within 20‑25 seconds cycle time, achieving 25920 pieces in a 10‑hour shift. The extra‑large effective forming area delivers remarkable single‑machine capacity to fulfill large‑volume hollow‑block orders from big construction projects. Highly‑automated workflow only needs few on‑site operators for monitoring. Heavy manual handling and transferring of green blocks are eliminated. Labour demand drops greatly compared with conventional machines. You do not need numerous skilled workers, so labour expenditure is well controlled, and stable mass hollow‑block production can be maintained even with limited manpower.
4. Imported Hydraulic & Electrical Components plus Air‑bag Damping System, Longer Service Life & Less Downtime Risk
High‑frequency vibration during hollow‑block production brings heavy wear to whole machine. HF18 adopts original imported solenoid valves, electro‑hydraulic valves and coolers for hydraulic system. Water‑circulation cooling guarantees stable non‑stop operation. Key switches, contactors and other electric components are imported. Electric cabinet applies secondary sealing protection and safety interlock for every movement. Air‑bag vibration‑absorbing system buffers strong vibration impact, reducing damage to mould, frame and other spare parts and extending component service life. All hardware is reinforced for intensive hollow‑block production to lower unexpected breakdown probability. You can avoid delivery delay during order peak period and save frequent spare‑part purchasing cost to protect your business reputation. One spare‑parts kit is provided for daily production.
5. Quick Mould Change & Intelligent Remote Control, Handle Diversified Hollow‑block Orders and Lower Labour‑skill Requirement
You can switch among different hollow‑block specifications simply by swapping moulds. One single host produces load‑bearing hollow blocks, non‑load‑bearing hollow blocks, perforated blocks and more. There is no need to buy multiple block‑making machines, which saves your capital investment. Complete remote communication system supports remote monitoring, fault diagnosis and formula storage. It can link with batching system for full‑line automatic running. HMI human‑machine interface is user‑friendly. Ordinary workers can supervise hollow‑block production after short‑period training without senior professional technicians. It perfectly fits long‑term large‑scale stable production of overseas large block factories.
