1. Large‑pallet & High‑output Configuration for Mass Construction‑solid‑brick Orders
QT6‑12 adopts enlarged 1020×700 mm pallet, specially optimized for high‑volume solid‑brick production. For standard 240×115×53 mm solid bricks, up to 36 pieces can be produced in one molding cycle with 12‑15 s cycle time, maximum output reaching 86400 pieces per 8‑hour shift. It fully meets massive solid‑brick supply demand for housing and infrastructure projects. One single main machine can satisfy high‑volume order requirements without purchasing multiple small‑size machines in parallel, lowering machinery investment and saving workshop space. Mold replacement enables quick switch among solid bricks of different dimensions, shortening overall order lead‑time for mixed‑spec project orders. The machine offers excellent raw‑material compatibility. Industrial solid waste such as fly ash, furnace slag, coal gangue and stone powder can be mixed in high proportion to substitute expensive cement and cut per‑unit production cost of solid bricks. Factories located in regions with abundant local industrial waste can achieve stronger price competitiveness and higher project profit margin.
2. Combined Table‑mold Vibration & 21MPa High‑pressure Hydraulics for High‑strength Dense Solid Bricks
This machine applies combined table‑vibration plus mold‑vibration system with exciting force up to 70KN and vibration frequency ranging from 2800‑5500 times per minute. Cooperated with 21MPa rated high‑pressure hydraulic compression, it solves the difficulty of dense filling for solid‑brick raw materials. Concrete mix inside mold cavity is fully de‑aerated and compacted. Finished solid bricks own uniform density and high compression strength without loose internal voids, fully satisfying engineering acceptance standards for building wall masonry. Electromechanical‑hydraulic‑pneumatic synchronous drive ensures minimal height error for all solid bricks on one single pallet. Smooth demolding greatly reduces rejects including corner chipping, cracking and uneven thickness. Low reject rate prevents raw‑material waste and cuts extra labor‑time cost caused by rework. For large infrastructure bidding and export orders with strict requirements on brick strength and dimensional tolerance, the machine stably delivers consistent qualified solid bricks and mitigates financial risks of returns or order deductions.
3. Siemens PLC Full‑automatic Linkage, Compatible with Automatic Stacker to Save Labor Cost

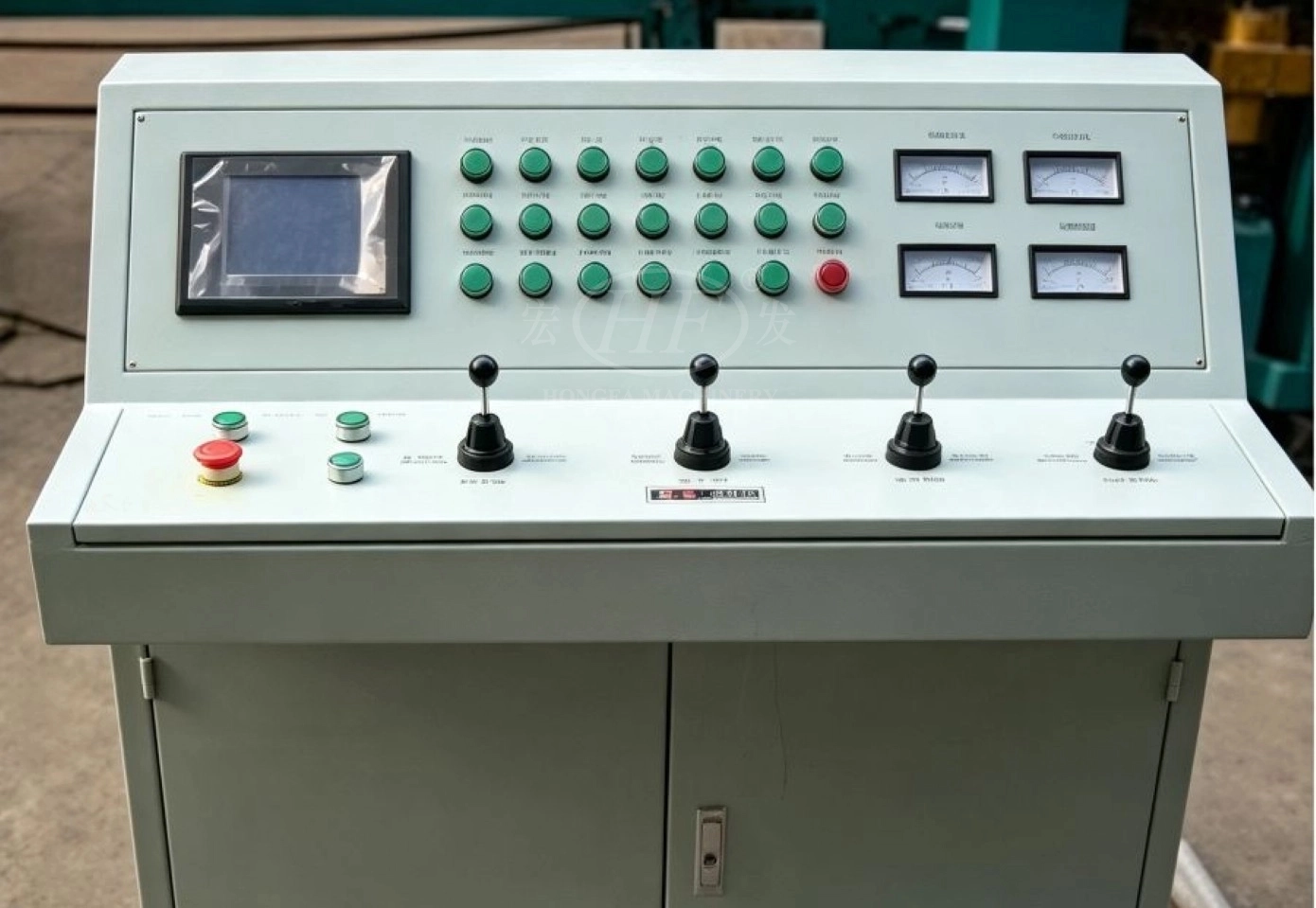

Equipped with Siemens PLC and imported touch‑screen panel, the machine automatically completes pallet feeding, metered material distribution, vibration pressing, demolding and green‑brick conveying for solid‑brick production. It supports single‑cycle trial mode and long‑term continuous mass‑production mode, built‑in fault diagnosis and remote‑control functions. Ordinary operators can get competent after simple training without high‑salary professional technicians. Under continuous‑production mode, non‑stop cyclic production is available with sufficient raw materials and pallets, perfectly fitting urgent large‑volume housing‑construction solid‑brick supply projects. The machine can directly connect with matched automatic block stacker for auto‑stacking of whole‑pallet green solid bricks. It eliminates large amount of manual brick‑stacking work, greatly reduces on‑site manpower and long‑term payroll expenditure. Total installed power is 32 kW. Power consumption per solid brick is well‑optimized while maintaining high output, lowering long‑term electricity cost.
4. Reinforced Heavy‑duty Steel Structure & Premium Brand Core Components for Long‑time Heavy‑load Solid‑brick Production
Main frame is welded with heavy‑duty 12×12cm square steel from Laiwu Iron & Steel and Jinggang Iron & Steel, delivering high integral rigidity. It withstands continuous strong exciting force and high‑pressure load in solid‑brick forming process with good anti‑fatigue performance, suitable for day‑after‑day heavy‑duty continuous production. Hydraulic valve groups adopt Taiwan Calyca brand; all electric components are imported Siemens parts. Every unit passes complete mechatronic‑hydraulic linkage test before delivery for high hardware reliability. It keeps low failure rate during long‑time mass‑production and reduces later‑stage maintenance work and spare‑part expenses. Construction solid‑brick orders normally carry strict delivery deadlines. Equipment breakdown directly causes supply suspension, order delay, penalty charges and even loss of long‑term engineering clients. Reliable performance of QT6‑12 minimizes capacity loss from unplanned shutdown, stabilizes production rhythm and safeguards business reputation for engineering contracts.
5. Compatible with Natural Curing to Lower Initial Investment for Solid‑brick Production Line
Fresh green solid‑brick blanks from QT6‑12 support natural curing. Expensive steam‑curing kilns and corresponding fuel & power consumption are not mandatory. It largely cuts auxiliary‑equipment investment for new solid‑brick production‑line construction. Small‑and‑medium investors and expanding brick plants can allocate more capital to main machine and automatic auxiliary equipment, shorten project construction cycle and start order‑taking & profit‑generation earlier. Solid bricks can reach building‑qualified strength via standardized stacking and scheduled water sprinkling. This flexible solution works well for large‑scale formal building‑material factories and medium‑size processing plants with expansion plans. Whether undertaking domestic large‑volume housing‑infrastructure solid‑brick orders or solid‑brick export contracts, production can be implemented based on your existing plant conditions.
1. Large‑pallet & High‑output Configuration for Mass Construction‑solid‑brick Orders
QT6‑12 adopts enlarged 1020×700 mm pallet, specially optimized for high‑volume solid‑brick production. For standard 240×115×53 mm solid bricks, up to 36 pieces can be produced in one molding cycle with 12‑15 s cycle time, maximum output reaching 86400 pieces per 8‑hour shift. It fully meets massive solid‑brick supply demand for housing and infrastructure projects. One single main machine can satisfy high‑volume order requirements without purchasing multiple small‑size machines in parallel, lowering machinery investment and saving workshop space. Mold replacement enables quick switch among solid bricks of different dimensions, shortening overall order lead‑time for mixed‑spec project orders. The machine offers excellent raw‑material compatibility. Industrial solid waste such as fly ash, furnace slag, coal gangue and stone powder can be mixed in high proportion to substitute expensive cement and cut per‑unit production cost of solid bricks. Factories located in regions with abundant local industrial waste can achieve stronger price competitiveness and higher project profit margin.
2. Combined Table‑mold Vibration & 21MPa High‑pressure Hydraulics for High‑strength Dense Solid Bricks
This machine applies combined table‑vibration plus mold‑vibration system with exciting force up to 70KN and vibration frequency ranging from 2800‑5500 times per minute. Cooperated with 21MPa rated high‑pressure hydraulic compression, it solves the difficulty of dense filling for solid‑brick raw materials. Concrete mix inside mold cavity is fully de‑aerated and compacted. Finished solid bricks own uniform density and high compression strength without loose internal voids, fully satisfying engineering acceptance standards for building wall masonry. Electromechanical‑hydraulic‑pneumatic synchronous drive ensures minimal height error for all solid bricks on one single pallet. Smooth demolding greatly reduces rejects including corner chipping, cracking and uneven thickness. Low reject rate prevents raw‑material waste and cuts extra labor‑time cost caused by rework. For large infrastructure bidding and export orders with strict requirements on brick strength and dimensional tolerance, the machine stably delivers consistent qualified solid bricks and mitigates financial risks of returns or order deductions.
3. Siemens PLC Full‑automatic Linkage, Compatible with Automatic Stacker to Save Labor Cost
Equipped with Siemens PLC and imported touch‑screen panel, the machine automatically completes pallet feeding, metered material distribution, vibration pressing, demolding and green‑brick conveying for solid‑brick production. It supports single‑cycle trial mode and long‑term continuous mass‑production mode, built‑in fault diagnosis and remote‑control functions. Ordinary operators can get competent after simple training without high‑salary professional technicians. Under continuous‑production mode, non‑stop cyclic production is available with sufficient raw materials and pallets, perfectly fitting urgent large‑volume housing‑construction solid‑brick supply projects. The machine can directly connect with matched automatic block stacker for auto‑stacking of whole‑pallet green solid bricks. It eliminates large amount of manual brick‑stacking work, greatly reduces on‑site manpower and long‑term payroll expenditure. Total installed power is 32 kW. Power consumption per solid brick is well‑optimized while maintaining high output, lowering long‑term electricity cost.
4. Reinforced Heavy‑duty Steel Structure & Premium Brand Core Components for Long‑time Heavy‑load Solid‑brick Production
Main frame is welded with heavy‑duty 12×12cm square steel from Laiwu Iron & Steel and Jinggang Iron & Steel, delivering high integral rigidity. It withstands continuous strong exciting force and high‑pressure load in solid‑brick forming process with good anti‑fatigue performance, suitable for day‑after‑day heavy‑duty continuous production. Hydraulic valve groups adopt Taiwan Calyca brand; all electric components are imported Siemens parts. Every unit passes complete mechatronic‑hydraulic linkage test before delivery for high hardware reliability. It keeps low failure rate during long‑time mass‑production and reduces later‑stage maintenance work and spare‑part expenses. Construction solid‑brick orders normally carry strict delivery deadlines. Equipment breakdown directly causes supply suspension, order delay, penalty charges and even loss of long‑term engineering clients. Reliable performance of QT6‑12 minimizes capacity loss from unplanned shutdown, stabilizes production rhythm and safeguards business reputation for engineering contracts.
5. Compatible with Natural Curing to Lower Initial Investment for Solid‑brick Production Line
Fresh green solid‑brick blanks from QT6‑12 support natural curing. Expensive steam‑curing kilns and corresponding fuel & power consumption are not mandatory. It largely cuts auxiliary‑equipment investment for new solid‑brick production‑line construction. Small‑and‑medium investors and expanding brick plants can allocate more capital to main machine and automatic auxiliary equipment, shorten project construction cycle and start order‑taking & profit‑generation earlier. Solid bricks can reach building‑qualified strength via standardized stacking and scheduled water sprinkling. This flexible solution works well for large‑scale formal building‑material factories and medium‑size processing plants with expansion plans. Whether undertaking domestic large‑volume housing‑infrastructure solid‑brick orders or solid‑brick export contracts, production can be implemented based on your existing plant conditions.
