1. Mechatronics-Hydraulic PLC Integrated Control

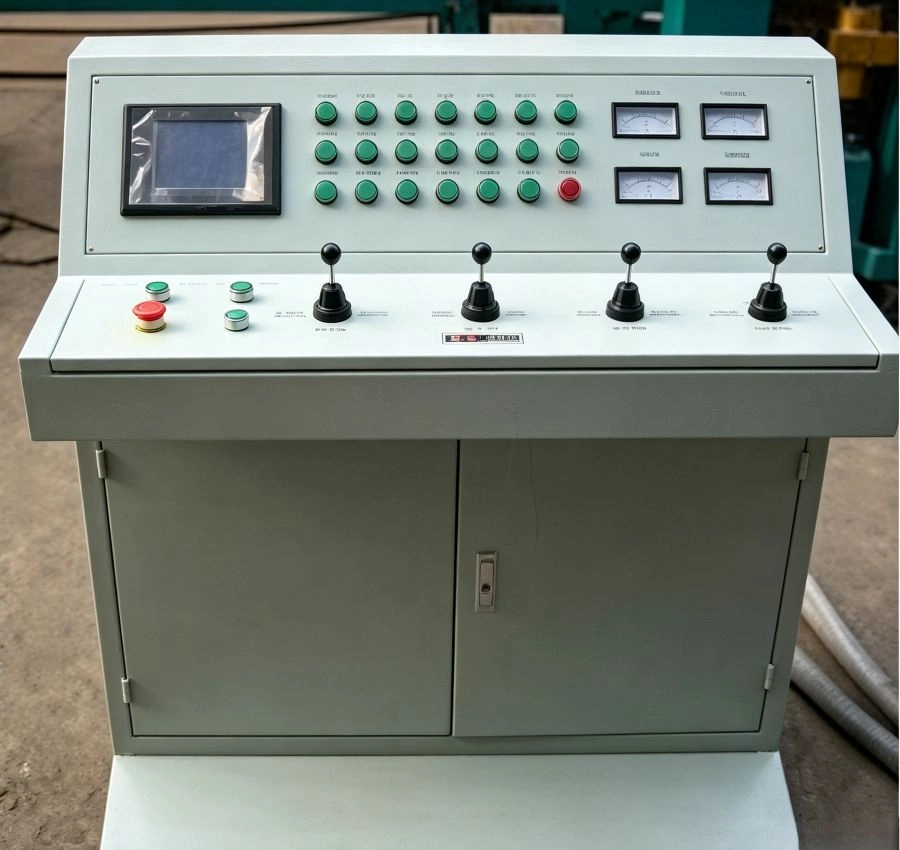

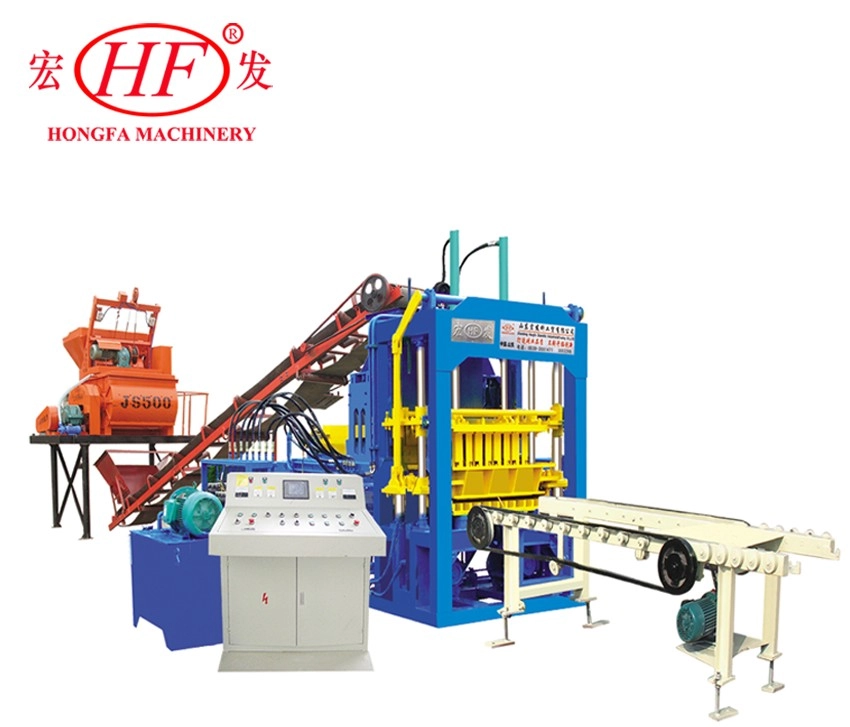

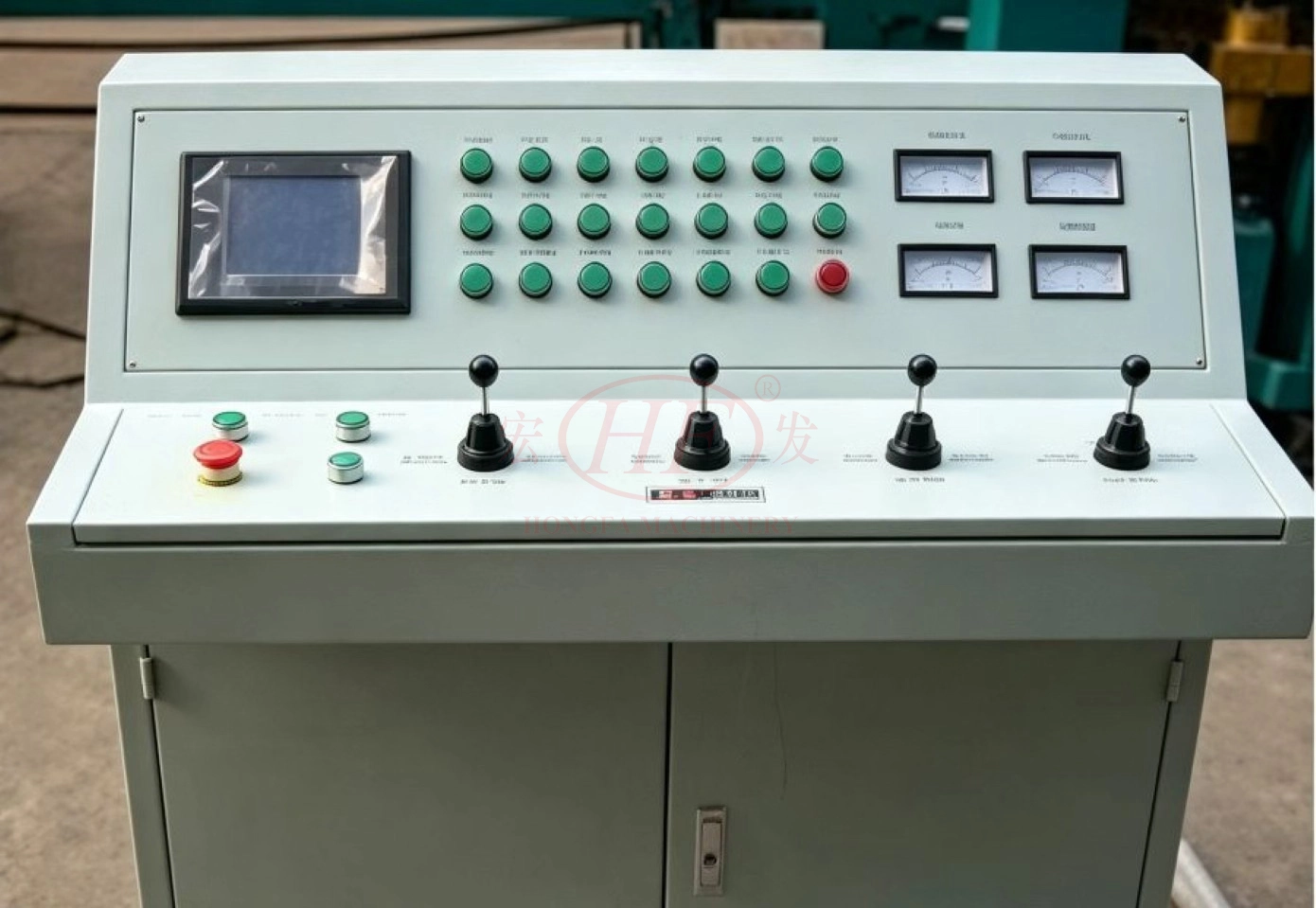

The QT6-15 automatic brick making machine adopts integrated mechanical, hydraulic and electrical design, fitted with imported PLC controller and touch screen HMI. It provides three flexible operation modes: manual single action, single cycle and full automatic mode. All customized production parameters can be saved and recalled with one click, which helps operators quickly switch between different brick production specifications. Built with full safety interlock circuit and intelligent fault self-diagnosis system, the equipment will cut off power automatically under abnormal pressure, pallet deviation or mechanical jamming to prevent collision damage to core components. The whole workflow including pallet feeding, material distribution, pressing, demoulding and conveying runs in closed automatic circulation without frequent manual intervention. The machine is user-friendly and requires only a small workforce, helping buyers reduce labor expenditure significantly. New operators can get familiar with the whole operation logic after short-term training, so you don’t need to hire highly skilled workers for daily production.
2. Excellent Molding Performance to Guarantee Stable Finished Brick Quality
QT6-15 automatic brick making machine is equipped with professional table vibration system with vibration frequency of 4500–5100 times/min and vibration acceleration of 15–20g, matched with 16MPa rated hydraulic synchronous pressing. The molding cycle ranges from 15–25s, while colored surface bricks take 20–25s for molding. Synchronized vibration and pressing fully compact raw material mixture, eliminating internal voids and layering issues inside green bricks. Bricks produced by this machine achieve compressive strength above 15MPa. Finished bricks feature standard dimension, high density, good frost resistance, water impermeability and thermal insulation, keeping reject rate at a very low level. Stable and repeatable molding parameters support long-hour continuous mass production. Consistent brick quality helps you win more long-term municipal and infrastructure orders and build good reputation among local buyers.
3. Broad Raw Material Adaptability to Lower Production Expense
QT6-15 automatic brick making machine has strong compatibility for diverse raw materials. Investors can replace high-cost pure cement with fly ash, slag, coal gangue, river sand, crushed stone and construction waste aggregates, which greatly reduces cement purchase and logistics costs. The step-by-step vibration design supports high mixing proportion of industrial solid waste, maximizing reuse of local waste resources. Official raw material formulas are available for users to quickly start solid waste brick production. This machine adopts non-firing production without kilns, generating no harmful emissions and satisfying global environmental requirements for solid waste recycling. The 0.45m large standard storage hopper ensures uniform feeding to support 24-hour continuous production. You can source cheap local solid waste materials nearby and cut raw material transportation cost, helping investors maximize cost savings and improve profit margin.
4. Fast Mold Replacement for Diversified Product Lines

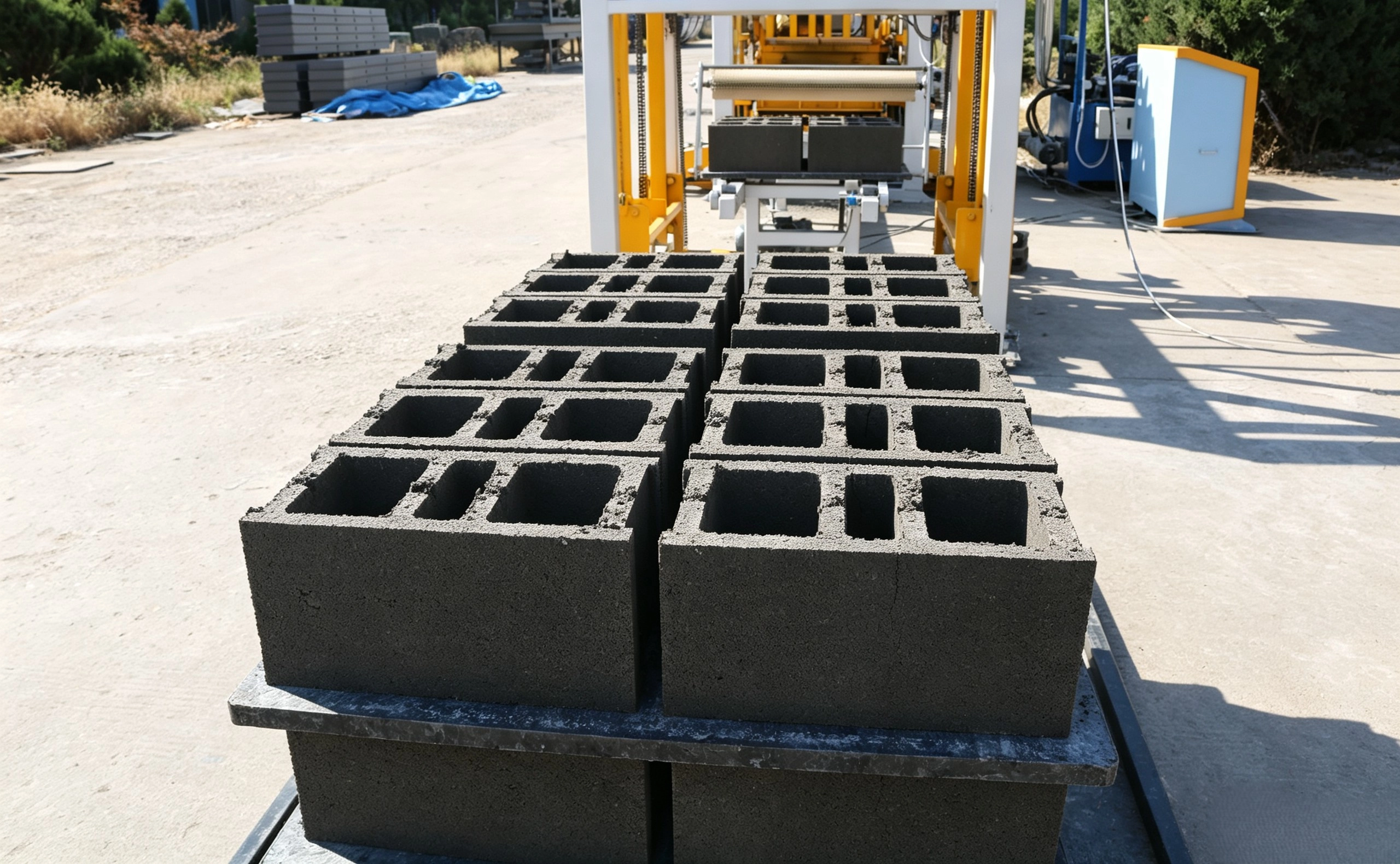

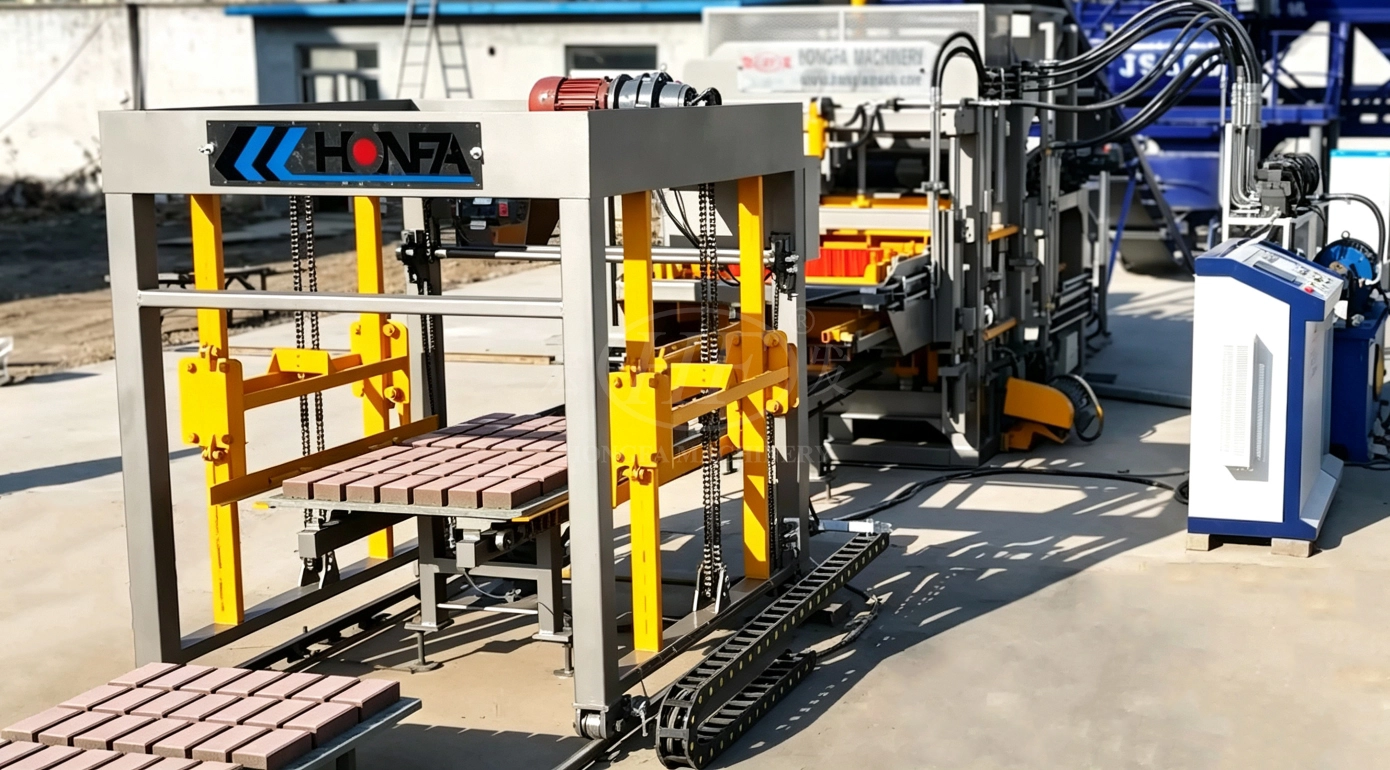

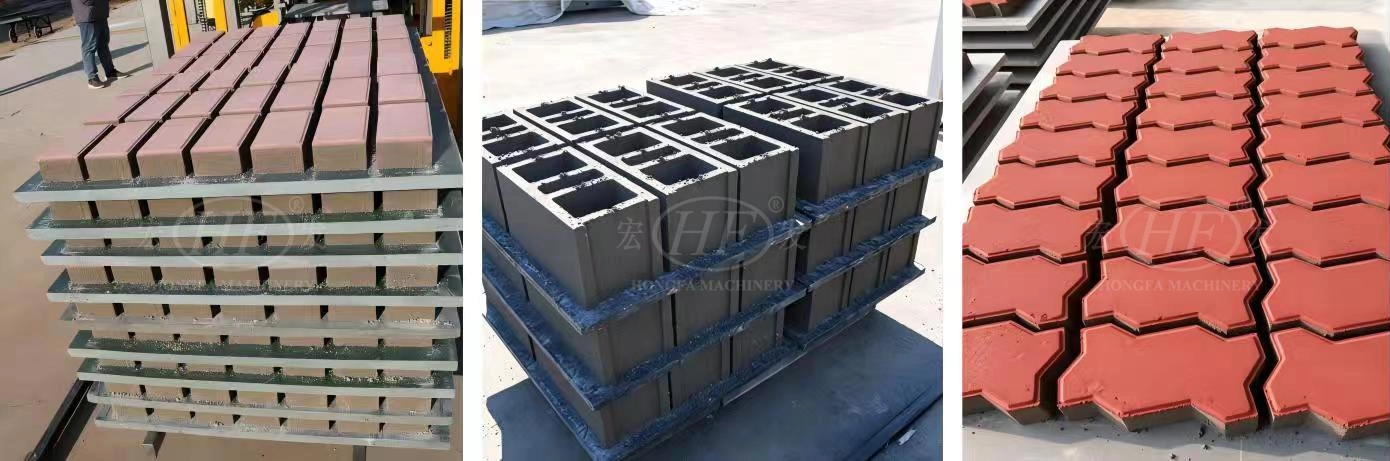

Quick mold change design is available on QT6-15 automatic brick making machine. A single machine can produce hollow blocks, standard bricks, perforated bricks, curb stones, paving bricks, grass bricks and slope protection blocks. Customers can select optional color feeder unit to produce decorative colored bricks, enrich product portfolio and lift profit margins. It adopts standard 850×680mm pallet, producing 6 hollow blocks or 30 standard bricks per forming cycle. The sufficient output helps small and medium factories fulfill various engineering orders, from residential building blocks to road and landscape projects. You can respond flexibly to different customer demands without purchasing extra main machines. Its multi-functional advantage is far better than ordinary single-purpose brick machines.
5. Compact Structure & Reliable Overall Stability

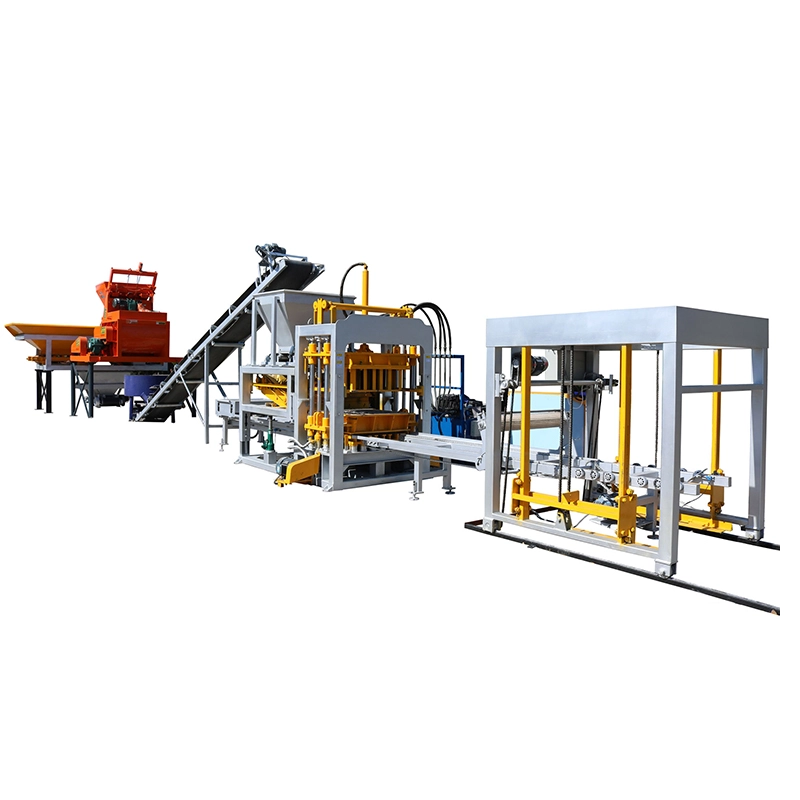

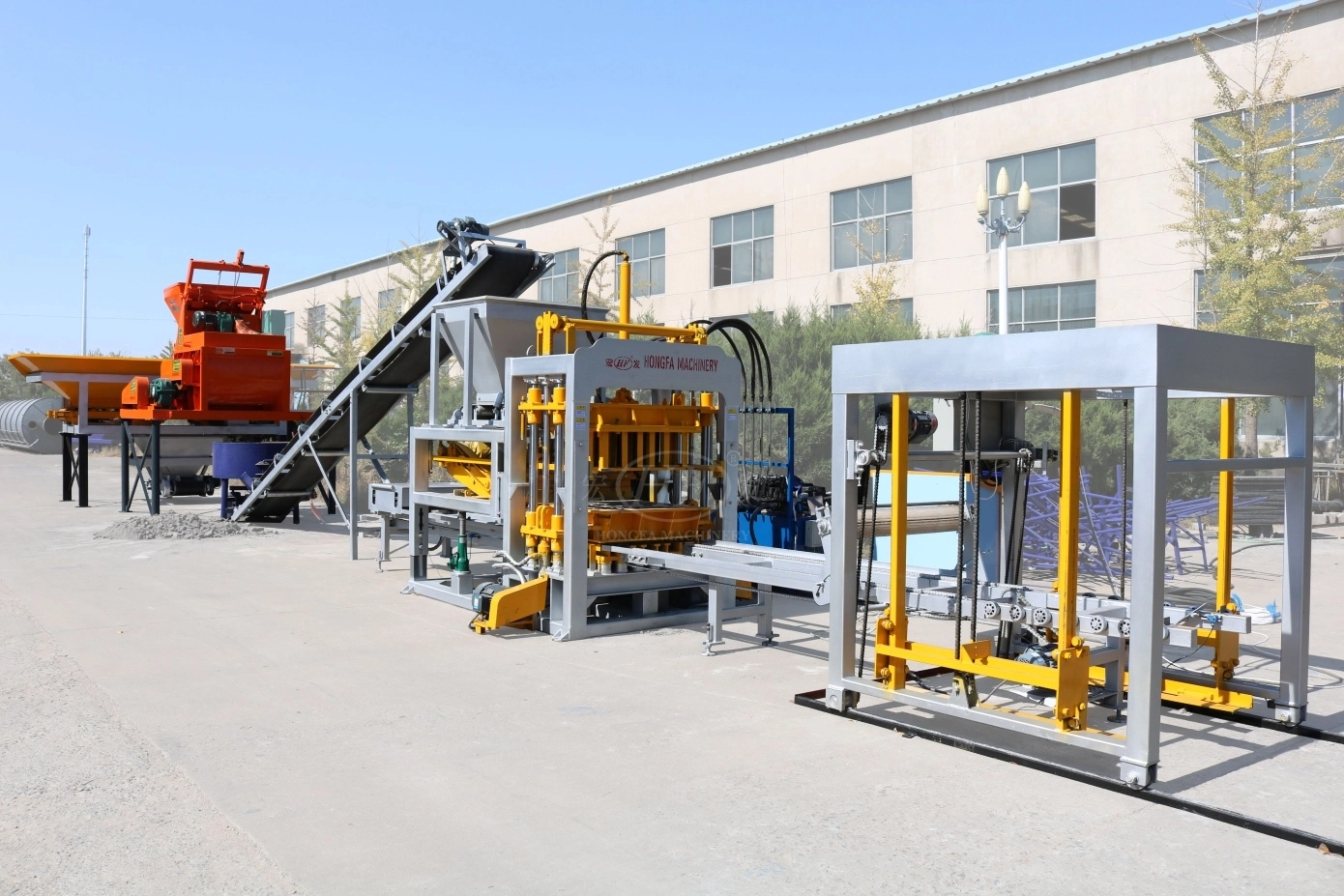

The QT6-15 brick machine adopts optimized compact frame structure, occupying less workshop space and saving your factory site investment. Key structural parts are thickened and reinforced to withstand long hours of continuous vibration and hydraulic impact. It maintains steady running status under long-shift continuous production, avoiding frequent shutdowns caused by structural deformation. The overall layout is reasonable for daily production arrangement and convenient for on-site layout planning. For new brick plant investors with limited workshop area, it is a practical option to launch solid waste recycling brick production projects. Even in relatively simple factory conditions, the machine can keep stable operation and deliver consistent output for your brick business.
1. Mechatronics-Hydraulic PLC Integrated Control
The QT6-15 automatic brick making machine adopts integrated mechanical, hydraulic and electrical design, fitted with imported PLC controller and touch screen HMI. It provides three flexible operation modes: manual single action, single cycle and full automatic mode. All customized production parameters can be saved and recalled with one click, which helps operators quickly switch between different brick production specifications. Built with full safety interlock circuit and intelligent fault self-diagnosis system, the equipment will cut off power automatically under abnormal pressure, pallet deviation or mechanical jamming to prevent collision damage to core components. The whole workflow including pallet feeding, material distribution, pressing, demoulding and conveying runs in closed automatic circulation without frequent manual intervention. The machine is user-friendly and requires only a small workforce, helping buyers reduce labor expenditure significantly. New operators can get familiar with the whole operation logic after short-term training, so you don’t need to hire highly skilled workers for daily production.
2. Excellent Molding Performance to Guarantee Stable Finished Brick Quality
QT6-15 automatic brick making machine is equipped with professional table vibration system with vibration frequency of 4500–5100 times/min and vibration acceleration of 15–20g, matched with 16MPa rated hydraulic synchronous pressing. The molding cycle ranges from 15–25s, while colored surface bricks take 20–25s for molding. Synchronized vibration and pressing fully compact raw material mixture, eliminating internal voids and layering issues inside green bricks. Bricks produced by this machine achieve compressive strength above 15MPa. Finished bricks feature standard dimension, high density, good frost resistance, water impermeability and thermal insulation, keeping reject rate at a very low level. Stable and repeatable molding parameters support long-hour continuous mass production. Consistent brick quality helps you win more long-term municipal and infrastructure orders and build good reputation among local buyers.
3. Broad Raw Material Adaptability to Lower Production Expense
QT6-15 automatic brick making machine has strong compatibility for diverse raw materials. Investors can replace high-cost pure cement with fly ash, slag, coal gangue, river sand, crushed stone and construction waste aggregates, which greatly reduces cement purchase and logistics costs. The step-by-step vibration design supports high mixing proportion of industrial solid waste, maximizing reuse of local waste resources. Official raw material formulas are available for users to quickly start solid waste brick production. This machine adopts non-firing production without kilns, generating no harmful emissions and satisfying global environmental requirements for solid waste recycling. The 0.45m large standard storage hopper ensures uniform feeding to support 24-hour continuous production. You can source cheap local solid waste materials nearby and cut raw material transportation cost, helping investors maximize cost savings and improve profit margin.
4. Fast Mold Replacement for Diversified Product Lines
Quick mold change design is available on QT6-15 automatic brick making machine. A single machine can produce hollow blocks, standard bricks, perforated bricks, curb stones, paving bricks, grass bricks and slope protection blocks. Customers can select optional color feeder unit to produce decorative colored bricks, enrich product portfolio and lift profit margins. It adopts standard 850×680mm pallet, producing 6 hollow blocks or 30 standard bricks per forming cycle. The sufficient output helps small and medium factories fulfill various engineering orders, from residential building blocks to road and landscape projects. You can respond flexibly to different customer demands without purchasing extra main machines. Its multi-functional advantage is far better than ordinary single-purpose brick machines.
5. Compact Structure & Reliable Overall Stability
The QT6-15 brick machine adopts optimized compact frame structure, occupying less workshop space and saving your factory site investment. Key structural parts are thickened and reinforced to withstand long hours of continuous vibration and hydraulic impact. It maintains steady running status under long-shift continuous production, avoiding frequent shutdowns caused by structural deformation. The overall layout is reasonable for daily production arrangement and convenient for on-site layout planning. For new brick plant investors with limited workshop area, it is a practical option to launch solid waste recycling brick production projects. Even in relatively simple factory conditions, the machine can keep stable operation and deliver consistent output for your brick business.
