1. High‑efficiency Table‑vibration System for Uniform Green Block Density

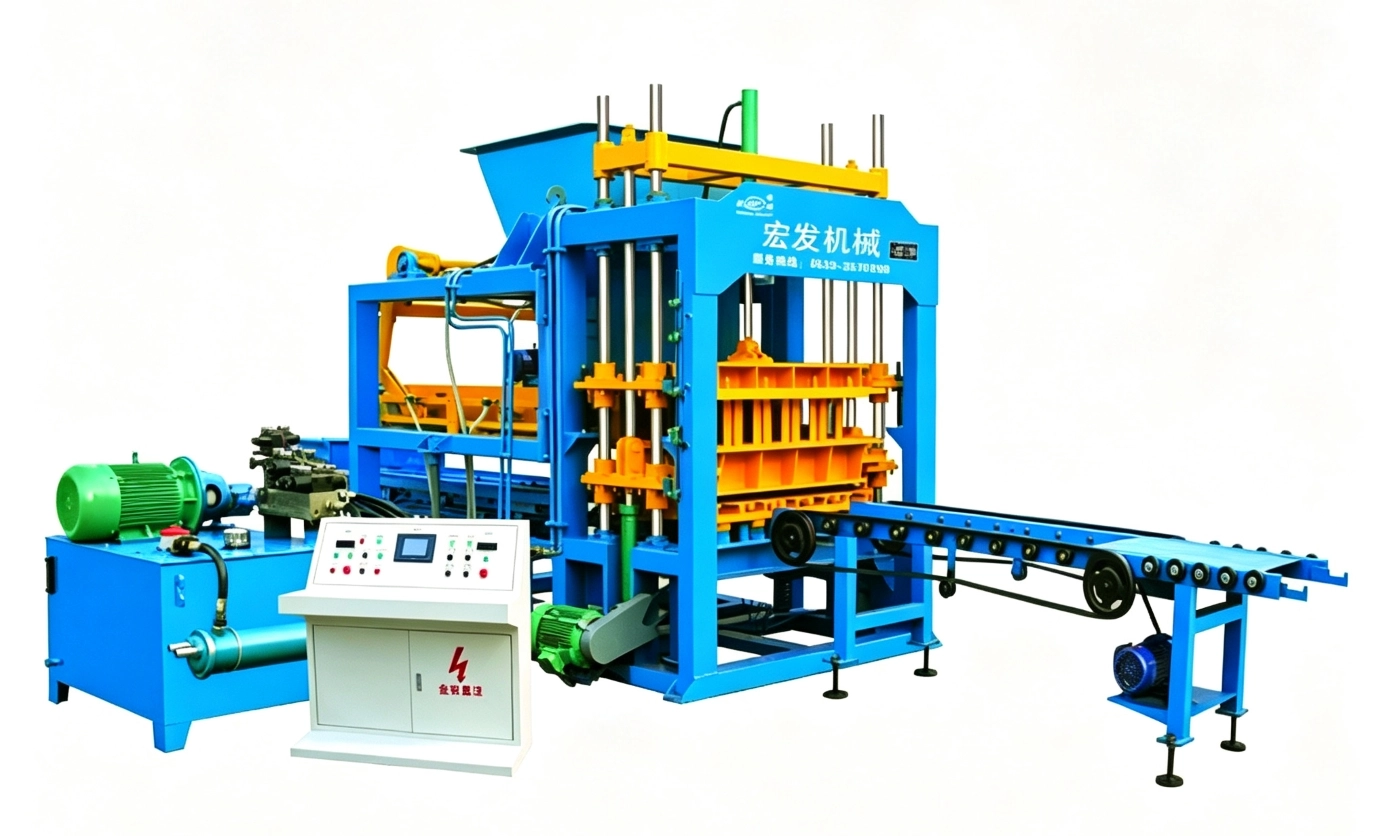

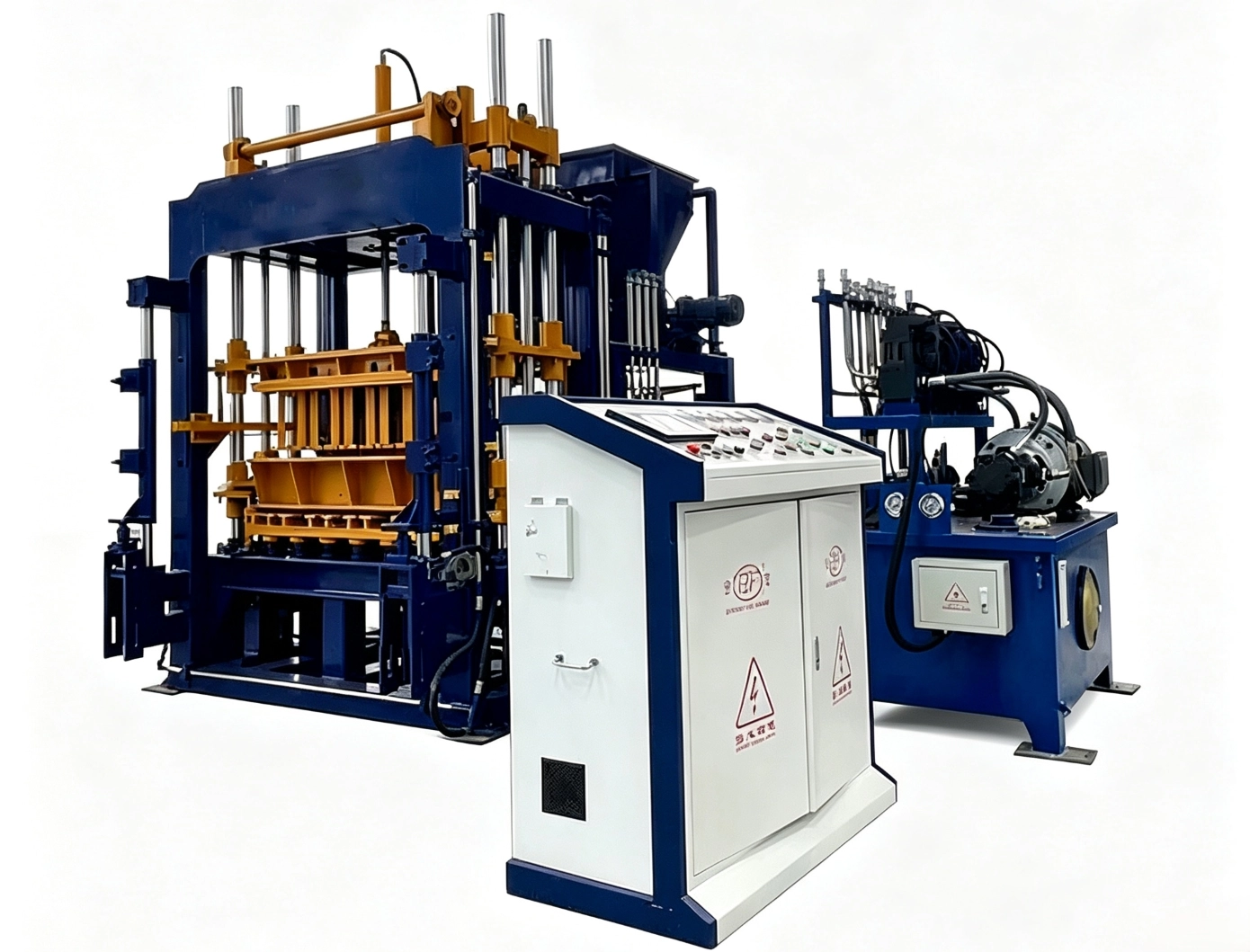

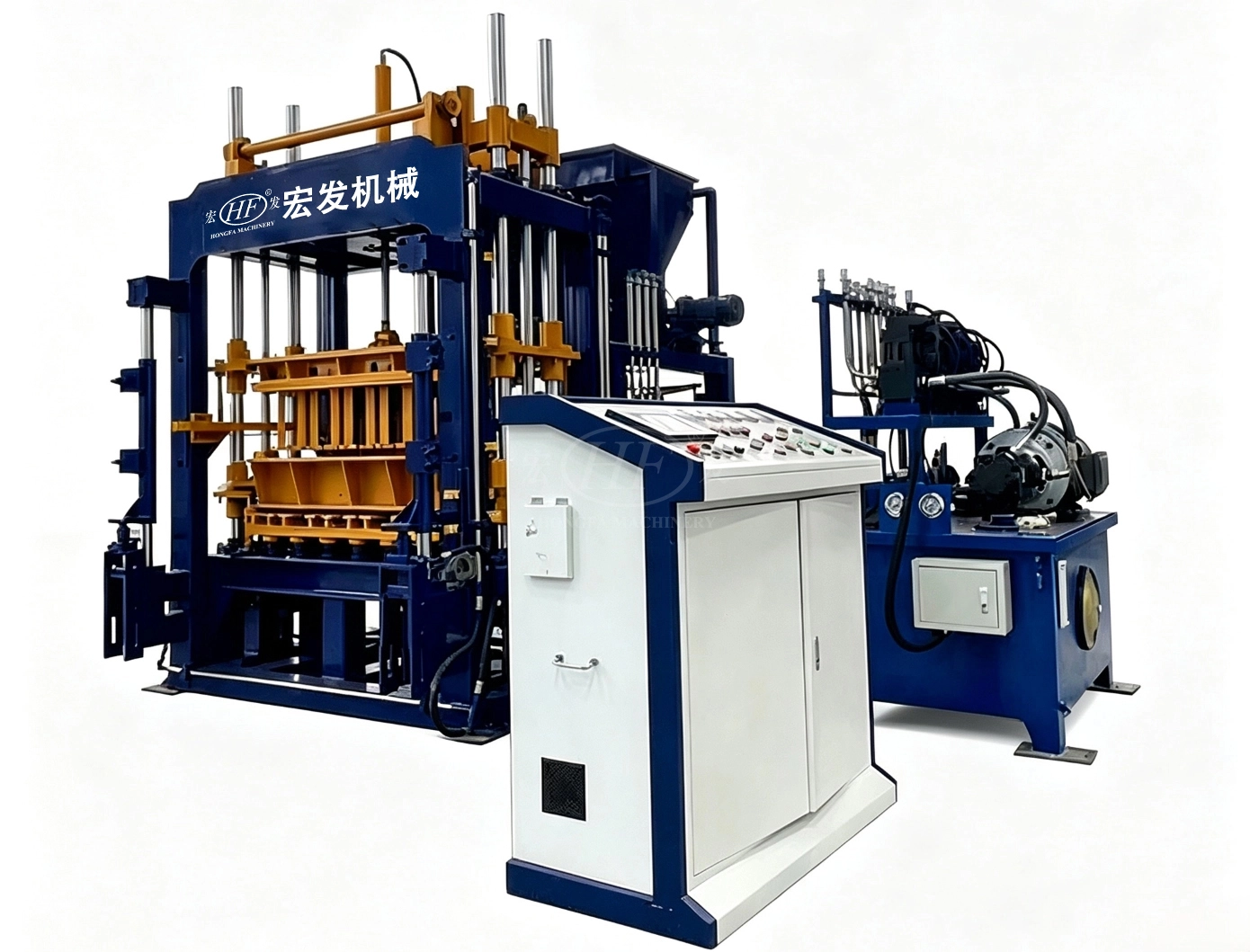

QT5‑15 automatic brick making machine adopts table‑type vibration structure. Vibrators are installed under the vibration table to deliver even vibration energy to the whole mold box. Vibration parameters are adjustable via HMI touch‑screen. Operators can modify vibration duration and intensity for hollow blocks, standard bricks and paving bricks. Air bubbles inside raw mixture are fully expelled, achieving uniform material filling. It guarantees dense ribs around hollow cavities and smooth surface for paving bricks, lowering reject rate caused by uneven vibration. Equipped with shock‑absorbing spring sets, it reduces vibration transmission to frame and ground, cuts working noise and prevents frame fatigue deformation for longer service life.
2. Modular Molds for Fast Switching of Multiple Products
Complete mold sets can be replaced rapidly. One single machine can produce various building products including large‑size hollow blocks, load‑bearing perforated bricks, standard bricks, grass‑planting blocks, slope protection blocks and colored paving bricks. Mold positioning slots simplify disassembly and positioning without complicated calibration. Operators can finish mold replacement within short time. Molds are made of wear‑resistant alloy steel. Wearing parts such as scraping plates and sealing strips can be replaced separately instead of whole mold replacement to cut consumable cost. Custom‑size molds are available to satisfy local construction and municipal requirements.
3. PLC + HMI Intelligent Control System for Safe & Simple Operation
The brick machine is equipped with PLC controller and color touch‑screen HMI. All process parameters can be set on screen, including pre‑vibration time, main‑vibration duration, pressing holding time, feeding cycles and pallet feeding interval. Parameters for different brick types can be saved and recalled directly for quick product change. Two working modes are available: manual single‑step mode for maintenance and mold testing; automatic continuous mode for full‑cycle unmanned production including pallet feeding, material feeding, vibration molding and block discharging. Built‑in electrical interlock and fault alarm display error codes directly on screen for quick troubleshooting, lowering operator learning cost.
4. Wide Raw‑material Compatibility for Solid‑waste Recycling & Cost Reduction
QT5‑15 brick making machine supports diversified raw materials: sand‑stone, stone powder, fly ash, coal gangue, recycled construction aggregate and furnace slag. Qualified non‑fired blocks can be produced with proper mixing ratios. It realizes industrial and construction waste recycling and complies with green building material policies. With reasonable aggregate particle size control, customers can cut cement consumption while maintaining finished‑block strength. Local‑available materials greatly reduce raw‑material cost, which is well‑suited for county‑level and medium‑small block plants.
5. Stable Hydraulic Driving System for Consistent Compaction Force

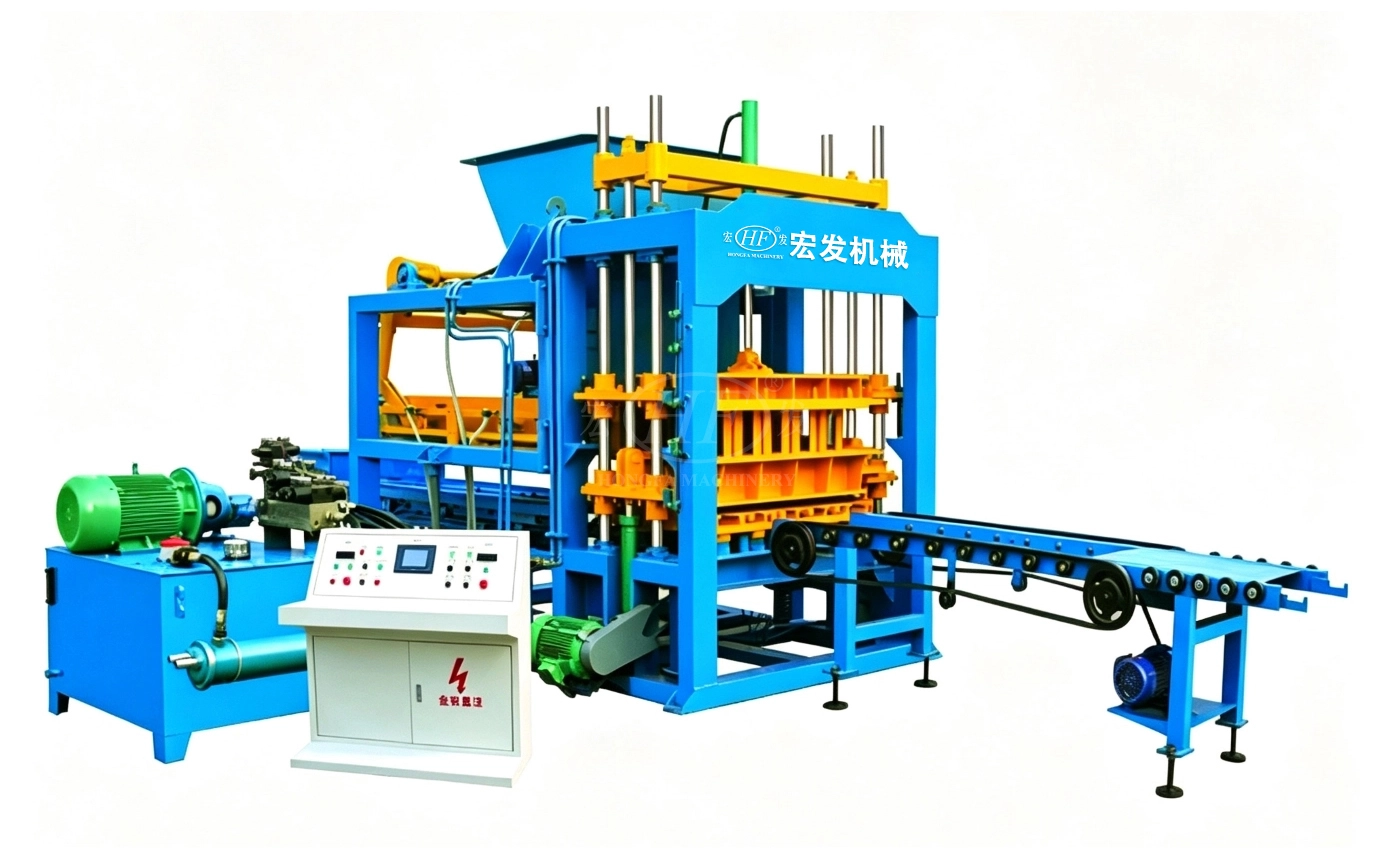

Integrated hydraulic power unit delivers stable pressure for pressing head, feeding trolley and pallet conveyor. Hydraulic oil cooling & filtering assembly controls oil temperature under long‑time continuous operation, avoiding pressure drop caused by overheating and ensuring consistent compaction force for every mold. Hydraulic components are well‑arranged for easy maintenance. Well‑protected pipe joints reduce oil‑leakage risks. Slow‑speed pressing and demolding prevent cavity collapse and corner chipping of hollow green blocks, ensuring intact brick‑block ejection.
6. Automatic Production Layout for Medium‑small Factory Capacity Demand

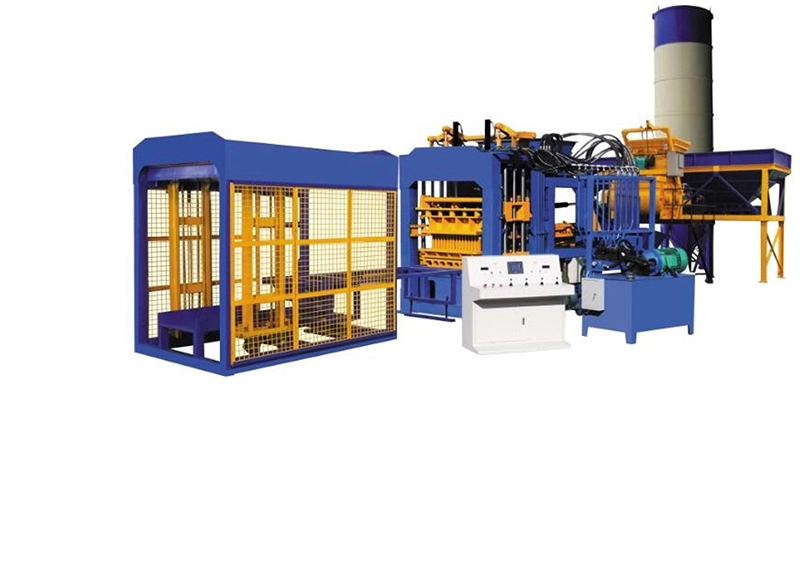

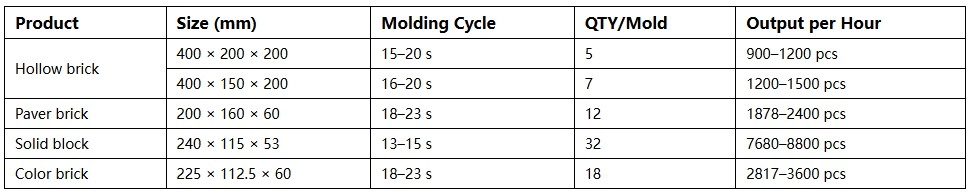

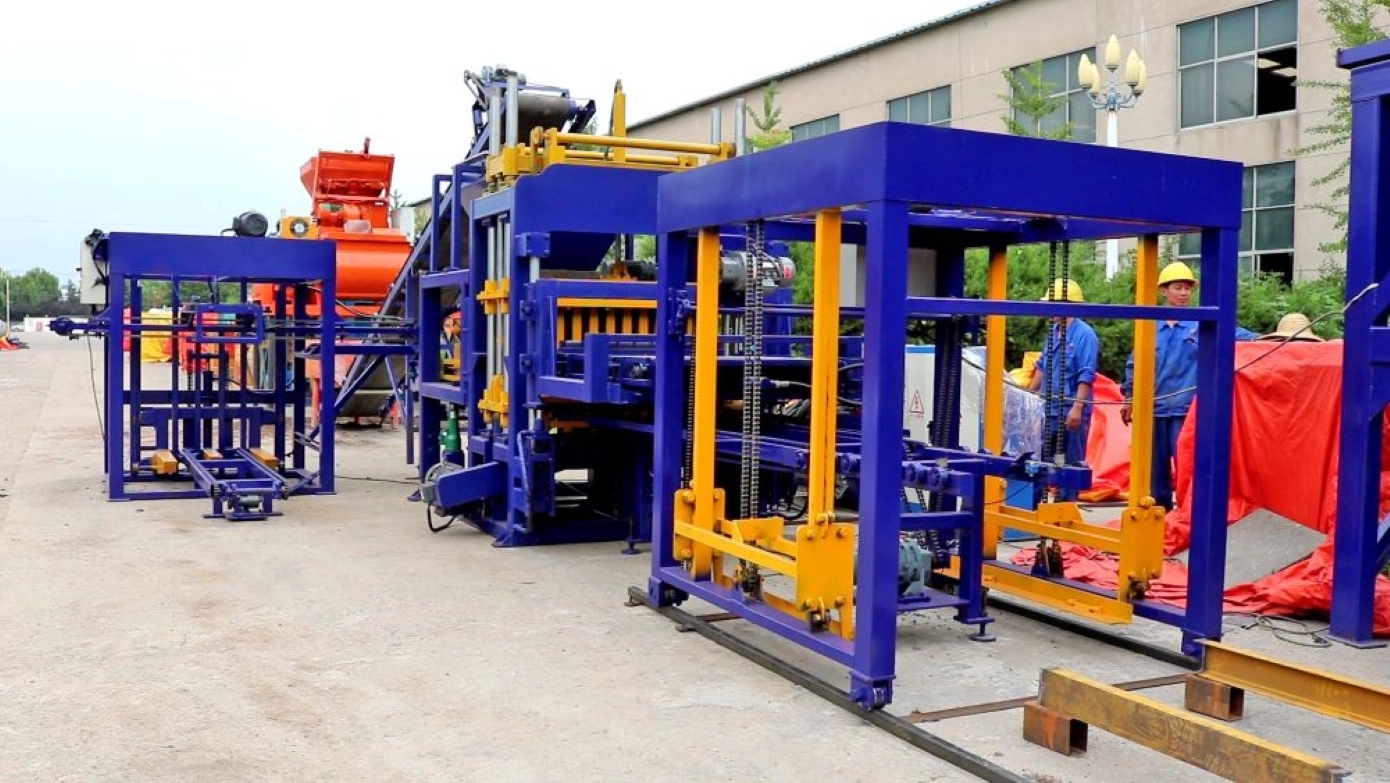

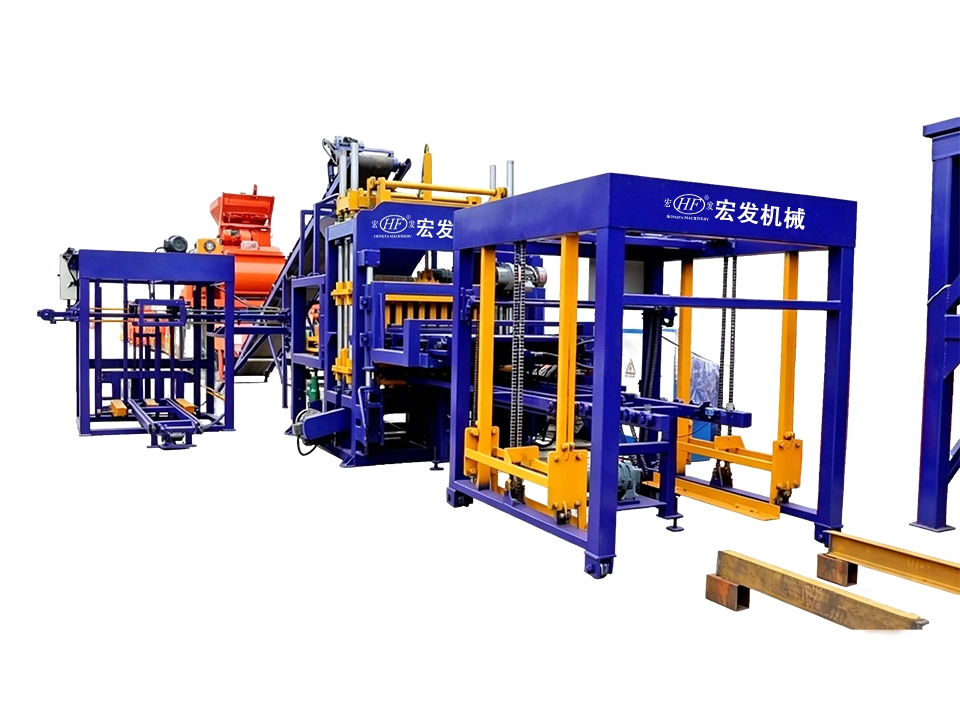

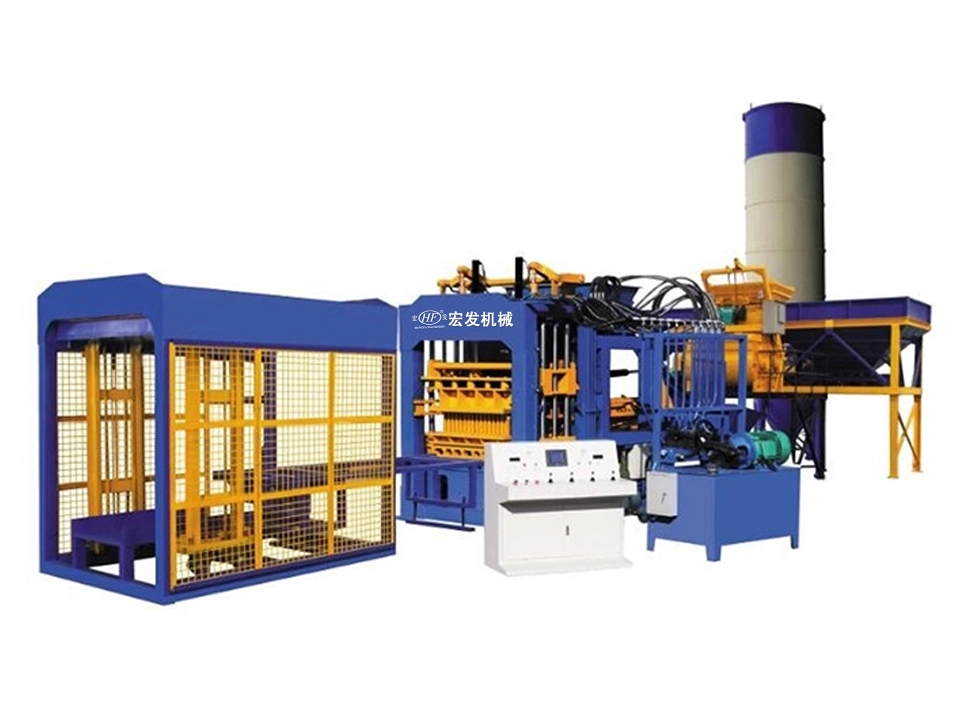

The complete line consists of pallet feeder, material silo, feeding trolley, main molding host and block‑out conveyor. The whole workflow runs automatically with limited labor input. Molding cycle ranges from 15‑25 seconds subject to brick types. Pallets circulate continuously for steady green‑block output to meet daily capacity requirements of small‑and‑medium block factories. Compact overall footprint fits ordinary block workshops without extra high‑rise plant requirement. Lubrication points are clearly marked. Regular maintenance for vibration box, guiding sleeves and bearings minimizes downtime for stable continuous production.
7. Complete Technical Support for Smooth Project Commissioning
The automatic brick making machine is delivered in split‑modular packages for convenient shipping. After on‑site positioning, power & hydraulic connection, commissioning can be performed for trial production. Manufacturer provides operation manuals, reference mixing formulas, mold installation guidance and on‑site training, covering machine operation, daily maintenance and common‑defect troubleshooting. Spare wearing parts, molds, vibration components and sealing kits are continuously supplied to secure long‑term stable production.
1. High‑efficiency Table‑vibration System for Uniform Green Block Density
QT5‑15 automatic brick making machine adopts table‑type vibration structure. Vibrators are installed under the vibration table to deliver even vibration energy to the whole mold box. Vibration parameters are adjustable via HMI touch‑screen. Operators can modify vibration duration and intensity for hollow blocks, standard bricks and paving bricks. Air bubbles inside raw mixture are fully expelled, achieving uniform material filling. It guarantees dense ribs around hollow cavities and smooth surface for paving bricks, lowering reject rate caused by uneven vibration. Equipped with shock‑absorbing spring sets, it reduces vibration transmission to frame and ground, cuts working noise and prevents frame fatigue deformation for longer service life.
2. Modular Molds for Fast Switching of Multiple Products
Complete mold sets can be replaced rapidly. One single machine can produce various building products including large‑size hollow blocks, load‑bearing perforated bricks, standard bricks, grass‑planting blocks, slope protection blocks and colored paving bricks. Mold positioning slots simplify disassembly and positioning without complicated calibration. Operators can finish mold replacement within short time. Molds are made of wear‑resistant alloy steel. Wearing parts such as scraping plates and sealing strips can be replaced separately instead of whole mold replacement to cut consumable cost. Custom‑size molds are available to satisfy local construction and municipal requirements.
3. PLC + HMI Intelligent Control System for Safe & Simple Operation
The brick machine is equipped with PLC controller and color touch‑screen HMI. All process parameters can be set on screen, including pre‑vibration time, main‑vibration duration, pressing holding time, feeding cycles and pallet feeding interval. Parameters for different brick types can be saved and recalled directly for quick product change. Two working modes are available: manual single‑step mode for maintenance and mold testing; automatic continuous mode for full‑cycle unmanned production including pallet feeding, material feeding, vibration molding and block discharging. Built‑in electrical interlock and fault alarm display error codes directly on screen for quick troubleshooting, lowering operator learning cost.
4. Wide Raw‑material Compatibility for Solid‑waste Recycling & Cost Reduction
QT5‑15 brick making machine supports diversified raw materials: sand‑stone, stone powder, fly ash, coal gangue, recycled construction aggregate and furnace slag. Qualified non‑fired blocks can be produced with proper mixing ratios. It realizes industrial and construction waste recycling and complies with green building material policies. With reasonable aggregate particle size control, customers can cut cement consumption while maintaining finished‑block strength. Local‑available materials greatly reduce raw‑material cost, which is well‑suited for county‑level and medium‑small block plants.
5. Stable Hydraulic Driving System for Consistent Compaction Force
Integrated hydraulic power unit delivers stable pressure for pressing head, feeding trolley and pallet conveyor. Hydraulic oil cooling & filtering assembly controls oil temperature under long‑time continuous operation, avoiding pressure drop caused by overheating and ensuring consistent compaction force for every mold. Hydraulic components are well‑arranged for easy maintenance. Well‑protected pipe joints reduce oil‑leakage risks. Slow‑speed pressing and demolding prevent cavity collapse and corner chipping of hollow green blocks, ensuring intact brick‑block ejection.
6. Automatic Production Layout for Medium‑small Factory Capacity Demand
The complete line consists of pallet feeder, material silo, feeding trolley, main molding host and block‑out conveyor. The whole workflow runs automatically with limited labor input. Molding cycle ranges from 15‑25 seconds subject to brick types. Pallets circulate continuously for steady green‑block output to meet daily capacity requirements of small‑and‑medium block factories. Compact overall footprint fits ordinary block workshops without extra high‑rise plant requirement. Lubrication points are clearly marked. Regular maintenance for vibration box, guiding sleeves and bearings minimizes downtime for stable continuous production.
7. Complete Technical Support for Smooth Project Commissioning
The automatic brick making machine is delivered in split‑modular packages for convenient shipping. After on‑site positioning, power & hydraulic connection, commissioning can be performed for trial production. Manufacturer provides operation manuals, reference mixing formulas, mold installation guidance and on‑site training, covering machine operation, daily maintenance and common‑defect troubleshooting. Spare wearing parts, molds, vibration components and sealing kits are continuously supplied to secure long‑term stable production.
