Stable & Uniform Hollow Block Manufacturing | QT5-15 Full Automatic Brick Machine Project Case

1. Project Overview

Equipment Model: QT5-15 Full Automatic Brick Machine

Main Produced Products: Standard concrete hollow blocks (390×190×190mm mainstream specification), flexible mold replacement for multi-type building blocks

Applicable Raw Materials: Sand, stone powder, crushed stone, cement, fly ash, slag, construction waste recycled aggregate and other industrial solid wastes

Complete Line Configuration: Automatic batching and mixing system, quantitative feeding conveyor, QT5-15 forming host, 16MPa stable hydraulic station, high-frequency vibration system, PLC intelligent control cabinet, automatic pallet feeding and brick output device

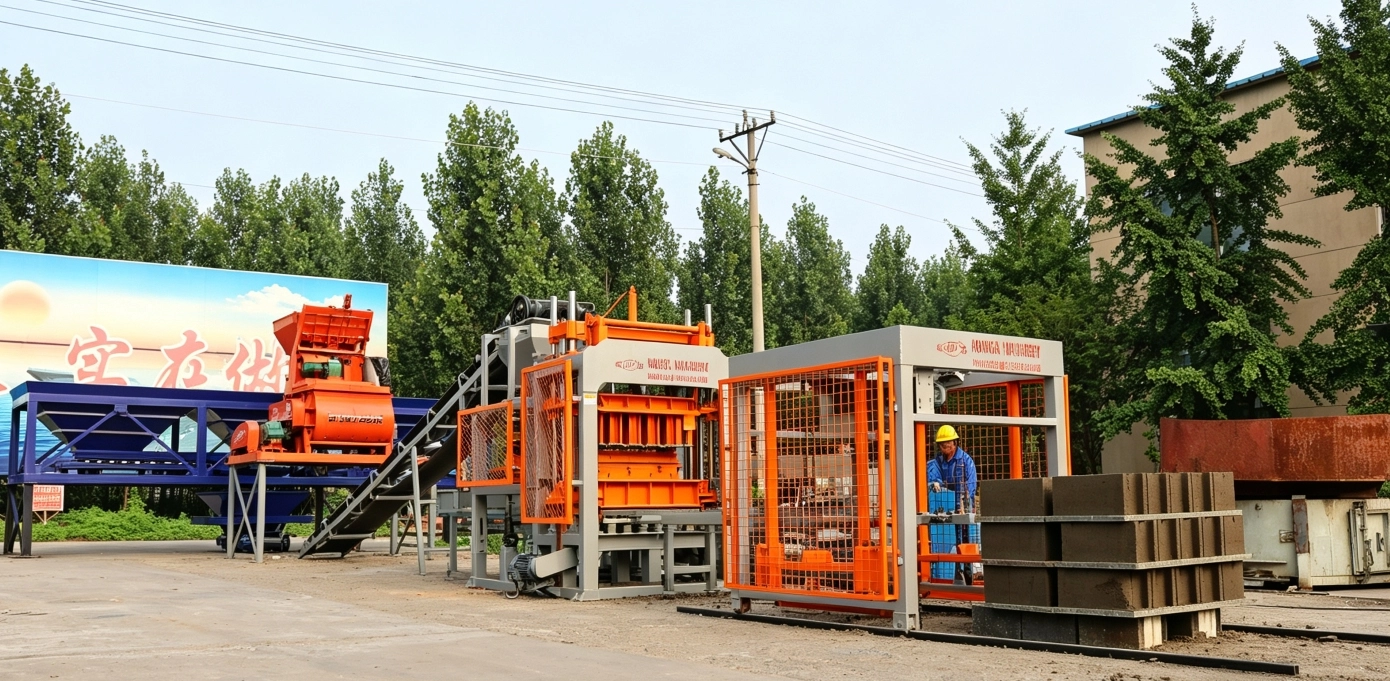

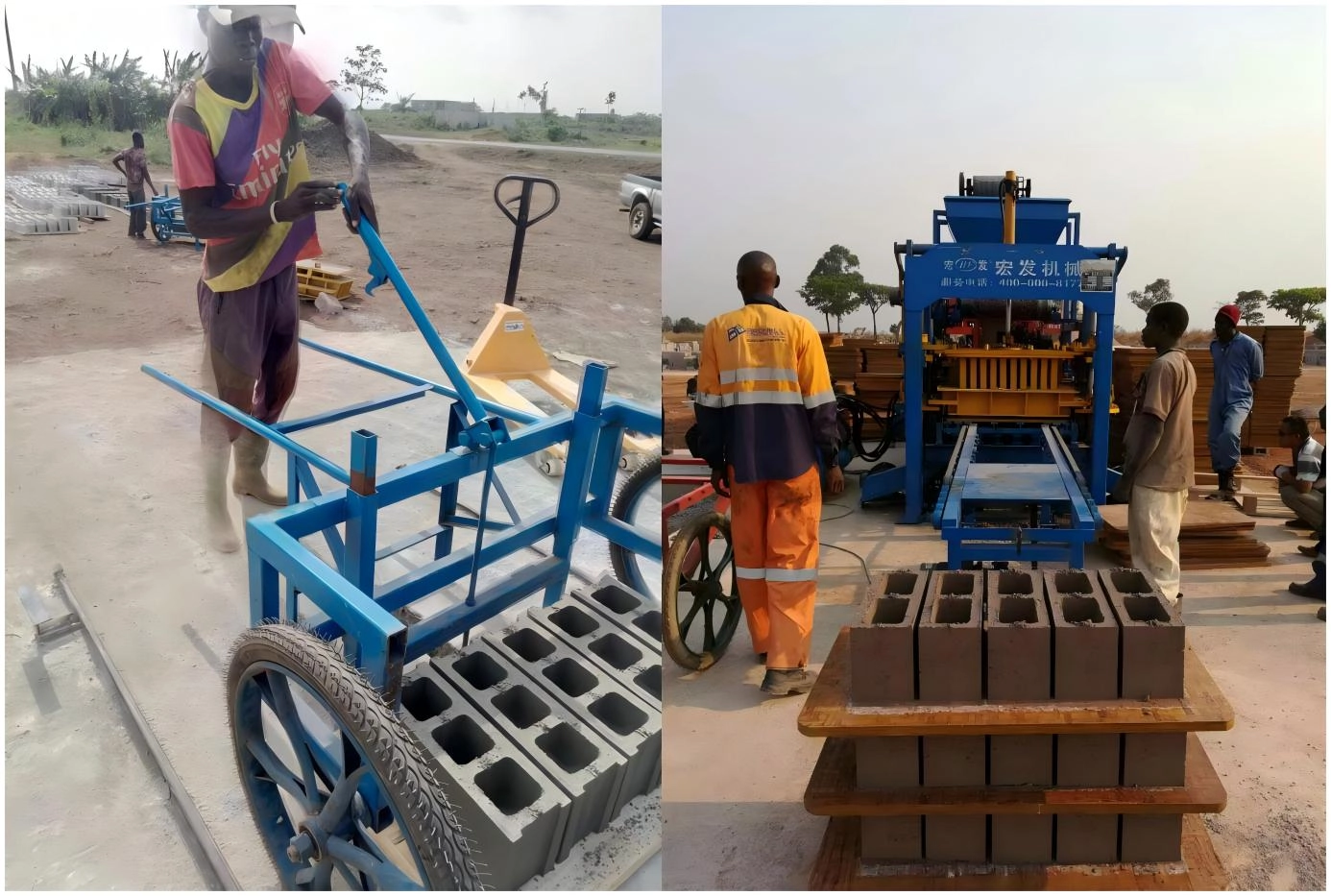

2. On-Site Production Operation

This project is a medium-sized standardized block production line focusing on mass production of standard hollow blocks. After on-site assembly, precise commissioning and trial production verification, the QT5-15 fully automatic production line has achieved 24-hour stable cyclic operation, mainly supplying high-standard hollow blocks for residential communities, industrial factory buildings, and urban wall renovation projects.

Aiming at the structural characteristics of hollow blocks requiring uniform wall thickness and complete hole forming, the equipment adopts dual synergy of high-frequency vibration (3800-4500r/min) and high-pressure hydraulic molding. The fixed molding cycle is controlled at 15-20 seconds, with 5 standard hollow blocks formed in one mold, and the daily stable output reaches 900-1200 pieces, which perfectly meets the continuous bulk order demand of construction projects.

The whole production process is fully automated without excessive manual intervention. From automatic proportioning of raw materials, uniform feeding and precise material distribution to hydraulic compaction, stable demolding and orderly brick output, each link operates stably. The finished hollow blocks have complete hole structures, smooth inner and outer wall surfaces, uniform compactness and no hollow or loose defects. The product size error is controlled within the standard range, and the batch consistency is excellent. The production line makes full use of local low-cost raw materials and industrial waste residues, which effectively reduces comprehensive production costs while ensuring product qualification rate.

3. Unique Advantages of QT5-15 for Hollow Block Production

①Precise molding technology, solving common hollow block quality problems

Different from ordinary brick machines, QT5-15 adopts optimized vibration and pressure matching parameters for hollow block production. The 50KN stable vibration force ensures uniform filling of each hole position of the brick blank, effectively avoiding common problems such as hole deformation, wall thickness deviation and corner missing in mass production. The finished hollow blocks have stable compressive strength and excellent sound insulation and heat insulation effects, fully compliant with building construction standards.

②Balanced efficiency and quality, suitable for medium-scale mass production

With a scientific cyclic operation design, the equipment maintains a balanced state of high efficiency and stable quality. It neither causes quality fluctuation due to excessive speed nor affects production capacity due to conservative parameters. The continuous and stable output is very suitable for medium and large brick factories to undertake long-term fixed hollow block orders.

③Ultra-wide raw material adaptability, strong cost control capability

It can flexibly mix and proportion various raw materials such as stone powder, fly ash, slag and recycled aggregate. Waste resources can replace part of cement and natural aggregates, which greatly reduces raw material procurement costs. The formula is stable and adjustable, and different raw material ratios will not affect the molding quality and structural strength of hollow blocks.

④Intelligent PLC control, low dependence on workers

Equipped with brand PLC intelligent control system, all production parameters are intelligently stored and automatically operated. The equipment has fault self-diagnosis function, low failure rate in long-term operation, and effectively avoids batch quality differences caused by manual operation errors.

⑤Thickened durable structure, reducing later maintenance costs

The whole machine adopts heavy-duty welded frame and wear-resistant manganese steel customized molds, which are resistant to high pressure and fatigue. It can adapt to long-term high-frequency continuous production of hollow blocks, with low wear of core components and convenient daily inspection and replacement.

4. Customer Practical Evaluation

The customer chose the QT5-15 full-automatic brick making machine targeting the standardized batch production of construction hollow blocks. After more than one year of on-site continuous operation, the customer gave a high recognition of the equipment performance.

The equipment runs smoothly with stable output and low failure rate. The produced hollow blocks have neat appearance, qualified strength and consistent quality, and have passed local construction material testing stably. The flexible raw material formula greatly saves production costs, and the high degree of automation saves labor investment. The equipment is simple to operate and easy to maintain, fully meeting the daily mass production needs of brick factories. The customer said that QT5-15 is a cost-effective and highly practical special equipment for hollow block mass production.
