1. Strong Solid‑waste Raw‑material Adaptability, High Mix of Construction & Industrial Waste to Cut Raw‑material Input Cost

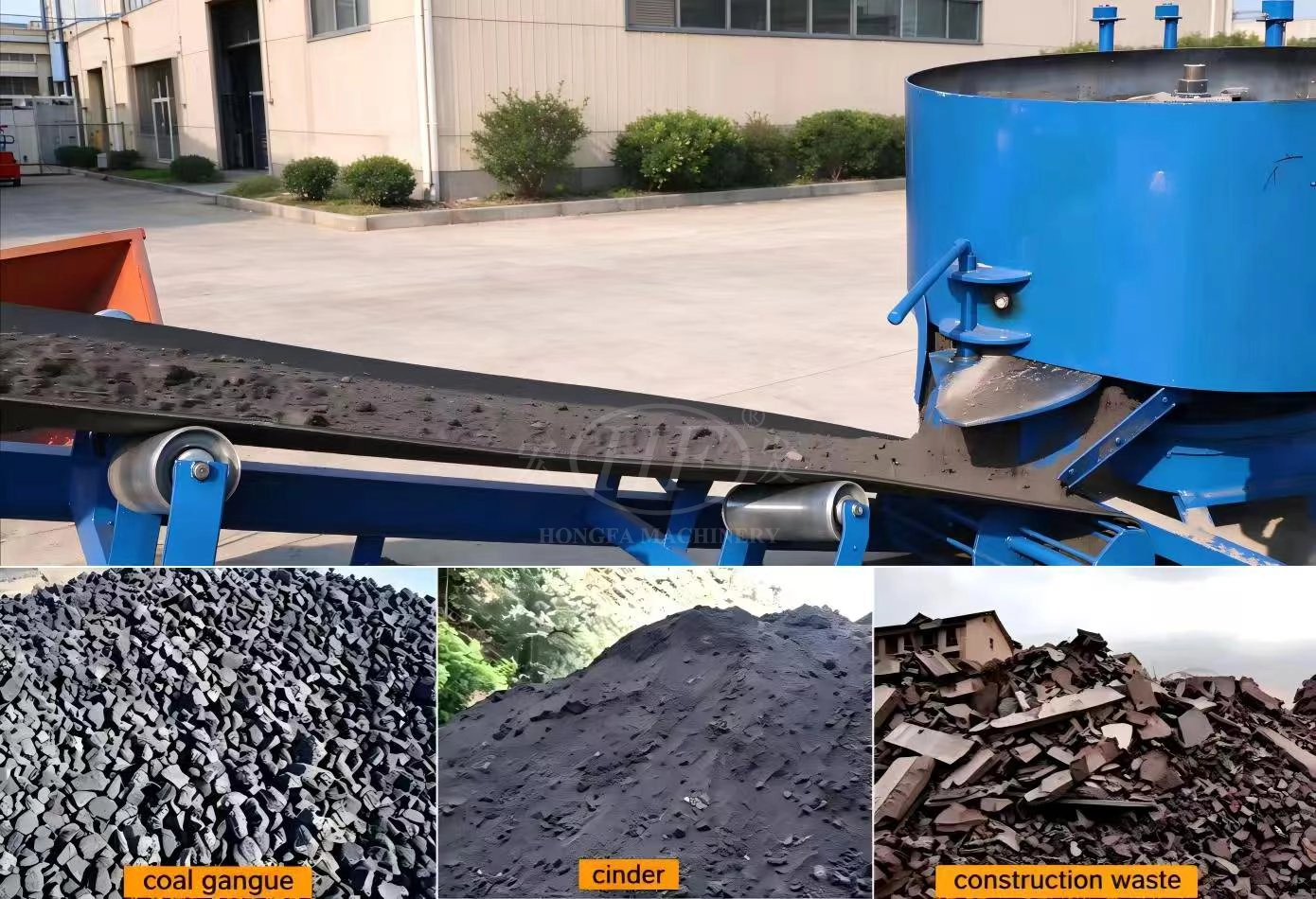

QT4‑15S is well adapted to construction debris and industrial residues with high impurities and variable particle sizes. Fly‑ash mixing ratio can reach up to 70%. Crushed demolition waste, furnace slag, coal gangue and stone powder can be directly adopted as main feedstock without costly fine grinding or multi‑stage screening pre‑treatment. Plant operators can locally consume on‑site construction waste and stockpiled factory residues. Waste materials originally requiring paid transportation and landfill are converted into saleable engineering building materials. It greatly reduces expensive natural aggregate purchase and solid‑waste disposal expenditure. Unit production cost of recycled bricks is lowered and unit profit improved. It is highly suitable for small‑and‑medium‑size solid‑waste recycling plants running dual‑profit business combining waste disposal and recycled‑material sales.
2. Table‑vibration High‑excitation Force plus PLC Full‑automatic Control, Stable Output of High‑quality Recycled Bricks under Solid‑waste Conditions

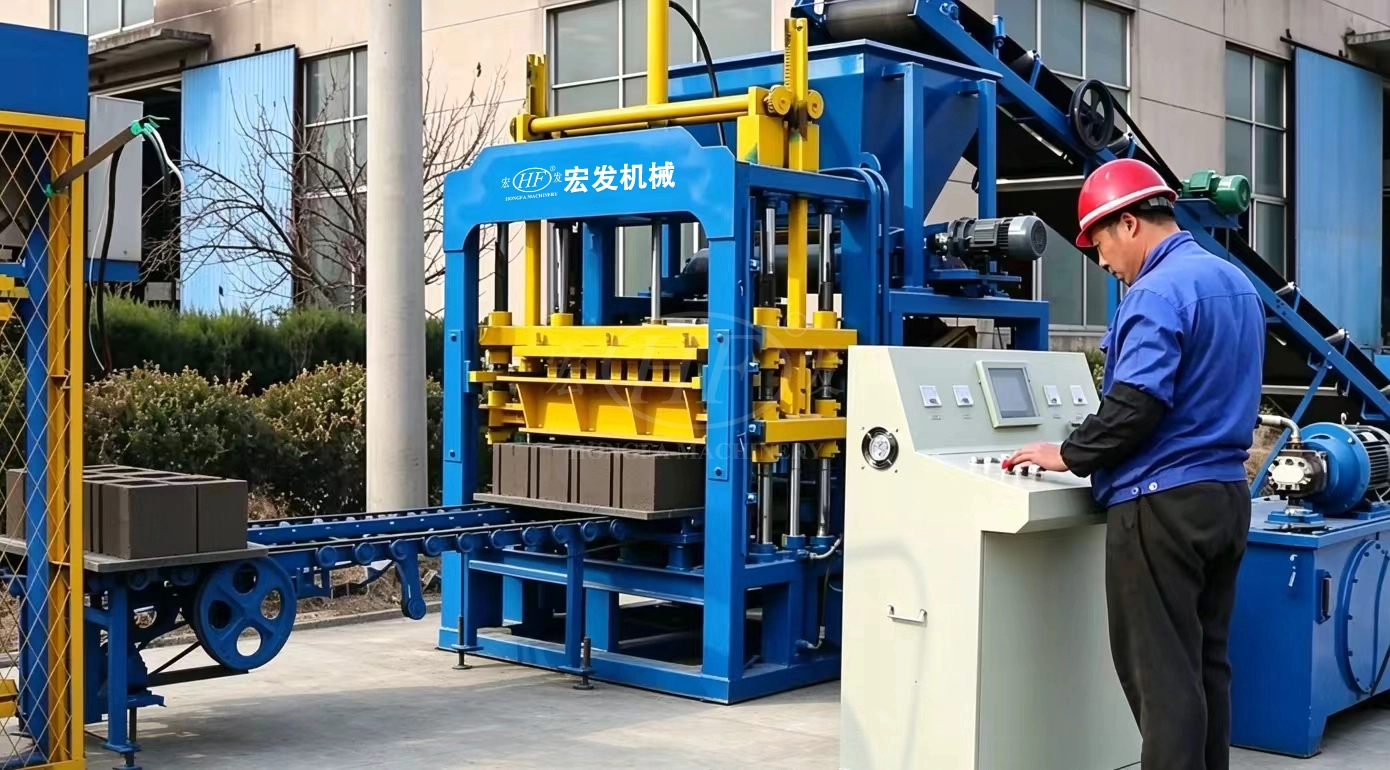

Adopting table‑vibration forming solution with high‑frequency vibration and stable 16 MPa hydraulic power, the machine is equipped with integrated PLC touch‑screen control system. Full workflow including pallet feeding, material distributing, pressing‑vibrating, demoulding and block discharging runs automatically. Even processing variable‑property solid‑waste such as construction waste and fly ash, it realizes sufficient material filling and compaction inside mould cavity. Finished blocks feature good frost‑resistance and impermeability with precise dimensions meeting procurement standards for construction and municipal projects. Both single‑cycle trial‑run and continuous mass‑production modes are supported for long‑hour non‑stop manufacturing. It guarantees on‑time delivery of engineering orders, avoids commercial losses caused by delivery delay and strengthens cooperation with project clients.
3. Fast Mold Replacement within 30 Minutes, Multi‑category Solid‑waste Building‑material Production to Expand Order Sources
QT4‑15S supports quick mould disassembly & assembly. Mold change finishes within ≤30 minutes without host‑machine modification. One single unit can mass‑produce solid standard bricks, paving bricks, hollow blocks, permeable pavers and curbstones from construction waste and fly ash, with outstanding capacity for standard brick manufacturing. Only one main‑machine investment satisfies project demands from civil construction, municipal roads, landscape and water‑conservancy slope protection. No heavy extra investment for additional machines is needed. Diversified recycled‑product portfolio helps you break single‑product limitation, participate in more project tenders and strengthen business anti‑risk capability against market fluctuation.
4. Forced Synchronous Lifting Structure, Consistent Product Dimension and Higher Qualified‑product Rate in Large‑batch Solid‑waste Production
It adopts forced synchronous mould lifting structure. During large‑volume continuous production with construction waste and industrial residues, uniform thickness of every finished product and smooth demoulding movement are guaranteed. Defects like chipped edges and corners of green bricks are effectively reduced. Recycled blocks have smooth appearance and can go directly to curing area for sales after forming. Raw‑material and time loss caused by defective goods is minimized. For solid‑waste‑fed production lines, stable product quality maximizes conversion rate of construction waste and industrial residues into market‑qualified saleable products and further improves overall returns of solid‑waste brick‑making projects.
5. Energy‑saving Compact Layout, Premium Core Components for Long‑time Continuous Production in Small‑and‑medium Workshops
Built with blue steel structure, QT4‑15S features compact footprint and low requirement for plant space. Total machine power is merely 21.75 kW, delivering lower energy consumption compared with peer‑grade models. Key electric and hydraulic components adopt high‑quality brand accessories. Complete machine linkage test is finished before delivery for stable 16 MPa hydraulic output. When processing abrasive solid‑waste such as construction waste and mine slag, the machine runs reliably to support all‑day production rhythm for small‑and‑medium‑size factories. Higher effective operating hours enable full digestion of local solid‑waste supply, amortize upfront equipment investment and shorten project payback period.
6. High‑level Automation to Lower Labor Threshold and Simplify Daily Operation for Small Solid‑waste Brick Plants
Full‑process automatic workflow reduces manpower demand. Only a small team is required for whole‑line supervision to cut labor‑salary expenses. The intuitive touch‑screen HMI enables operators to get familiar with operation after basic training, no high‑salary high‑skill specialists required. Single‑cycle mode supports mould‑testing inspection while continuous mode serves mass‑volume manufacturing. It accelerates commissioning for small‑and‑medium‑size solid‑waste brick‑making projects and helps you reach profitable revenue‑generating status faster.
1. Strong Solid‑waste Raw‑material Adaptability, High Mix of Construction & Industrial Waste to Cut Raw‑material Input Cost
QT4‑15S is well adapted to construction debris and industrial residues with high impurities and variable particle sizes. Fly‑ash mixing ratio can reach up to 70%. Crushed demolition waste, furnace slag, coal gangue and stone powder can be directly adopted as main feedstock without costly fine grinding or multi‑stage screening pre‑treatment. Plant operators can locally consume on‑site construction waste and stockpiled factory residues. Waste materials originally requiring paid transportation and landfill are converted into saleable engineering building materials. It greatly reduces expensive natural aggregate purchase and solid‑waste disposal expenditure. Unit production cost of recycled bricks is lowered and unit profit improved. It is highly suitable for small‑and‑medium‑size solid‑waste recycling plants running dual‑profit business combining waste disposal and recycled‑material sales.
2. Table‑vibration High‑excitation Force plus PLC Full‑automatic Control, Stable Output of High‑quality Recycled Bricks under Solid‑waste Conditions
Adopting table‑vibration forming solution with high‑frequency vibration and stable 16 MPa hydraulic power, the machine is equipped with integrated PLC touch‑screen control system. Full workflow including pallet feeding, material distributing, pressing‑vibrating, demoulding and block discharging runs automatically. Even processing variable‑property solid‑waste such as construction waste and fly ash, it realizes sufficient material filling and compaction inside mould cavity. Finished blocks feature good frost‑resistance and impermeability with precise dimensions meeting procurement standards for construction and municipal projects. Both single‑cycle trial‑run and continuous mass‑production modes are supported for long‑hour non‑stop manufacturing. It guarantees on‑time delivery of engineering orders, avoids commercial losses caused by delivery delay and strengthens cooperation with project clients.
3. Fast Mold Replacement within 30 Minutes, Multi‑category Solid‑waste Building‑material Production to Expand Order Sources
QT4‑15S supports quick mould disassembly & assembly. Mold change finishes within ≤30 minutes without host‑machine modification. One single unit can mass‑produce solid standard bricks, paving bricks, hollow blocks, permeable pavers and curbstones from construction waste and fly ash, with outstanding capacity for standard brick manufacturing. Only one main‑machine investment satisfies project demands from civil construction, municipal roads, landscape and water‑conservancy slope protection. No heavy extra investment for additional machines is needed. Diversified recycled‑product portfolio helps you break single‑product limitation, participate in more project tenders and strengthen business anti‑risk capability against market fluctuation.
4. Forced Synchronous Lifting Structure, Consistent Product Dimension and Higher Qualified‑product Rate in Large‑batch Solid‑waste Production
It adopts forced synchronous mould lifting structure. During large‑volume continuous production with construction waste and industrial residues, uniform thickness of every finished product and smooth demoulding movement are guaranteed. Defects like chipped edges and corners of green bricks are effectively reduced. Recycled blocks have smooth appearance and can go directly to curing area for sales after forming. Raw‑material and time loss caused by defective goods is minimized. For solid‑waste‑fed production lines, stable product quality maximizes conversion rate of construction waste and industrial residues into market‑qualified saleable products and further improves overall returns of solid‑waste brick‑making projects.
5. Energy‑saving Compact Layout, Premium Core Components for Long‑time Continuous Production in Small‑and‑medium Workshops
Built with blue steel structure, QT4‑15S features compact footprint and low requirement for plant space. Total machine power is merely 21.75 kW, delivering lower energy consumption compared with peer‑grade models. Key electric and hydraulic components adopt high‑quality brand accessories. Complete machine linkage test is finished before delivery for stable 16 MPa hydraulic output. When processing abrasive solid‑waste such as construction waste and mine slag, the machine runs reliably to support all‑day production rhythm for small‑and‑medium‑size factories. Higher effective operating hours enable full digestion of local solid‑waste supply, amortize upfront equipment investment and shorten project payback period.
6. High‑level Automation to Lower Labor Threshold and Simplify Daily Operation for Small Solid‑waste Brick Plants
Full‑process automatic workflow reduces manpower demand. Only a small team is required for whole‑line supervision to cut labor‑salary expenses. The intuitive touch‑screen HMI enables operators to get familiar with operation after basic training, no high‑salary high‑skill specialists required. Single‑cycle mode supports mould‑testing inspection while continuous mode serves mass‑volume manufacturing. It accelerates commissioning for small‑and‑medium‑size solid‑waste brick‑making projects and helps you reach profitable revenue‑generating status faster.
