1. Stable output of 28 solid bricks per pallet, efficiently fulfill large‑volume solid‑brick construction orders

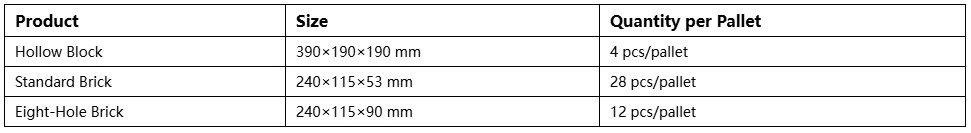

Conventional small‑medium brick machines produce limited bricks per cycle. Facing bulk solid‑brick procurement orders from housing and infrastructure projects, insufficient capacity extends lead‑time and may cost you engineering clients. Optimized for solid‑brick mass production, QT4‑15B makes 28 pieces of 240×115×53 mm standard solid bricks on one pallet within 15‑20 seconds. Hourly and daily output is improved without expanding workshop, pallets or supporting mixers. For time‑sensitive bulk orders, the machine supports continuous cyclic production to shorten delivery schedule. You can handle larger‑volume contracts without purchasing extra main machines, amortize capital investment and speed up return‑on‑investment.
2. Patented vibration box table‑vibration forming plus synchronous lifting demoulding, neat dense solid bricks and lower raw‑material loss
Solid‑brick production often suffers loose texture, insufficient strength, uneven thickness and chipped corners during demoulding. Defective bricks waste cement and aggregates and may trigger customer rejections & deductions, hurting your overseas business reputation. QT4‑15B adopts self‑developed patented vibration box with high‑frequency & powerful exciting force for table vibration, together with forced synchronous mould lifting mechanism for stable forming and demoulding. Raw materials are fully compacted inside mould cavity. Produced solid bricks feature uniform thickness and good compression performance. Fresh green bricks have high strength and resist chipping & breakage during pallet transport and stacking with high yield rate. Finished bricks meet construction acceptance standards of multiple countries, reduce material loss caused by rejects and help you secure long‑term solid‑brick supply contracts.

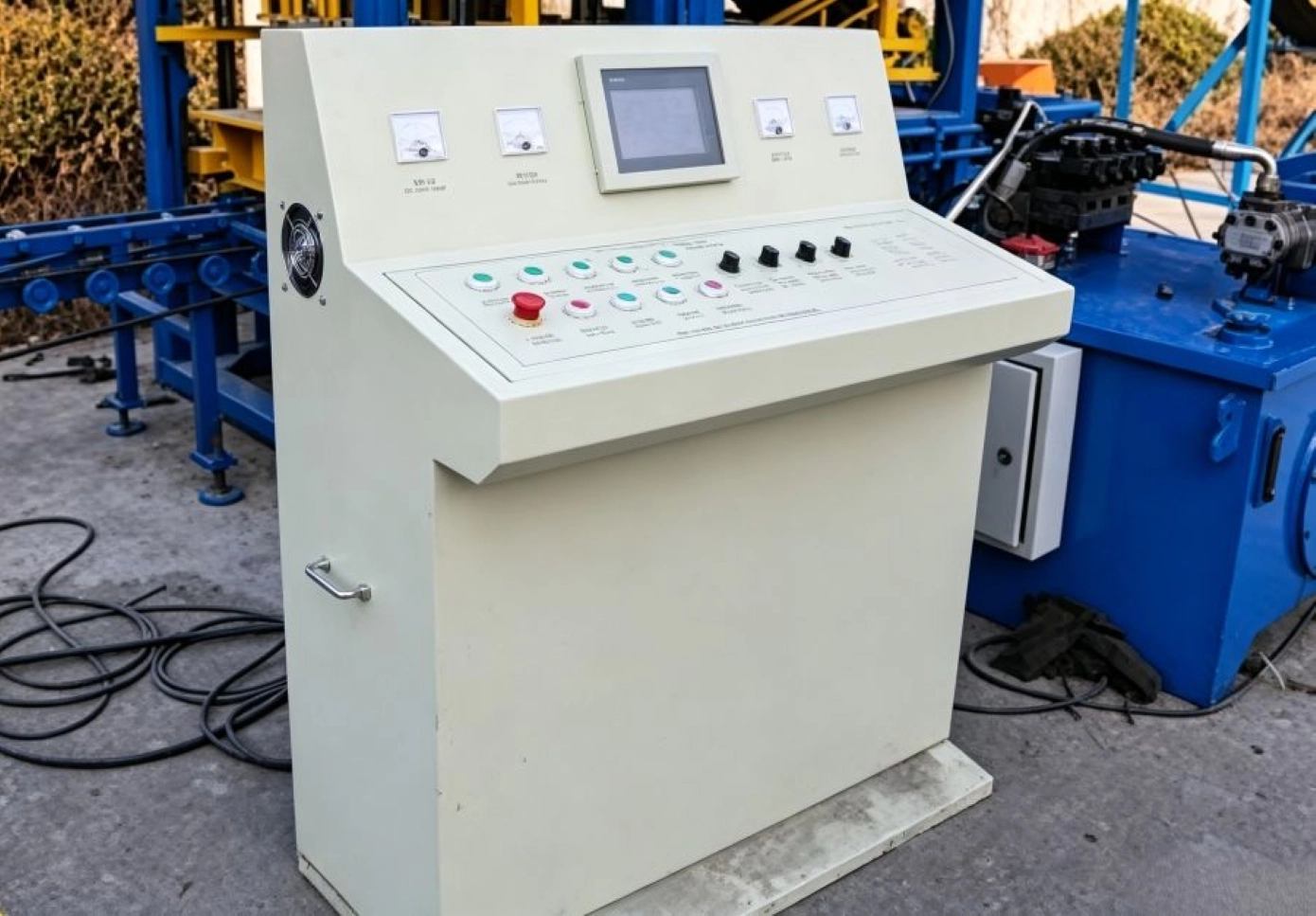

3. PLC full‑process program‑controlled automation, less manual intervention and reduced labor cost for solid‑brick plant
Semi‑auto solid‑brick lines require many workers for repeated pallet feeding, material distribution, brick ejection and green‑brick handling. Rising labor cost and staff turnover may interrupt production flow directly. QT4‑15B uses programmable PLC control system. The full set of solid‑brick production procedures including pallet feeding, forced feeding, vibration‑compression molding, synchronous demoulding and brick‑outfeed runs automatically. Continuous, single‑cycle and manual modes are optional. Operators do not need rich brick‑making experience and can run equipment after simple training. Fewer on‑site workers are required for the whole line, greatly cutting monthly labor expenditure. Production will not stop due to staff changes and solid‑brick orders can be delivered on schedule.
4. High solid‑waste compatibility & quick‑change moulds, expand diversified orders centering on solid bricks to mitigate market fluctuation risk
If your machine only makes solid bricks, order volume will shrink sharply once local solid‑brick demand declines, bringing higher business risk. QT4‑15B features excellent raw‑material adaptability; fly‑ash proportion can reach up to 70 % to consume large‑volume industrial residues. Mould replacement can be finished without major host modification. While focusing on standard solid‑brick manufacturing, it can switch to produce hollow blocks, permeable paving bricks, grass‑planting bricks, curb stones and other building materials. You can take both construction solid‑brick orders and municipal landscape‑related projects, maximize machine utilization rate. There is no need to buy multiple separate main machines. One single unit captures multi‑segment market opportunities and lowers business risk from single‑product market swings.
5. Premium‑grade core components, reliable mechanical action and minimize shutdown loss during continuous solid‑brick mass‑production
Solid‑brick manufacturing runs in continuous cycles. Poor‑quality hydraulic, electric or vibration parts easily cause malfunction, oil leakage and vibration failure. Unexpected downtime delays engineering orders and brings combined loss of maintenance expense & production halt. QT4‑15B adopts imported or domestic well‑known brand key hydraulic and electric components. The patented vibration box is verified under mass‑production conditions. Machine logic and movements are reliable; mis‑operation will hardly cause equipment damage. It fits long‑time non‑stop cyclic solid‑brick production, reduces unplanned downtime risk. Bulk solid‑brick orders can be delivered on‑time, safeguarding your overseas‑client reputation and cutting later‑stage maintenance expenditure.
6. High‑integrity main unit plus complete production‑line solution, fast project launch for medium‑small solid‑brick factories
Many brick‑machine hosts force buyers to assemble mixers and feeding devices separately, which costs much time for model selection and preparation in early‑stage plant‑building. QT4‑15B main machine features compact layout and moderate total weight with friendly requirement for workshop foundation. Complete production solution with batching machine, forced mixer and conveying mechanism is available for integrated delivery. After installation & commissioning upon arrival, the machine can go into production without complicated civil‑works reconstruction. It is well‑suited for new‑built medium‑small solid‑brick plants or old‑line upgrading, helping investors enter building‑material supply market rapidly and shorten project implementation cycle.
1. Stable output of 28 solid bricks per pallet, efficiently fulfill large‑volume solid‑brick construction orders
Conventional small‑medium brick machines produce limited bricks per cycle. Facing bulk solid‑brick procurement orders from housing and infrastructure projects, insufficient capacity extends lead‑time and may cost you engineering clients. Optimized for solid‑brick mass production, QT4‑15B makes 28 pieces of 240×115×53 mm standard solid bricks on one pallet within 15‑20 seconds. Hourly and daily output is improved without expanding workshop, pallets or supporting mixers. For time‑sensitive bulk orders, the machine supports continuous cyclic production to shorten delivery schedule. You can handle larger‑volume contracts without purchasing extra main machines, amortize capital investment and speed up return‑on‑investment.
2. Patented vibration box table‑vibration forming plus synchronous lifting demoulding, neat dense solid bricks and lower raw‑material loss
Solid‑brick production often suffers loose texture, insufficient strength, uneven thickness and chipped corners during demoulding. Defective bricks waste cement and aggregates and may trigger customer rejections & deductions, hurting your overseas business reputation. QT4‑15B adopts self‑developed patented vibration box with high‑frequency & powerful exciting force for table vibration, together with forced synchronous mould lifting mechanism for stable forming and demoulding. Raw materials are fully compacted inside mould cavity. Produced solid bricks feature uniform thickness and good compression performance. Fresh green bricks have high strength and resist chipping & breakage during pallet transport and stacking with high yield rate. Finished bricks meet construction acceptance standards of multiple countries, reduce material loss caused by rejects and help you secure long‑term solid‑brick supply contracts.
3. PLC full‑process program‑controlled automation, less manual intervention and reduced labor cost for solid‑brick plant
Semi‑auto solid‑brick lines require many workers for repeated pallet feeding, material distribution, brick ejection and green‑brick handling. Rising labor cost and staff turnover may interrupt production flow directly. QT4‑15B uses programmable PLC control system. The full set of solid‑brick production procedures including pallet feeding, forced feeding, vibration‑compression molding, synchronous demoulding and brick‑outfeed runs automatically. Continuous, single‑cycle and manual modes are optional. Operators do not need rich brick‑making experience and can run equipment after simple training. Fewer on‑site workers are required for the whole line, greatly cutting monthly labor expenditure. Production will not stop due to staff changes and solid‑brick orders can be delivered on schedule.
4. High solid‑waste compatibility & quick‑change moulds, expand diversified orders centering on solid bricks to mitigate market fluctuation risk
If your machine only makes solid bricks, order volume will shrink sharply once local solid‑brick demand declines, bringing higher business risk. QT4‑15B features excellent raw‑material adaptability; fly‑ash proportion can reach up to 70 % to consume large‑volume industrial residues. Mould replacement can be finished without major host modification. While focusing on standard solid‑brick manufacturing, it can switch to produce hollow blocks, permeable paving bricks, grass‑planting bricks, curb stones and other building materials. You can take both construction solid‑brick orders and municipal landscape‑related projects, maximize machine utilization rate. There is no need to buy multiple separate main machines. One single unit captures multi‑segment market opportunities and lowers business risk from single‑product market swings.
5. Premium‑grade core components, reliable mechanical action and minimize shutdown loss during continuous solid‑brick mass‑production
Solid‑brick manufacturing runs in continuous cycles. Poor‑quality hydraulic, electric or vibration parts easily cause malfunction, oil leakage and vibration failure. Unexpected downtime delays engineering orders and brings combined loss of maintenance expense & production halt. QT4‑15B adopts imported or domestic well‑known brand key hydraulic and electric components. The patented vibration box is verified under mass‑production conditions. Machine logic and movements are reliable; mis‑operation will hardly cause equipment damage. It fits long‑time non‑stop cyclic solid‑brick production, reduces unplanned downtime risk. Bulk solid‑brick orders can be delivered on‑time, safeguarding your overseas‑client reputation and cutting later‑stage maintenance expenditure.
6. High‑integrity main unit plus complete production‑line solution, fast project launch for medium‑small solid‑brick factories
Many brick‑machine hosts force buyers to assemble mixers and feeding devices separately, which costs much time for model selection and preparation in early‑stage plant‑building. QT4‑15B main machine features compact layout and moderate total weight with friendly requirement for workshop foundation. Complete production solution with batching machine, forced mixer and conveying mechanism is available for integrated delivery. After installation & commissioning upon arrival, the machine can go into production without complicated civil‑works reconstruction. It is well‑suited for new‑built medium‑small solid‑brick plants or old‑line upgrading, helping investors enter building‑material supply market rapidly and shorten project implementation cycle.
