1. Professional Double‑Layer Feeding System, Strictly Control Paver Appearance Quality, Reduce Defect Waste & Customer Return Risk
QT4‑15 is fitted with independent color‑mix feeder. Expensive color pigment aggregate is only applied to the thin surface face layer, while base layer uses ordinary aggregates. Two separate material conveying channels prevent cross‑color contamination. Reciprocating face‑material feeding fully fills mold pattern cavities, delivering pavers with sharp pattern outlines, small batch‑to‑batch color difference. Finished products resist chalking and slow down fading under sun and rain. Paving bricks are appearance‑sensitive construction materials. Mottled surfaces, pitting or blurred patterns lead to total waste of raw materials and pigment, as well as order rejection or payment deduction from engineering clients. This stable double‑layer feeding minimizes defective rate and material waste. High‑quality pavers strengthen your competitiveness for municipal and real‑estate bidding, supporting better contract prices and higher profit for each batch order.

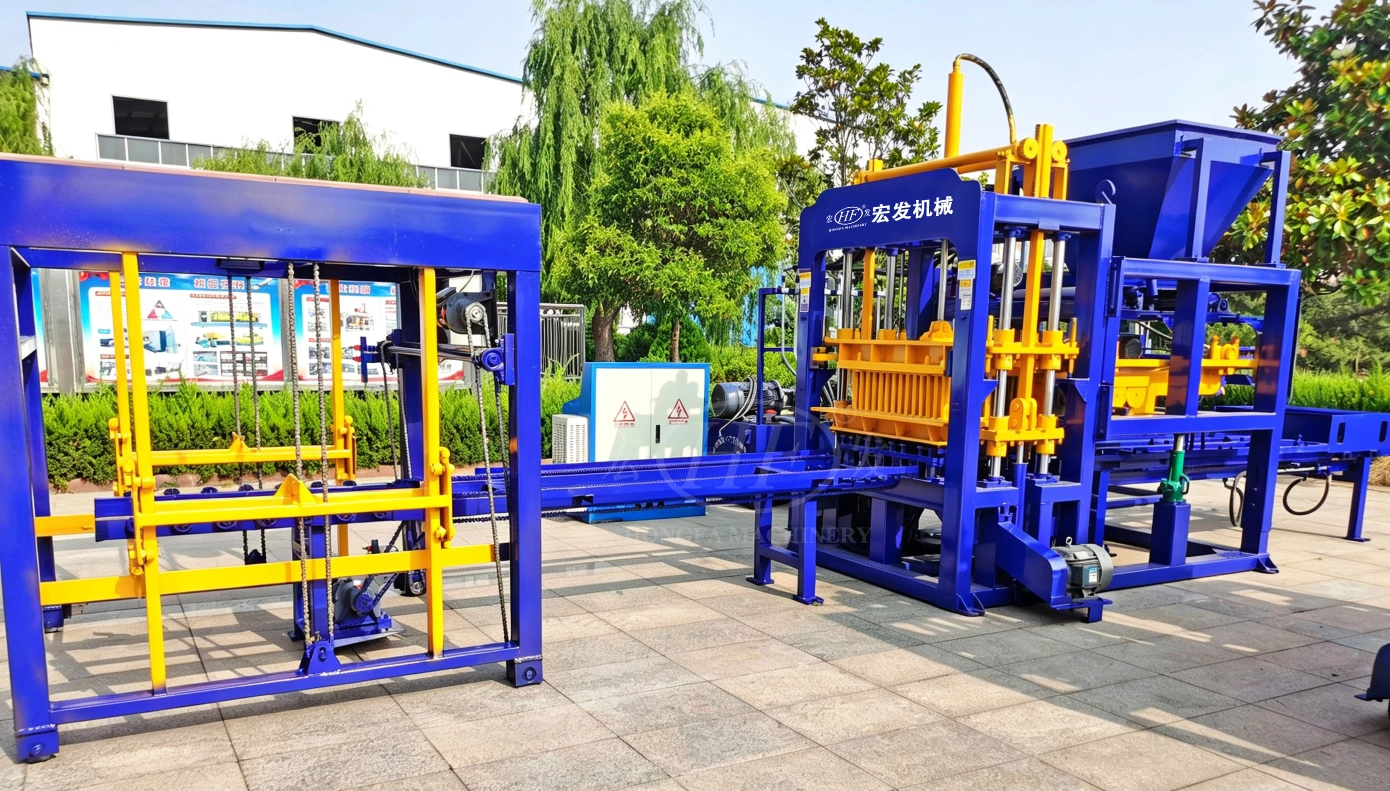

2. PLC Touch‑Screen Full‑Automatic Production Line, Lower Technical Barrier & Cut Long‑Term Labor Operating Cost

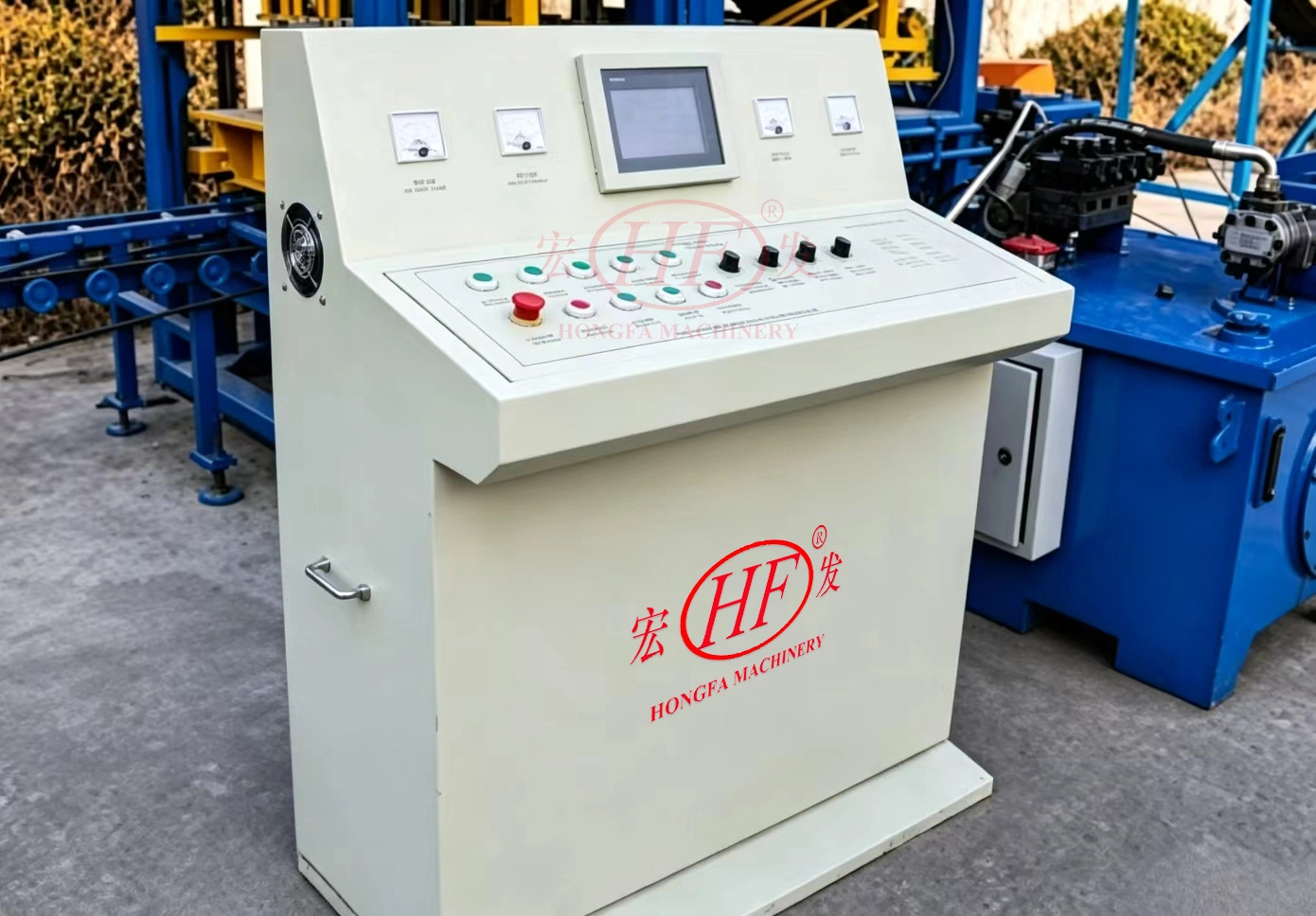

Equipped with mature PLC programmable system plus human‑machine touch screen. Full workflow: pallet feeding, base‑material feeding, face‑material feeding, hydraulic pressing‑vibration, demolding and brick output run in automatic linkage. The operation logic is simplified for overseas factory workers. Operators can get qualified after short‑term training, no high‑salary permanent hydraulic‑electric technicians required, solving the shortage of skilled workers in many overseas regions. Old‑style paver machines need many workers for heavy‑duty work such as pallet handling, material feeding and green‑brick collecting. QT4‑15 automation greatly cuts manpower demand. Only a small number of staff are needed for monitoring, simple assistance and green brick transfer. Labor payroll keeps decreasing during mass paver production. Even under tight peak‑order schedules, you avoid the trouble of mass temporary hiring and soaring labor cost, making labor expenditure predictable for small‑and‑medium brick plants.

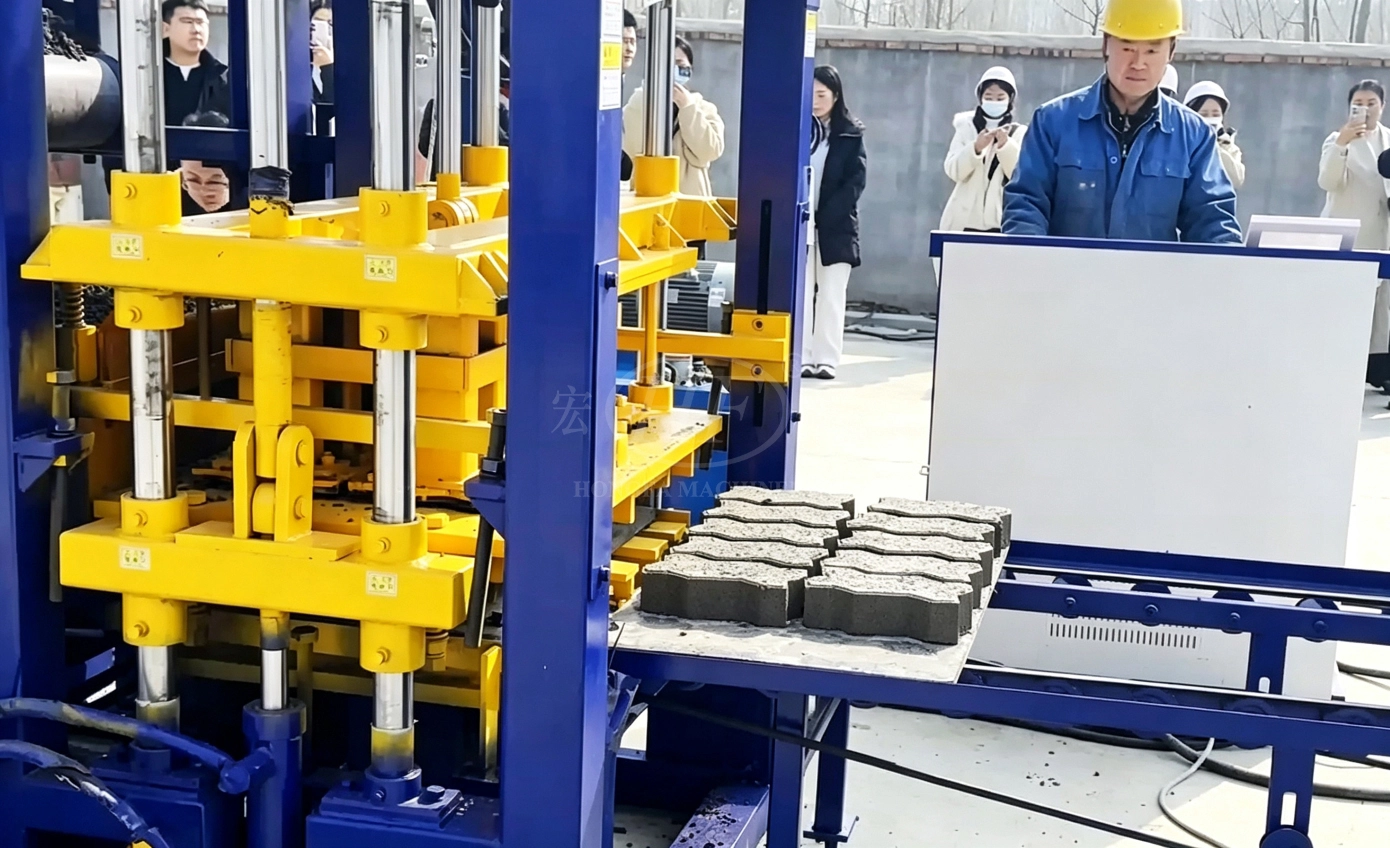

3. Four‑Column Guiding plus High‑Performance Hydraulic‑Vibration Combination, Uniform Paver Density, Reduce Breakage & Claim Risks In Transit & Installation
Pavers go through demolding, curing, forklift handling, long‑distance transport and site loading‑unloading. Poor compaction causes inner loose structure and frequent brick breakage, further triggering after‑sales compensation claims. QT4‑15 adopts four‑column guiding structure to guarantee vertical and stable pressing movement without offset pressure. Matched hydraulic pressure and high‑frequency excitation force are tuned for thin, pattern‑rich pavers. It will neither crush surface patterns from over‑pressure nor leave loose interior due to insufficient vibration. Every molded paver achieves highly consistent compaction, intact corners and low green‑brick breakage rate. Compressive and flexural strength meet paving‑material standards worldwide. Brick breakage during delivery and site installation drops significantly. Less replenishment and compensation cases protect your overseas client reputation and bring repeat project orders.
4. Quick‑Change Mold Design, Support Multiple Paver Types, Handle Diversified Orders With Single Main Machine
Paving project requirements vary greatly. Parking lots demand heavy‑duty interlocking bricks; sidewalks need tactile bricks; plaza projects require decorative patterned pavers. QT4‑15 main unit has standardized mold‑mount interface. Mold replacement can be completed without cutting or modifying main frame and hydraulic pipelines. One single machine manufactures regular color pavers, S‑shape interlocking pavers, tactile paving bricks, permeable bricks and full‑body paving blocks. Buying one standalone machine for each brick type brings huge capital burden. Quick‑mold‑change function saves extra main‑machine investment. You only purchase corresponding molds to cover both large‑volume standard orders and small‑batch custom projects. It greatly improves main‑machine utilization rate. You will not lose inquiries due to limited product range, expand your business sources and strengthen anti‑risk capacity against market fluctuation.
5. Vibration‑Resistant Reinforced Main Frame & Broad Raw‑Material Compatibility, Reuse Local Industrial Waste To Lower Paver Production Cost From Multiple Dimensions
Paver production involves repeated cyclic pressing impact. QT4‑15 main frame is welded with thickened steel plates and structurally reinforced for frequent paver forming cycles. Reliable fasteners, hydraulic and electric components support long‑time two‑shift continuous production, lowering risk of unplanned shutdown and order delay. For raw‑material side: besides normal sand, stone and cement, base layer can widely consume local industrial waste like fly ash, slag, tailing stone powder and stone chips. There is no necessity to buy expensive refined aggregates. Combined with double‑layer feeding design, costly color pigment is only used for thin face layer instead of whole brick, so pigment consumption is well controlled. Sourcing local waste materials saves long‑distance transportation cost. The dual benefit of pigment optimization plus waste‑material utilization reduces unit paver cost effectively. Even in fierce market price competition, you still retain decent profit margin for both high‑volume low‑margin orders and high‑end premium paver contracts.
1. Professional Double‑Layer Feeding System, Strictly Control Paver Appearance Quality, Reduce Defect Waste & Customer Return Risk
QT4‑15 is fitted with independent color‑mix feeder. Expensive color pigment aggregate is only applied to the thin surface face layer, while base layer uses ordinary aggregates. Two separate material conveying channels prevent cross‑color contamination. Reciprocating face‑material feeding fully fills mold pattern cavities, delivering pavers with sharp pattern outlines, small batch‑to‑batch color difference. Finished products resist chalking and slow down fading under sun and rain. Paving bricks are appearance‑sensitive construction materials. Mottled surfaces, pitting or blurred patterns lead to total waste of raw materials and pigment, as well as order rejection or payment deduction from engineering clients. This stable double‑layer feeding minimizes defective rate and material waste. High‑quality pavers strengthen your competitiveness for municipal and real‑estate bidding, supporting better contract prices and higher profit for each batch order.
2. PLC Touch‑Screen Full‑Automatic Production Line, Lower Technical Barrier & Cut Long‑Term Labor Operating Cost
Equipped with mature PLC programmable system plus human‑machine touch screen. Full workflow: pallet feeding, base‑material feeding, face‑material feeding, hydraulic pressing‑vibration, demolding and brick output run in automatic linkage. The operation logic is simplified for overseas factory workers. Operators can get qualified after short‑term training, no high‑salary permanent hydraulic‑electric technicians required, solving the shortage of skilled workers in many overseas regions. Old‑style paver machines need many workers for heavy‑duty work such as pallet handling, material feeding and green‑brick collecting. QT4‑15 automation greatly cuts manpower demand. Only a small number of staff are needed for monitoring, simple assistance and green brick transfer. Labor payroll keeps decreasing during mass paver production. Even under tight peak‑order schedules, you avoid the trouble of mass temporary hiring and soaring labor cost, making labor expenditure predictable for small‑and‑medium brick plants.
3. Four‑Column Guiding plus High‑Performance Hydraulic‑Vibration Combination, Uniform Paver Density, Reduce Breakage & Claim Risks In Transit & Installation
Pavers go through demolding, curing, forklift handling, long‑distance transport and site loading‑unloading. Poor compaction causes inner loose structure and frequent brick breakage, further triggering after‑sales compensation claims. QT4‑15 adopts four‑column guiding structure to guarantee vertical and stable pressing movement without offset pressure. Matched hydraulic pressure and high‑frequency excitation force are tuned for thin, pattern‑rich pavers. It will neither crush surface patterns from over‑pressure nor leave loose interior due to insufficient vibration. Every molded paver achieves highly consistent compaction, intact corners and low green‑brick breakage rate. Compressive and flexural strength meet paving‑material standards worldwide. Brick breakage during delivery and site installation drops significantly. Less replenishment and compensation cases protect your overseas client reputation and bring repeat project orders.
4. Quick‑Change Mold Design, Support Multiple Paver Types, Handle Diversified Orders With Single Main Machine
Paving project requirements vary greatly. Parking lots demand heavy‑duty interlocking bricks; sidewalks need tactile bricks; plaza projects require decorative patterned pavers. QT4‑15 main unit has standardized mold‑mount interface. Mold replacement can be completed without cutting or modifying main frame and hydraulic pipelines. One single machine manufactures regular color pavers, S‑shape interlocking pavers, tactile paving bricks, permeable bricks and full‑body paving blocks. Buying one standalone machine for each brick type brings huge capital burden. Quick‑mold‑change function saves extra main‑machine investment. You only purchase corresponding molds to cover both large‑volume standard orders and small‑batch custom projects. It greatly improves main‑machine utilization rate. You will not lose inquiries due to limited product range, expand your business sources and strengthen anti‑risk capacity against market fluctuation.
5. Vibration‑Resistant Reinforced Main Frame & Broad Raw‑Material Compatibility, Reuse Local Industrial Waste To Lower Paver Production Cost From Multiple Dimensions
Paver production involves repeated cyclic pressing impact. QT4‑15 main frame is welded with thickened steel plates and structurally reinforced for frequent paver forming cycles. Reliable fasteners, hydraulic and electric components support long‑time two‑shift continuous production, lowering risk of unplanned shutdown and order delay. For raw‑material side: besides normal sand, stone and cement, base layer can widely consume local industrial waste like fly ash, slag, tailing stone powder and stone chips. There is no necessity to buy expensive refined aggregates. Combined with double‑layer feeding design, costly color pigment is only used for thin face layer instead of whole brick, so pigment consumption is well controlled. Sourcing local waste materials saves long‑distance transportation cost. The dual benefit of pigment optimization plus waste‑material utilization reduces unit paver cost effectively. Even in fierce market price competition, you still retain decent profit margin for both high‑volume low‑margin orders and high‑end premium paver contracts.
QT4‑15B Full‑automatic Hydraulic Paving Brick Machine | Multi‑functional Interlocking Paver, Grass Paver & Curb Stone Production Equipment
QT4‑15B full‑automatic hydraulic paving brick machine, Produce interlocking pavers, grass pavers, curb stones and other ...

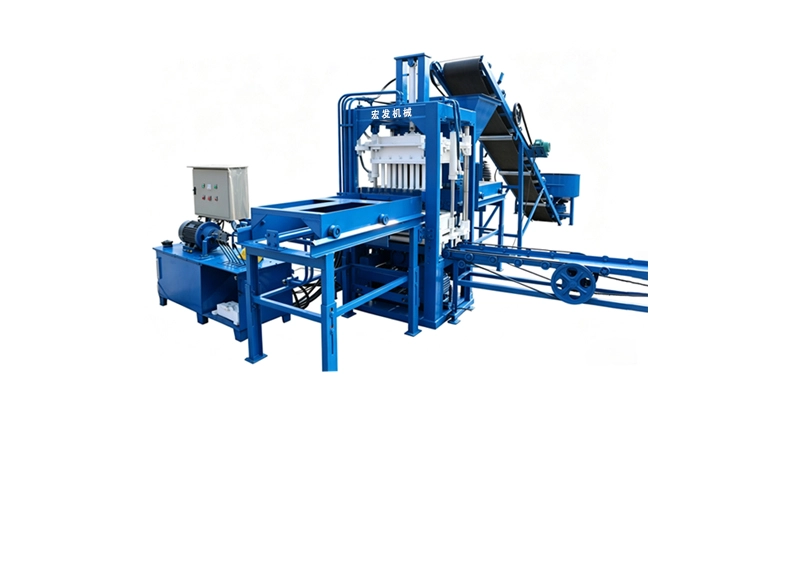

QT3-15 Automatic Color Paver Brick Making Machine | Concrete Colored Pavement Brick Production Equipment
