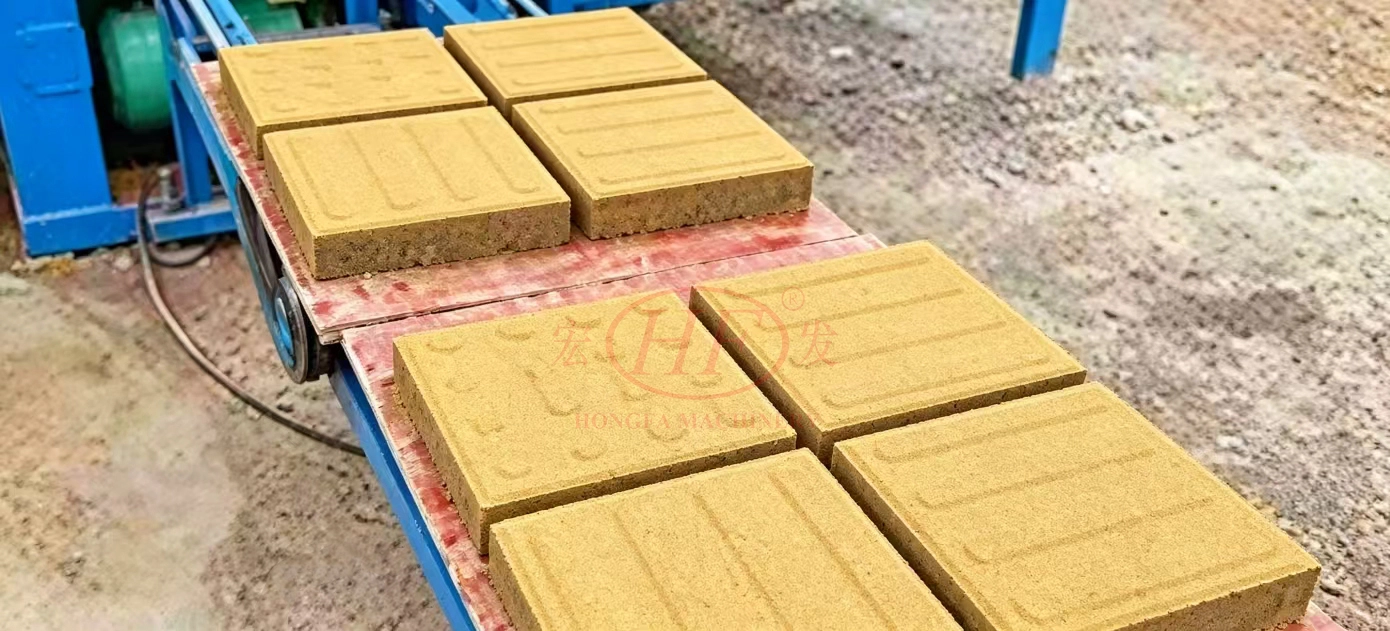

1. Special‑Optimized Double‑Layer Feeding, Ensure Paver Appearance Quality And Reduce Rejection Risk
QT3‑15 is specially optimized for independent feeding of face color mix and base mix. Color pigment mixture is only fed to surface layer while base layer uses ordinary aggregate, avoiding cross‑color, mottled surface, pitting and blurred pattern edges. Hydraulic pressure and vibration fill pattern cavities completely, giving sharp patterns and consistent color shade batch‑to‑batch. Finished pavers are wear‑resistant, anti‑chalking and slow‑fading under sun and rain. Defect rate is greatly cut for brick suppliers. You can avoid scrap loss and customer rejection due to poor appearance. High‑quality pavers support better contract prices and higher profit per order.

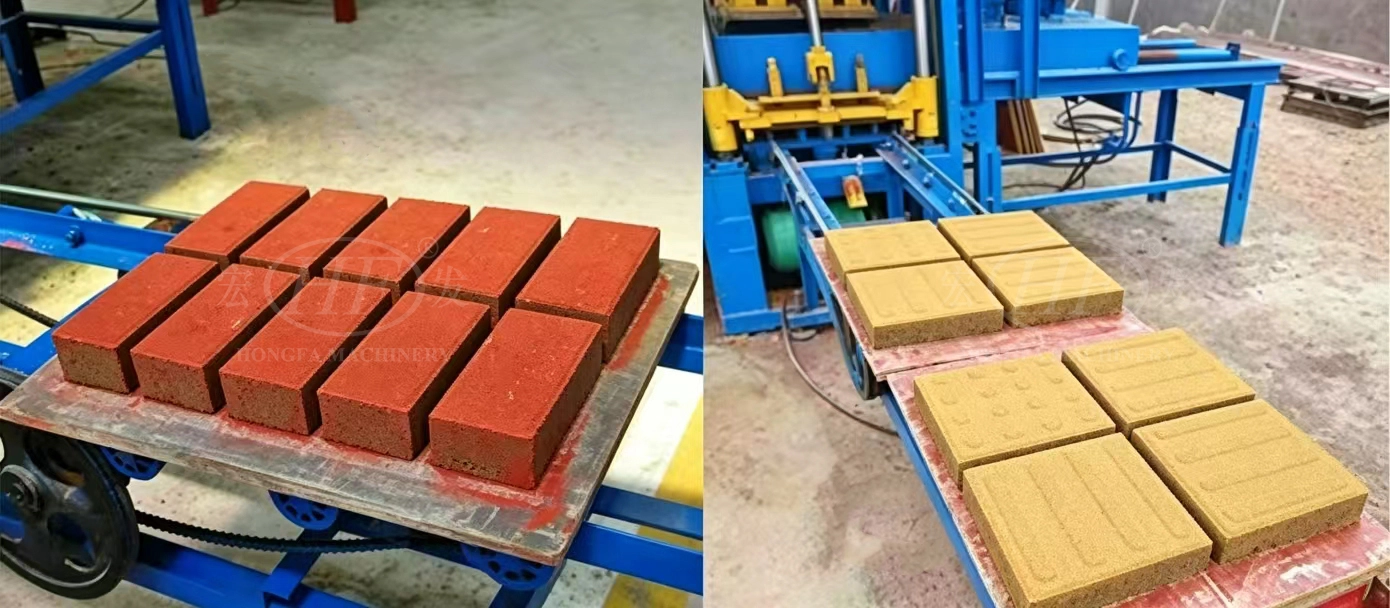

2. Quick Mold Change For Various Patterns, Flexible For Diverse Real‑Estate & Municipal Paver Orders
Paver requirements vary greatly among plazas, residential areas and sidewalk projects. QT3‑15 main unit fits multiple paver molds without modifying main frame or pipelines. It produces interlocking pavers, wave pavers, striped bricks, tactile paving bricks, permeable color pavers and more. When handling multi‑project orders, you do not need multiple main machines. Just swap molds to make different paver types. Both small custom batches and large‑volume standard orders can be covered. It saves heavy extra‑machine investment, improves equipment utilization and expands your order sources.

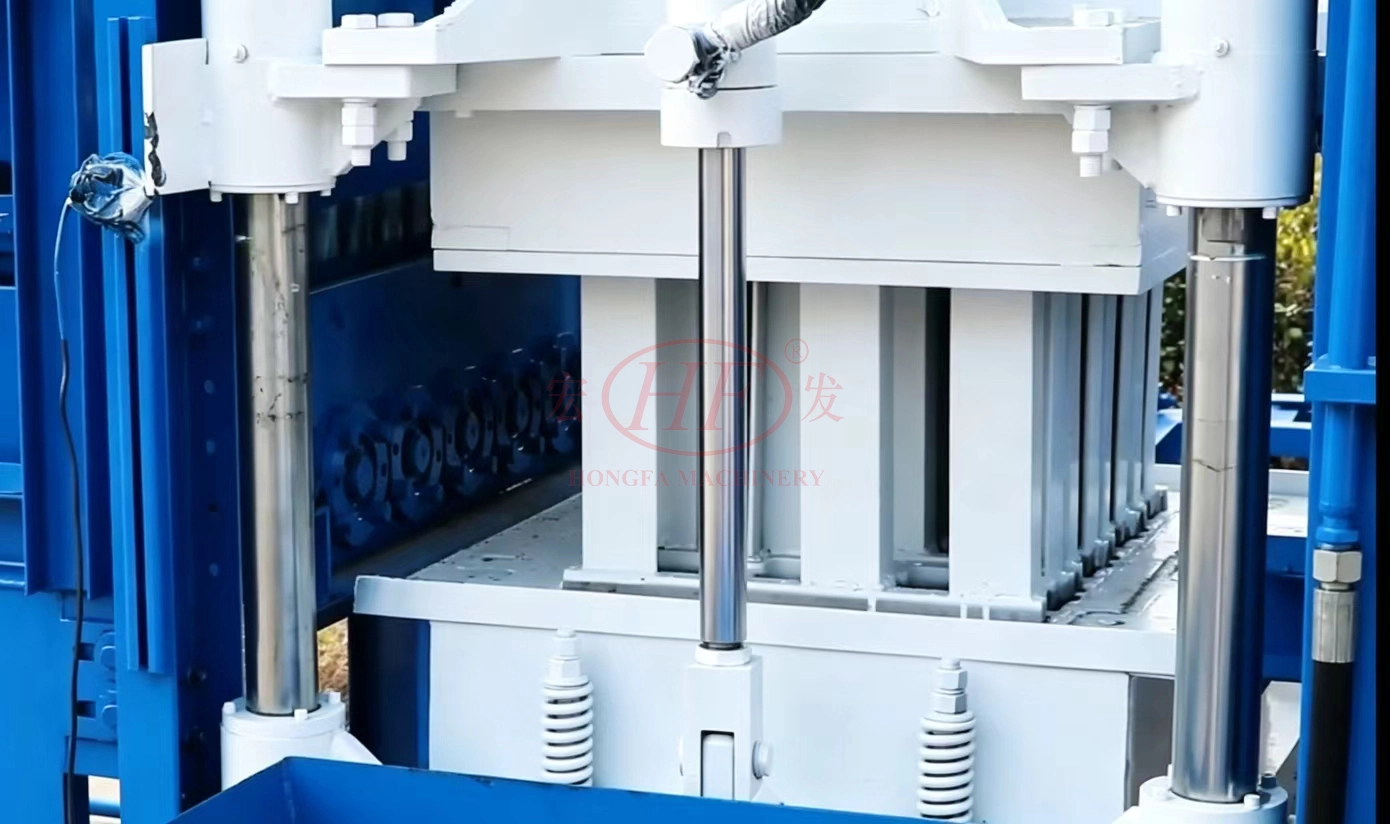

3. Matched Hydraulic & High‑Frequency Vibration For Dense Paver Body, Lower Breakage & Claim Risks
Color pavers require both fine surface patterns and dense inner structure to prevent breakage during demolding, curing, transport and loading. QT3‑15 tunes hydraulic pressure and excitation force for relatively thin paver products. It avoids over‑pressure damaging surface patterns and insufficient vibration causing loose inner structure. Raw materials get well compacted for uniform density and intact corners with low green‑brick breakage rate. Finished pavers meet domestic and overseas municipal paving standards on compression and flexural strength. Low breakage during delivery and site installation improves customer acceptance rate, reduces after‑sales replenishment and compensation risks, builds good reputation and brings repeat engineering orders.
4. Wide Raw‑Material Compatibility & Controllable Pigment Consumption, Cut Overall Paver Production Cost
Major paver costs come from pigment and aggregates. The double‑layer feeding concentrates expensive pigment only on thin face layer; base layer uses low‑cost ordinary aggregates to save pigment expense greatly. Base mix accepts abundant local industrial waste such as fly ash, slag, tailings and stone chips without costly refined aggregates. Local‑sourcing reduces long‑distance transportation fees. Combined cost saving from pigment control and solid‑waste utilization gives you bigger price buffer against market competition. You can take both high‑volume low‑margin orders and high‑profit premium paver contracts.
5. Automation Configured For Small‑Medium Paver Plants, Stable Low‑Fault Operation Balances Output & Labor Expense
Equipped with PLC touch‑screen control, full workflow including pallet feeding, double‑layer feeding, pressing‑vibration, demolding and brick output runs automatically. Designed for small‑medium brick factories: it avoids huge investment of super‑large full‑auto lines yet gets rid of heavy manual work from old‑style semi‑auto paver machines. Only few operators are needed for monitoring and simple assistance, cutting long‑term labor cost. Reinforced anti‑vibration frame plus proven hydraulic and electric components suit long shift‑run production. It can keep running under tight municipal project schedules, minimizing unplanned downtime and delivery delay risks, enabling small‑medium plants to steadily take large‑volume color paver business.
1. Special‑Optimized Double‑Layer Feeding, Ensure Paver Appearance Quality And Reduce Rejection Risk
QT3‑15 is specially optimized for independent feeding of face color mix and base mix. Color pigment mixture is only fed to surface layer while base layer uses ordinary aggregate, avoiding cross‑color, mottled surface, pitting and blurred pattern edges. Hydraulic pressure and vibration fill pattern cavities completely, giving sharp patterns and consistent color shade batch‑to‑batch. Finished pavers are wear‑resistant, anti‑chalking and slow‑fading under sun and rain. Defect rate is greatly cut for brick suppliers. You can avoid scrap loss and customer rejection due to poor appearance. High‑quality pavers support better contract prices and higher profit per order.
2. Quick Mold Change For Various Patterns, Flexible For Diverse Real‑Estate & Municipal Paver Orders
Paver requirements vary greatly among plazas, residential areas and sidewalk projects. QT3‑15 main unit fits multiple paver molds without modifying main frame or pipelines. It produces interlocking pavers, wave pavers, striped bricks, tactile paving bricks, permeable color pavers and more. When handling multi‑project orders, you do not need multiple main machines. Just swap molds to make different paver types. Both small custom batches and large‑volume standard orders can be covered. It saves heavy extra‑machine investment, improves equipment utilization and expands your order sources.
3. Matched Hydraulic & High‑Frequency Vibration For Dense Paver Body, Lower Breakage & Claim Risks
Color pavers require both fine surface patterns and dense inner structure to prevent breakage during demolding, curing, transport and loading. QT3‑15 tunes hydraulic pressure and excitation force for relatively thin paver products. It avoids over‑pressure damaging surface patterns and insufficient vibration causing loose inner structure. Raw materials get well compacted for uniform density and intact corners with low green‑brick breakage rate. Finished pavers meet domestic and overseas municipal paving standards on compression and flexural strength. Low breakage during delivery and site installation improves customer acceptance rate, reduces after‑sales replenishment and compensation risks, builds good reputation and brings repeat engineering orders.
4. Wide Raw‑Material Compatibility & Controllable Pigment Consumption, Cut Overall Paver Production Cost
Major paver costs come from pigment and aggregates. The double‑layer feeding concentrates expensive pigment only on thin face layer; base layer uses low‑cost ordinary aggregates to save pigment expense greatly. Base mix accepts abundant local industrial waste such as fly ash, slag, tailings and stone chips without costly refined aggregates. Local‑sourcing reduces long‑distance transportation fees. Combined cost saving from pigment control and solid‑waste utilization gives you bigger price buffer against market competition. You can take both high‑volume low‑margin orders and high‑profit premium paver contracts.
5. Automation Configured For Small‑Medium Paver Plants, Stable Low‑Fault Operation Balances Output & Labor Expense
Equipped with PLC touch‑screen control, full workflow including pallet feeding, double‑layer feeding, pressing‑vibration, demolding and brick output runs automatically. Designed for small‑medium brick factories: it avoids huge investment of super‑large full‑auto lines yet gets rid of heavy manual work from old‑style semi‑auto paver machines. Only few operators are needed for monitoring and simple assistance, cutting long‑term labor cost. Reinforced anti‑vibration frame plus proven hydraulic and electric components suit long shift‑run production. It can keep running under tight municipal project schedules, minimizing unplanned downtime and delivery delay risks, enabling small‑medium plants to steadily take large‑volume color paver business.
