1. High‑density Solid Bricks with Excellent Consistency, Less Scrap Loss & Meet Engineering Procurement Standards

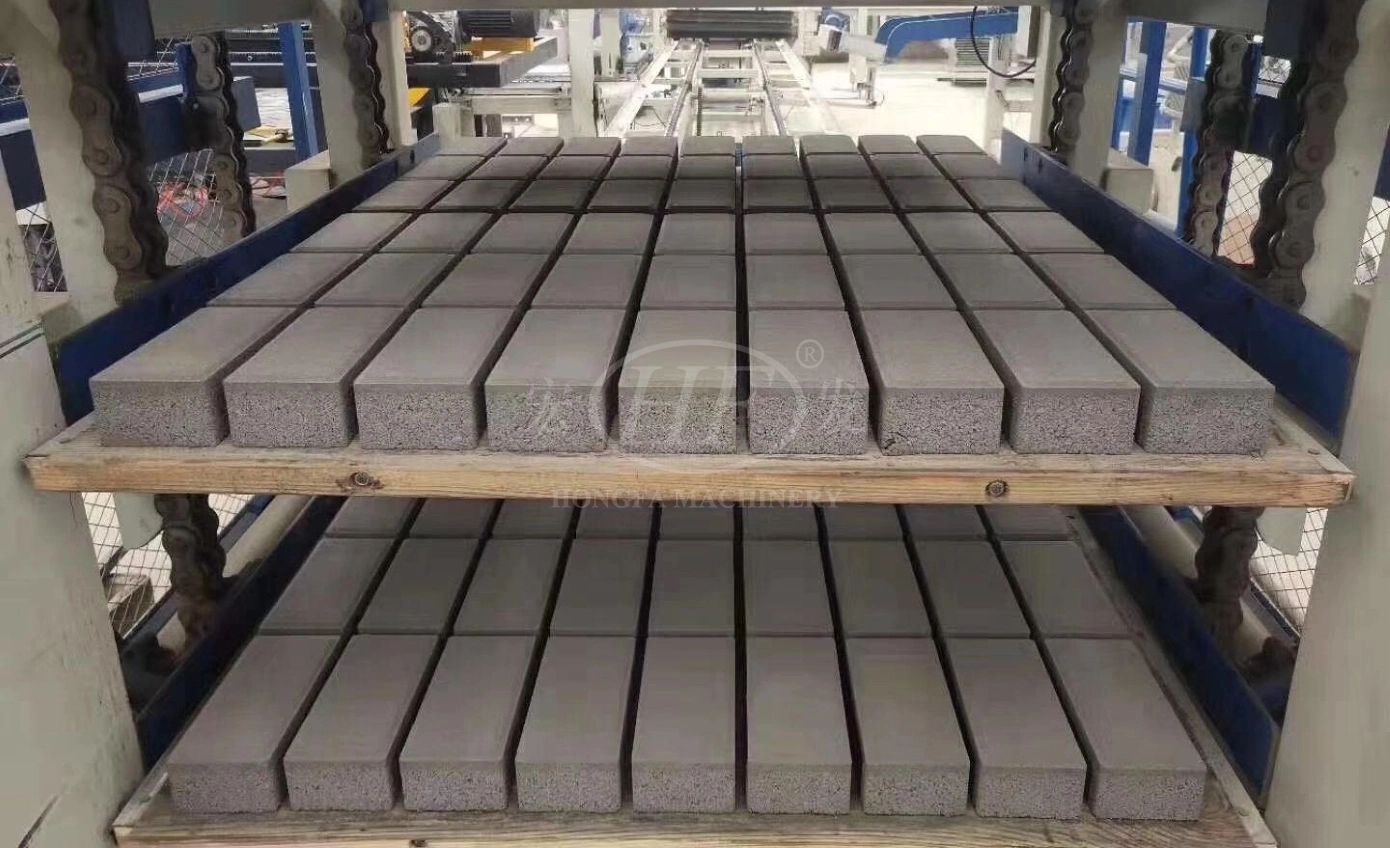

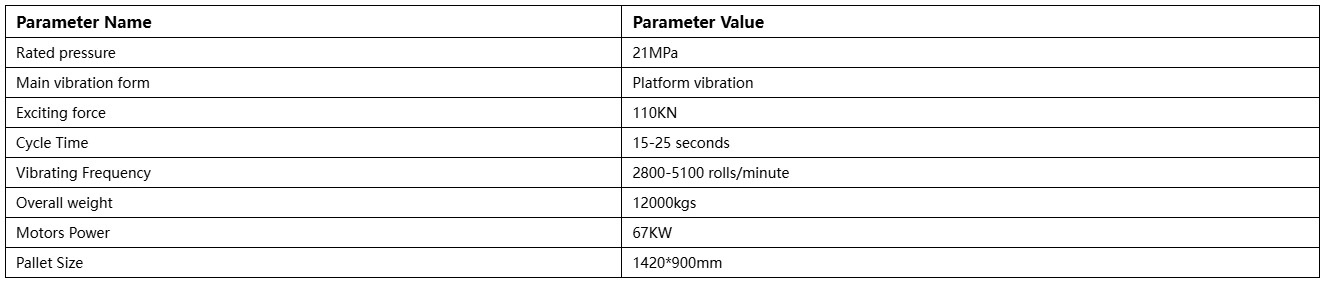

QT12‑15F adopts frequency‑conversion synchronous table‑vibration with max 110KN exciting force and 21MPa rated working pressure. Process parameters of low‑frequency feeding and high‑frequency compaction are optimized for full‑filled solid brick production. Concrete mix is fully compacted without loose inner interlayers. Finished solid bricks feature flat surface and intact edges with low cracking or chipping rate. Height deviation among bricks on single pallet is minimal with outstanding product consistency, which reduces waste of cement, aggregates and reject loss. Output solid bricks satisfy overseas construction acceptance requirements and help you secure long‑term project supply contracts.
2. Large Output plus 25% Energy Saving, Double Reduction On Per‑solid‑brick Operating Cost
For standard 240×115×53 mm solid bricks, forming cycle only takes 15‑17 seconds with 65 pieces per mould. Output reaches 110100‑124800 pieces within an 8‑hour working shift. Built‑in automatic pallet feeder and green‑brick discharging mechanism cut manual‑handling labour cost. Equipped with frequency‑conversion synchronous vibration control system and European‑technology universal drive‑shaft transmission, the machine saves 25% power consumption compared with peer‑grade block machines. Electricity expenditure drops remarkably during long‑hour continuous solid‑brick production. Large single‑machine capacity together with energy‑saving design lower comprehensive operating cost per solid brick, strengthen your local‑market price advantage, accelerate ROI and help you handle heavy‑volume engineering orders.
3. Heavy‑duty Thickened Frame & Imported Core Components, Resist Continuous Heavy‑load Solid‑brick Pressing & Less Downtime Risk
Full‑filled high‑frequency solid‑brick pressing brings continuous intense impact and puts high demand on anti‑fatigue performance of frame, transmission and hydraulic parts. QT12‑15F main frame is integrally welded with 20×20cm heavy‑duty square steel from reputable Laigang & Jigang steel mills, total machine weight reaches 12000kgs. It resists frame deformation and weld crack under long‑time heavy‑load vibration and pressing. Hydraulic system adopts original Germany Rexroth hydraulic components; electrical and touch‑screen parts are imported Siemens brand. Universal drive‑shaft replaces traditional direct motor drive to effectively avoid frequent motor burnout. All hardware is reinforced for non‑stop heavy‑duty solid‑brick production to extend key‑component service life and lower unexpected breakdown risk. You can avoid delivery delay during order peak period, save extra spare‑part expenditure and protect your business reputation. One spare‑parts kit is supplied as standard for daily production.
4. Wear‑resistant Carburized Manganese‑steel Mould, Easy Mould‑change for Diversified Solid‑brick Orders
One high‑manganese‑steel solid‑brick mould is supplied as standard. It goes through carburizing heat‑treatment and precise wire‑cutting processing for high hardness, outstanding wear resistance and high machining precision to guarantee neat and uniform brick appearance. Mould disassembly and replacement is simple and fast. You can rapidly produce solid bricks of different thicknesses and dimensions just by swapping moulds. Only one single host covers production of standard solid bricks, thickened engineering solid bricks and other products. There is no need to purchase multiple block‑making machines, saving your capital investment and enabling fast response to customers’ varied specifications.
5. Siemens PLC Intelligent Control System with Remote Monitoring & Diagnosis, Lower Labour‑skill Requirement

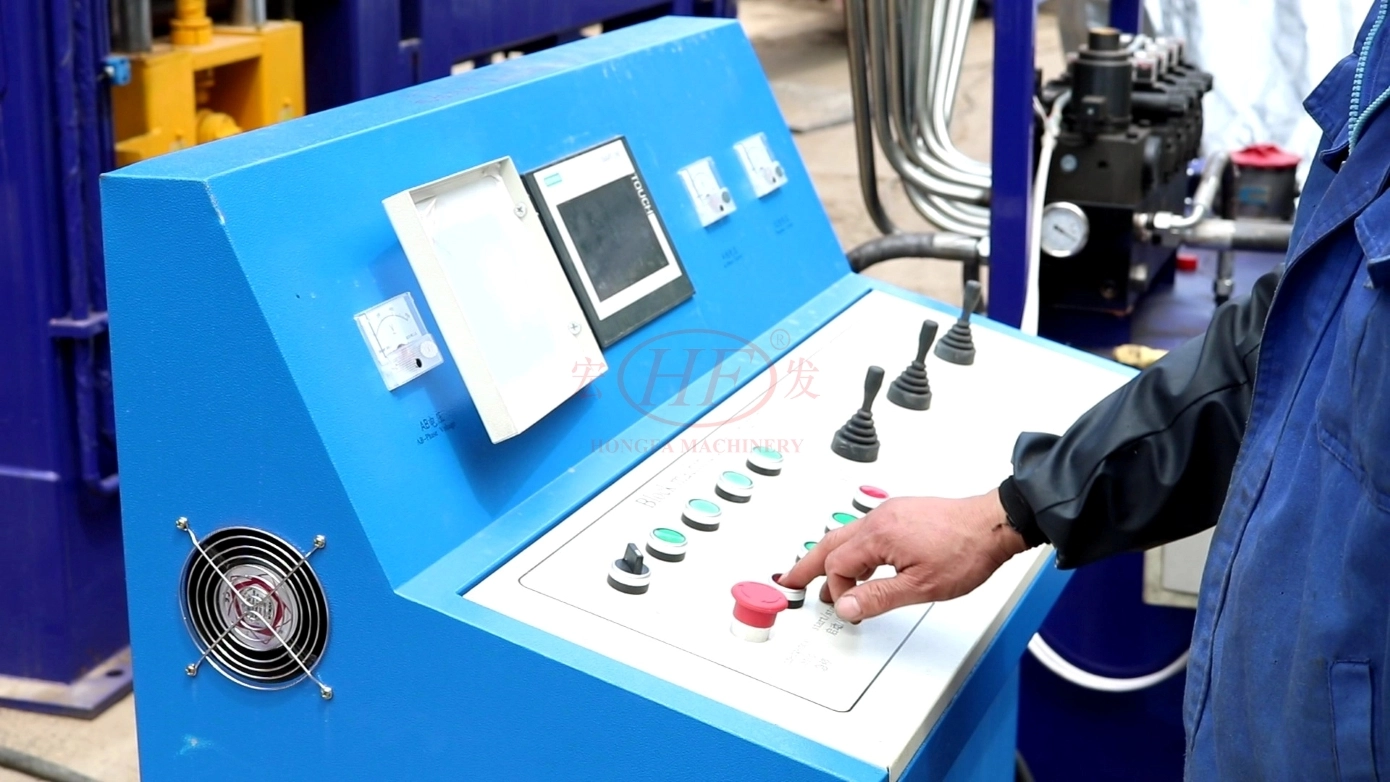

The host is equipped with complete Siemens PLC intelligent control system and touch‑screen HMI, pre‑installed with dedicated solid‑brick forming program and supporting remote monitoring & diagnosis functions. Operation workflow is straightforward. Ordinary workers can run solid‑brick production after simple training, no high‑salary senior technicians required, helping you control factory labour cost. Production parameters including feeding, vibration and pressing are automatically managed by program to reduce defective bricks caused by manual mis‑operation. It fits stable large‑scale continuous production for overseas medium‑and‑large block factories.
1. High‑density Solid Bricks with Excellent Consistency, Less Scrap Loss & Meet Engineering Procurement Standards
QT12‑15F adopts frequency‑conversion synchronous table‑vibration with max 110KN exciting force and 21MPa rated working pressure. Process parameters of low‑frequency feeding and high‑frequency compaction are optimized for full‑filled solid brick production. Concrete mix is fully compacted without loose inner interlayers. Finished solid bricks feature flat surface and intact edges with low cracking or chipping rate. Height deviation among bricks on single pallet is minimal with outstanding product consistency, which reduces waste of cement, aggregates and reject loss. Output solid bricks satisfy overseas construction acceptance requirements and help you secure long‑term project supply contracts.
2. Large Output plus 25% Energy Saving, Double Reduction On Per‑solid‑brick Operating Cost

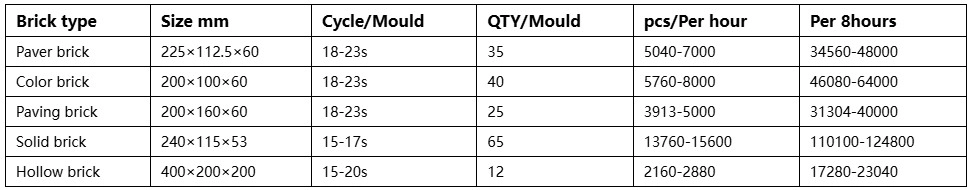

For standard 240×115×53 mm solid bricks, forming cycle only takes 15‑17 seconds with 65 pieces per mould. Output reaches 110100‑124800 pieces within an 8‑hour working shift. Built‑in automatic pallet feeder and green‑brick discharging mechanism cut manual‑handling labour cost. Equipped with frequency‑conversion synchronous vibration control system and European‑technology universal drive‑shaft transmission, the machine saves 25% power consumption compared with peer‑grade block machines. Electricity expenditure drops remarkably during long‑hour continuous solid‑brick production. Large single‑machine capacity together with energy‑saving design lower comprehensive operating cost per solid brick, strengthen your local‑market price advantage, accelerate ROI and help you handle heavy‑volume engineering orders.
3. Heavy‑duty Thickened Frame & Imported Core Components, Resist Continuous Heavy‑load Solid‑brick Pressing & Less Downtime Risk
Full‑filled high‑frequency solid‑brick pressing brings continuous intense impact and puts high demand on anti‑fatigue performance of frame, transmission and hydraulic parts. QT12‑15F main frame is integrally welded with 20×20cm heavy‑duty square steel from reputable Laigang & Jigang steel mills, total machine weight reaches 12000kgs. It resists frame deformation and weld crack under long‑time heavy‑load vibration and pressing. Hydraulic system adopts original Germany Rexroth hydraulic components; electrical and touch‑screen parts are imported Siemens brand. Universal drive‑shaft replaces traditional direct motor drive to effectively avoid frequent motor burnout. All hardware is reinforced for non‑stop heavy‑duty solid‑brick production to extend key‑component service life and lower unexpected breakdown risk. You can avoid delivery delay during order peak period, save extra spare‑part expenditure and protect your business reputation. One spare‑parts kit is supplied as standard for daily production.
4. Wear‑resistant Carburized Manganese‑steel Mould, Easy Mould‑change for Diversified Solid‑brick Orders
One high‑manganese‑steel solid‑brick mould is supplied as standard. It goes through carburizing heat‑treatment and precise wire‑cutting processing for high hardness, outstanding wear resistance and high machining precision to guarantee neat and uniform brick appearance. Mould disassembly and replacement is simple and fast. You can rapidly produce solid bricks of different thicknesses and dimensions just by swapping moulds. Only one single host covers production of standard solid bricks, thickened engineering solid bricks and other products. There is no need to purchase multiple block‑making machines, saving your capital investment and enabling fast response to customers’ varied specifications.
5. Siemens PLC Intelligent Control System with Remote Monitoring & Diagnosis, Lower Labour‑skill Requirement
The host is equipped with complete Siemens PLC intelligent control system and touch‑screen HMI, pre‑installed with dedicated solid‑brick forming program and supporting remote monitoring & diagnosis functions. Operation workflow is straightforward. Ordinary workers can run solid‑brick production after simple training, no high‑salary senior technicians required, helping you control factory labour cost. Production parameters including feeding, vibration and pressing are automatically managed by program to reduce defective bricks caused by manual mis‑operation. It fits stable large‑scale continuous production for overseas medium‑and‑large block factories.
