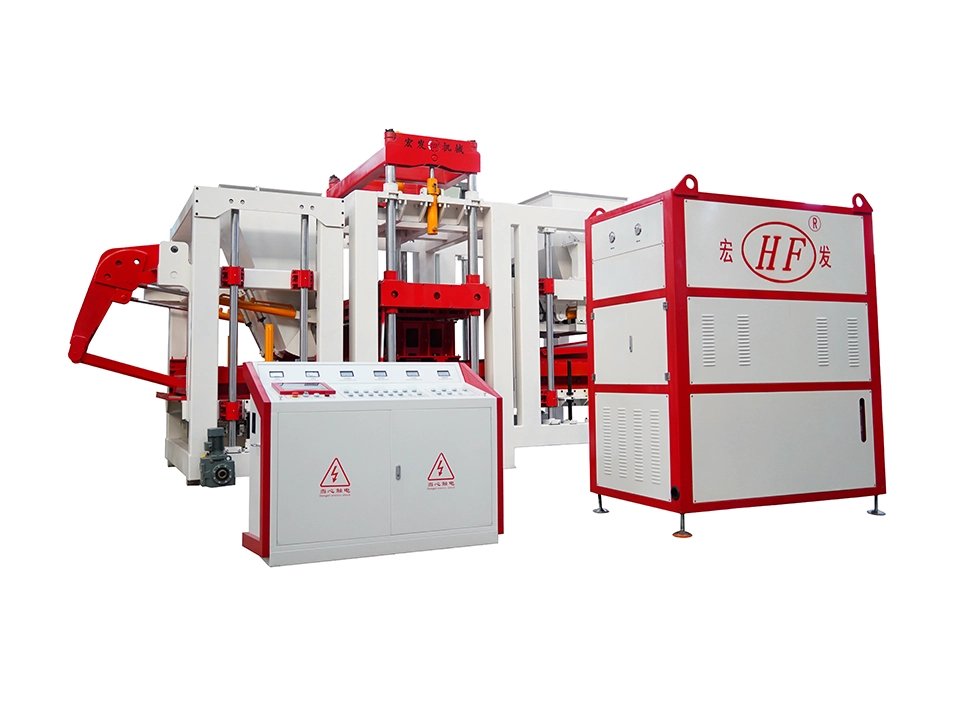

QT10‑15C Automatic Curbstone Making Machine | High‑Output Concrete Curb Stone Production Equipment_Fully automatic brick making machine_Products

Product advantages

Core Advantage of QT10‑15C Automatic Curbstone Making Machine

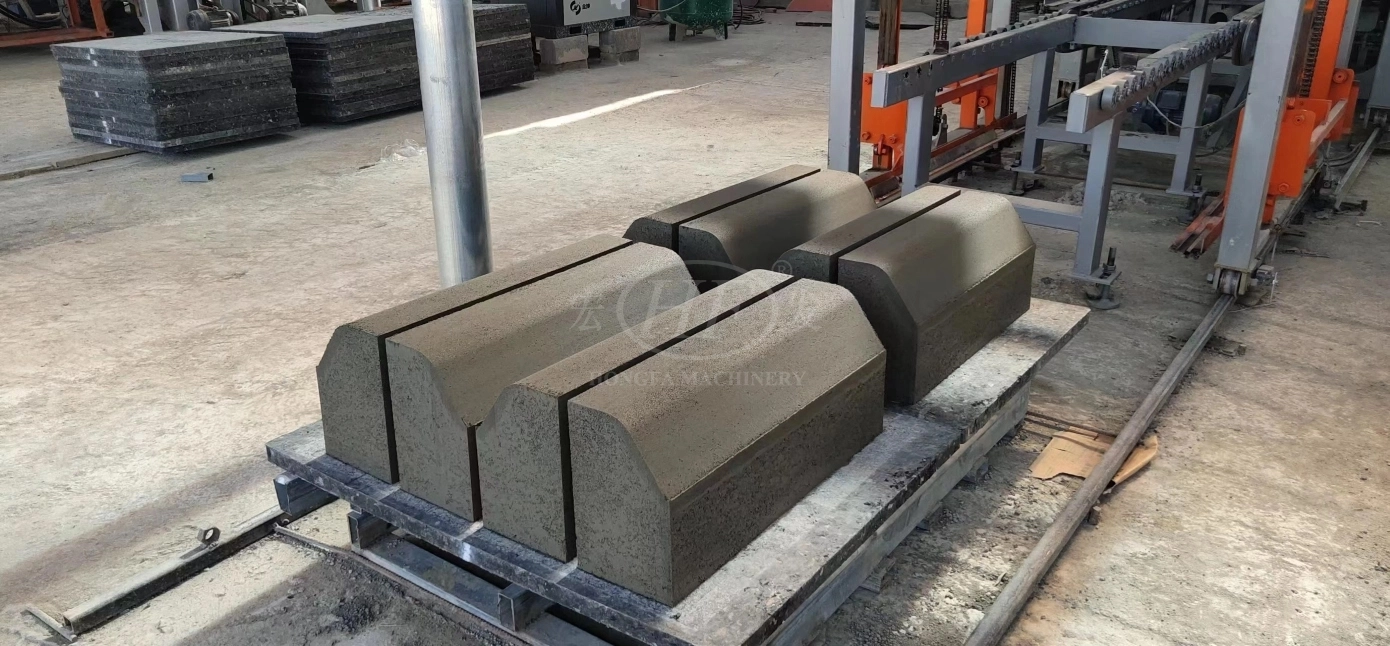

1. Optimized for heavy‑section curbstone forming, complete sharp corners & high strength to meet strict municipal acceptance standards

Curbstones are heavy‑section concrete components, which are prone to corner shortage, insufficient internal compaction and surface defects during forming. QT10‑15C adopts 21MPa high‑pressure system and 110KN powerful table exciting force with adjustable frequency vibration. Low‑frequency feeding fills mold cavity thoroughly, while high‑frequency vibration plus pressing guarantees full compaction for every corner of heavy curbstone molds. Produced curbstone green blocks feature uniform dense interior, sharp intact outlines without chipping, edge breakage or honeycomb defects. Finished curbs reach qualified compressive strength with tight dimensional tolerance, fully satisfying municipal road inspection standards. Reliable curbstone quality strengthens your competitiveness in municipal bidding and project supply contracts, helping you secure long‑term bulk orders and avoid economic losses from rejected products and deductions.

详情1

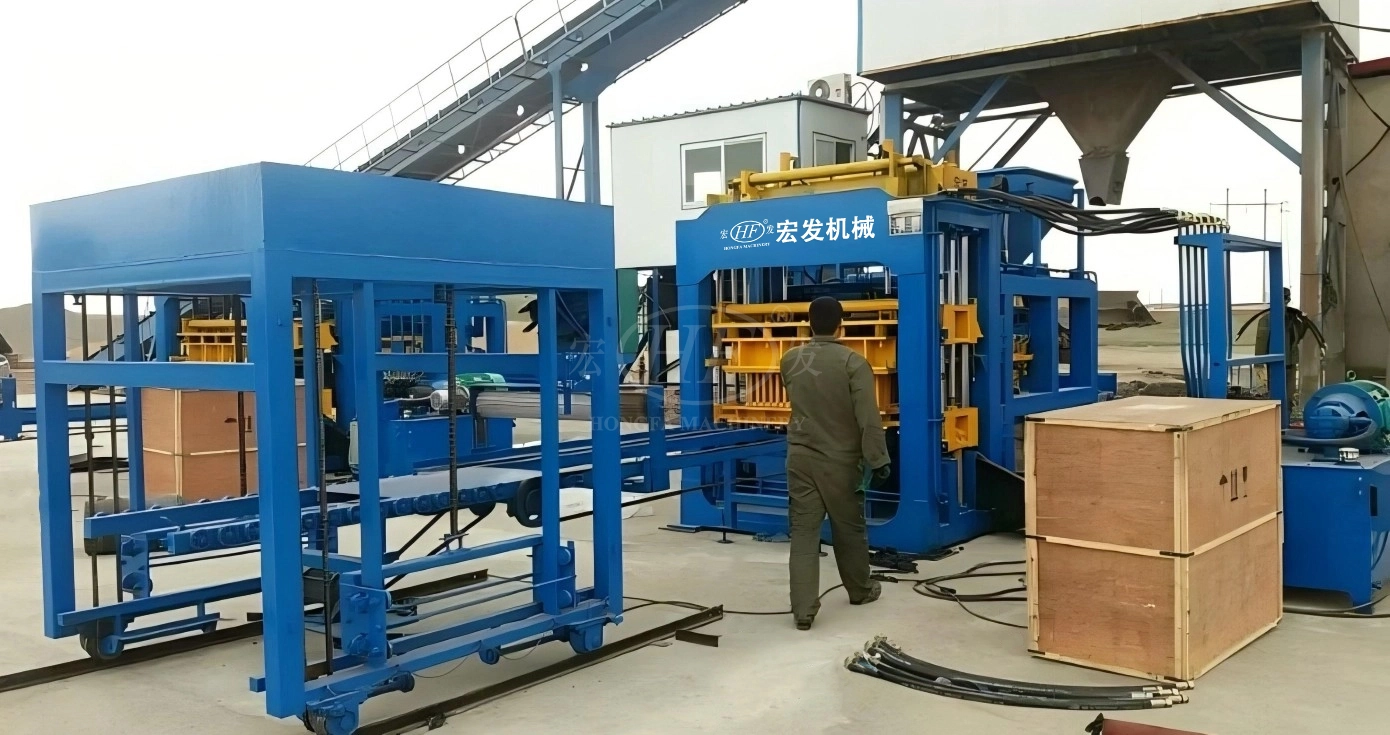

2. Large‑size worktable with stable cyclic output, handle large‑volume municipal curbstone orders and secure project delivery

Equipped with large 1100×900 mm worktable, multiple standard curbstones can be formed per mold cycle with 15‑20 s cycle time. Full workflow including pallet feeding, material feeding, vibration‑pressing and brick discharging runs automatically. Only minimal workers are required for supervision and green block handling, cutting labor cost per curbstone. Faced with huge curbstone demands from road reconstruction and new‑district construction, the machine supports long‑hour non‑stop mass production. Stable hourly output shortens production cycle and guarantees on‑time supply for municipal projects. You do not need to purchase extra main machines for peak‑season orders and maximize plant output revenue.

详情2

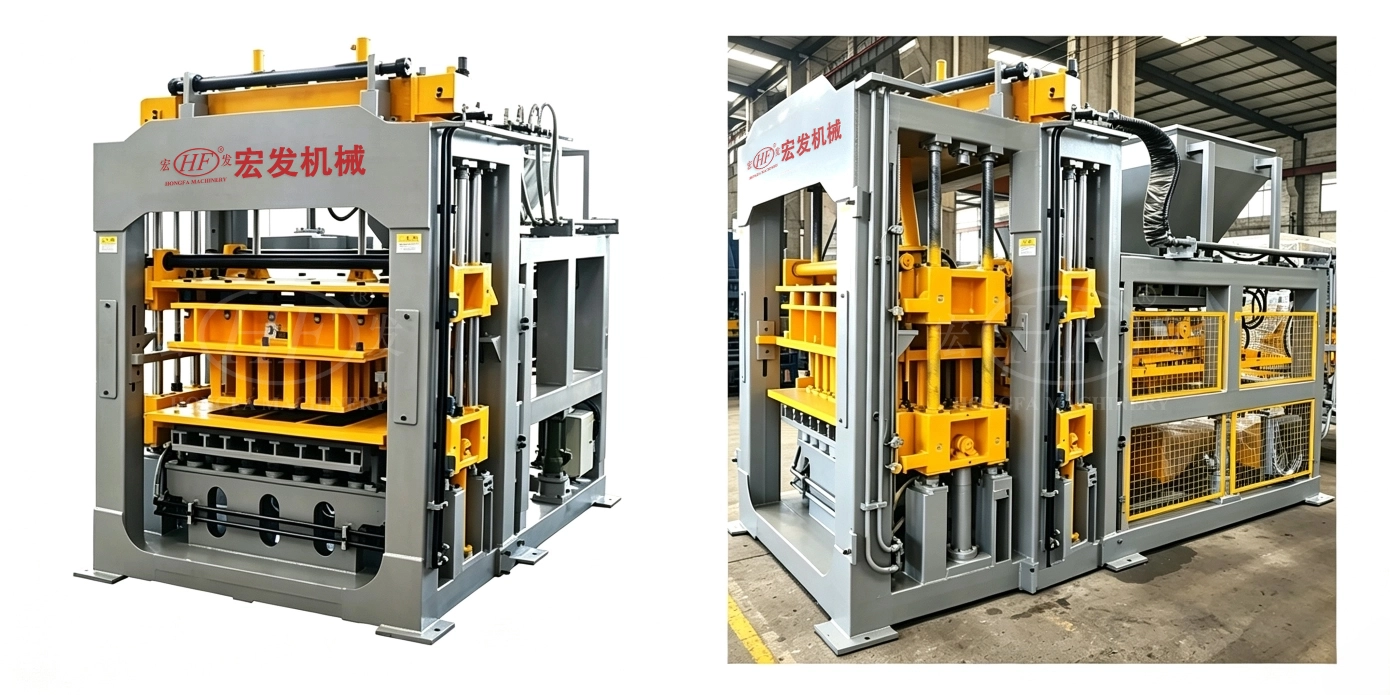

3. Reinforced heavy‑duty hardware for heavy‑load curbstone production, lower downtime risk and project breach loss

Continuous curbstone production brings repeated heavy pressure and high‑frequency vibration impact. Instead of direct‑driven vibration motors, QT10‑15C adopts vibration box transmission structure to reduce motor burnout risk. It is equipped with complete Taiwan Calyca hydraulic system and thickened welded heavy‑duty frame for superior anti‑fatigue performance. Independent hydraulic station isolates precision hydraulic components from on‑site dust and strong vibration to extend service life of core spare parts. Unexpected shutdown probability is greatly reduced, avoiding losses including green block scrap, raw‑material waste and municipal project compensation caused by machine failure. Less spare‑part replacement cuts long‑term maintenance cost and guarantees stable production scheduling for curbstone projects.

详情3

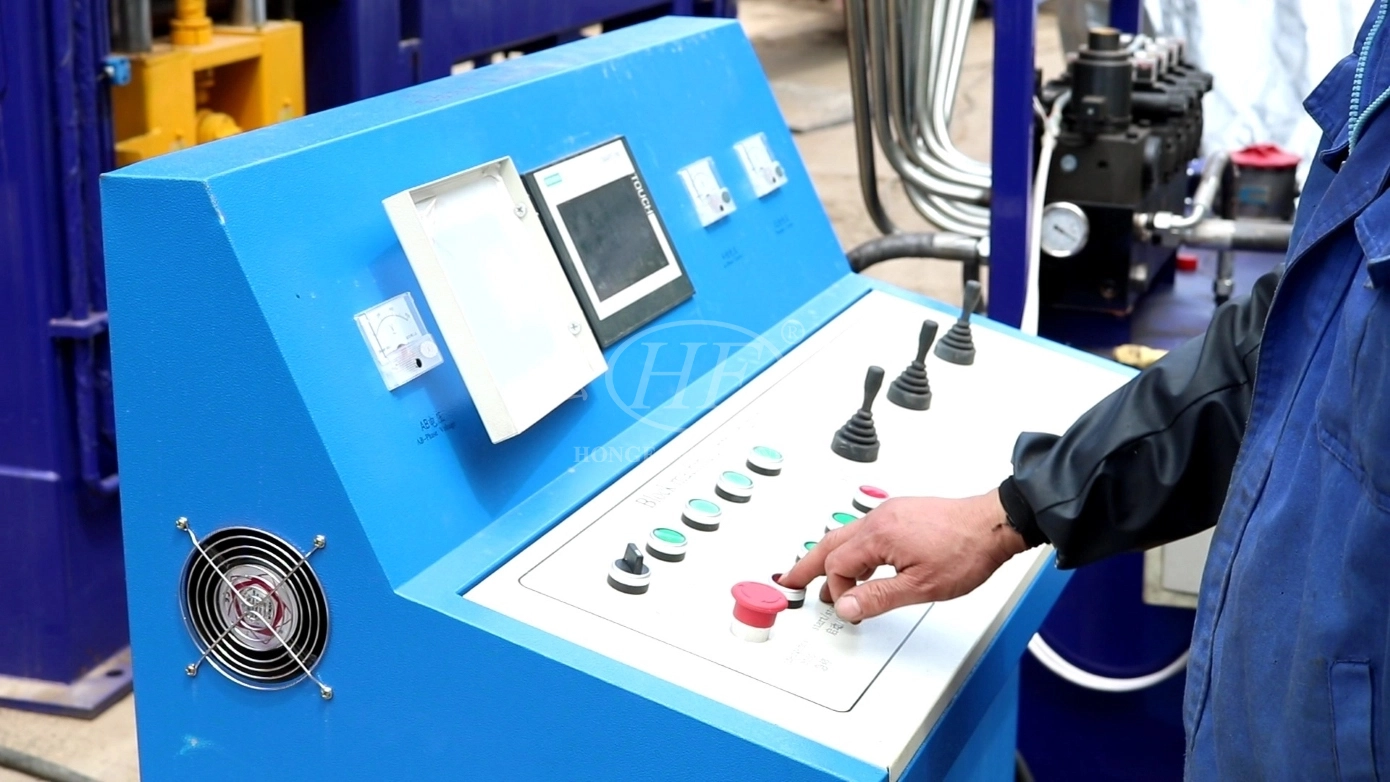

4. SIEMENS PLC intelligent control, storable process profiles for fast change‑over between standard & special‑shape curbstones, reduce trial‑run waste

Core electrical components are SIEMENS brand with multi‑language touch‑screen HMI and fault early‑warning function. Process parameters including pre‑vibration, feeding cycle, pressing and pressure‑holding for different height, thickness and chamfered or arc‑shaped special curbstones can be saved as independent brick profiles. When switching among standard, chamfered or arc curbstones, simply recall saved parameters for formal production without repeated manual tuning. It shortens change‑over time and cuts defective green blocks and raw‑material waste during mold change. Built‑in safety interlock logic lowers operator skill requirement after simple training. Mixed‑batch orders with multiple curbstone specifications can be handled efficiently to satisfy diversified municipal procurement demands.

详情4

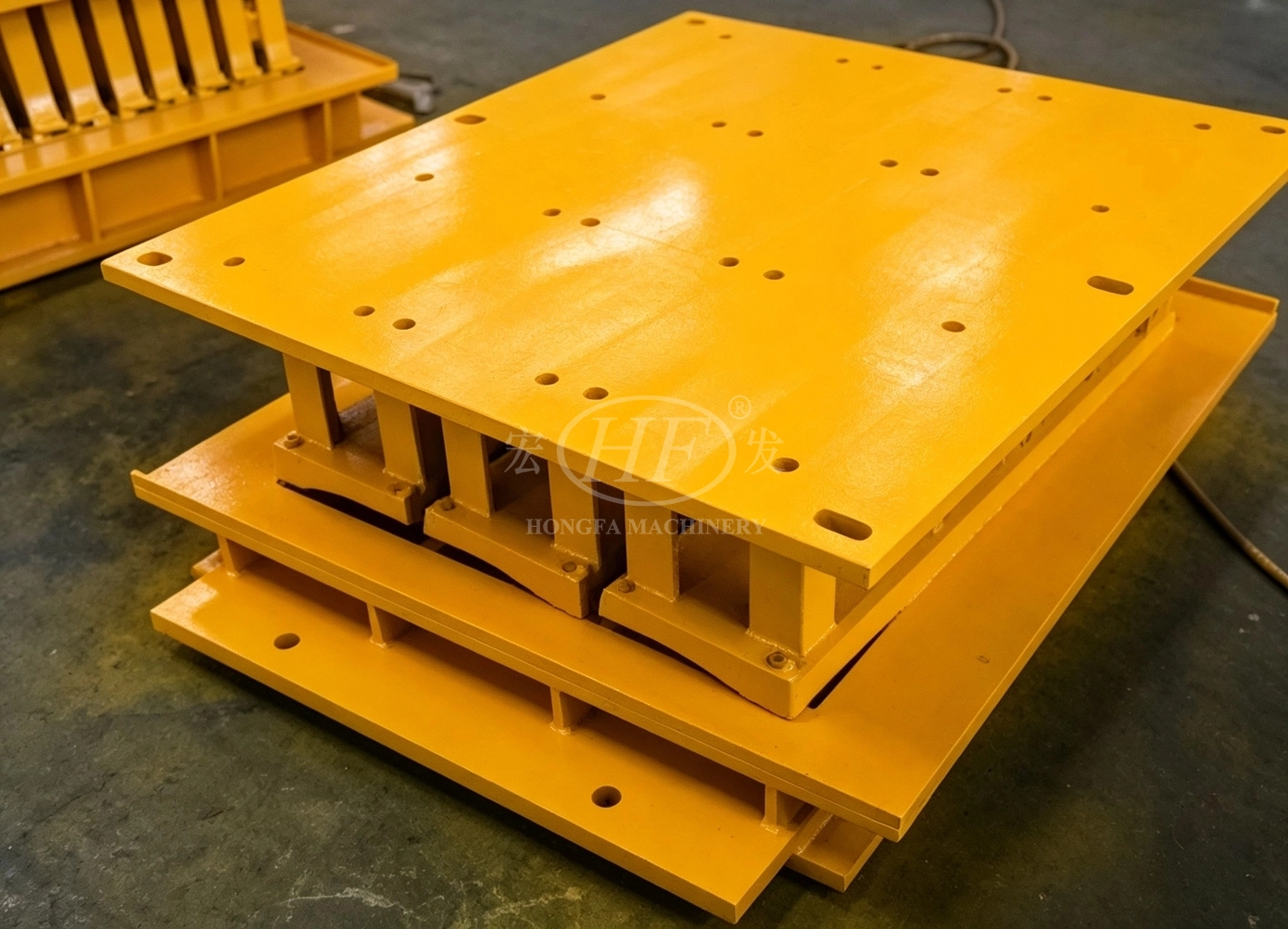

5. Wear‑resistant 45Mn high‑manganese steel custom moulds, wide raw‑material compatibility, lower curbstone unit cost via local material sourcing

Curbstone moulds adopt 45Mn high‑manganese steel with carburizing heat treatment and wire‑cut finishing. High hardness and excellent wear‑resistance extend mould service life under repeated high‑pressure curbstone forming and reduce extra mould replacement investment. Besides standard sand‑stone‑cement formula, the machine can process locally available slag, fly ash, stone chips and recycled construction waste. Sourcing cheap local raw materials eliminates expensive long‑distance transportation cost. Cement proportion can be reasonably optimized while curbstone strength, freeze‑thaw and impact‑resistance performance remain qualified. It brings obvious cost advantage for municipal project quotation and guarantees decent profit margin for every batch of orders.

详情5

6. Modular quick‑change mold design, extendable full curbstone production line, multi‑product capability for better return on investment

Modular quick‑release mold structure enables fast switch for standard, chamfered and arc‑shaped special curbstones. Without major modification, one single machine also produces paving blocks, hollow blocks, grass‑planting blocks and other municipal building products. No need to invest in multiple forming hosts for different municipal products, lowering initial capital expenditure. You can select PLD1200‑III batching machine, JS750 twin‑shaft mixer, automatic stacker, pallet elevator and other auxiliaries to build semi‑automatic or fully‑automatic complete curbstone production line. One‑stop integrated solution avoids compatibility risks caused by scattered multi‑supplier purchasing. Mass production can be launched quickly after site commissioning to accelerate project payback period.
