1. High‑exciting‑force Vibration Box & 21 MPa High‑pressure Hydraulic System, High‑density Blocks & Lower Reject Rate
QT10‑15C adopts heavy‑duty independent vibration box instead of traditional direct‑drive vibration‑motor solution, with 110 KN exciting force cooperating with stable 21 MPa hydraulic pressing. Variable‑frequency vibration is available: low‑frequency vibration ensures full material filling in mold cavity; high‑frequency vibration plus hydraulic pressure expels trapped air bubbles during forming. Finished blocks feature even density, high compression strength and intact edges, reducing rejects caused by looseness or corner chipping. Products meet acceptance standards for building and municipal projects, cutting raw‑material waste and guaranteeing order quality.

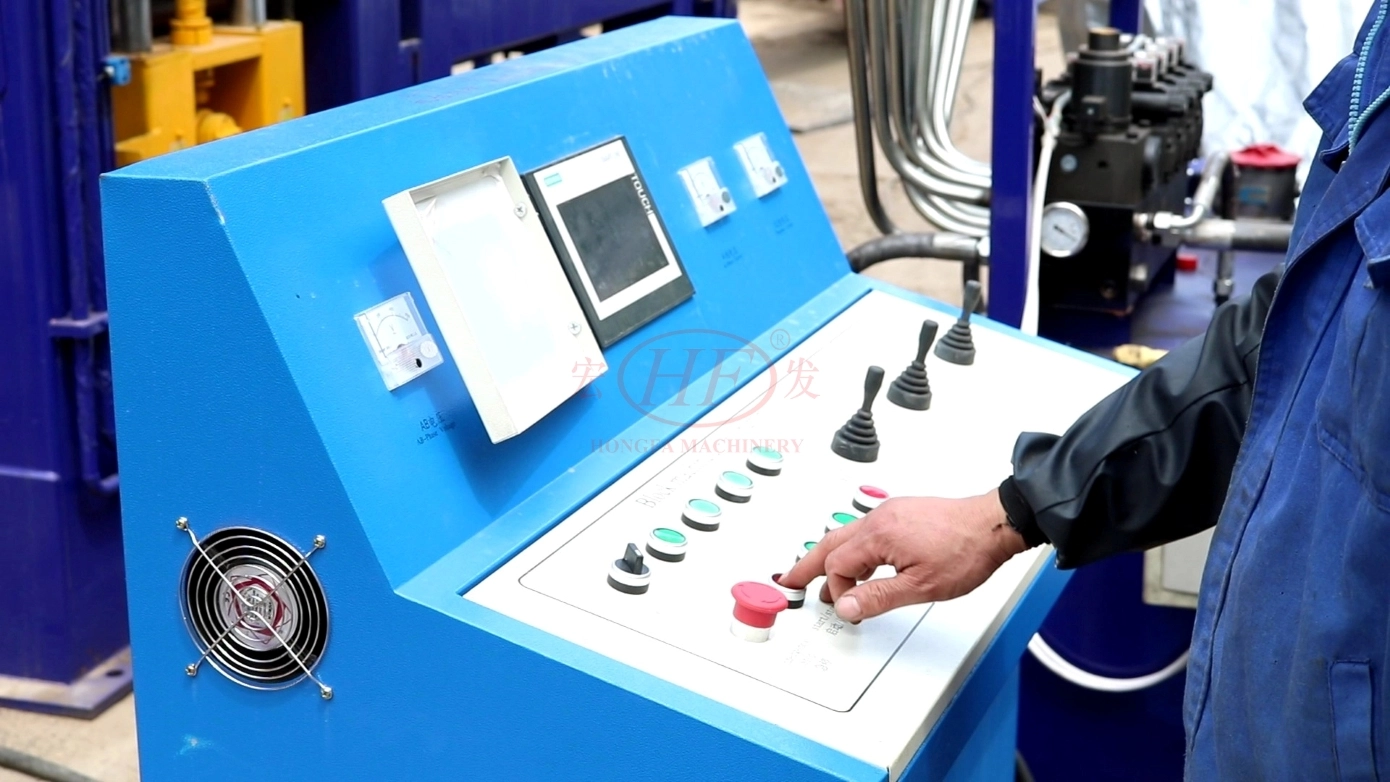

2. Full‑set Siemens PLC & Touch‑screen Control, Multi‑language Support, Less Reliance on Skilled Operators
Equipped with complete Siemens electrical components and touch‑screen HMI. Full workflow including pallet feeding, material feeding, vibration‑press forming, demolding and block discharging runs fully‑automatically. Production parameters for different block types can be stored and recalled by one‑click when switching products. Multi‑language display adapts for operators from various countries. Built‑in program interlock prevents mold collision from mis‑operation. Ordinary workers can run mass‑production after short training, without highly‑experienced senior staff, saving labor‑management cost.

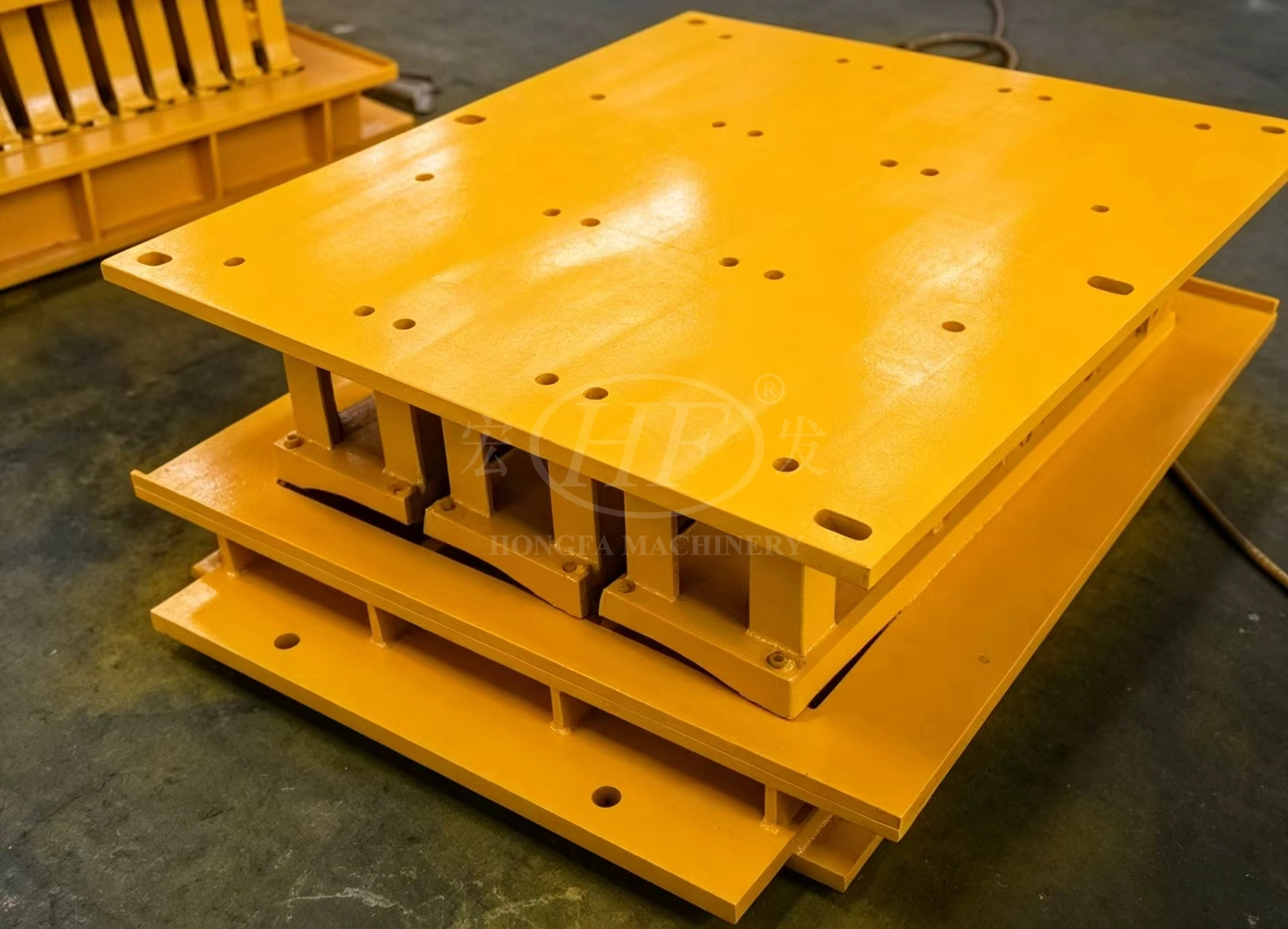

3. 45Mn Manganese‑steel Carburizing‑treated Precision Molds, Multi‑product Compatibility for Diversified Market Orders
Molds are manufactured of 45Mn manganese‑steel with carburizing heat treatment and precise wire‑cutting processing, delivering high dimensional accuracy and long wear‑resistant service life. Large‑size 1100×900 mm pallet brings high output per cycle. You can produce hollow blocks, standard bricks, solid blocks, grass blocks and curbstones simply by swapping molds. Wearing mold parts can be replaced separately instead of whole‑set mold replacement to cut consumable cost. One machine covers multiple product demands and improves return‑on‑investment without purchasing extra main machines.

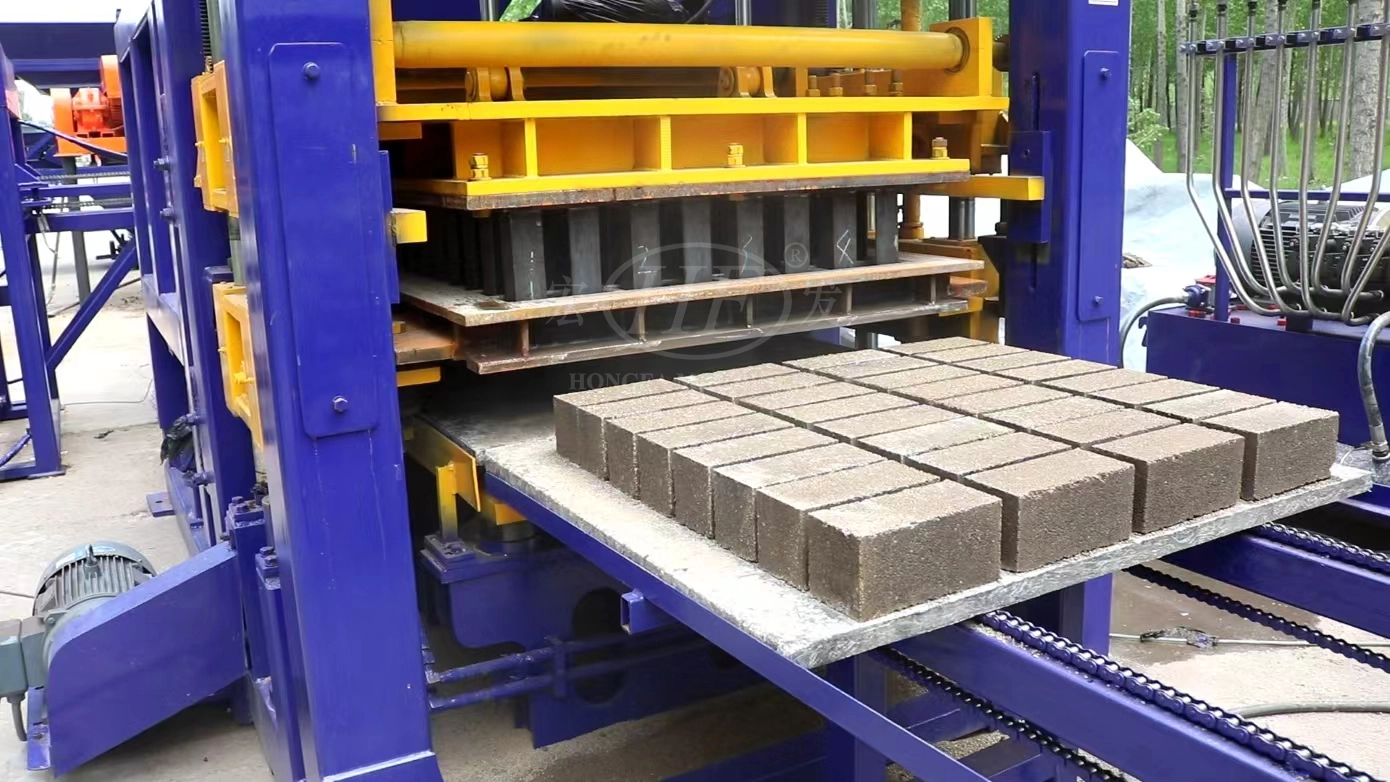

4. Large‑size Pallet for High Output, Suitable for Large‑scale Plants & Better Unit‑product Benefit
The 1100×900 mm over‑sized pallet achieves large quantity per molding cycle with 15‑20 s cycle time for high hourly capacity, perfect for non‑stop shift‑production in large block plants. Heavy‑duty welded frame withstands long‑time high‑frequency vibration. Higher daily output under same site condition helps you fulfill bulk orders and amortize machine depreciation cost for each finished block.

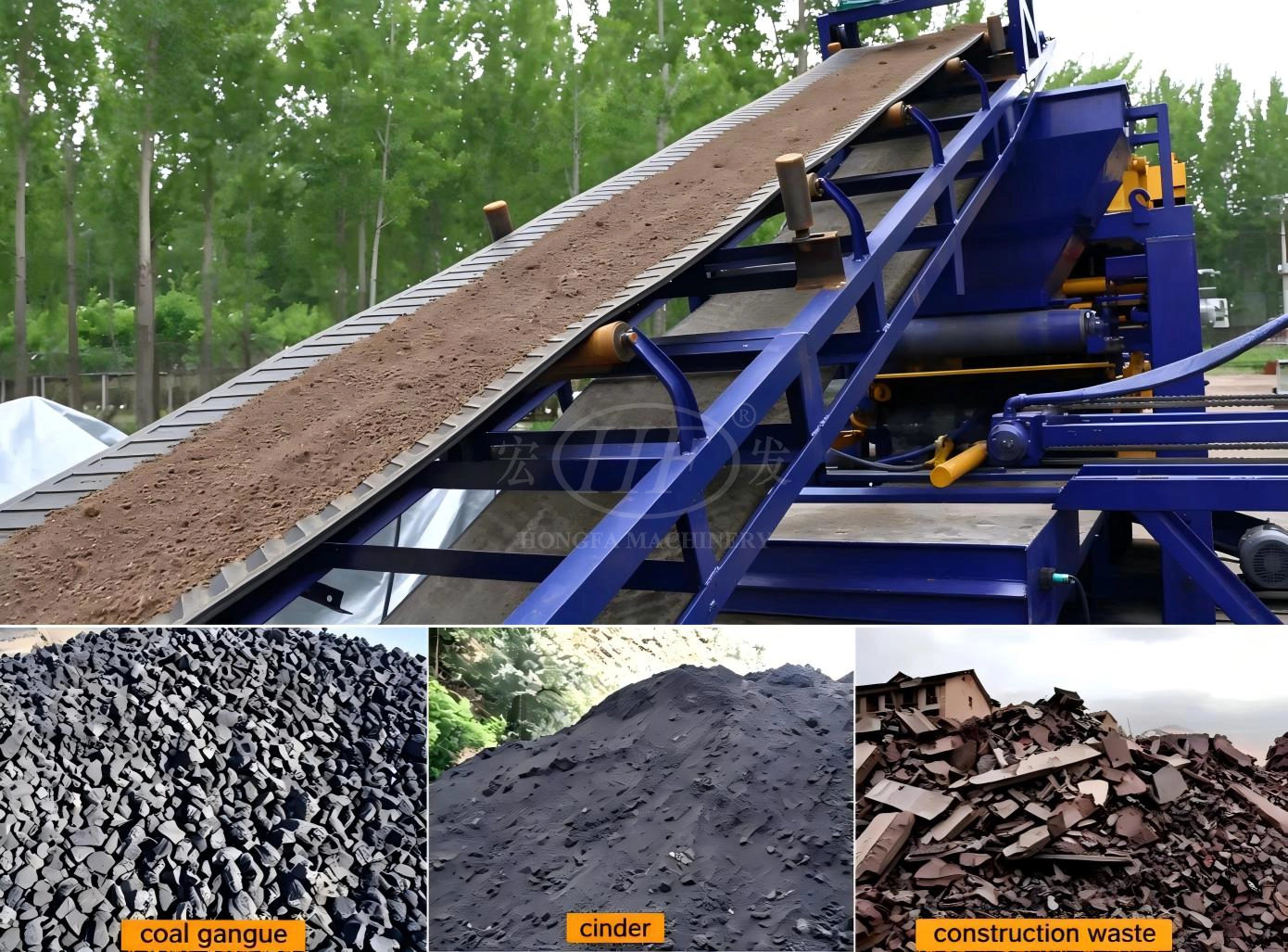

5. Wide Raw‑material Compatibility, High Utilization of Industrial Residues to Cut Raw‑material Expense
Besides conventional sand, stone powder and cement, the machine can process fly ash, furnace slag, gangue and other industrial residues. Customers can make full use of local available aggregates and waste materials and reduce cement consumption while keeping block strength. Local‑resource utilization lowers procurement cost and strengthens product price competitiveness.

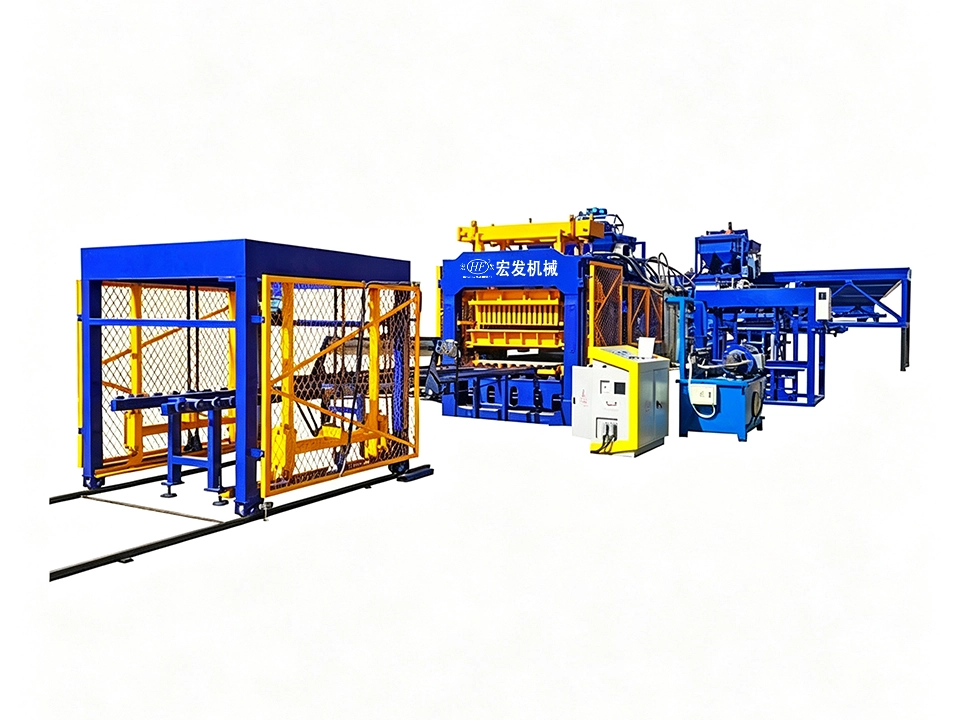

6. Modular Complete‑line Solution, Optional Auxiliary Units, Convenient Container Shipment & Reliable Project Delivery
QT10‑15C adopts split‑modular design. Full complete production line requires 3 sets of 40HQ containers for sea transportation. Complete electro‑hydraulic joint test is finished before delivery. You can select auxiliary units including 100‑ton cement silo, PLD1200‑Ⅲ batching machine, JS750 twin‑shaft mixer, automatic block stacker and pallet elevator to build full‑automatic block production line. After on‑site positioning, leveling, power and pipe connection, mass‑production can be started with simple commissioning. Original spare‑parts are continuously supplied to secure long‑term stable operation for large‑scale building‑material projects.
1. High‑exciting‑force Vibration Box & 21 MPa High‑pressure Hydraulic System, High‑density Blocks & Lower Reject Rate
QT10‑15C adopts heavy‑duty independent vibration box instead of traditional direct‑drive vibration‑motor solution, with 110 KN exciting force cooperating with stable 21 MPa hydraulic pressing. Variable‑frequency vibration is available: low‑frequency vibration ensures full material filling in mold cavity; high‑frequency vibration plus hydraulic pressure expels trapped air bubbles during forming. Finished blocks feature even density, high compression strength and intact edges, reducing rejects caused by looseness or corner chipping. Products meet acceptance standards for building and municipal projects, cutting raw‑material waste and guaranteeing order quality.
2. Full‑set Siemens PLC & Touch‑screen Control, Multi‑language Support, Less Reliance on Skilled Operators
Equipped with complete Siemens electrical components and touch‑screen HMI. Full workflow including pallet feeding, material feeding, vibration‑press forming, demolding and block discharging runs fully‑automatically. Production parameters for different block types can be stored and recalled by one‑click when switching products. Multi‑language display adapts for operators from various countries. Built‑in program interlock prevents mold collision from mis‑operation. Ordinary workers can run mass‑production after short training, without highly‑experienced senior staff, saving labor‑management cost.
3. 45Mn Manganese‑steel Carburizing‑treated Precision Molds, Multi‑product Compatibility for Diversified Market Orders
Molds are manufactured of 45Mn manganese‑steel with carburizing heat treatment and precise wire‑cutting processing, delivering high dimensional accuracy and long wear‑resistant service life. Large‑size 1100×900 mm pallet brings high output per cycle. You can produce hollow blocks, standard bricks, solid blocks, grass blocks and curbstones simply by swapping molds. Wearing mold parts can be replaced separately instead of whole‑set mold replacement to cut consumable cost. One machine covers multiple product demands and improves return‑on‑investment without purchasing extra main machines.
4. Large‑size Pallet for High Output, Suitable for Large‑scale Plants & Better Unit‑product Benefit
The 1100×900 mm over‑sized pallet achieves large quantity per molding cycle with 15‑20 s cycle time for high hourly capacity, perfect for non‑stop shift‑production in large block plants. Heavy‑duty welded frame withstands long‑time high‑frequency vibration. Higher daily output under same site condition helps you fulfill bulk orders and amortize machine depreciation cost for each finished block.
5. Wide Raw‑material Compatibility, High Utilization of Industrial Residues to Cut Raw‑material Expense
Besides conventional sand, stone powder and cement, the machine can process fly ash, furnace slag, gangue and other industrial residues. Customers can make full use of local available aggregates and waste materials and reduce cement consumption while keeping block strength. Local‑resource utilization lowers procurement cost and strengthens product price competitiveness.
6. Modular Complete‑line Solution, Optional Auxiliary Units, Convenient Container Shipment & Reliable Project Delivery
QT10‑15C adopts split‑modular design. Full complete production line requires 3 sets of 40HQ containers for sea transportation. Complete electro‑hydraulic joint test is finished before delivery. You can select auxiliary units including 100‑ton cement silo, PLD1200‑Ⅲ batching machine, JS750 twin‑shaft mixer, automatic block stacker and pallet elevator to build full‑automatic block production line. After on‑site positioning, leveling, power and pipe connection, mass‑production can be started with simple commissioning. Original spare‑parts are continuously supplied to secure long‑term stable operation for large‑scale building‑material projects.
