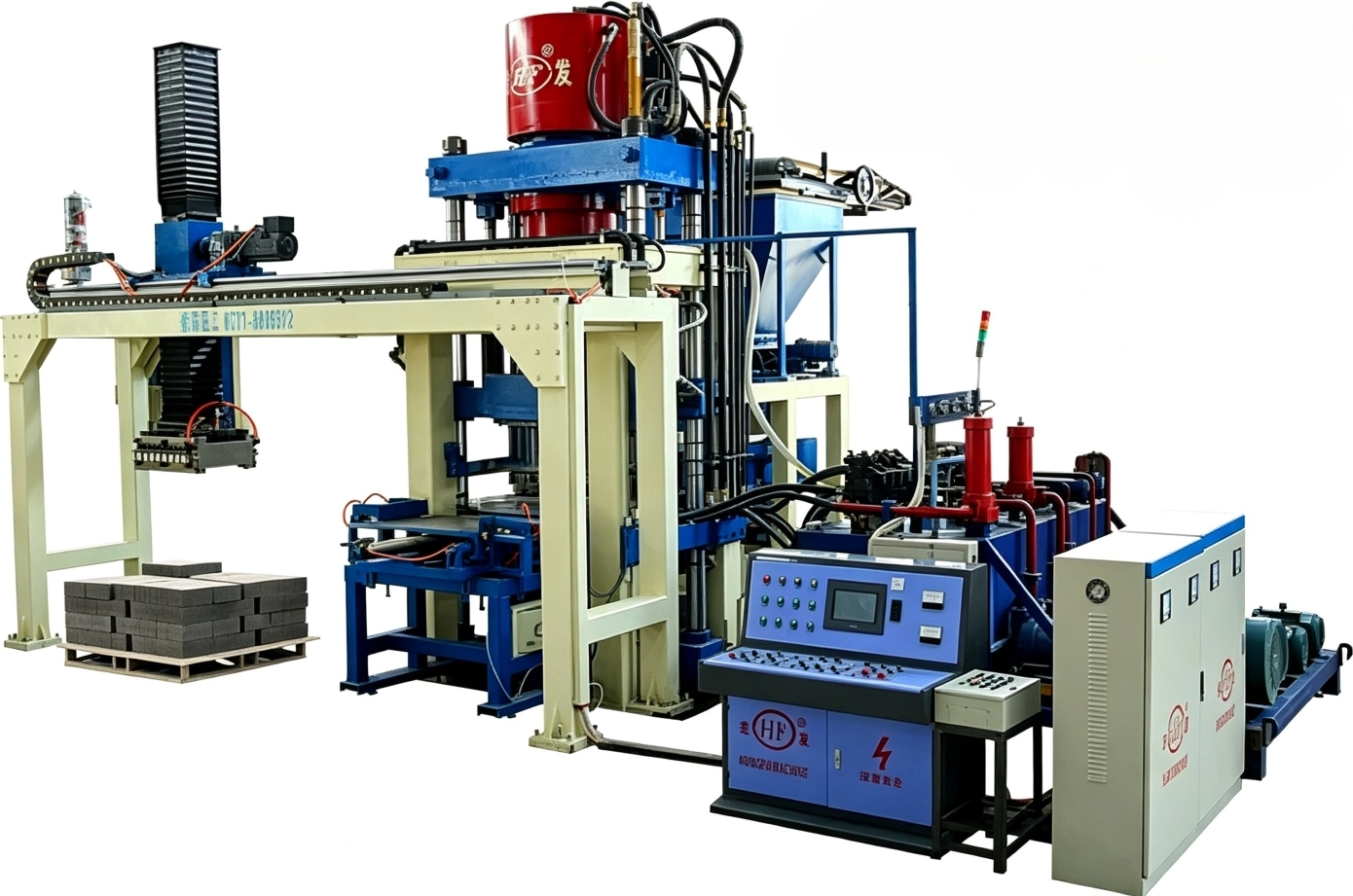

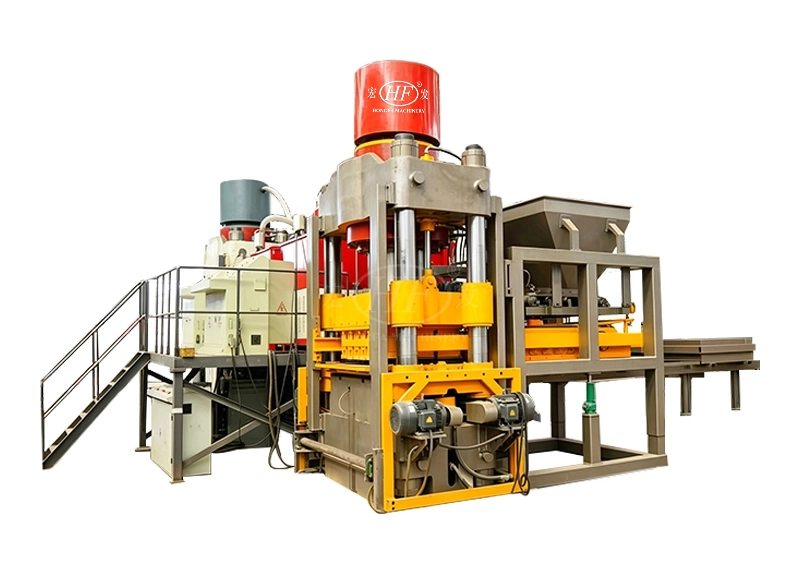

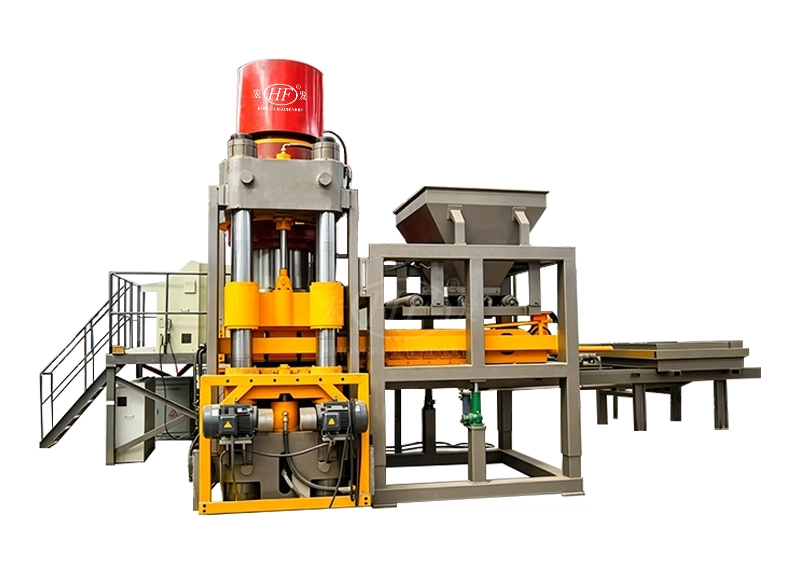

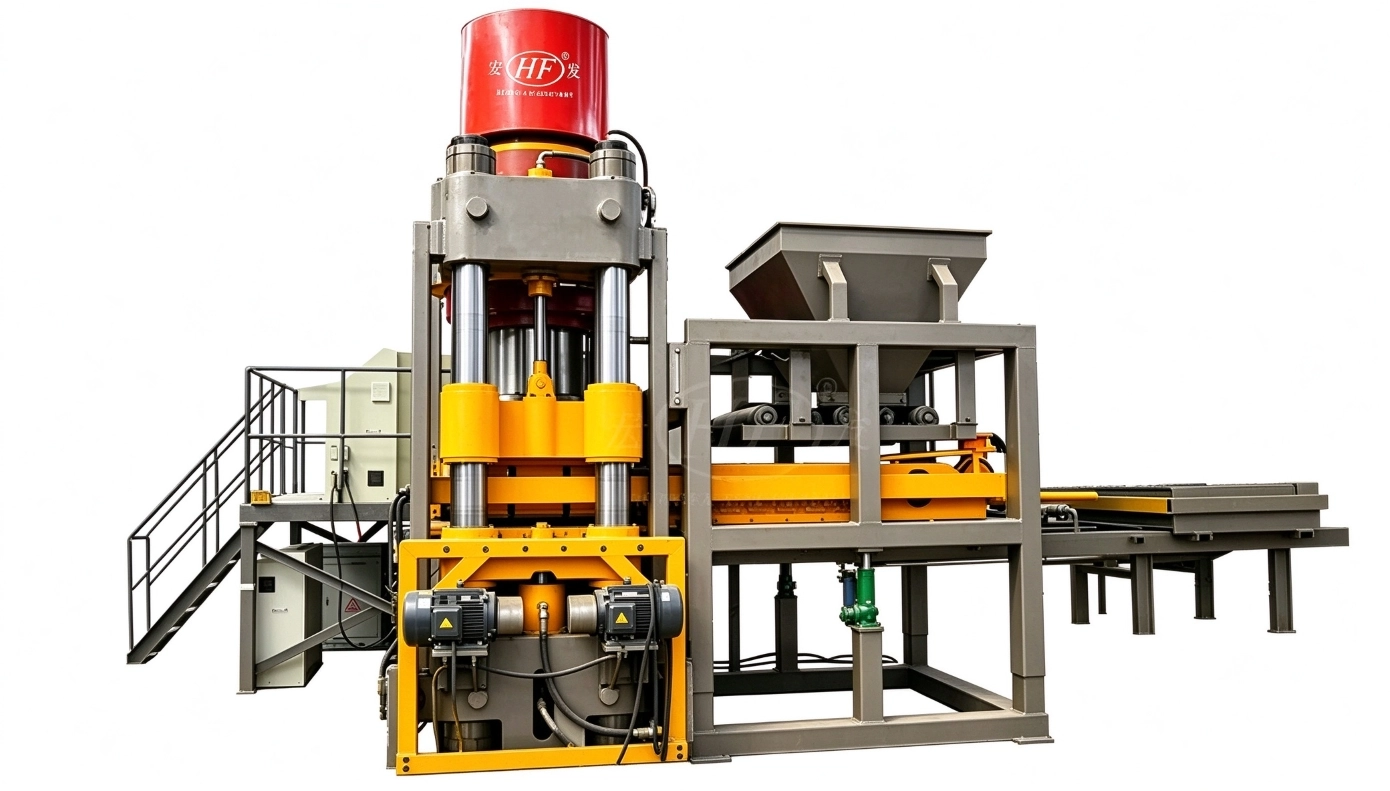

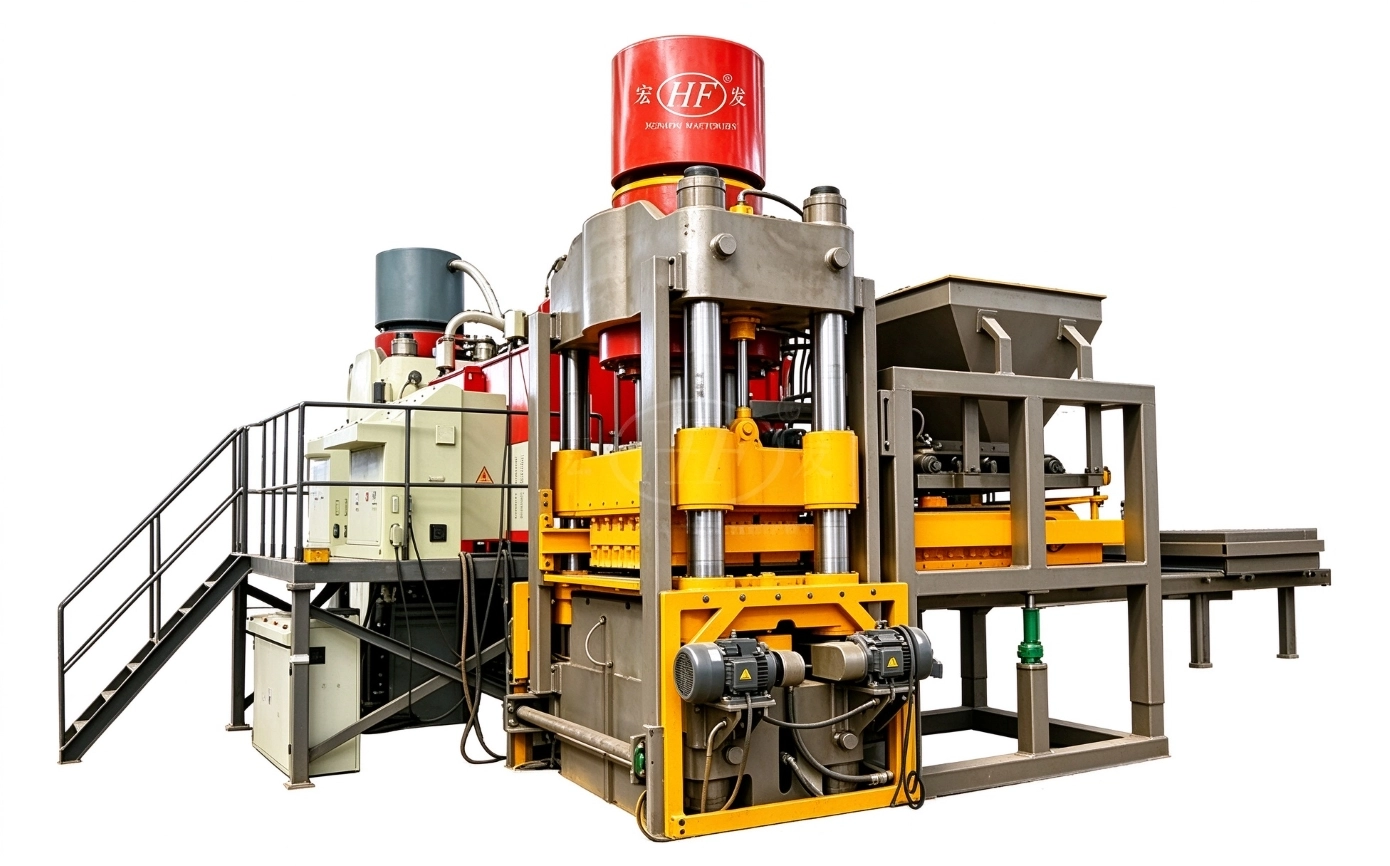

Hongfa 300T static press is an ideal upgrade option for medium-small brick plants. It abandons conventional vibration-molding and applies synchronized dual-direction floating compression. Raw materials get even pressure to eliminate common defects such as delamination, air voids and dimensional deviation. Molding cycle ≤20 seconds, equipped with Siemens PLC touch-screen HMI for one-click saved-recipe recall. Quick mould swap enables production of PC stone-look pavers, permeable bricks, grass-planting blocks and medium-size curbstones. It can seamlessly connect with automatic feeding and stacking units to build semi-automatic brick-making lines.

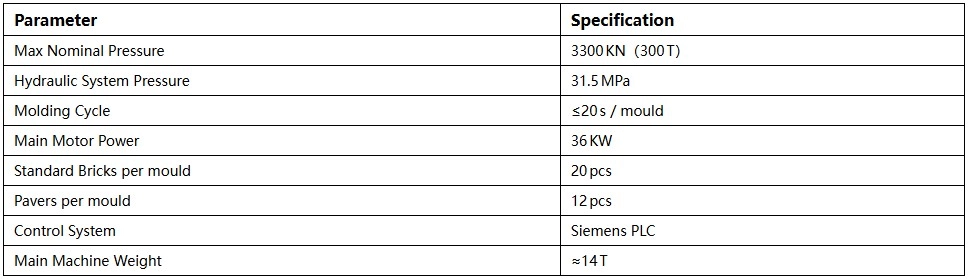

1.Max nominal pressure 3300KN (300T), dual-floating-frame compaction for synchronized top-and-bottom material compression & air exhausting.
2.Heavy-duty three-beam four-column welded frame with stress-relief treatment, supporting non-stop 24-hour mass-production.
3.Siemens PLC intelligent touch-screen control, multi-set saved production recipes and multi-layer safety protection for user-friendly operation.
4.High-performance well-known hydraulic valve components with closed-loop pressure feedback for precise pressure regulation.
5.Stable production rhythm with molding cycle ≤20 s, main motor power 36 KW.
6.Allow high mixing ratio of tailings, construction waste and fly ash to realize eco-friendly solid-waste recycling.
PC stone-look pavers, ecological permeable bricks, grass-planting blocks, medium-size curbstones, high-strength solid blocks
Medium-scale building-material plants, sponge-city permeable-pavement projects, municipal landscape supporting works, solid-waste recycling factories.
Founded in 1990, Hongfa owns modern manufacturing base. All core structures of 300T press are self-machined, every machine passes pre-shipment pressure inspection. Supplied as standalone unit or integrated batching-feeding-stacking turnkey line. Overseas on-site commissioning & training, 24-h online technical support and long-term genuine spare-parts service are available.
Q: Can this 300T press work with my existing batching system?
A: Yes, our engineers can evaluate your current equipment and offer adaptation advice. Matching feeding and stacking accessories are also available from our factory.
Q: What raw-materials can be processed?
A: Tailings, crushed construction waste, stone powder, fly ash mixed with cement. Sending raw-material samples is recommended for optimized mixing-ratio guidance.
Get capacity calculation, plant-layout suggestion and formal quotation for 300T static press. Share your raw-material type, target daily output and workshop dimension, our engineer prepares full customized project solution.
Hongfa 300T static press is an ideal upgrade option for medium-small brick plants. It abandons conventional vibration-molding and applies synchronized dual-direction floating compression. Raw materials get even pressure to eliminate common defects such as delamination, air voids and dimensional deviation. Molding cycle ≤20 seconds, equipped with Siemens PLC touch-screen HMI for one-click saved-recipe recall. Quick mould swap enables production of PC stone-look pavers, permeable bricks, grass-planting blocks and medium-size curbstones. It can seamlessly connect with automatic feeding and stacking units to build semi-automatic brick-making lines.
1.Max nominal pressure 3300KN (300T), dual-floating-frame compaction for synchronized top-and-bottom material compression & air exhausting.
2.Heavy-duty three-beam four-column welded frame with stress-relief treatment, supporting non-stop 24-hour mass-production.
3.Siemens PLC intelligent touch-screen control, multi-set saved production recipes and multi-layer safety protection for user-friendly operation.
4.High-performance well-known hydraulic valve components with closed-loop pressure feedback for precise pressure regulation.
5.Stable production rhythm with molding cycle ≤20 s, main motor power 36 KW.
6.Allow high mixing ratio of tailings, construction waste and fly ash to realize eco-friendly solid-waste recycling.
PC stone-look pavers, ecological permeable bricks, grass-planting blocks, medium-size curbstones, high-strength solid blocks
Medium-scale building-material plants, sponge-city permeable-pavement projects, municipal landscape supporting works, solid-waste recycling factories.
Founded in 1990, Hongfa owns modern manufacturing base. All core structures of 300T press are self-machined, every machine passes pre-shipment pressure inspection. Supplied as standalone unit or integrated batching-feeding-stacking turnkey line. Overseas on-site commissioning & training, 24-h online technical support and long-term genuine spare-parts service are available.
Q: Can this 300T press work with my existing batching system?
A: Yes, our engineers can evaluate your current equipment and offer adaptation advice. Matching feeding and stacking accessories are also available from our factory.
Q: What raw-materials can be processed?
A: Tailings, crushed construction waste, stone powder, fly ash mixed with cement. Sending raw-material samples is recommended for optimized mixing-ratio guidance.
Get capacity calculation, plant-layout suggestion and formal quotation for 300T static press. Share your raw-material type, target daily output and workshop dimension, our engineer prepares full customized project solution.
